Run/Stop Cable (Please Confirm Camera For Compatibility)

When using LBUS lens motors with a camera that does not have a native LBUS connector, the ARRI AMC-1 Active Motor Controller is one solution to make a complete setup.

A range of cables is available to make it work with cameras from ARRI, Red, Canon and others.

Up to three cforce mini motors can be daisy chained back to the AMC-1.

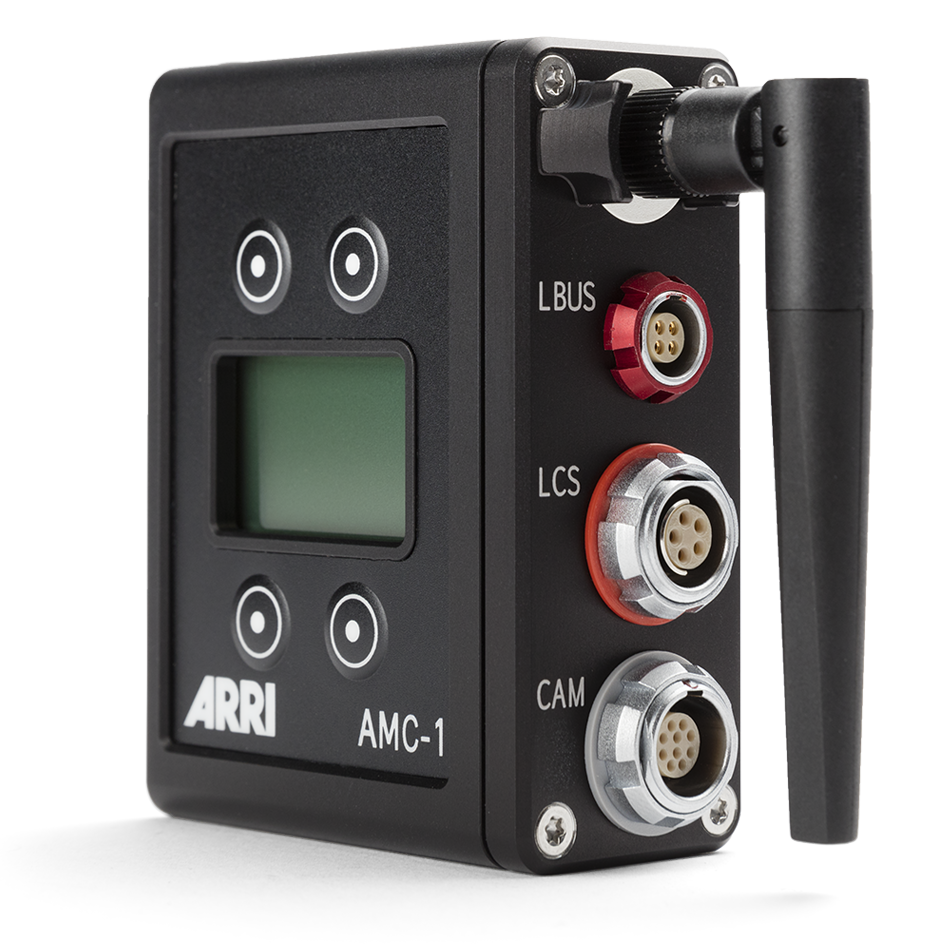

ARRI AMC-1 Motor Controller

When using LBUS lens motors with a camera that does not have an LBUS connector, you need a motor controller like the ARRI AMC-1. A range of cables are available to make it work with cameras from ARRI, Red, Canon and others.

Jupio USB Charger

Smart Focus Ring - Blank

Focus Ring - Blank

Pre-Marked Focus Ring - 8"

Pre-Marked Focus Ring - 12"

Pre-Marked Focus Ring - 14"

Pre-Marked Focus Ring - 20"

Pre-Marked Focus Ring - 3'6"

Hand Strap

Neck Strap

Transport Case

**Includes Cinefade license**

The ARRI Hi-5 is the most advanced and intuitive wireless control unit on the market. Featuring a friction adjustable control knob, slider control and a multi axis joystick, it is the perfect all in one wireless FIZ (focus/iris/zoom) controller.

It uses the same lens map system as the WCU-4 and loading maps is easier than ever before. Integrated bluetooth can connect to an IOS device which gives simple and easy control over loading and organising lens maps (hopefully an Android app isnt far away!)

The included RF-EMIP 2400 MHz radio module is powerful and can cut through interferance with ease and with up to 100 channels, the connection is reliable and robust.

The daylight viewable touch screen is clear and easy to read in bright environments and the 3 programable user buttons make operation quick and easy. These buttons can even be assigned to control camera user buttons.

The Hi-5 will work directly with ECS compatible ARRI cameras and also includes the licence to control camera functions from the hand unit. If you arent working with an ARRI camera, the Hi-5 can be paired with the cForce Mini RF motor to work with all other camera system.

The Cinefade license is installed for integration with the cmotion Cinefade motorised variable ND filter.

ARRI Hi-5 Kit

ARRI Hi-5 Hand Unit

ARRI RF-EMIP 2400MHz Radio Module

LBP-3500 Battery

The ARRI Hi-5 is the most advanced and intuitive wireless control unit on the market. Featuring a friction adjustable control knob, slider control and a multi axis joystick, it is the perfect all in one wireless FIZ (focus/iris/zoom) controller.

LCUBE 3/8" Bracket

19mm Rod Console With 15mm Reducer

The LCUBE CUB-1 from ARRI is a bi-directional serial to LBUS protocol converter. It is commonly used with accessories to feed distance data to ARRI cameras, such as the Focusbug or Cinetape rangefinders.

ARRI LCUBE CUB-1

Handgrip Extension - 160mm

Cable Clip 15mm

Extension Tube for Handgrip

Custom Transport Case

Foam Tray

ARRI Master Grips help operators do more. You can control run-stop, focus, iris and zoom as well as framing when operating cinema camera rigs with manual focus lenses.

Assign buttons to add or remove ND and control other functions linked to camera user buttons. Use the grips for handheld rigs or get creative with studio, gimbal and remote head setups.

Each grip has an ARRI rosette and two LBUS connectors, so you can combine them with a range of ARRI ECS products to build the setup you need.

This set has a left grip with wheel control and right grip with rocker control, and you can assign them to whichever axis you want. For example, with zoom lenses you can have the left grip control both focus and iris (and toggle between them using a joystick center press) and the right grip dedicated to zoom.

When using prime lenses, you might have the left grip dedicated to focus control and use the right grip with rocker for iris control.

ARRI Master Grips

ARRI MRR-1 Master Grip Right Rocker

ARRI MLW-1 Master Grip Left Wheel

ARRI LBUS Cable Right Angle to Straight - 0.35m

ARRI LBUS Cable Right Angle to Right Angle - 0.6m

ARRI Master Grips help operators do more. Control run-stop, focus, iris and zoom as well as framing when operating cinema camera rigs. Assign buttons to add/remove ND and other functions linked to user buttons. Use them for handheld setups or get creative with studio, gimbal and remote head setups.

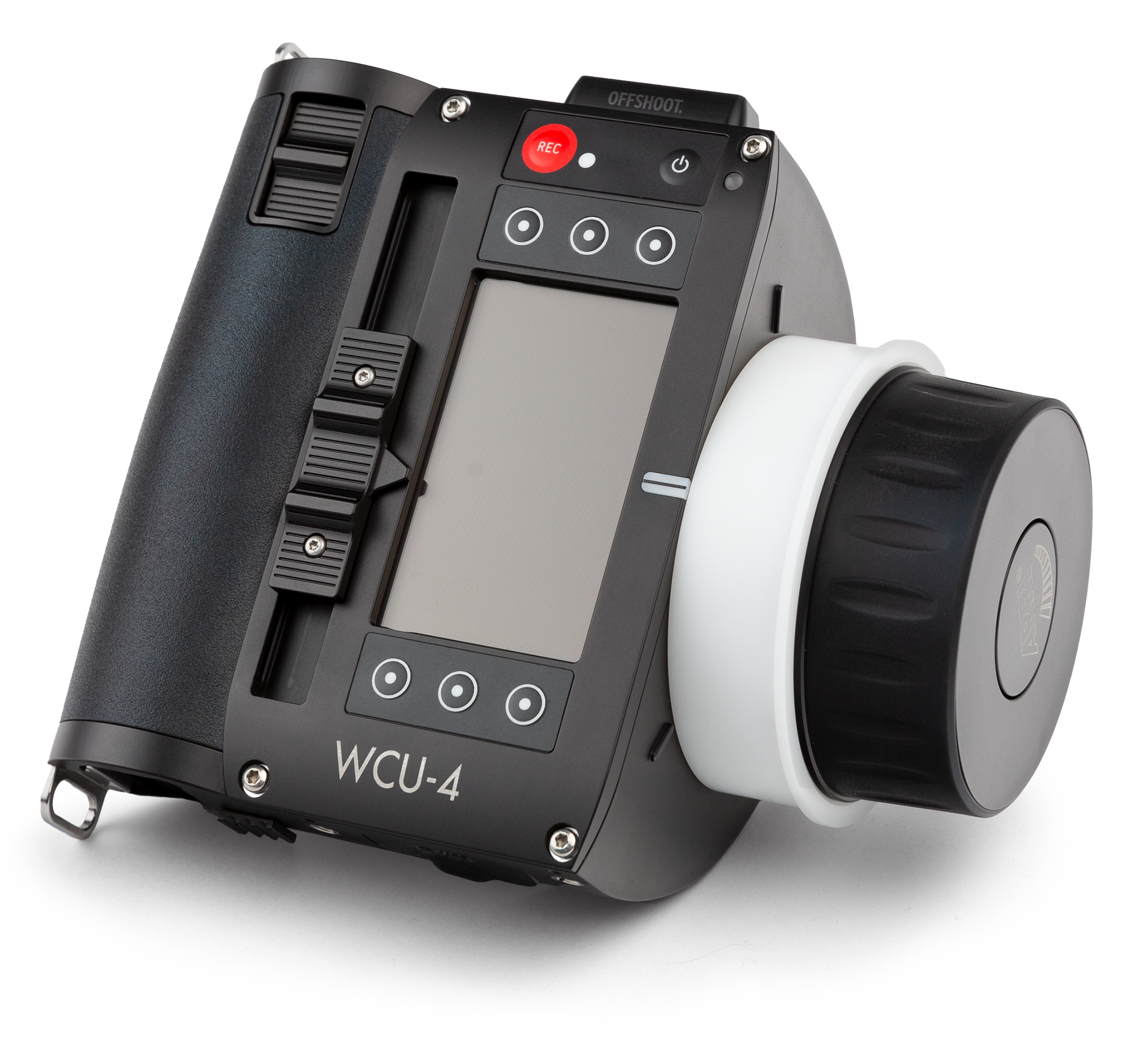

The WCU-4 is an advanced, three axis (focus/iris/zoom) hand controller with the ability to display detailed lens and camera information when used with ARRI cameras that support metadata.

Set marks and configure the hand unit to vibrate when they are hit - a great way to concentrate on a scene while ensuring proper focus. Vibrating alerts can also be set to tell the operator when the camera storage media is almost full or battery voltage is getting low.

The WCU-4 works as part of a wireless follow focus system built around either a standalone ARRI UMC-4 / UMC-3A radio unit (or an ARRI white radio compatible equivalent) or an ARRI camera with integrated controller (Alexa Mini, Mini LF etc).

## Alexa Camera Control License Installed
Our WCU-4 units include the optional license to control Alexa camera settings such as frame rate, shutter speed, exposure index, etc. Additional Alexa camera status information is also displayed on the WCU-4 with this option installed.

ARRI WCU-4 Kit

ARRI Wireless Compact Unit WCU-4

Sony NP-FM500H Battery

Sony BC-VM50 Battery Charger

The WCU-4 is an advanced, three axis (focus/iris/zoom) hand controller with the ability to display detailed lens and camera information when used with ARRI cameras that support metadata.

A single axis fireless follow focus kit for use with an ARRI camera that has an LBUS connector.

This kit consists of an <ProductLink id="5fbc65d85e6b737f7ad82fc7">ARRI WCU-4 hand unit</ProductLink> and an <ProductLink id="5fbc641b5e6b730278d8297d">ARRI cForce Mini motor</ProductLink>.

This kit does not include a motor controller. For a kit with a motor controller you can use the <ProductLink id="602db30a5dc9c1bc544d6925">ARRI Wireless Follow Focus Kit - Single Axis Universal</ProductLink>.

Arri Wireless Follow Focus Kit - Single Axis LBUS

ARRI Wireless Follow Focus Kit - Single Axis LBUS / WCU-4

ARRI cforce mini Lens Motor

The cforce mini motor connects via an LBUS cable to the LBUS port on the lens mount of a compatible camera, such as the Alexa Mini LF shown here.

A single channel wireless follow focus kit for use with ARRI cameras that have an LBUS connector.

An ARRI single axis fireless follow focus kit for use with most camera systems.

This kit consists of an <ProductLink id="5fbc65d85e6b737f7ad82fc7">ARRI WCU-4 hand unit</ProductLink>, 1x  <ProductLink id="5fbc641b5e6b730278d8297d">ARRI cForce Mini motor</ProductLink> and an <ProductLink id="5ff3c62cc11f6e153b466769">ARRI AMC-1 motor controller</ProductLink>.

This kit includes a motor controller and is compatible with most camera systems. For a kit to use with an ARRI LBUS enabled camera, you can use the <ProductLink id="602db7bf5dc9c12f0c4d75c9">ARRI Wireless Follow Focus Kit - Single Axis LBUS</ProductLink>.

**Please note that this setup cannot be used with lens maps.**

Arri Wireless Follow Focus Kit - Single Axis Universal

ARRI Wireless Follow Focus Kit - Single Axis Universal

Our Arri single axis universal wireless follow focus kit on a Canon C500 MKII camera. Camera run/stop control works with this setup.

The AMC-1 is what connects the cforce mini lens motor to the camera. This particular camera cable has a d-tap and lanc connector. The former provides power to the AMC-1 and the latter allows camera run/stop control.

The cable from the AMC-1 to the camera has a d-tap connector  (to power the AMC-1) and a LANc connector (to control camera run/stop).

An ARRI single axis wireless follow focus kit with a motor controller for use with most camera systems.

40 tooth M0.8 gear

15mm Reduction Bushing

19mm Rod Clamp

The ARRI cforce mini is a small, lightweight lens motor ideal for reducing clutter and weight for gimbal, steadicam, remote head and other applications.

When used with an ARRI camera fitted with an LBUS port, no motor controller / MDR unit is required, reducing build weight and complexity. Additional motors simply daisy chain to each other (up to 3 motors total can be daisy chained).

Fits 19mm and 15mm rods (with the included 15mm reduction bushing).

When used with cameras without an LBUS port, a cforce mini RF or the ARRI AMC-1 (or equivalent motor controller) is needed.

ARRI LBUS Cable

ARRI cforce mini

ARRI cforce mini motor with Alexa 35 camera, Leitz Summicron-C lens and Focusbug Cine RT on an ARRI Trinity 2.

ARRI cforce mini lens motors driving an Angenieux Optimo Style 25-250mm cine zoom on an ARRI Alexa Mini LF camera.

The ARRI cforce mini is a small, lightweight lens motor ideal for reducing clutter and weight for gimbal, steadicam, remote head and other applications.

40 Tooth M0.8 Gear

cForce Mini Clamp Console 2

15mm Half Bushing

The ARRI cforce mini RF motor is a wireless FIZ (focus/iris/zoom) motor that features an integrated radio module, which eliminates the need for an additional motor controller.

The integrated 2400 MHz white radio pairs with the ARRI Hi-5, WCU-4 and SXU-1 and is a great option when you want the reliability of the ARRI wireless control system when using a third party camera system.

Lens maps can also be easily configured with the cforce mini RF motor from the hand unit.

This motor will work with any camera system that can supply power via D-Tap and it can also provide run/stop control to a camera with RS (3-pin Fischer) or a LANC port (2.5mm TRS).

Additional <ProductLink id="5fbc641b5e6b730278d8297d">cforce mini motors</ProductLink> can be daisy chained via LBUS.

ARRI cforce mini RF Lens Motor

ARRI cforce mini RF

ARRI LBUS to D-Tap Cable - 0.8M

The ARRI cforce mini RF motor is a wireless FIZ (focus/iris/zoom) motor that features an integrated radio module which eliminates the need for a dedicated motor controller.

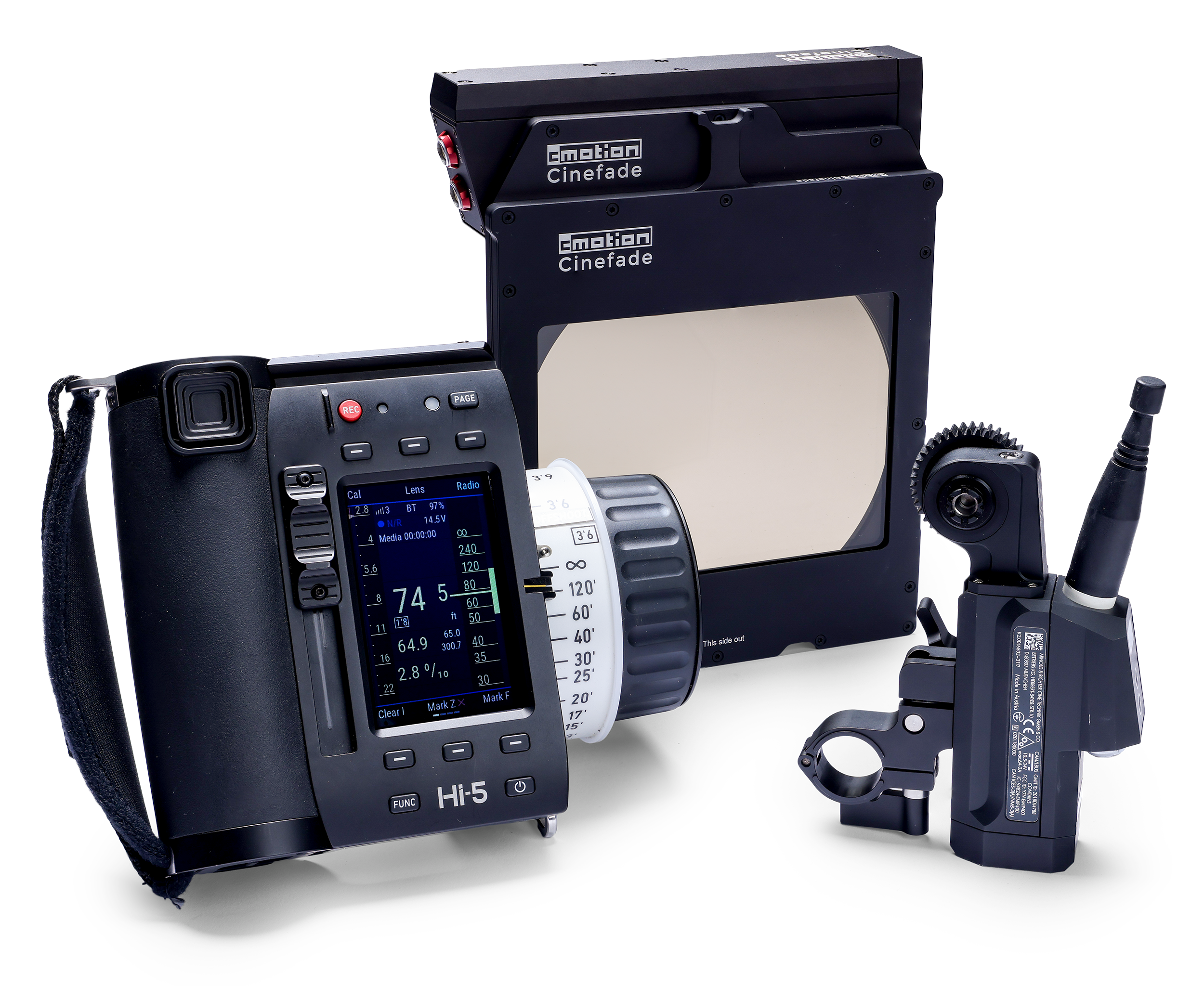

This Cinefade kit includes the essential components for using the Cinefade with both ARRI and non-ARRI cameras. The Hi-5 has the Cinefade license installed and allows complete control of the Cinefade as a motorised pola, motorised variable ND or in Cinefade mode.

We can supply cables to make this kit work with a range of cameras, so please talk to us about which camera you are using to ensure compatibility.

Cinefade + Hi-5 + cforce RF Kit

cmotion Cinefade

This Cinefade kit includes the essential components for using the Cinefade with both ARRI and non-ARRI cameras. The Hi-5 has the Cinefade license installed and allows complete control of the Cinefade as a motorised pola, motorised variable ND or in Cinefade mode.

The cmotion Cinefade is a motorised polarising and variable ND filter compatible with the LBUS ecosystem.

It can also be used to maintain consistent exposure during an iris pull by automatically adjusting the level of ND in sync with the change of aperture (this is known as the cinefade effect).

The full ND range offered by the Cinefade is ND0.4 to ND2.7 (up to 9 stops), but the recommended _optical safe_ range is ND0.4 to ND1.8 to avoid potential colour casts and artifacting.

**Please note: The Cinefade works with both ARRI and non ARRI cameras but requires an ARRI Hi-5 with the Cinefade license installed (or a compatible cmotion hand unit), as well as an ARRI RIA-1 or cforce mini RF in the LBUS chain in order to be controlled remotely. Native ALEXA 35 support is coming but for now a RIA-1 or cforce mini RF motor is needed.**

cmotion Cinefade Motorised Polarising Filter

cmotion Cinefade Static Filter

The cmotion Cinefade is a motorised polarising and variable ND filter compatible with the LBUS ecosystem. It can also be used to maintain consistent exposure during an iris pull by automatically adjusting the level of ND in sync with the change of aperture (this is the cinefade effect).

LBUS to D-Tap Cable (0.8M)

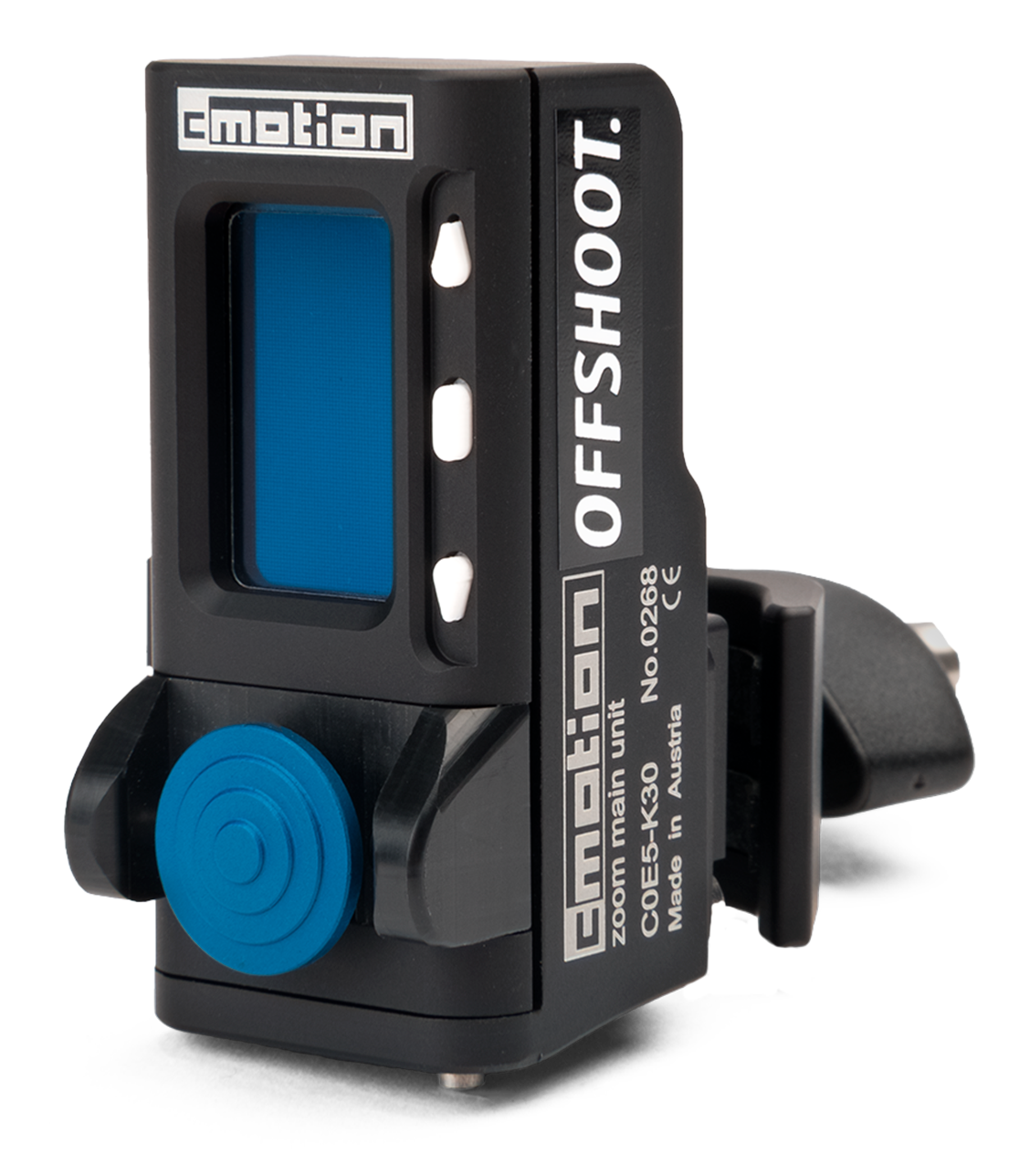

The cmotion pan-bar zoom is a convenient zoom control for use with Arri / cmotion cforce based lens control systems. The control unit has a single LBUS connector for both power and communication. The rod clamp fits rods that are 15mm - 32mm in diameter.

ECS

Electronic lens control systems, aka FIZ control and wireless follow focus kits. We've got common kits or you can hire the individual components.
