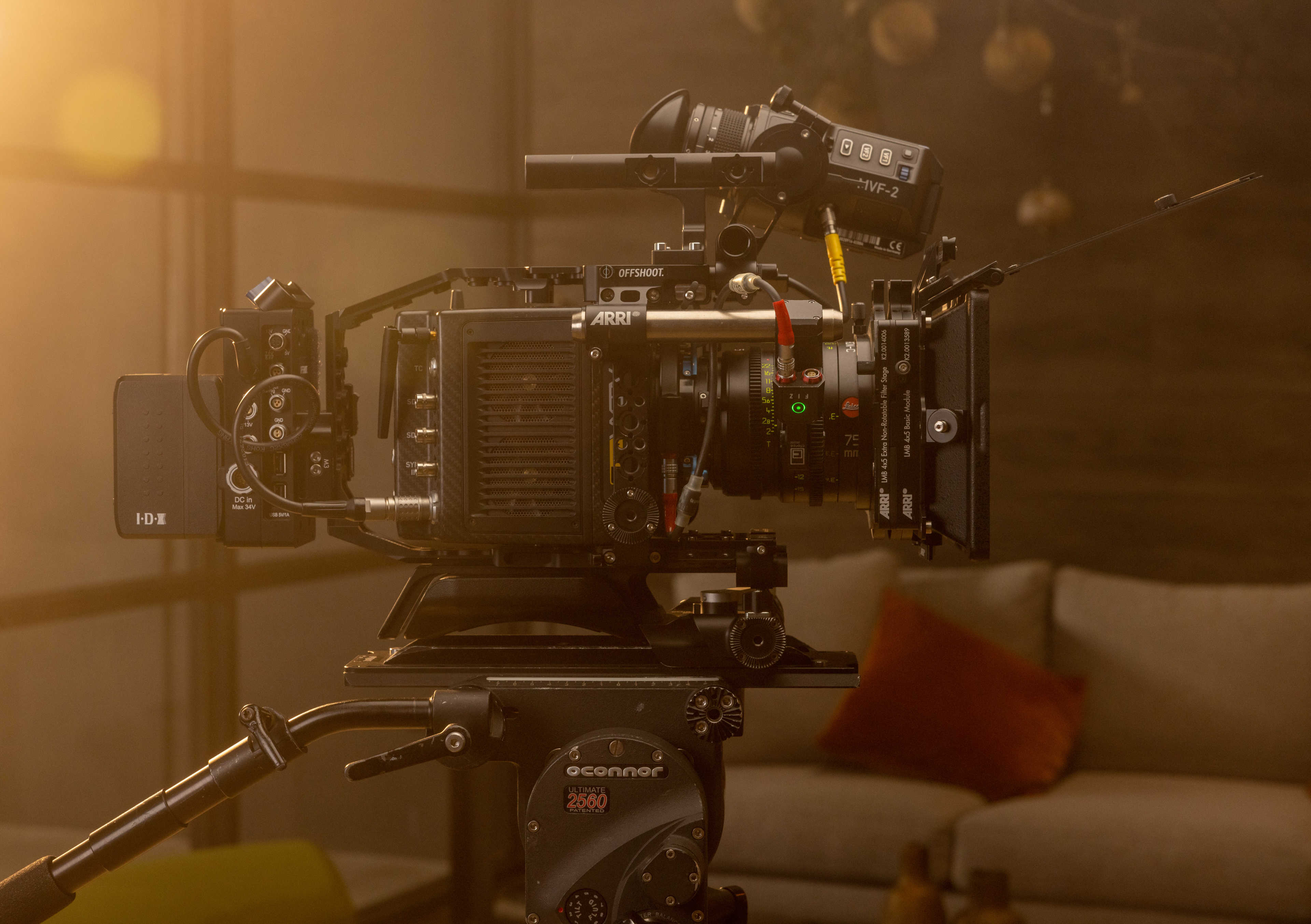

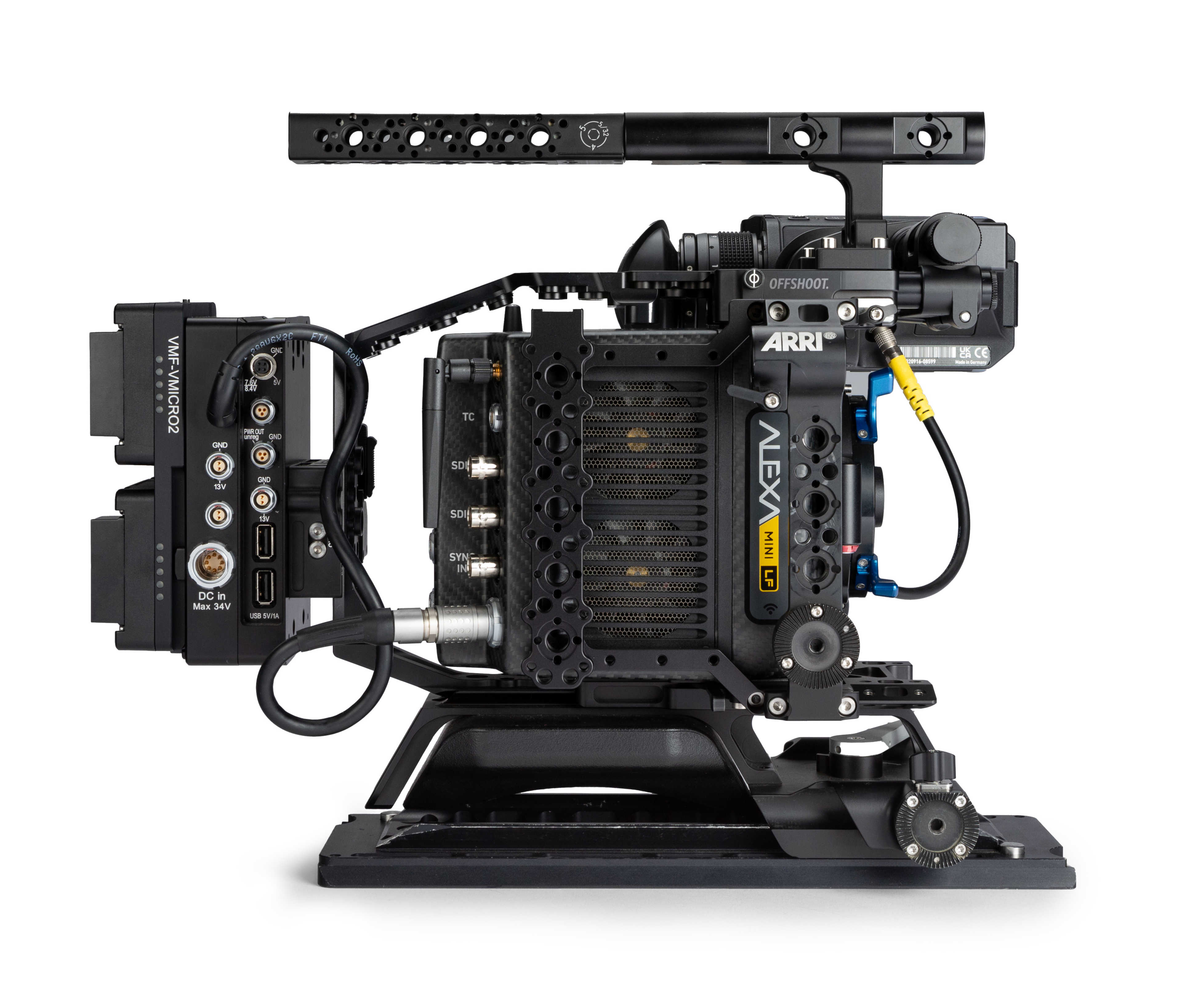

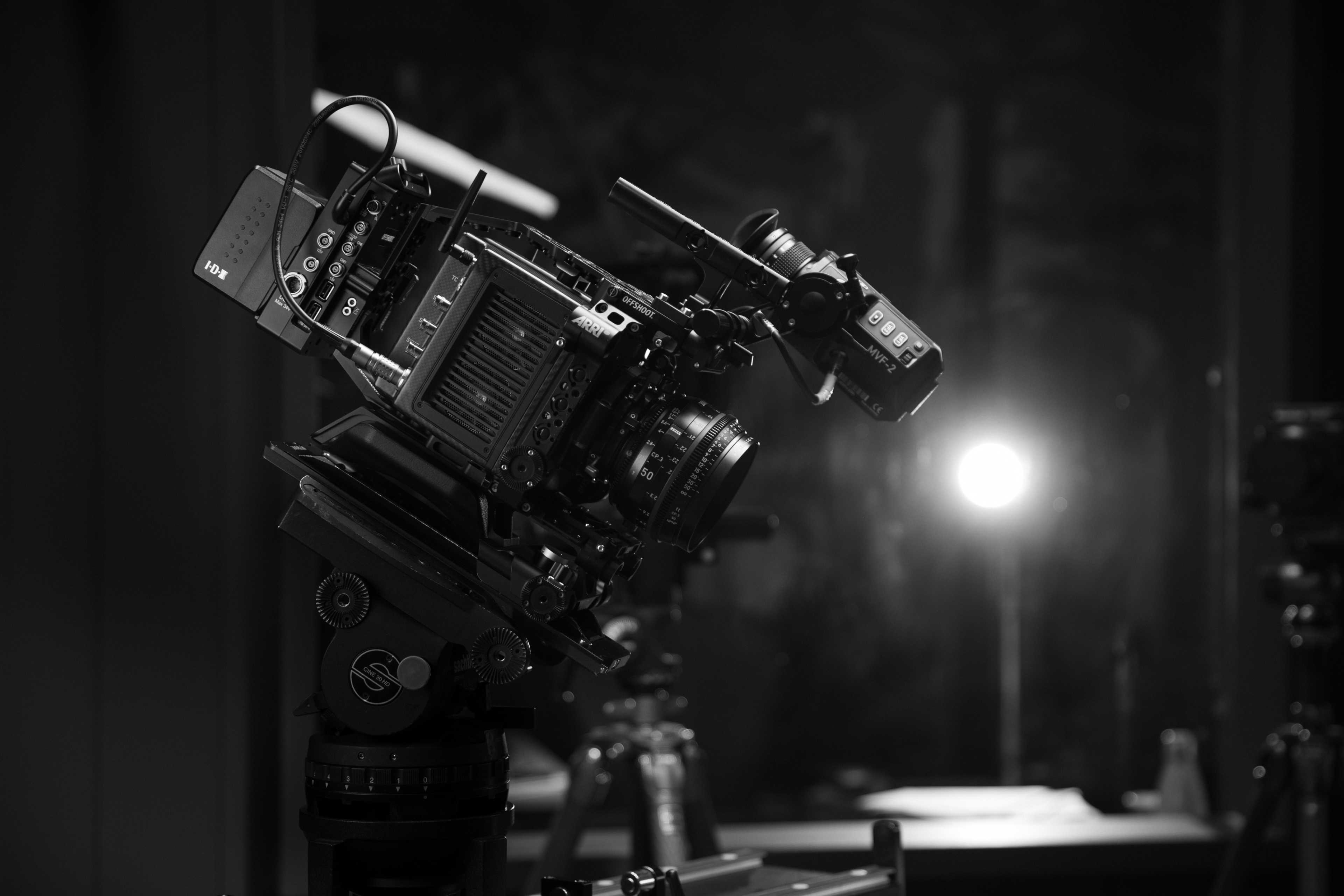

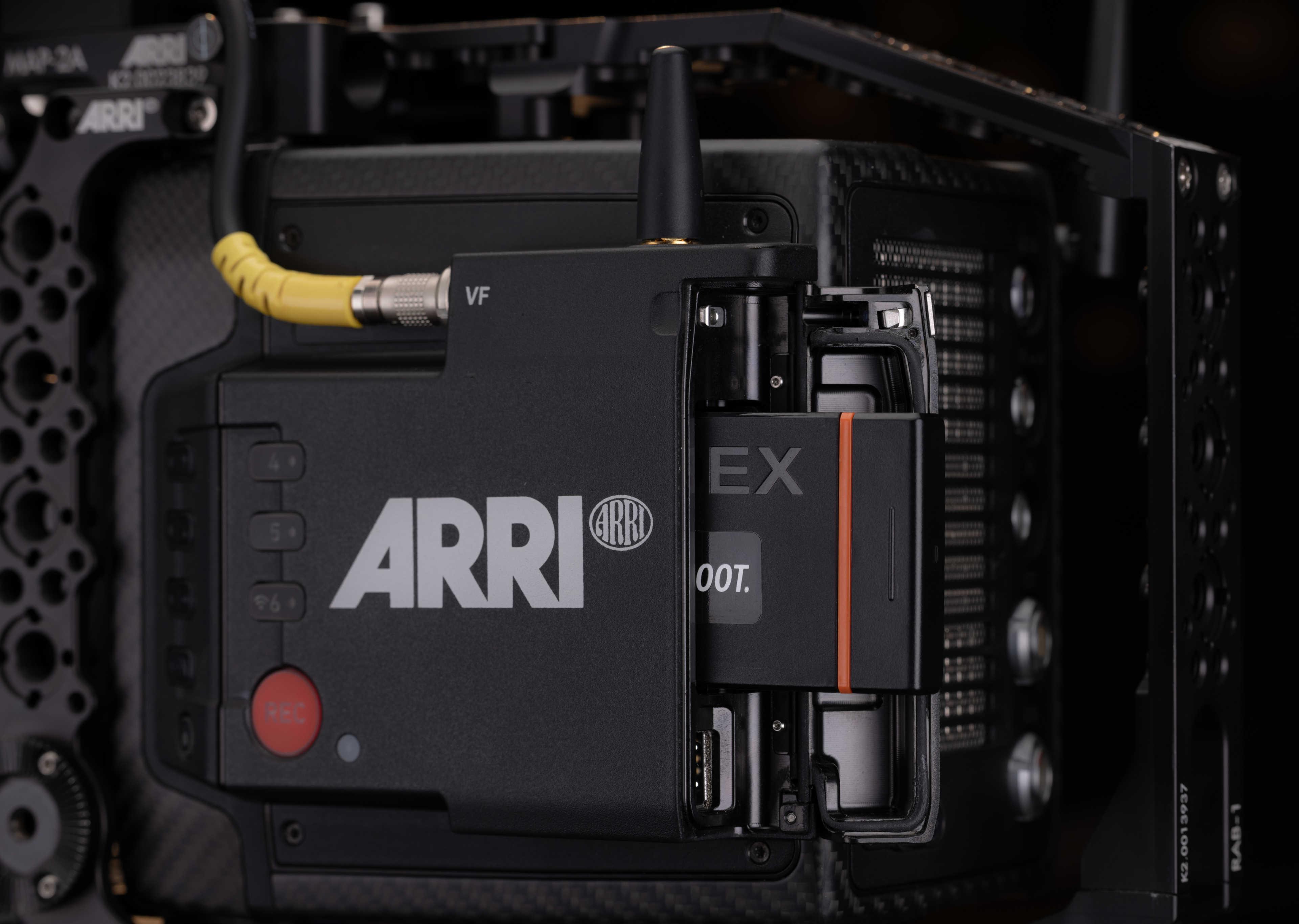

ARRI Alexa Mini LF Kit
The ARRI Alexa Mini LF offers you the premium, large format look in a package very similar in size to the popular, super 35 sensor based ARRI Alexa Mini.
The colour science from the Mini LF is the same industry standard look as from Alexa LF, Alexa Mini and Amira cameras - so you know you are getting the best image available today.
The Mini LF includes both an LPL mount and a PL adapter, allowing the use of a wide range of lenses. A Canon EF mount is also available as a no-cost alternative option.
Choose from a range of recording formats to suit your project requirements and the lenses being used - from LF Open Gate through to LF 16:9 or 2.39:1 modes. Talk to us about lens compatibility if you have any questions.

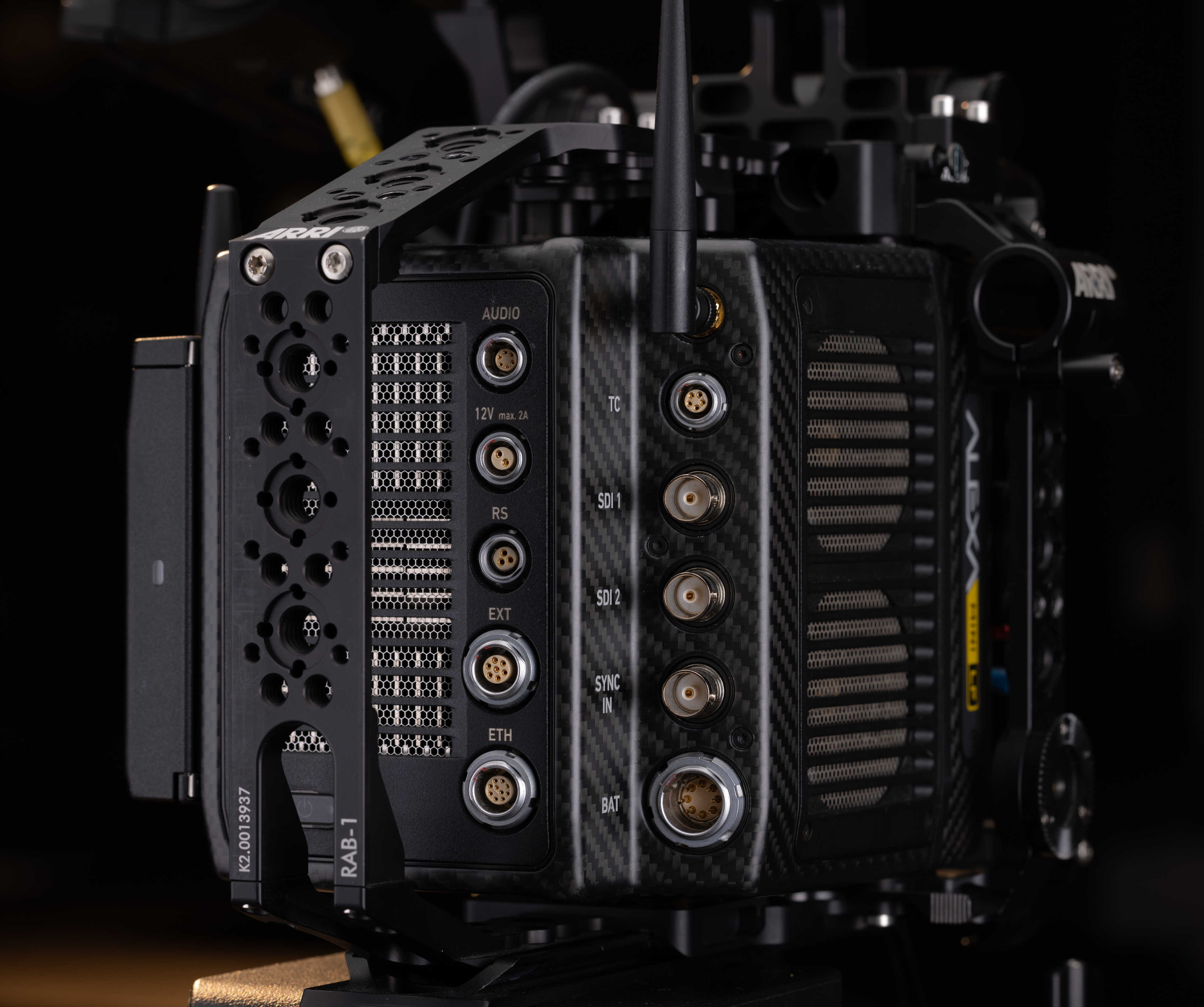

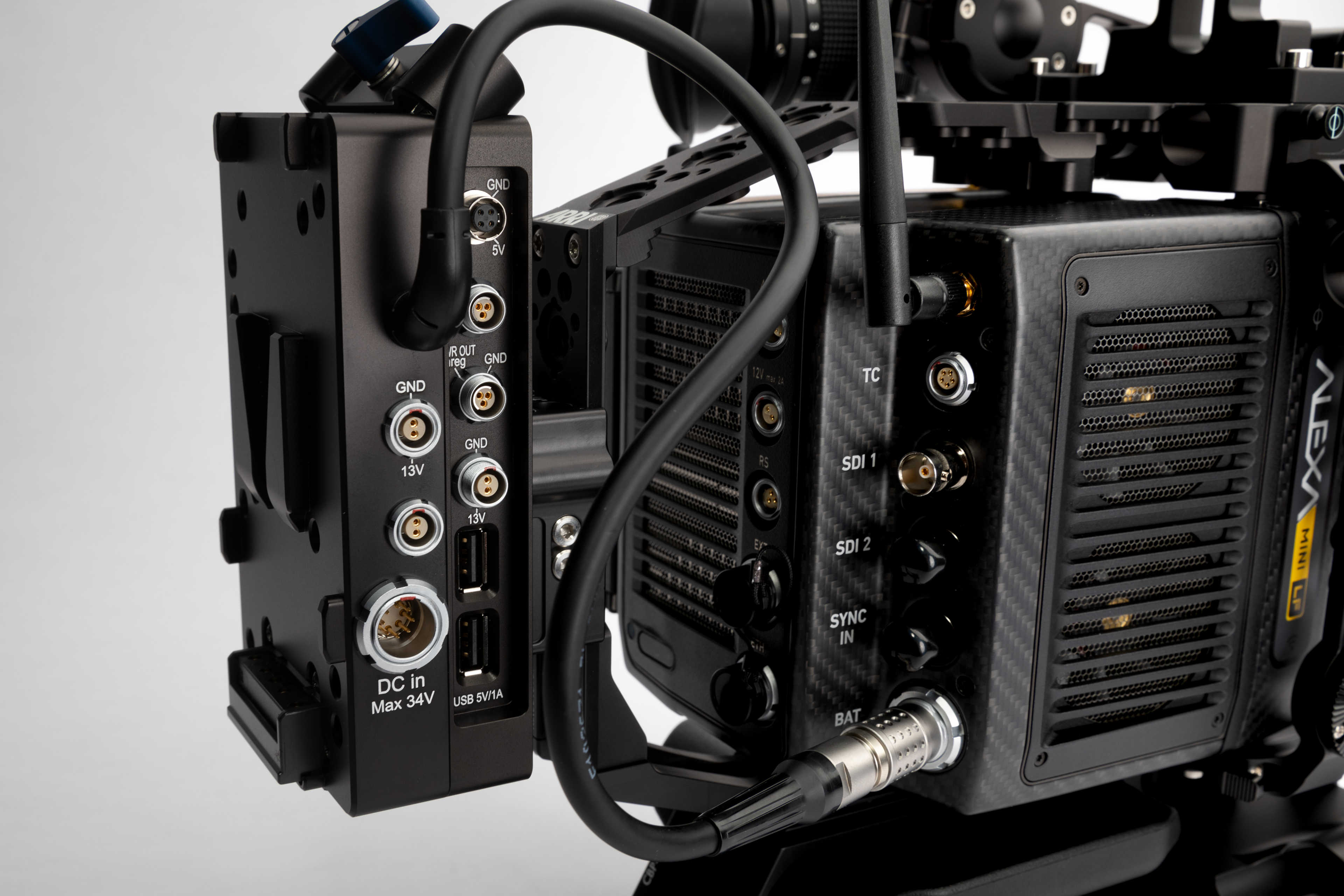

The Mini LF also improves upon the S35 Alexa Mini in some key areas. The EVF cable connector is now a single pin and cannot be inserted incorrectly. There's a dedicated genlock/sync BNC jack, rather than this function consuming the second SDI output. The camera body has 12V and 24V auxiliary power connectors for powering accessories directly from the camera body (rather than via the power distribution box).
1917
Roger Deakins talks about how the Alexa Mini LF was used to film 1917.
Showreel: Café Mila
Arri Alexa Mini LF showreel.
EF Mount Option
This Arri Tech Talk video discusses the new Canon EF mount for Alexa Mini LF (available as a no-cost option with our kit).
LF Sample Footage
Sample footage showreel from Arri.
Tech Talk: Workflow
Learn about the production workflow using the Alexa Mini LF.
Tech Talk: Features
An overview of the features of the Arri Alexa Mini LF camera.

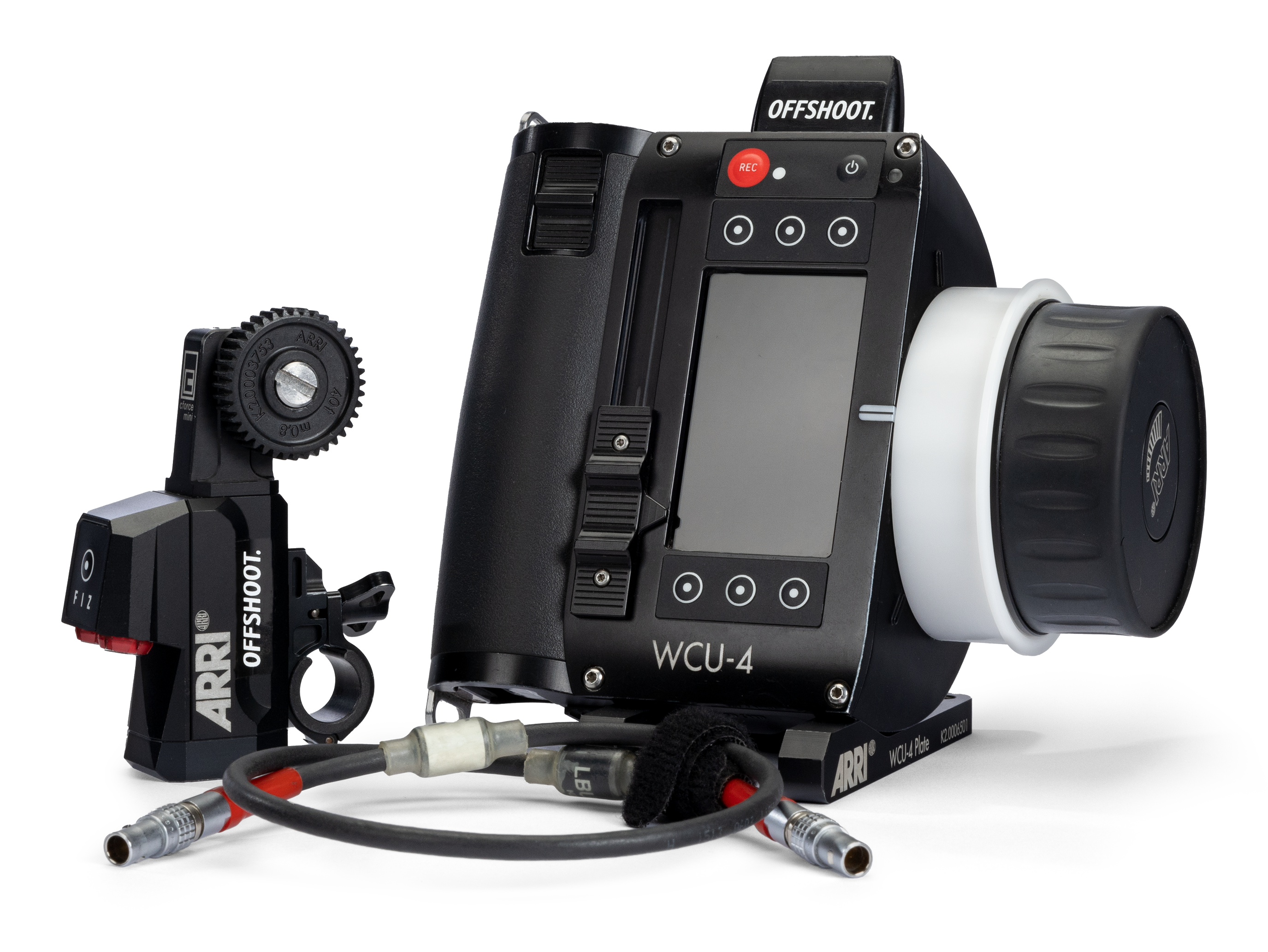

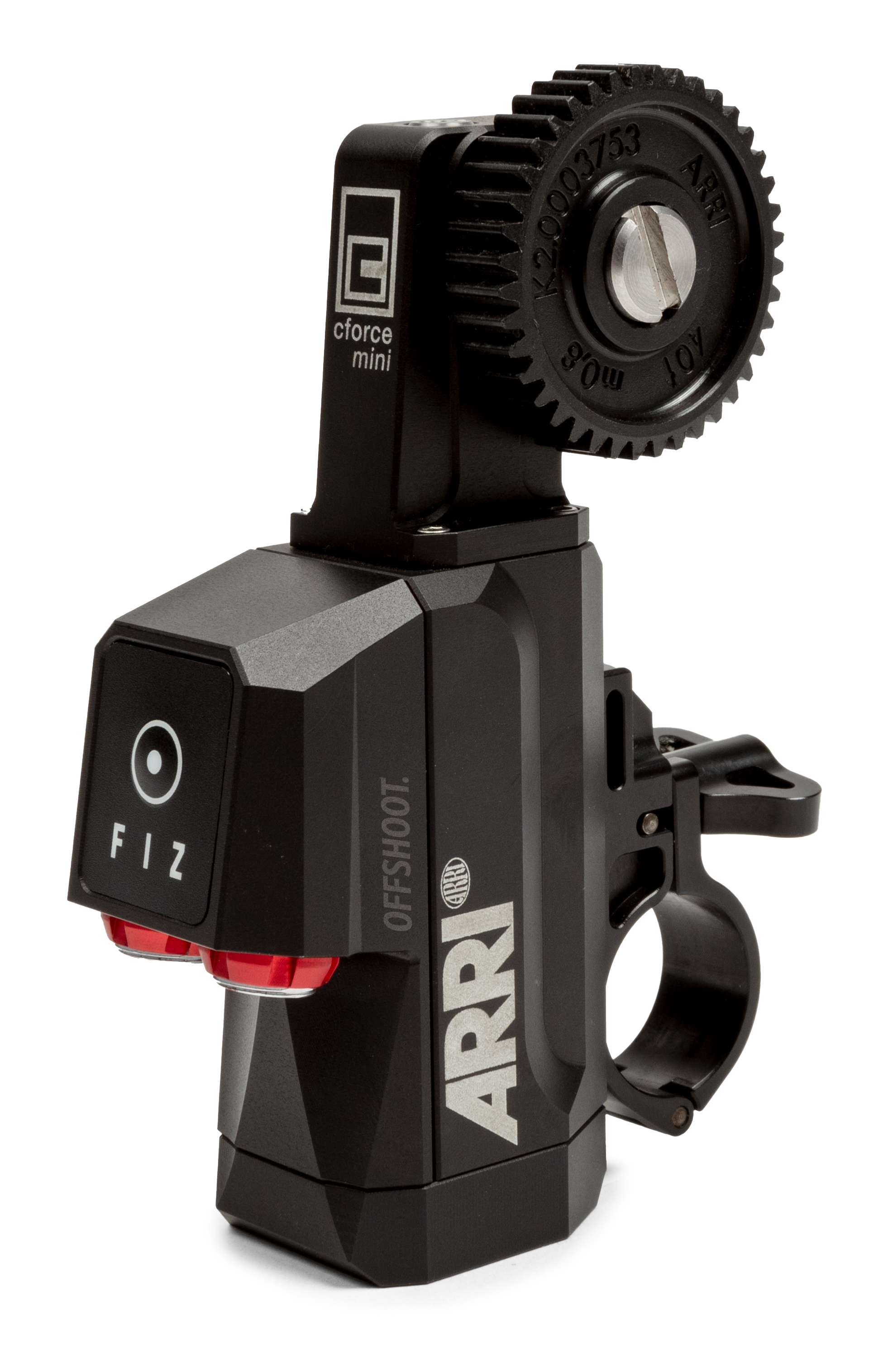

Tech Talk: ECS Accessories
Find out about ECS (electronic control system) options for the Alexa Mini LF.

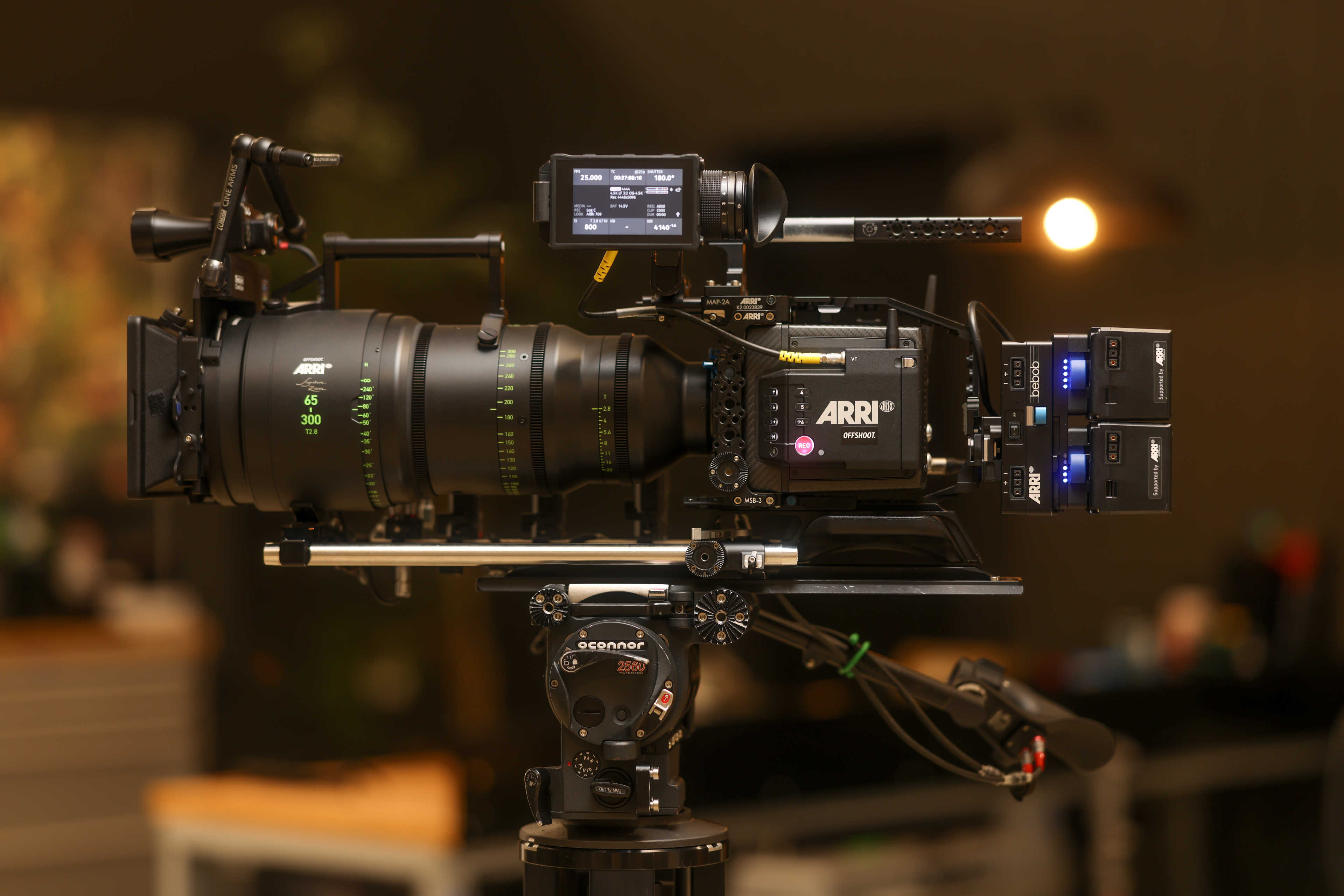

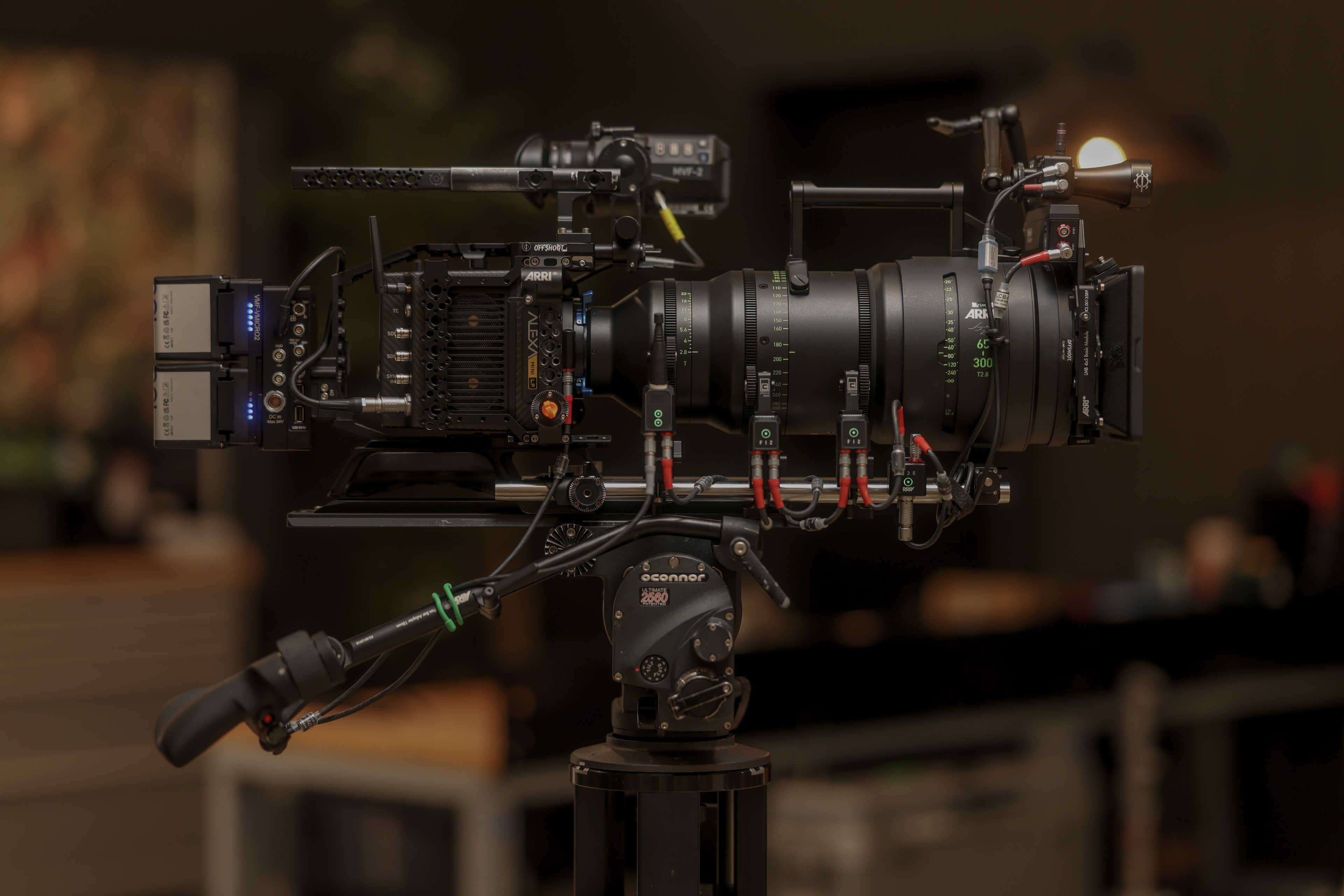

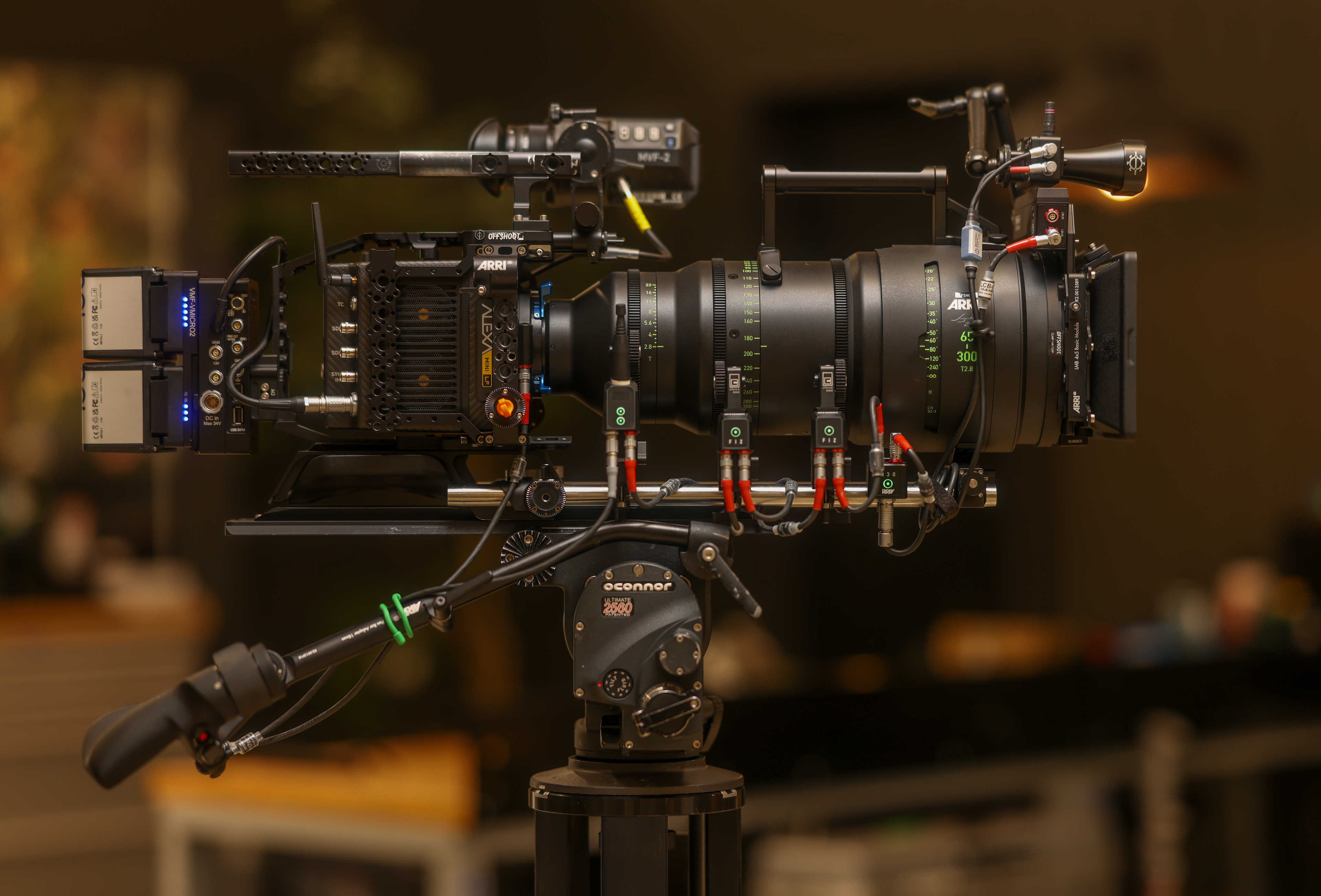

Tech Talk: Rigging
A look at how the Alexa Mini LF in a ready to shoot configuration.
Lens Mount
Included Mounts
LPL mount with LBUS connector PL-to-LPL adapter (included) EF Mount (optional)
Flange Focal Depth
LPL mount: 44 mm With PL-to-LPL adapter: 52 mm
Imaging Sensor
Sensor Type
Large Format ARRI ALEV III (A2X) CMOS sensor with Bayer pattern color filter array
Sensor Size
36.7 x 25.54mm. ⌀ 44.71 mm.
Maximum Resolution
4448 x 3096 pixels.
Sensor Frame Rates
0.75 - 90 fps
Photosite Pitch
8.25 μm
Exposure Latitude
14+ stops over the entire sensitivity range from EI 160 to EI 3200
Media & Recording Formats
Recording Media
Codex Compact Drives
Supported Formats
MXF/ARRIRAW MXF/Apple ProRes 4444 XQ MXF/Apple ProRes 4444 MXF/Apple ProRes 422 HQ
Colour Coding
Apple ProRes 422 HQ
10bit YCbCr
Apple ProRes 4444
12bit YCbCr
AppleProRes 4444 XQ
12bit YCbCr
ARRIRAW
12bit Log
Recording Formats - ARRIRAW
4.5K LF 3:2 Open Gate - 4.5K
Clip resolution: 4448 x 3096px Active photosites: 4448 x 3096 px Image area: 36.70 x 25.54mm Image circle: ⌀44.71mm Max FPS: 40
4.5K LF 2.39:1 - 4.5K
Clip resolution: 4448 x 1856px Active photosites: 4448 x 1856px Image area: 36.7 x 15.31mm Image circle: ⌀39.76 Max FPS: 60
3.8K LF 16:9 - UHD
Clip resolution: 2840 x 2160px Active photosites: 3840 x 2160px Image area: 31.68 x 17.82mm Image circle: ⌀36.35mm Max FPS: 60
2.8K LF 1:1 - 2.8K
Clip resolution: 2880 x 2880px Active photosites: 2880 x 2880px Image area: 23.76 x 23.76mm Image circle: ⌀33.6 Max FPS: 60
3.4K S35 3:2 - 3.4K
Clip resolution: 3424 x 2202px Active photosites: 3424 x 2202px Image area: 28.25 x 18.17mm Image circle: ⌀33.59 Max FPS: 60
Recording Formats - Apple ProRes
4.5K LF 3:2 Open Gate - 4.5K
Clip resolution: 4448 x 3096px Active photosites: 4448 x 309 px Image area: 36.70 x 25.54mm Image circle: ⌀44.71mm Max FPS: 40
4.5K LF 2.39:1 - 4.5K
Clip resolution: 4448 x 1856px Active photosites: 4448 x 1856px Image area: 36.7 x 15.31mm Image circle: ⌀39.76 Max FPS: 60
4.3K LF 16:9 - UHD
Clip resolution: 3840 x 2160px Active photosites: 4320 x 2430px Image area: 35.64 x 20.05mm Image circle: ⌀40.89 Max FPS: 48
4.3K LF 16:9 - HD
Clip resolution: 1920 x 1080px Active photosites: 4320 x 2430px Image area: 35.64 x 20.05mm Image circle: ⌀40.89 Max FPS: 75
3.8K LF 16:9 - UHD
Clip resolution: 2840 x 2160px Active photosites: 3840 x 2160px Image area: 31.68 x 17.82mm Image circle: ⌀36.35mm Max FPS: 60
3.8K LF 16:9 - 2K
Clip resolution: 2048 x 1152px Active photosites: 3840 x 2160px Image area: 31.68 x 17.82mm Image circle: ⌀36.35mm Max FPS: 90
3.8K LF 16:9 - HD
Clip resolution: 1920 x 1080px Active photosites: 3840 x 2160px Image area: 31.68 x 17.82mm Image circle: ⌀36.35mm Max FPS: 90
2.8K LF 1:1 - 2.8K
Clip resolution: 3072 x 2880px Active photosites: 2880 x 2880px Image area: 23.76 x 23.76mm Image circle: ⌀33.6mm Max FPS: 60
3.2K S35 16:9 - 3.2K
Clip resolution: 3200 x 1800px Active photosites: 3200 x 1800px Image area: 26.4 x 14.85mm Image circle: ⌀30.29 Max FPS: 75
2.8K S35 4:3 - 2.8K
Clip resolution: 3072 x 2160px Active photosites: 2880 x 2160px Image area: 23.76 x 17.82mm Image circle: ⌀29.7 mm Max FPS: 75
2.8K S35 16:9 - HD
Clip resolution: 1920 x 1080px Active photosites: 2880 x 1620px Image area: 23.76 x 13.37mm Image circle: ⌀27.26 Max FPS: 100
Recording Times (1TB) - ARRIRAW
4.5K LF 3:2 Open Gate - 4.5K
25fps (4173Mbps) - 31mins 40fps (6620Mbps) - 19mins
4.5K LF 2.39:1 - 4.5K
25fps (2481Mbps) - 51mins 60fps (5955Mbps) - 21mins
3.8K LF 16:9 - UHD
25fps (2489Mbps) - 51mins 60fps (5973Mbps) - 21mins
2.8K LF 1:1 - 2.8K
25fps (2489Mbps) - 51mins 60fps (5973Mbps) - 21mins
Recording Times (1TB) - ProRes 4444 HQ
4.5K LF 3:2 Open Gate - 4.5K
25fps (2795Mbps) - 45mins 40fps (4472Mbps) - 28mins
4.5K LF 2.39:1 - 4.5K
25fps (1679Mbps) - 76mins 60fps (4029Mbps) - 31mins
4.3K LF 16:9 - UHD
25fps (1858Mbps) - 76mins 48fps (3567Mbps) - 39mins
4.3K LF 16:9 - HD
25fps (464Mbps) - 301mins 75fps (1393Mbps) - 100mins
3.8K LF 16:9 - UHD
25fps (1858Mbps) - 76mins 60fps (4459Mbps) - 31mins
3.8K LF 16:9 - 2K
25fps (482Mbps) - 265mins 90fps (1736Mbps) - 73mins
3.8K LF 16:9 - HD
25fps (464Mbps) - 301mins 90fps (1672Mbps) - 83mins
2.8K LF 1:1 - 2.8K
25fps (1858Mbps) - 72mins 60fps (4459Mbps) - 30mins
3.2K S35 16:9 - 3.2K
25fps (1290Mbps) - 99mins 75fps (3871Mbps) - 33mins
2.8K S35 4:3 - 2.8K
25fps (1424Mbps) - 91mins 75fps (4273Mbps) - 30mins
2.8K S35 16:9 - HD
25fps (464Mbps) - 301mins 100fps (1858Mbps) - 75mins
Recording Times (1TB) - ProRes 4444
4.5K LF 3:2 Open Gate - 4.5K
25fps (1836Mbps) - 66mins 40fps (2942Mbps) - 43mins
4.5K LF 2.39:1 - 4.5K
25fps (1104Mbps) - 115mins 60fps (2651Mbps) - 48mins
4.3K LF 16:9 - UHD
25fps (1239Mbps) - 116mins 48fps (2378Mbps) - 60mins
4.3K LF 16:9 - HD
25fps (310Mbps) - 458mins 75fps (929Mbps) - 152mins
3.8K LF 16:9 - UHD
25fps (1239Mbps) - 116mins 60fps (2973Mbps) - 48mins
3.8K LF 16:9 - 2K
25fps (317Mbps) - 403mins 90fps (1142Mbps) - 112mins
3.8K LF 16:9 - HD
25fps (310Mbps) - 458mins 90fps (1115Mbps) - 127mins
2.8K LF 1:1 - 2.8K
25fps (1239Mbps) - 108mins 60fps (2973Mbps) - 45mins
3.2K S35 16:9 - 3.2K
25fps (860Mbps) - 148mins 75fps (2580Mbps) - 49mins
2.8K S35 4:3 - 2.8K
25fps (950Mbps) - 137mins 75fps (2849Mbps) - 45mins
2.8K S35 16:9 - HD
25fps (310Mbps) - 458mins 100fps (1239Mbps) - 114mins
Recording Times (1TB) - ProRes 422 HQ
4.5K LF 3:2 Open Gate - 4.5K
25fps (1226Mbps) - 104mins 40fps (1961Mbps) - 65mins
4.5K LF 2.39:1 - 4.5K
25fps (736Mbps) - 173mins 60fps (1767Mbps) - 72mins
4.3K LF 16:9 - UHD
25fps (826Mbps) - 174mins 48fps (1585Mbps) - 90mins
4.3K LF 16:9 - HD
25fps (206Mbps) - 687mins 75fps (619Mbps) - 229mins
3.8K LF 16:9 - UHD
25fps (826Mbps) - 174mins 60fps (1982Mbps) - 72mins
3.8K LF 16:9 - 2K
25fps (212Mbps) - 605mins 90fps (761Mbps) - 168mins
3.8K LF 16:9 - HD
25fps (206Mbps) - 687mins 90fps (743Mbps) - 190mins
2.8K LF 1:1 - 2.8K
25fps (826Mbps) - 163mins 60fps (1982Mbps) - 68mins
3.2K S35 16:9 - 3.2K
25fps (573Mbps) - 223mins 75fps (1720Mbps) - 74mins
2.8K S35 4:3 - 2.8K
25fps (633Mbps) - 206mins 75fps (1899Mbps) - 68mins
2.8K S35 16:9 - HD
25fps (206Mbps) - 687mins 100fps (826Mbps) - 171mins

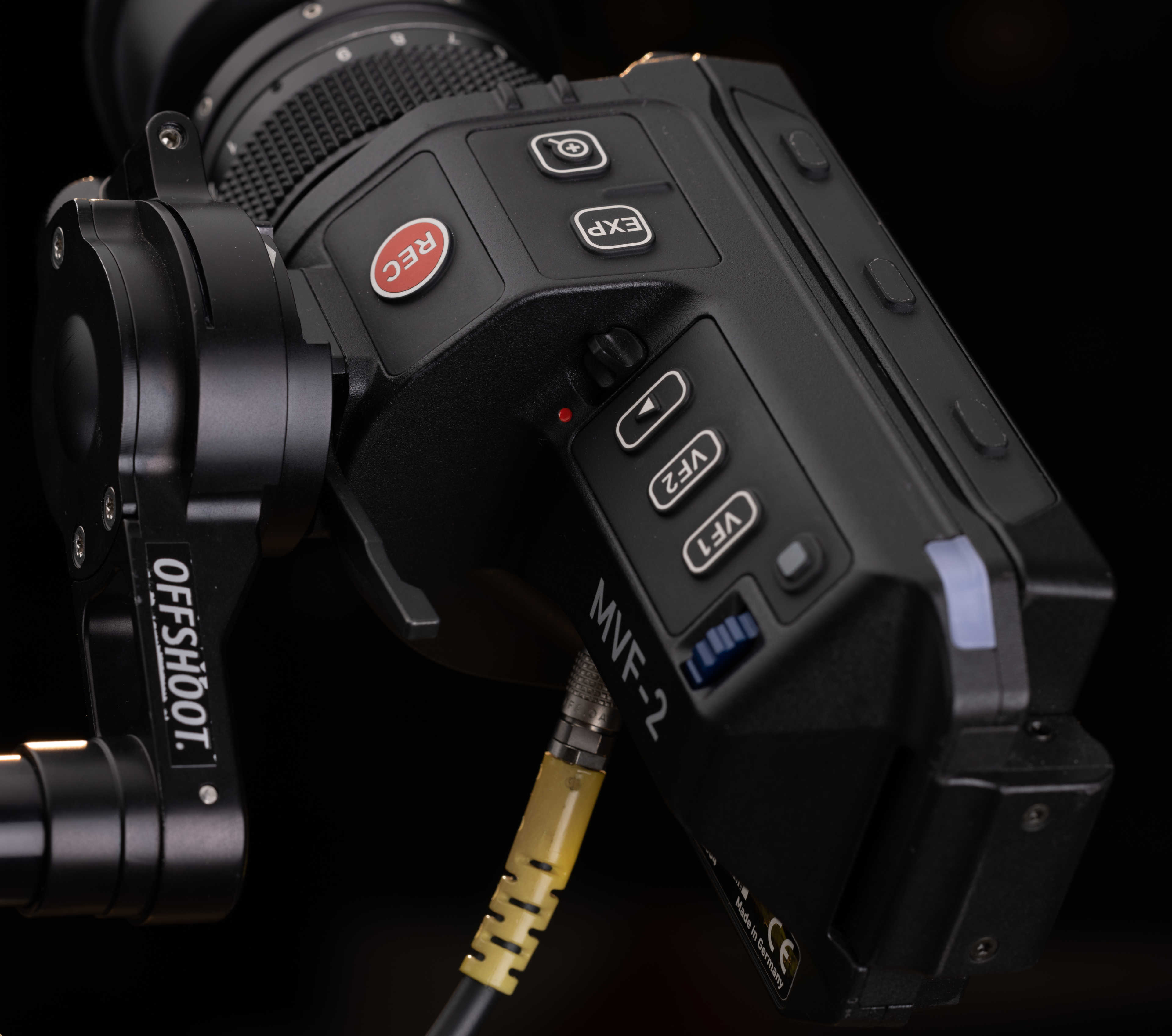

Viewfinder
Type

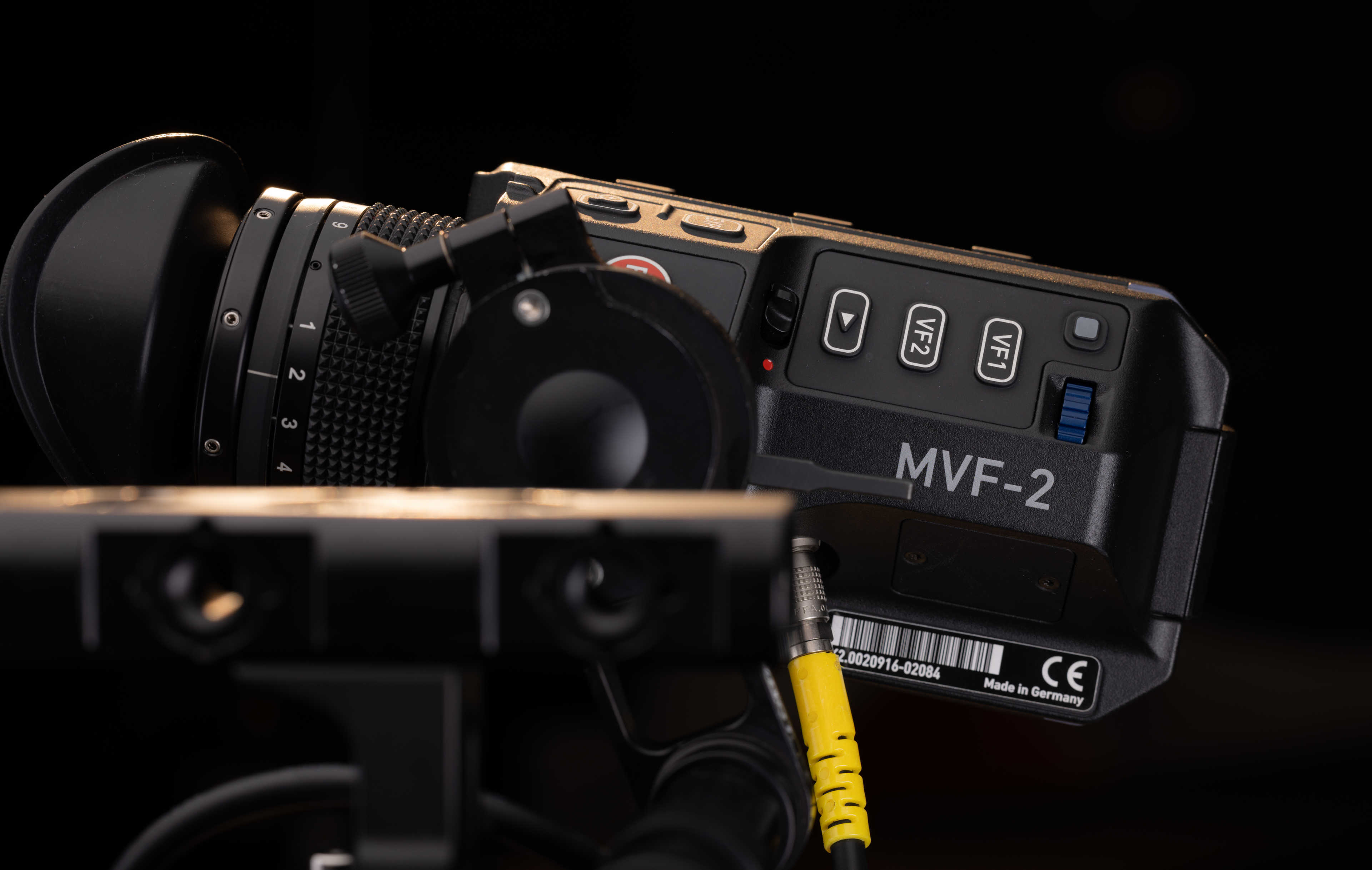

Multi Viewfinder MVF-2 with 4" flip-out monitor
EVF Display Type
OLED
Flip-Out Monitor Display Type
LCD
EVF Resolution
1920 x 1080 pixels
Viewfinder Diopter
Adjustable from -5 to +5
Power
Input
11V - 34V DC via 8-pin LEMO
Consumption
Approx 65W with EVF connected and recording ARRIRAW at 24fps
Aux Outputs
1x Fischer 3-pin 24V RS 1x LEMO 2-pin 12V 1x LEMO 7-pin EXT 24V power output
Audio
Recording Format
2 channel linear PCM, 24-bit 48 kHz
Input
1x LEMO 6-pin balanced stereo line in with 12V power output (Line input max. level +24dBu correlating to 0dBFS)
Output
SDI (embedded) 3.5mm stereo headphone jack (on MVF-2 viewfinder)
Built-In Mics
Two internal mics for scratch track recording, recorded to channels 3 & 4
Physical
Dimensions H x W x L
140 x 143 x 188 mm
Weight
3.4kg for camera body, LPL mount and MVF-2 viewfinder
