Arri cforce mini Lens Motor

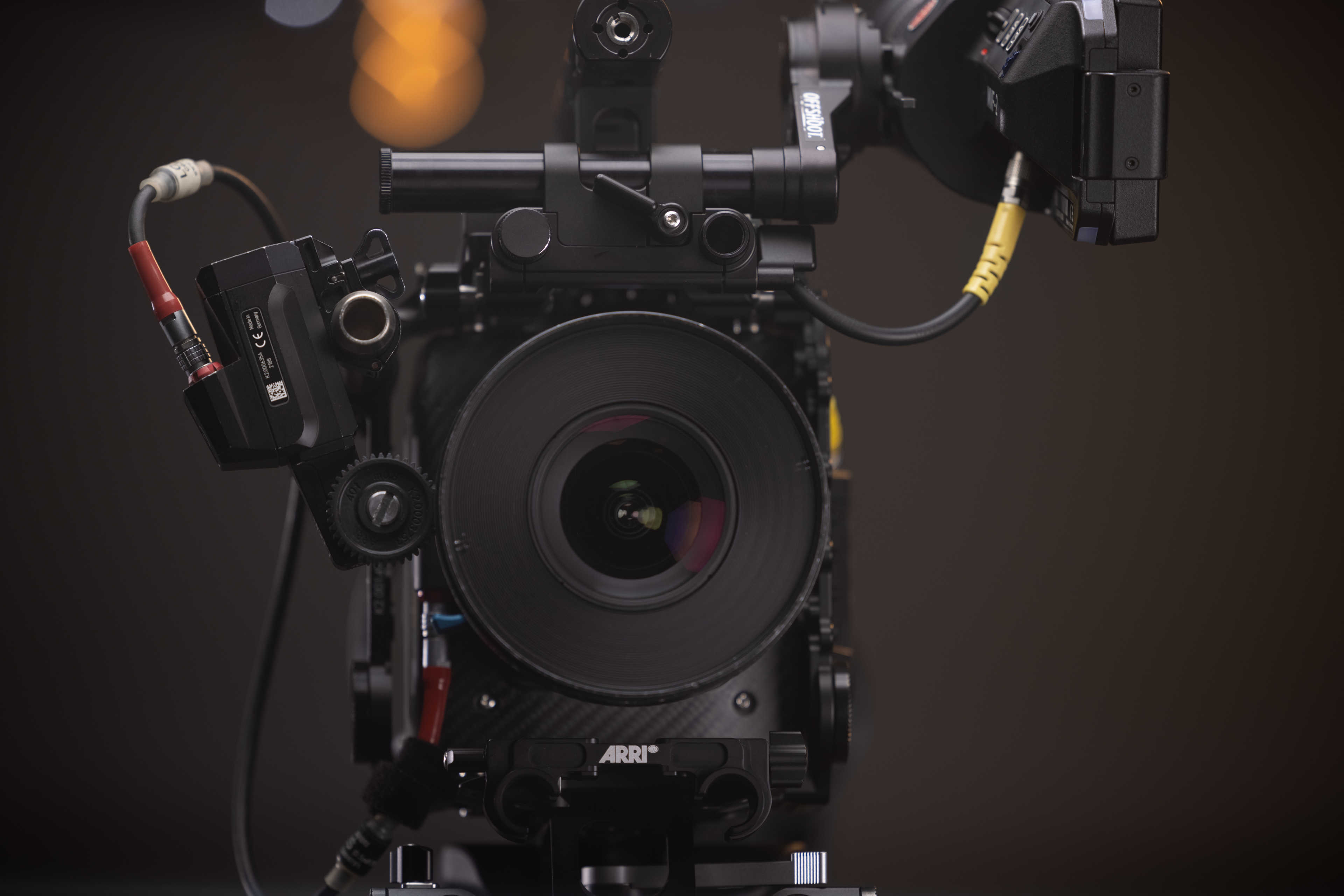

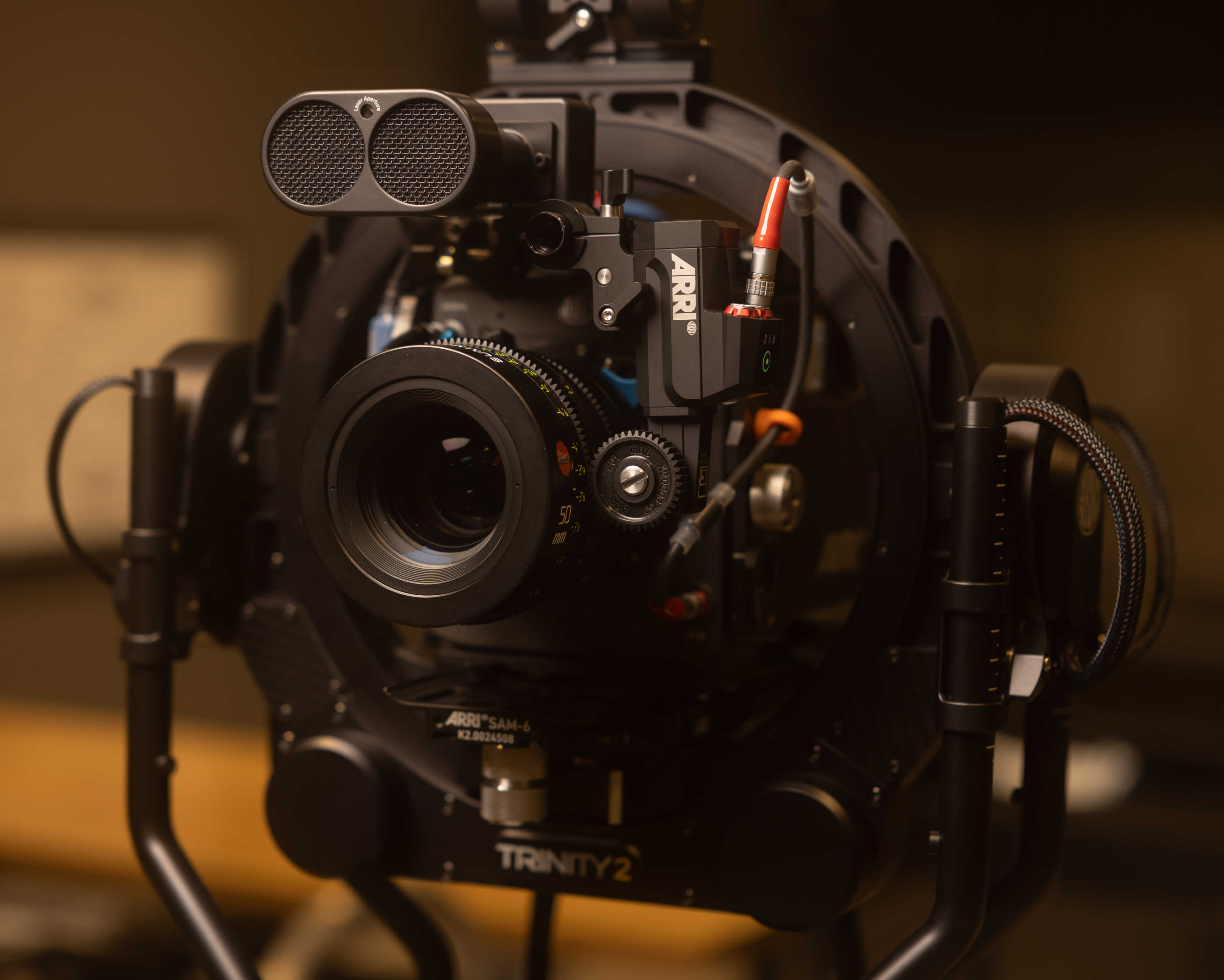

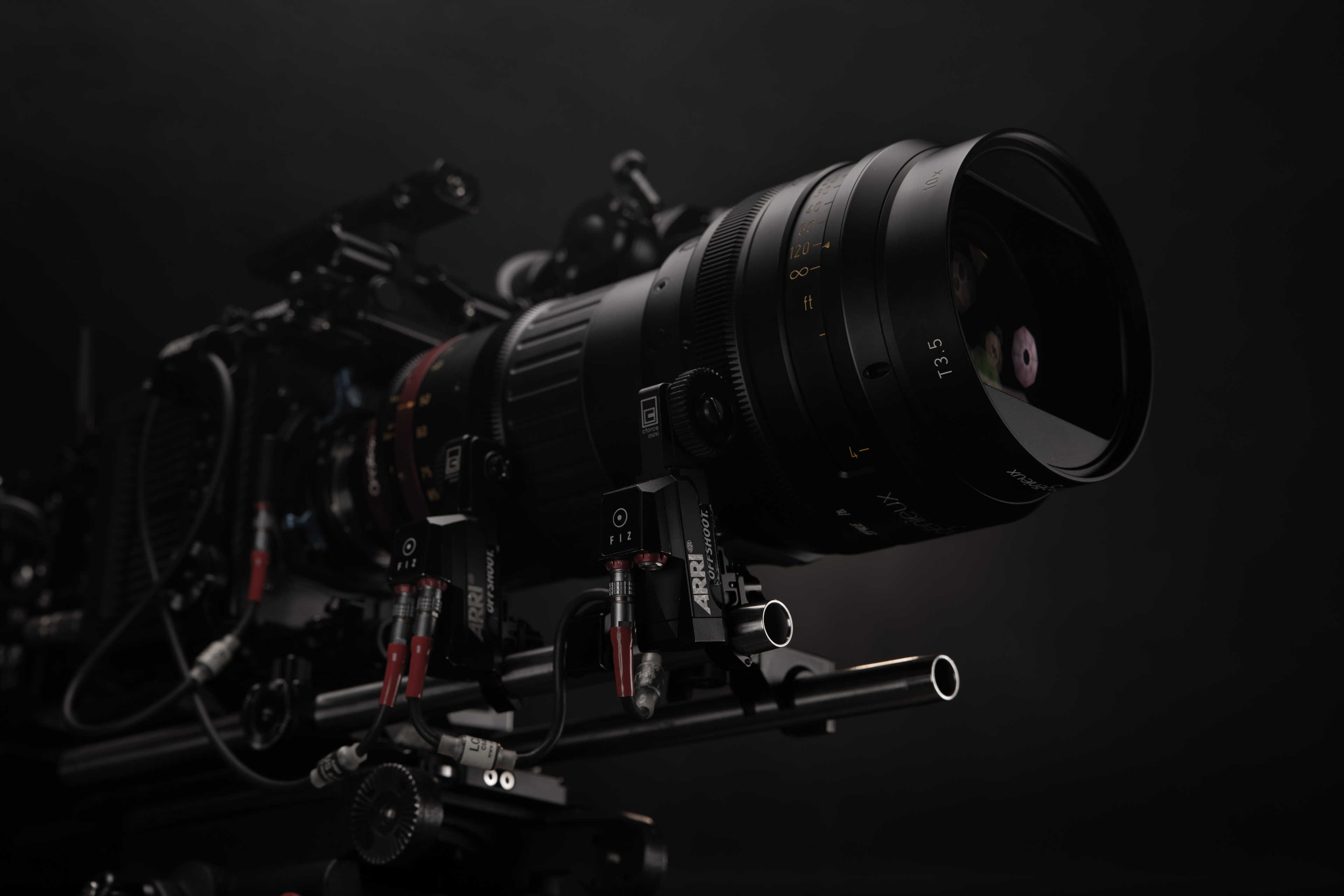

Designed to complement the Alexa Mini and Mini LF, the Arri cforce mini is a small, lightweight lens motor ideal for reducing clutter and weight for gimbal, steadicam, remote head and other applications.

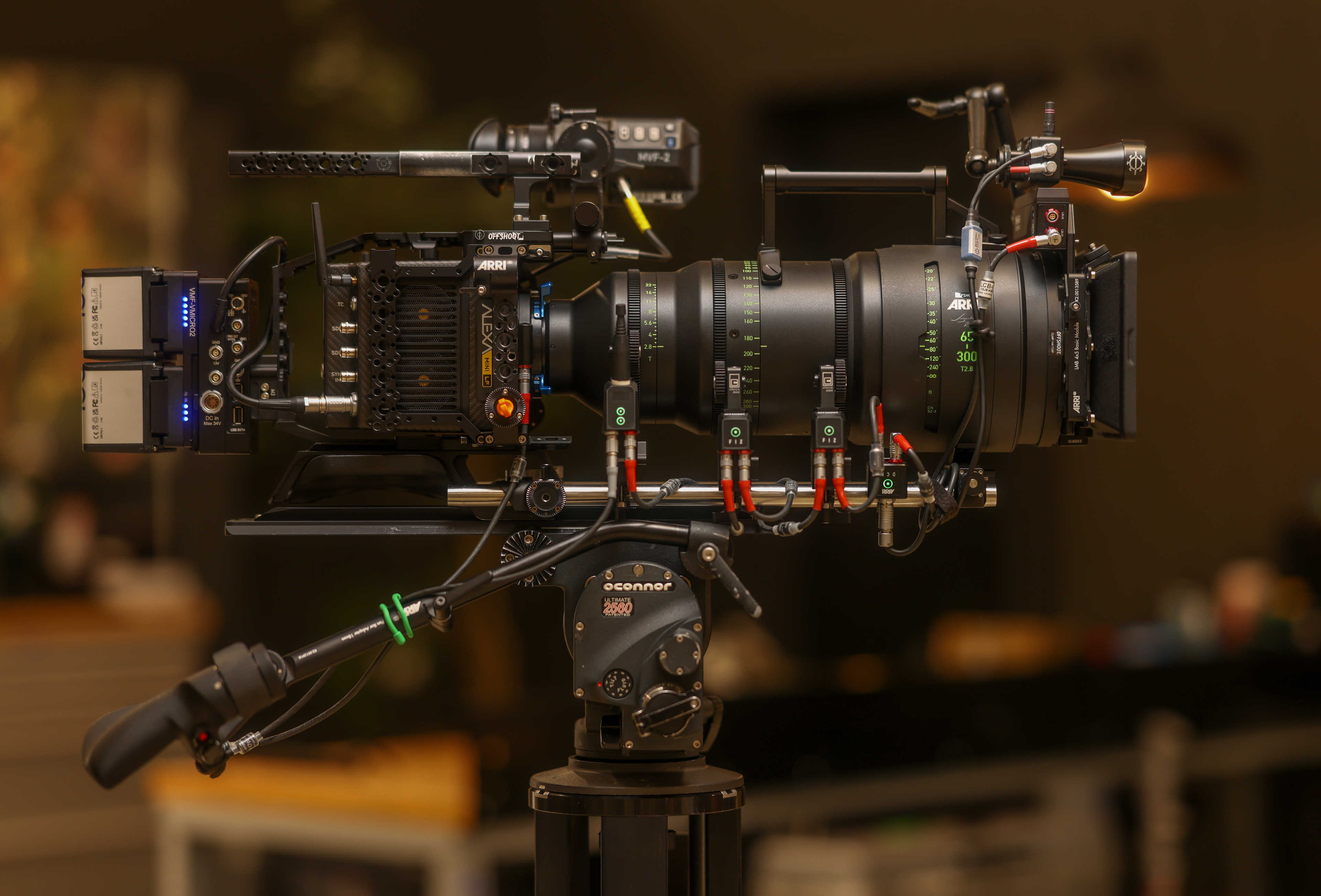

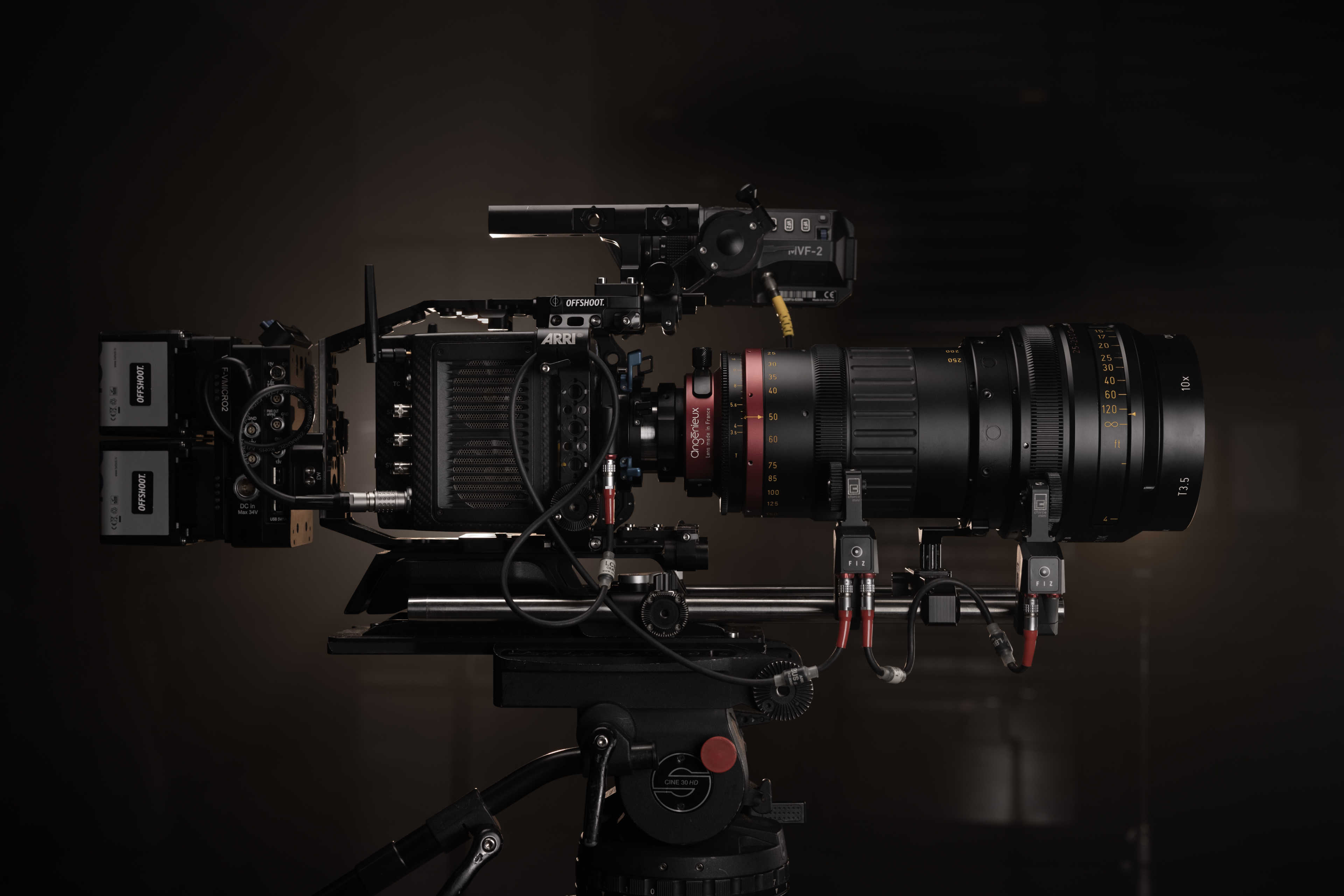

When used with an Arri camera fitted with an LBUS enabled lens mount, no motor controller / MDR unit is required, reducing build weight and complexity. Additional motors simply daisy chain to each other (up to 3 motors total can be daisy chained).
Fits 19mm and 15mm rods (with the included 15mm reduction bushing).

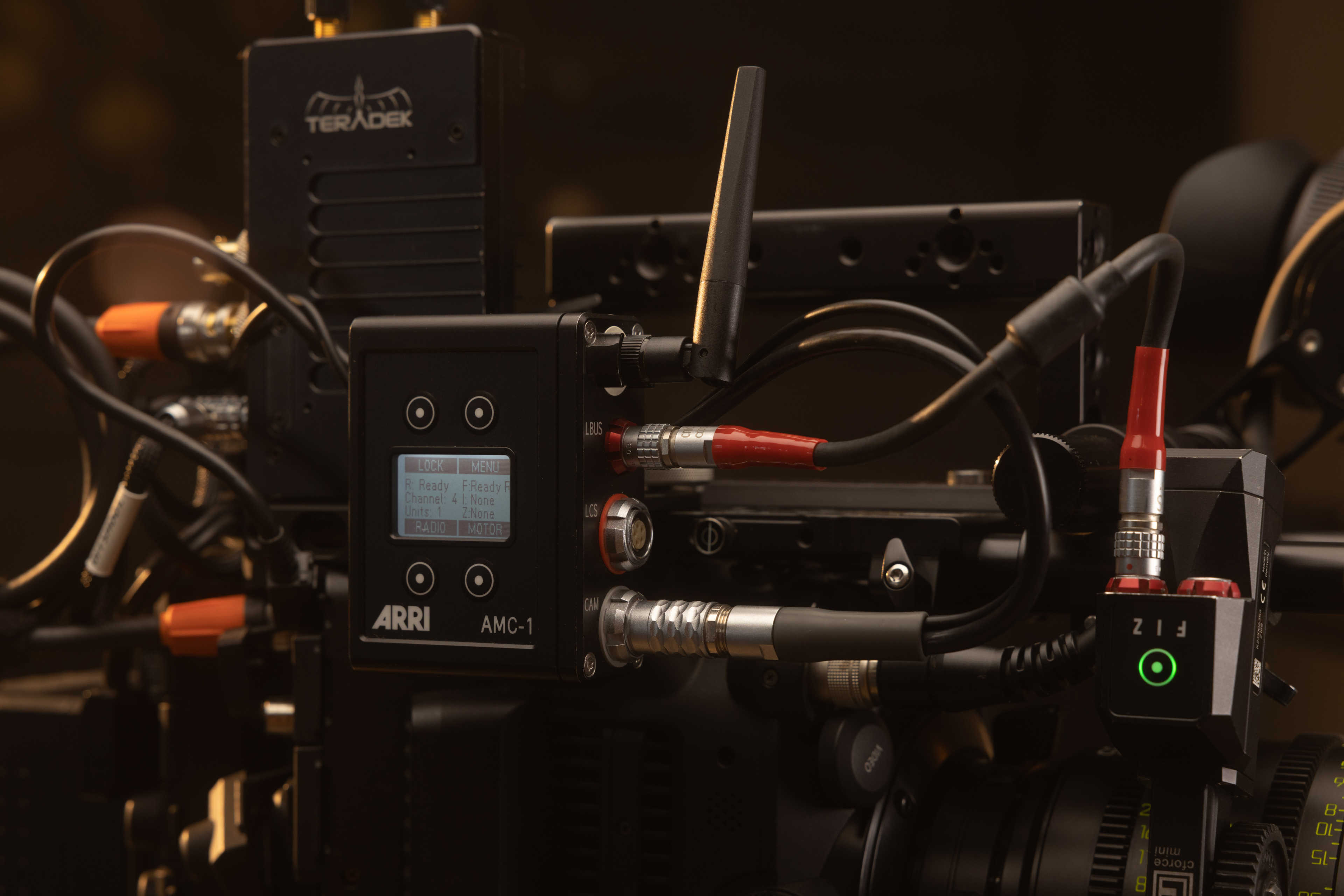

When used with cameras other than the Alexa Mini, the Arri AMC-1 or equivalent motor controller is required.
No videos yet.
Motor
Control Protocol
LBUS
Torque
0.5 Nm (peak)
Speed
150 teeth per second
Supply Voltage
12 to 34 VDC
Max Power Consumption
15 W (peak)
Physical
Dimensions
103 x 70 x 25mm.
Weight
177g
