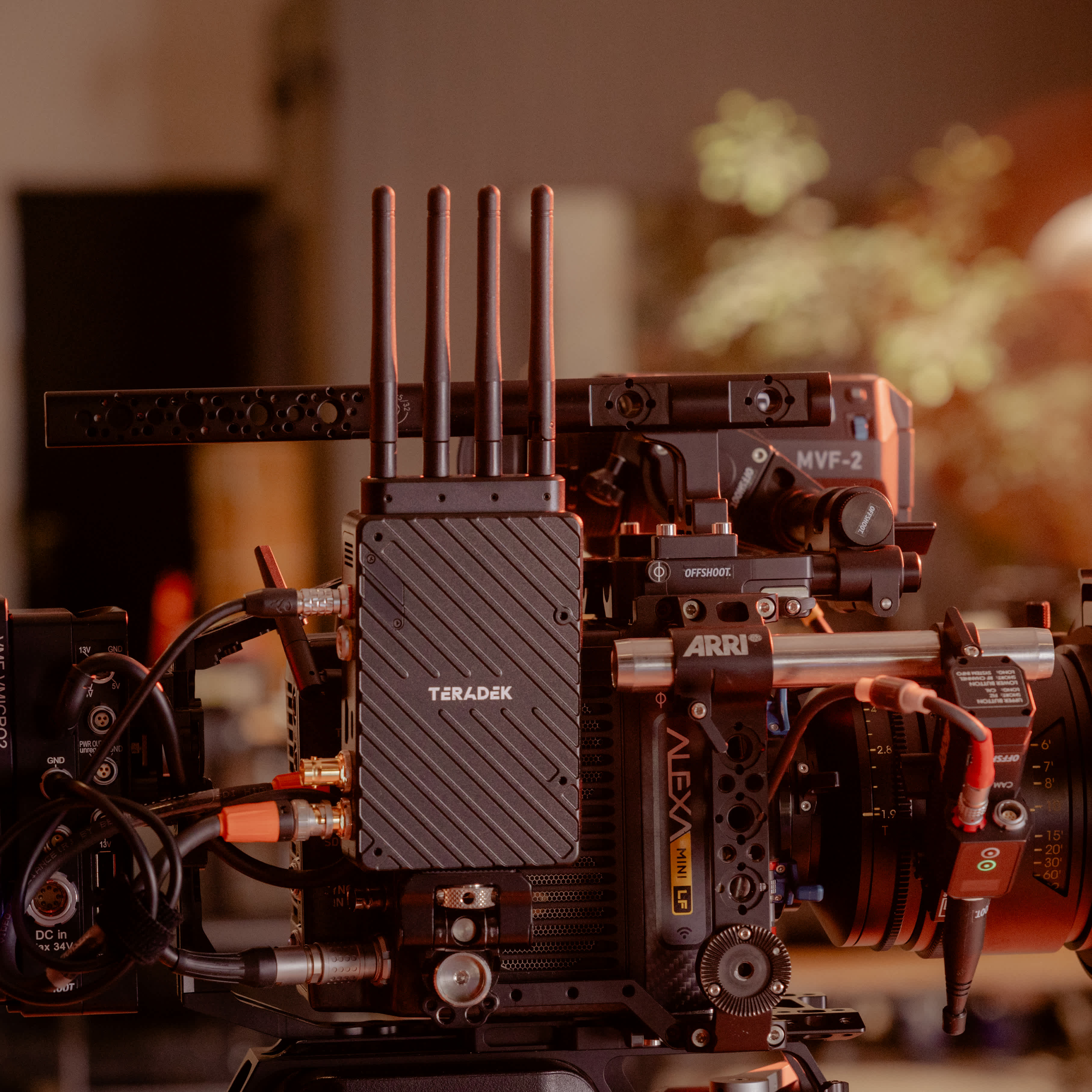

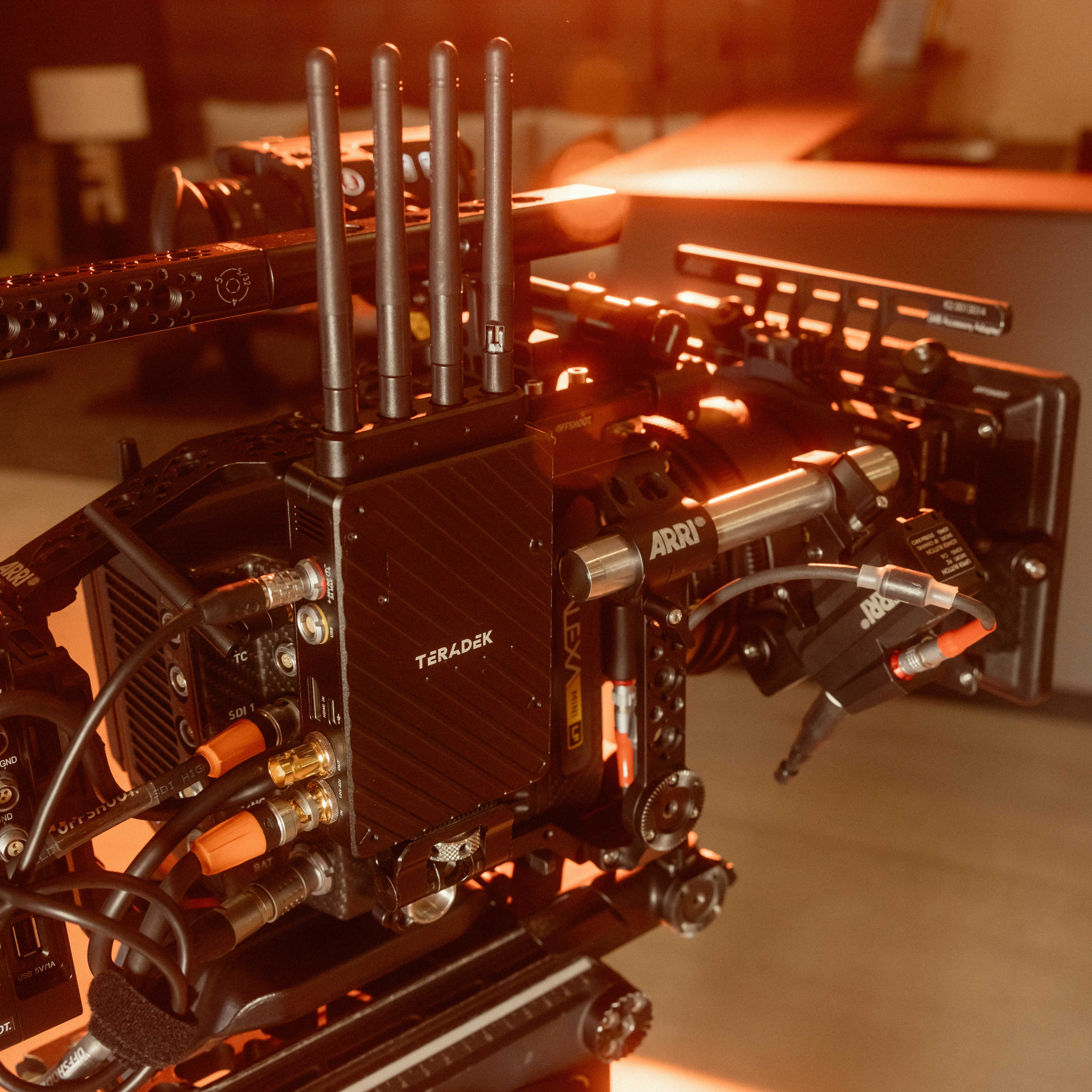

Teradek Bolt 6 XT 750 1:1 Kit (4K)
Zero-delay 4K DCI wireless video with 12 new channels in the less congested 6GHz spectrum for more resilient operation. Up to 230m range.
Use up to 6 receivers with the one transmitter, including Bolt 6 LT and Bolt 4K receivers. See this compatibility chart for the full list of Teradek receivers that can be used with the 750 XT transmitter.
The Bolt 6 XT supports transmitted metadata, timecode, and start/stop flags from most camera manufacturers.
Wireless performance is very dependent on environmental conditions at your shooting location. Spectrum congestion can severely reduce range or even cause the units to not work at all. Testing and/or a backup plan is strongly recommended.
Bolt 6 Overview
Product overview from the Teradek team.
Wireless
Range
Up to 230m line of sight. The operating environment can significantly impact range.
Delay
Less than 1ms (0.001s).
Operating Frequencies
Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
RF Power
TX: 23 dbm EIRP RX: 21 dbm EIRP
Encryption
AES-256, RSA-1024 key exchange
Maximum Receiver Count
Six (Bolt 6 XT, Bolt 6 LT, Bolt 4K)
Format Support
Supported Video Formats
4Kp - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60fps 1080p - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60fps 1080psf - 23.98 / 24 / 25 / 29.97 / 30 1080i - 50 / 59.94 / 60 720p - 50 / 59.94 / 60
Colour Sampling
SDI: YCbCr 4:2:2, 10-bit HDMI: RGB 4:4:4, 8-bit
Audio
48kHz 24-bit PCM
Output Video Scaling
Yes - framerate and resolution scaling
SDI Ancillary Data Support
Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
Power
Input
6-28 VDC via 2-pin circular locking connector. Battery options available on request.
Power Consumption
TX: 18W RX: 20W
Physical
Mounting
TX: 1x ¼”-20 and 1x 3/8" female on underside. RX: 1x ¼”-20 female on underside.
Dimensions
TX: 132 x 91 x 27 mm. RX: 112 x 139 x 27 mm.
Weight
TX: 344g RX: 430g
