Sound Devices 664 Mixer / Recorder Kit
The Sound Devices 664 is a professional 12 input, 16 track mixer and recorder with some of the best preamps in the industry. It has an integrated high quality Ambient timecode generator and can record 24-bit mono and poly BWAV files to CF and SD media simultaneously.

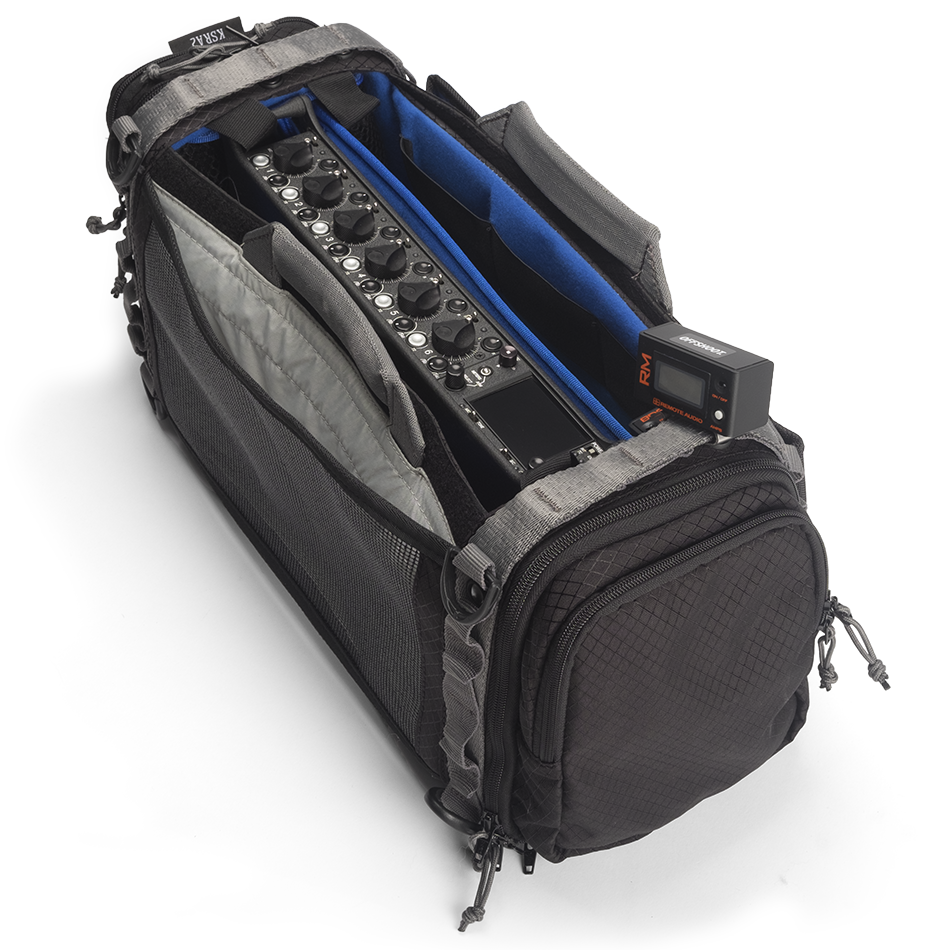

Our 664 kit is supplied as a production ready field kit, with a K-Tek Stingray audio bag, battery distribution system and battery meter from Remote Audio, two NP-style batteries from IDX to power the mixer and compatible audio receivers, and a variety of interconnecting cables (see the complete includes list).
Inputs
The 664 has six mic/line level, full size XLR3F inputs. An additional six line level inputs (7 - 12) can be enabled by switching the direct outputs (TA3) to inputs. Inputs 1 and 6 can accept digital AES42 or AES3 signals.
Outputs
The 664 has four pairs of balanced analog output connections for the Master Bus (XLR-3M, TA3, and 2 Hirose 10-pin), and one pair of balanced analog outputs for the Aux Bus (TA3). There are also two stereo unbalanced outputs for the Master Bus (TA3 and 3.5mm Tape Outputs).
No videos yet.
Recording
Tracks
16 tracks (12 inputs, 4 output buses), monophonic or polyphonic Broadcast WAV or timecode-stamped MP3.
A/D
24-bit, 114 dB, A-weighted dynamic range typical. 44.1 kHz, 47.952 kHz, 48 kHz, 48.048 kHz SR.
Frequency Response
20Hz - 50kHz
THD & Noise
0.09% max (50 kHz, +18 dBu at line out, fade fully up)
Equivalent Input Noise
-126 dBu (-128 dBV) maximum (22 Hz - 22 kHz bandwidth, flat filter, trim control fully up).
High Pass Filters
Sweepable 80 Hz to 240 Hz, 12 dB/oct at 80 Hz, 6 dB/octave at 240 Hz.
Input Limiters
Individual limiters on both trim and fader stages, +16 dBu threshold, 20:1 limiting ratio, 1ms attack time, 500ms release time.
Maximum Gain
Mic-In-to-Line-Out: 93 dB. Mic-In-to-Aux-Out, -10 Out: 79 dB. Line-In-to-Line-Out: 39 dB.
Timecode & Sync
Modes Supported
Off, rec run, free run, 24h run, external.
Frame Rates
23.976, 24, 25, 29.97DF, 29.97ND, 30DF, 30ND.
Accuracy
0.5 frame drift in 24 hours.
Timecode Input
20k ohm impedance, 0.3 V - 3.0 V p-p (-17 dBu - +3 dBu)
Timecode Output
1k ohm impedance, 3.0V p-p (+12 dBu)
Word In/Out
Square wave; 10k/75 ohm, 1-5V p-p input; 75 ohm, 3.3V p-p output, at SR
Environmental
Operating Environment
-20°C to 60°C, 0 to 90% relative humidity (non-condensing)
