Sigma FF High Speed Prime Set (10)
The Sigma FF High Speed range of lenses offer full frame coverage with a 43.3mm image circle and fast T stops of T1.5 across most of the range (the 14mm and 135mm are T2 in this set). The fronts are a consistent diameter of 95mm for use with clamp-on accessories.

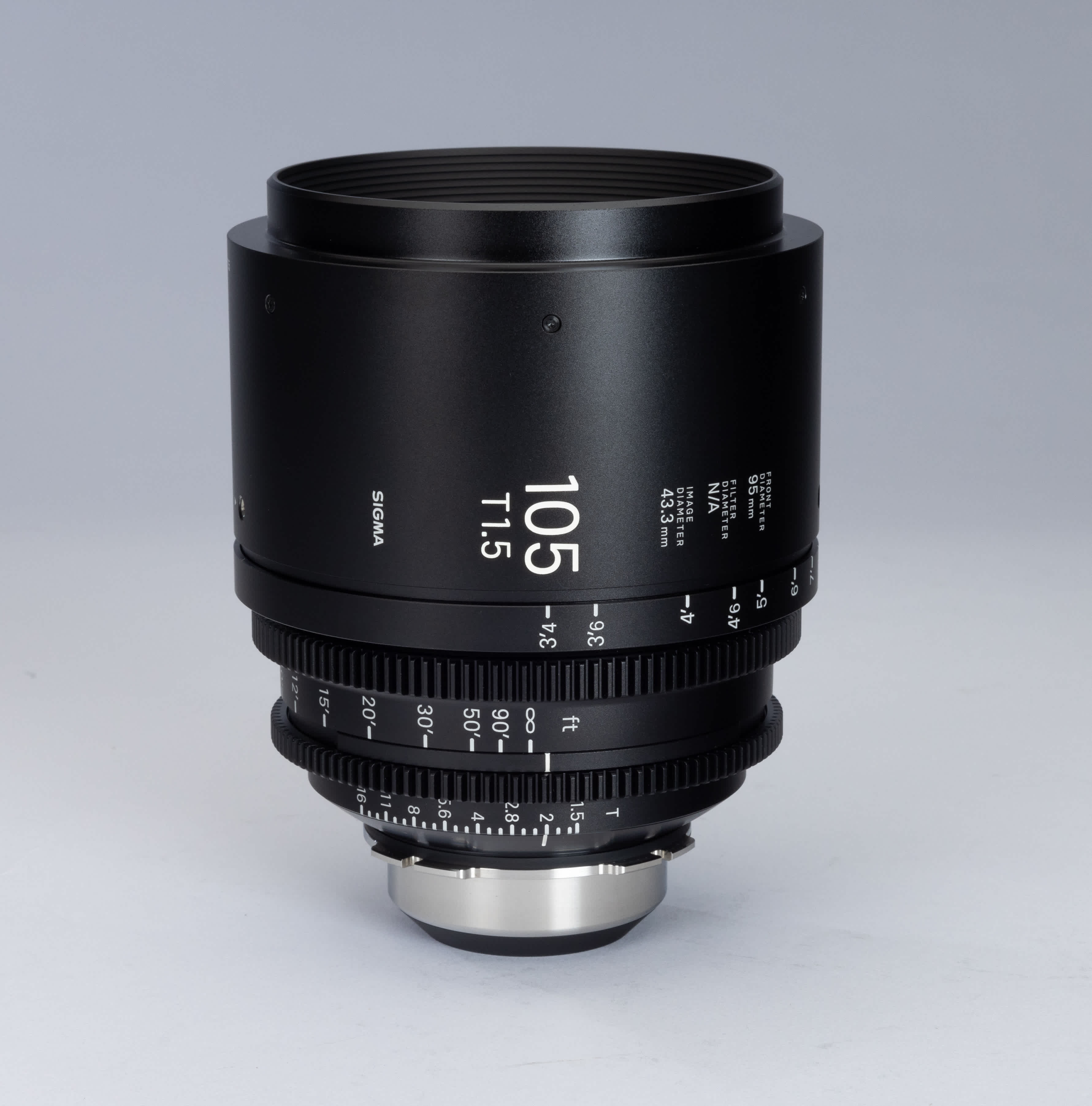

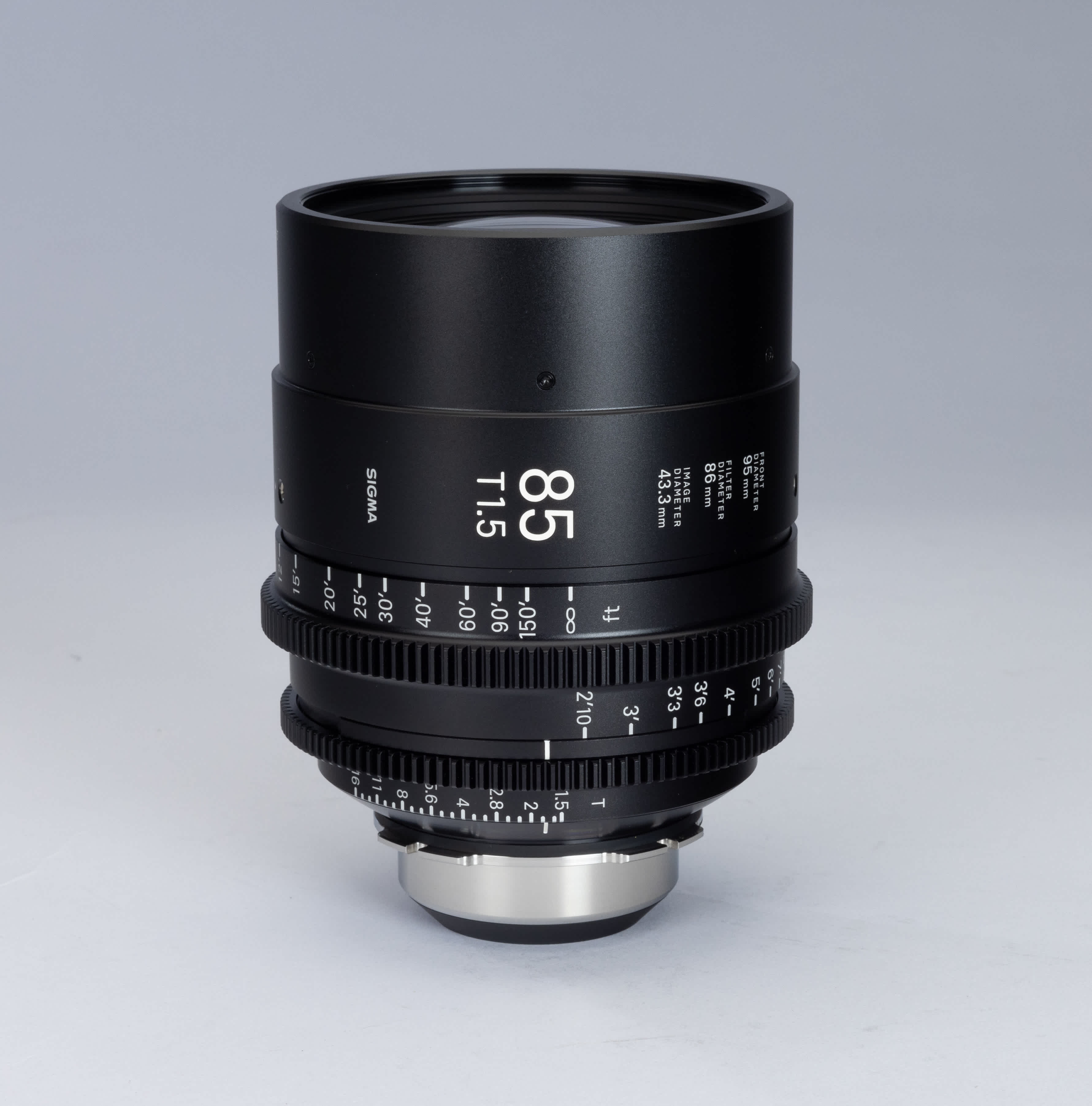

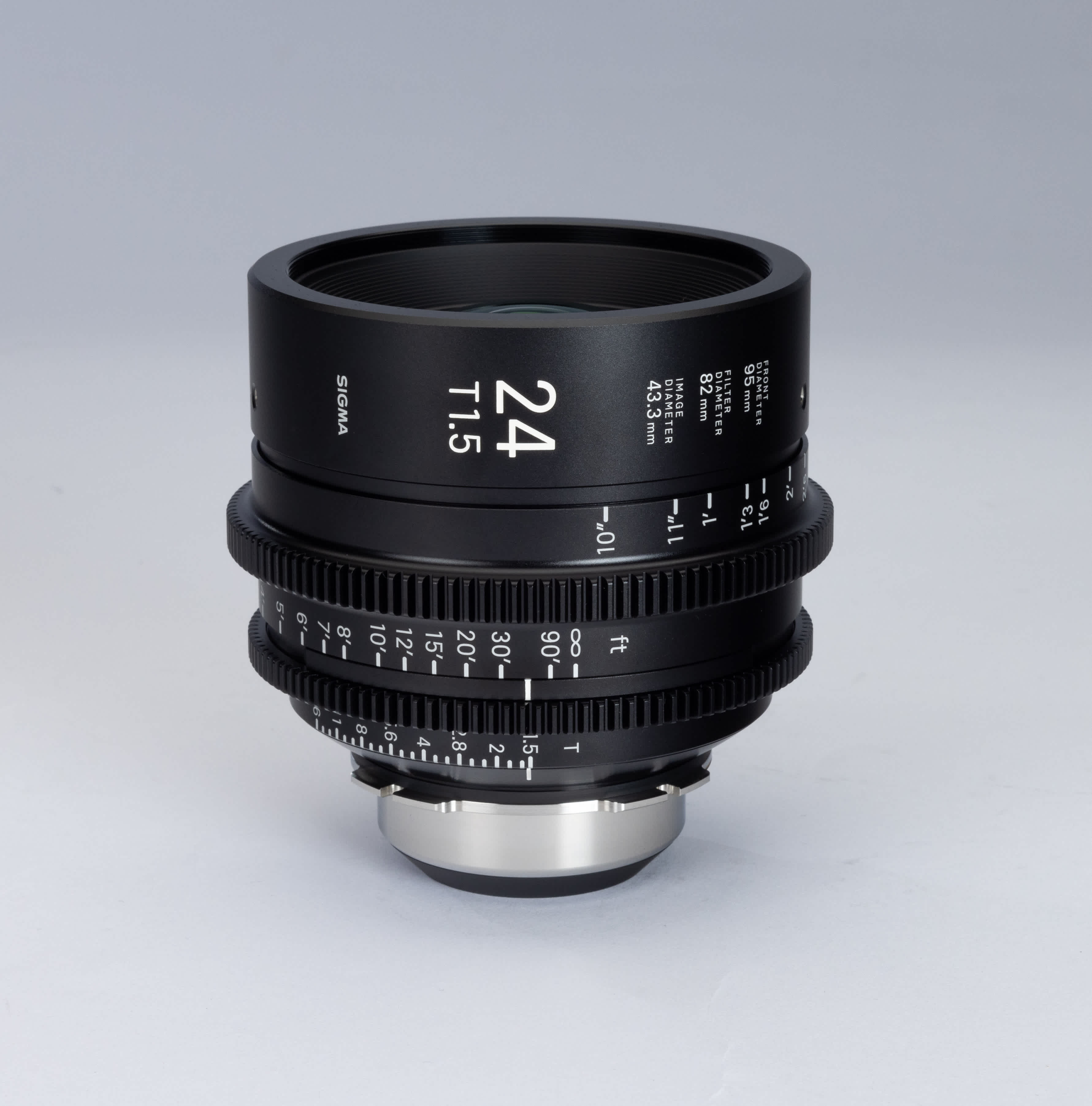

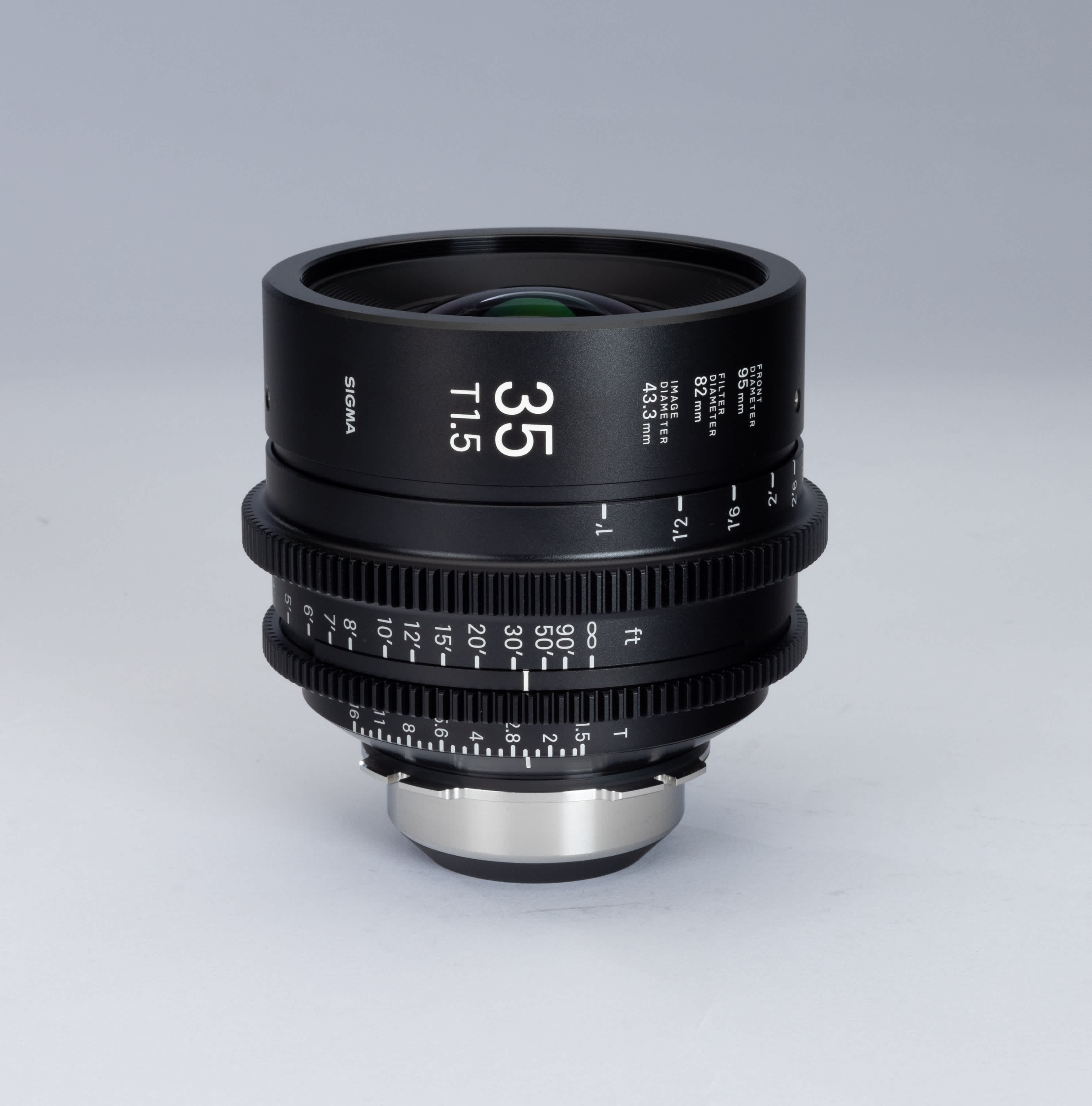

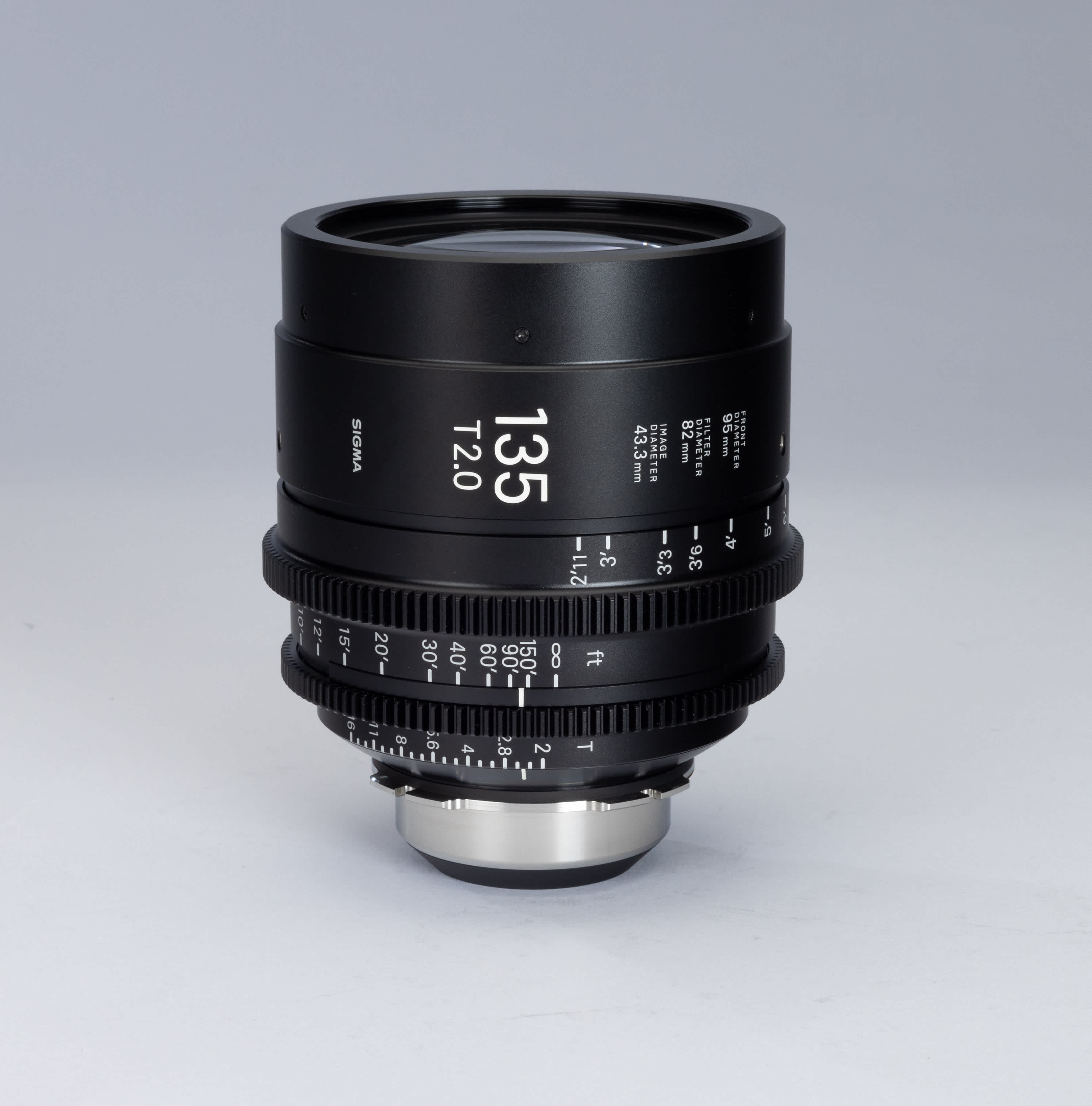

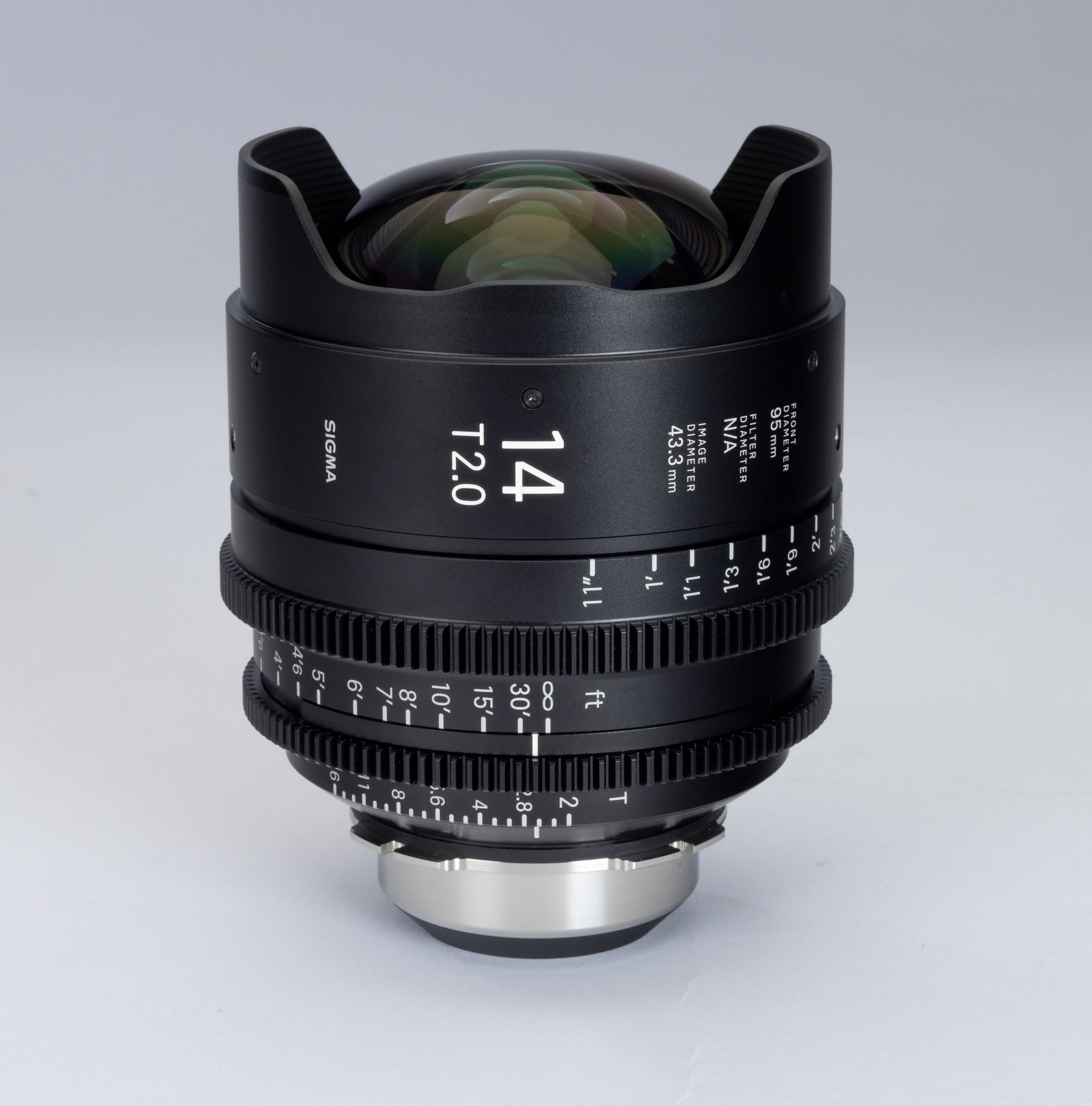

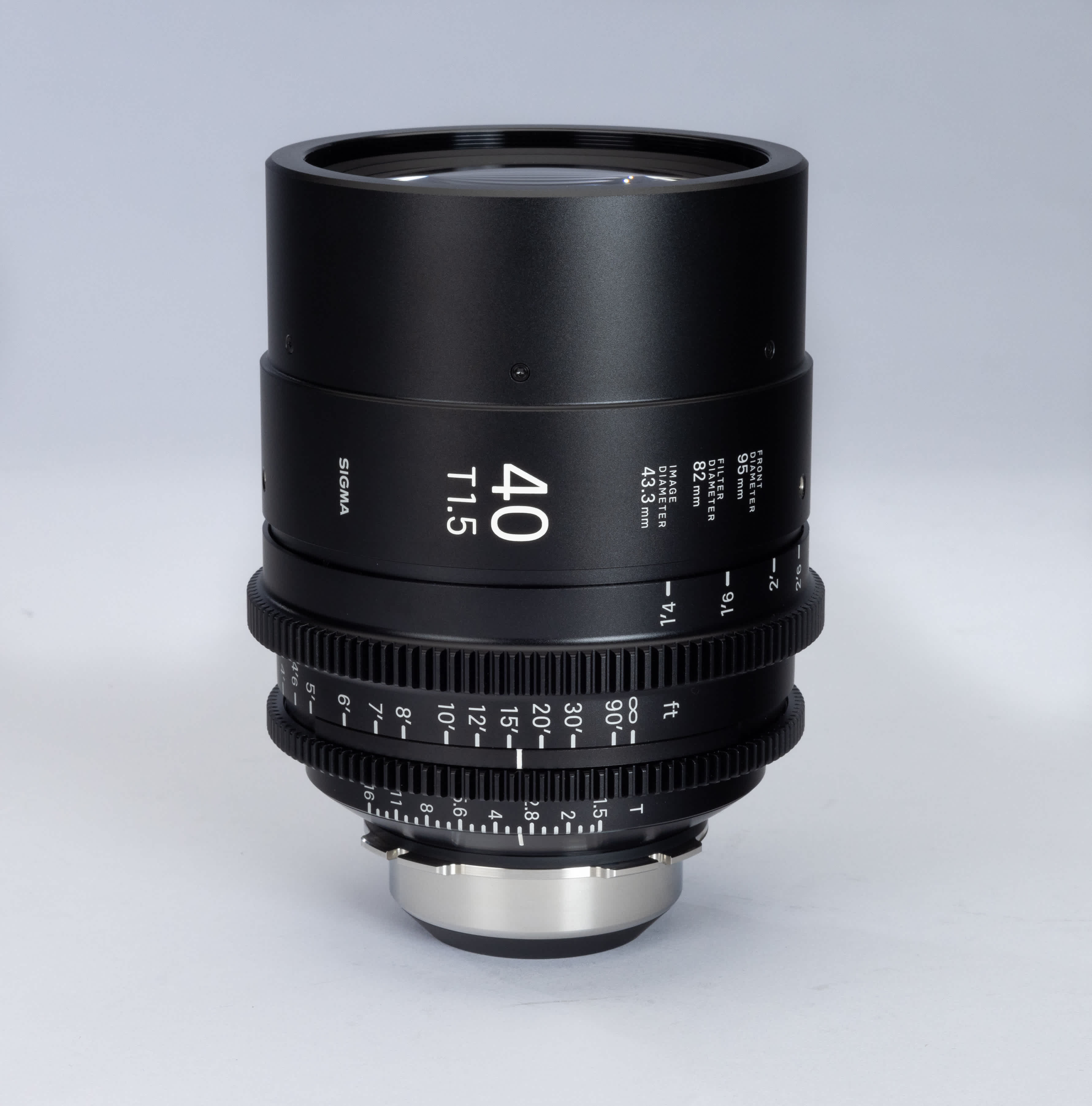

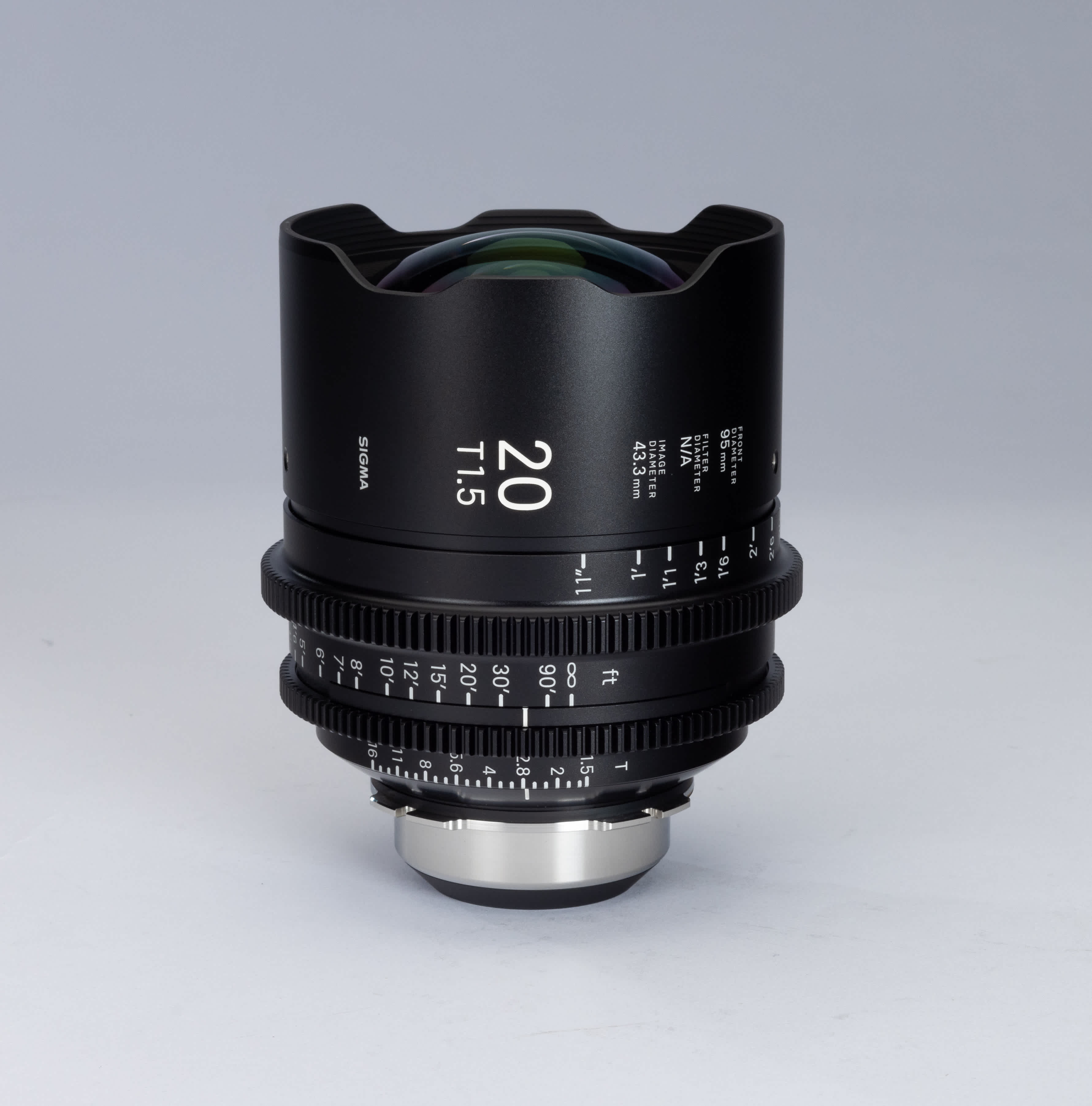

This set consists of ten lenses - 14mm, 20mm, 24mm, 28mm, 35mm, 40mm, 50mm, 85mm, 105mm and 135mm focal lengths in Arri PL mount.
Mindhunter Trailer
The Mindhunter series on Netflix was photographed with the Sigma FF High Speed prime lenses.
Top Gun: Maverick - Trailer
Sigma FF lenses were also used to photograph the feature film Top Gun: Maverick.
Sound of Metal - Trailer
The film Sound of Metal was photographed with Sigma FF prime lenses.
Optical
Focal Length
14mm 20mm 24mm 28mm 35mm 40mm 50mm 85mm 105mm 135mm
Maximum Aperture
14mm: T2.0 20mm: T1.5 24mm: T1.5 28mm: T1.5 35mm: T1.5 40mm: T1.5 50mm: T1.5 85mm: T1.5 105mm: T1.5 135mm: T2.0
Minimum Aperture
14mm: T16 20mm: T16 24mm: T16 28mm: T16 35mm: T16 40mm: T16 50mm: T16 85mm: T16 105mm: T16 135mm: T16
Minimum Focus Distance
14mm: 0.27m (11") 20mm: 0.28m (11") 24mm: 0.25m (10") 28mm: 0.30m (1') 35mm: 0.30m (1') 40mm: 0.40m (1' 4") 50mm: 0.40m (1' 4") 85mm: 0.85m (2' 10") 105mm: 1.00m (3' 4") 135mm: 0.88m (2' 11")
Image Circle
14mm: 43.3mm 20mm: 43.3mm 24mm: 43.3mm 28mm: 43.3mm 35mm: 43.3mm 40mm: 43.3mm 50mm: 43.3mm 85mm: 43.3mm 105mm: 43.3mm 135mm: 43.3mm
Physical
Lens Mount
Arri PL
Metadata
Cooke /i
Focus Ring Rotation
180°
Focus / Iris Gear Pitch
0.8 mod
Front Diameter
14mm: 95mm 20mm: 95mm 24mm: 95mm 28mm: 95mm 35mm: 95mm 40mm: 95mm 50mm: 95mm 85mm: 95mm 105mm: 95mm 135mm: 95mm
Dimensions (Ø x L)
14mm: 95mm x 111.5mm 20mm: 95mm x 110mm 24mm: 95mm x 87mm 28mm: 95mm x 100mm 35mm: 95mm x 87mm 40mm: 95mm x 123mm 50mm: 95mm x 94mm 85mm: 95mm x 119mm 105mm: 95mm x 126mm 135mm: 95mm x 107mm
Weight
14mm: 1.32kg 20mm: 1.22kg 24mm: 1.00kg 28mm: 1.25kg 35mm: 1.02kg 40mm: 1.46kg 50mm: 1.18kg 85mm: 1.34kg 105mm: 1.69kg 135mm: 1.42kg
