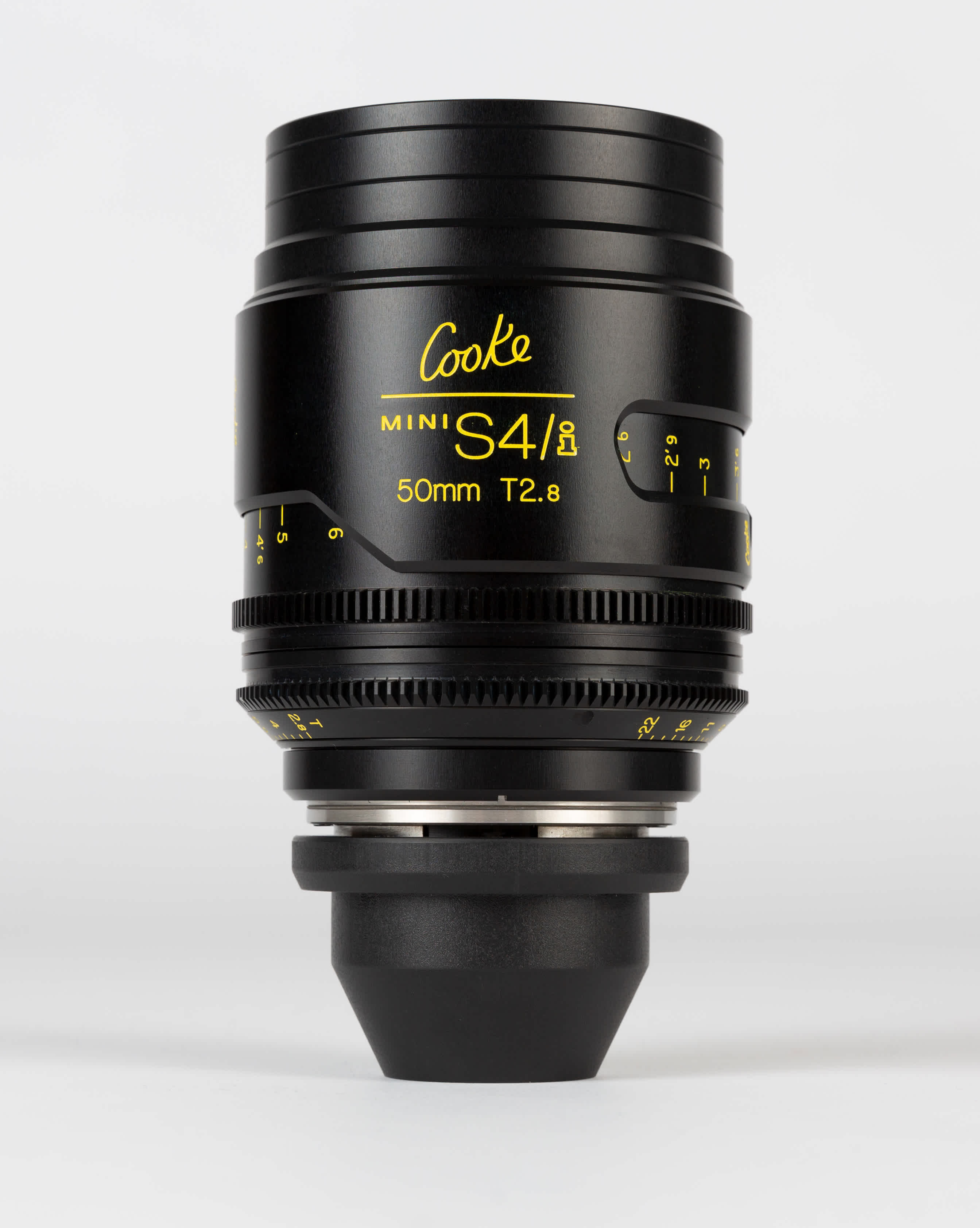

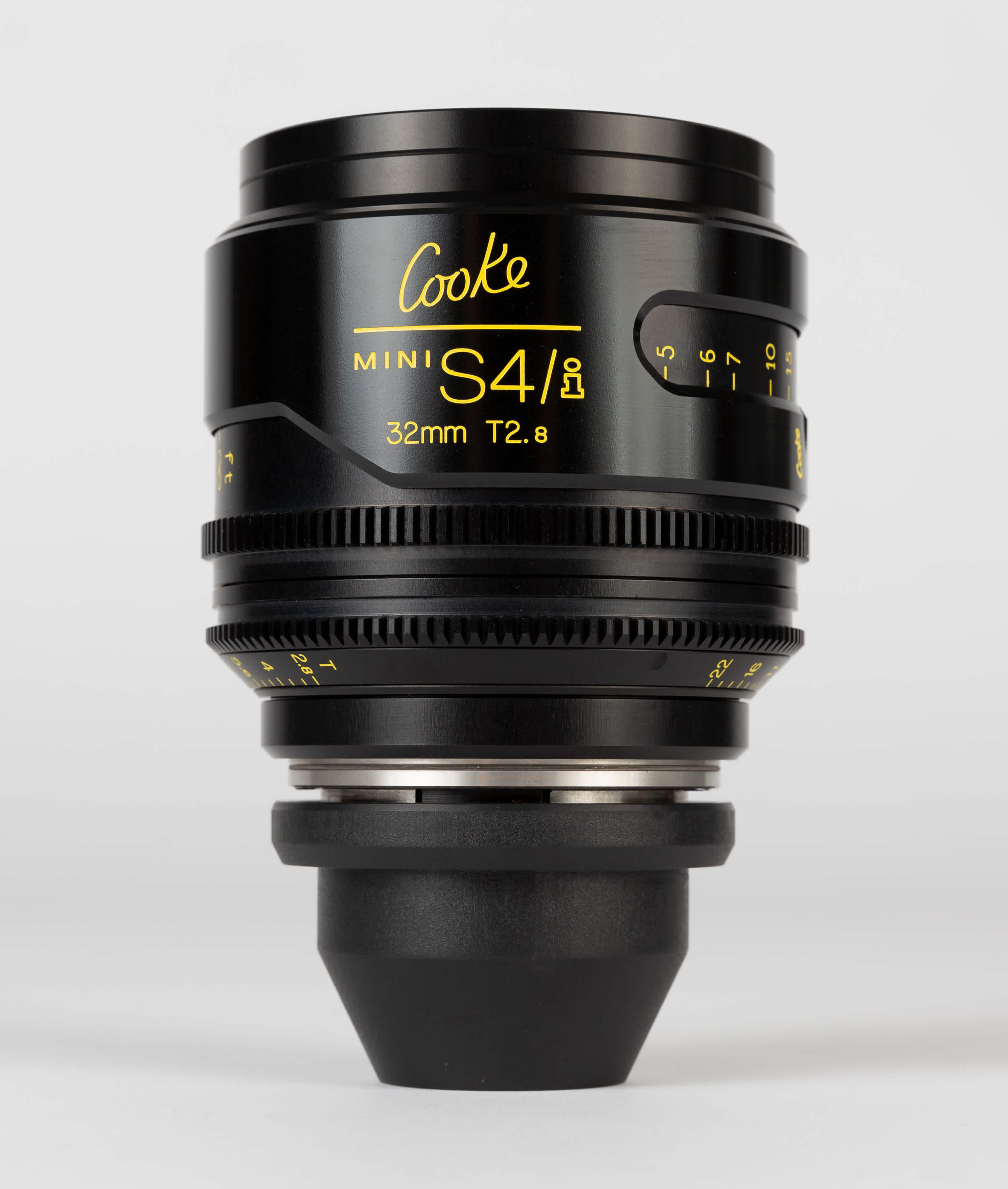

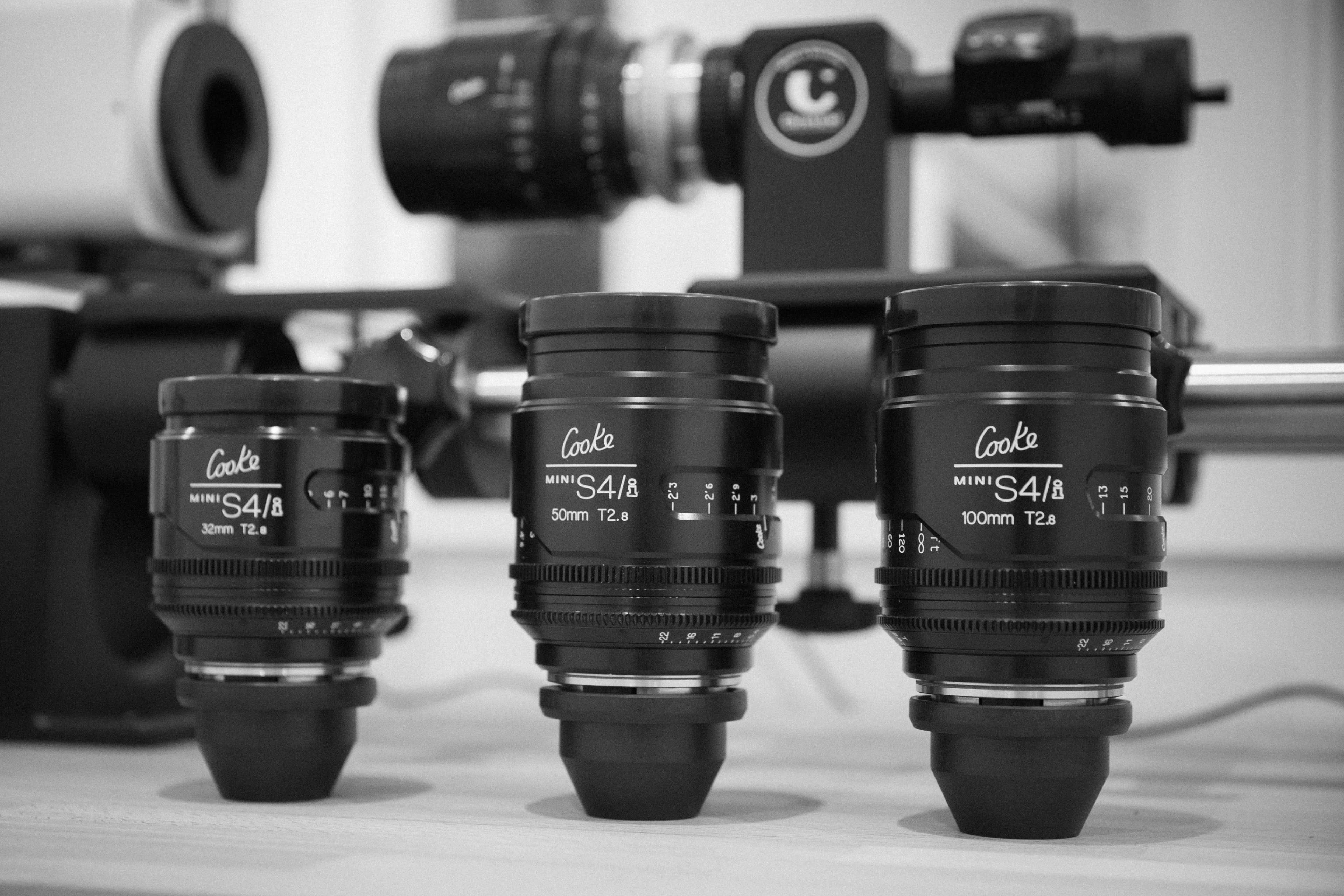

Cooke Mini S4/i Set (6)
Optically identical to their S4/i siblings, the Cooke mini S4/i lenses give you the classic Cooke look in a smaller, lighter and more affordable package. The mini S4/i lenses are one stop slower than the S4/i lenses.

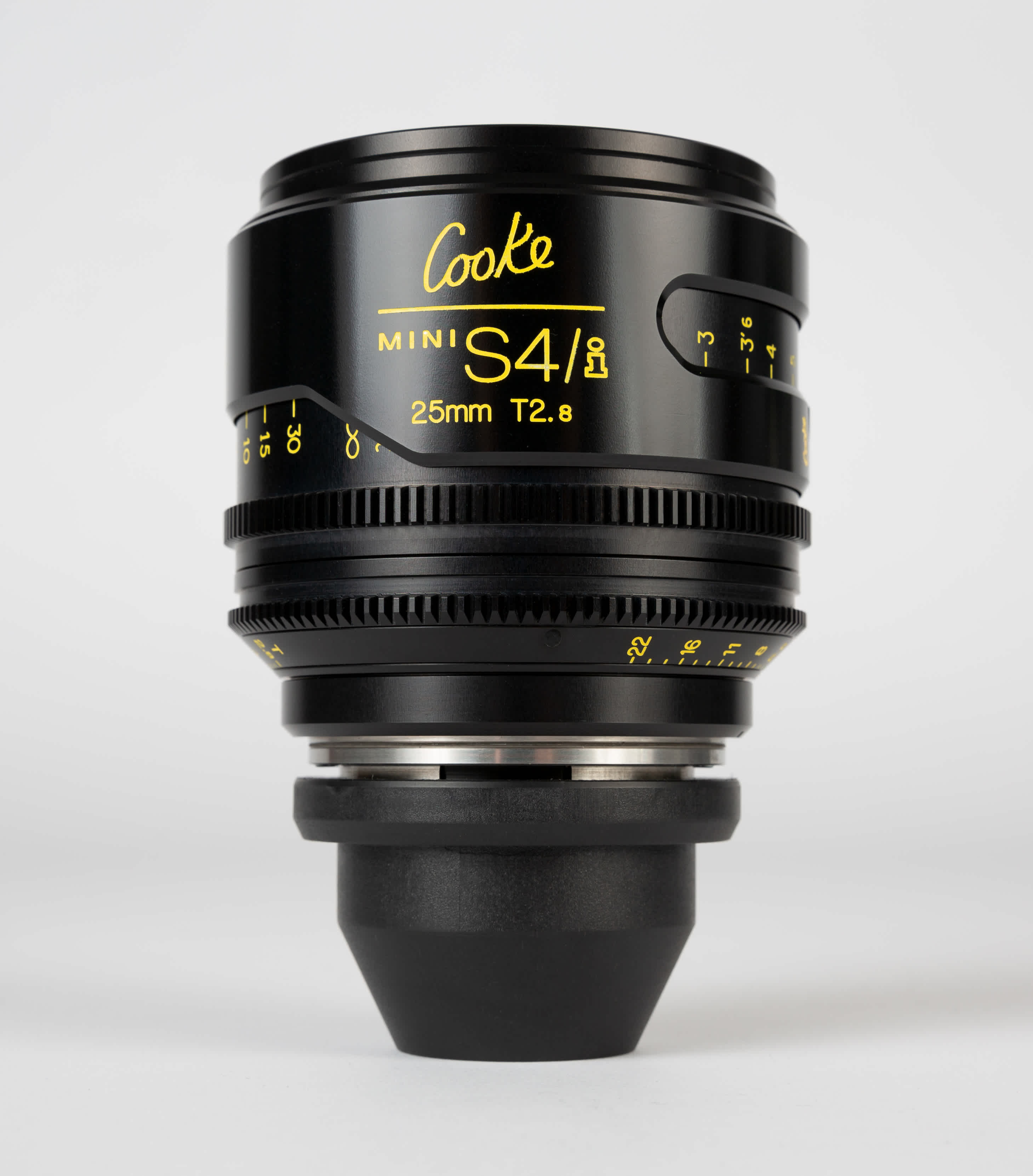

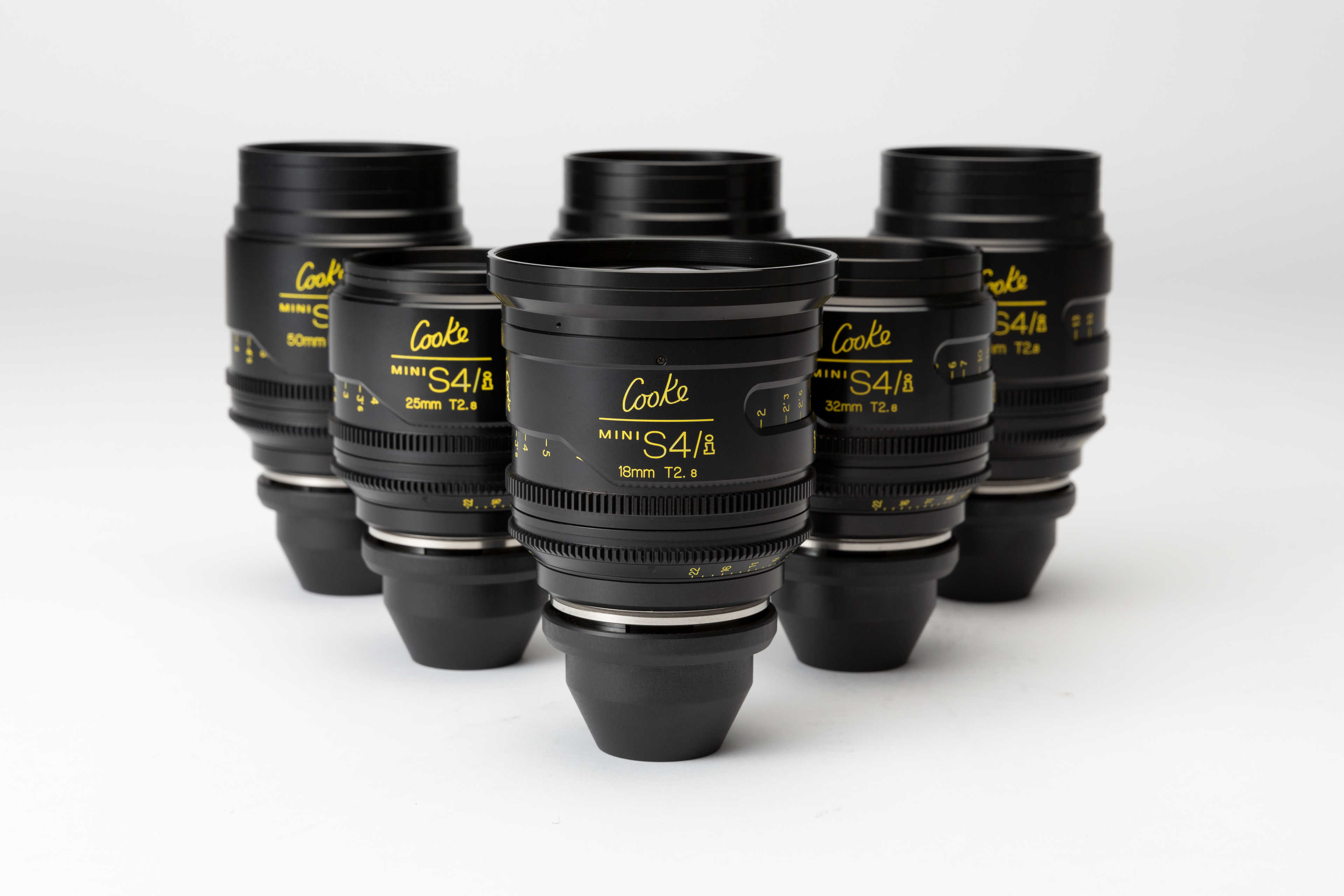

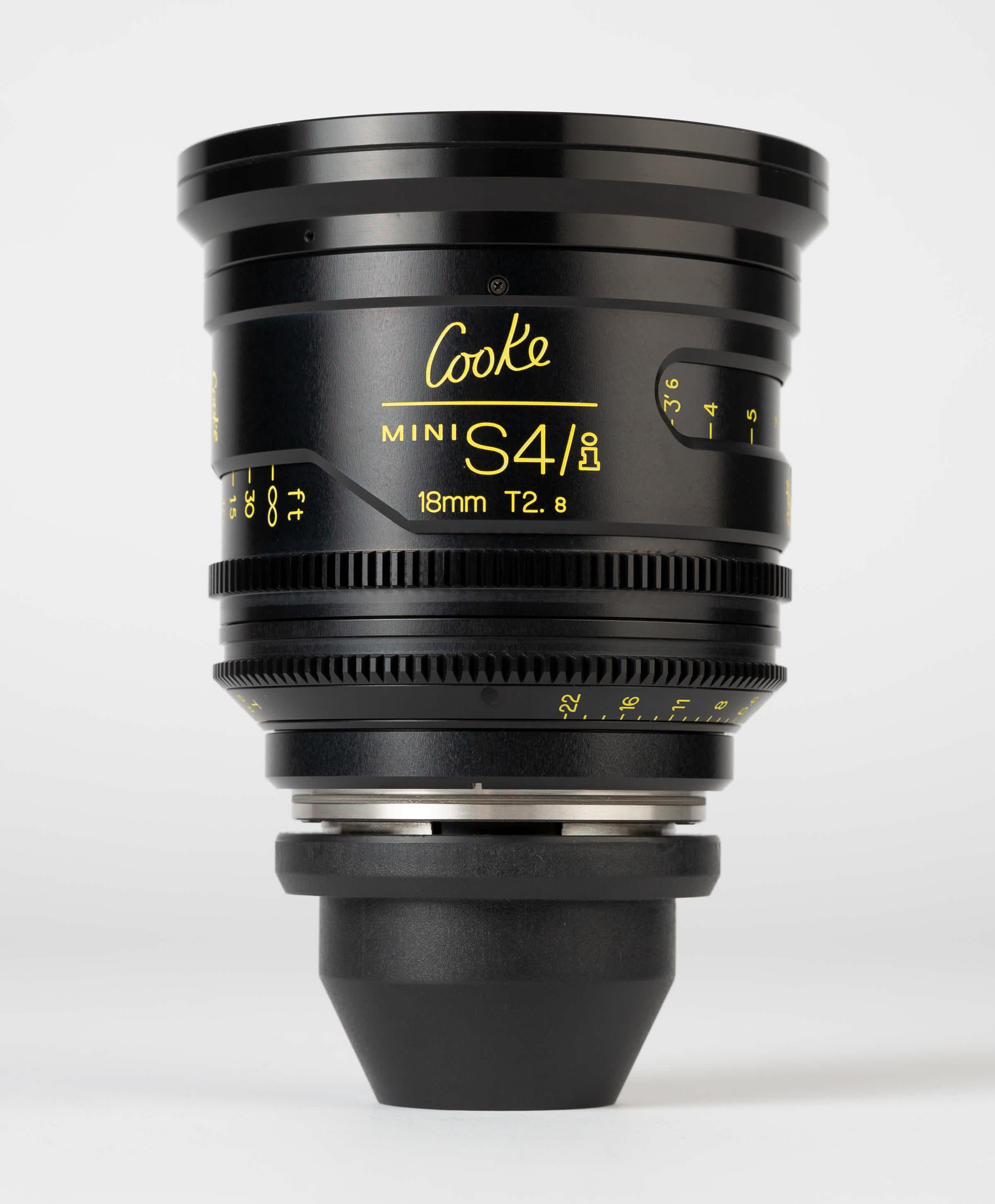

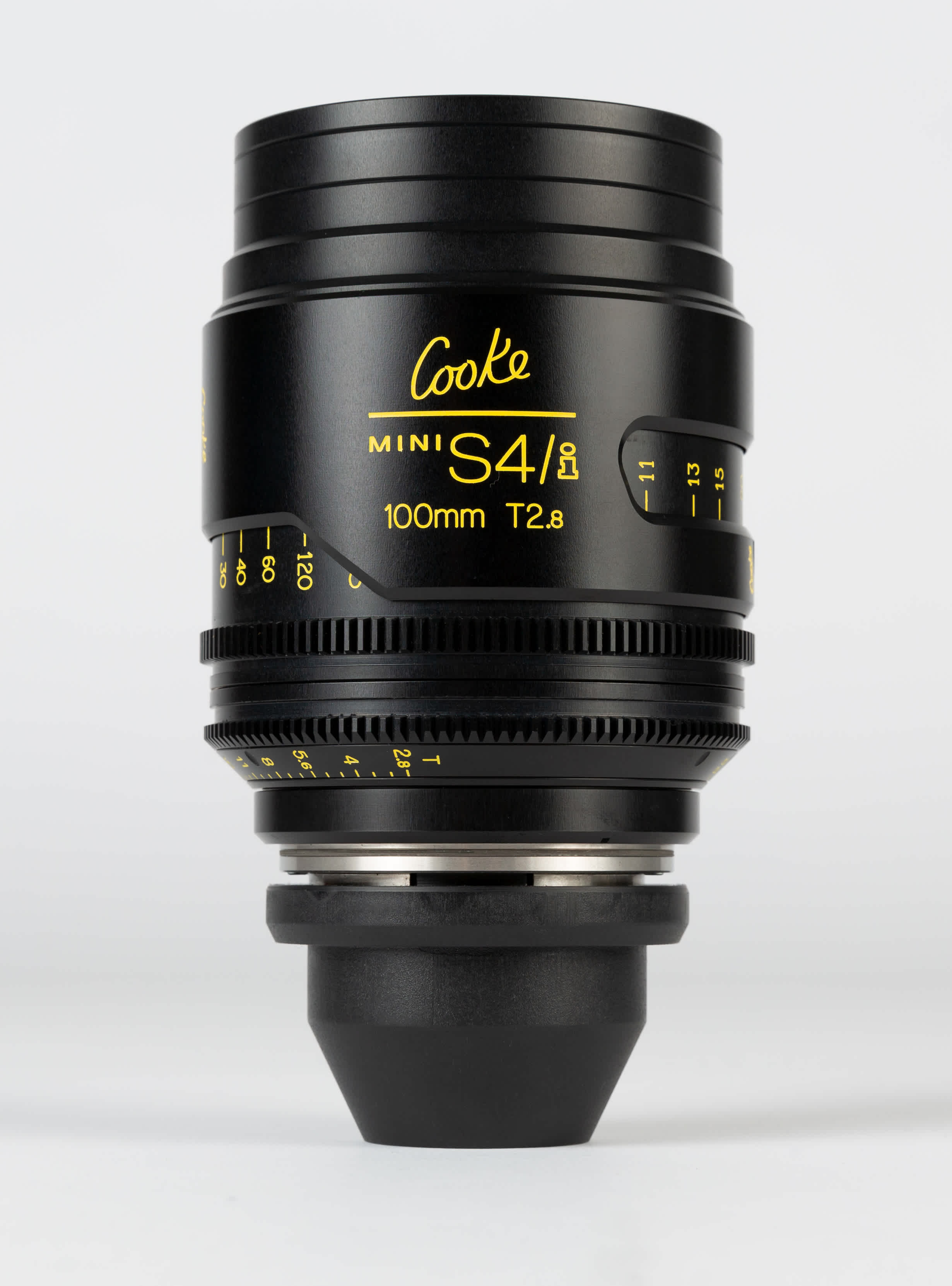

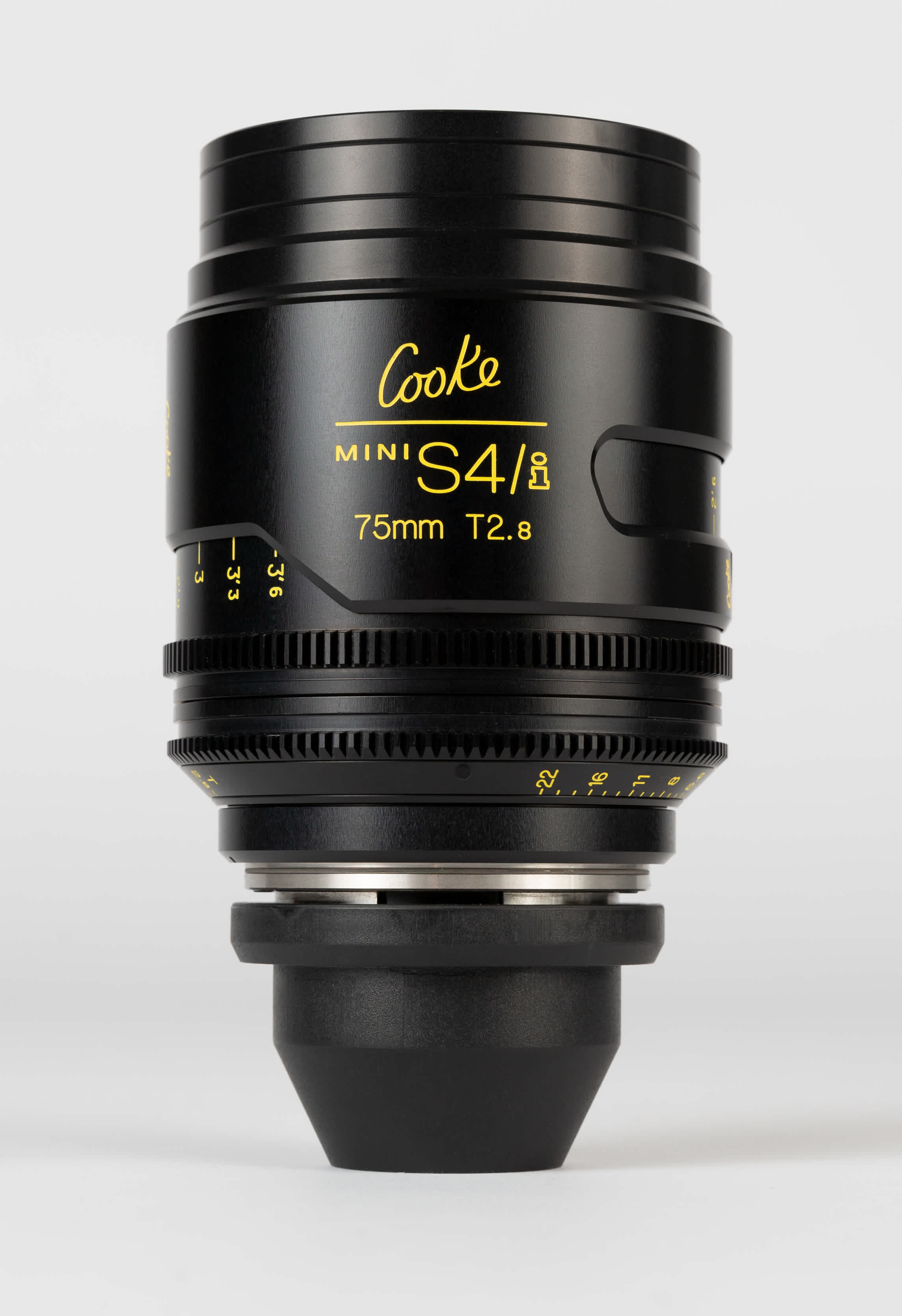

This is a six lens set consisting of 18mm, 25mm, 32mm, 50mm, 75mm and 100mm lenses - all T2.8.
For ARRI format coverage including a video showing the image circle of each lens on LF open gate, please see our article here.
ARRI Sensor Coverage
This test clip shows the coverage of each lens in our Cooke Mini S4/i set for each of the ARRI formats LF Open Gate, 4.3K LF 16:9, 3.8K LF 16:9, Alexa Mini open gate and Alexa Mini 3.2K.
Komodo Tests
Some sample footage combining the Cooke Mini S4/i lenses with RED Komodo.
Basic Lens Tests
A look at the focus breathing, lens flare, distortion etc characteristics of the Cooke mini S4/i lens range.
Optical
Focal Length
18mm 25mm 32mm 50mm 75mm 100mm
Maximum Aperture
18mm: T2.8 25mm: T2.8 32mm: T2.8 50mm: T2.8 75mm: T2.8 100mm: T2.8
Minimum Aperture
18mm: T22 25mm: T22 32mm: T22 50mm: T22 75mm: T22 100mm: T22
Minimum Focus Distance
18mm: 0.25m (10") 25mm: 0.25m (10") 32mm: 0.30m (12") 50mm: 0.50m (1' 8") 75mm: 0.56m (1' 10") 100mm: 0.90m (2' 11")
Image Circle
18mm: 36mm 25mm: 34mm 32mm: 37mm 50mm: 38mm 75mm: 43mm 100mm: 43mm
Physical
Lens Mount
Arri PL
Metadata
Cooke/i
Focus Ring Rotation
300°
Focus / Iris Gear Pitch
0.8 mod
Front Diameter
18mm: 110mm 25mm: 87mm 32mm: 87mm 50mm: 87mm 75mm: 87mm 100mm: 87mm
Dimensions (Ø x L)
18mm: 110mm x 120mm 25mm: 87mm x 106mm 32mm: 87mm x 110mm 50mm: 87mm x 137mm 75mm: 87mm x 137mm 100mm: 87mm x 137mm
Weight
18mm: 1.3kg 25mm: 1.4kg 32mm: 1.6kg 50mm: 1.5kg 75mm: 1.6kg 100mm: 1.6kg
Transport Case
Dimensions: 480mm x 330mm x 310mm Weight (with lenses): 16kg
