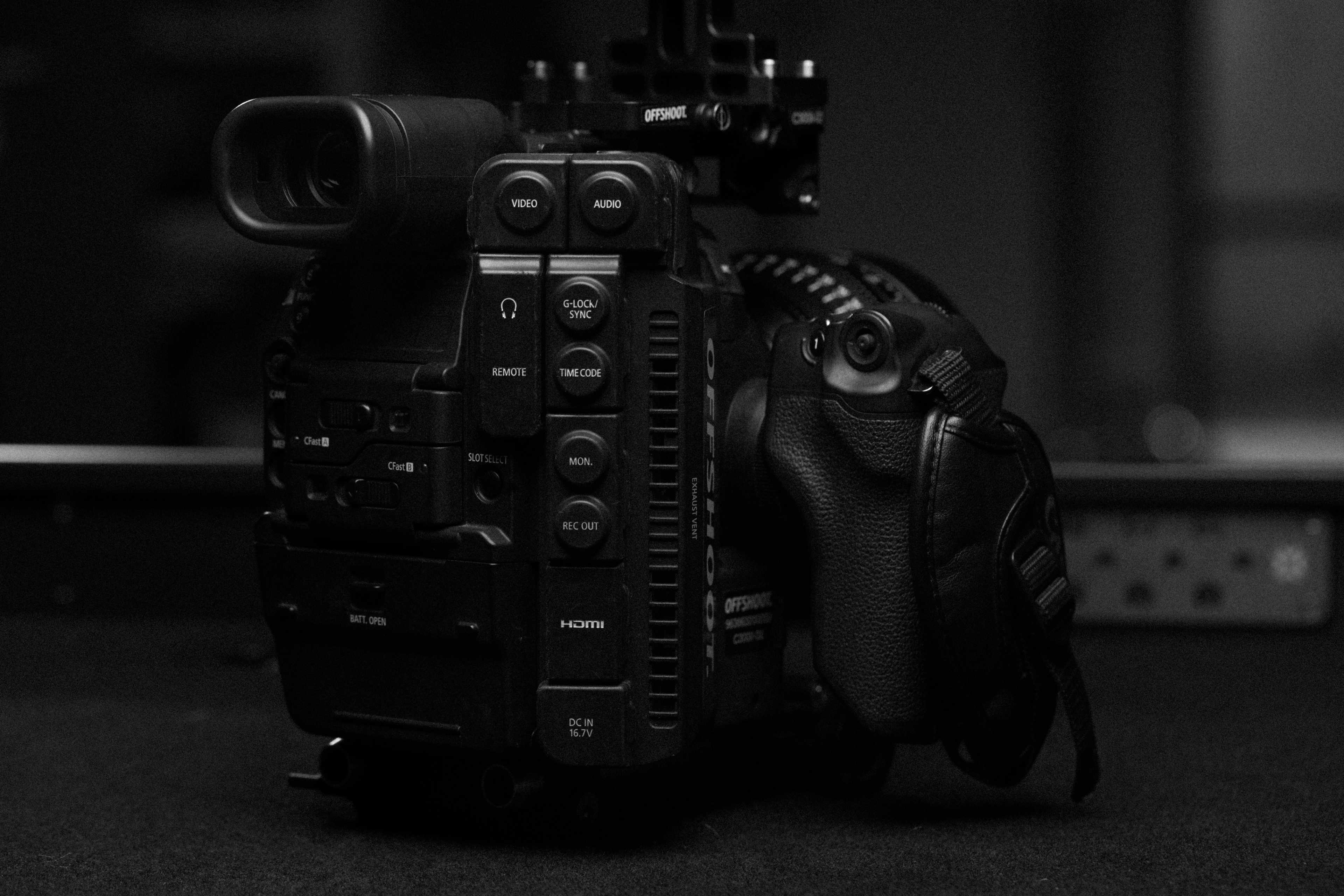

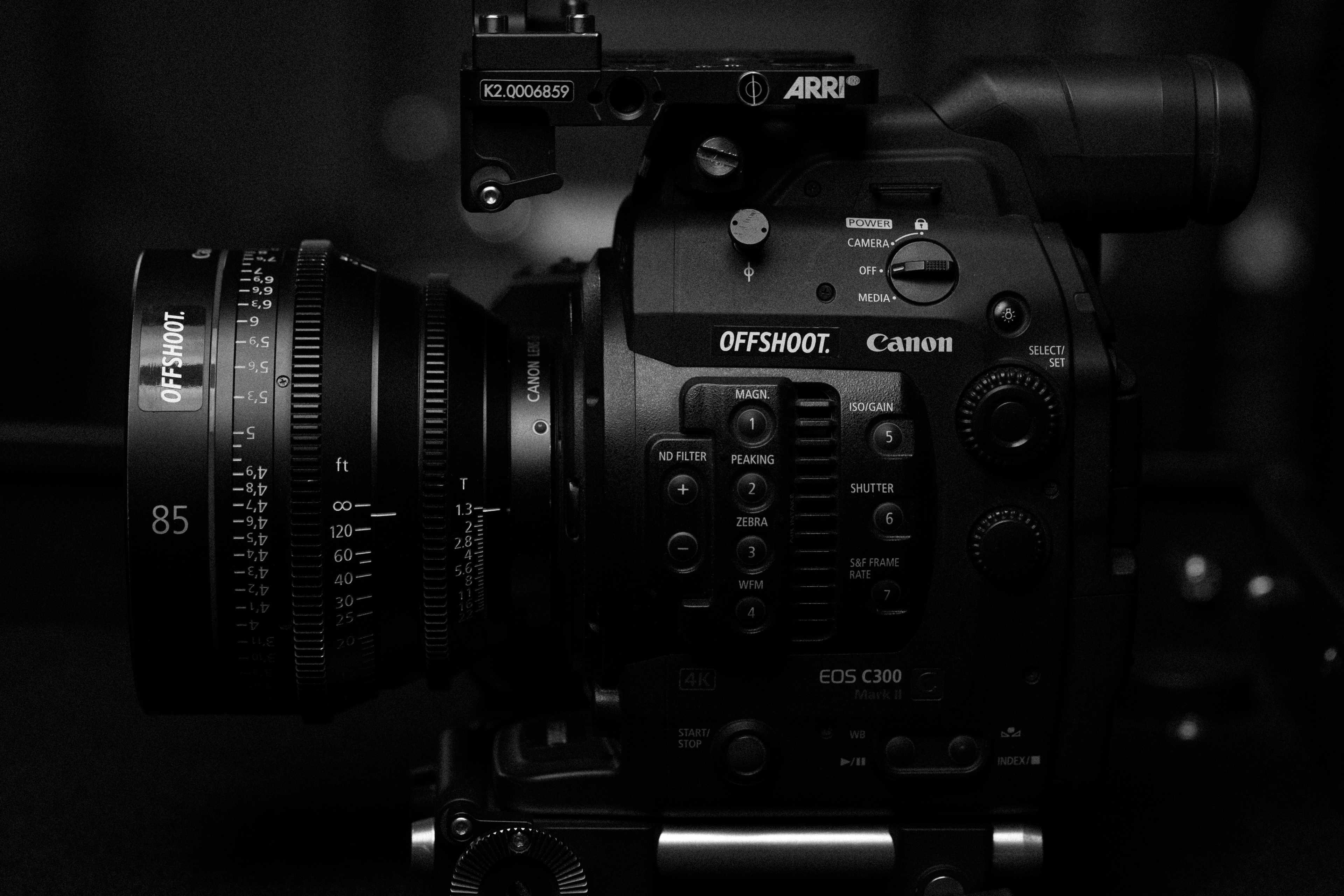

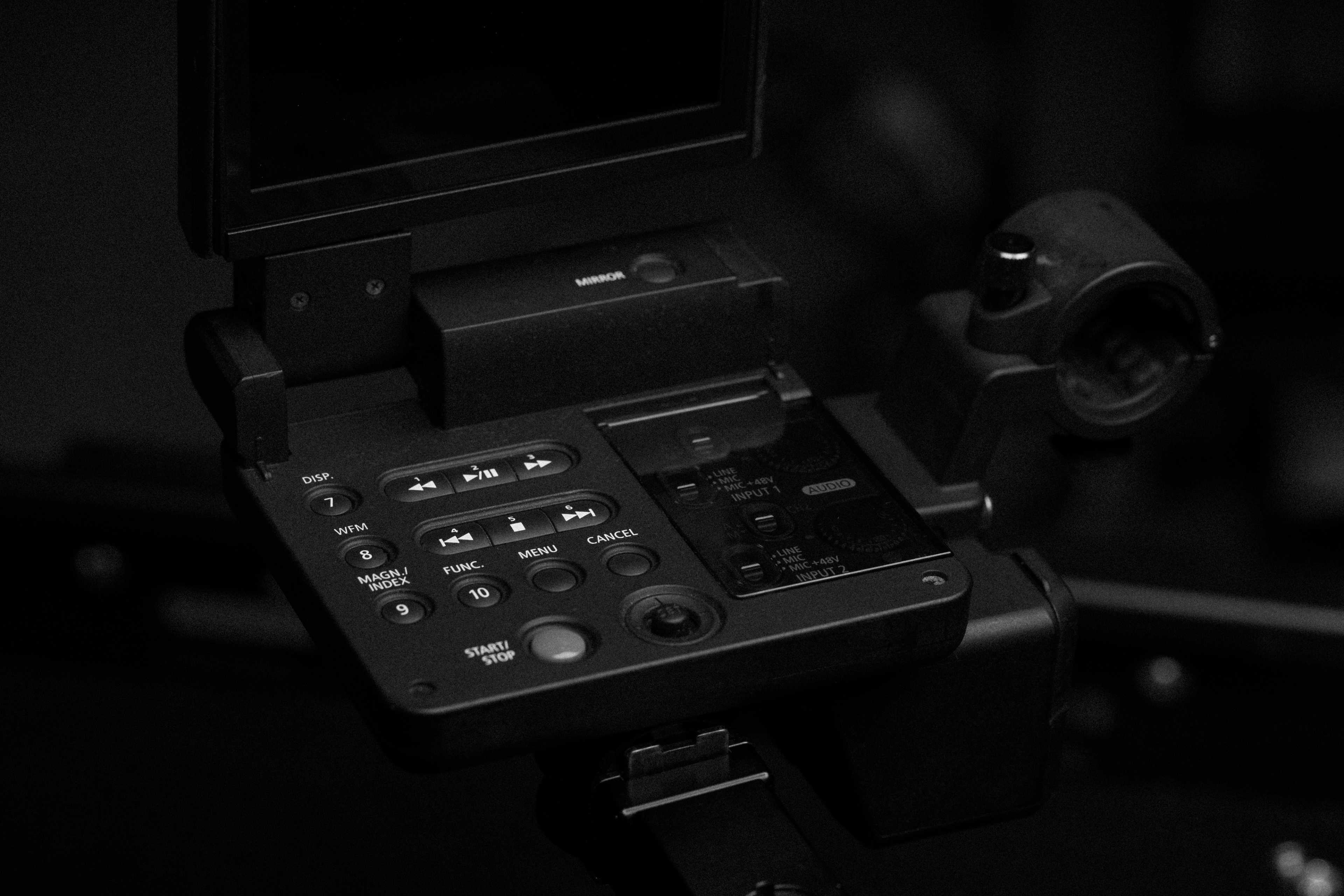

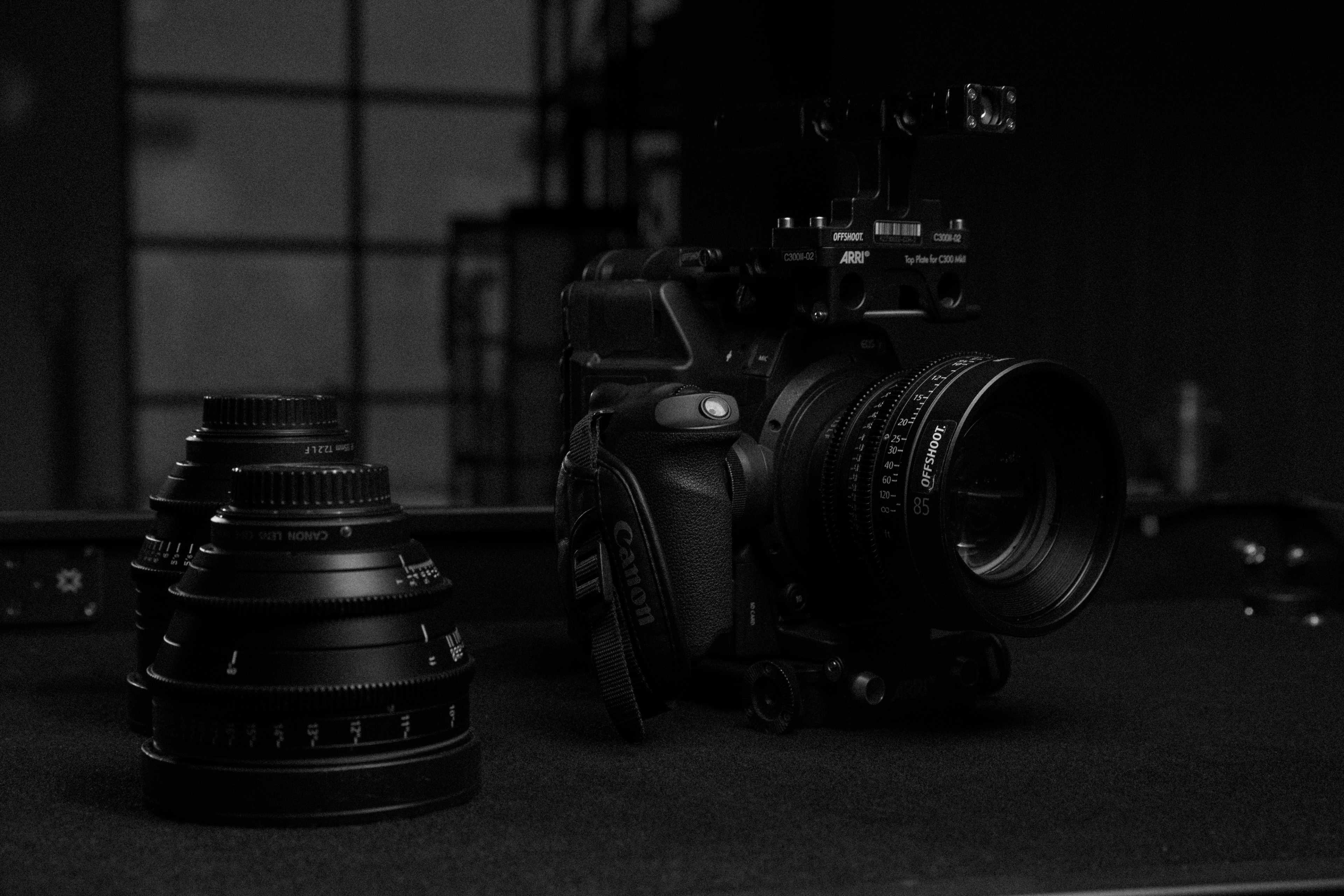

Canon C300 MKII Kit
The C300 mark II is a flexible, dependable workhorse camera suited to many types of production. It features increased dynamic range (a claimed 15 stops), up to 4K internal recording, 4K RAW output and a new 10-bit Canon Log gamma.
Fitted with Arri accessories that allow quick switching between handheld and tripod use, featuring a broadcast style plate with integrated shoulder pad for easy balancing of the camera on a tripod, a quick release plate, and top and bottom 15mm LWS rod consoles.
Introduction
Canon's C300 II introduction video.
LUTs & User Buttons
A walkthrough of using LUTs (look up tables) and assigning functions to buttons on the C300 II.
New Features
A look at new features introduced on the C300 II.
Lens Mount
Mount Options
Arri PL mount Canon EF mount
Flange Focal Depth
PL: 52mm EF: 44mm
Imaging Sensor
Sensor Type
Super 35mm 9.84MP CMOS Sensor with Dual Pixel Autofocus
Sensor Size
4206 x 2340 pixels. 24.6 x 13.8mm. ⌀28.21mm.
Maximum Resolution
4096 x 2160 pixels (4K DCI).
Sensor Frame Rates
4K DCI: 1 - 30 fps. 2K DCI (crop): 1 - 120 fps. Full HD (crop): 1 - 120 fps.
Photosite Pitch
6.4 μm
Exposure Latitude
15 stops.
Lens Squeeze Factors
No anamorphic dequeeze support.
Shutter
Electronic shutter,11.25°- 360° (1/12s - 1/2000s)
Media & Recording Formats
Recording Media
CFast 2.0 (dual slots). SDXC (single slot for proxies and stills).
Supported Formats
XF-AVC.
Colour Coding
XF-AVC
10-bit YCbCr 4:2:2. 10-bit RGB 4:4:4. 12-bit RGB 4:4:4
Colour Spaces
Rec 709 Rec 2020 DCI-P3 Cinema Gamut
Recording Formats - XF-AVC
4K DCI
Clip resolution: 4096 x 2160px. Active photosites: 4096 x 2160px. Image area: 23.96 x 12.74mm. Image circle: ⌀27.14mm. Max FPS: 30.
4K UHD
Clip resolution: 3840 x 2160px. Active photosites: 3840 x 2160px. Image area: 22.46 x 12.74mm. Image circle: ⌀25.82mm. Max FPS: 60.
2K DCI
Clip resolution: 2048 x 1080px. Active photosites: 4096 x 2160px. Image area: 23.96 x 12.74mm. Image circle: ⌀27.14mm. Max FPS: 120.
Full HD
Clip resolution: 1920 x 1080px Active photosites: 3840 x 2160px. Image area: 22.46 x 12.74mm. Image circle: ⌀25.82mm. Max FPS: 120.
Viewfinder
Type
4-inch (10.1 cm diagonal) colour LCD with 16:9 aspect ratio
VF Display Type
LCD
VF Resolution
1.23M pixels (854 x 480 x RGB)
Rear EVF
0.46-inch (1.18cm diagonal), colour organic EL display with 16:9 aspect ratio. Approx. 1.17 million dots (1024 x 576 x RGB). 100% coverage.
Power
DC Input
16.7V via 4pin Lemo. 14.4V via on-board battery.
Battery Options
Canon BP-A30. Canon BP-A60.
Consumption
19W - 22W average consumption.
Aux Outputs
None.
Audio
Recording Format
4 channel linear PCM, 24-bit 48 kHz
Input
2x XLR with phantom power. 3.5mm stereo mini jack.
Output
3,5mm stereo headphone jack. SDI (embedded). HDMI (embedded).
Built-in Mics
Yes - one mono mic.
Other I/O
MON Out
BNC jack. 3G-SDI.
SDI Out
BNC jack. 3G-SDI.
HDMI Out
HDMI Type A (full size).
Timecode
BNC jack.
Genlock / Sync Out
BNC jack.
Physical
Dimensions H x W x L
191 x 183 x 188 mm (body with side handle).
Weight
1.8kg (body only).
