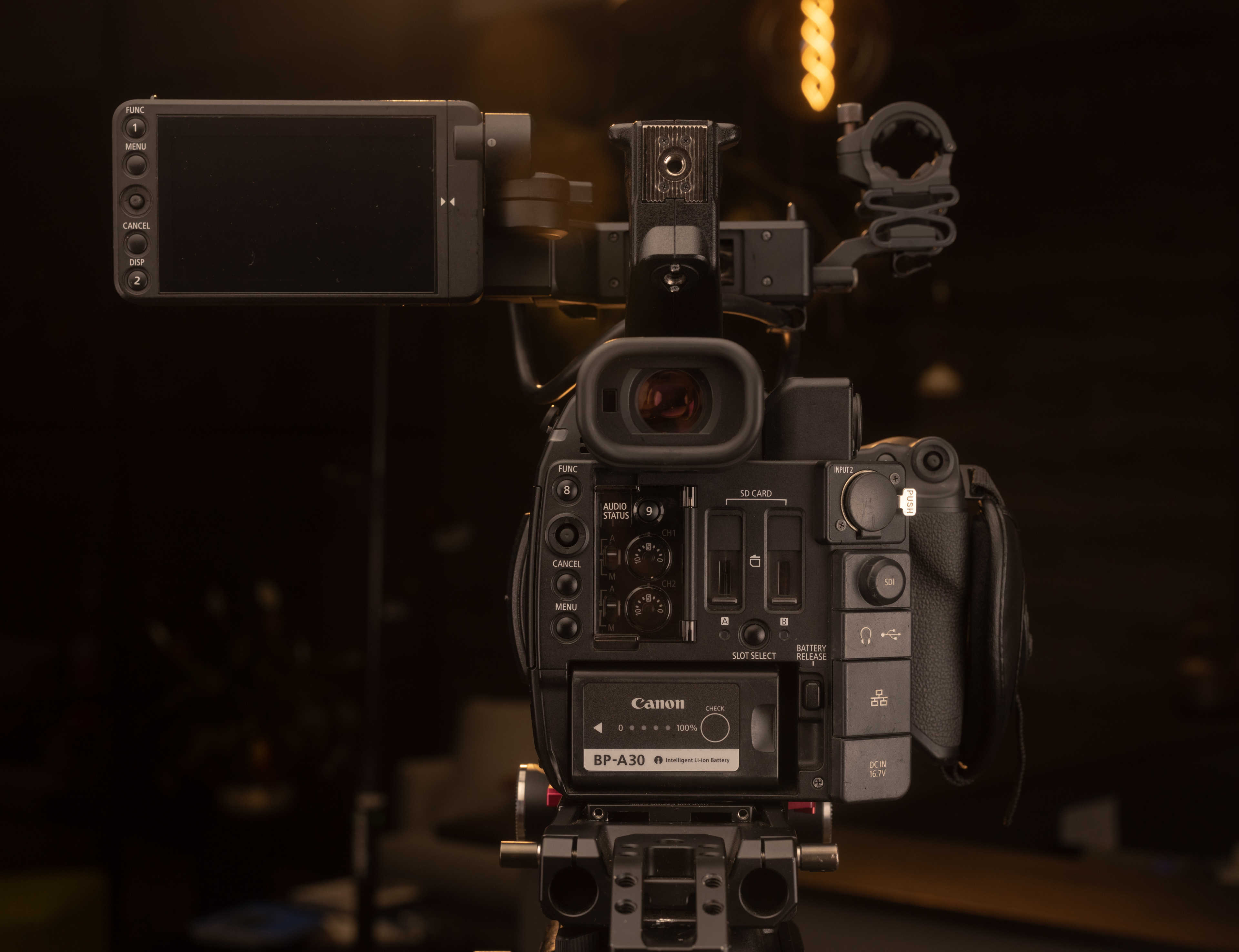

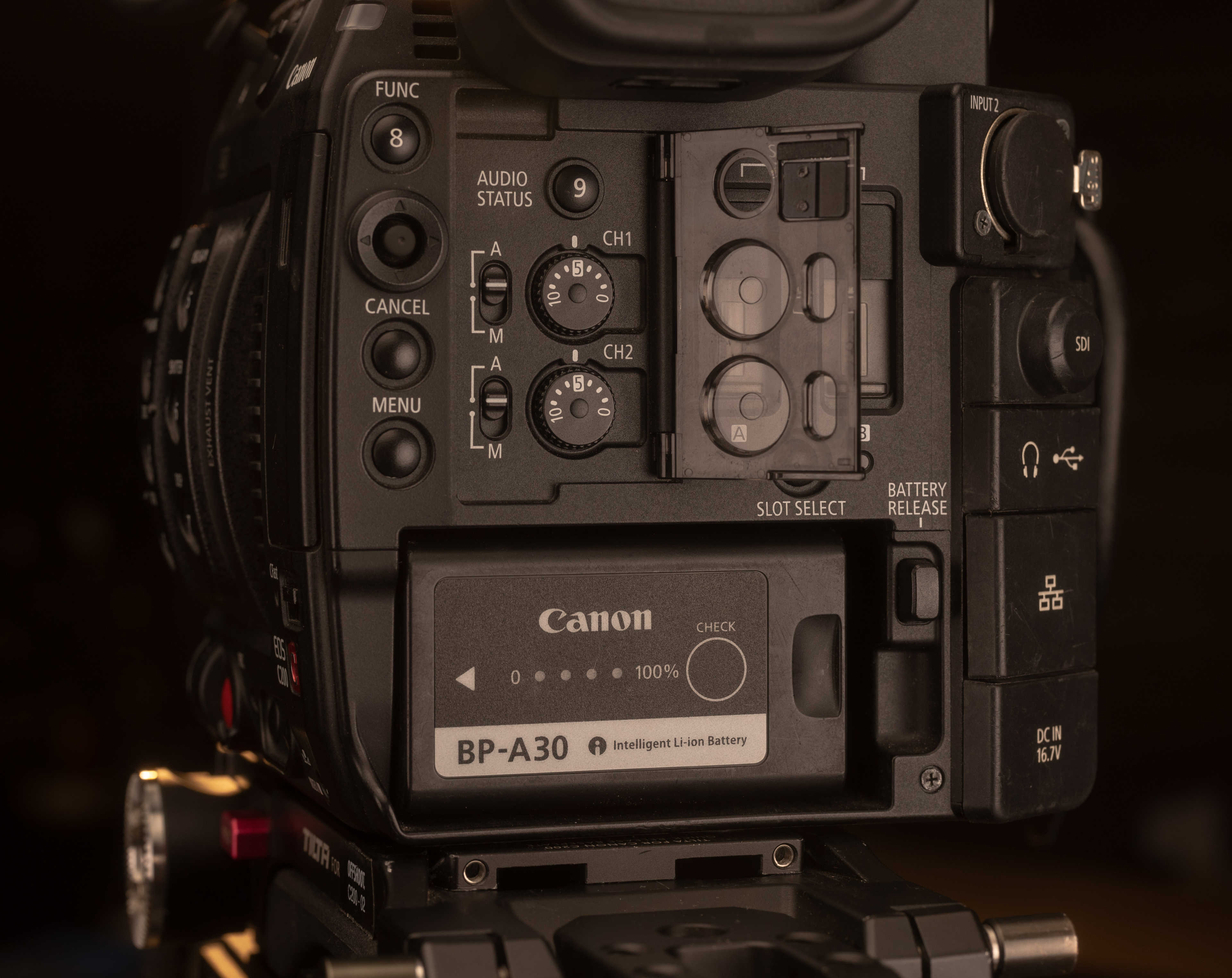

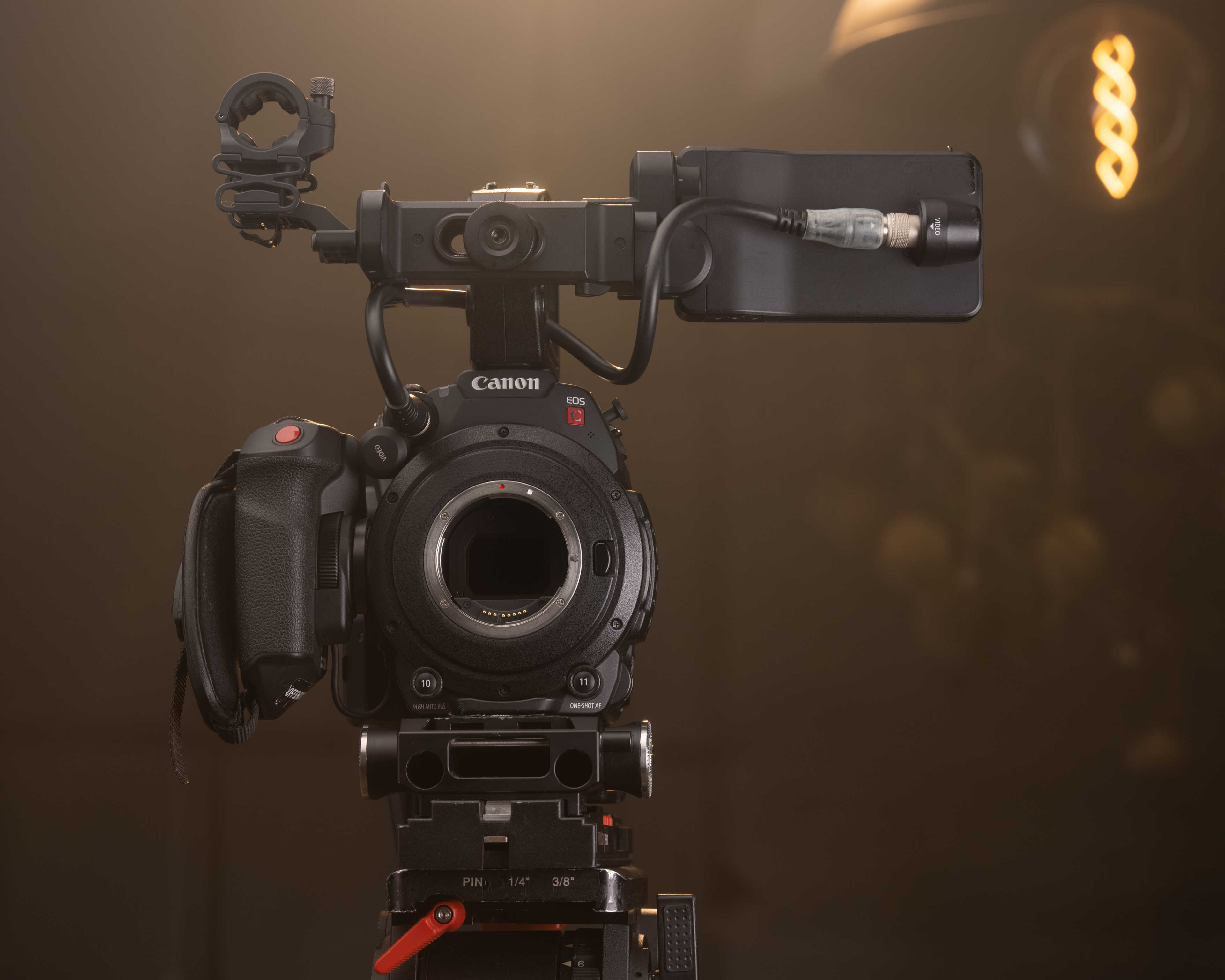

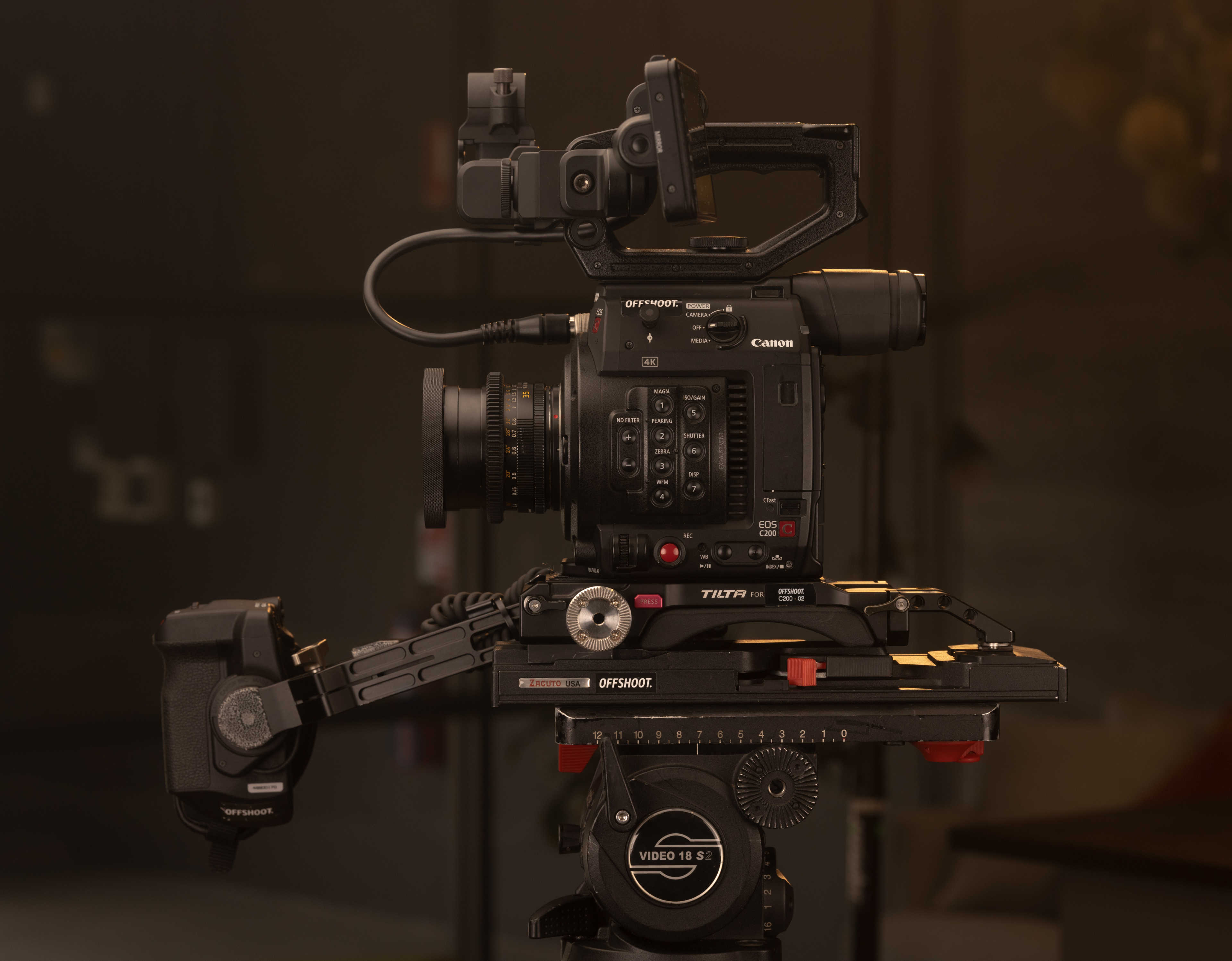

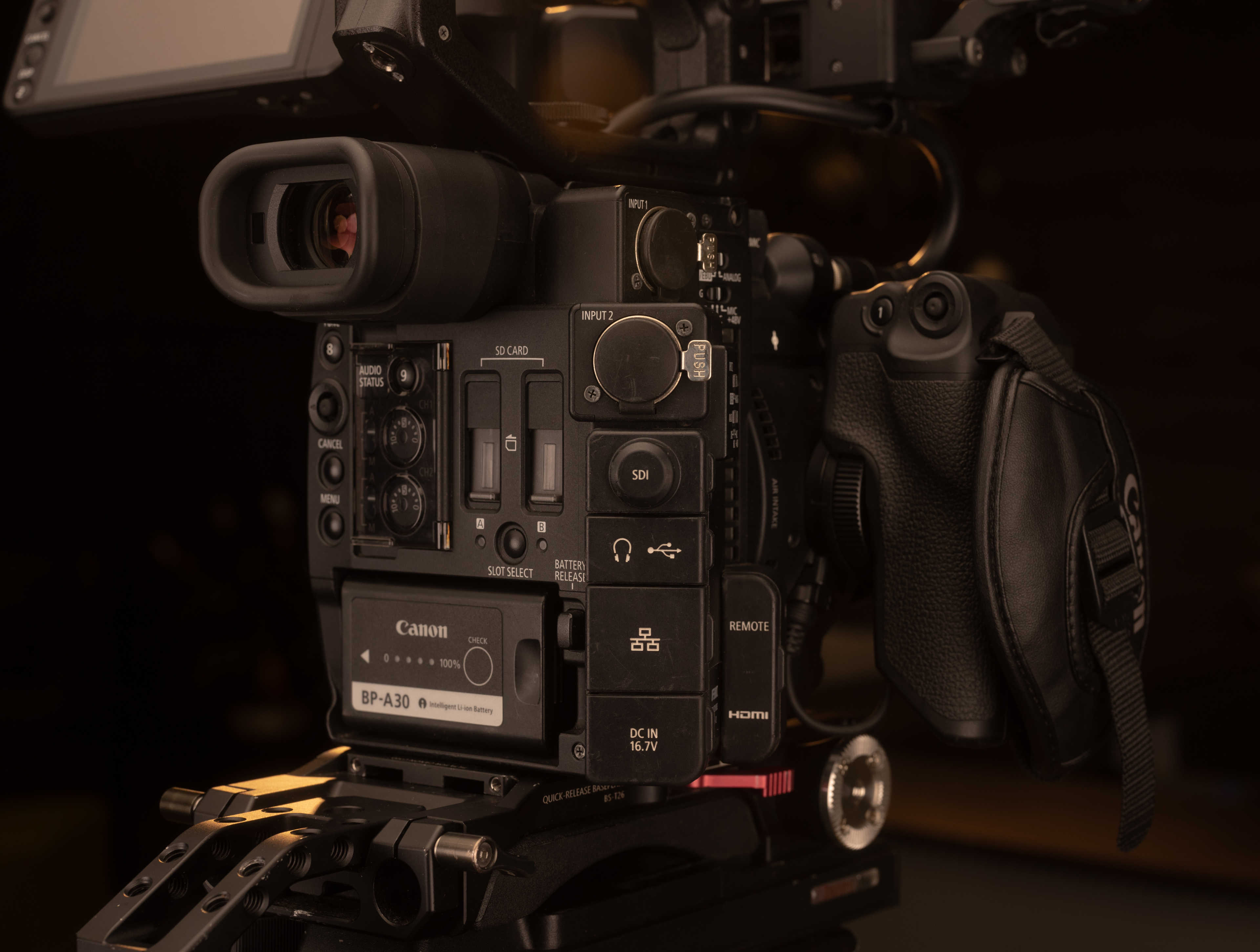

Canon C200 Kit
The Canon EOS C200 offers a compact and lightweight body with the ability to create highly detailed 4K images.
The super 35mm CMOS sensor is the same as that found in the C700 and can deliver Cinema RAW Light recording at 4K DCI 50P internally to CFast 2.0 cards, with up to 15 stops of dynamic range. It also has the ability to record both 4K UHD at 150Mbps and 2K or full HD at 35Mbps to SD cards in MP4 format.
High speed recording is also supported with up to 120fps at full HD without cropping the sensor.
Also featuring Canon's groundbreaking Dual Pixel AF, the C200 offers smooth and reliable autofocus during recording which makes the C200 an ideal option for single shooters and people looking to move into 4K production.
BTS: Jaguar Commercial
See the Canon C200 in action on a Jaguar commercial.
From Dock To Dish
Learn how the C200 was used on From Dock To Dish.
Lens Mount
Mount Options
Canon EF mount
Flange Focal Depth
44mm
Imaging Sensor
Sensor Type
Super 35 equivalent 9.84MP CMOS sensor with Dual Pixel Autofocus
Sensor Size
4206 x 2340 pixels. 24.6 x 13.8mm. ⌀ 28.21mm.
Maximum Resolution
4096 x 2160 pixels.
Sensor Frame Rates
4K: 15 - 60 fps. 2K: 15 - 60fps. Full HD: 15 - 120 fps.
Photosite Pitch
5.8 μm
Exposure Latitude
15 stops
Shutter
Electronic shutter. 11.25°- 360° (1/12s - 1/2000s).
Media & Recording Formats
Recording Media
CFast 2.0 media (Canon RAW Light). SDXC media (XF-AVC / MP4).
Supported Formats
Canon Cinema RAW Light. XF-AVC. MP4.
Recording Resolutions
4K DCI - 4096 x 2160. 4K UHD - 3840 x 2160. 2K DCI - 2048 x 2160. Full HD - 1920 x 1080.
Colour Coding
XF-AVC. / MP4
8-bit YCbCr 4:2:0
Canon RAW Light
12-bit. 10-bit.
Colour Spaces
Rec 709
Recording Formats
4K DCI
Clip resolution: 4096 x 2160px. Active photosites: 4096 x 2160px. Image area: 23.96 x 12.74mm. Image circle: ⌀27.14mm. Max FPS: 60.
4K UHD
Clip resolution: 3840 x 2160px. Active photosites: 3840 x 2160px. Image area: 22.46 x 12.74mm. Image circle: ⌀25.82mm. Max FPS: 60.
2K DCI
Clip resolution: 2048 x 1080px. Active photosites: 4096 x 2160px. Image area: 23.96 x 12.74mm. Image circle: ⌀27.14mm. Max FPS: 60.
Full HD
Clip resolution: 1920 x 1080px Active photosites: 3840 x 2160px Image area: 22.46 x 12.74mm. Image circle: ⌀25.82mm. Max FPS: 120.
Viewfinders
Type
4" touchscreen 1.23M dot LCD viewfinder (touch function for focus only). 1.77M dot integrated EVF.
Audio
Recording Format
Cinema RAW Light: Linear PCM (24-bit / 16-bit / 48 kHz / 4 channels). XF-AVC: Linear PCM (24-bit / 48kHz / 4 channels). MP4: MPEG-2 AAC-LC (16-bit / 48 kHz / 2 channels) or Linear PCM (16-bit / 48 kHz / 4 channels).

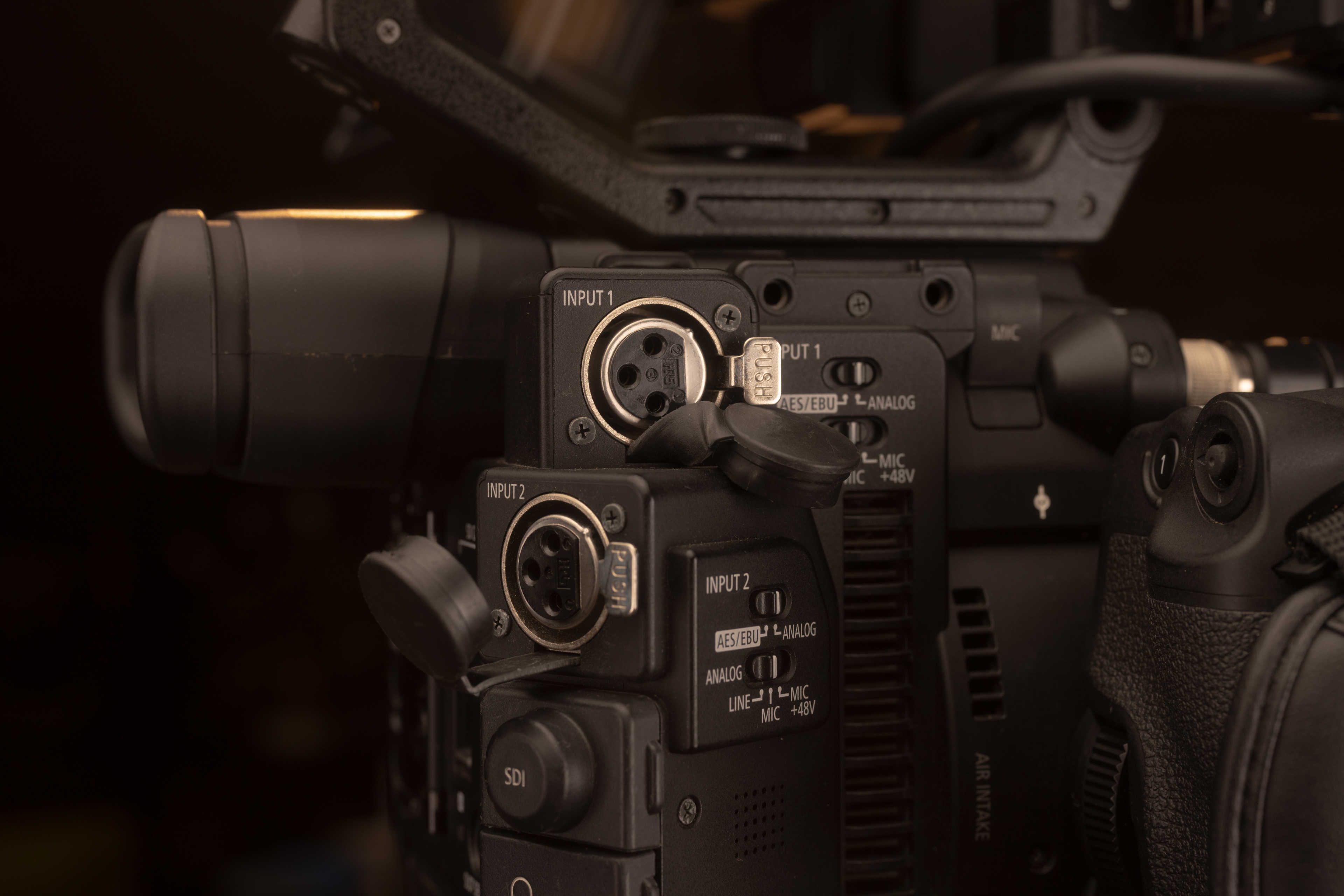

Input
2x XLR. 3.5mm stereo mini jack. AES/EBU digital or analog audio input. Line level, mic level, +48V phantom power supported.
Output
3,5mm stereo headphone jack. SDI (embedded). HDMI (embedded).
Built-in Mic
Yes - mono mic.
Other I/O
SDI Out
SDI - 3G SDI
HDMI Out
HDMI Type A (full size)
Timecode
None.
Genlock / Sync
None.
Power
DC Input
14.4V via BP-A battery. 16.7V via 4pin Lemo.
Battery Options
Canon BP-A30. Canon BP-A60.
Consumption
Approx 19W average consumption.
Aux Outputs
None.
Physical
Dimensions H x W x L
178 x 153 x 204 mm (body with side handle)
Weight
1.43kg (body only)
