40mm, 65mm and 100mm PL mount. For use on large format cameras, we also have the large format extender available.

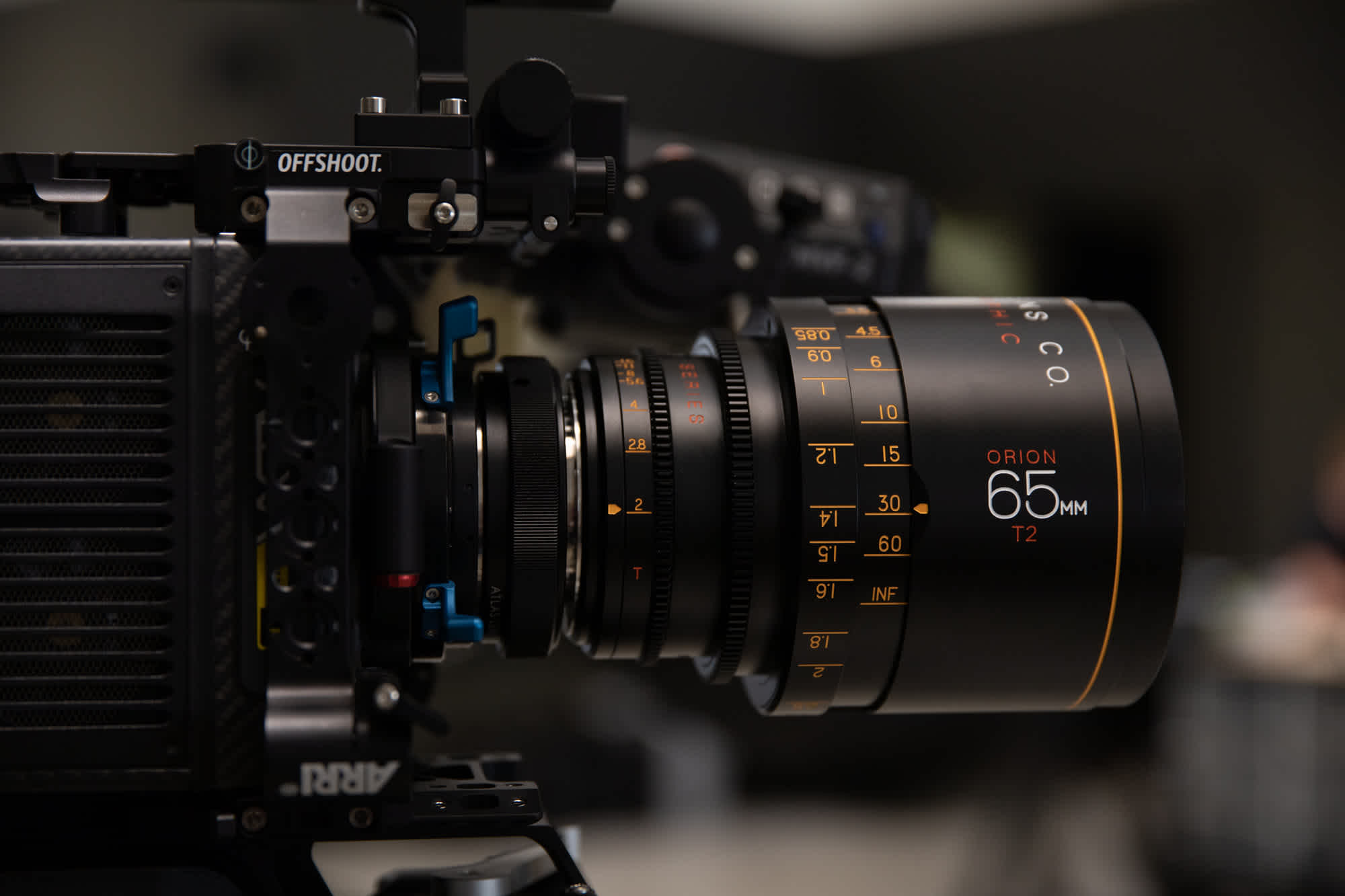

Atlas Orion anamorphic lenses offer you the classic sense of depth, ovoid bokeh, breathing and flare characteristics associated with front anamorphic group lenses - at a less intimidating price point.
All lenses in the set have consistent front diameter sizing (114mm) and focus and iris ring placement.
We also have the Atlas Orion 2X Anamorphic B Set (32mm, 50mm and 80mm) as well as the full six lens set.
DP Wilson Huang lensed this Gold ACS award winning Kenworth promotion with Atlas Orion lenses.
Cameron Mitchell (DP) and the OneHouse team lensed this Sire music video with the Atlas Orion set.
The 2022 Atlas Lens co showreel.
The 2021 Atlas Orion showreel from Atlas Lens Co.
2020 Atlas Orion lens showreel. A great showcase of projects on which the Orion lenses have been used.
CVP reviews the Atlas Orion 2X ANA Series A lens set.
A look at the characteristics of the six lenses in the full set of Atlas Orion 2X Anamorphics.
Atlas Lens Co demonstrate the coverage of the Atlas Anamorphic lenses on an Alexa Mini LF with and without the large format extender. The different sensor formats are also demonstrated.
Optical
Squeeze Factor
2X
Focal Length
40mm 65mm 100mm
Minimum Focus Distance
40mm: 0.61m (24") 65mm: 0.84m (2' 9") 100mm: 1.07m (3' 6")
Maximum Aperture
40mm: T2.0 65mm: T2.0 100mm:T2.0
Minimum Aperture
40mm: T16 65mm: T16 100mm: T16
Image Circle
40mm: 31mm 65mm: 31mm 100mm: 31mm
Physical
Lens Mount
ARRI PL
Metadata
None
Front Diameter
40mm: 114mm 65mm: 114mm 100mm: 114mm
Focus Ring Rotation
40mm: 270° 65mm: 270° 100mm: 270°
Focus / Iris Gear Pitch
0.8 mod
Dimensions (Ø x L)
40mm: 114mm x 189mm 65mm: 114mm x 184mm 100mm: 114mm x 254mm
Weight
40mm: 2.2kg 65mm: 2.2kg 100mm: 3.0kg
Transport Case
Dimensions: 580mm x 410mm x 230mm. Weight (with lenses): 16kg
