Atlas Orion 2X Anamorphic Series B Set (3)
32mm, 50mm and 80mm PL mount. For use on large format cameras, we also have the large format extender available.
Atlas Orion 2X anamorphic lenses offer you the classic sense of depth, ovoid bokeh, breathing and flare characteristics associated with front anamorphic group lenses - at a less intimidating price point.
All lenses in the set have consistent front diameter sizing (114mm) and focus and iris ring placement.
We also have the Atlas Orion 2X Anamorphic A Set (40mm, 65mm and 100mm) as well as the full six lens set available.
2021 Showreel
The 2021 Atlas Orion showreel from Atlas Lens Co.
2020 Showreel
2020 Atlas Orion lens showreel. A great showcase of projects on which the Orion lenses have been used.
B Set Overview
CVP look at the B set of Atlas Orion 2X anamorphic lenses.
Full Set Overview
A look at the characteristics of the six lenses in the full set of Atlas Orion 2X Anamorphics.
Arri LF Sensor Coverage

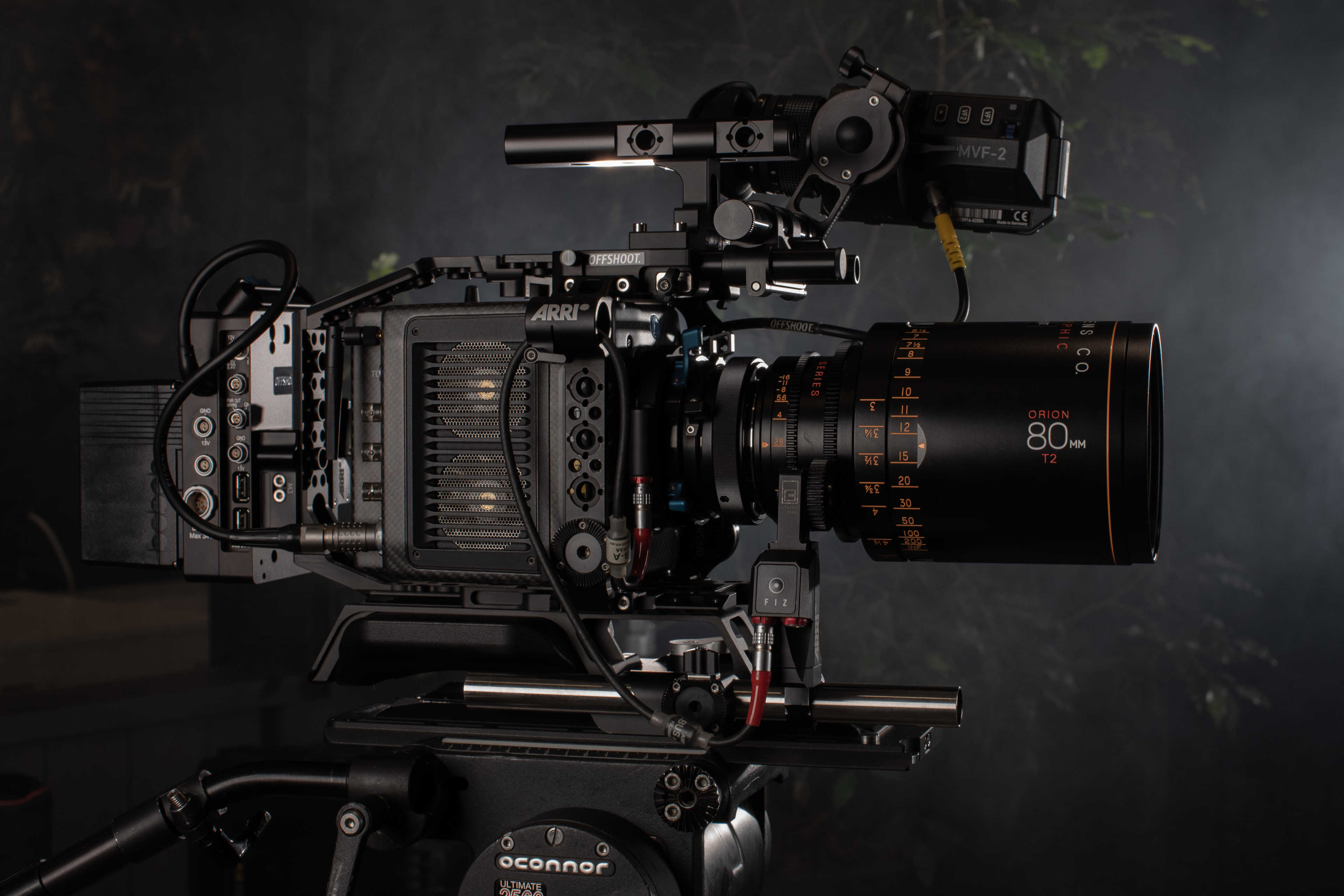

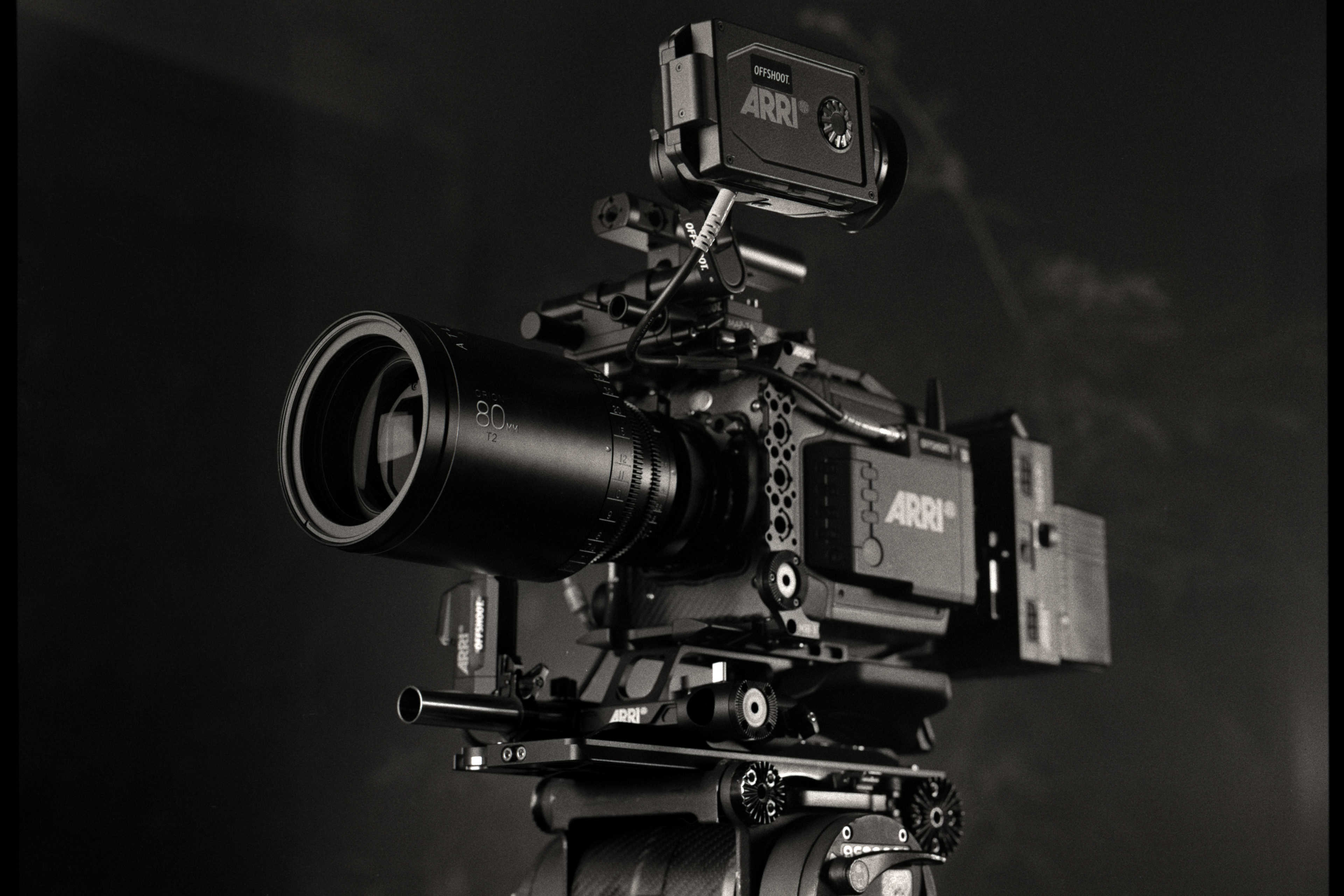

Atlas Lens Co demonstrate the coverage of the Atlas Anamorphic lenses on an Alexa Mini LF with and without the large format expadner. The differetn sensor formats are also demonstrated.
Optical
Focal Length
32mm 50mm 80mm
Minimum Focus Distance
32mm: 0.53m (21”) 50mm: 0.76m (2’ 6”’) 80mm: 0.91m (3’)
Maximum Aperture
32mm: T2.0 50mm: T2.0 80mm: T2.0
Minimum Aperture
32mm: T16 50mm: T16 80mm: T16
Image Circle
32mm: 31mm 50mm: 31mm 80mm: 31mm
Physical
Lens Mount
Arri PL
Metadata
None
Front Diameter
32mm: 114mm 50mm: 114mm 80mm: 114mm
Focus Ring Rotation
32mm: 270° 50mm: 270° 80mm: 270°
Focus / Iris Gear Pitch
0.8 mod
Dimensions (Ø x L)
32mm: 114mm x 170mm 50mm: 114mm x 178mm 80mm: 114mm x 215mm
Weight
32mm: 2.1kg 50mm: 2.3kg 80mm: 2.7kg
Transport Case
Dimensions: 580mm x 410mm x 230mm. Weight (with lenses): 16.5kg
