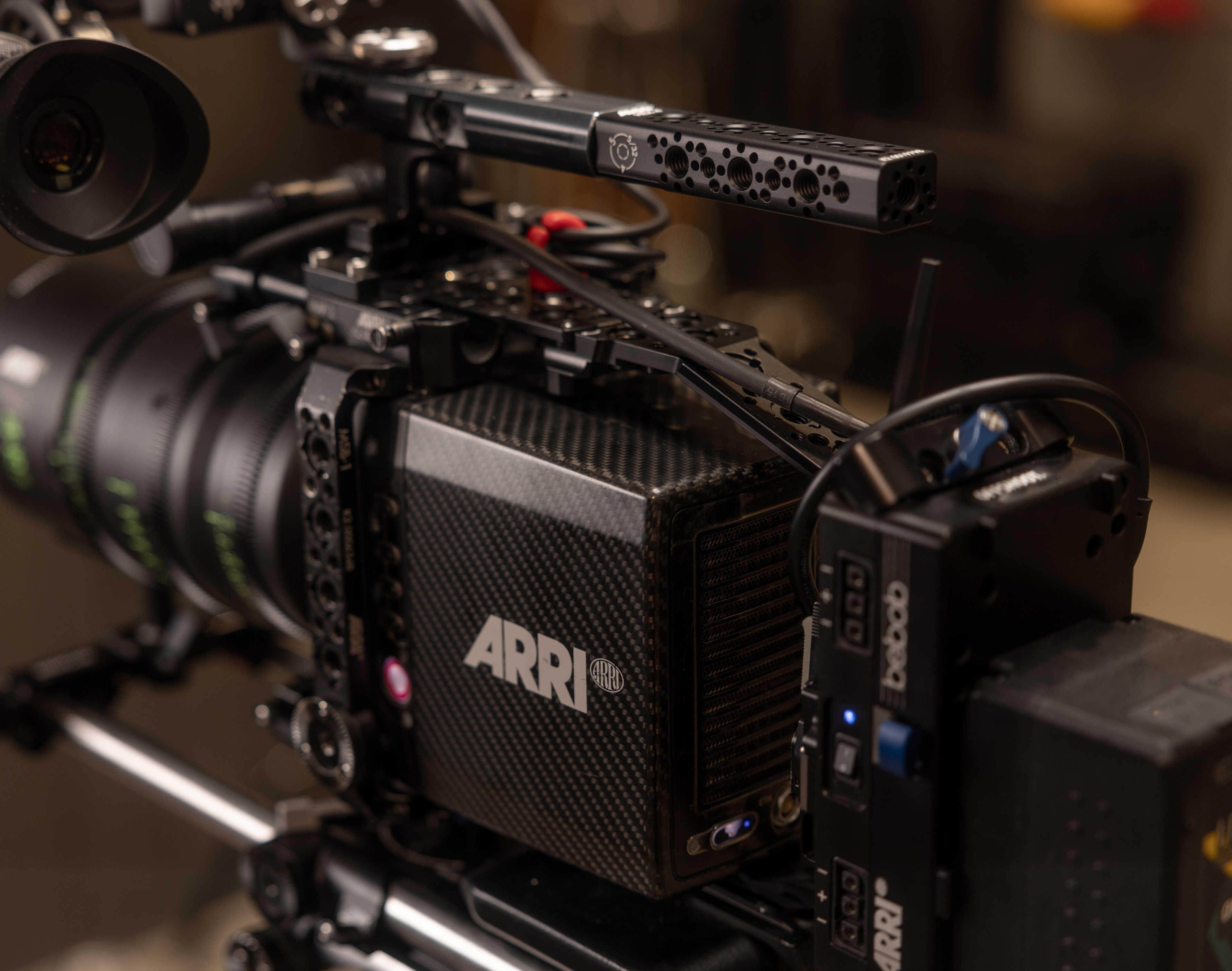

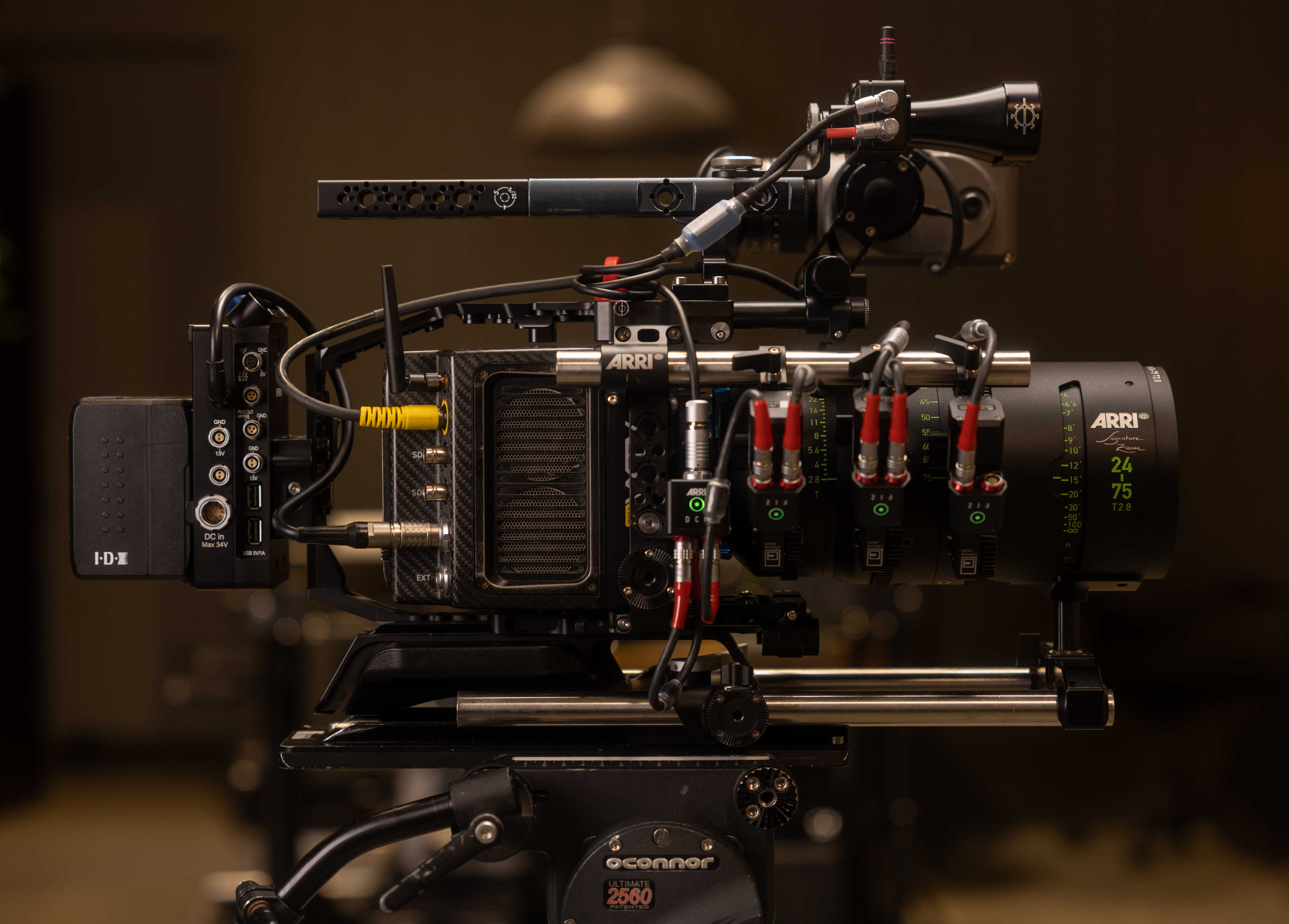

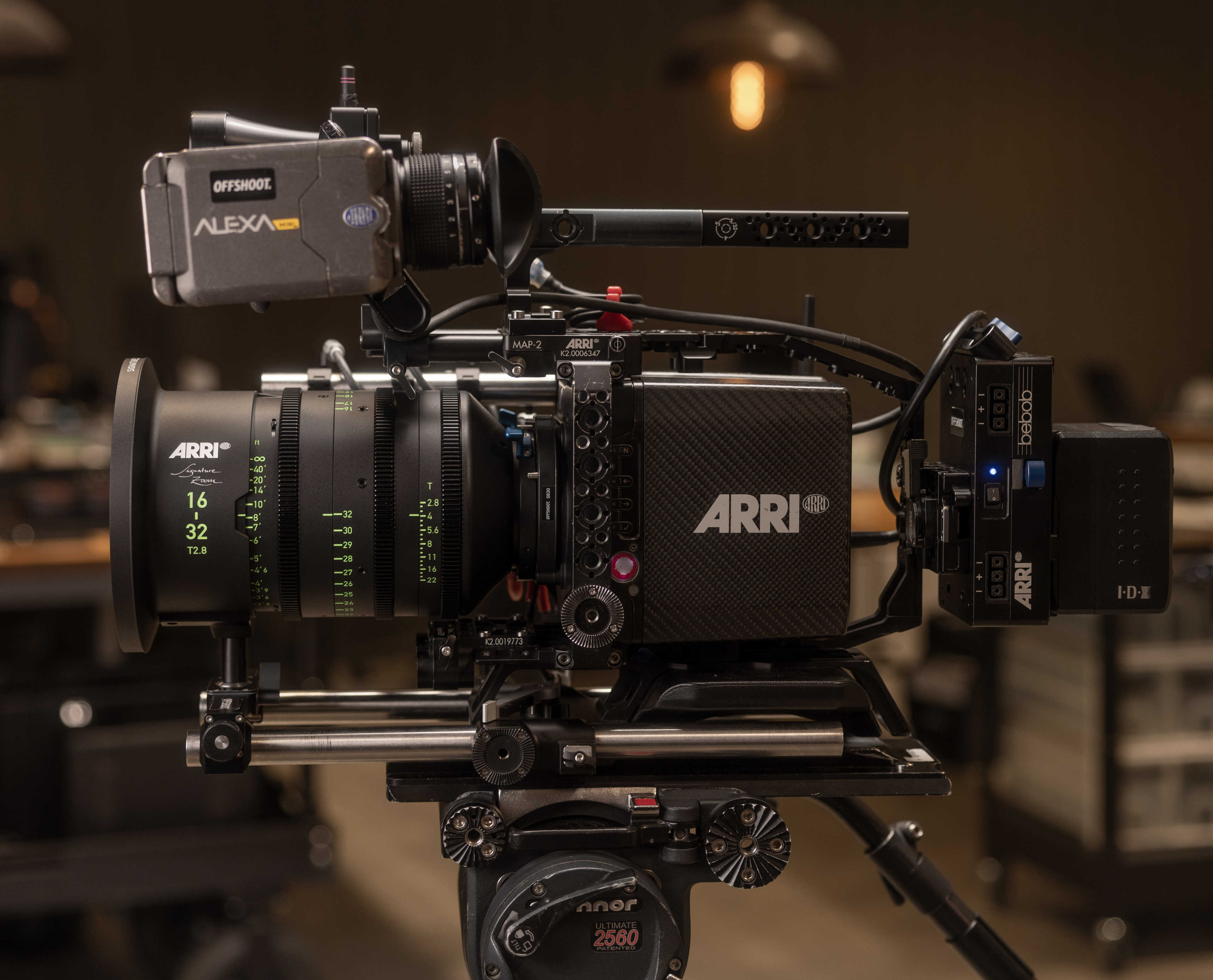

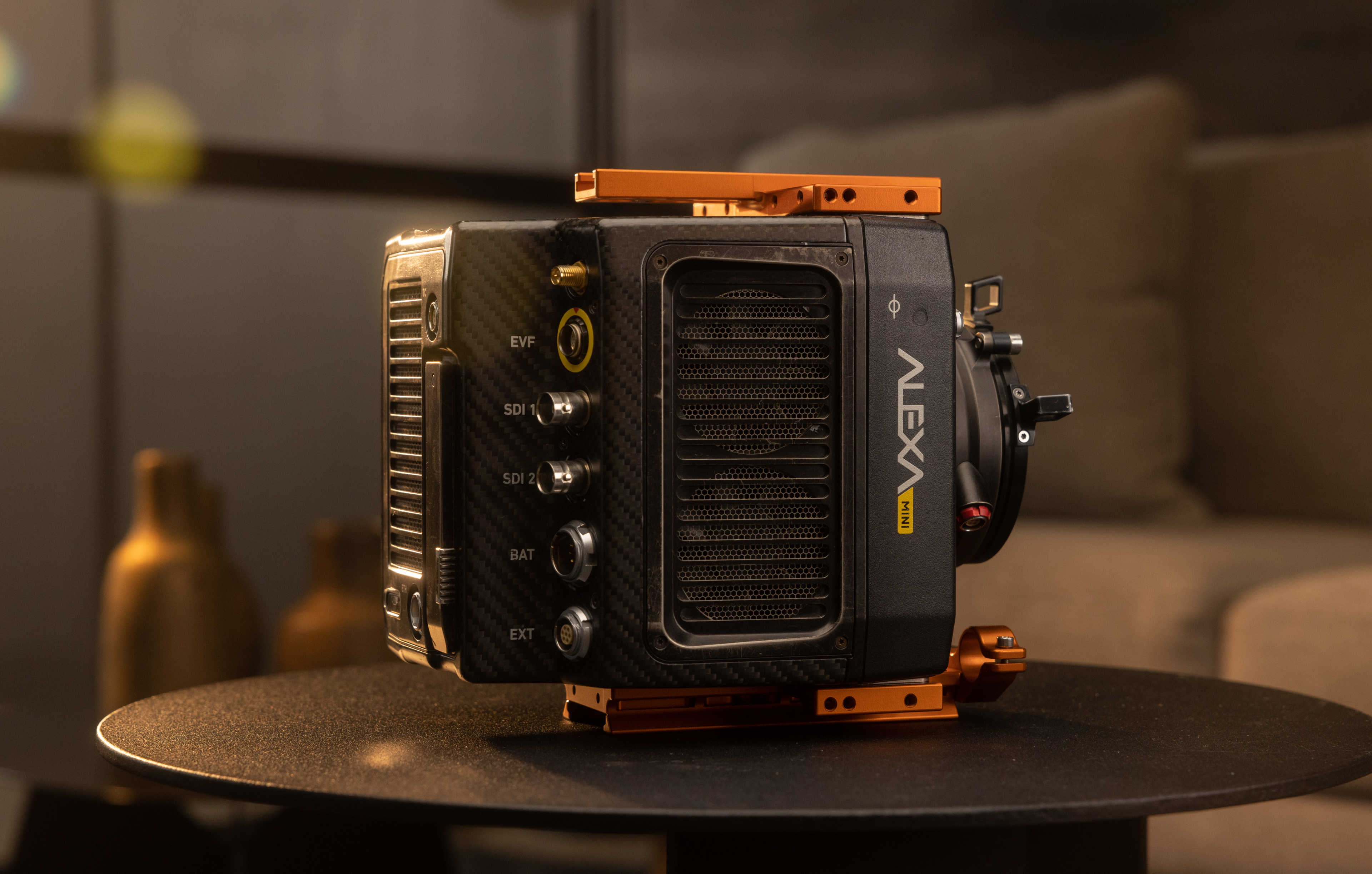

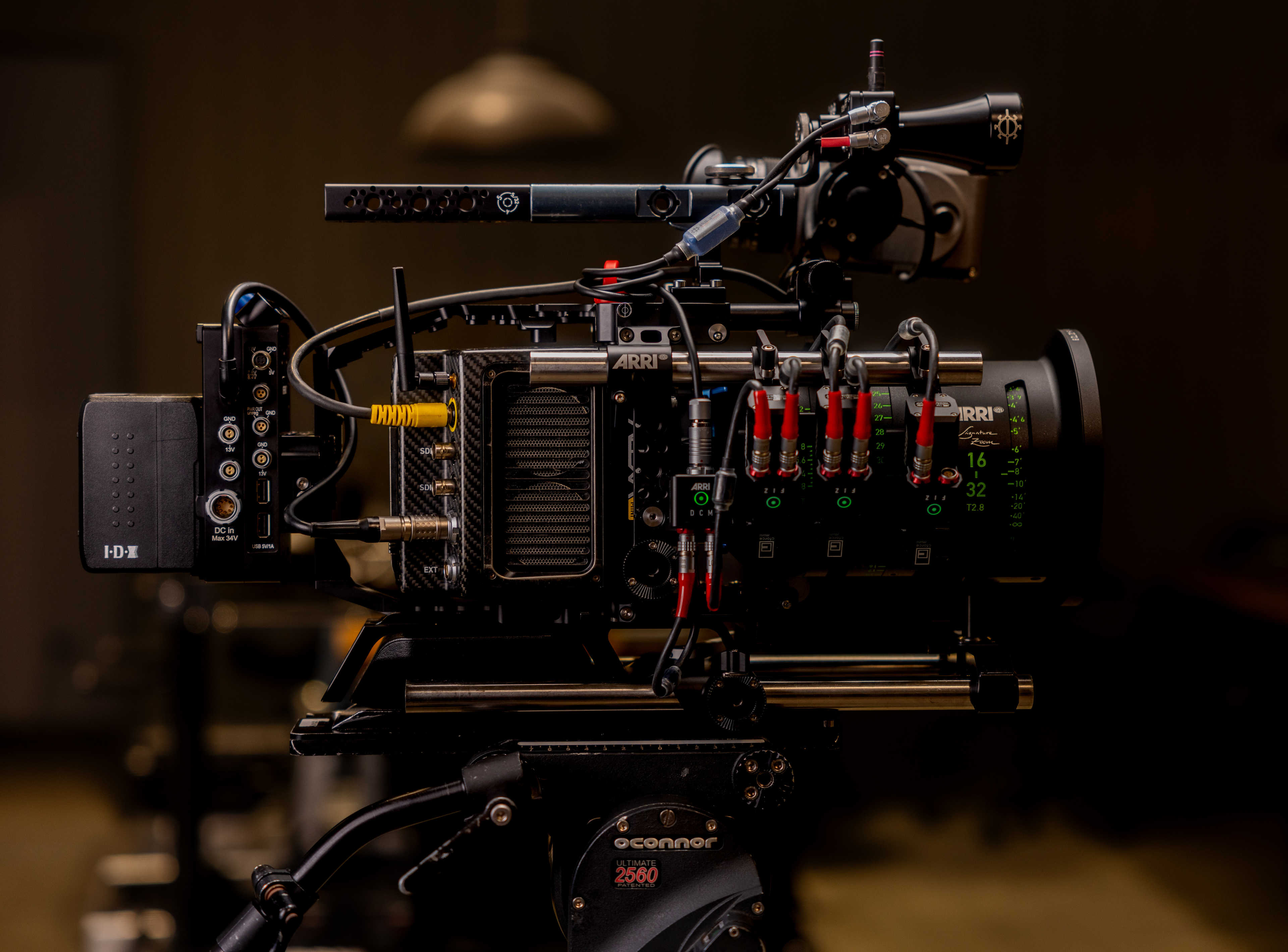

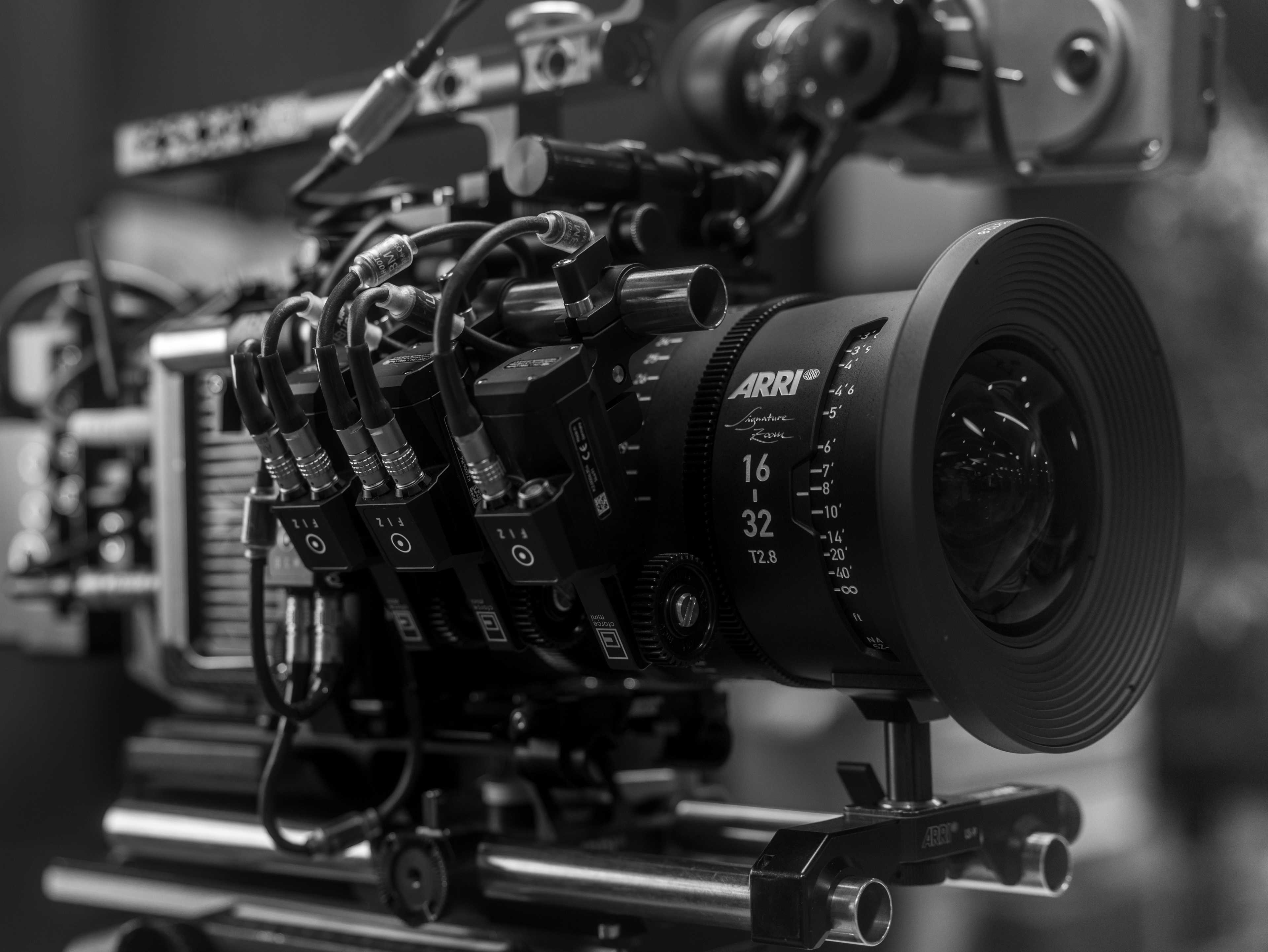

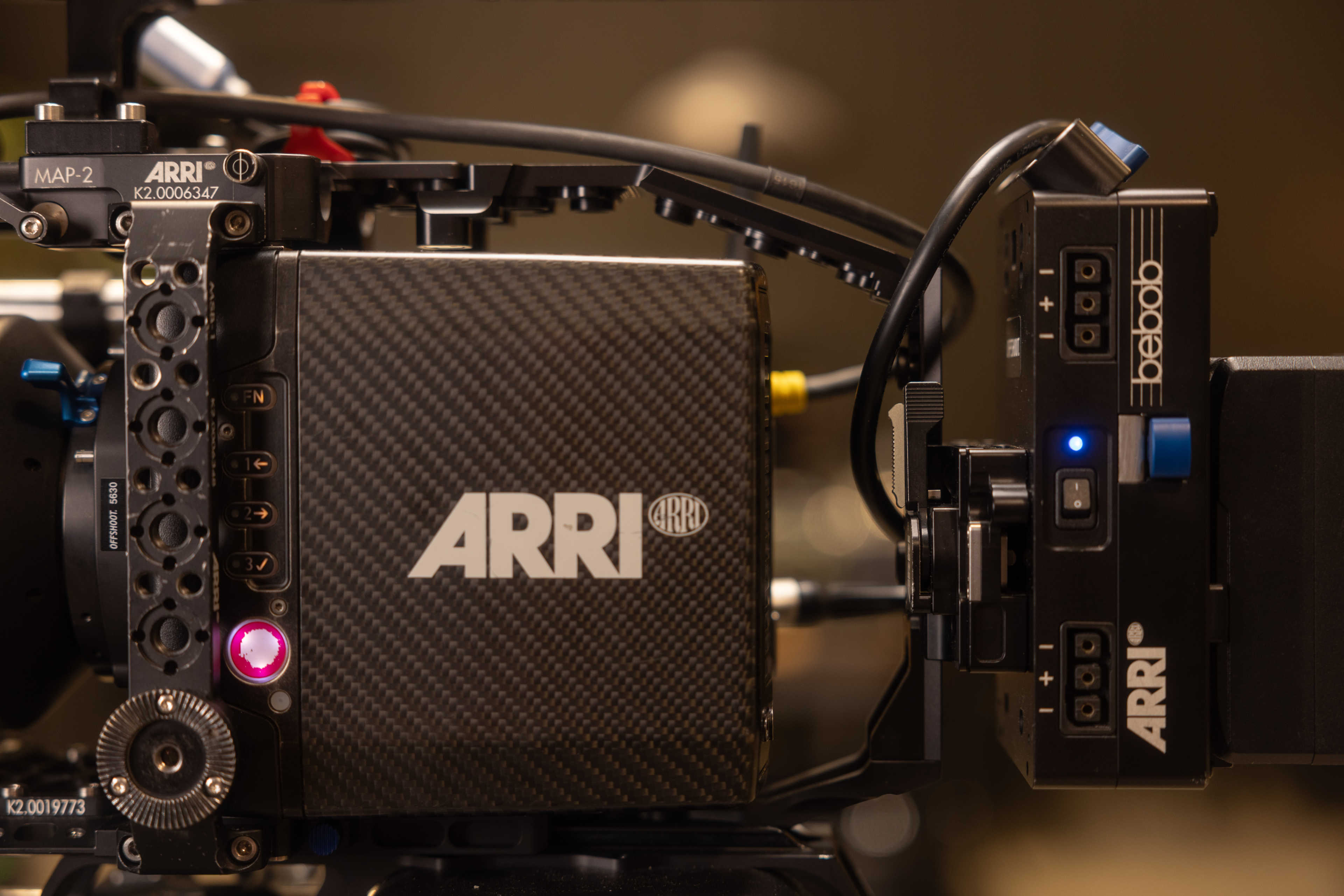

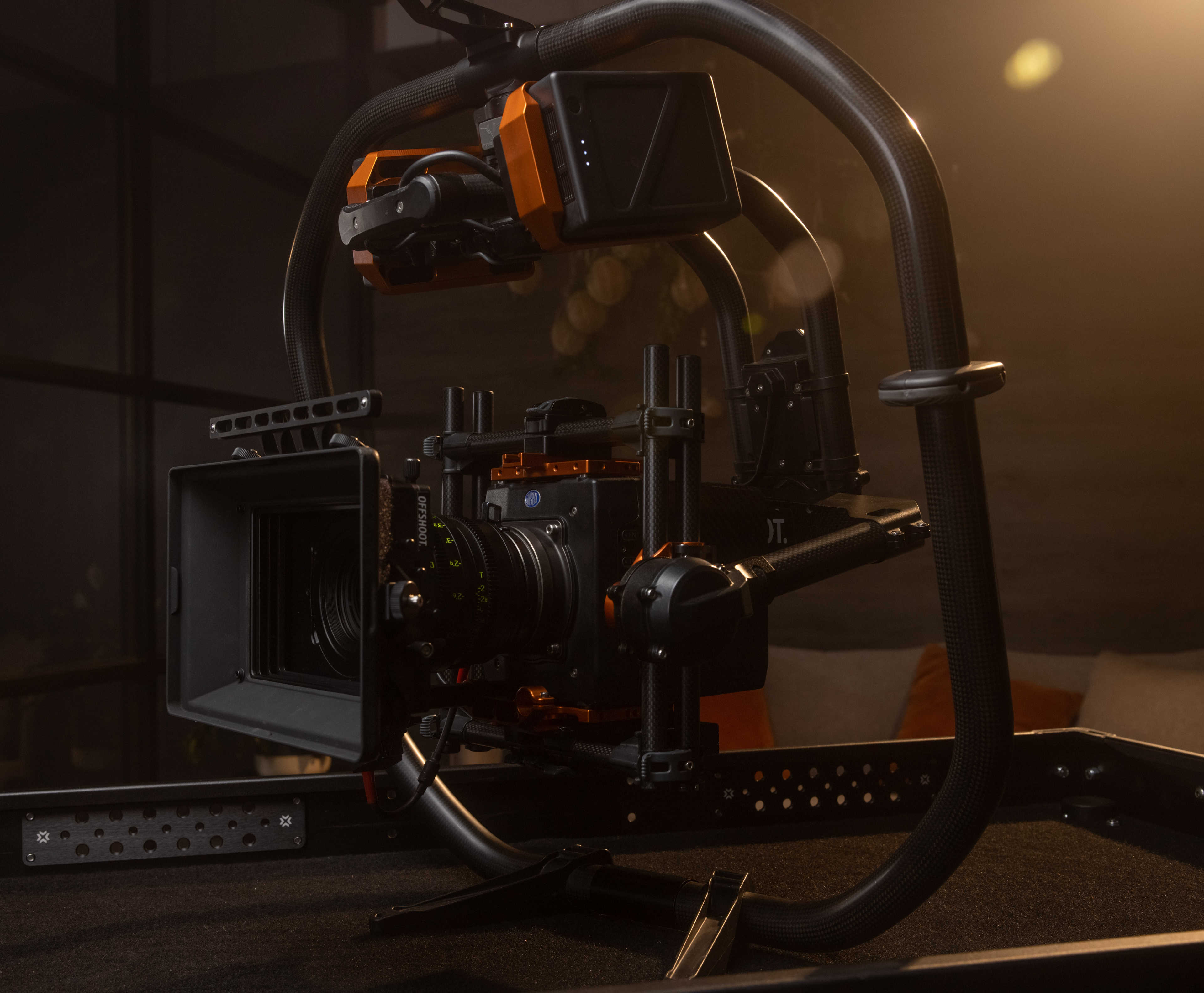

ARRI Alexa Mini Kit
Anamorphic ready with the 4:3 license installed.
The smallest, lightest Alexa - with the same industry leading image. Use it for handheld, gimbal and studio work with its flexible rigging options. Shoot HD, 2K, 3.2K and 4K UHD at up to 200 frames per second in high quality ProRes (up to 4444XQ).
Please ask us to quote on a kit that meets your specific requirements, or build your own kit from our product range.
Creating Frame Guides
Learn how to create frame guides for an Arri Alexa Mini or Amira camera.
Editing Locked Library Look Files
This video shows you how to edit the built-in look files by duplicating them first.
WCU-4 Lens File Transfer
Learn how to transfer lens mapping files from a WCU-4 to an Alexa Mini camera.

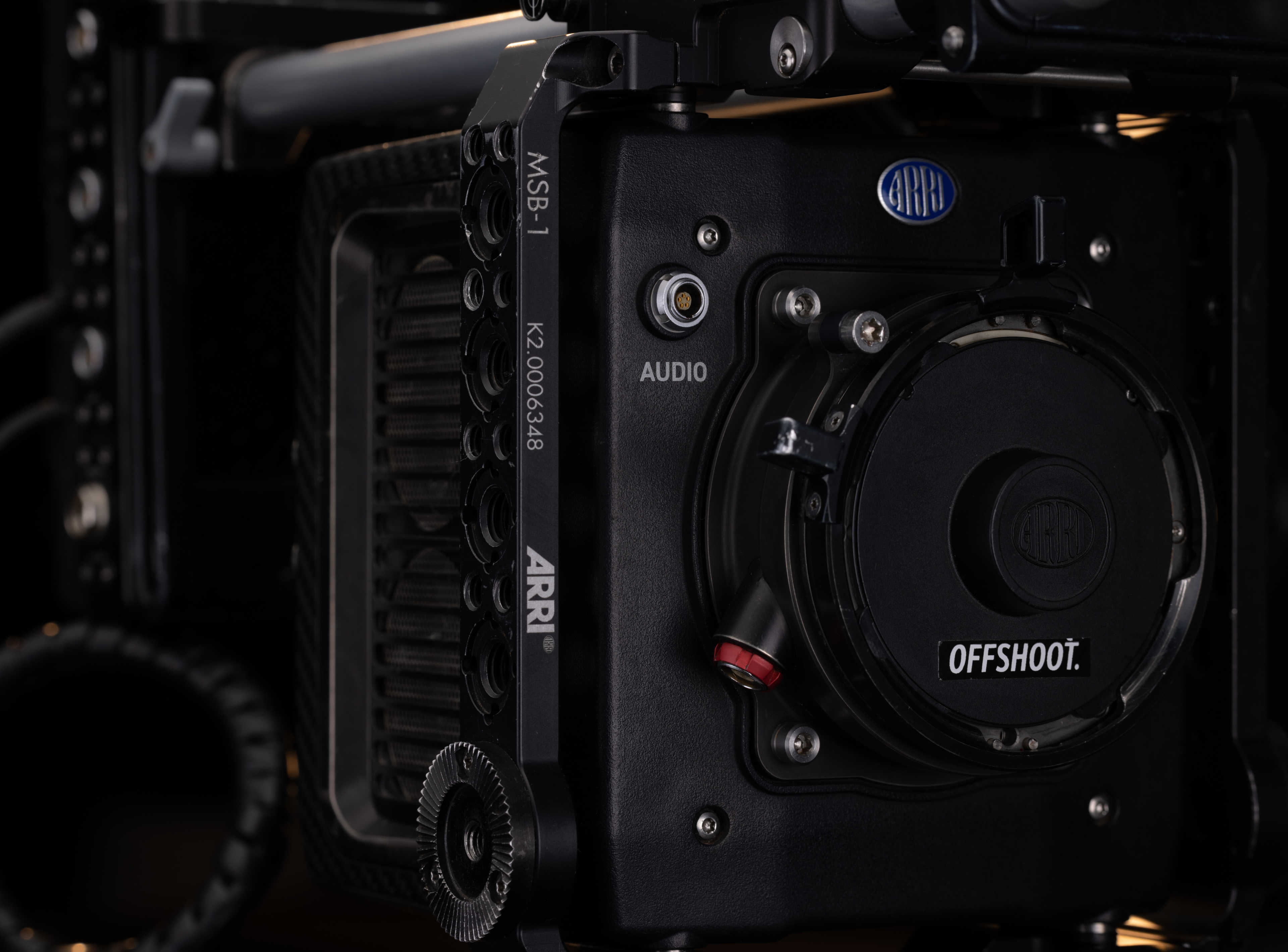

Lens Mount
Mount Options
PL mount with LBUS connector (standard) EF mount with LBUS connector (optional)
Flange Focal Depth
PL mount: 52mm
Imaging Sensor
Sensor Type
Super 35 format ARRI ALEV III CMOS sensor with Bayer pattern color filter array
Sensor Size
28.25 x 18.17 mm. ⌀ 33.59 mm.
Maximum Resolution
3424 x 2202 pixels.
Sensor Frame Rates
0.75 - 200 fps
Photosite Pitch
8.25 μm
Exposure Latitude
14+ stops over the entire sensitivity range from EI 160 to EI 3200
Lens Squeeze Factors
1.00x, 1.30x, 2.00x
Media & Recording Formats
Recording Media
CFast 2.0 cards
Supported Formats
Apple ProRes 4444 XQ Apple ProRes 4444 Apple ProRes 422 HQ Apple ProRes 422 Apple ProRes 422 LT
Colour Coding
Apple ProRes 422 HQ
10bit YCbCr
Apple ProRes 4444
12bit YCbCr
AppleProRes 4444 XQ
12bit YCbCr
Colour Spaces
Rec 709 Rec 2020 Log C Custom Look (ARRI Look File ALF-2)
Recording Formats - Apple ProRes
ProRes 4K UHD
Clip resolution: 3840 x 2160px Active photosites: 3200 x 1800px Image area: 26.40 x 14.85mm Image circle: ⌀30.29mm Max FPS: 60
ProRes 3.2K
Clip resolution: 3200 x 1800px Active photosites: 3200 x 1800px Image area: 26.40 x 14.85mm Image circle: ⌀30.29mm Max FPS: 60
ProRes 4:3 2.8K
Clip resolution: 2944 x 2160px Active photosites: 2880 x 2160px Image area: 23.76 x 17.82mm Image circle: ⌀29.70mm Max FPS: 50
ProRes 2K
Clip resolution: 2048 x 1152px Active photosites: 2868 x 1612px Image area: 23.66 x 13.30mm Image circle: ⌀27.14mm Max FPS: 200
ProRes 2.39:1 2K Anamorphic
Clip resolution: 2048 x 858px Active photosites: 2560 x 2145px Image area: 21.12 x 17.70mm Image circle: ⌀27.56mm Max FPS: 120
ProRes HD
Clip resolution: 1920 x 1080px Active photosites: 2880 x 1620px Image area: 23.76 x 13.37mm Image circle: ⌀27.76mm Max FPS: 200
ProRes HD Anamorphic
Clip resolution: 1920 x 1080px Active photosites: 1920 x 2160px Image area: 15.84 x 17.82mm Image circle: ⌀23.84mm Max FPS: 120
ProRes S16 HD
Clip resolution: 1920 x 1080px Active photosites: 1600 x 900px Image area: 13.20 x 7.43mm Image circle: ⌀15.15mm Max FPS: 200
Viewfinder
Type
Multi Viewfinder MVF-1 with 3,2" flip-out monitor
EVF Display Type
OLED
Flip-Out Monitor Display Type
LCD
EVF Resolution
1280 x 720 pixels
Viewfinder Diopter
Adjustable from -5 to +5
Power
Input
10.5-34 V DC via 8-pin LEMO
Consumption
Min. 43W - max. 84W (camera body with MVF-1)
Aux Outputs
1x LEMO 7pin EXT unregulated power output (outputs battery voltage) with max. 1.1 A
Audio
Recording Format
2 channel linear PCM, 24-bit 48 kHz
Input
1x LEMO 5-pin balanced stereo line in (line input max. level +24dBu correlating to 0dBFS)
Output
SDI (embedded)
Built-in Mics
None
Physical
Dimensions H x W x L
140 x 125 x 185 mm (camera body with PL lens mount)
Weight
2.3kg (camera body with PL lens mount)
