Tribe7 Blackwing7 T-tuned Set (7)
17mm, 20.7mm and 23.7mm arriving soon to make this a 10 lens set.
The Tribe7 Blackwing7 T-tuned lenses are large format cine lenses designed for filmmakers seeking a balance between modern optical performance and the artistic expression of vintage character. These lenses offer controlled aberrations, smooth focus falloff, subtle halation and moderate flare.
Each lens in the set is inspired predominantly by optical designs from the 1930s to 1960s - adopting current trends to combine desirable vintage optical character with modern mechanics.

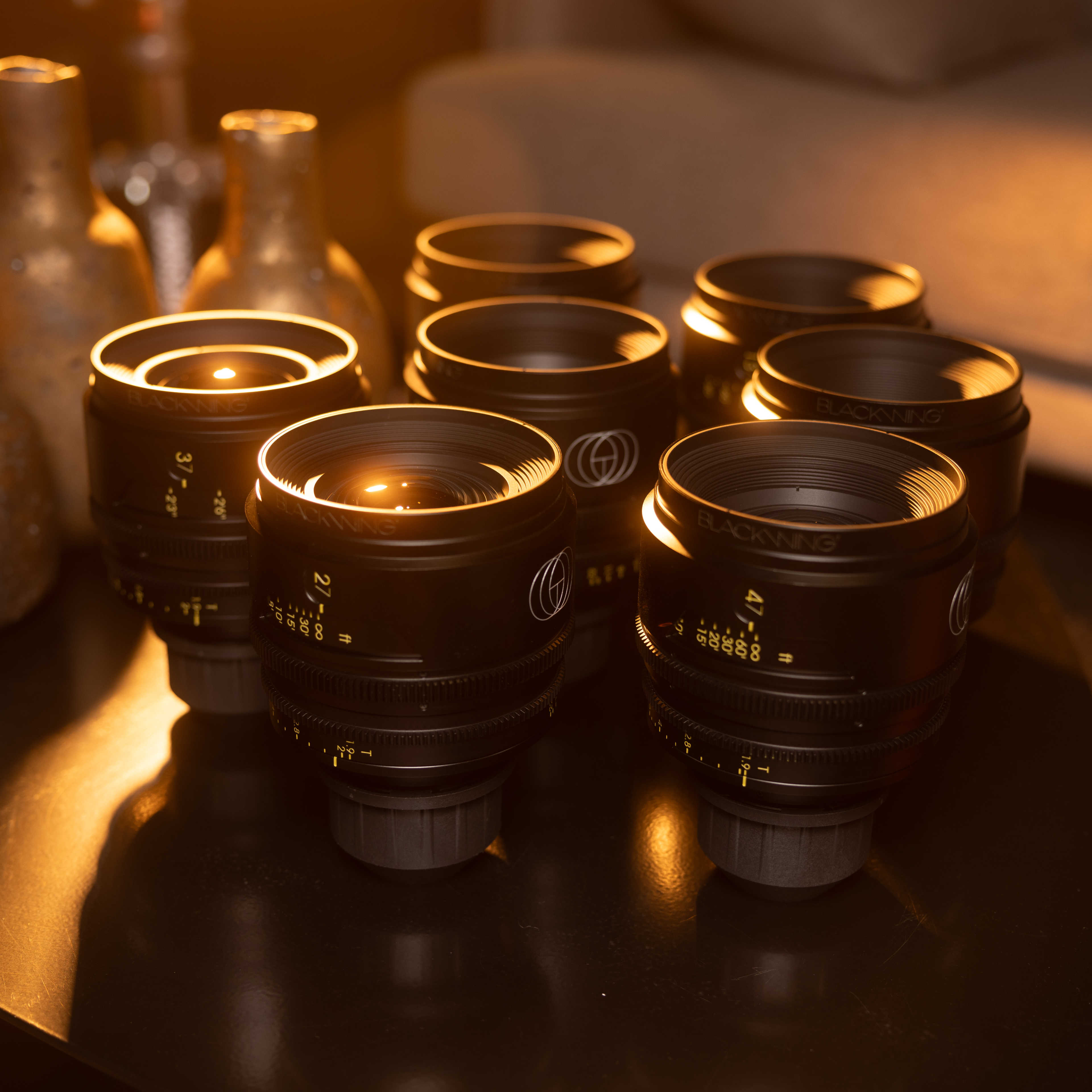

Our set currently consists of seven lenses - 27mm, 37mm, 47mm, 57mm, 77mm, 107mm and 137mm. We are expecting the remaining three focal lengths soon - being 17mm, 20.7mm and 23.7mm.
ARRI PL mount.
Conclave
Conclave was lensed with T-tuned Blackwings.
American Fiction
American Fiction cinematographer Cristina Dunlap chose T-tuned Blackwings and ALEXA Mini LF.
Stormzy - Longevity Flow
This Stormzy music video was lensed with T-tuned Blackwings.
Foo Fighters - Waiting On A War
The Foo Fighters' music video for Waiting On A War was lensed with T-tuned Blackwing lenses.
All Quiet on the Western Front
Cinematographer James Friend used T-tuned Blackwing lenses for All Quiet on the Western Front.
I Hate Suzie Too
The second season of this series starring Billie Piper used T-tuned Blackwings.
Kleo
The Netflix series Kleo used T-tuned Blackwing lenses.
Optical
Focal Lengths
17mm (coming soon) 20.7mm (coming soon) 23.7mm (coming soon) 27mm 37mm 47mm 57mm 77mm 107mm 137mm
Maximum Aperture
27mm: T1.9 37mm: T1.9 47mm: T1.9 57mm: T1.9 77mm: T1.8 107mm: T1.8 137mm: T2.0
Minimum Aperture
27mm: T22 37mm: T22 47mm: T22 57mm: T22 77mm: T22 107mm: T22 137mm: T22
Minimum Focus Distance
27mm: 0.34m / 13" 37mm: 0.46m / 1' 6" 47mm: 0.45m / 1' 6" 57mm: 0.48m / 1' 7" 77mm: 0.66m / 2' 2" 107mm: 0.69m / 2' 3" 137mm: 0.81m / 2' 8"
Image Circle
27mm: 55mm ⌀ 37mm: 60mm ⌀ 47mm: 60mm ⌀ 57mm: 60mm ⌀ 77mm: 60mm ⌀ 107mm: 62mm ⌀ 137mm: 62mm ⌀
Iris Blade Count
All lenses have 14 blade irises
Physical
Lens Mount
ARRI PL
Metadata
None
Focus Ring Rotation
270°
Focus / Iris Gear Pitch
0.8 mod
Front Diameter
All lenses have 104mm fronts.
Dimensions (Ø x L)
All lenses are the same dimensions - 114mm ⌀ x 162mm long.
Weight
27mm: 1.7kg 37mm: 1.6kg 47mm: 1.5kg 57mm: 1.6kg 77mm: 1.4kg 107mm: 1.4kg 137mm: 1.5kg
Transport Cases
Case One: Dimensions: To be measured. Weight (with lenses): To be weighed. Case Two: Dimensions: To be measured. Weight (with lenses): To be weighed.
