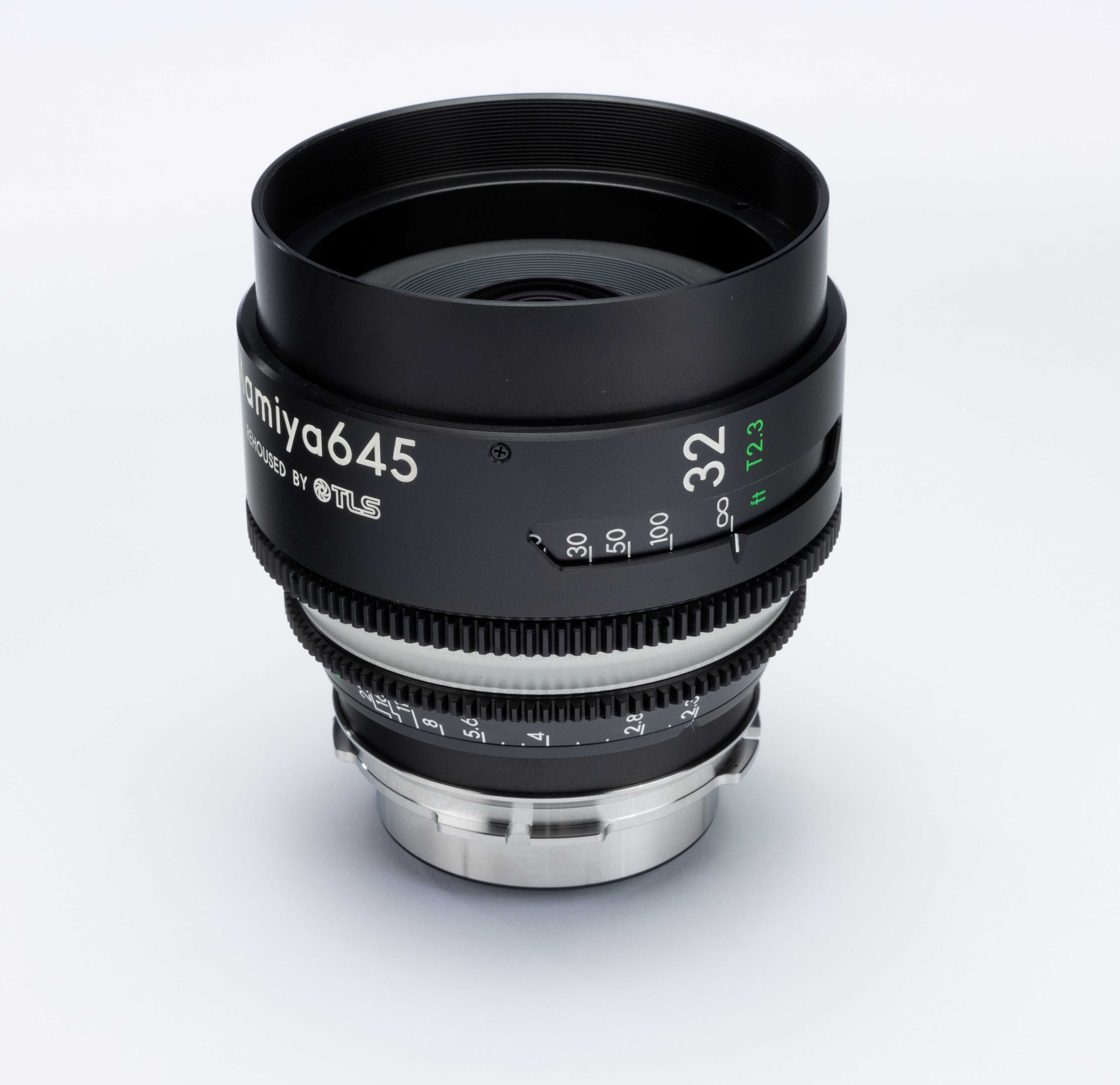

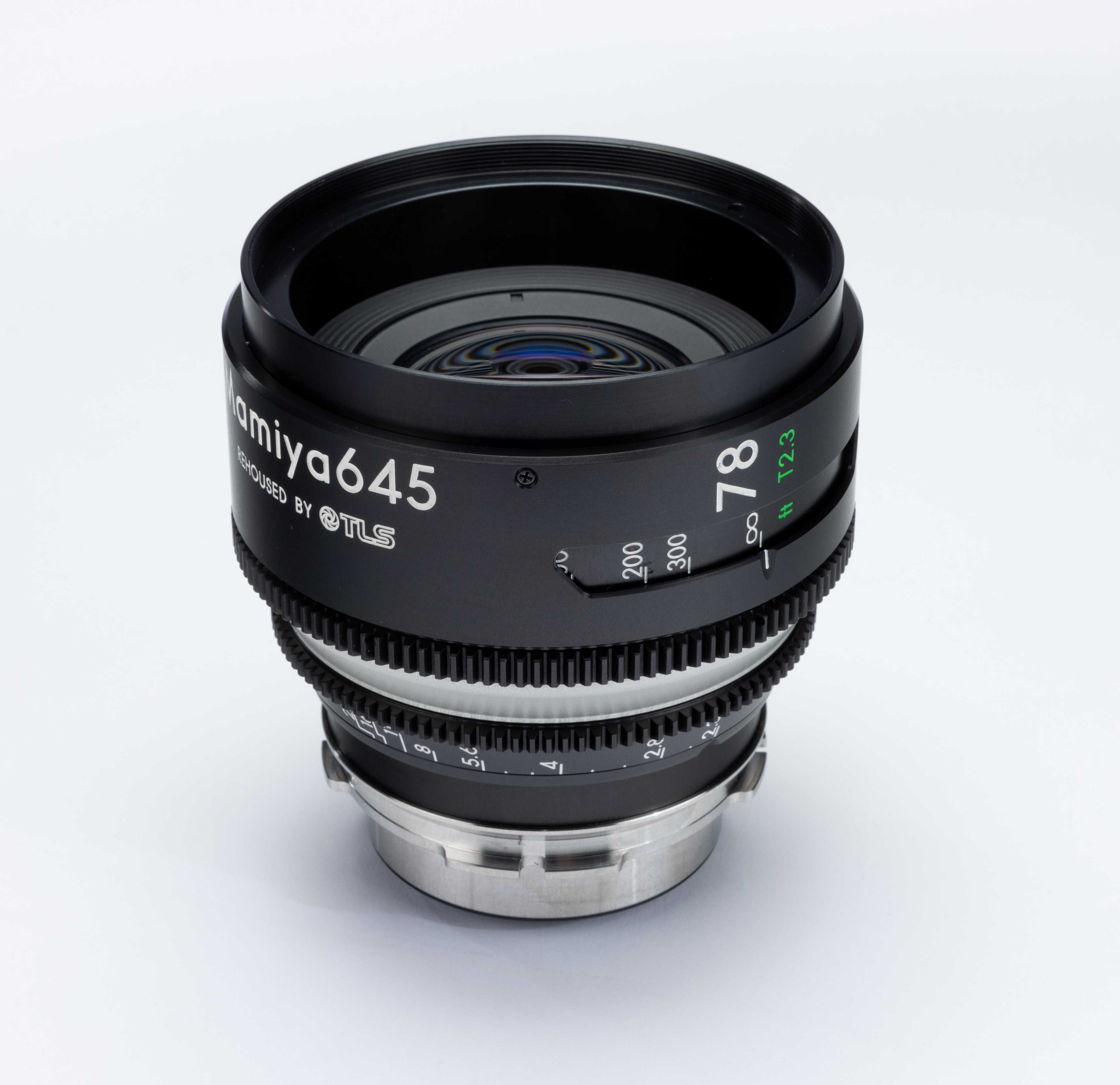

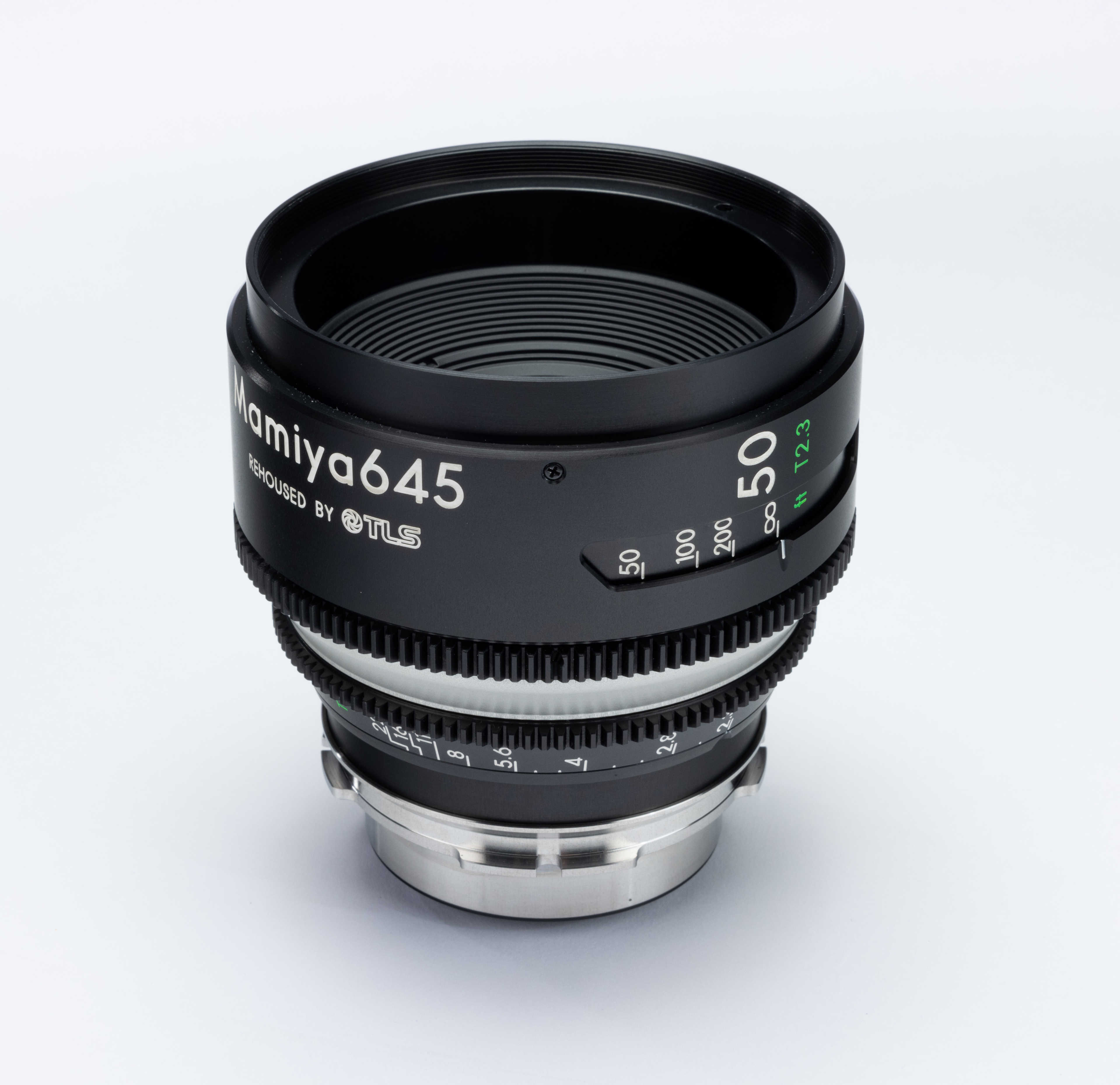

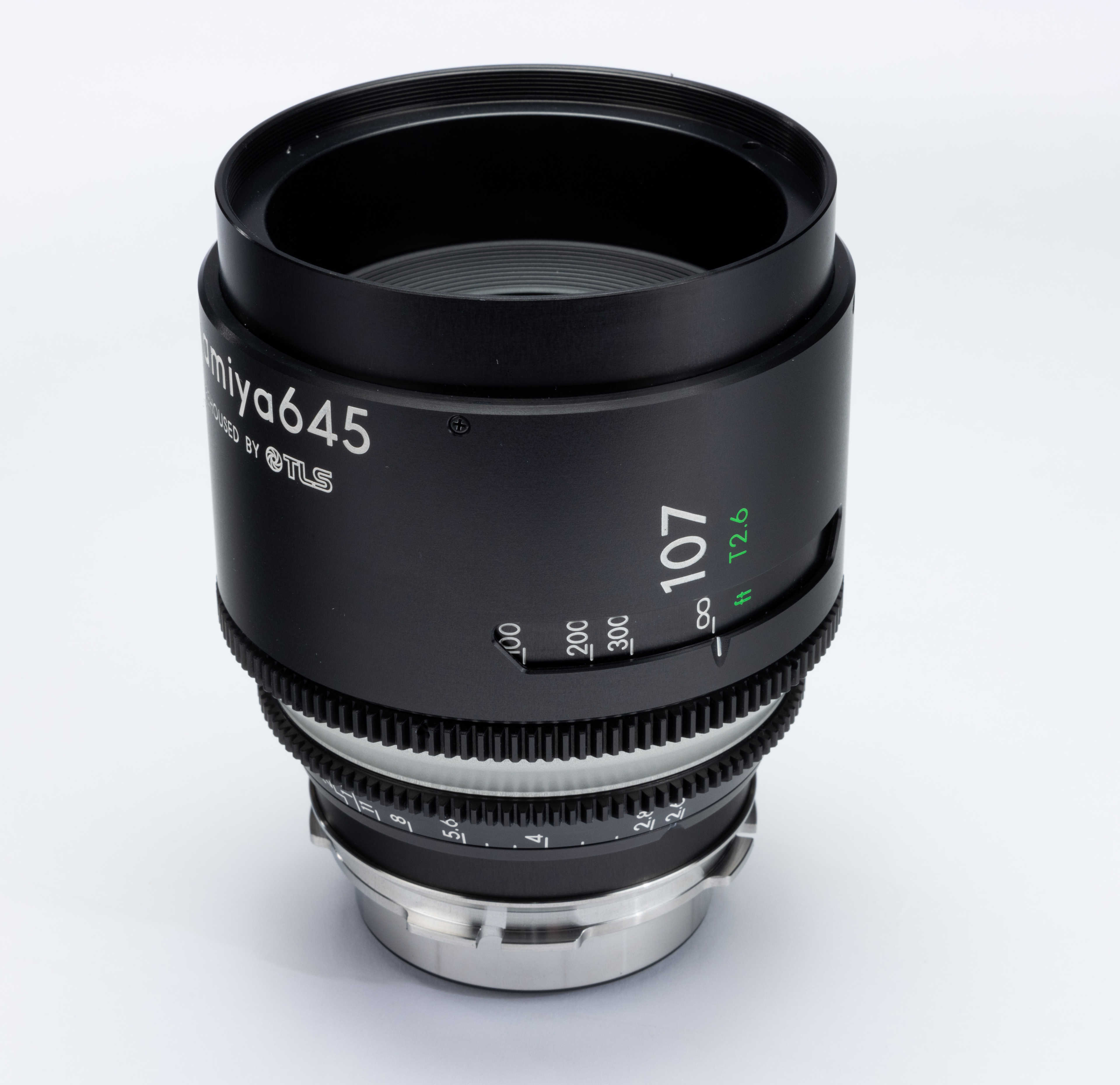

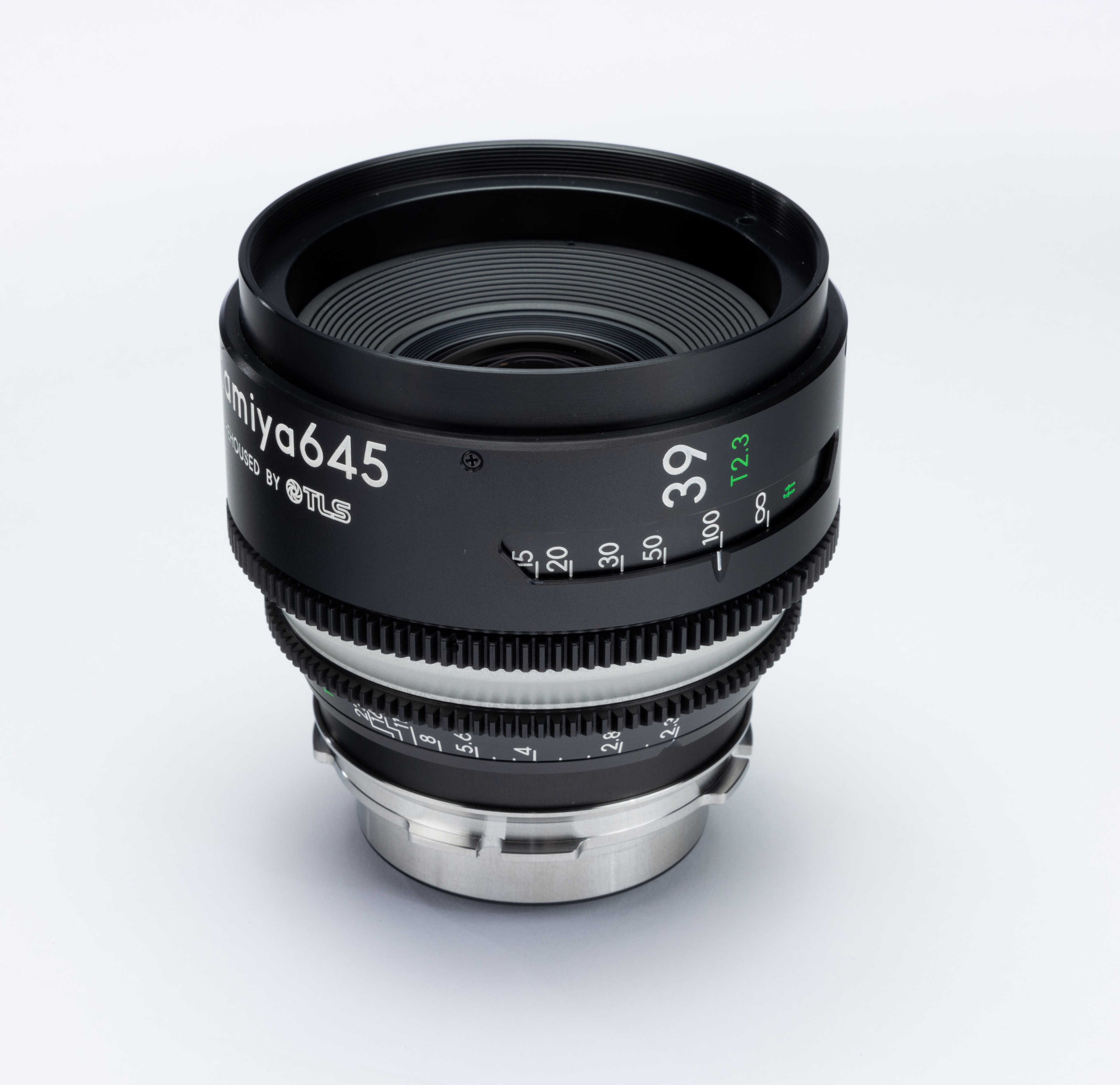

The Mamiya 645 lenses are a great choice when you are looking for a vintage lens to pair with the vast array of large format sensors around now. These lenses combine new mechanical housings with the original optics from the late '80s / early '90s - offering good resolution without looking clinical. They have lovely, subtle flares and excellent rendition of skin tones.
For information about image circle and sensor coverage - including a video showing coverage of the different formats - please see our article here.

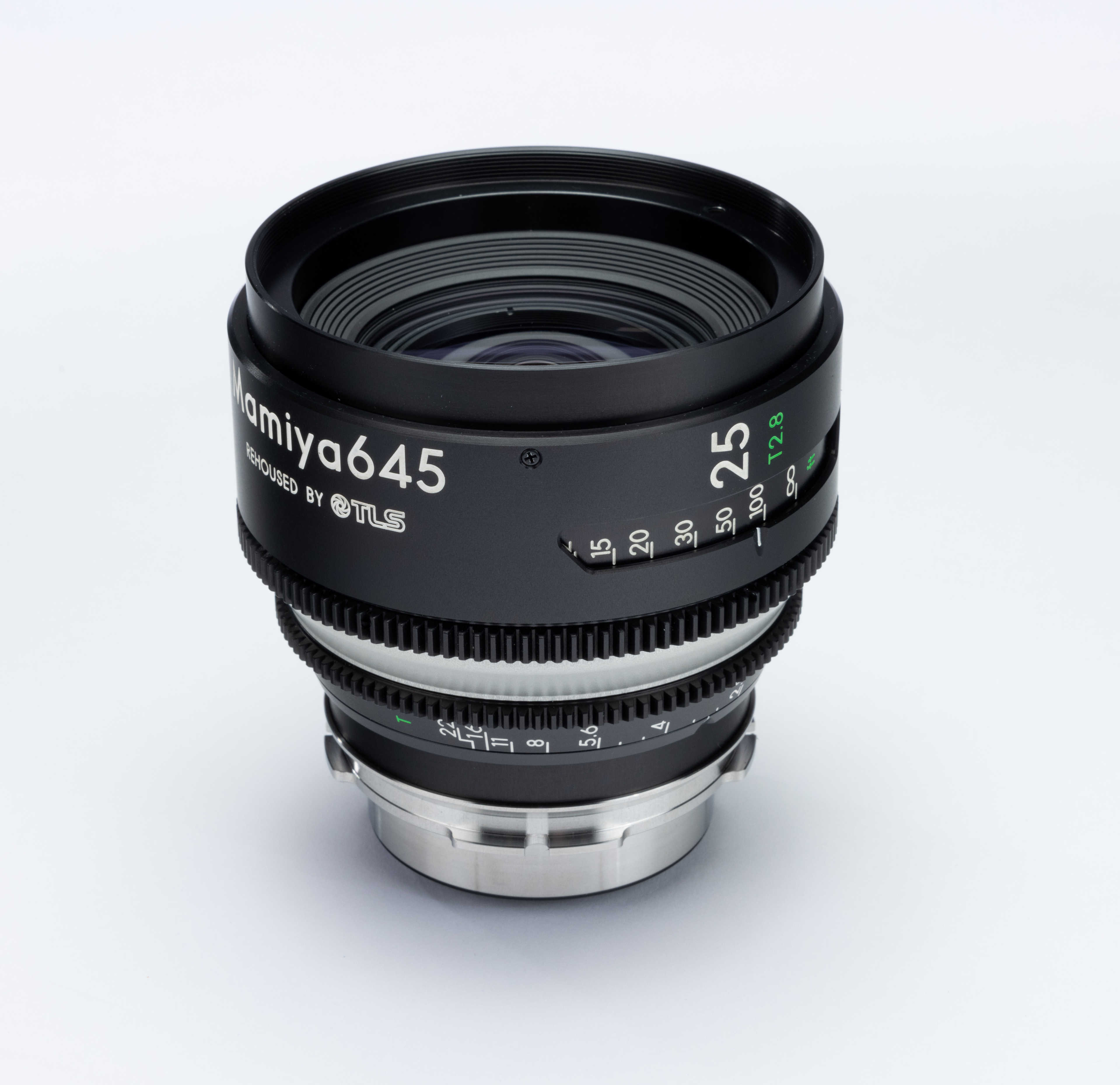

The lenses have been rehoused by the masters at TLS and have an integrated speed booster, which makes the lenses wider and faster than the originally housed version of each lens. The cine housing makes the lenses more production friendly, featuring compatibility with clamp-on matte boxes and standardised gearing on the focus and aperture rings.
These lense have a native LPL mount and pair well with the ARRI Alexa 35 and the ARRI Alexa Mini LF (as well as other cameras with a native LPL mount or LPL adapter).
For use on Sony E mount cameras, we have the Wooden Camera LPL adapter.
These lenses cannot be adapted to be used with PL or EF camera mounts.
This test clip shows the coverage of each lens in our TLS Mamiya 645 set for each of the ARRI formats LF Open Gate, 4.3K LF 16:9, 3.8K LF 16:9, S35 open gate and Alexa Mini 3.2K.
DP Sean Kirkwood chose Mamiya 645 lenses with Alexa Mini LF for this promo for Jordan Drysdale's exhibition Self Discovery.

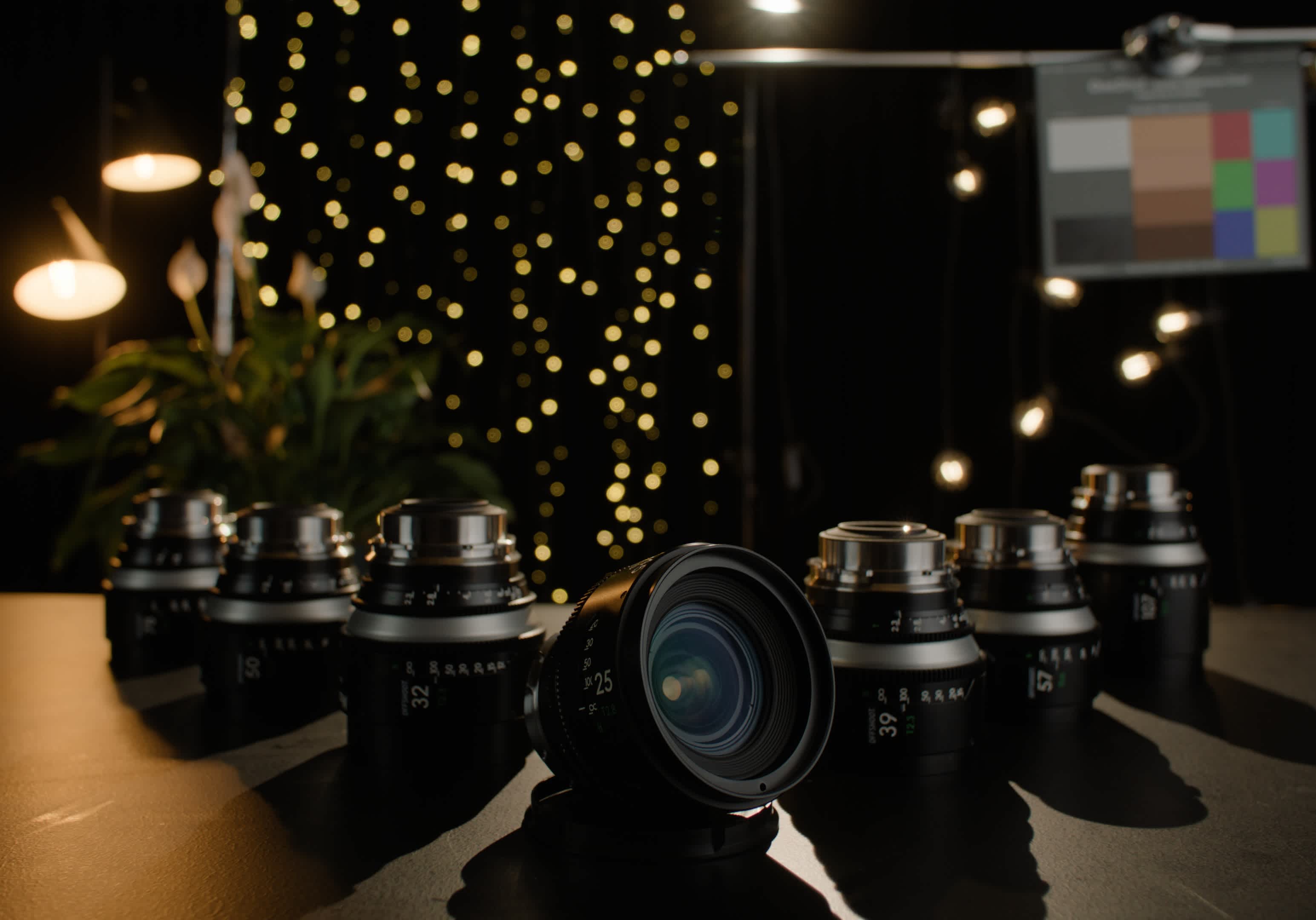

See the characteristics of the TLS Mamiya 645 lenses on the ALEXA 35 in this lens test video.
See how the TLS Mamiya 645 lenses look on the LF sensor of the ARRI Alexa Mini LF camera.
Local DP Shyam Ediriweera selected the Mamiya 645 lenses for this ABC TVC for the 2023 National NAIDOC Awards.
Melbourne DP David Chan lensed this Kzeebigname x Darius Vevo music video using the TLS Mamiya 645 lenses on ALEXA 35.
Another music video lensed by local DP David Chan using the TLS Mamiya 645 lenses - this time on Alexa Mini LF.
Optical
Focal Length
25mm 32mm 39mm 50mm 57mm 78mm 107mm
Maximum Aperture
25mm: T2.8 32mm: T2.3 39mm: T2.3 50mm: T2.3 57mm: T1.6 78mm: T2.3 107mm: T2.6
Minimum Aperture
25mm: T22 32mm: T22 39mm: T22 50mm: T22 57mm: T22 78mm: T22 107mm: T22
Minimum Focus Distance
25mm: 0.30m (12") 32mm: 0.35m (14") 39mm: 0.40m (16") 50mm: 0.53m (21") 57mm: 0.63m (2'1") 78mm: 1.10m (3'7") 107mm: 1.22m (4')
Image Circle
25mm: >55mm 32mm: >55mm 39mm: >55mm 50mm: >55mm 57mm: >55mm 78mm: >55mm 107mm: >55mm
Physical
Lens Mount
ARRI LPL
Metadata
None
Focus Ring Rotation
280°
Focus / Iris Gear Pitch
0.8 mod
Front Diameter
25mm: 95mm 32mm: 95mm 39mm: 95mm 50mm: 95mm 57mm: 95mm 78mm: 95mm 107mm: 95mm
Dimensions (Ø x L)
25mm: 32mm: 39mm: 50mm: 57mm: 78mm: 107mm:
Weight
25mm: 1.34kg 32mm: 1.40kg 39mm: 1.31kg 50mm: 1.28kg 57mm: 1.36kg 78mm: 1.31kg 107mm: 1.52kg
Transport Case
Case 1 (25, 32, 39, 50) Dimensions: 390mm x 330mm x 180mm Weight (with lenses): 10.02kg Case 2 (57, 78, 107) Dimensions: 390mm x 330mm x 180mm Weight (with lenses): 8.88kg
