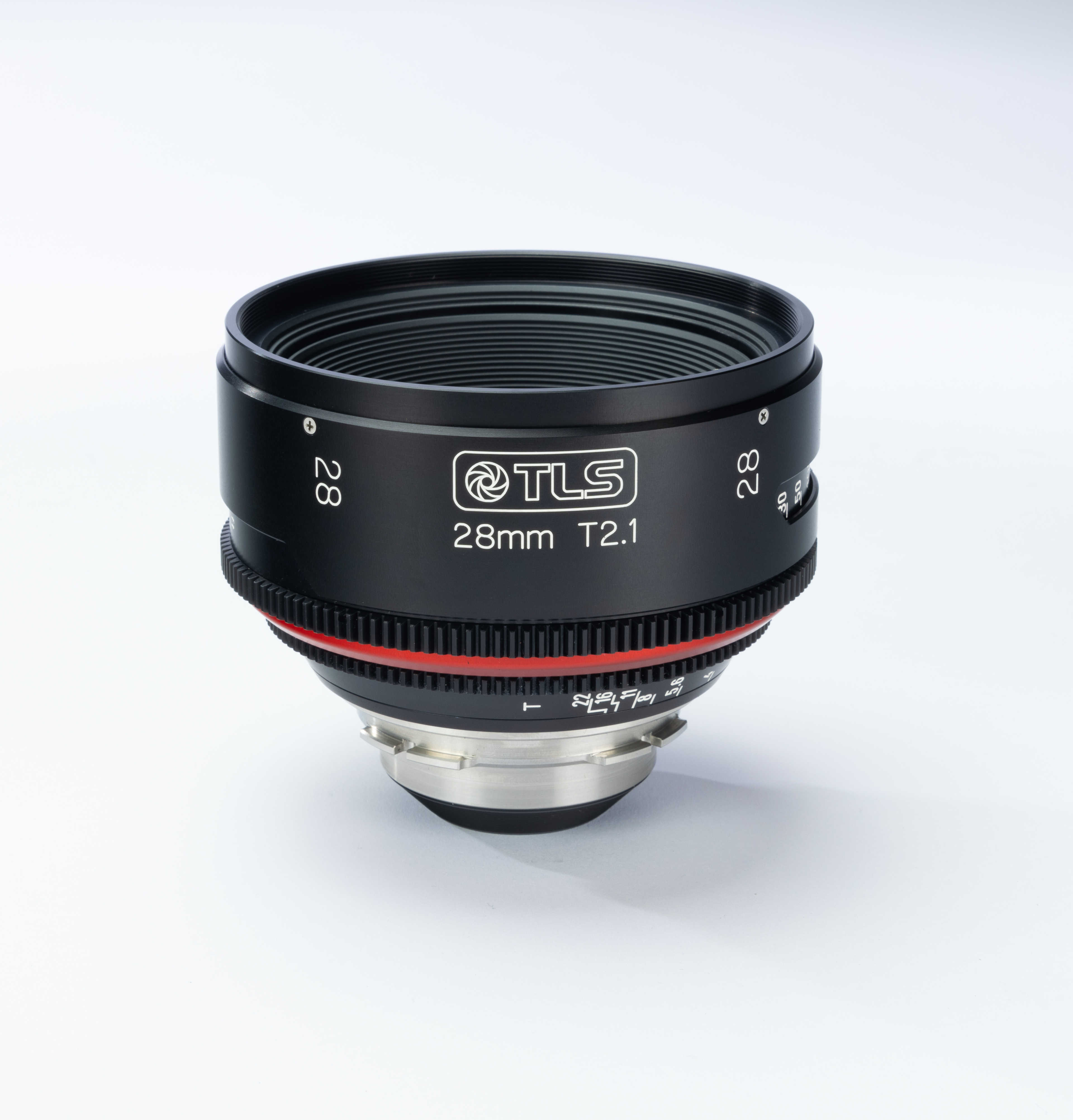

Canon FD lenses were produced from 1970 through to the late 1980s and are another popular vintage lens option for adding character.
Our set has been rehoused by the highly regarded team at TLS in the UK and has PL mounts, consistent 110mm fronts and standard cine gearing for focus and iris. The modern housings are a pleasure to use for motion photography - something that was never intended for the original mechanical housings.
All lenses cover LF, with an image circle larger than 45mm. For complete image circle and sensor coverage information, including a video showing falloff character, see our article here.
20mm T2.9
24mm T1.5
28mm T2.1

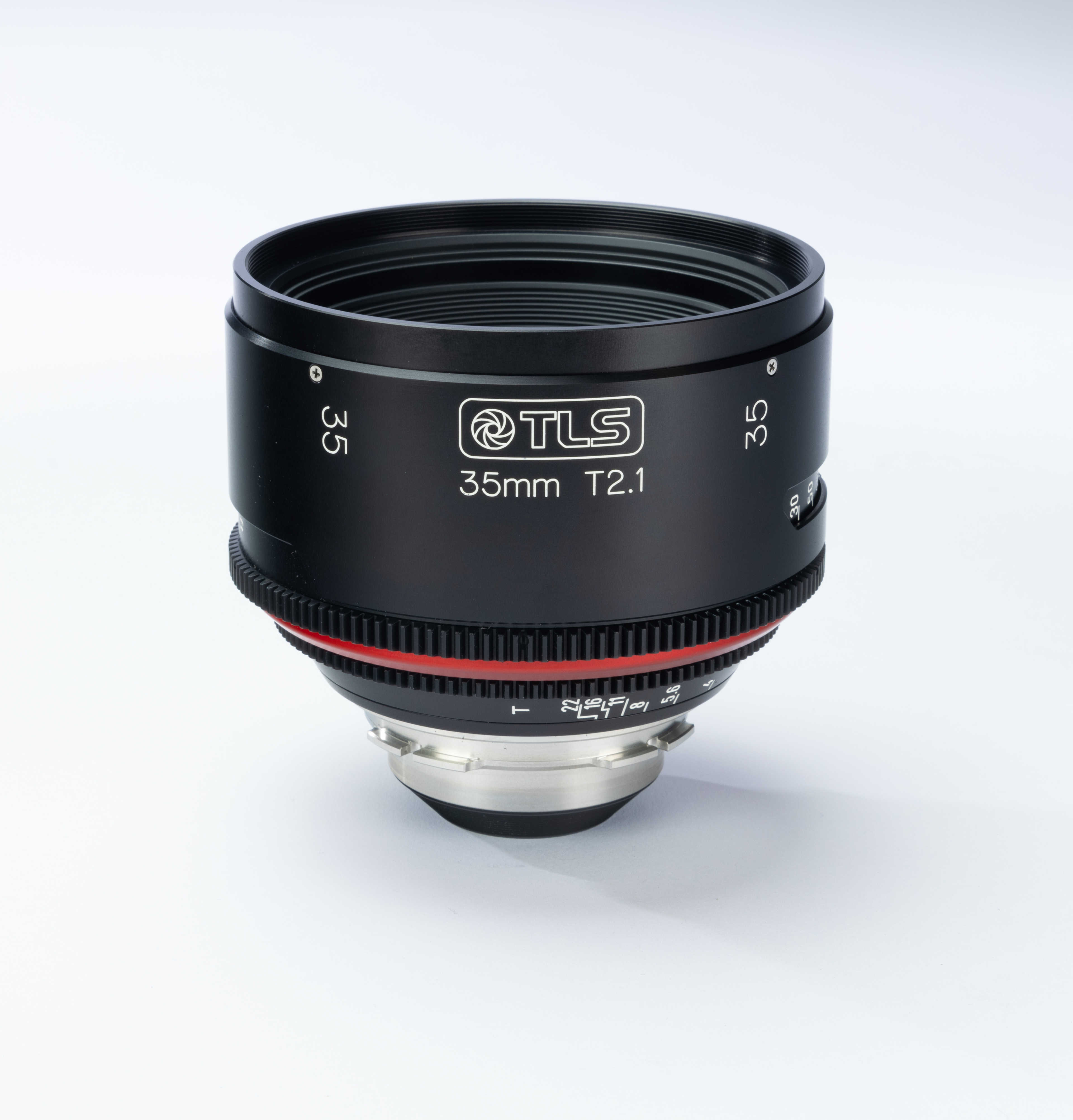

35mm T2.1

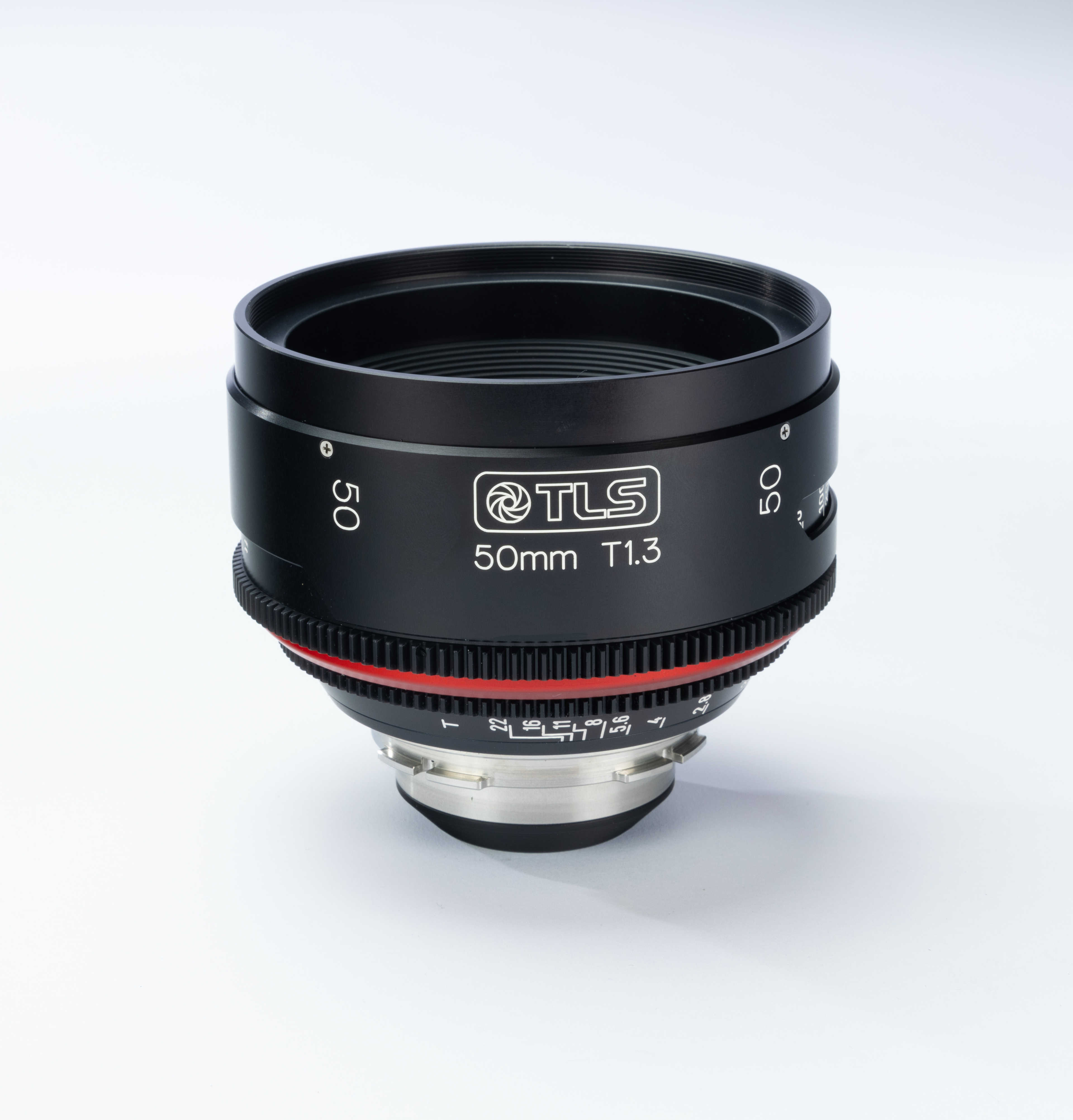

50mm T1.3

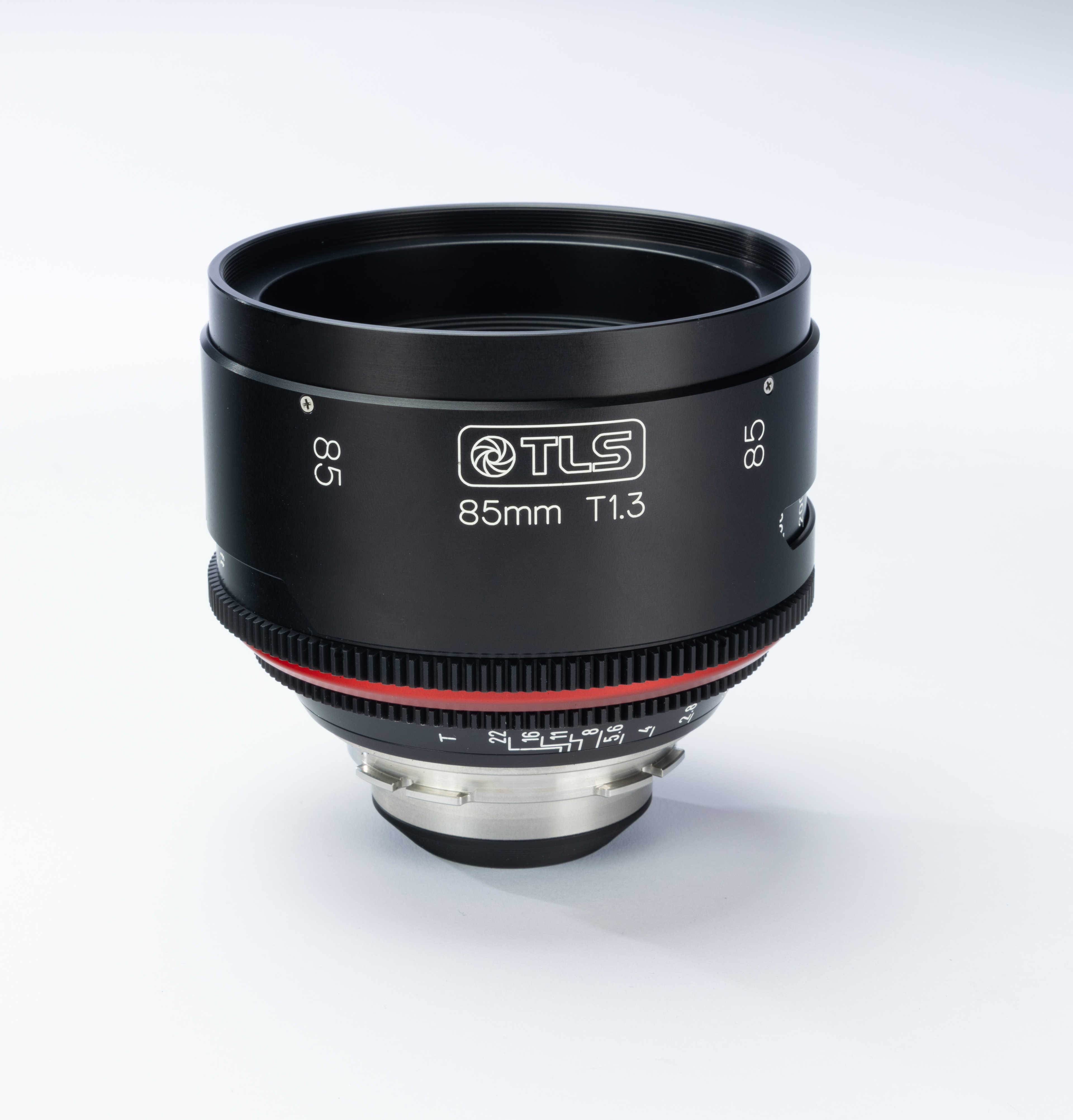

85mm T1.3

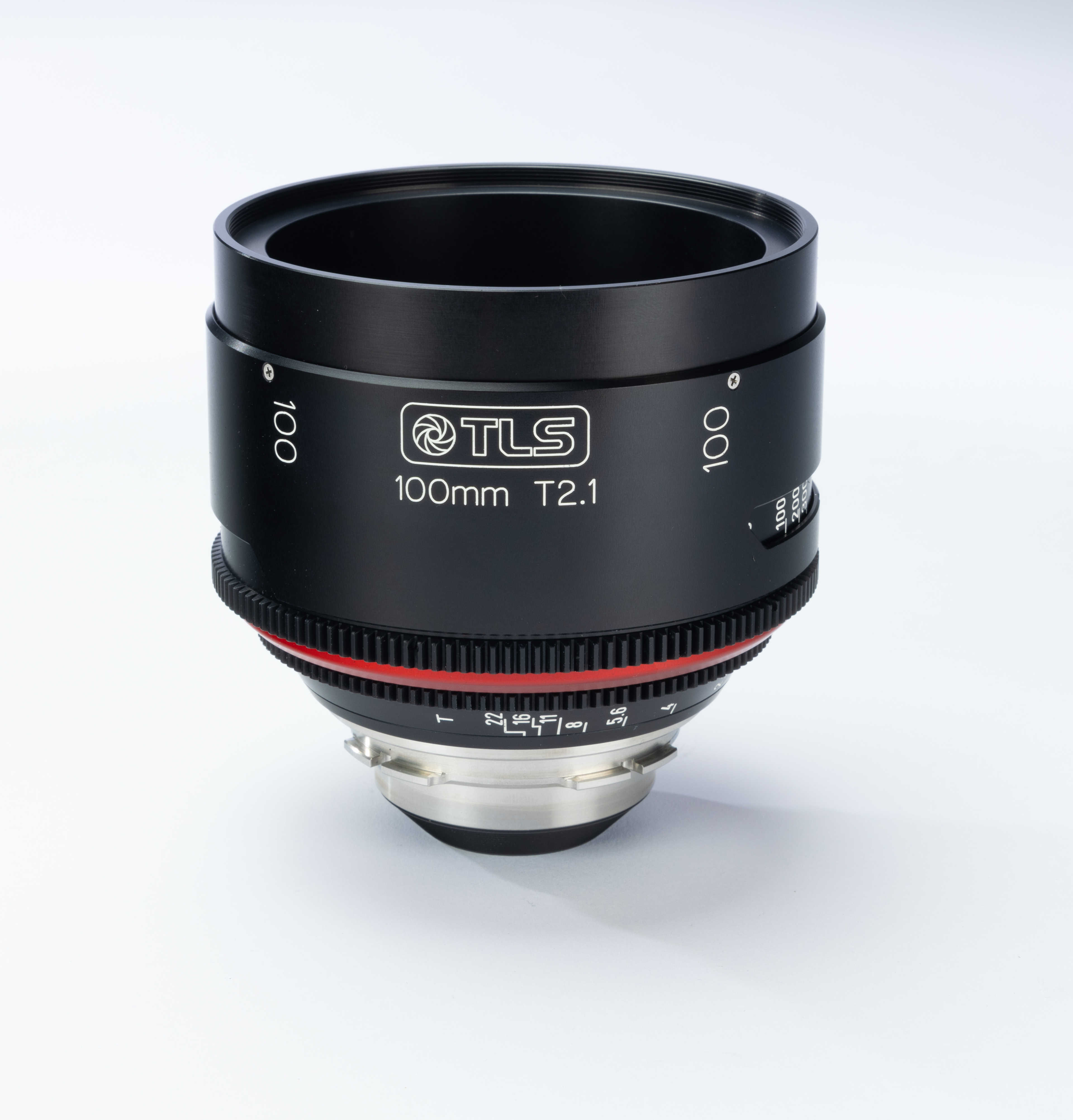

100mm T2.1
See how our TLS rehoused Canon FD lenses cover ARRI formats up to LF open gate (spoiler: all lenses cover LF open gate).
Cameron Mitchell (DP) and the OneHouse team used the TLS rehoused Canon FD lenses for this Steph Strings music video.
In this lens test we show you the general characteristics of the TLS Canon FD lenses on the ALEXA 35 camera.
See the characteristics of the TLS Canon FD lenses on the LF sensor of the ARRI Alexa Mini LF camera.
Recorded live at The Aviary Recording Studio with ARRI Alexa 35 and TLS rehoused Canon FD prime lenses by DP Alexander Naughton.
Optical
Focal Lengths
20mm 24mm 28mm 35mm 50mm 85mm 100mm
Maximum Aperture
20mm: T2.9 24mm: T1.5 28mm: T2.1 35mm: T2.1 50mm: T1.3 85mm: T1.3 100mm: T2.1
Minimum Aperture
20mm: T22 24mm: T22 28mm: T22 35mm: T22 50mm: T22 85mm: T22 100mm: T22
Minimum Focus Distance
20mm: 0.24m (10") 24mm: 0.30m (12") 28mm: 0.30m (12") 35mm: 0.30m (12") 50mm: 0.42m (18") 85mm: 0.83m (2' 9") 100mm: 0.63m (2' 2")
Image Circle
20mm: 46mm 24mm: 46mm 28mm: 46mm 35mm: 46mm 50mm: 50mm 85mm: 60mm 100mm: 60mm
Physical
Lens Mount
ARRI PL
Metadata
None
Focus Ring Rotation
280°
Focus / Iris Gear Pitch
0.8 mod
Front Diameter
20mm: 110mm 24mm: 110mm 28mm: 110mm 35mm: 110mm 50mm: 110mm 85mm: 110mm 100mm: 110mm
Dimensions (Ø x L)
20mm: 24mm: 28mm: 35mm: 50mm: 85mm: 100mm:
Weight
20mm: 24mm: 28mm: 35mm: 50mm: 85mm: 100mm:
Transport Case
Case 1 Dimensions: Weight (with lenses): Case 2 Dimensions: Weight (with lenses):
