Teradek Bolt Pro 600 SDI 1:1 Kit

Teradek Bolt Pro 600 SDI 1:1 Kit
Prices include GST
$200.
per day
$600.
per week

SDI input/output only.

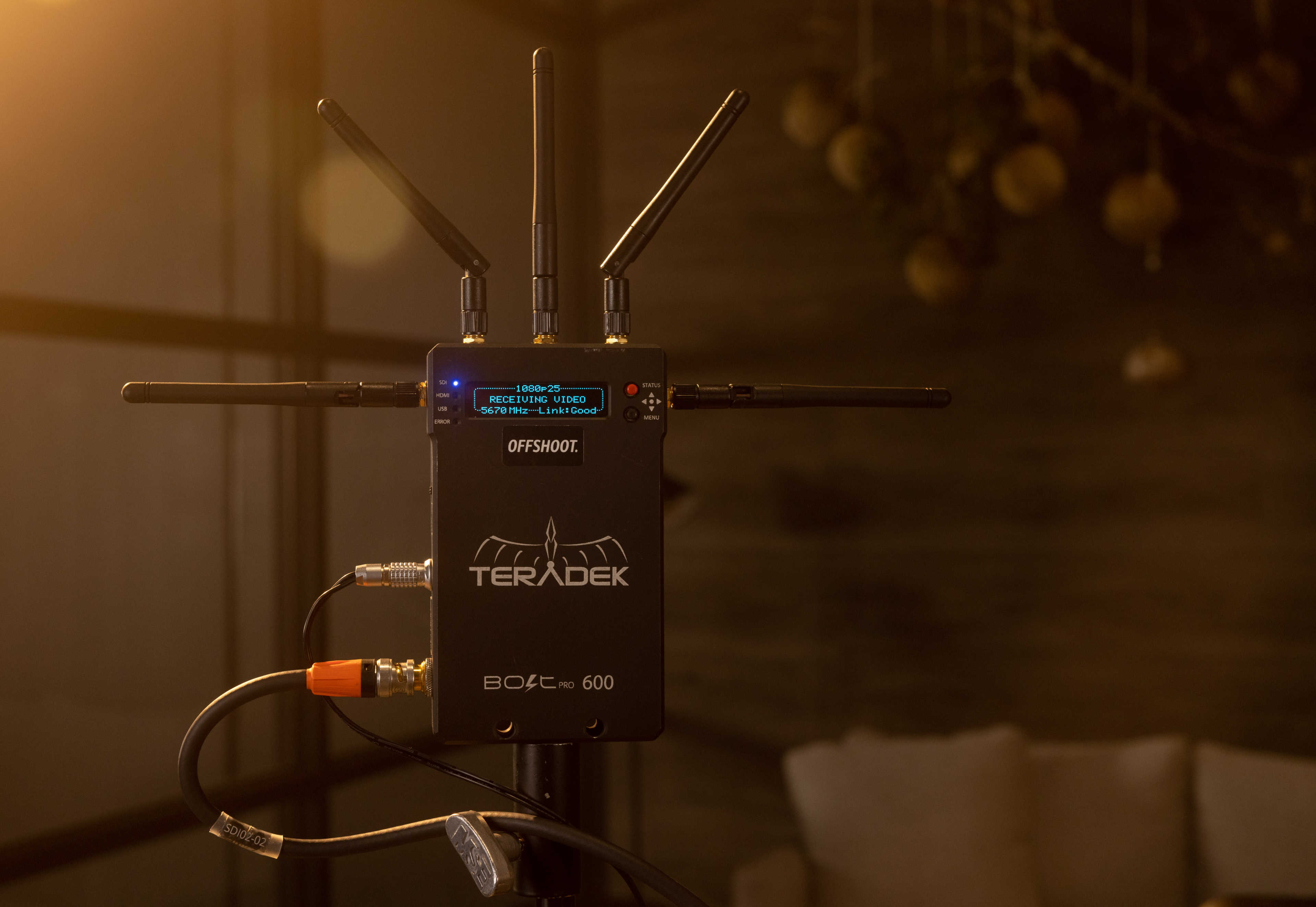

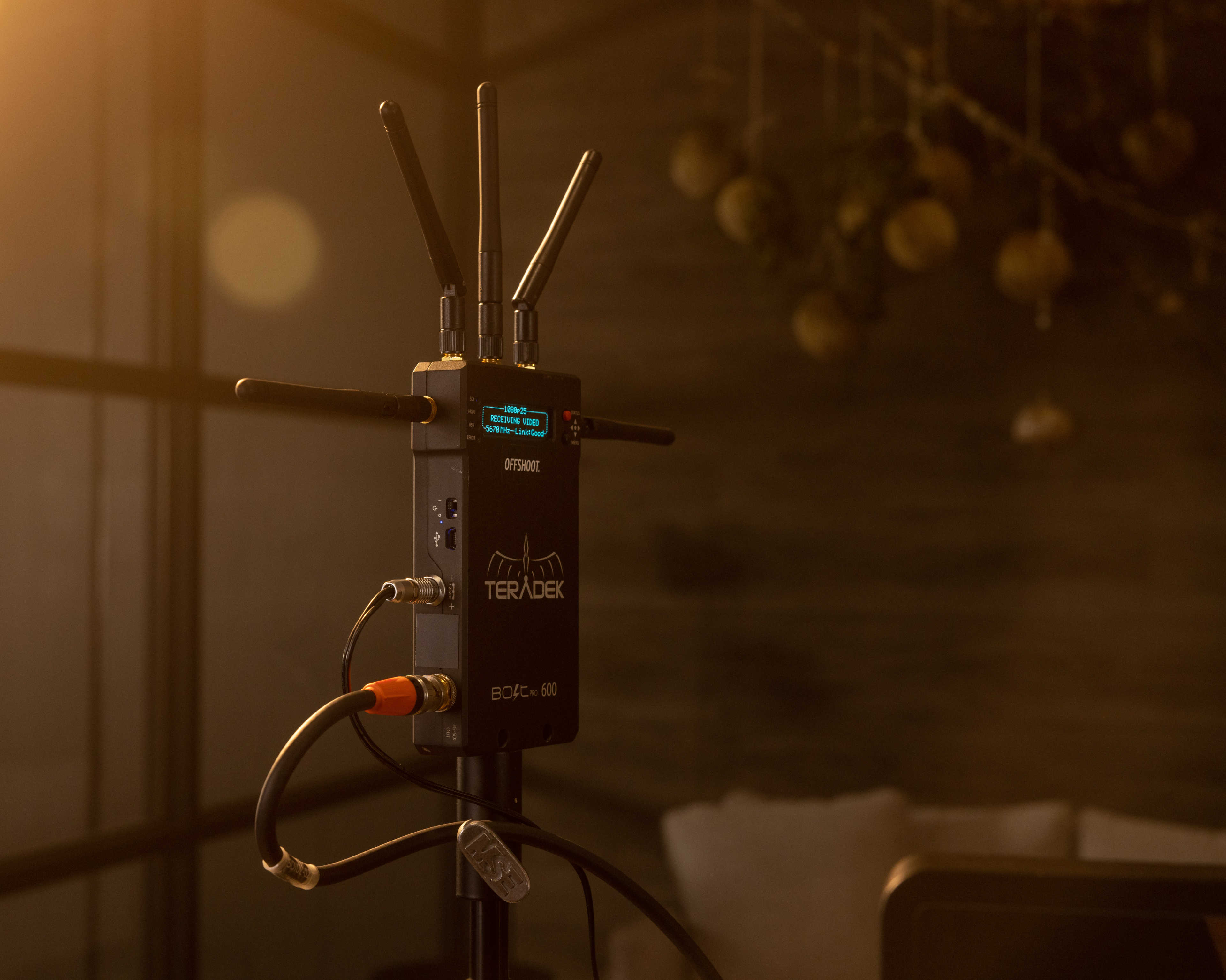

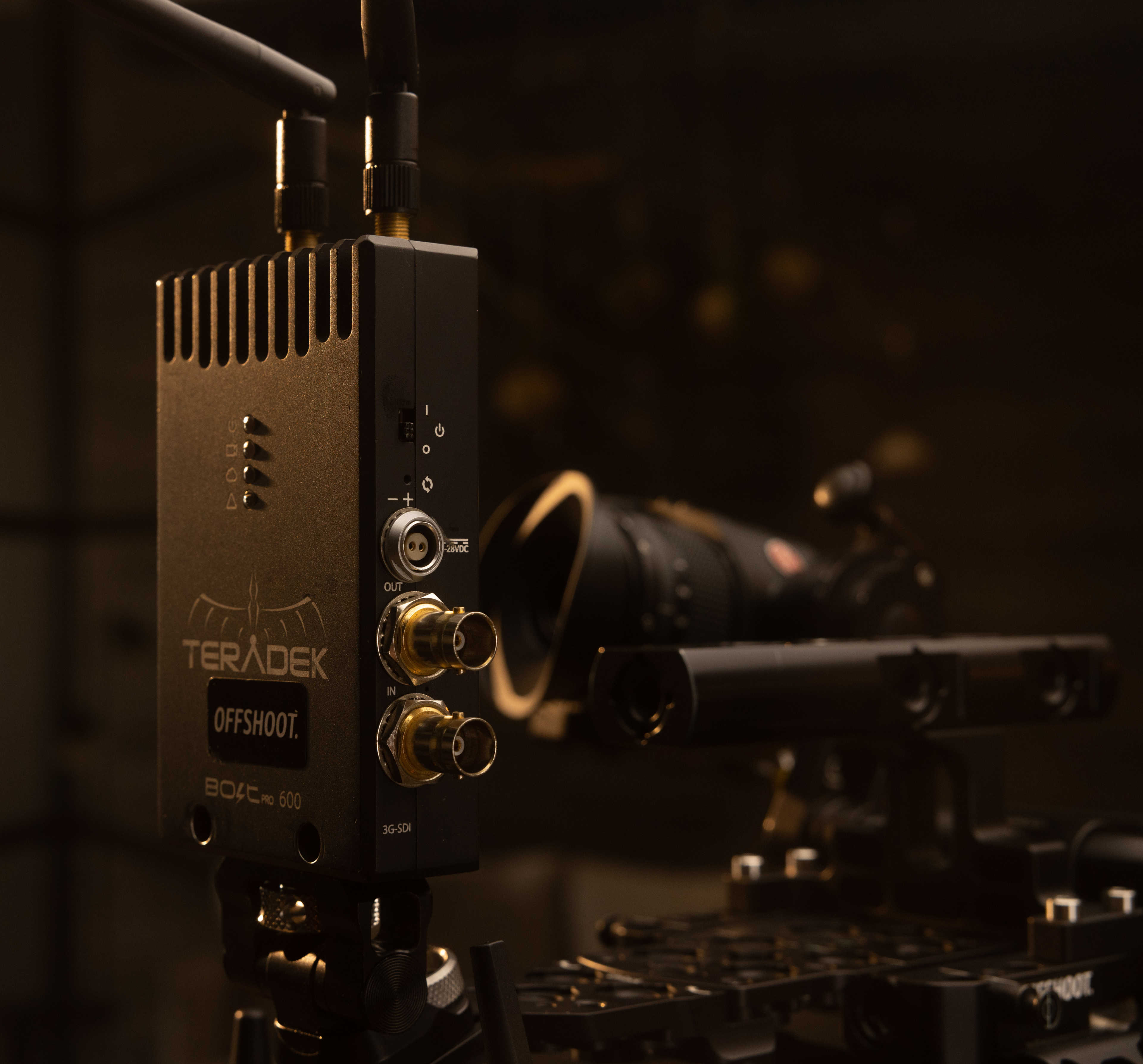

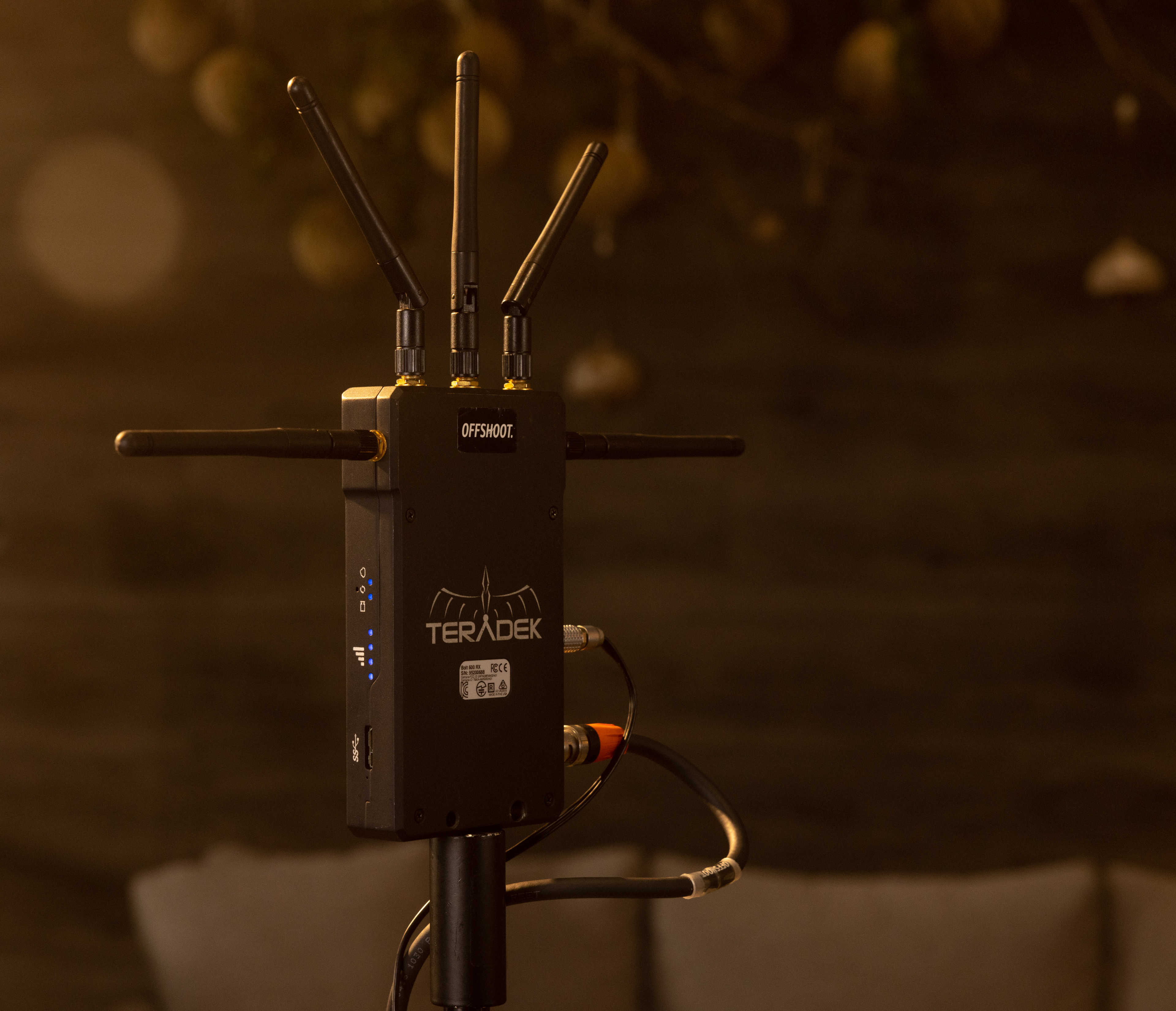

Solid wireless video performance over a range of up to 180m. The Bolt Pro 600 is a major step up in reliability over earlier models from both Teradek and other manufacturers.

Even when the increased range of the Bolt Pro 600 model isn't needed, the external antennas offer improved resilience over shorter ranges where conditions for wireless transmission are not ideal (inside, through some walls, locations with congested spectrum, etc).

Aside from the reliability, the Bolt 600 has additional features required on professional sets - such as timecode and SDI record flag pass-through (useful for recording the split for easier playback), and the ability to multicast to up to four receivers from one transmitter.

Powering The Units

Two d-tap to 2-pin Lemo cables are provided as standard to power the transmitter and receiver. We stock various cables to power the transmitter using more robust connectors where available (e.g. Hirose to 2-pin Lemo and 2-pin Lemo to 2-pin Lemo). Talk to us about your specific requirements if you need something that isn't standard.

Specifications

DelayLess than 0.001s with no format conversion.
RangeUp to 180m line of sight. The operating environment will impact the range.
Supported Video Formats1080p60/59.94/50/30/29.97/25/24/23.98
1080psf30/29.97/25/24/23.98
1080i60/59.94/50
720p60/59.94/50
480i(NTSC)/576i(PAL)
Colour Sampling10-bit with no format conversion.
InputsTransmitter: 1x 75 Ohm BNC.
Receiver: 1x USB 3.0 micro B.
OutputsTransmitter: 1x 75 Ohm BNC (loop-out).
Receiver: 1x 75 Ohm BNC.
Audio Support48kHz 24 bit PCM.
Operating Frequencies5.19 - 5.23 GHz and 5.27 - 5.67 GHz.
RF PowerTransmitter: 19dbm EIRP.
Receiver: 17dbm EIRP.
Power Input7 - 28VDC via 2-pin Lemo.
Power ConsumptionTransmitter: 7.8W.
Receiver: 8.5W.
DimensionsTransmitter: 109 x 66 x 27mm.
Receiver: 147 x 88 x 25mm.
WeightTransmitter: 282g.
Receiver: 376g.

Includes

The following items are included when you hire the Teradek Bolt Pro 600 SDI 1:1 Kit:

  • 2 x 1/4" mounting screw
  • custom transport case
  • 2 x Laird D-Tap to 2pin Lemo power cable

More Information

Learn more about the Teradek Bolt Pro 600 SDI 1:1 Kit on the official product page.
