SDI input/output only.

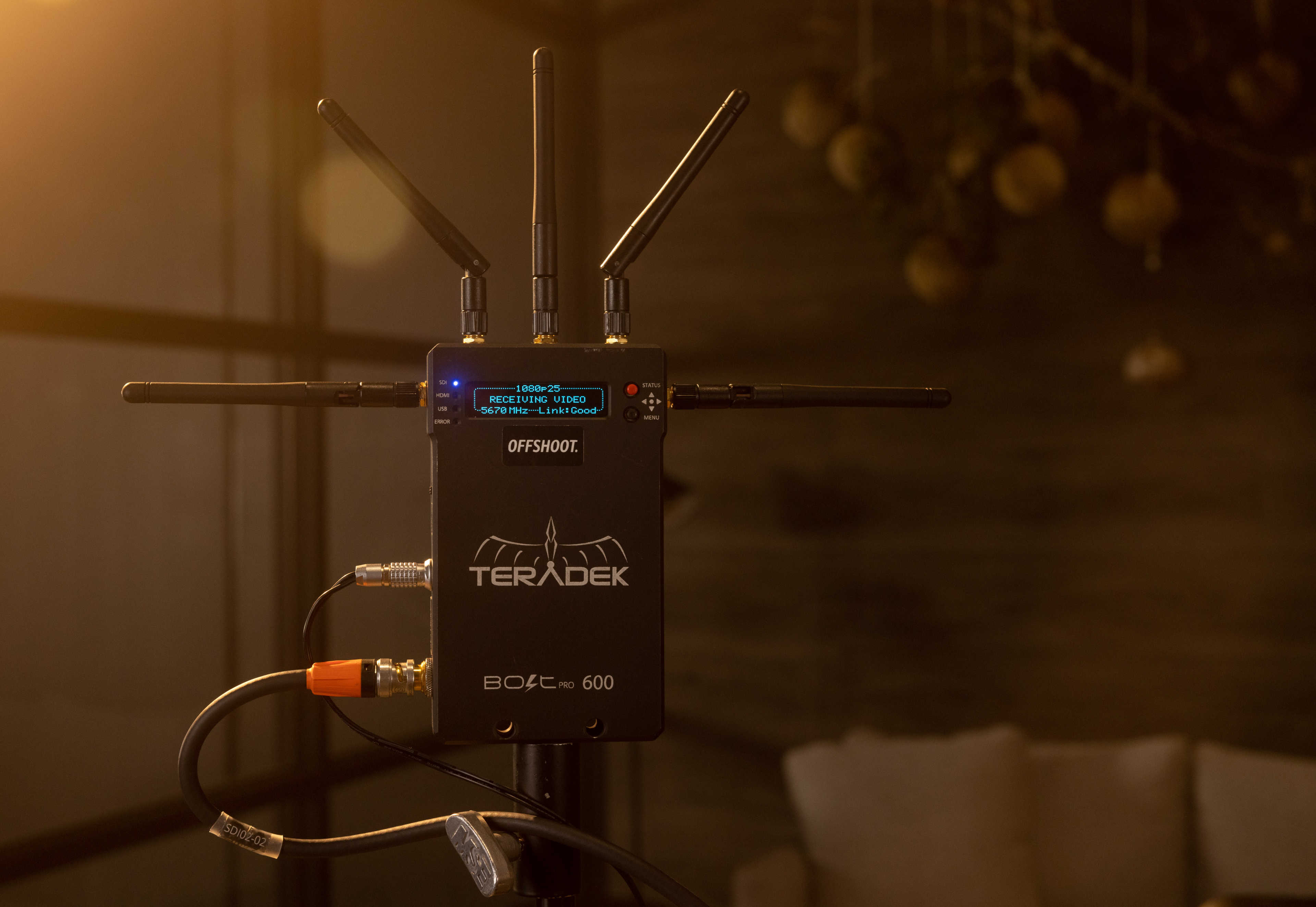

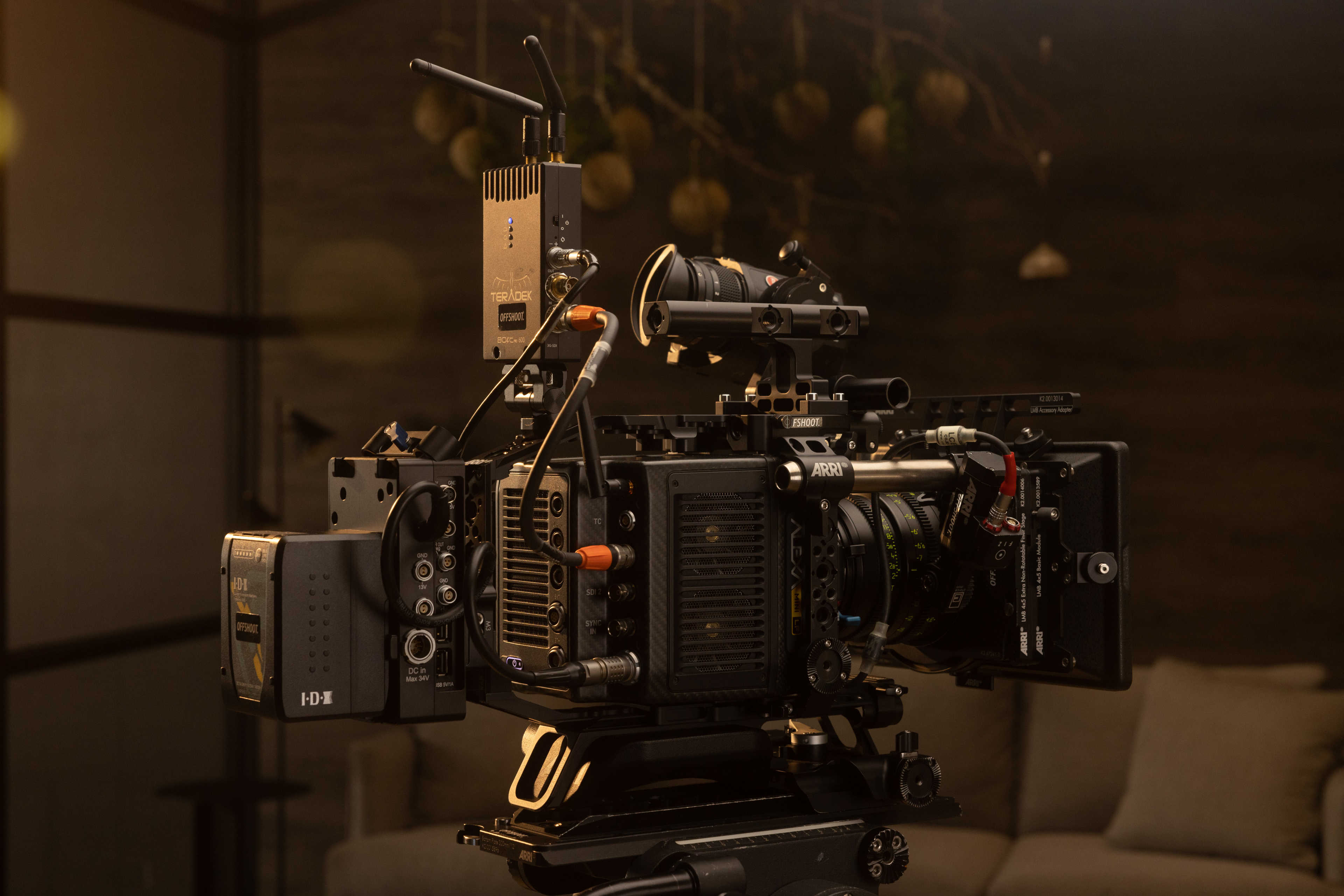

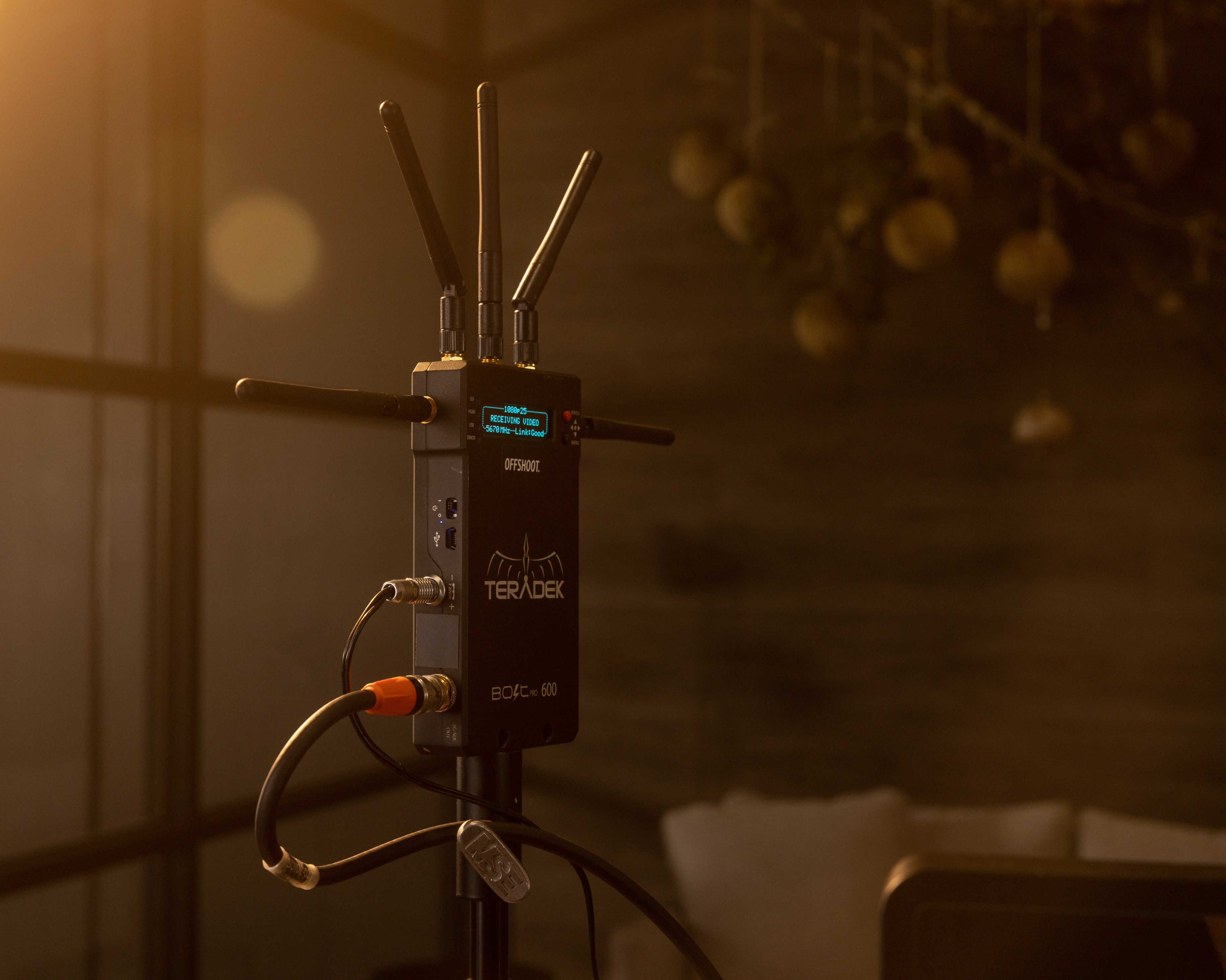

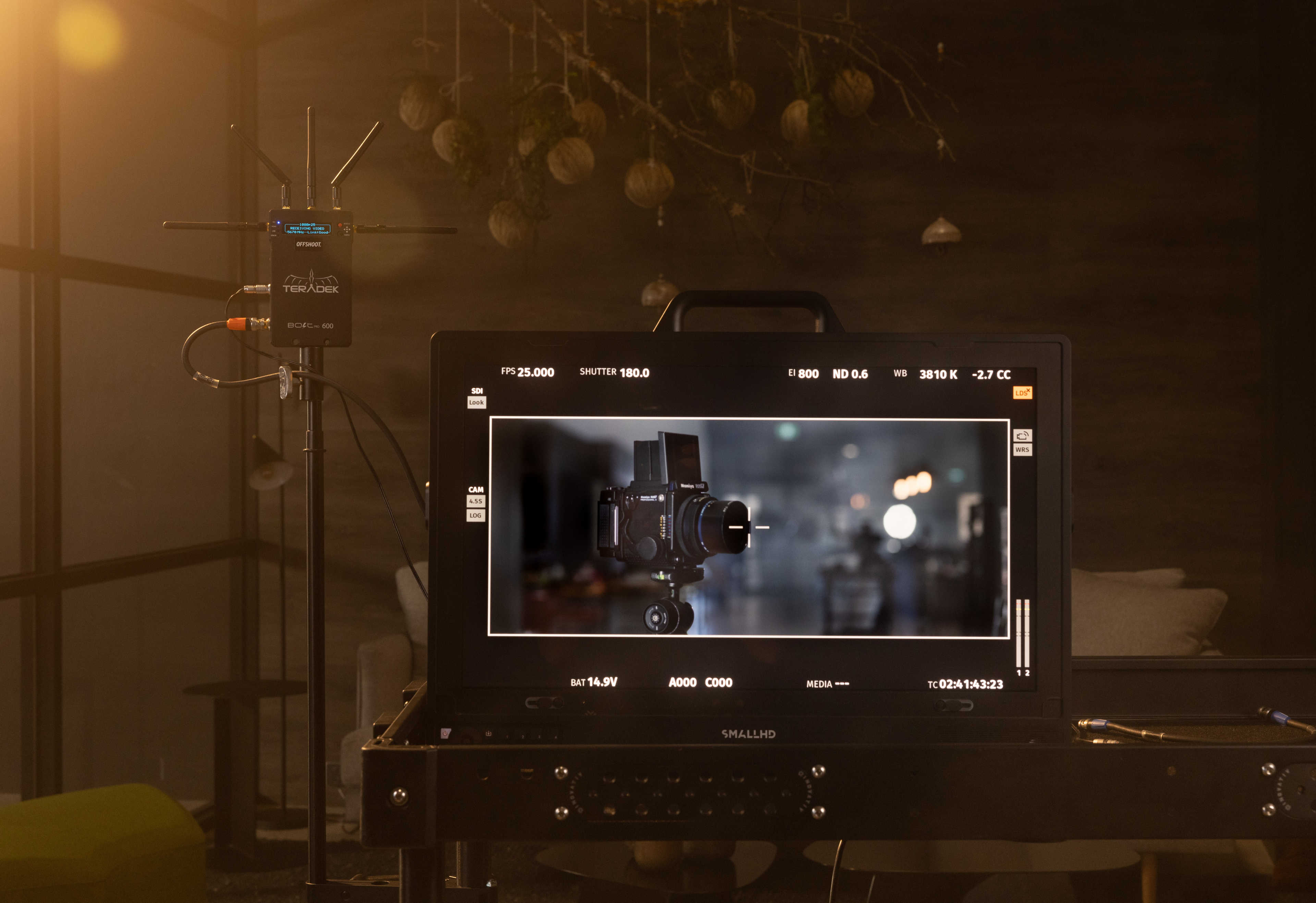

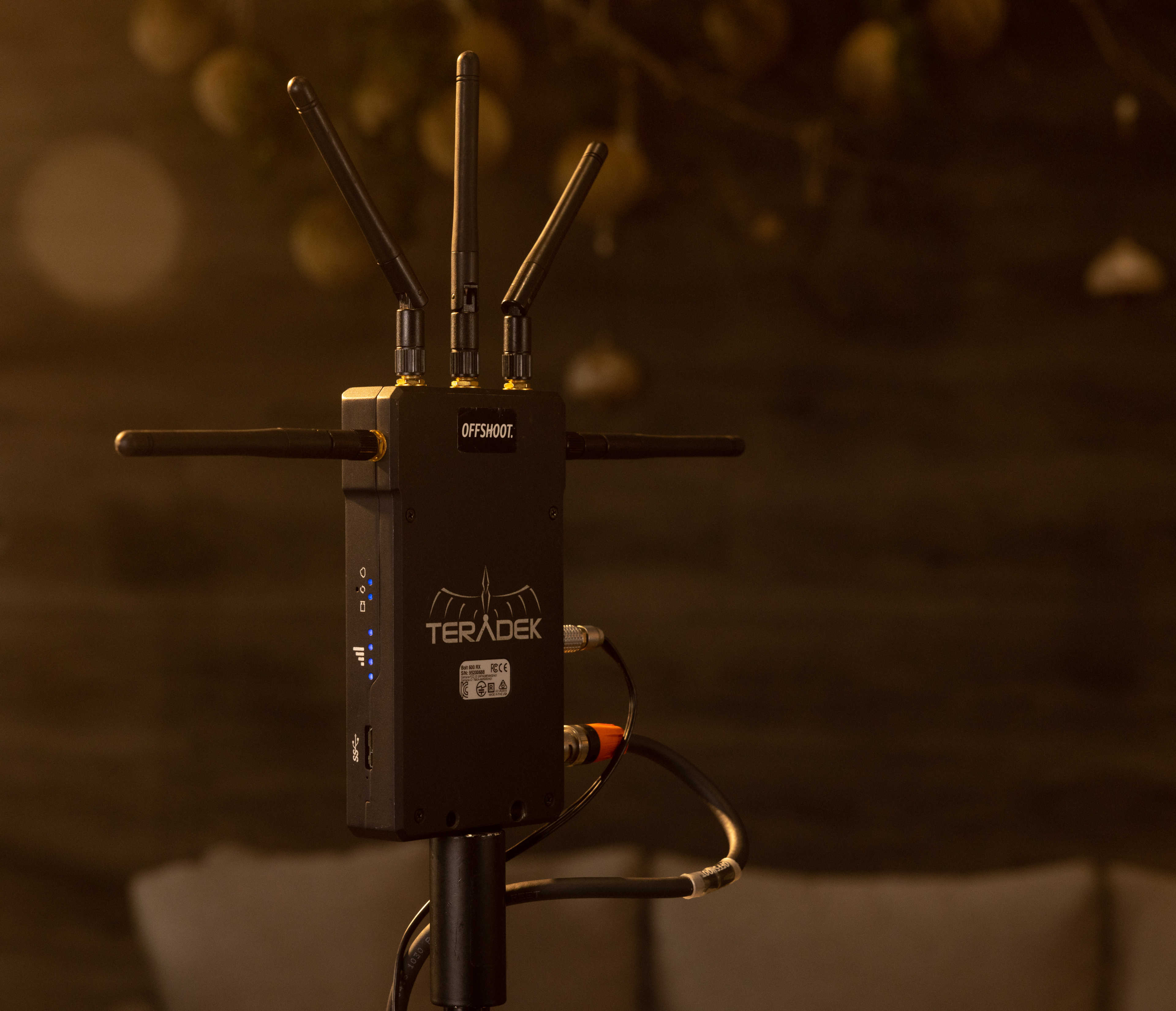

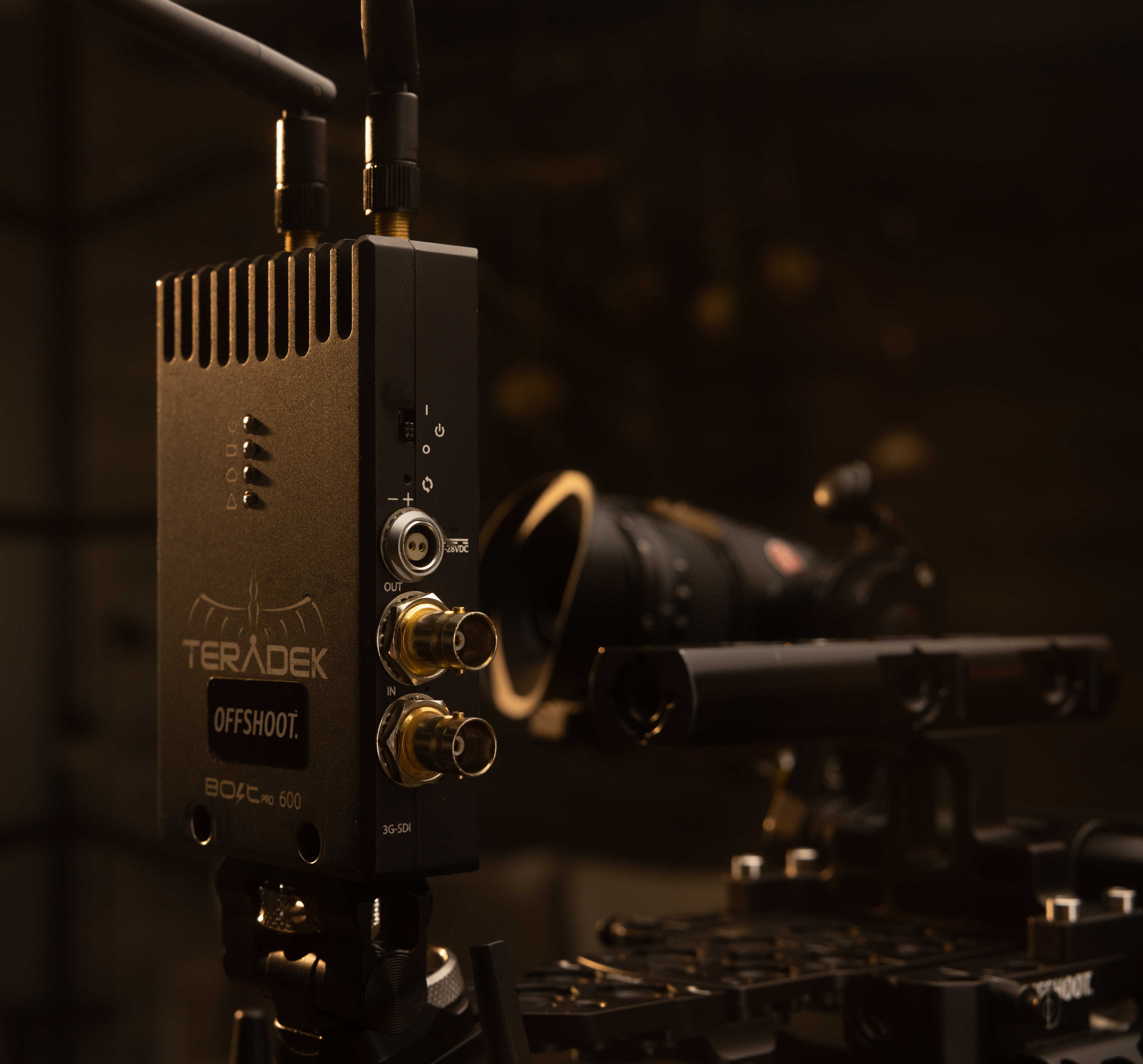

Solid wireless video performance over a range of up to 180m. The Bolt Pro 600 is a major step up in reliability over earlier models from both Teradek and other manufacturers. This is a 1:2 kit with one transmitter and two receivers.
Even when the increased range of the Bolt Pro 600 model isn't needed, the external antennas offer improved resilience over shorter ranges where conditions for wireless transmission are not ideal (inside, through some walls, locations with congested spectrum, etc).
Aside from the reliability, the Bolt 600 has additional features required on professional sets - such as timecode and SDI record flag pass-through (useful for recording the split for easier playback), and the ability to multicast to up to four receivers from one transmitter.
Three d-tap to 2-pin Lemo cables are provided as standard to power the transmitter and receivers. We stock various cables to power the transmitter using more robust connectors where available (e.g. Hirose to 2-pin Lemo and 2-pin Lemo to 2-pin Lemo). Talk to us about your specific requirements if you need something that isn't in the standard kit.
Delay | Less than 0.001s with no format conversion. |
Range | Up to 180m line of sight. The operating environment will impact the range. |
Supported Video Formats | 1080p60/59.94/50/30/29.97/25/24/23.98 1080psf30/29.97/25/24/23.98 1080i60/59.94/50 720p60/59.94/50 480i(NTSC)/576i(PAL) |
Colour Sampling | 10-bit with no format conversion. |
Inputs | Transmitter: 1x 75 Ohm BNC. Receiver: 1x USB 3.0 micro B. |
Outputs | Transmitter: 1x 75 Ohm BNC (loop-out). Receiver: 1x 75 Ohm BNC. |
Audio Support | 48kHz 24 bit PCM. |
Operating Frequencies | 5.19 - 5.23 GHz and 5.27 - 5.67 GHz. |
RF Power | Transmitter: 19dbm EIRP. Receiver: 17dbm EIRP. |
Power Input | 7 - 28VDC via 2-pin Lemo. |
Power Consumption | Transmitter: 7.8W. Receiver: 8.5W. |
Dimensions | Transmitter: 109 x 66 x 27mm. Receiver: 147 x 88 x 25mm. |
Weight | Transmitter: 282g. Receiver: 376g. |
This hire package contains the following individual hire items:
