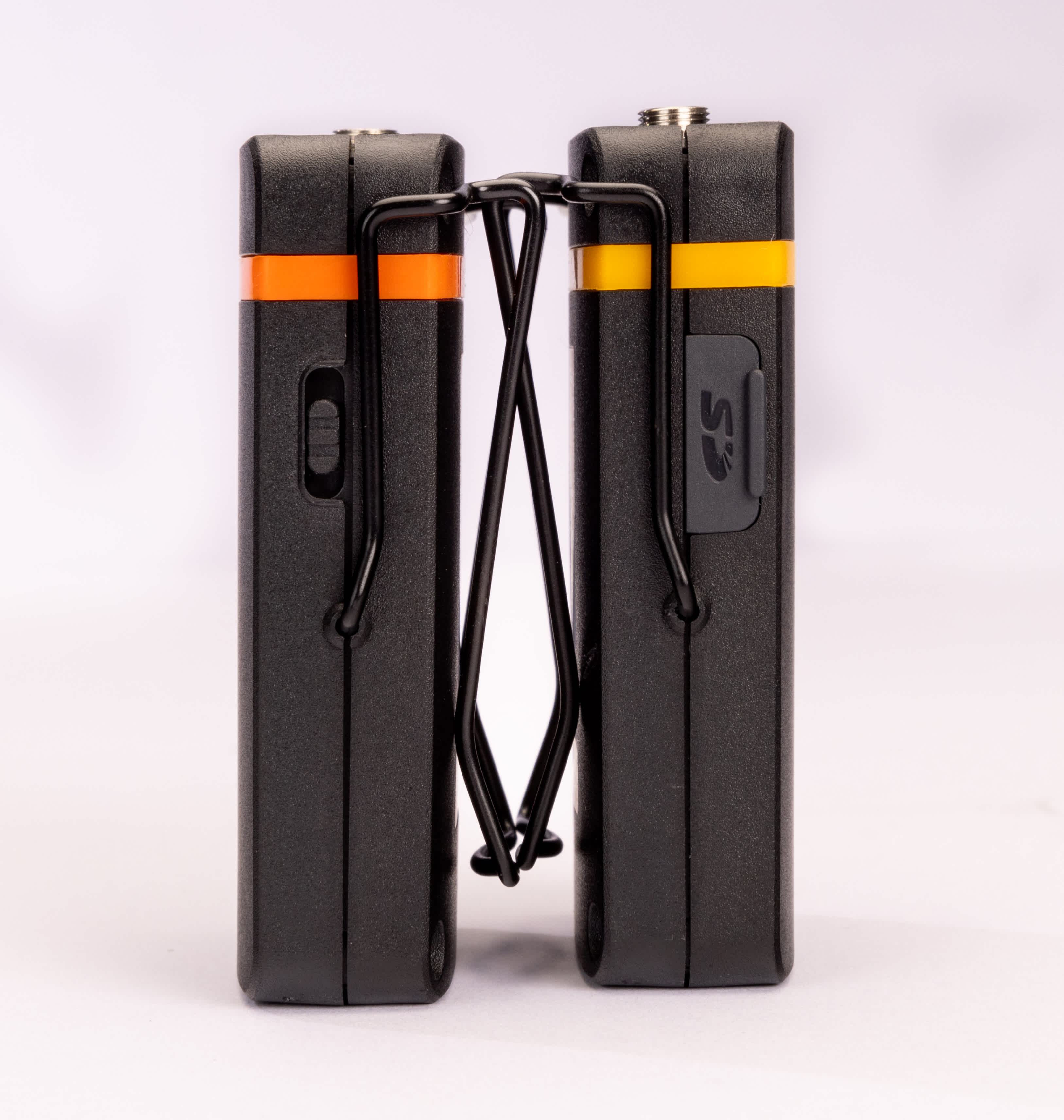

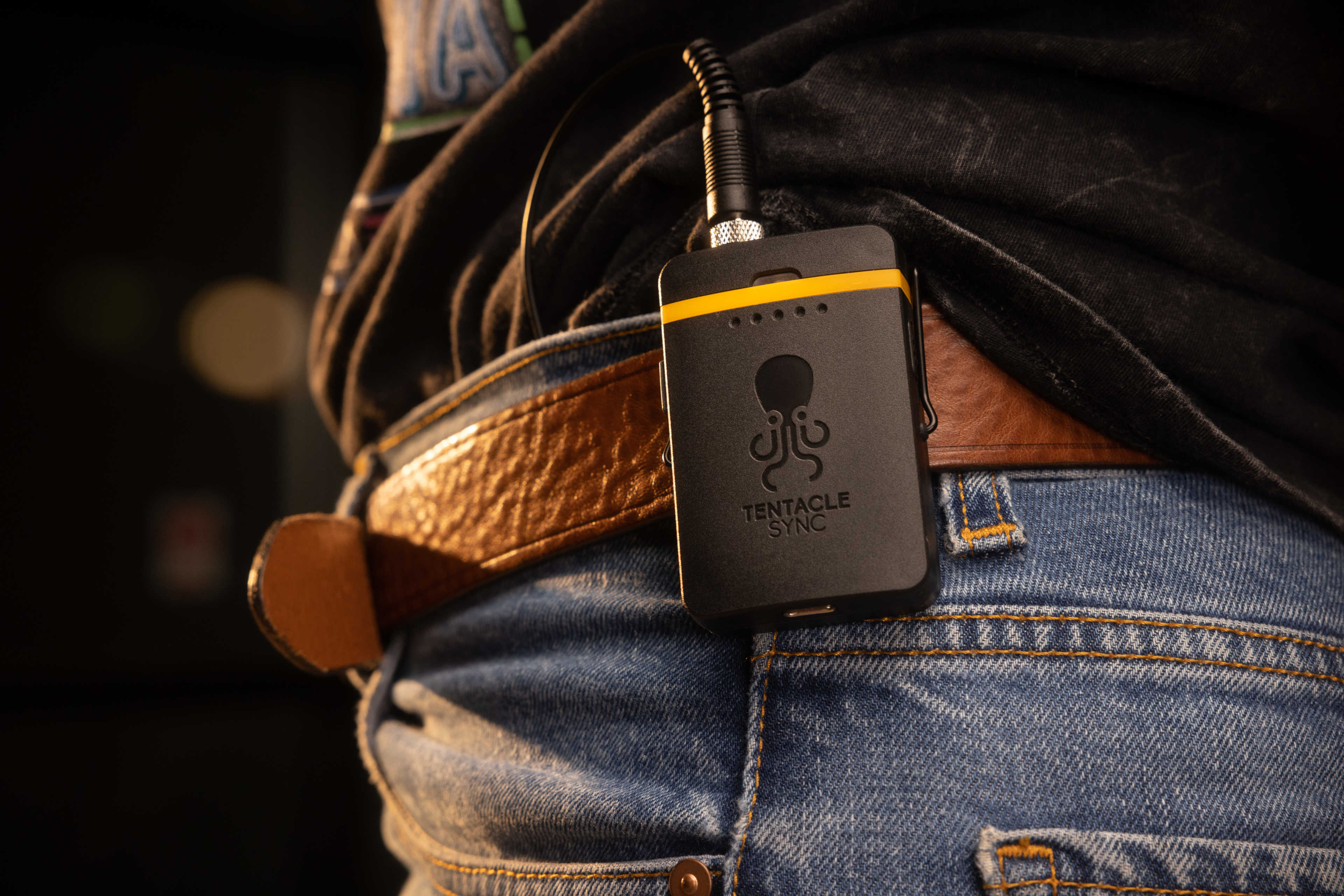

This kit includes two Track E recorders.
The Track E is a small 32-bit float audio recorder with a 3.5mm input jack and internal 16GB micro-SD card. An omni-directional microphone, mic clip and wind jammer are also included in the kit.
You can simply turn the Track E on and start recording without worrying about setting audio gain. The 32-bit float files allow you to adjust the audio levels as required in post without worrying about any clipping or raising the noise floor (using a compatible editor, such as Adobe Audition).
When recording audio for video, you can easily sync with one or more cameras on a Tentacle network using the Tentacle apps.
The Track E has an internal battery that is good for around 10 hours of recording. To transfer audio files, you can either remove the micro-SD card or connect the entire unit to a computer via the integrated USB-C port.
Also available as single units.
Gerald Undone runs you through what the Track E is and how to get up and running with one.
Curtis covers the Tentacle Sync Track E in his usual balanced and informative way.
Recording
Track Count
1 (mono)
Sampling Rate
48kHz
Bit Depth
32-bit Float or 24-bit
File Format
WAV (BWF)
Recording Time
With 16GB card: 32-bit Float - 23 hours. 24-bit - 30 hours.
Supported Media
mircoSDHC Card up to 32GB (Recommended Class 10)
Signal Processing
Low Cut Filter, Limiter (24-bit only)
Connectivity
Mic Input
Locking 3.5mm jack
Mic Plug In Power
5V (switchable)
Headphone Ouput
3.5mm Jack (dual mono)
USB Connection
USB-C (USB 2.0)
USB Modes
Charging, Card Reader, Firmware Update
Performance
Frequency Response
20Hz - 20kH
Gain Range
+6 to +46 dB
Dynamic Range
110 dB (typical)
THD+N
≤ -85 dB (0.05%)
Control & Sync
Bluetooth
5.0 (Low Energy)
Remote Control
Tentacle Setup App (iOS/Android)
Synchronisation
Via Bluetooth or Jam-Sync via cable
Timecode Input
LTC via microphone input
Timecode Output
None
Frame Rates
SMPTE 12M / 23.98, 24, 25, 29.97, 29.97DF and 30fps
Power
Source
Built-in rechargeable lithium polymer battery
Battery Capacity
900 mAh
Battery Operating Time
Up to 10 hours
Charging Time
2 hours max
Physical
Dimensions
47mm x 68mm x 19mm / 1.85 x 2.67 x 0.74 inches
Weight
58g / 2.0 oz
