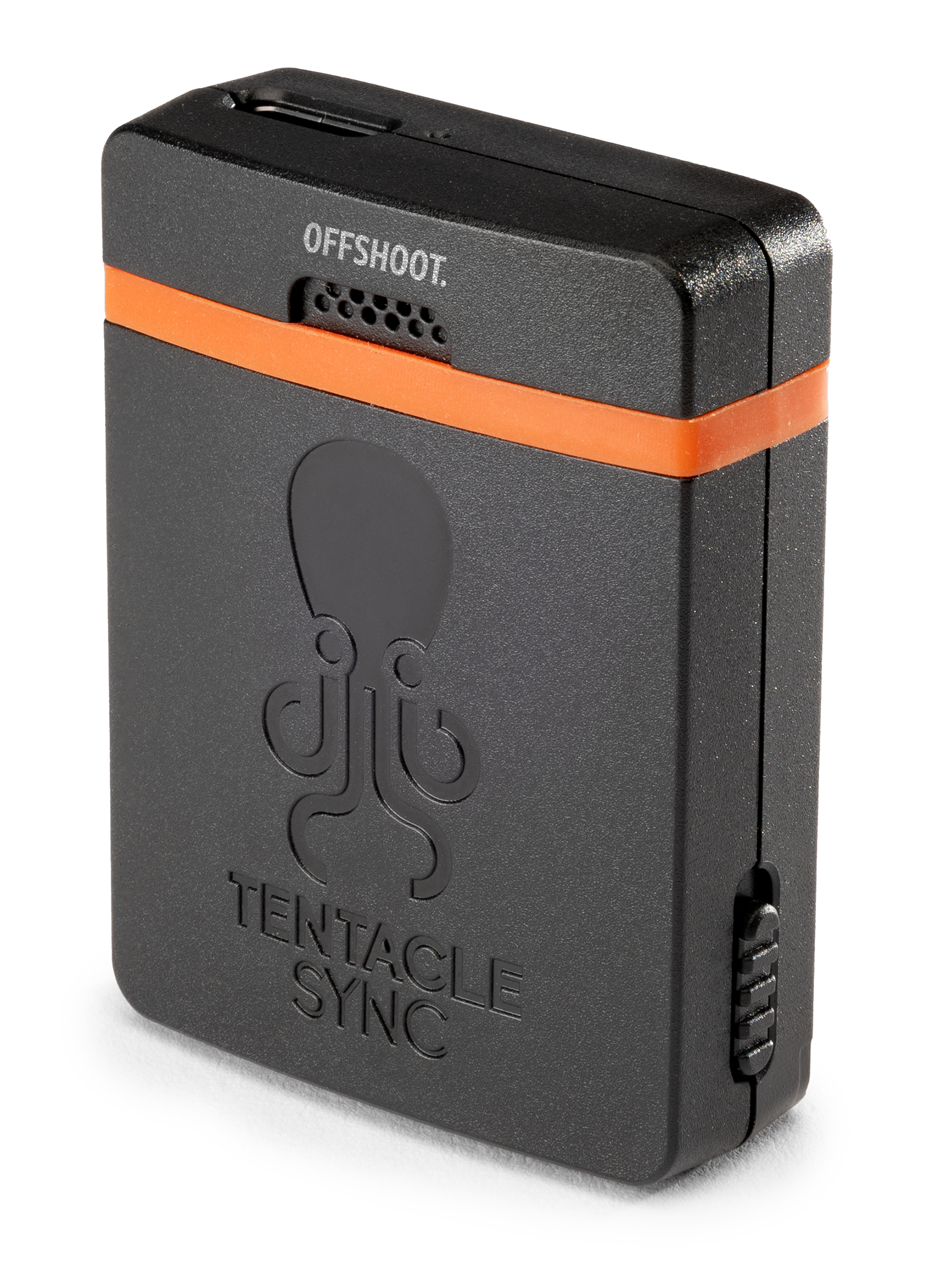

The Tentacle Sync E MKII Timecode Generator is a great little tool for keeping all of you recording devices timecode synced.
Attach one to your camera and audio recorder and you can sync them both with the press of a button through the compainion mobile phone app. This keeps all of your devices easily in sync and without worrying about timecode drift.
The free mobile phone app is available for IOS and Android and is simple to use. It is quick and easy to add and sync new devices using bluetooth.
These timecode generators can also be used with cameras that dont have dedicated timecode inputs, such as DSLRs and mirrorless cameras. This timecode is called Audio Timecode. Simply plug the Tentacle Sync into the microphone port of the camera and it will record timecode data to the left channel and a scratch audio track using the Tentacle Syncs built-in microphone to the right channel.
Our kit includes timecode cables for BNC, 3.5mm and 5-pin Lemo.
No videos yet.
Timecode
LTC Timecode
According to SMPTE-12M Standard
Frame Rates
23.98, 24, 25, 29.97, 29.97DF and 30fps
Drift
Accuracy Less than 1 Frame Drift in 24 Hours (-30°C to +85°C)
High Precision TCXO
0.2ppm
Connectivity
Timecode Input
3.5mm Jack (lockable via Clamp)
Timecode Output
3.5mm Jack (lockable via Clamp)
USB Connection
USB-C (USB 2.0)
USB Modes
Charging, Firmware Update, Setup Mac/Windows
Audio
Built-In Reference Mic (enabled by Plug-in Power of Mic Input)
Control & Synchronisation
Bluetooth
4.2 (Low Energy) / 5 (SYNC E mkII)
Remote Control & Monitoring
Tentacle Setup App (iOS/Android)
Synchronisation
Via Bluetooth® or Jam-Sync via cable
Power
Power Source
Built-in rechargeable Lithium Polymer Battery
Battery Capacity
400 mAh
Battery Operating Time
Up to 50 hours
Battery Charging Time
Max. 1.5 hours
Physical
Dimensions
38mm x 50mm x 15mm
Weight
30g
