Sony PVM-A170 17" OLED Monitor Kit
Stunning OLED blacks in a monitor 40% lighter than the previous model. This 17" full HD Sony monitor has both SDI and HDMI input and can run on AC or DC power for field use.
The viewing angle is much improved over the previous generations of Sony OLED monitors and is the widest of any flat panel monitor in the industry - which is great when several people are crowded around the monitor.

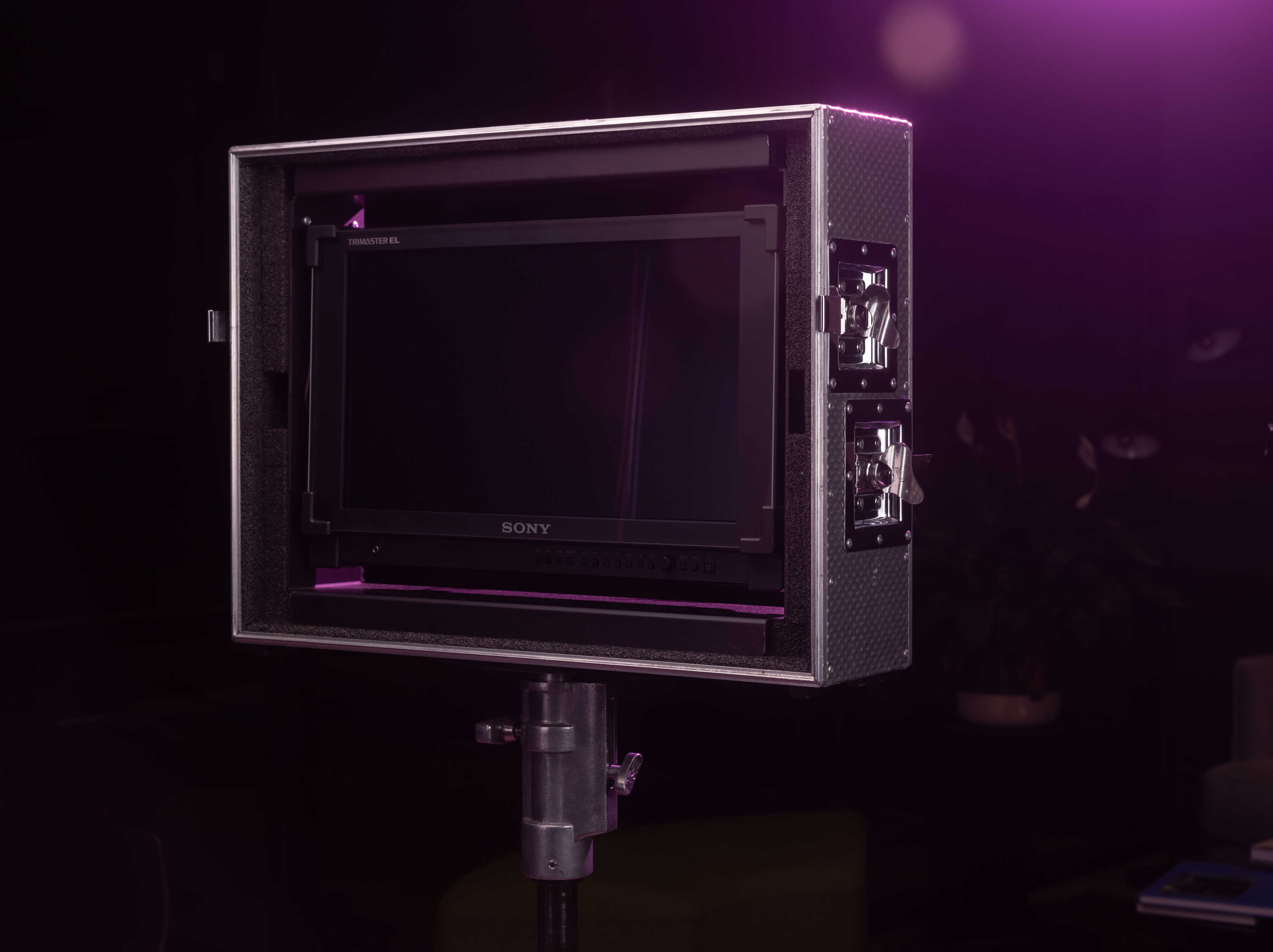

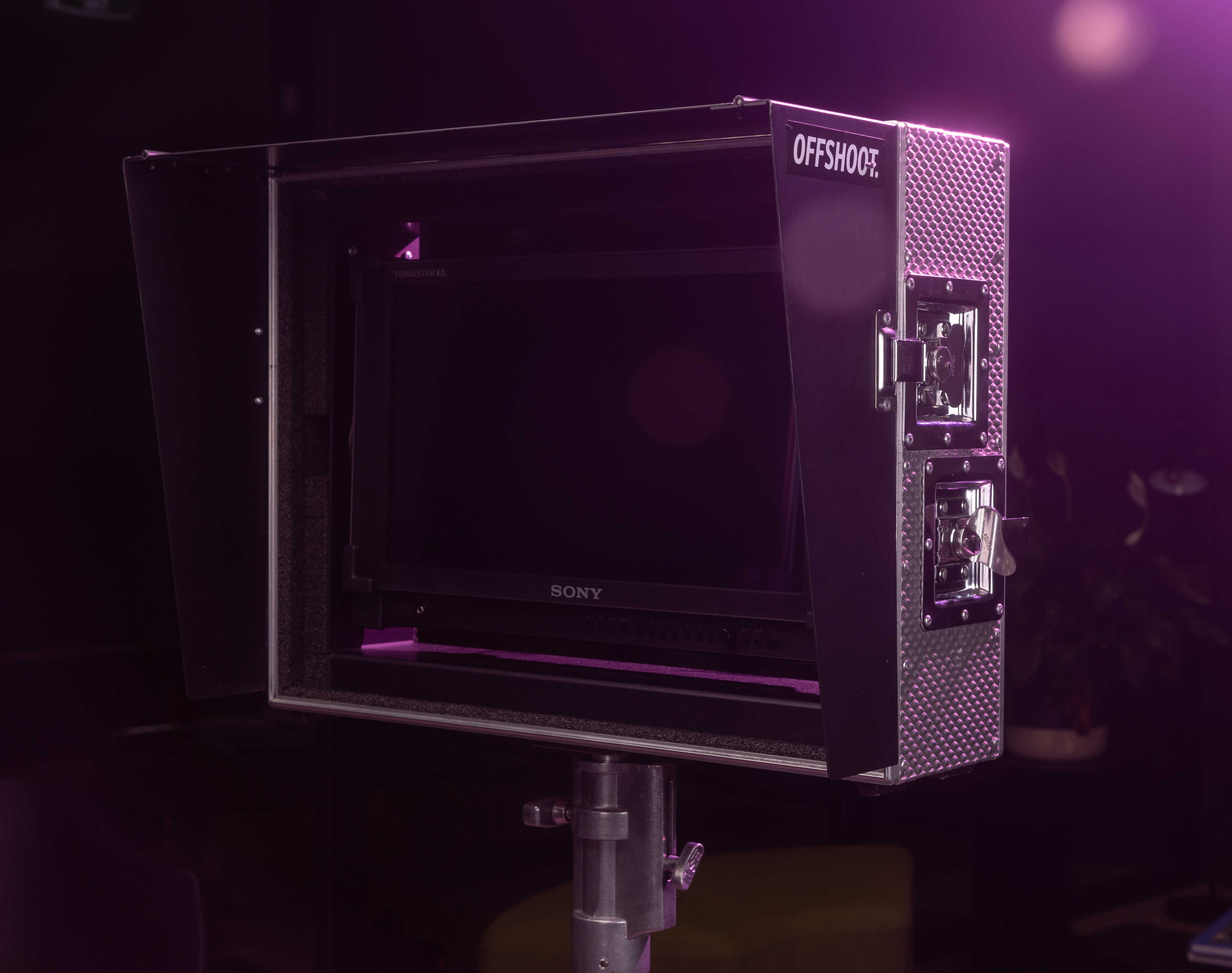

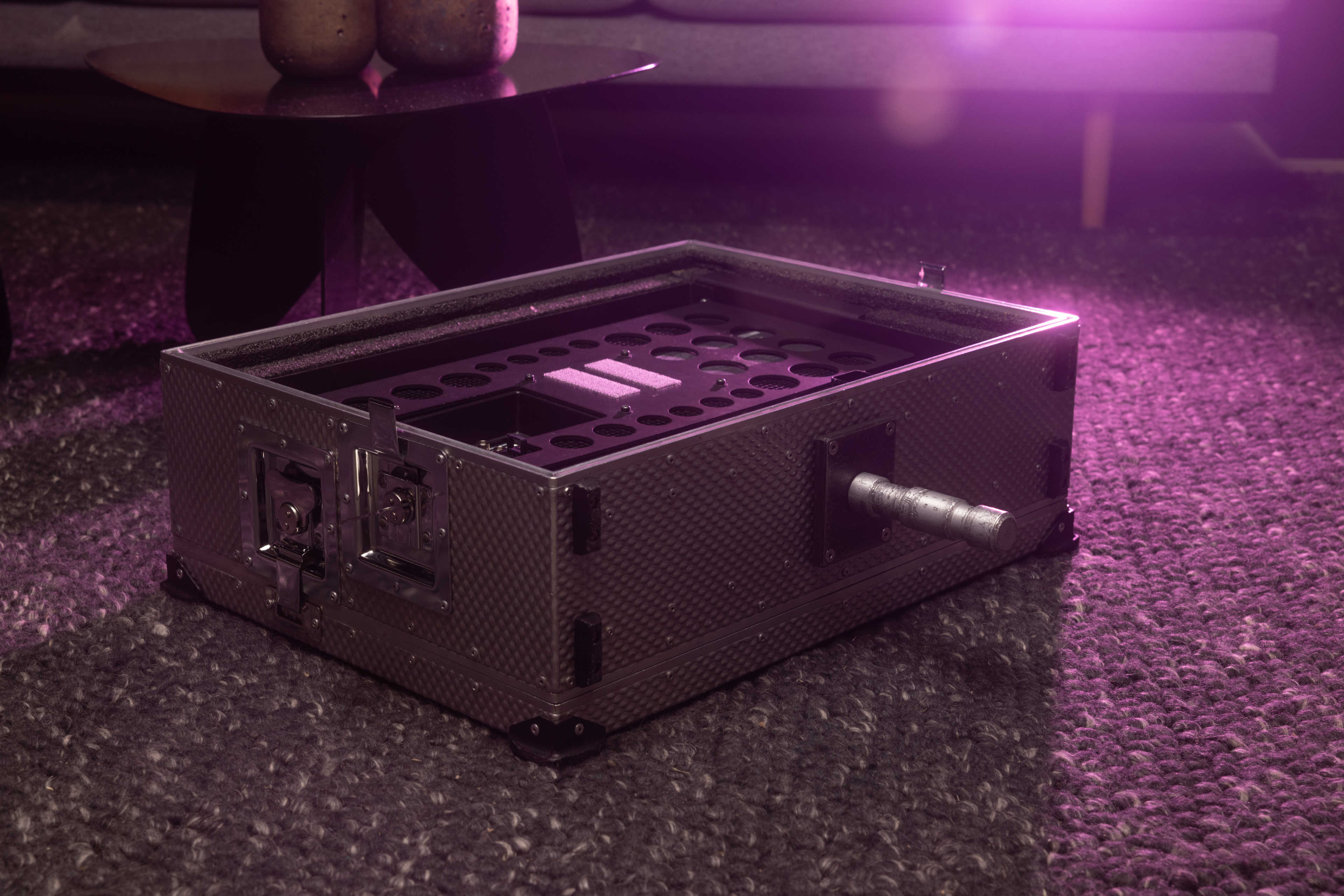

The road case is stand mountable via a 28mm (1 1/8") spigot that screws into the bottom of the case. You'll need a stand with a junior receiver (or an appropriate adapter).
No videos yet.
Display
Panel Type
OLED
Diagonal Size
17"
Resolution
1920 x 1080
Pixel Density
133 ppi
Aspect Ratio
16:9
Brightness
Not specified by the manufacturer.
Contrast
Not specified by the manufacturer.
Gamut
Not specified by the manufacturer.
Colour Depth
10-Bit
Viewing Angle
178 Degrees
Backlight Type
OLED
Input Signal
3G-SDI Input Types
YCC 4:2:2 & RGB 4:4:4 @ 10-bits: 2048p - 24 / 25 / 30 / 48 / 50 / 60 2048psf - 24 / 25 / 30 1080p - 24 / 25 / 30 / 50 / 60 1080psf - 24 / 25 / 30 1080i - 50 / 60 720p - 50 / 60
HD-SDI Input Types
YCC 4:2:2 & RGB 4:4:4 @ 10-bits: 2048p - 24 / 25 / 30 2048psf - 24 / 25 / 30 1080p - 24 / 25 / 30 1080psf - 24 / 25 / 30 1080i - 50 / 60 720p - 24 / 25 / 30 / 50 / 60
SD-SDI Input Types
YCC 4:2:2 @ 10-bits: 575i (PAL) - 50i 480i (NTSC) - 60i
HDMI Input Types
YCC 4:2:2 & RGB 4:4:4 @ 10-bits: 1080p - 24 / 25 / 30 / 50 / 60 1080i - 50 / 60 720p - 50 / 60 575i (PAL) - 50i 480i (NTSC) - 60i 576p - 50 480p - 60
Audio Input Types
HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack
Output Signal
3G-SDI Output Types
YCC 4:2:2 & RGB 4:4:4 @ 10-bits: 2048p - 24 / 25 / 30 / 48 / 50 / 60 2048psf - 24 / 25 / 30 1080p - 24 / 25 / 30 / 50 / 60 1080psf - 24 / 25 / 30 1080i - 50 / 60 720p - 50 / 60
HD-SDI Output Types
YCC 4:2:2 & RGB 4:4:4 @ 10-bits: 2048p - 24 / 25 / 30 2048psf - 24 / 25 / 30 1080p - 24 / 25 / 30 1080psf - 24 / 25 / 30 1080i - 50 / 60 720p - 24 / 25 / 30 / 50 / 60
SD-SDI Output Types
YCC 4:2:2 @ 10-bits: 575i (PAL) - 50i 480i (NTSC) - 60i
HDMI Output Types
None
Audio Output Types
HDMI incoming Audio Stream is sent downstream via SDI connection

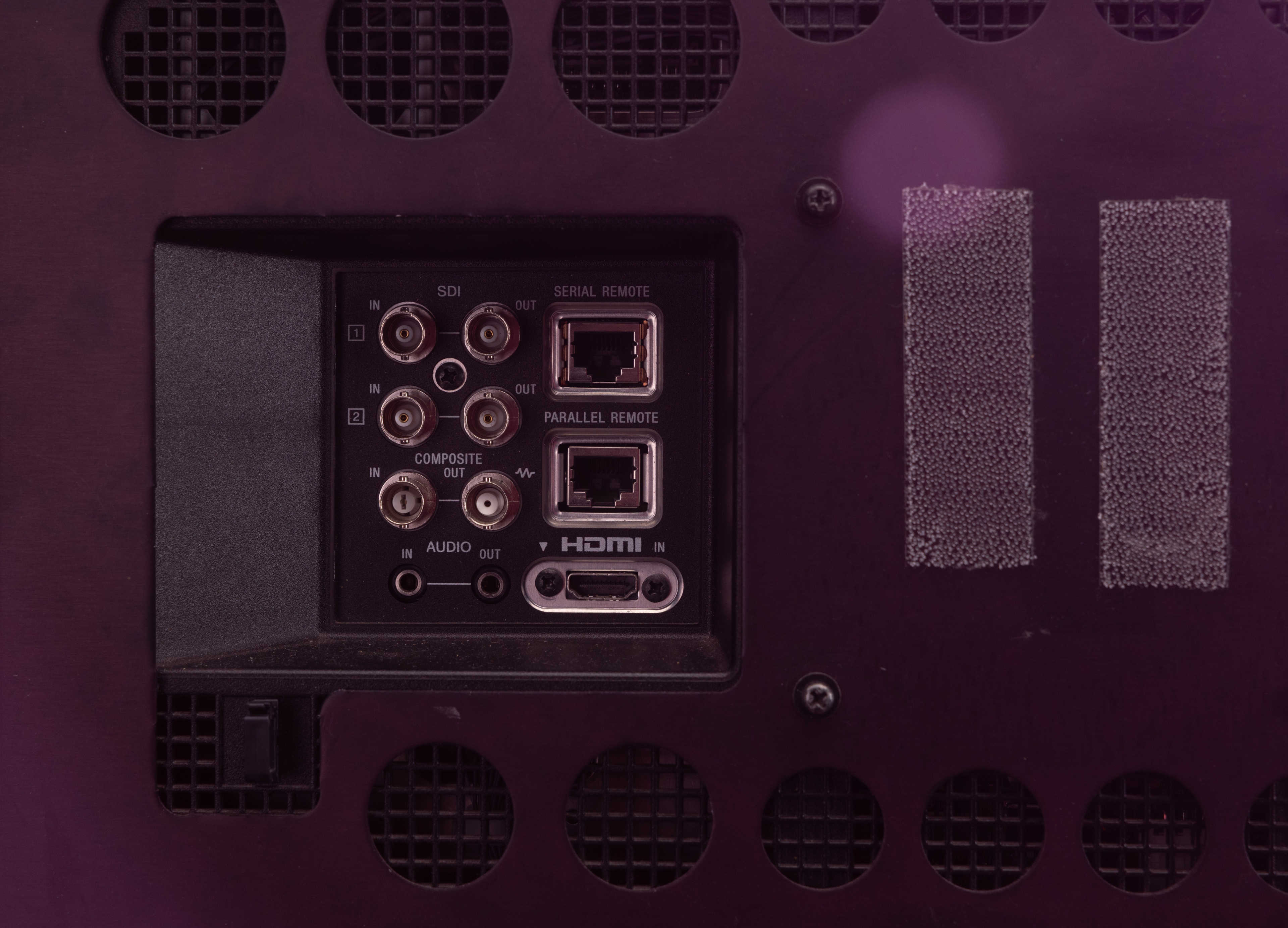

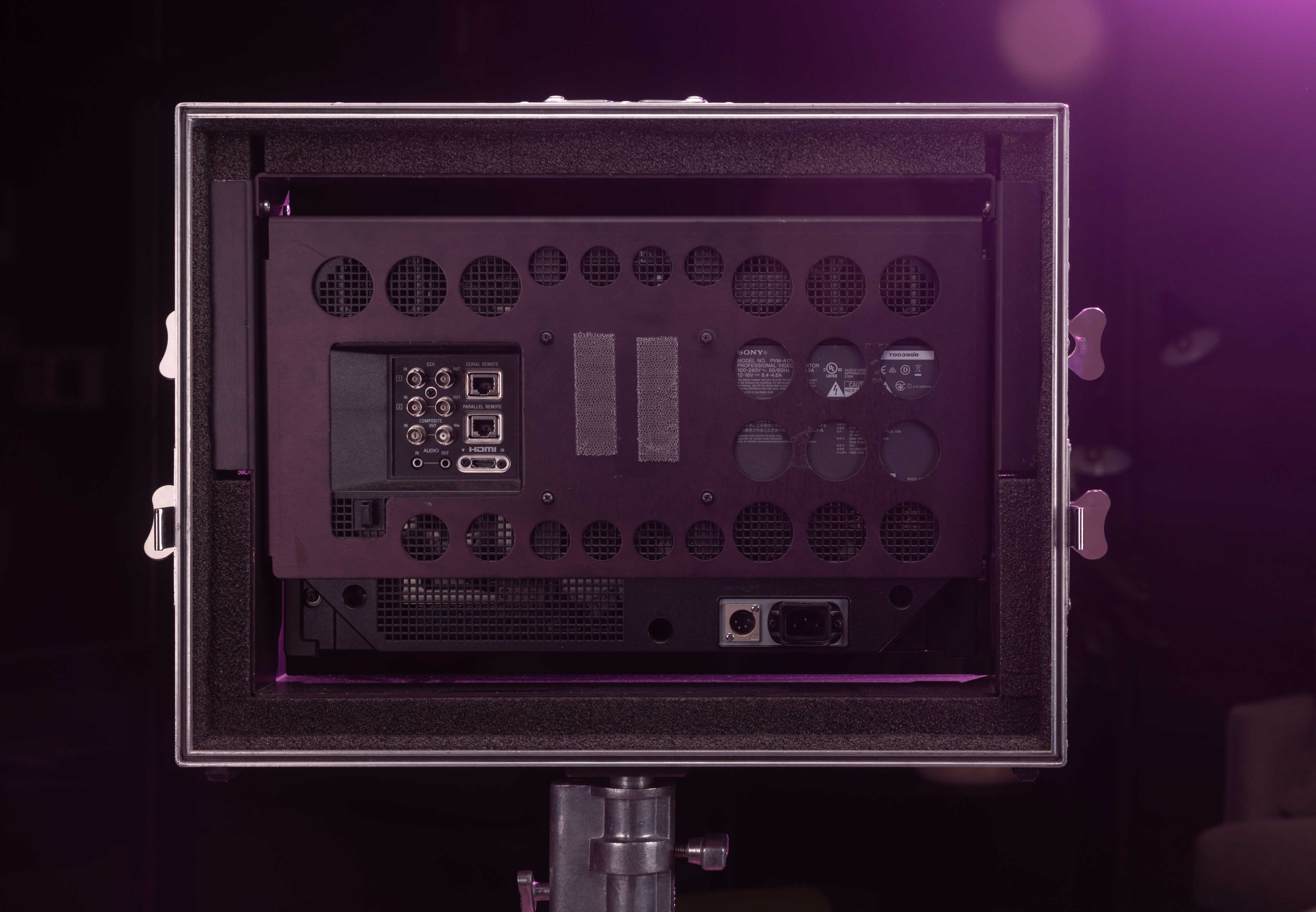

I/O
SDI
2x 3G Input (BNC) 1x 3G Output (BNC)
HDMI
1x Input (Type A)
Component
Not supported
Composite
1x Input (BNC) 1x Output (BNC)
Audio
1x 3.5mm Headphone Jack
Power
Connector

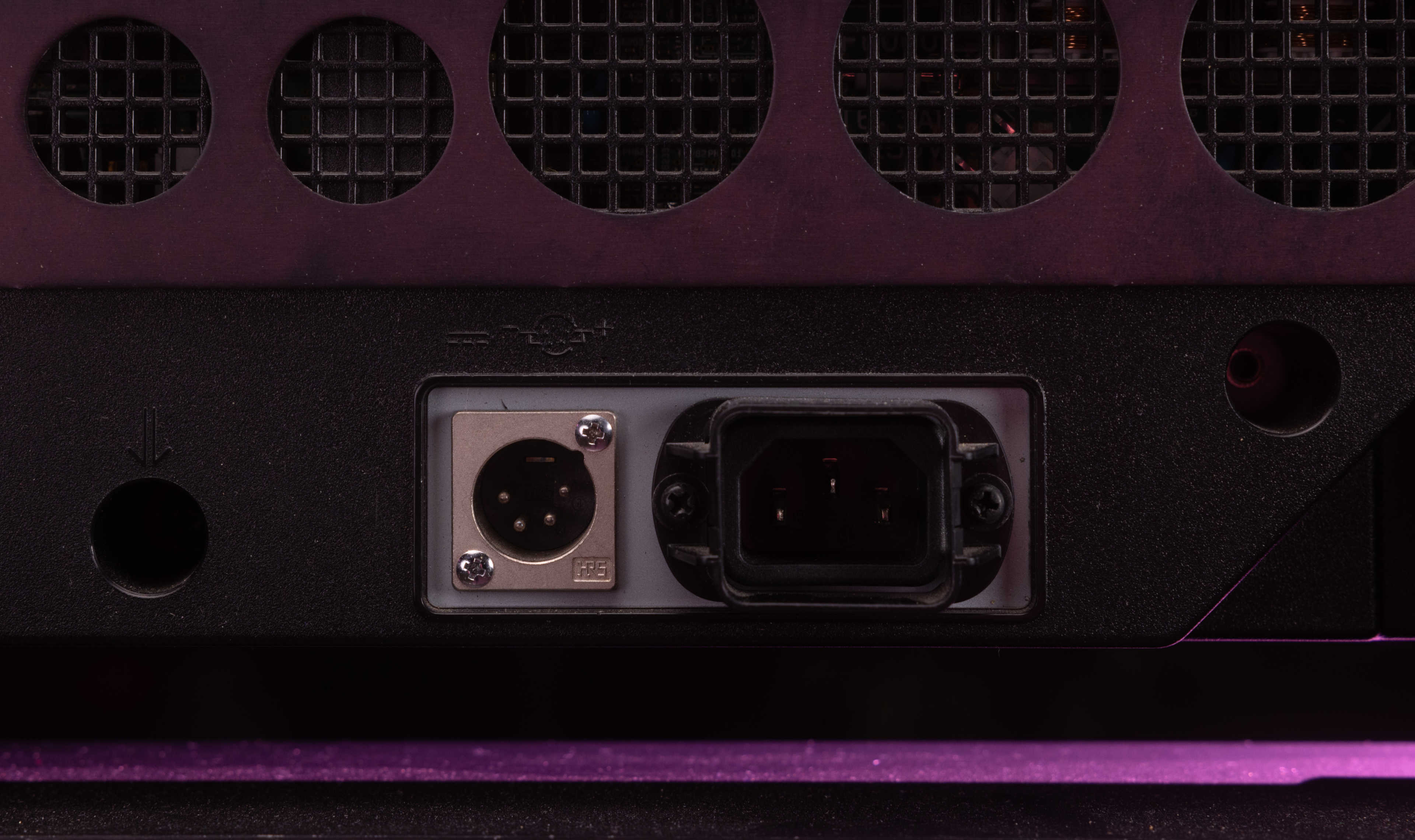

IEC C-31 AC power input.. 4pin XLR DC power input.
Voltage
AC 100 V to 240 V, 0.9 - 0.5A. DC 12 V to 16 V, 4.8A to 6.4A.
Power Consumption
60 Watts average. 75 Watts max.
AC Power Supply
Integrated. AC Cable included.
Overload Protection
Yes
Power Output
None
Software
Pixel Zoom
No
Frame Guides
Yes: Preset Aspect Ratios and safe areas.
DSLR Scale
No
Custom Scale
No
Anamorphic De-Squeeze
Yes: 1.33x, 2.0x
Image Rotate
No
Image Flip
Yes - Manual Control
Cross Conversion
No
Focus Assist
Yes - User Adjustable Color Style and Intensity
Peaking
Yes - User Adjustable Intensity
False Color
Yes - Rainbow Style
Zebra
No
Waveform
Yes - Luma Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope
Yes
RGB Parade
No
Histogram
No
Image Capture
No
Custom LUTS
No
LUT Downstream
No
LUT Import
None
Audio Meters
Yes - HDMI & SDI up to 8 channels
Physical
Dimensions
Monitor: 436 x 305 x 161mm Transport case: 570 x 425 x 235mm
Weight
Monitor: 4.3kg Transport case: 16.3kg
