SmallHD Ultra 7 Bolt 6 RX Handheld Kit

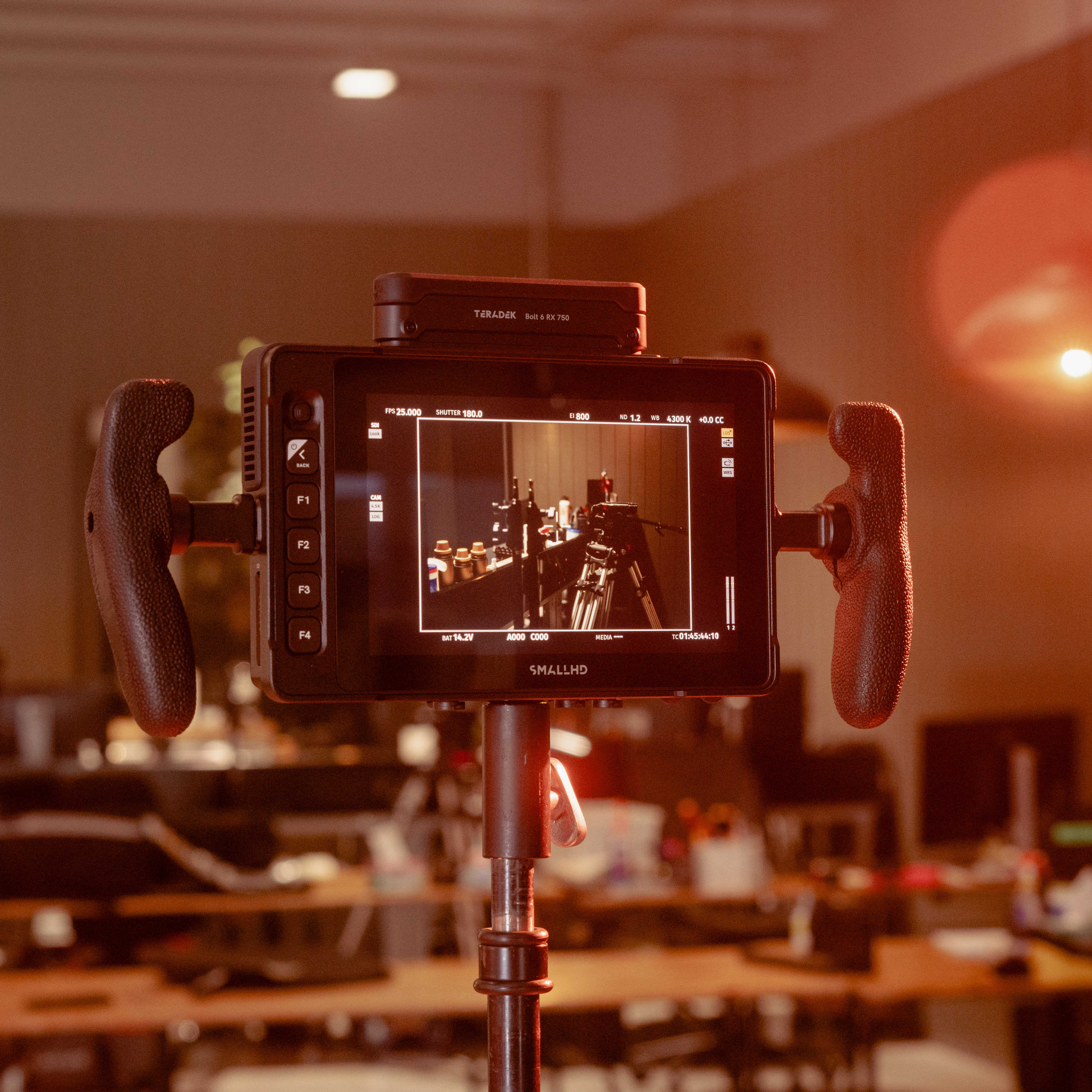

This SmallHD Ultra 7 daylight viewable monitor (2300 nits brightness) with integrated Teradek Bolt 6 750 receiver makes for a compact, portable wireless split option.
The display resolution is 1920x1200 pixels, but the monitor can be sent a 4K/UHD signal.
Compatible with Bolt 4K and Bolt 6 transmitters (both XT and LT). See this compatibility chart for the full list of compatibile transmitters.
No videos yet.
Display
Panel Type
IPS LCD
Diagonal Size
7.02"
Resolution
1920 x 1200
Aspect Ratio
16:10
Brightness
2300 nits
Contrast
1000:1
Gamut
95% DCI-P3 / 98% REC 709
Colour Depth
10-bit Color Intelligence Engine (8-bit panel)
Backlight Type
White LED (adjustable)
Input Signal
6G-SDI Input Types
YCC 4:2:2 @ 10 bits: DCI-4Kp - 30 / 29.97 / 25 / 24 / 23.98 2160p - 30 / 29.97 / 24 / 23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp - 60 / 59.94 / 50 / 48 / 47.95 1080p - 60 / 59.94 / 50 / 48 / 47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp - 60 / 59.94 / 50 / 48 / 47.95 1080p - 60 / 59.94 / 50 / 48 / 47.95
3G-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p - 60 / 59.94 / 50 1080i - 120 / 119.88 / 102
HD-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p - 30 / 29.97 / 25 / 24 / 23.98 1080psf - 30 / 29.97 / 25 / 24 / 23.98 1080i - 60 / 59.94 / 50 720p - 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.100
SD-SDI Input Types
YCC 4:2:2 @ 10-bits: 480i - 29.97 576i - 25
HDMI Input Types
YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 2160p - 30 1080p - 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 720p - 120 / 119.88 / 100 / 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 480p - 240 / 239.76 / 120 / 119.88 / 60 / 59.94 576p - 200 / 100 / 50 480i - 240 / 239.76 / 120 / 119.88 / 60 / 59.94 576i - 200 / 100 / 52
Audio Input Types
HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels
I/O

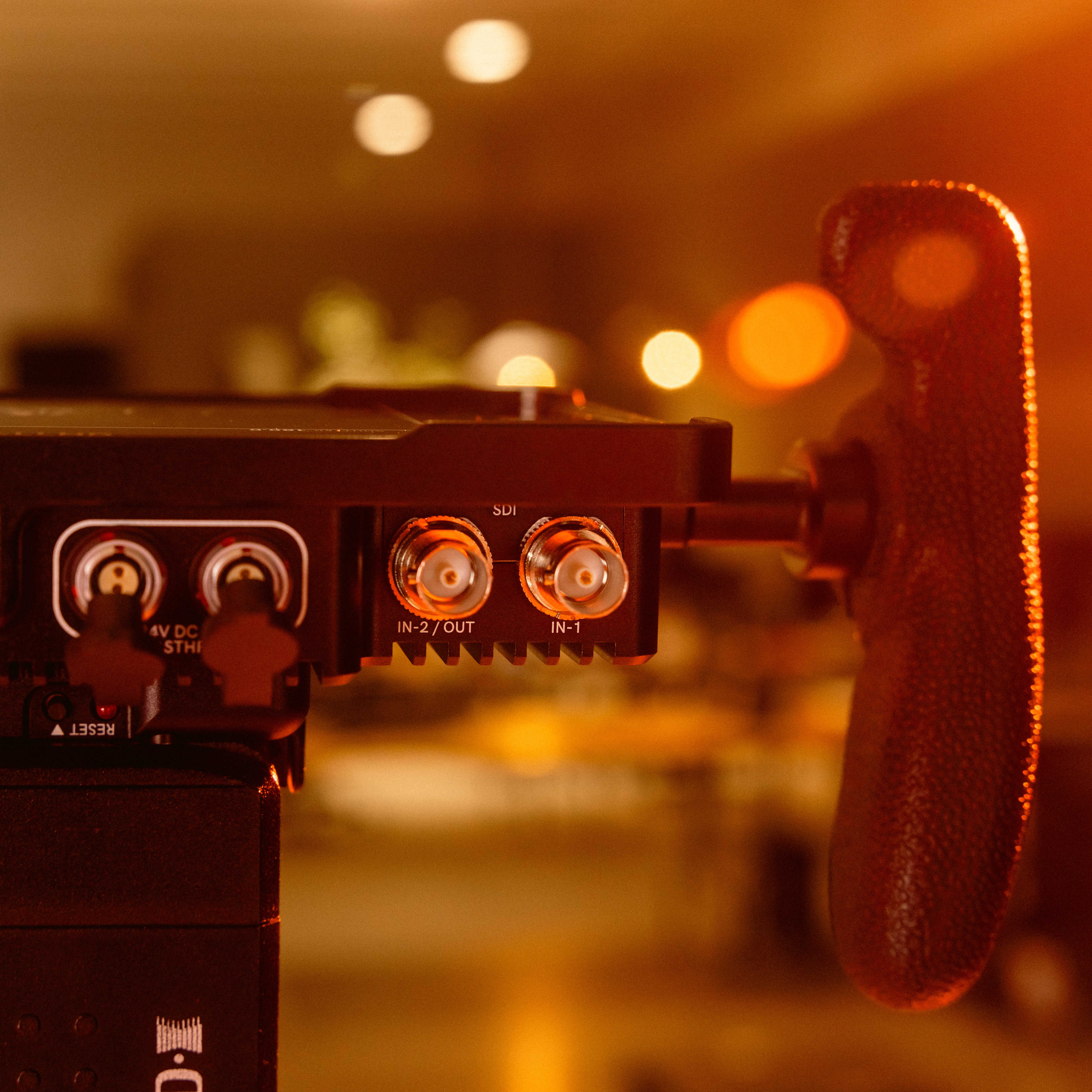

SDI
1x 6G Input (BNC) 1x 6G Output (BNC)

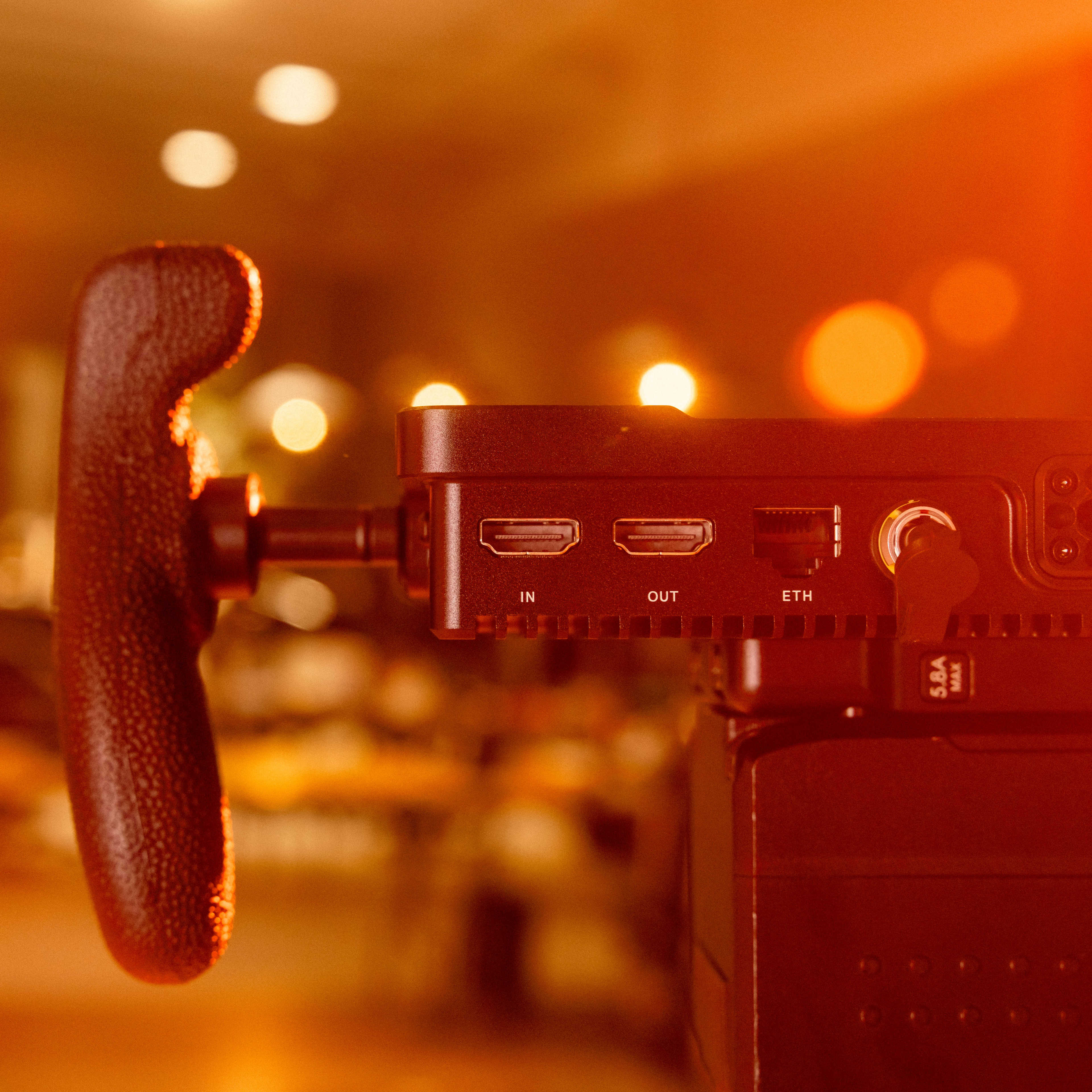

HDMI
1x Input (Type A) 1x Output (Type A)
Component
Not Supported
Composite
Not Supported
Audio
1x 3.5mm Headphone Jack
Power
Connector
Locking LEMO 2-pin connectors
Voltage

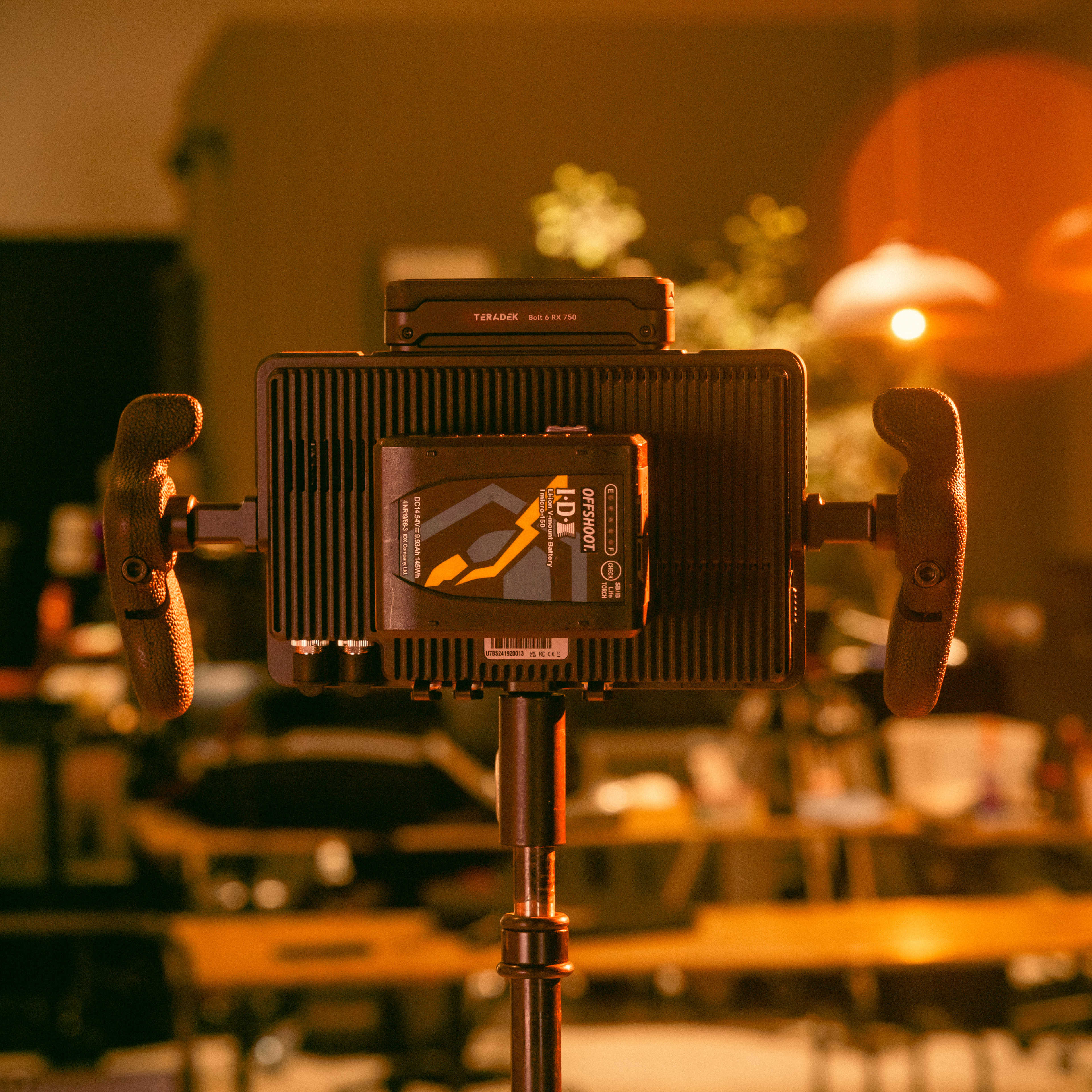

Battery Plate: 10 - 34V Lemo Input: 10 - 34V max
AC Power Supply
Included
Overload Protection
Yes
Software
Pixel Zoom
1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom.
Frame Guides
Yes: Preset Aspect Ratios & Customizable
DSLR Scale
Canon 5DMkii & Canon 7D
Custom Scale
Yes (Underscan Only)
Anamorphic De-Squeeze
Yes: 1.33x, 1.5x, 1.66x, 2.0x
Image Rotate
Yes - Automatic or Manual Control
Image Flip
Yes - Automatic or Manual Control
Cross Conversion
Yes: HDMI → SDI & SDI → HDMI
Focus Assist
Yes - User Adjustable Color Style and Intensity
Peaking
Yes - User Adjustable Intensity
False Color
Yes - Rainbow & Arri Style
Zebra
Yes - Dual - User Configurable
Waveform
Yes - Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope
Yes
RGB Parade
Yes - Fully User Customizable
Histogram
Yes - Luma & RGB Style
Image Capture
Yes - With Dedicated Button
Custom LUTS
Yes - Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream
Yes - Available on SDI 1 or HDMI Out. Applied on Output Preview Page.
LUT Import
via SD Card or USB Storage Device
Overlay
Yes with Opacity Slider and Blink Setting
Audio Meters
Yes - HDMI & SDI up to 8 channe
Multi-View
Two camera feeds simultaneously
