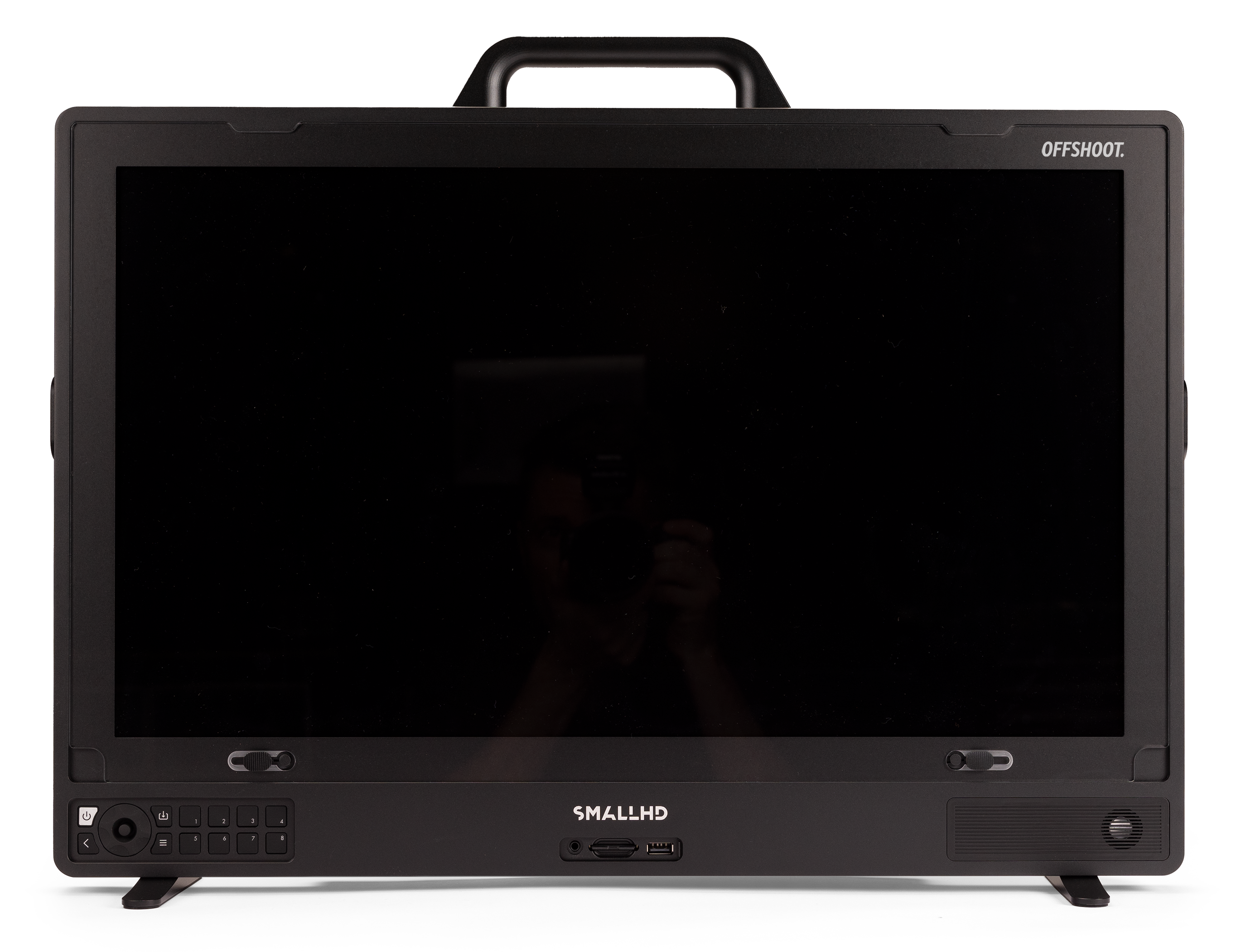

SmallHD Cine 24 4K Monitor Kit
The SmallHD Cine 24 is a large 4K monitor with 4x 12G SDI inputs and HDMI 2.0 compatibility.

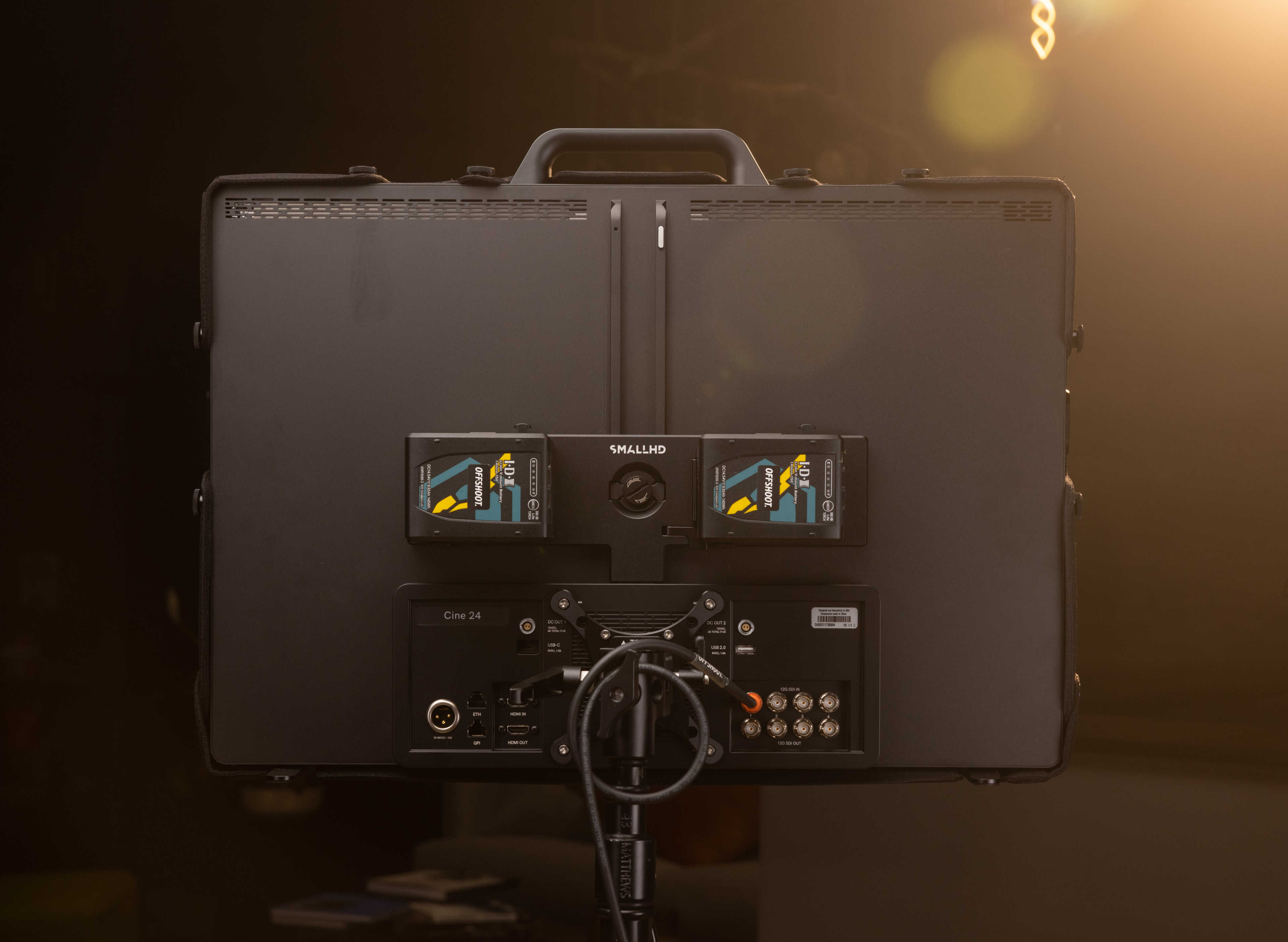

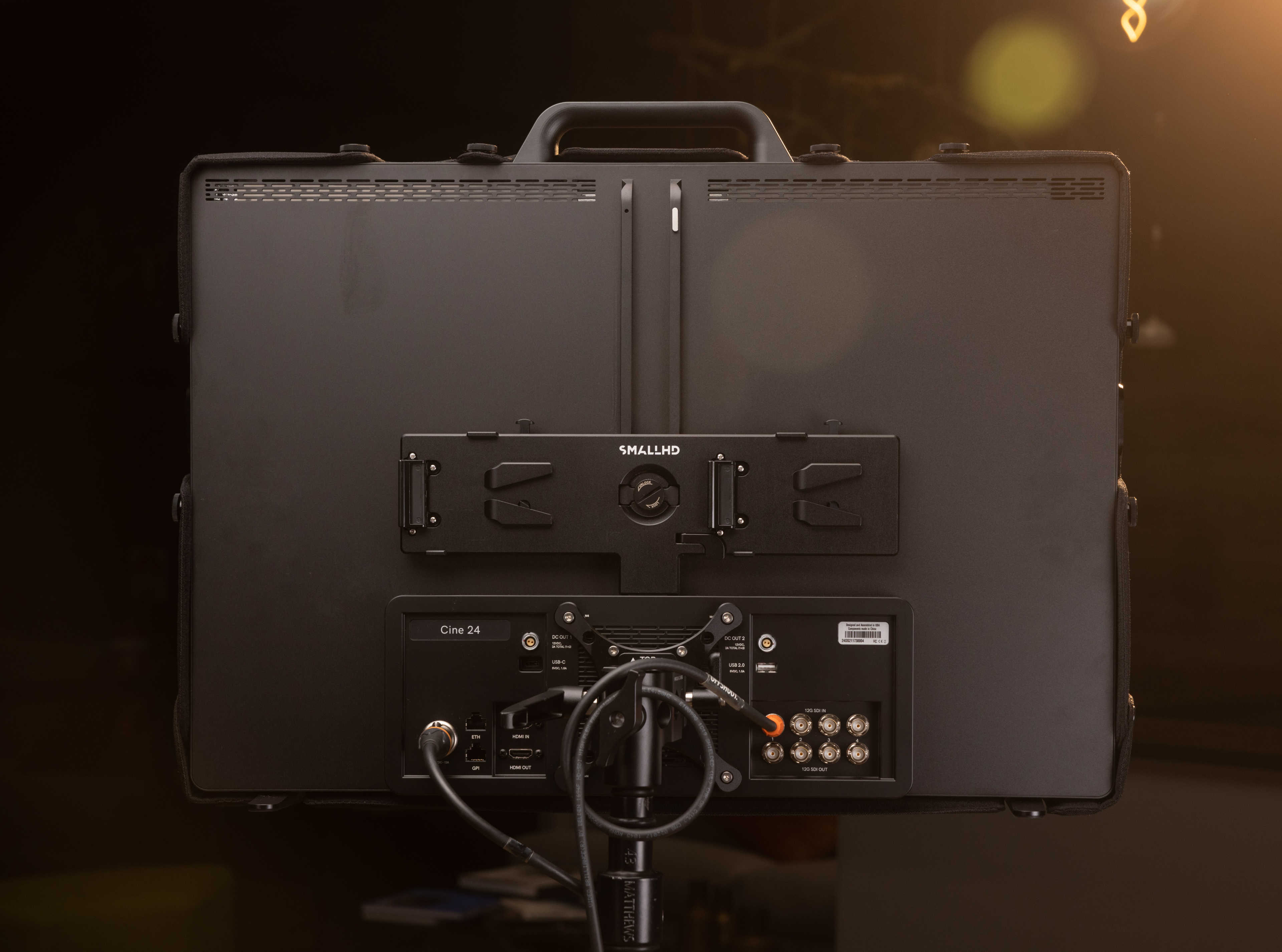

The monitor has all of the software tools you would expect from SmallHD (full list in the specifications) and the included v-mount battery plate makes powering this monitor on the go a breeze.

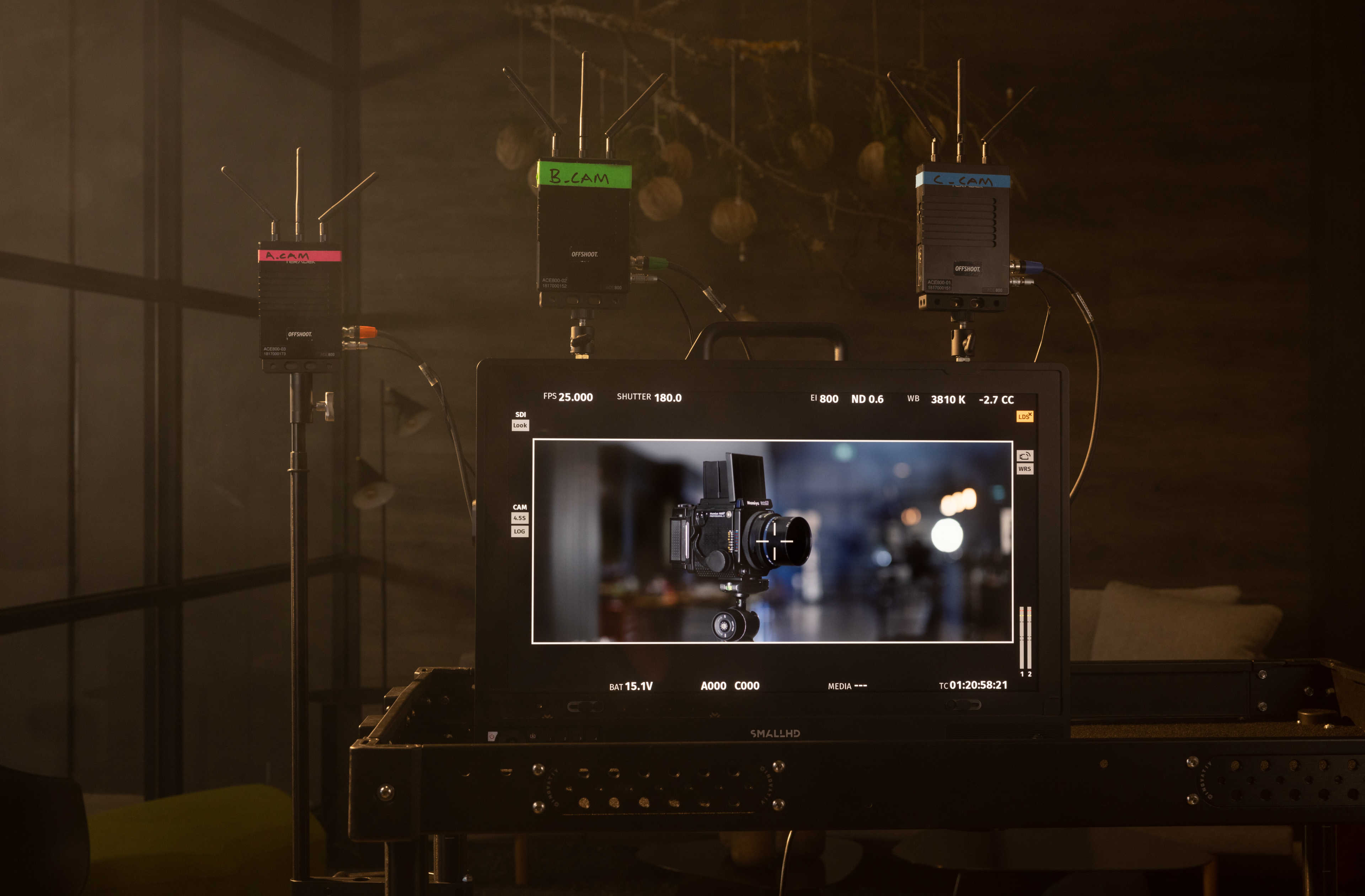

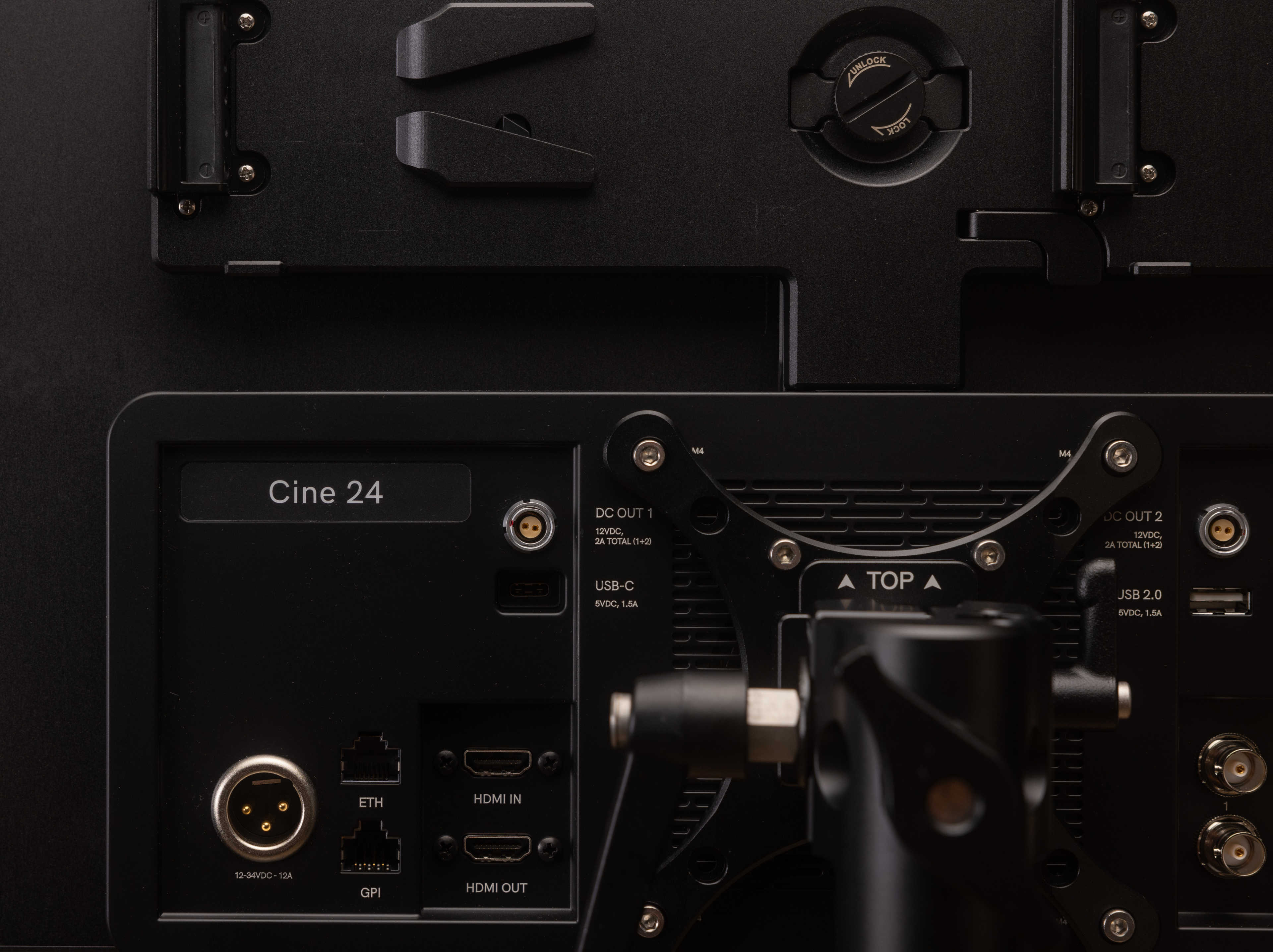

The Cine 24 has dedicated DC output in the form of 2pin Lemo plugs and USB plugs, so you can power any external accessories - such as wireless video receivers - directly from the monitor.

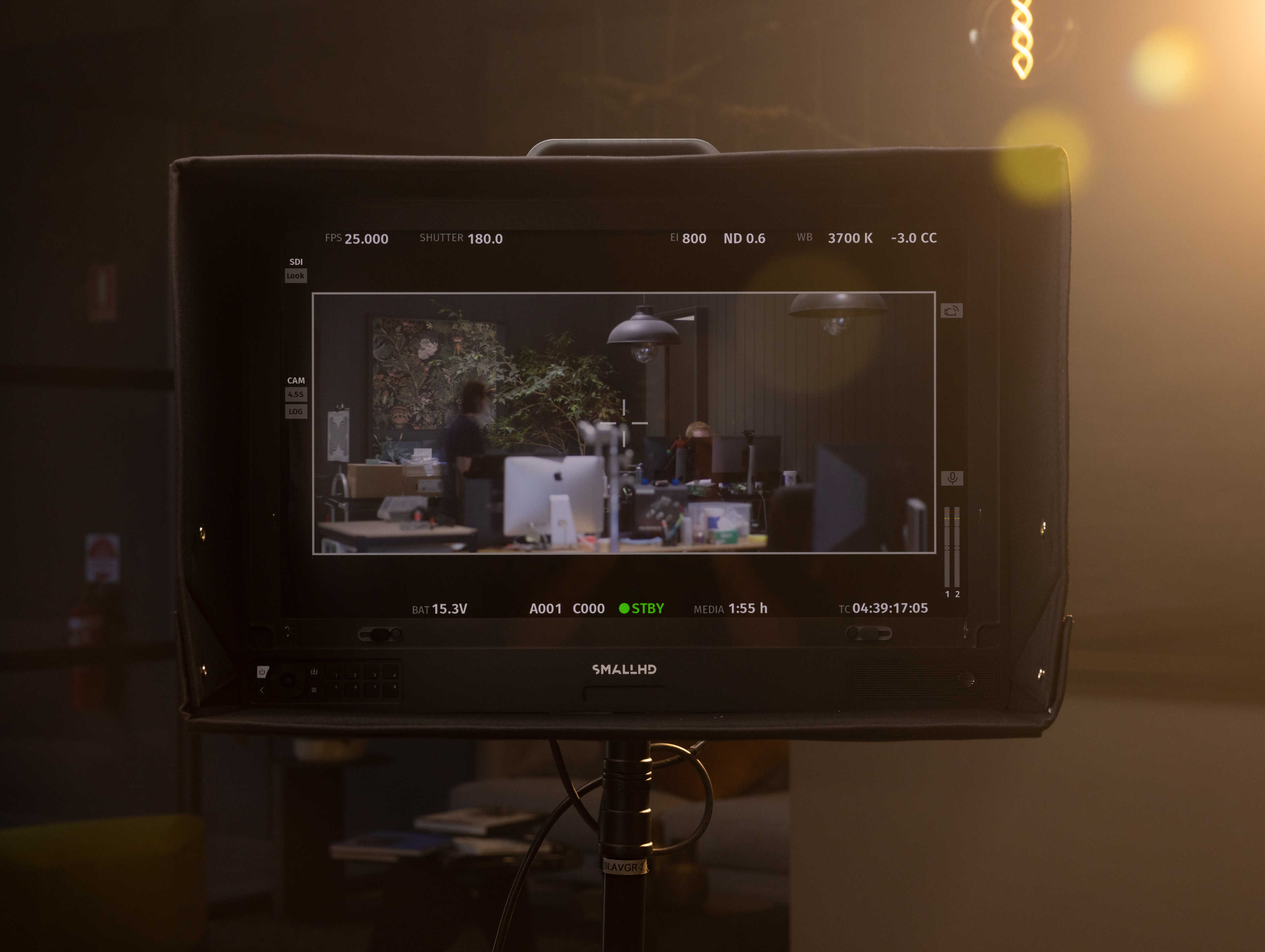

There are multiple mounting locations around the monitor for additional accessories and the included sun hood makes this monitor easy to view, even outside.

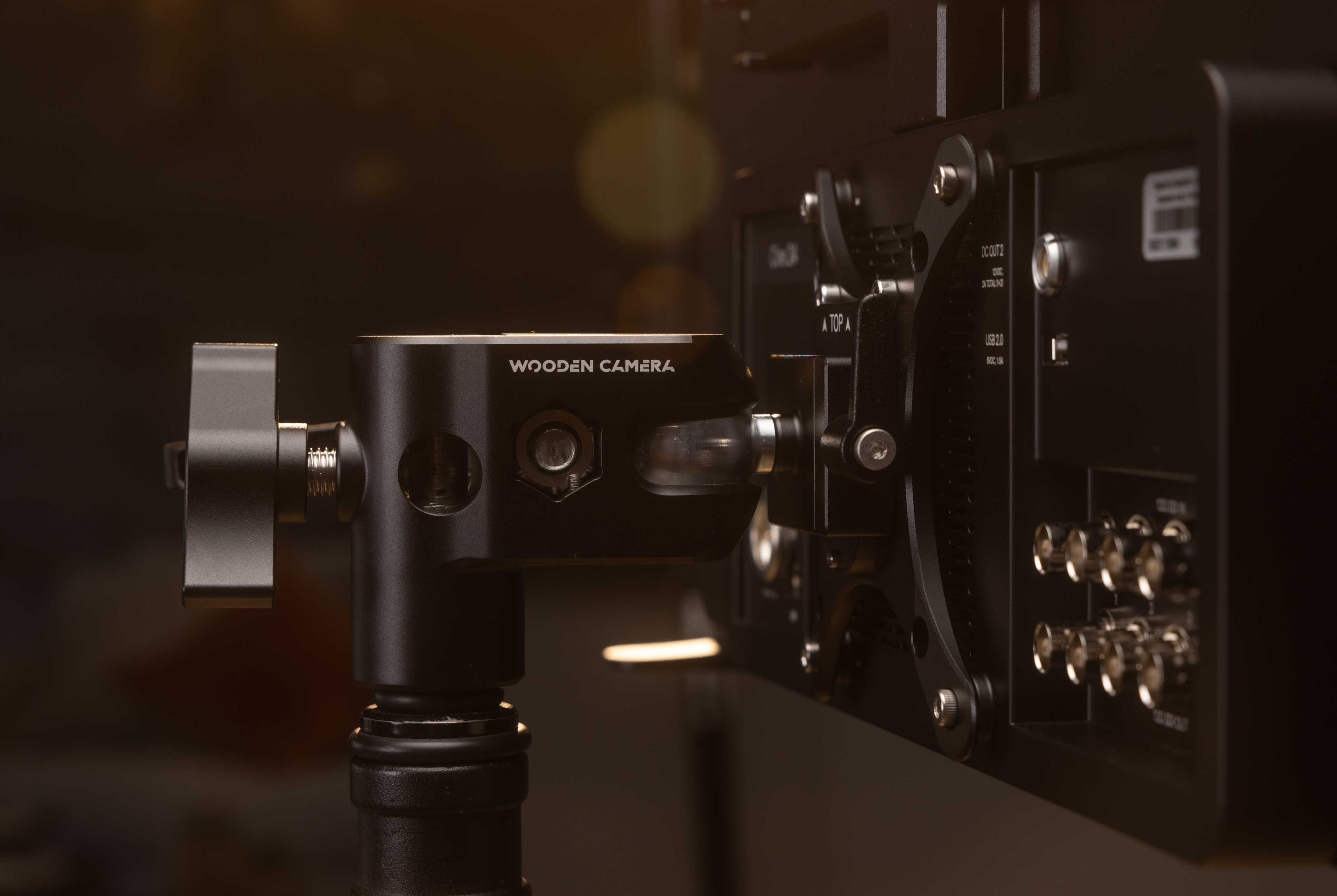

The monitor has feet so it can sit comfortably on a table or it can be mounted on a stand with a 5/8" stud (baby pin) using the included monitor mount.
Marketing Video
The SmallHD marketing video for the Cine 24 4K monitor.
Display
Panel Type
IPS LCD
Diagonal Size
24"
Resolution
3840 x 2160
Pixel Density
182 ppi
Aspect Ratio
16:9
Brightness
1350 nits
Contrast
1000:1
Gamut
100% DCI-P3
Colour Depth
10-bit (8+2)
Viewing Angle
178 Degrees
Backlight Type
Edge-lit (adjustable)
Input Signal
12G-SDI Input Types
4x 12G-SDI
HDMI Input Types
1x HDMI 2.0 (4K60)
Output Signal
12G-SDI Output Types
4x 12G-SDI
HDMI Output Types
1x HDMI 2.0 (4K60)
Audio Output Types
1x 3.5mm 3-pin Stereo Headphone Jack
I/O
SDI
4x 12G Input (BNC) 4x 12G Output (BNC)
HDMI
1x HDMI 2.0 (4k60) input (Type A) 1x HDMI 2.0 (4k60) Output (Type A)
Component
Not Supported
Composite
Not Supported
Audio
1x 3.5mm Headphone Jack
Power
Connector
3-pin XLR. V-Mount Battery Plate (dual)
Voltage
12V - 34V VDC
Power Consumption
128 watts
AC Power Supply
Included
Overload Protection
Yes
Power Output
2x 2pin (12V / 2A combined) 1x USB (2.4A) (Front) 1x USB (1.5A) (Front) 1x USB-C (5V / 1.5A)
Software
Pixel Zoom
2x & 4x Zoom with smooth pan via joystick
Frame Guides
Yes: Preset Aspect Ratios & Customizable
DSLR Scale
Canon 5DMkii & Canon 7D
Custom Scale
Yes (Underscan Only)
Anamorphic De-Squeeze
Yes: 1.33x, 1.5x, 1.66x, 2.0x
Image Rotate
Yes - Automatic or Manual Control
Image Flip
Yes - Automatic or Manual Control
Cross Conversion
No
Focus Assist
Yes - User Adjustable Color Style and Intensity
Peaking
Yes - User Adjustable Intensity
False Color
Yes - Rainbow & Arri Style
Zebra
Yes - Dual - User Configurable
Waveform
Yes - Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope
Yes
RGB Parade
Yes - Fully User Customizable
Histogram
Yes - Luma & RGB Style
Image Capture
Yes - With Dedicated Button
Custom LUTS
Yes - Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream
Yes - Available on SDI 1 or HDMI Out. Applied on Output Preview Page.
LUT Import
via SD Card or USB Storage Device
Overlay
Yes with Opacity Slider and Blink Setting
Audio Meters
Yes - HDMI & SDI up to 8 channels
Physical
Dimension

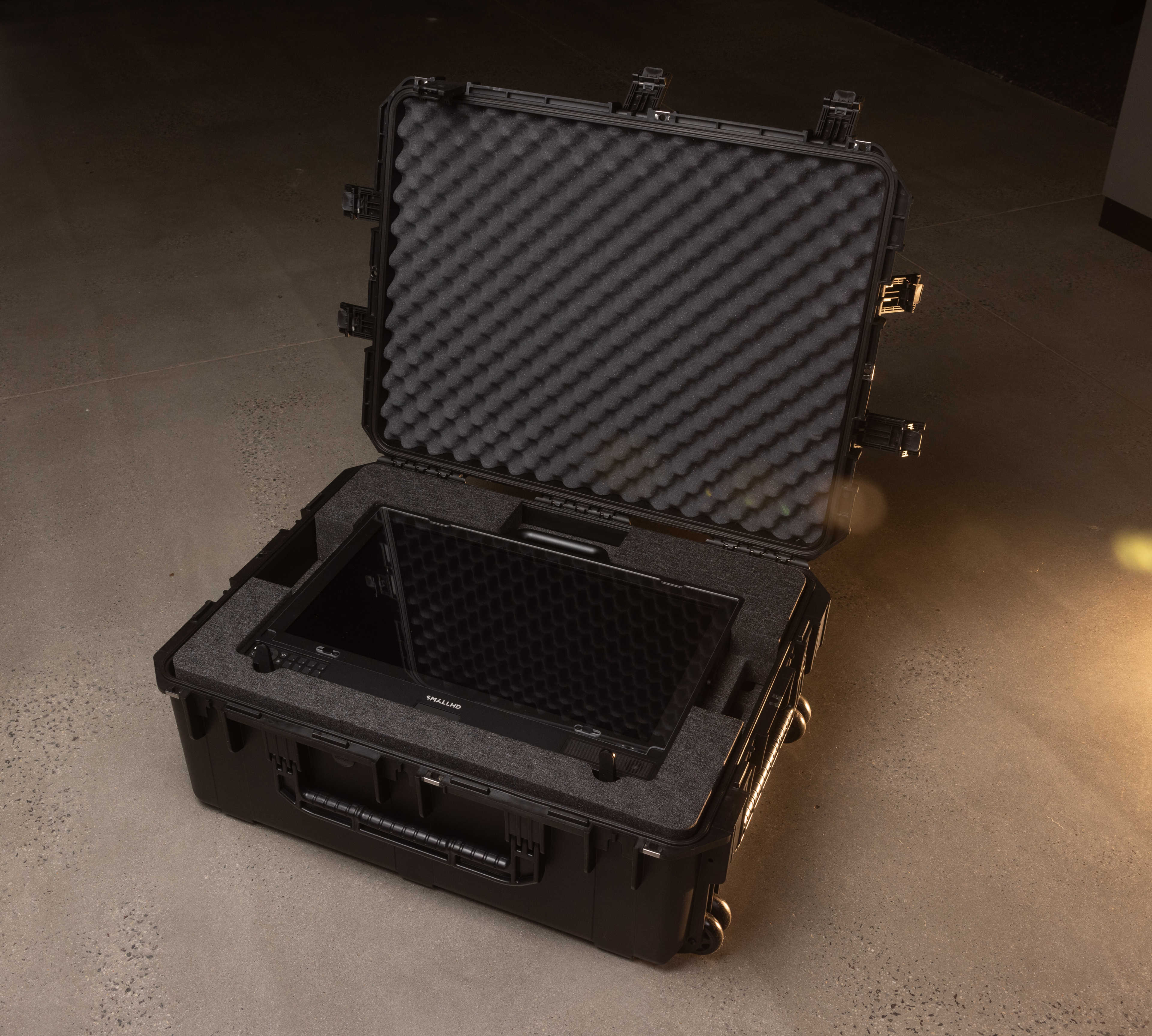

Monitor: 452 x 600 x 119mm. Transport case: 810 x 630 x 320mm.
Weight
Monitor: 7.5kg. Transport case: 25kg.
