SmallHD Cine 18 4K Monitor Kit

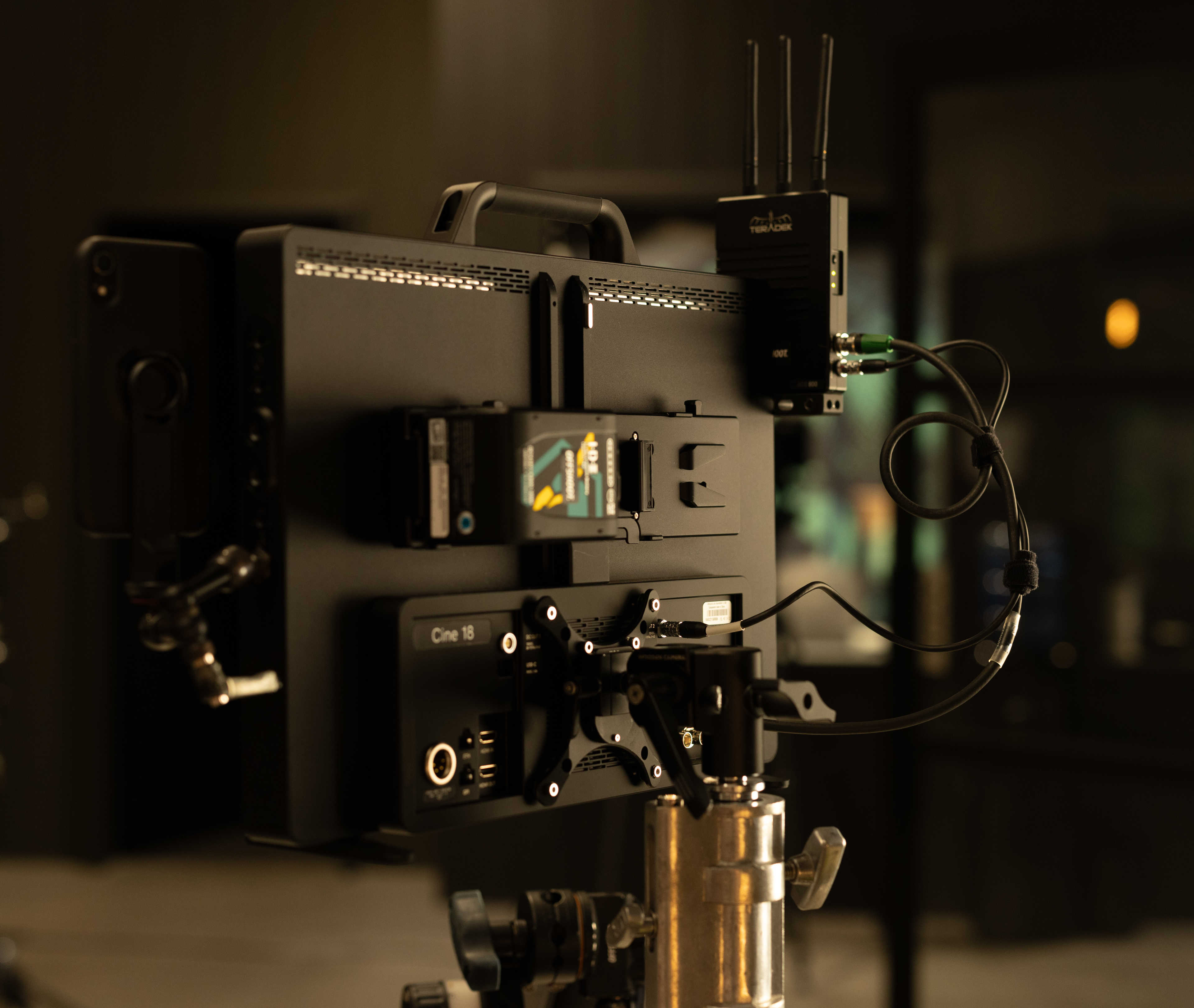

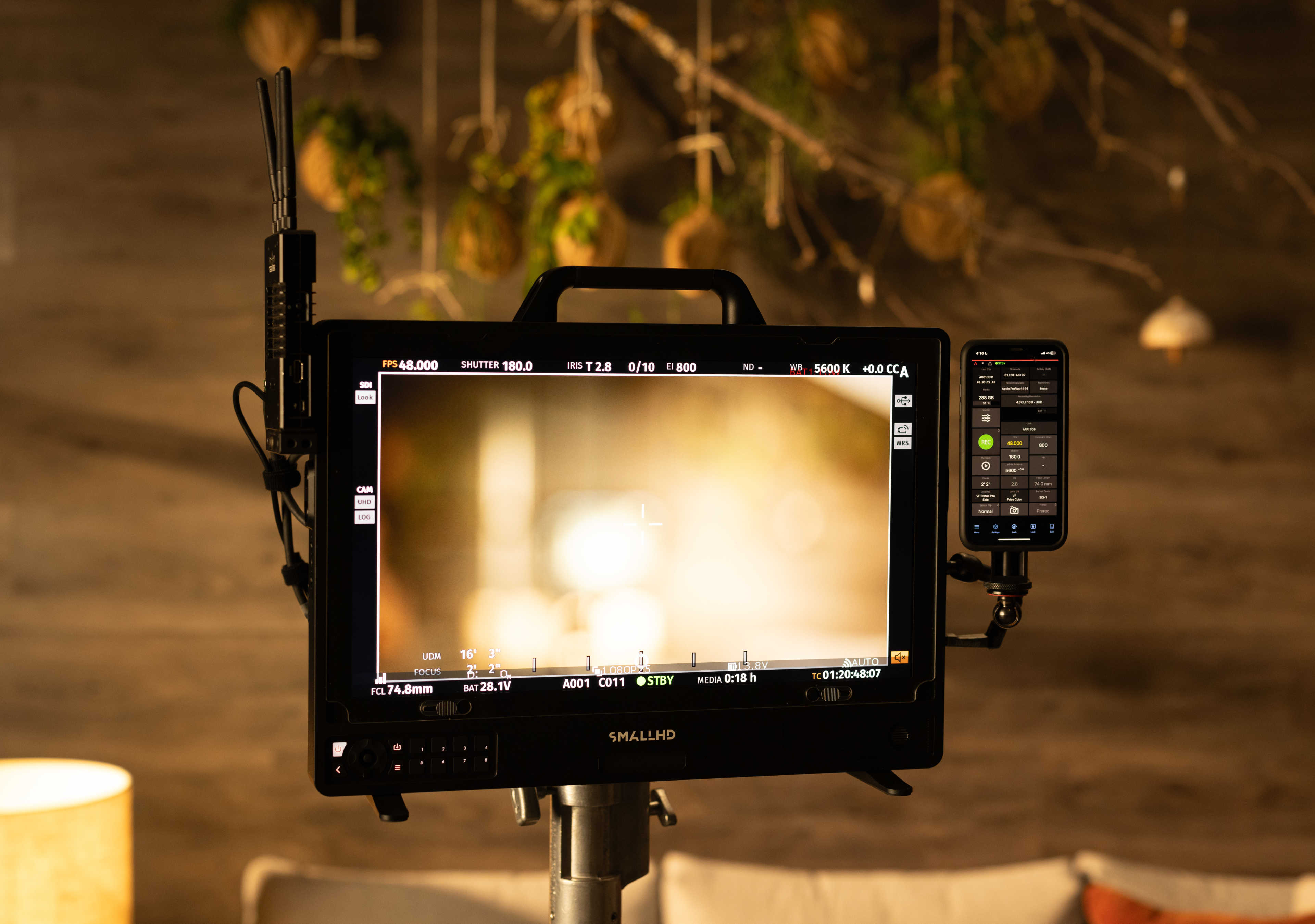

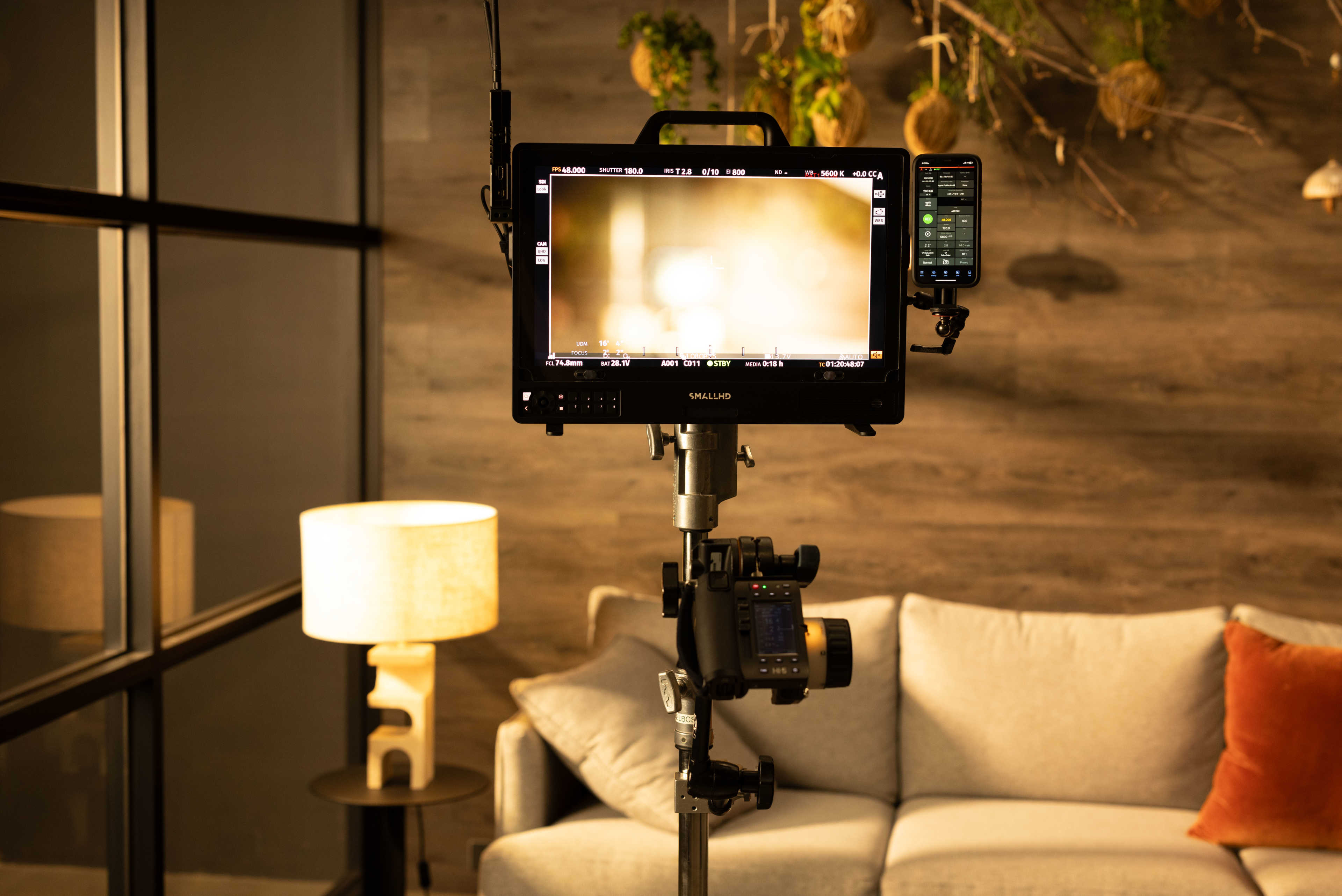

The Cine 18 from SmallHD is a quad input, 18" 4K UHD monitor that strikes a good balance between size and portability. It can be stand mounted or its integrated feet mean it can sit securely on a cart or tabletop.

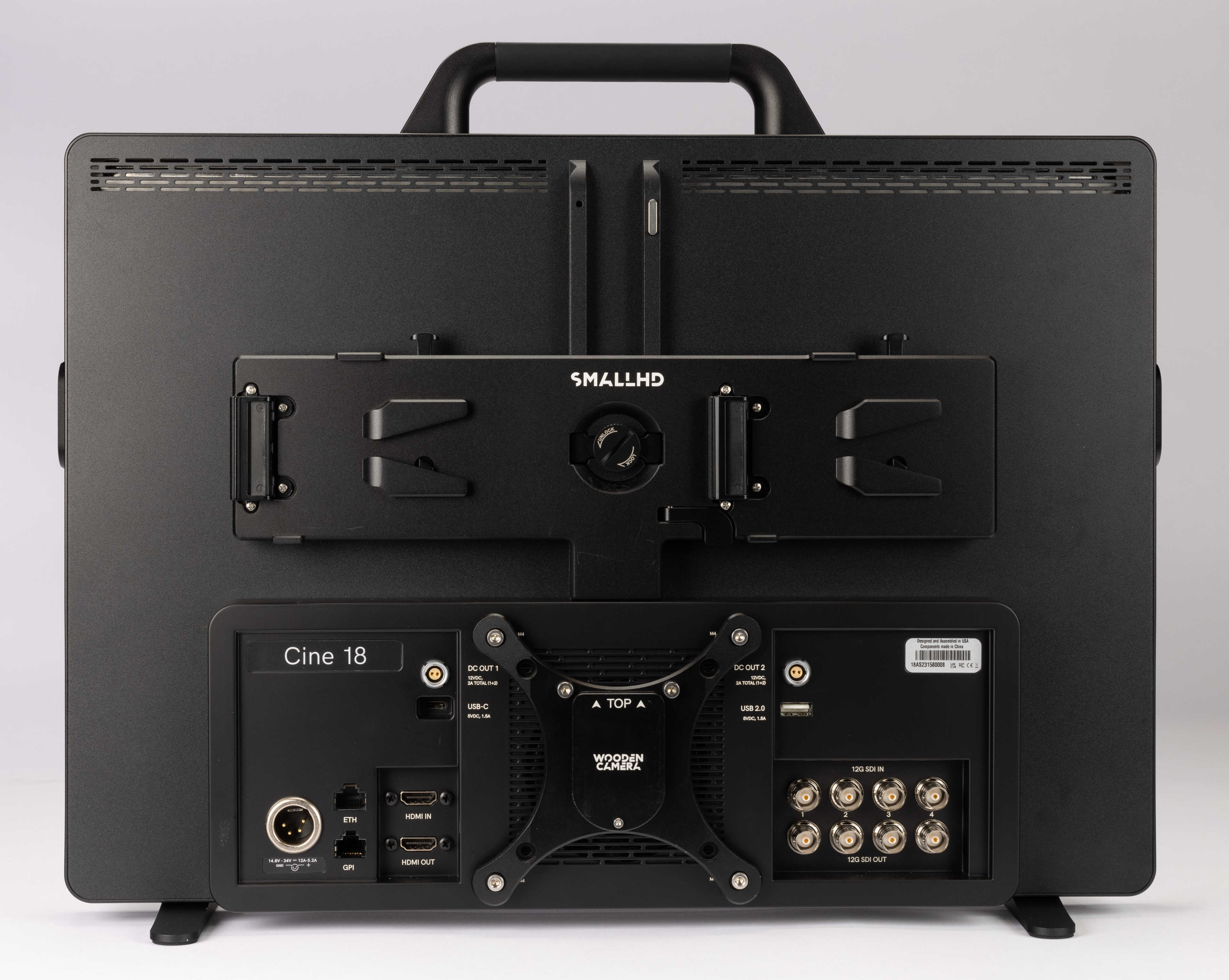

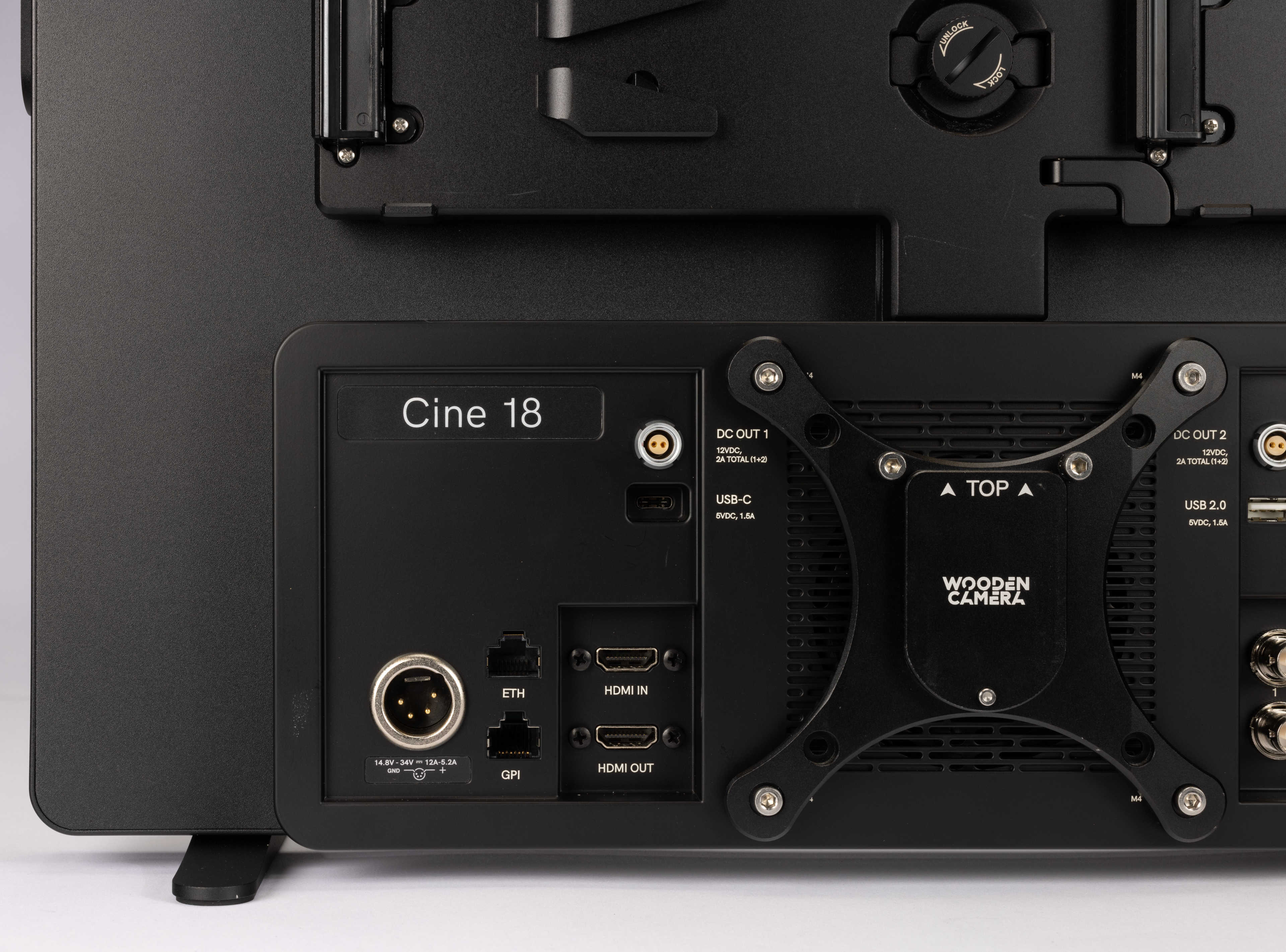

Flexible power options make it easy to power on location or in the studio. A dual v-mount battery plate and main power supply are included, and you can also power it via the 3-pin XLR input on the back (12-34V).
We also have the larger SmallHD Cine 24 4K monitor.
No videos yet.
Display
Panel Type
IPS LCD
Diagonal Size
18"
Resolution
3840 x 2160
Pixel Density
244 ppi
Aspect Ratio
16:9
Brightness
1100 nits
Contrast
1300:1
Gamut
100% REC.709
Colour Depth
10-bit (8+2)
Backlight Type
Edgelit (adjustable)
Input Signal
12G-SDI Input Types
4x 12G-SDI
HDMI Input Types
1x HDMI 2.0 (4K60)
Output Signal
12G-SDI Output Types
4x 12G-SDI
HDMI Output Types
1x HDMI 2.0 (4K60)
Audio Output Types
1x 3.5mm 3-pin Stereo Headphone Jack
I/O
SDI

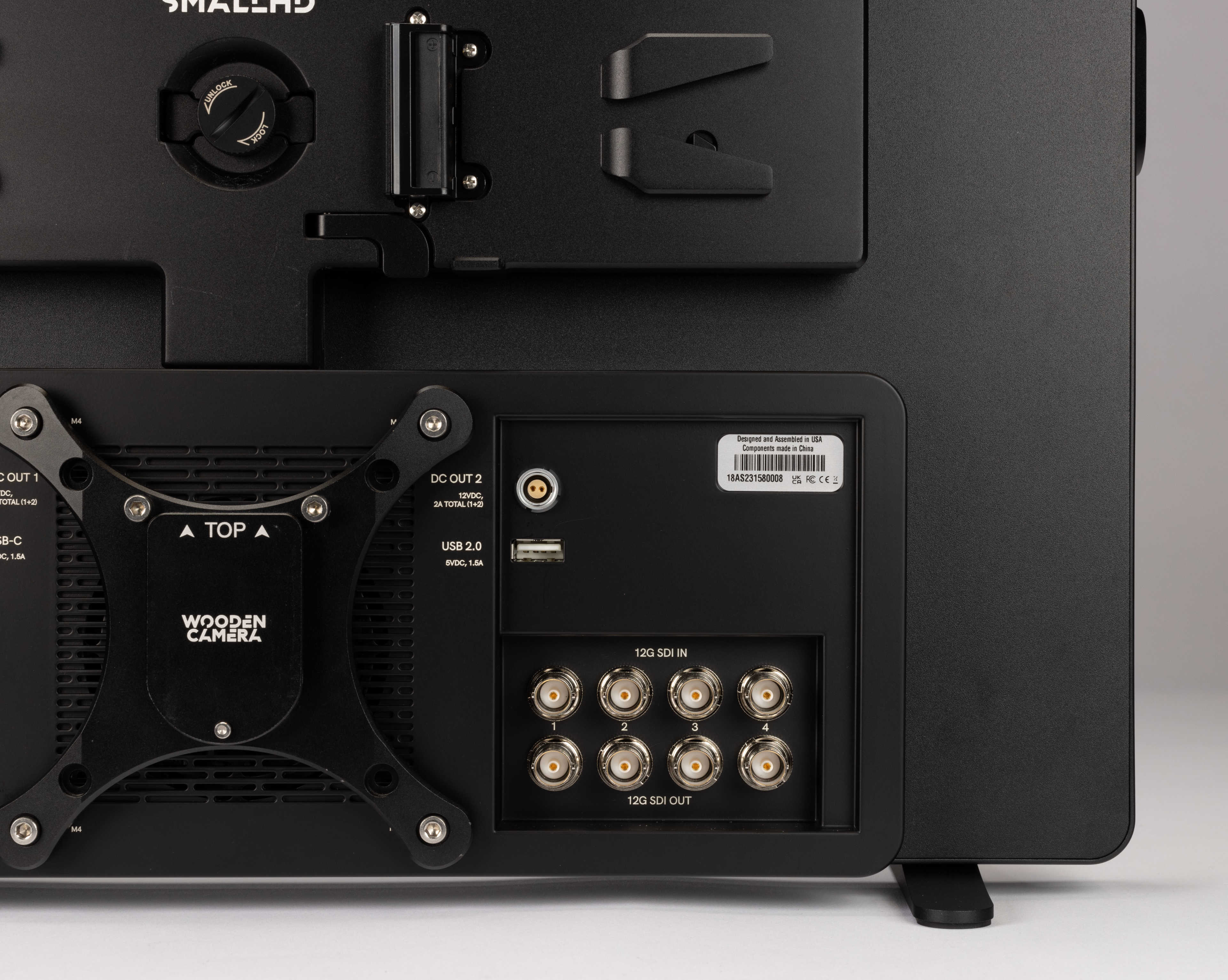

4x 12G Input (BNC) 4x 12G Output (BNC)
HDMI
1x HDMI 2.0 (4k60) input (Type A) 1x HDMI 2.0 (4k60) Output (Type A)
Component
Not Supported
Composite
Not Supported
Audio
1x 3.5mm Headphone Jack
Power
Connector
3-pin XLR. V-Mount Battery Plate (dual)
Voltage
12V - 34V VDC
Power Consumption
128 watts
AC Power Supply
Included
Overload Protection
Yes
Power Output
2x 2pin (12V / 2A combined) 1x USB (2.4A) (Front) 1x USB (1.5A) (Front) 1x USB-C (5V / 1.5A)
Software
Pixel Zoom
2x & 4x Zoom with smooth pan via joystick
Frame Guides
Yes: Preset Aspect Ratios & Customizable
Custom Scale
Yes (Underscan Only)
Anamorphic De-Squeeze
Yes: 1.33x, 1.5x, 1.66x, 2.0x
Image Rotate
Yes - Automatic or Manual Control
Image Flip
Yes - Automatic or Manual Control
Cross Conversion
No
Focus Assist
Yes - User Adjustable Color Style and Intensity
Peaking
Yes - User Adjustable Intensity
False Color
Yes - Rainbow & Arri Style
Zebra
Yes - Dual - User Configurable
Waveform
Yes - Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope
Yes
RGB Parade
Yes - Fully User Customizable
Histogram
Yes - Luma & RGB Style
Image Capture
Yes - With Dedicated Button
Custom LUTS
Yes - Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream
Yes - Available on SDI 1 or HDMI Out. Applied on Output Preview Page.
LUT Import
via SD Card or USB Storage Device
Overlay
Yes with Opacity Slider and Blink Setting
Audio Meters
Yes - HDMI & SDI up to 8 channels
Physical
Dimension
Monitor: 59.05 x 44.5 x 5.1 cm. Transport case: TBA.
Weight
Monitor: 5.06kg. Transport case: TBA.
