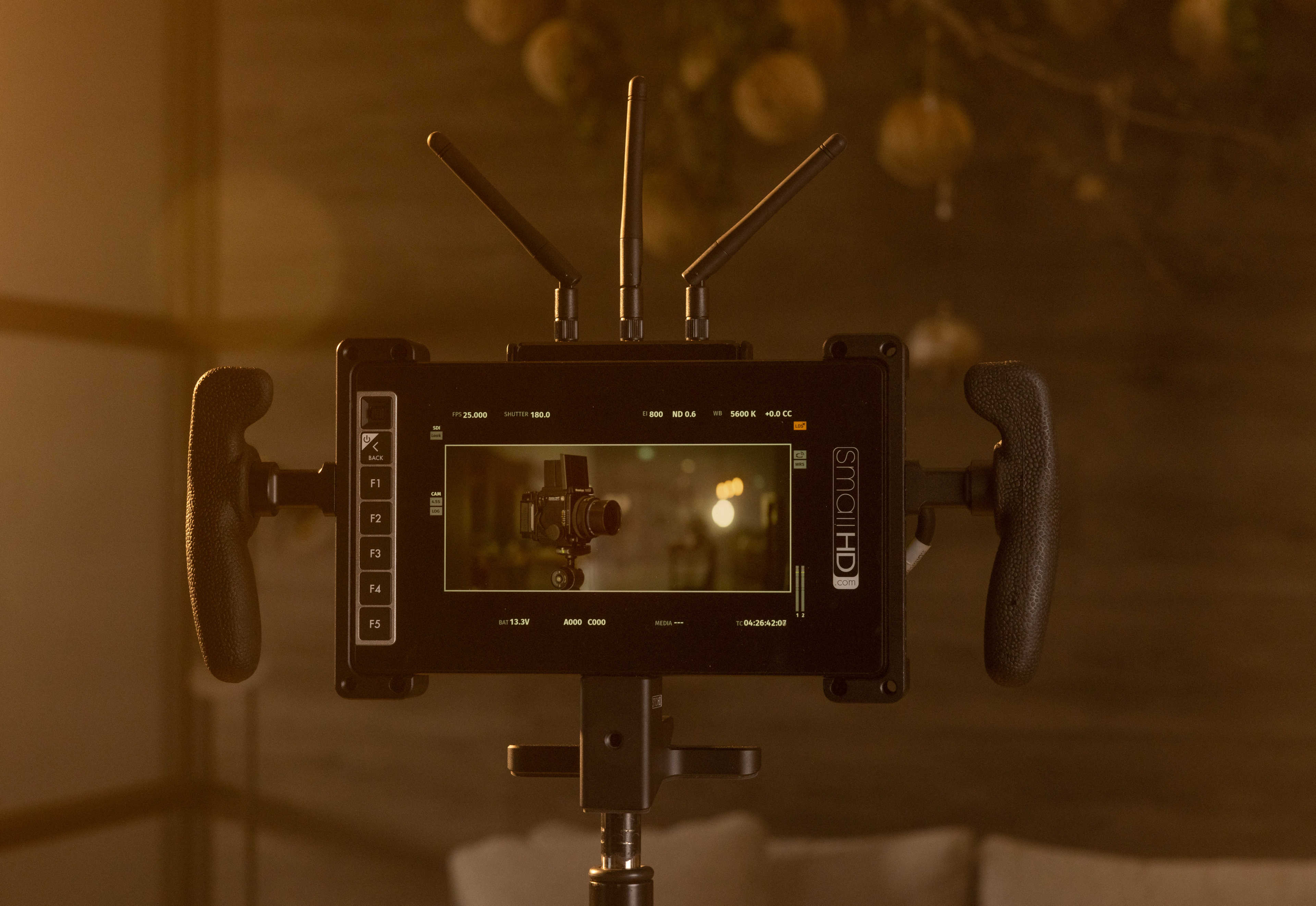

SmallHD 703 Ultra Bright Handheld Kit

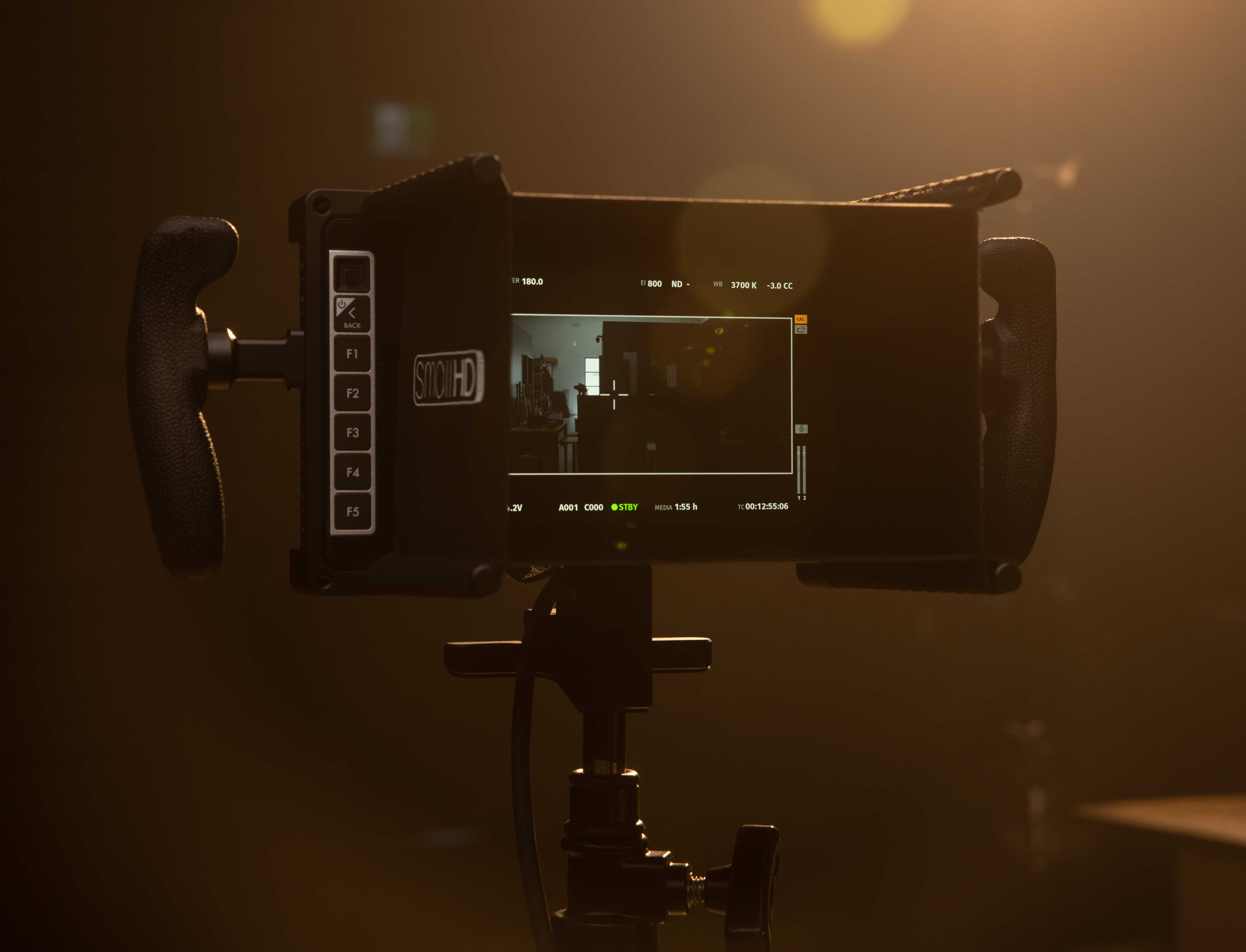

The SmallHD 703 is a 2200 nit ultrabright 7" monitor which is great for on-camera or off-camera use.

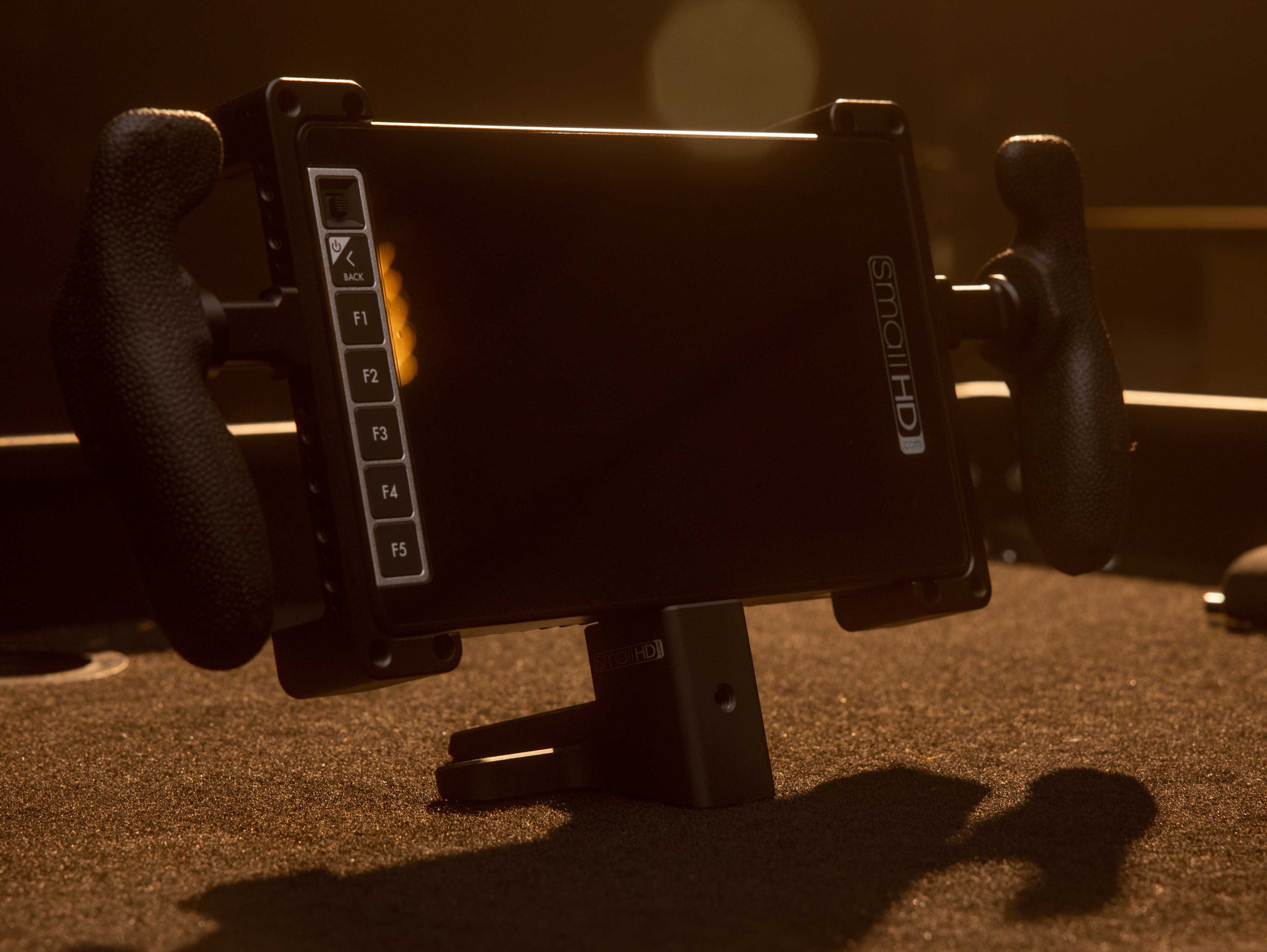

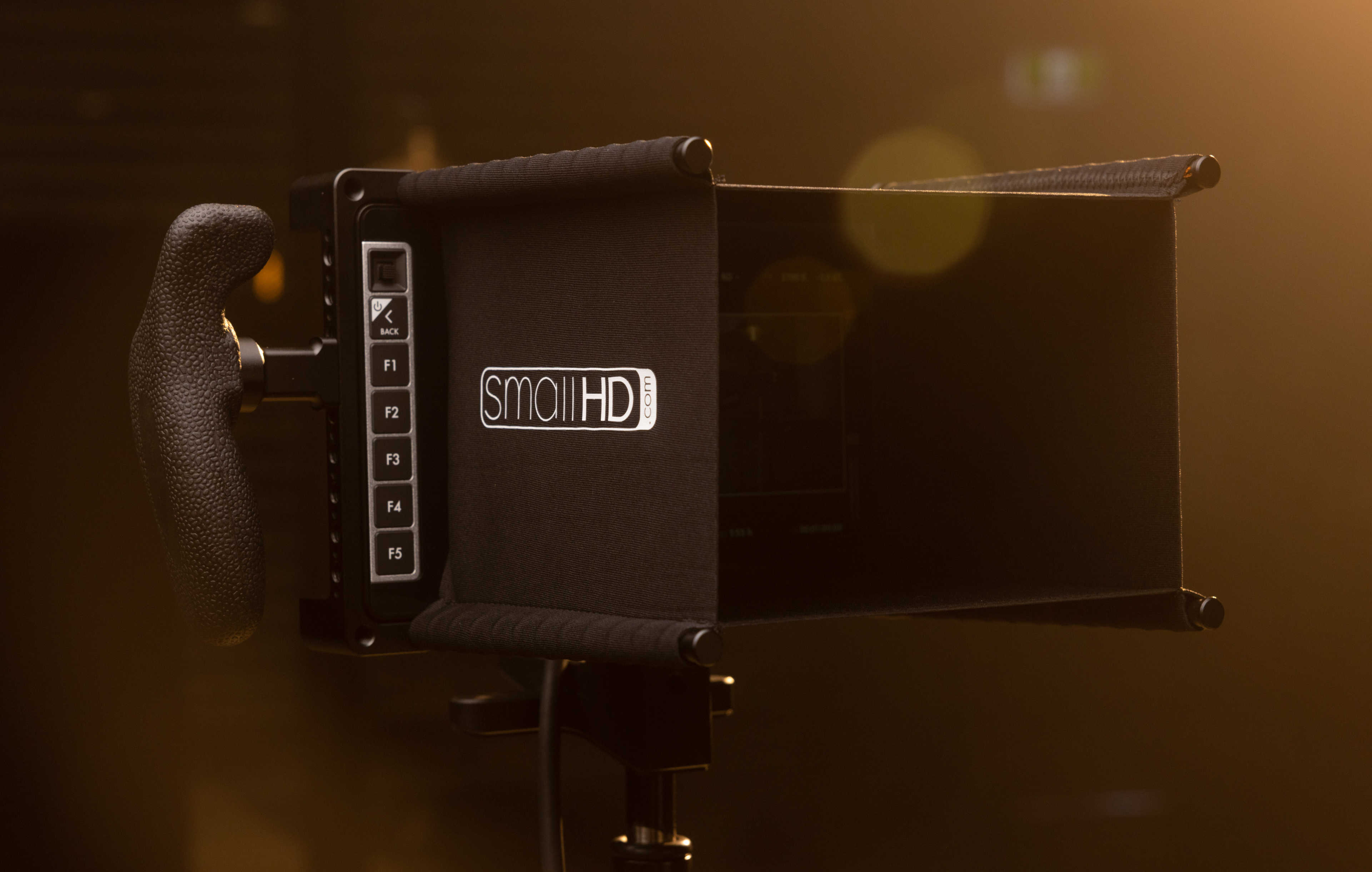

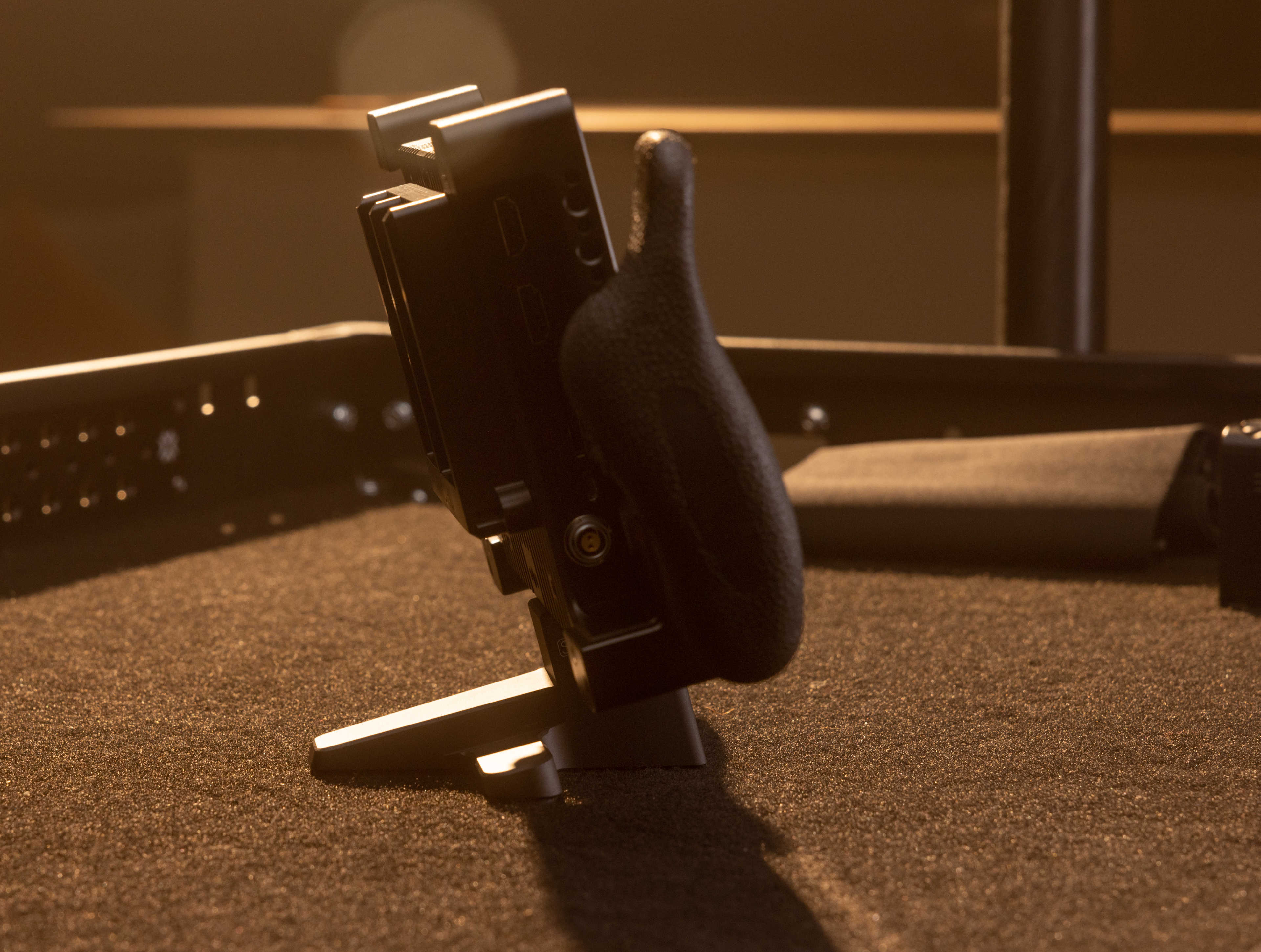

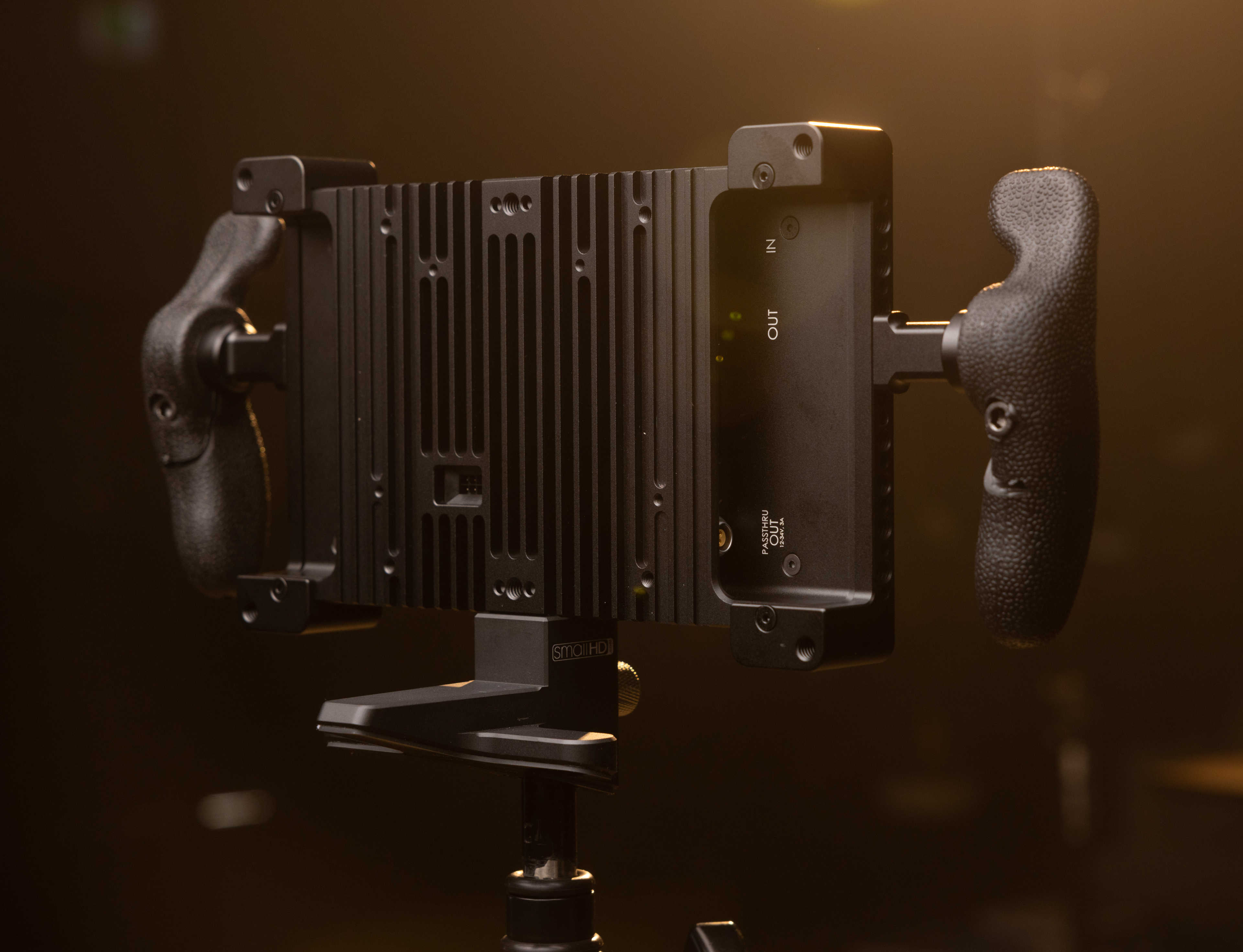

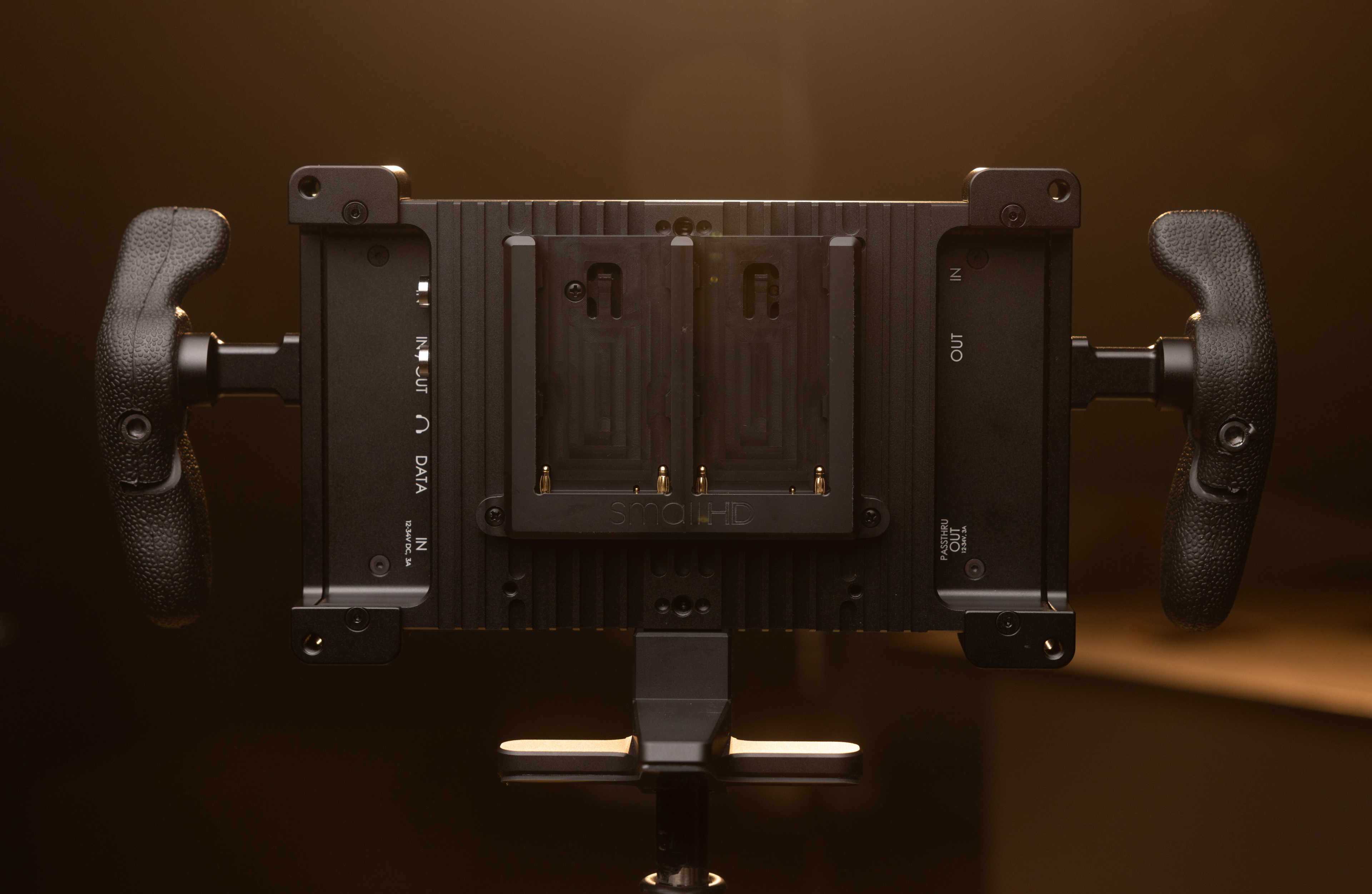

The kit includes handles and side brackets so the monitor is easy to carry around set and an included sun hood makes it easy to see even on the brightest days.

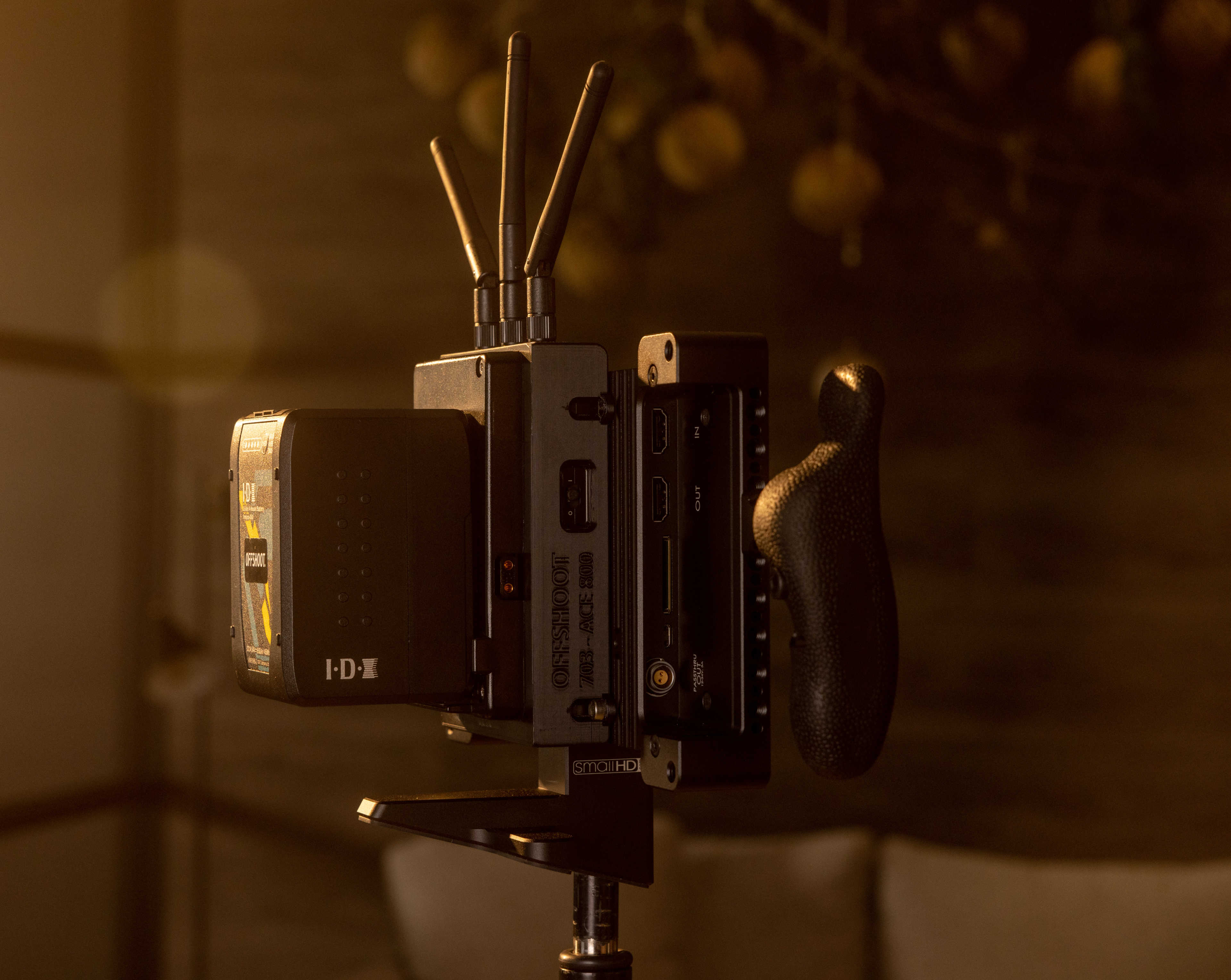

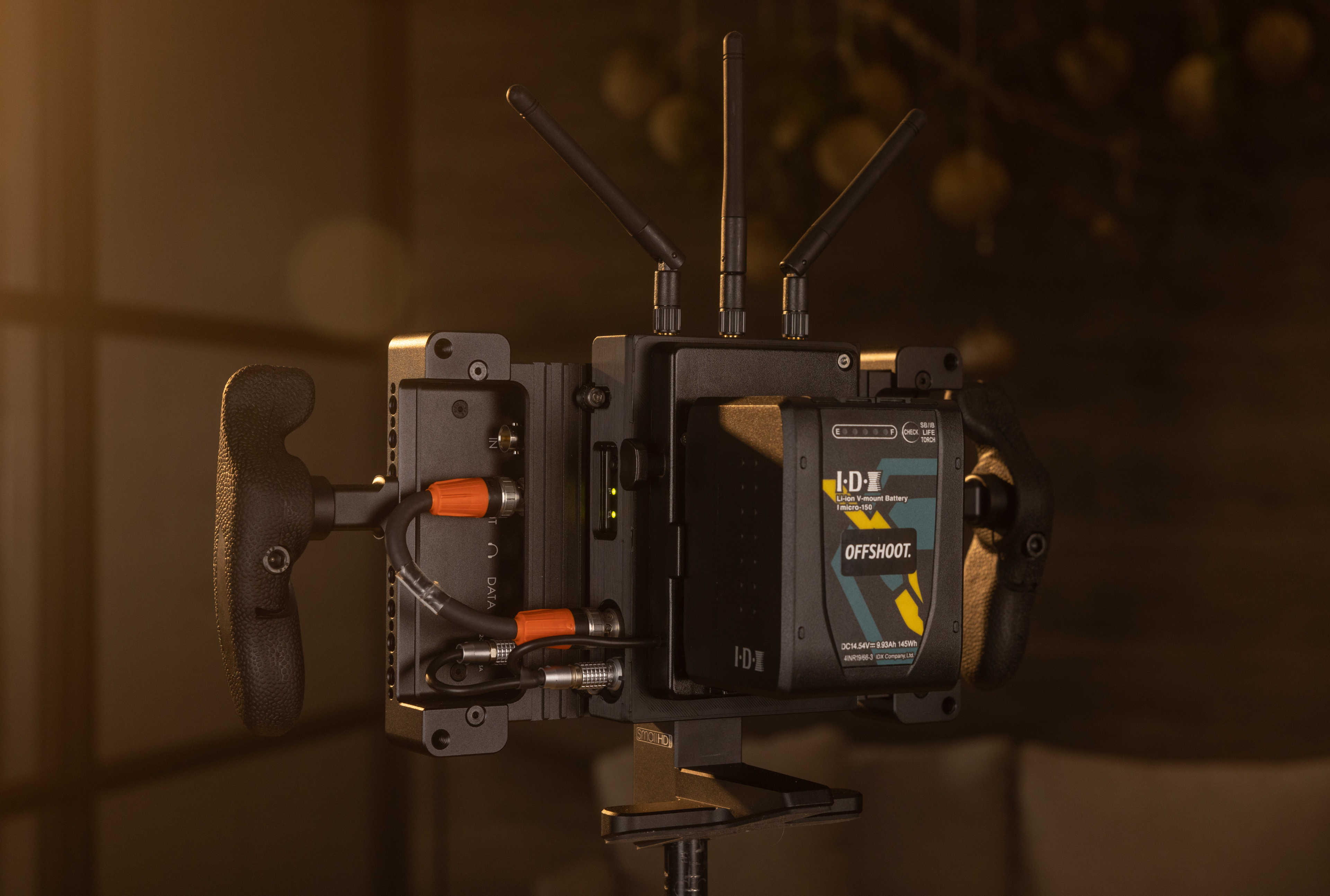

Multiple power options are available including AC, d-tap, v-mount batteries and Sony L series batteries - so if you have a particular setup requirement we can make it work for you.
No videos yet.
Display
Panel Type
LTPS LCD
Diagonal Size
7"
Resolution
1920 x 1080
Pixel Density
323 ppi
Aspect Ratio
16:9
Brightness
2200 nits
Contrast
1200:1
Gamut
100% Rec 709
Colour Depth
10-Bit Color Intelligence Engine
Viewing Angle
178 Degrees
Backlight Type
White LED (adjustable)
Input Signal
3G-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p - 50 / 59.94 / 60 1080i - 50 / 59.94 / 60
HD-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p - 23.98 / 24 / 25 / 29.97 / 30 1080psf - 23.98 / 24 / 25 / 29.97 / 30 1080i - 50 / 59.94 / 60 720p - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
SD-SDI Input Types
YCC 4:2:2 @ 10-bits: 480i - 29.97 576i - 25
HDMI Input Types
YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p - 23.98 / 24 / 25 / 29.97 / 30 1080psf - 23.98 / 24 / 25 / 29.97 / 30 1080i - 50 / 59.94 / 60 720p - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 480p - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 119.88 / 120 480i - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 119.88 / 120 / 239.76 / 240 576i - 25 / 50 / 100 / 200
Audio Input Types
HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels
Output Signal
3G-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p - 50 / 59.94 / 60 1080i - 50 / 59.94 / 60
HD-SDI Output Types
CC 4:2:2 @ 10-bits: 1080p - 23.98 / 24 / 25 / 29.97 / 30 1080psf - 23.98 / 24 / 25 / 29.97 / 30 1080i - 50 / 59.94 / 60 720p - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
SD-SDI Output Types
YCC 4:2:2 @ 10-bits: 480i - 29.97 576i - 25
HDMI Output Types
YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p - 23.98 / 24 / 25 / 29.97 / 30 1080psf - 23.98 / 24 / 25 / 29.97 / 30 1080i - 50 / 59.94 / 60 720p - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 480p - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 119.88 / 120 480i - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 119.88 / 120 / 239.76 / 240 576i - 25 / 50 / 100 / 200
Audio Output Types
HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection
I/O
SDI
1x 3G Input (BNC) 1x 3G Output (BNC)
HDMI
1x Input (Type A) 1x Output (Type A)
Component
Not Supported
Composite
Not Supported
Audio
1x 3.5mm Headphone Jack
Power
Connector

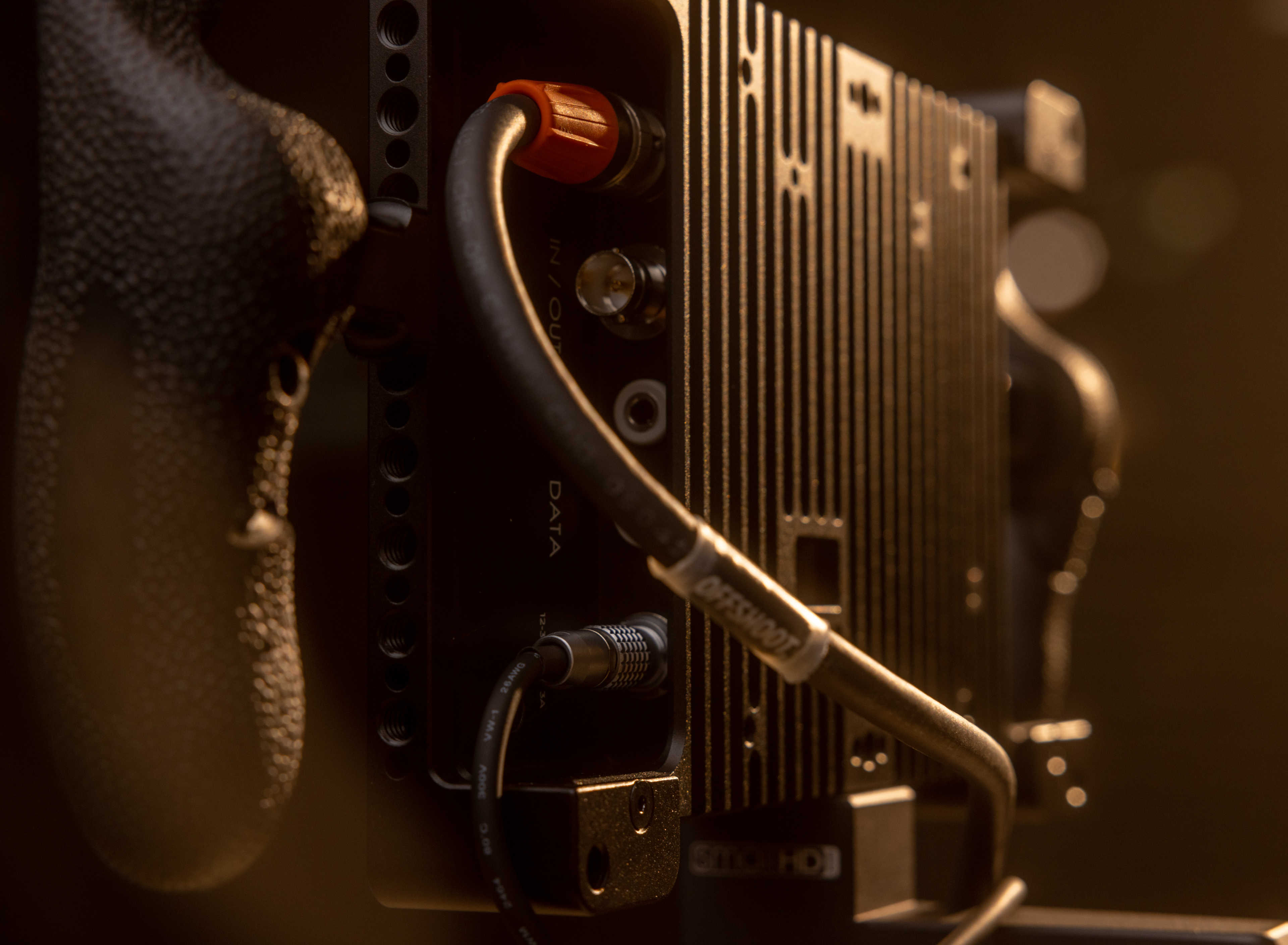

2x Locking LEMO 2-pin Connectors: 1 for Power Input, 1 for Power distribution to an external device (Requires Power Input)
Voltage
With DV Battery Plate: 6.0 - 8.4V 7.2V Nominal With High Voltage Battery Plate: 12 - 34V 14.4V Nominal With Lemo Input: 12 - 34V Max
Power Consumption
10-12 Watts
AC Power Supply
Included
Overload Protection
Yes
Output Voltage
Mirrors Input Voltage. Does not work from the battery plate.
Software
Pixel Zoom
2x & 4x Zoom with smooth pan via joystick
Frame Guides
Yes: Preset Aspect Ratios & Customizable
DSLR Scale
Canon 5DMkii & Canon 7D
Custom Scale
Yes (Underscan Only)
Anamorphic De-Squeeze
Yes: 1.33x, 1.5x, 1.66x, 2.0x
Image Rotate
Yes - Automatic or Manual Control
Image Flip
Yes - Automatic or Manual Control
Cross Conversion
Yes: HDMI → SDI & SDI → HDMI
Focus Assist
Yes - User Adjustable Color Style and Intensity
Peaking
Yes - User Adjustable Intensity
False Color
Yes - Rainbow & Arri Style
Zebra
Yes - Dual - User Configurable
Waveform
Yes - Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope
Yes
RGB Parade
Yes - Fully User Customizable
Histogram
Yes - Luma & RGB Style
Image Capture
Yes - With Dedicated Button
Custom LUTS
Yes - Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream
Yes - Available on SDI 1 or HDMI Out. Applied on Output Preview Page.
LUT Import
via SD Card or USB Storage Device
Overlay
Yes with Opacity Slider and Blink Setting
Audio Meters
Yes - HDMI & SDI up to 8 channe
