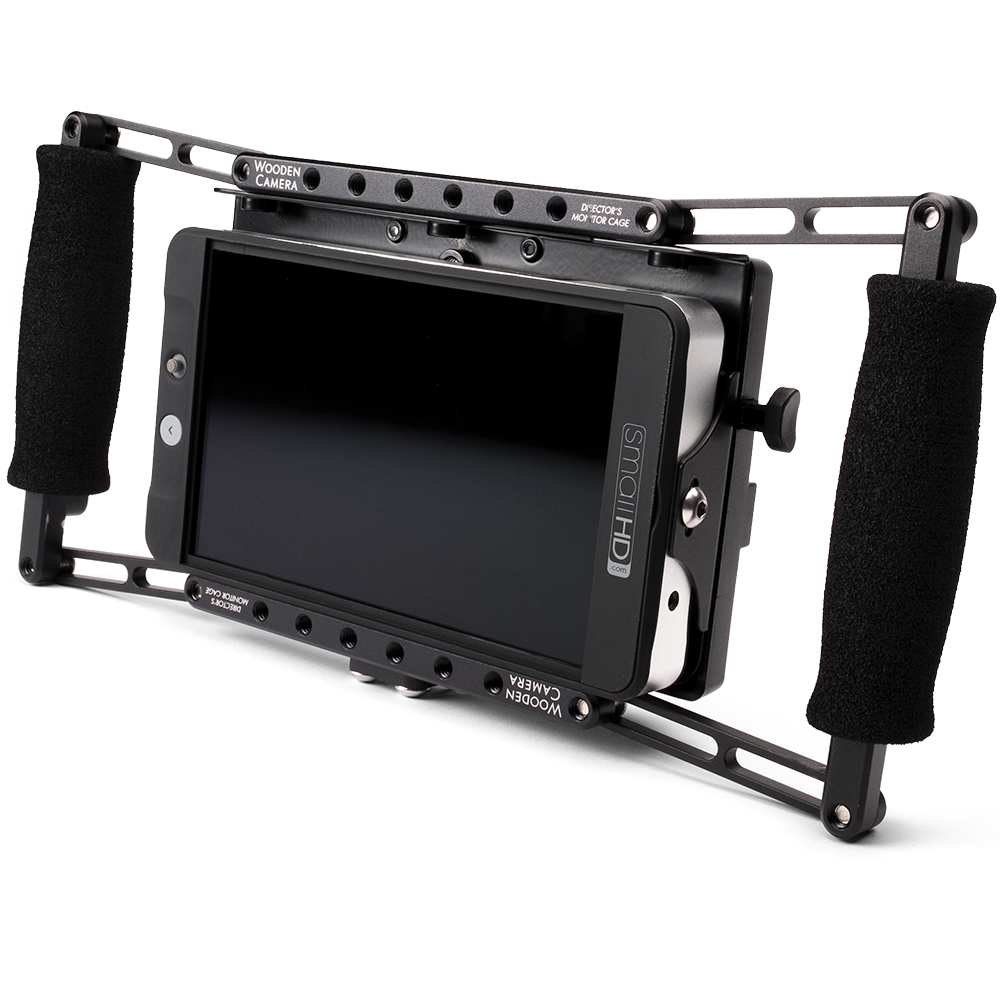

SmallHD 702 Bright Handheld Kit
The SmallHD 702 Bright is a 7" 1920x1080 pixel resolution monitor that is viewable in direct sunlight without a sun hood. This kit comes complete with a handheld cage and v-mount battery plate (v-mount batteries are not included by default).
This setup is ideal as a portable director or client monitor and works well with wireless receivers from Teradek etc.
No videos yet.
Display
Panel Type
LCD
Diagonal Size
7"
Resolution
1920 x 1080
Pixel Density
323 ppi
Aspect Ratio
16:10
Brightness
1000 nits
Contrast
1000:1
Gamut
85% NTSC (100% Rec 709)
Colour Depth
24 Bit (8bpc)
Viewing Angle
179 Degrees
Backlight Type
White LED (adjustable)
Input Signal
3G-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p - 50 / 59.94 / 60 1080i - 50 / 59.94 / 60
HD-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p - 23.98 / 24 / 25 / 29.97 / 30 1080psf - 23.98 / 24 / 25 / 29.97 / 30 1080i - 50 / 59.94 / 60 720p - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
SD-SDI Input Types
YCC 4:2:2 @ 10-bits: 480i - 29.97 576i - 25
HDMI Input Types
YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p - 23.98 / 24 / 25 / 29.97 / 30 1080psf - 23.98 / 24 / 25 / 29.97 / 30 1080i - 50 / 59.94 / 60 720p - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 480p - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 119.88 / 120 480i - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 119.88 / 120 / 239.76 / 240 576i - 25 / 50 / 100 / 200
Audio Input Types
HDMI & SDI - Monitor through Headphone Jack
Output Signal
3G-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p - 50 / 59.94 / 60 1080i - 50 / 59.94 / 60
HD-SDI Output Types
CC 4:2:2 @ 10-bits: 1080p - 23.98 / 24 / 25 / 29.97 / 30 1080psf - 23.98 / 24 / 25 / 29.97 / 30 1080i - 50 / 59.94 / 60 720p - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
SD-SDI Output Types
YCC 4:2:2 @ 10-bits: 480i - 29.97 576i - 25
HDMI Output Types
YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p - 23.98 / 24 / 25 / 29.97 / 30 1080psf - 23.98 / 24 / 25 / 29.97 / 30 1080i - 50 / 59.94 / 60 720p - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 480p - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 119.88 / 120 480i - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 119.88 / 120 / 239.76 / 240 576i - 25 / 50 / 100 / 200
Audio Output Types
Not supported
I/O
SDI
1x 3G Input (BNC) 1x 3G Output (BNC)
HDMI
1x Input (Type A) 1x Output (Type A)
Component
Not Supported
Composite
Not Supported
Audio
1x 3.5mm Headphone Jack
Power
Connector
LP-E6/Sony L style
Voltage
6.0 - 8.4 VDC
Power Consumption
11 watts
AC Power Supply
Included
Overload Protection
Yes
Output Voltage
None
Software
Pixel Zoom
2x & 4x Zoom with smooth pan via joystick
Frame Guides
Yes: Preset Aspect Ratios & Customizable
DSLR Scale
Canon 5DMkii & Canon 7D
Custom Scale
Yes (Underscan Only)
Anamorphic De-Squeeze
Yes: 1.33x, 1.5x, 1.66x, 2.0x
Image Rotate
Yes - Automatic or Manual Control
Image Flip
Yes - Automatic or Manual Control
Cross Conversion
Yes: HDMI → SDI & SDI → HDMI
Focus Assist
Yes - User Adjustable Color Style and Intensity
Peaking
Yes - User Adjustable Intensity
False Color
Yes - Rainbow & Arri Style
Zebra
Yes - Dual - User Configurable
Waveform
Yes - Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope
Yes
RGB Parade
Yes - Fully User Customizable
Histogram
Yes - Luma & RGB Style
Image Capture
Yes - With Dedicated Button
Custom LUTS
Yes - Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream
Yes - Available on SDI 1 or HDMI Out. Applied on Output Preview Page.
LUT Import
via SD Card or USB Storage Device
Overlay
Yes with Opacity Slider and Blink Setting
Audio Meters
Yes - HDMI & SDI up to 8 channe
