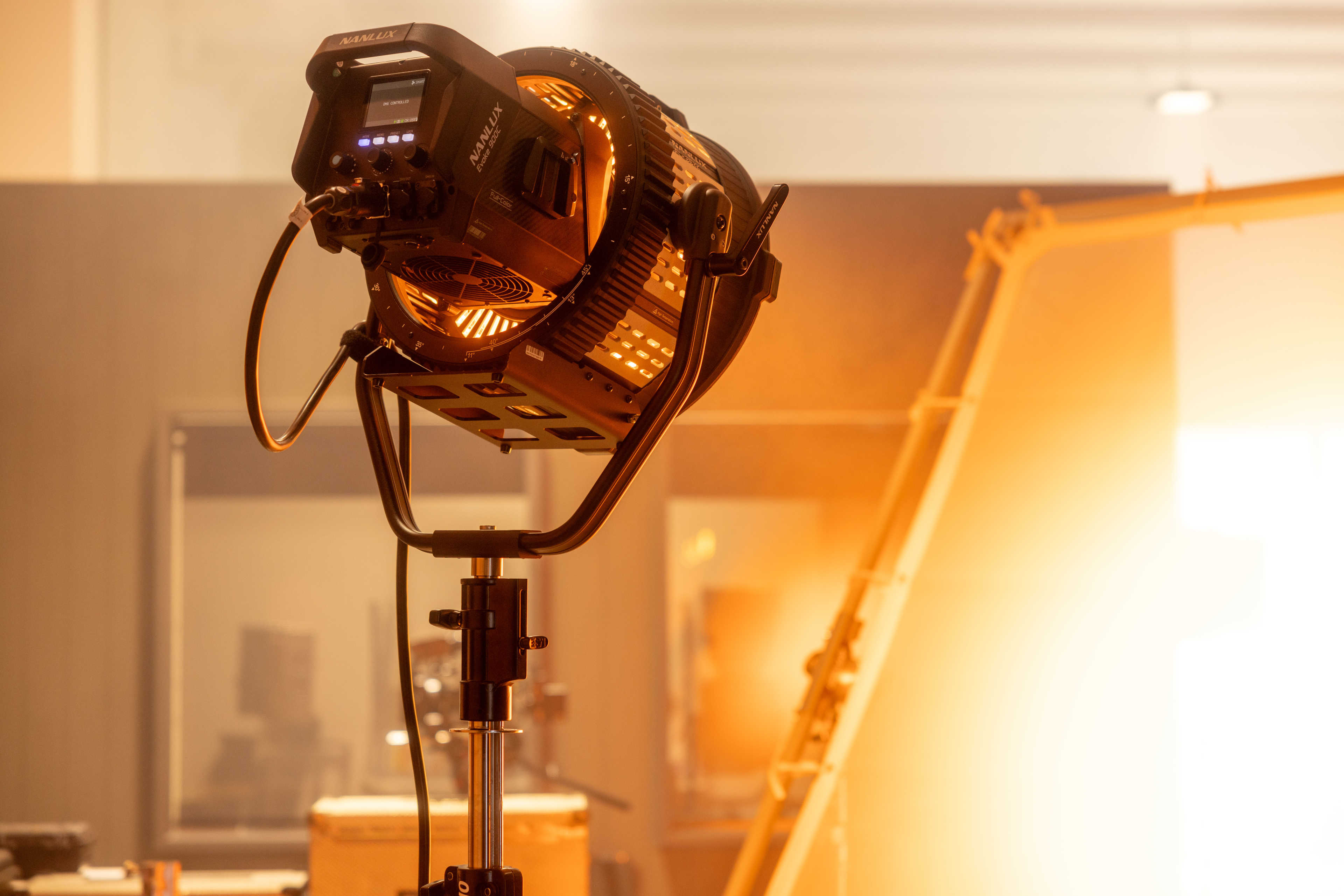

Nanlux Evoke 900C + FL-35YK Fresnel Kit
The Evoke 900C with FL-35YK fresnel is a potent 940W, full colour fixture kit that can be focused from 11° - 45° via the fresnel attachment. Included barn doors provide greater control over light spill.
The yoke on this newer design solves the issue of the prior model where the light fixture was often very front heavy. The yoke in this version places the centre of mass over the centre of the stand, and there is enough friction to hold the fixture in position even when unlocked.
No videos yet.
Illuminance
Light Only (No Modifier) - 3200K
1m: 31,100 lux 3m: 4,000 lux
Light Only (No Modifier) - 5600K
1m: 31,600lux 3m: 4,260 lux
Light Only (No Modifier) - Red
1m: 6,020 lux 3m: 826 lux
Light Only (No Modifier) - Green
1m: 14,300 lux 3m: 1,900 lux
Light Only (No Modifier) - Blue
1m: 2,380 lux 3m: 311 lux
Light With 45° Reflector - 3200K
3m: 12,100 lux
Light With 45° Reflector - 5600K
3m: 12,800 lux
Light With 45° Reflector - Red
3m: 2,580 lux
Light With 45° Reflector - Green
3m: 5,740 lux
Light With 45° Reflector - Blue
3m: 1,200 lux
Light With FL-35YK Fresnel - 3200K
3m: 8,760 lux (flood) / 33,500 lux (spot)
Light With FL-35YK Fresnel - 5600K
3m: 9,260 lux (flood) / 36,000 lux (spot)
Light With FL-35YK Fresnel - Red
3m: 1,779 lux (flood) / 7,320 lux (spot)
Light With FL-35YK Fresnel - Green
3m: 4,350 lux (flood) / 15,900 lux (spot)
Light With FL-35YK Fresnel - Blue
3m: 758 lux (flood) / 2,780 lux (spot)
Colour
Colour Temperature
In CCT mode: 1,800K - 20,000K
Full RGB Colour
Yes, using an RGBLAC array.
Colour Accuracy
CRI 96 TLCI 96 TM-30 Rf 94 TM-30 Rg 100 SSI 73 at 5600K SSI 81 at 3200K
Control
Control Options
Onboard DMX512 (5-pin) Art-net / sACN LumenRadio CRMX Bluetooth via Nanlink app
Operating Modes
CCT Advanced HSI RGBW Gel XY Effect Source Effects
Effects
HUE Loop CCT Loop INT Loop Flash Pulse Storm Police Car TV Paparazzi Candle/Fire Disco Bad Bulb Firework Explosion Welding
Power
Consumption
≤940W maximum
Power Supply
AC 100-240V 50/60Hz
Physical
Modifier Attachment
NL Mount (not Bowens compatible).
Mounting Interface
Junior (1 1/8" / 28mm) pin.
Dimensions
Fixture: 343 x 241 x 211mm. PSU: 343 x 145 x 124mm.
Weight
Fixture: 7.7kg. PSU: 4.5kg.
Weather Resistance
IP55 rating for head and ballast.
