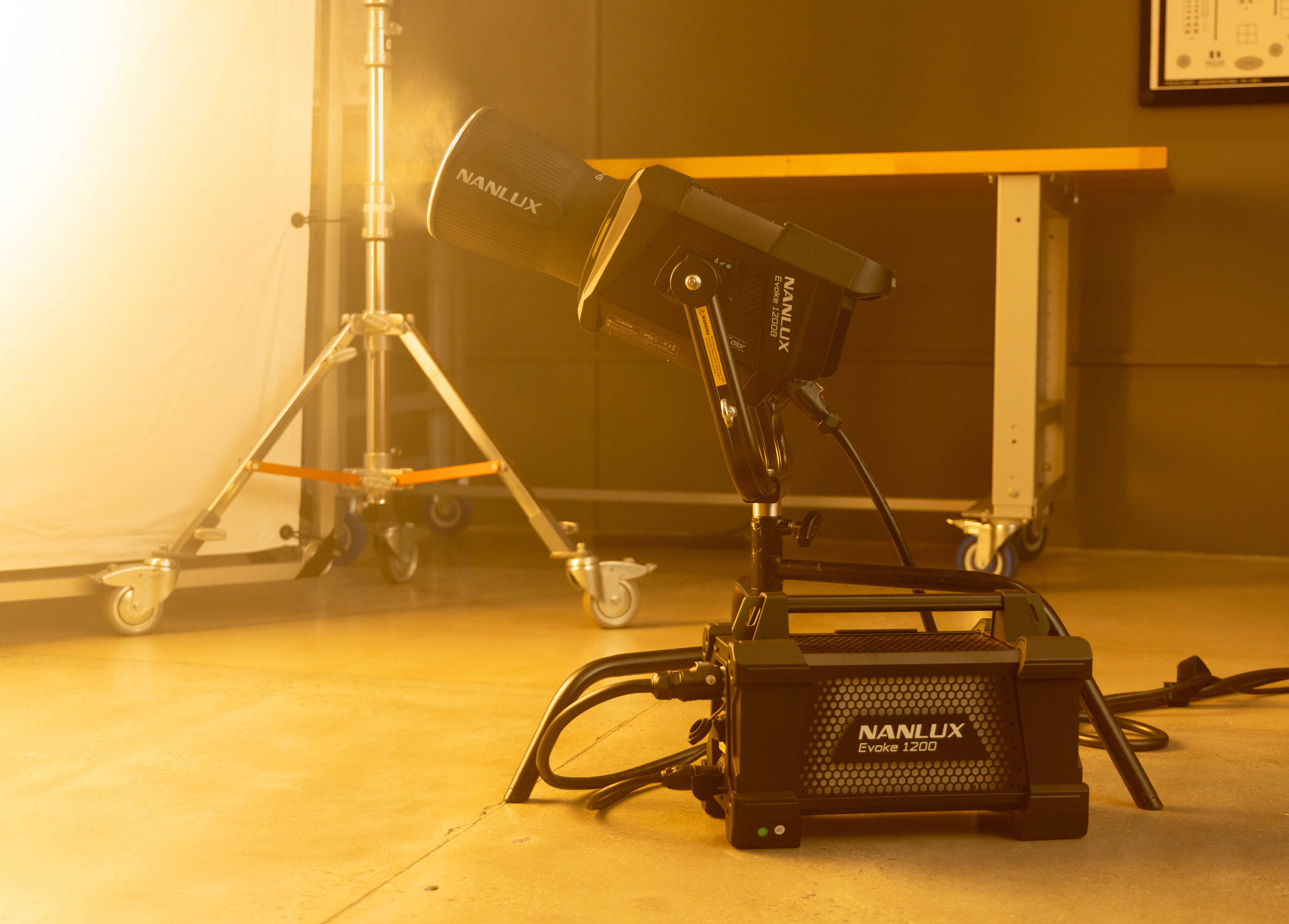

Nanlux Evoke 1200B Kit
The Nanlux Evoke 1200B is a powerful and versatile LED light fixture designed for professional film and video production. It features a high-output COB LED that delivers a bright and consistent light output with a colour temperature range of 2700K to 6500K, making it suitable for a wide range of lighting applications.
The fixture also includes advanced control features, including Bluetooth, LumenRadio and a range of built-in lighting effects. Additionally, the Evoke 1200B features a durable and lightweight aluminium housing, making it ideal for use in a variety of production environments.

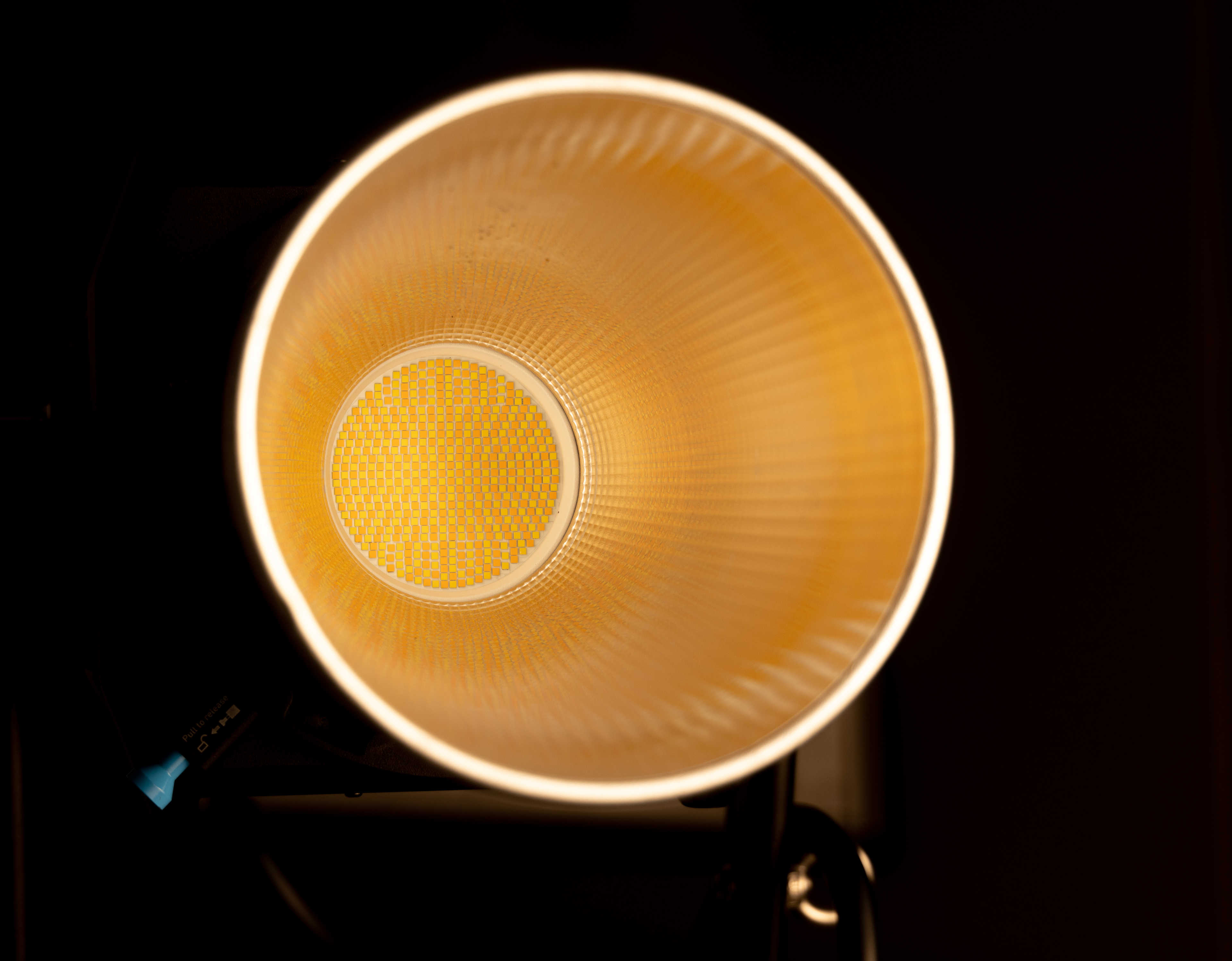

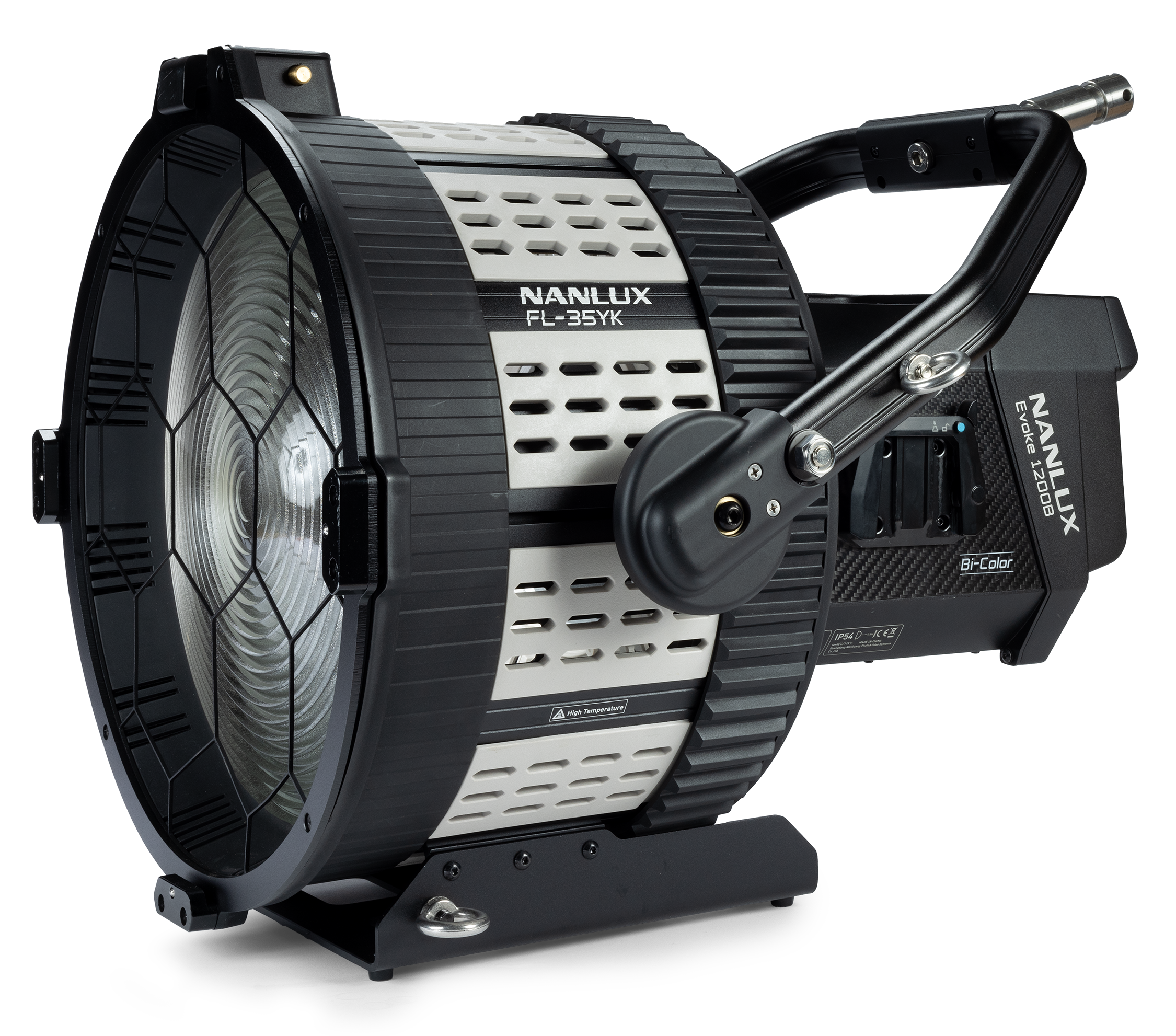

Due to the size of the LED COB, this light is not compatible with standard Bowens mount modifiers. The kit includes an NL-Mount 45° reflector, but other modifiers are available such as a Fresnel attachment and a 150cm Light Dome.
Output Comparison
A quick comparison of the maximum output of the Nanlux Evoke 1200B, Nanlux Evoke 1200 and Aputure 1200D (spoiler: the Evoke 1200B at 5600K is brighter than the Evoke 1200).
Illuminance
Light Only (No Modifier) - 2700K
3m: 4,128 lux 5m: 1,762 lux 7m: 997 lux
Light Only (No Modifier) - 4300K
3m: 5,158 lux 5m: 2,208 lux 7m: 1,214 lux
Light Only (No Modifier) - 5600K
3m: 5,258 lux 5m: 2,244 lux 7m: 1,261 lux
Light With 45° Reflector - 2700K
3m: 14,590 lux 5m: 5,232 lux 7m: 3,014 lux
Light With 45° Reflector - 4300K
3m: 17,870 lux 5m: 6,578 lux 7m: 3,752 lux
Light With 45° Reflector - 5600K
3m: 18,570 lux 5m: 6,800 lux 7m: 3,872 lux
Colour
Colour Temperature
2700K - 6500K
RGB
None
TLCI Rating
≥97
CRI Rating
≥96

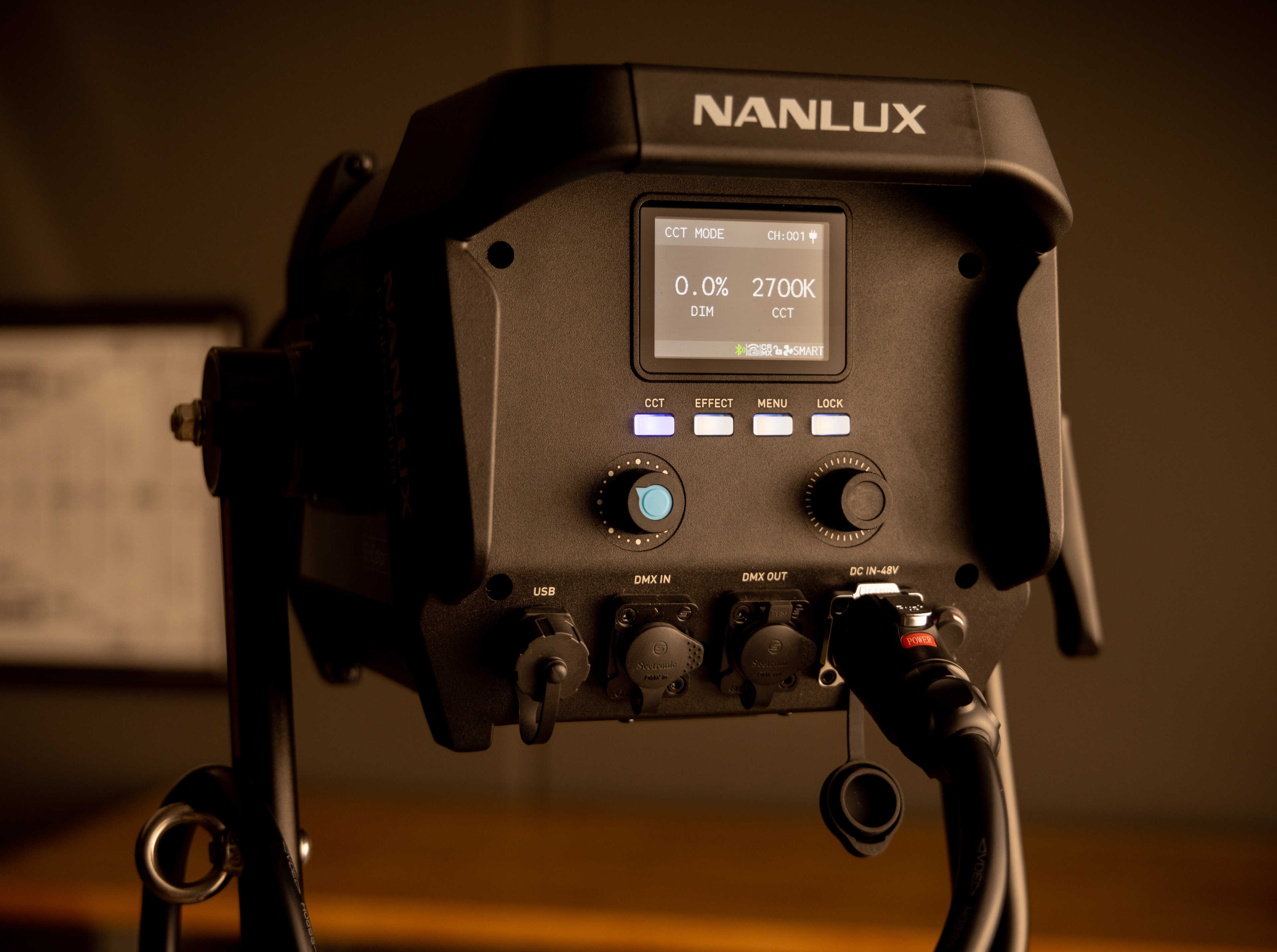

Control
Control Options
Onboard DMX (5-pin) LumenRadio CRMX Bluetooth via Nanlink app
Operating Modes
Lighting Effects
Effects
CCT Loop INT Loop Flash Pulse Storm TV Paperazzi Candle/Fire Bad Bulb Fireworks Explosion Welding
Power
Consumption
≤1,200W maximum

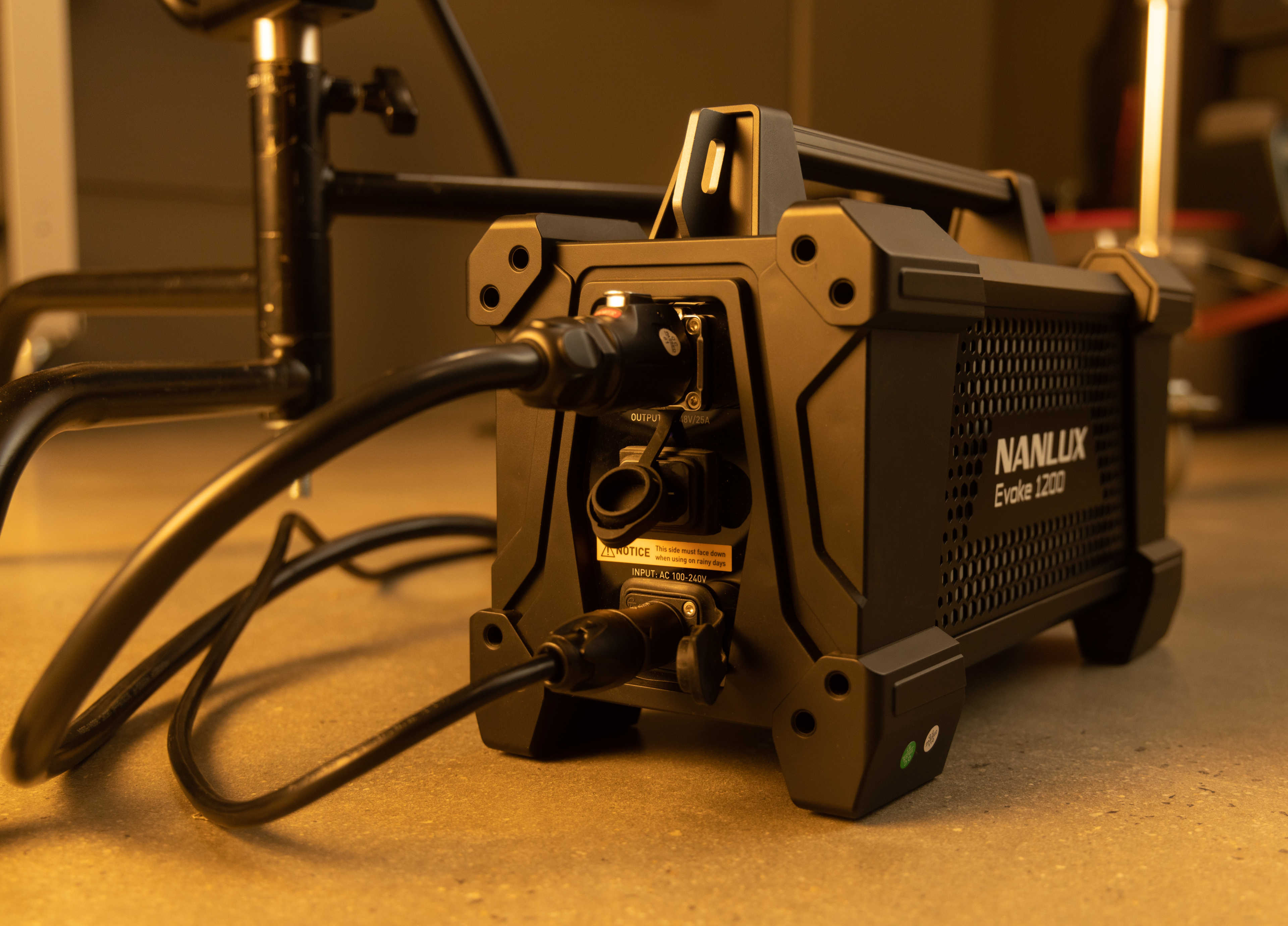

Power Supply
AC 100-240V 50/60Hz
Physical
Modifier Attachment
NL-Mount
Mounting Interface
Junior 1 1/8" (28mm) pin.
Dimensions
Fixture: 503 x 370 x 210mm. PSU: 377 x 181 x 246mm. Transport case: 740 x 500 x 370mm.
Weight
Fixture: 9.55g. PSU: 11kg. Total (in case): 27.25kg.
