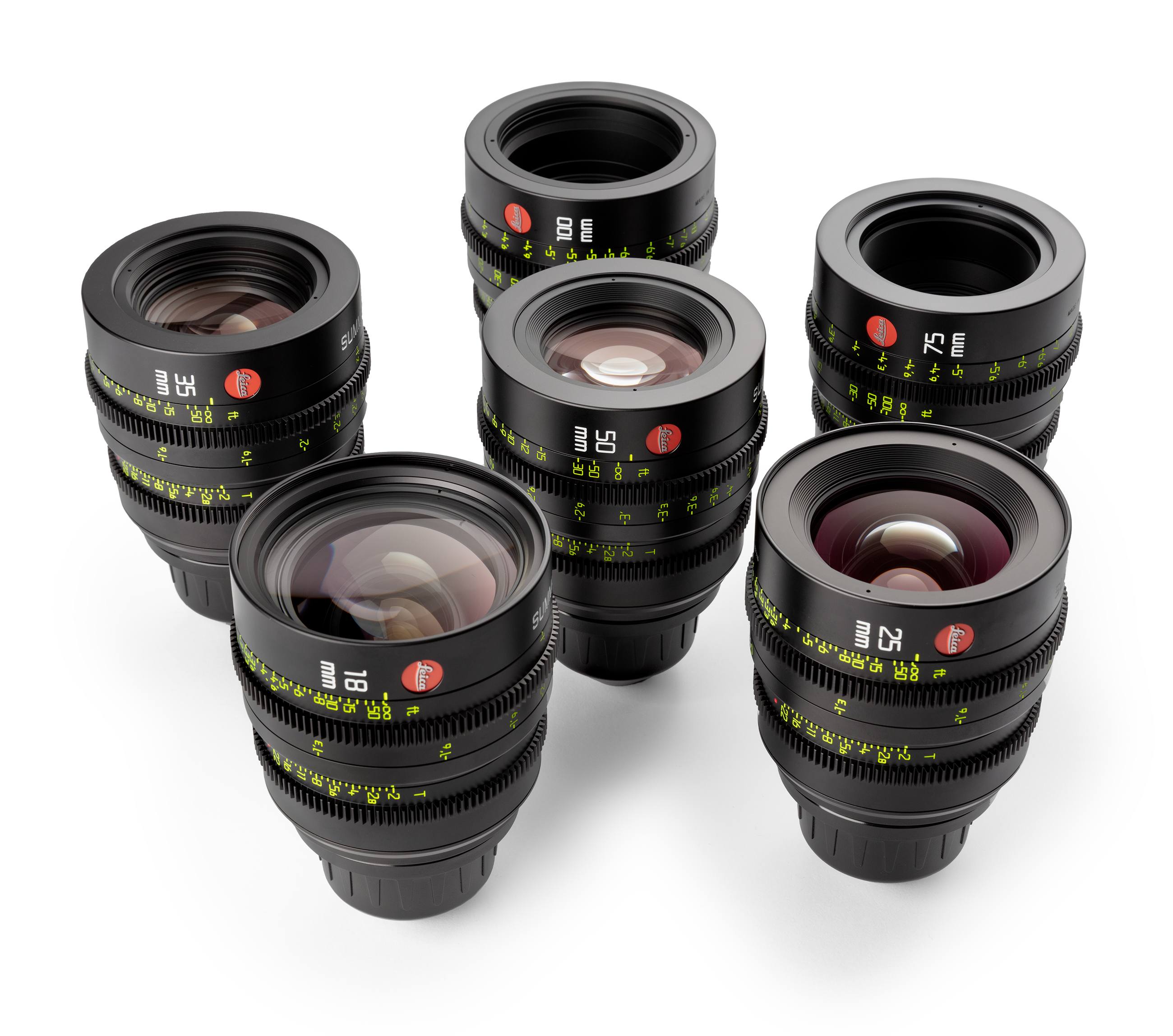

Leica / Leitz Summicron-C Set (6)
18mm, 25mm, 35mm, 50mm, 75mm and 100mm PL mount.
Leica / Leitz Summicron-C lenses offer a distinctive character and T2 performance in a very compact size. With a 36mm image circle, they cover many modern formats larger than super 35mm and have minimal breathing and superior build quality.
For coverage information, including a video showing ARRI format coverage of each lens, please see our article.
Their size and optical performance make them ideal lenses for a range of high end productions.
ARRI Sensor Coverage
This test clip shows the coverage of each lens in our Letiz Summicron-C set for each of the ARRI formats LF Open Gate, 4.3K LF 16:9, 3.8K LF 16:9 and Alexa Mini open gate.
LFL - 18mm Tests
Tests from the Lens Filter Library (LFL) of the Leitz 18mm Summicron-C lens.
LFL - 25mm Tests
Tests from the Lens Filter Library (LFL) of the Leitz 25mm Summicron-C lens.
LFL - 35mm Tests
Tests from the Lens Filter Library (LFL) of the Leitz 35mm Summicron-C lens.
LFL - 50mm Tests
Tests from the Lens Filter Library (LFL) of the Leitz 50mm Summicron-C lens.
LFL - 75mm Tests
Tests from the Lens Filter Library (LFL) of the Leitz 75mm Summicron-C lens.
LFL - 100mm Tests
Tests from the Lens Filter Library (LFL) of the Leitz 100mm Summicron-C lens.
Optical
Focal Length
18mm 25mm 35mm 50mm 75mm 100mm
Maximum Aperture
18mm: T2 25mm: T2 35mm: T2 50mm: T2 75mm: T2 100mm: T2
Minimum Aperture
18mm: T22 25mm: T22 35mm: T22 50mm: T22 75mm: T22 100mm: T22
Minimum Focus Distance
18mm: 0.30m (12") 25mm: 0.30m (12") 35mm: 0.36m (1' 2") 50mm: 0.60m (2') 75mm: 0.80m (2' 7") 100mm: 1.00m (3' 3")
Image Circle
18mm: 36mm 25mm: 36mm 35mm: 36mm 50mm: 36mm 75mm: 36mm 100mm: 36mm
Physical
Lens Mount
Arri PL
Metadata
None
Focus Ring Rotation
300°
Focus / Iris Gear Pitch
0.8 mod
Front Diameter
18mm: 95mm 25mm: 95mm 32mm: 95mm 50mm: 95mm 75mm: 95mm 100mm: 95mm
Dimensions (Ø x L)
18mm: 95mm x 101mm 25mm: 95mm x 101mm 32mm: 95mm x 101mm 50mm: 95mm x 101mm 75mm: 95mm x 101mm 100mm: 95mm x 101mm
Weight
18mm: 1.3kg 25mm: 1.5kg 35mm: 1.3kg 50mm: 1.5kg 75mm: 1.2kg 100mm: 1.2kg
Transport Case
Dimensions: 470mm x 340mm x 240mm. Weight (with lenses): 14kg
