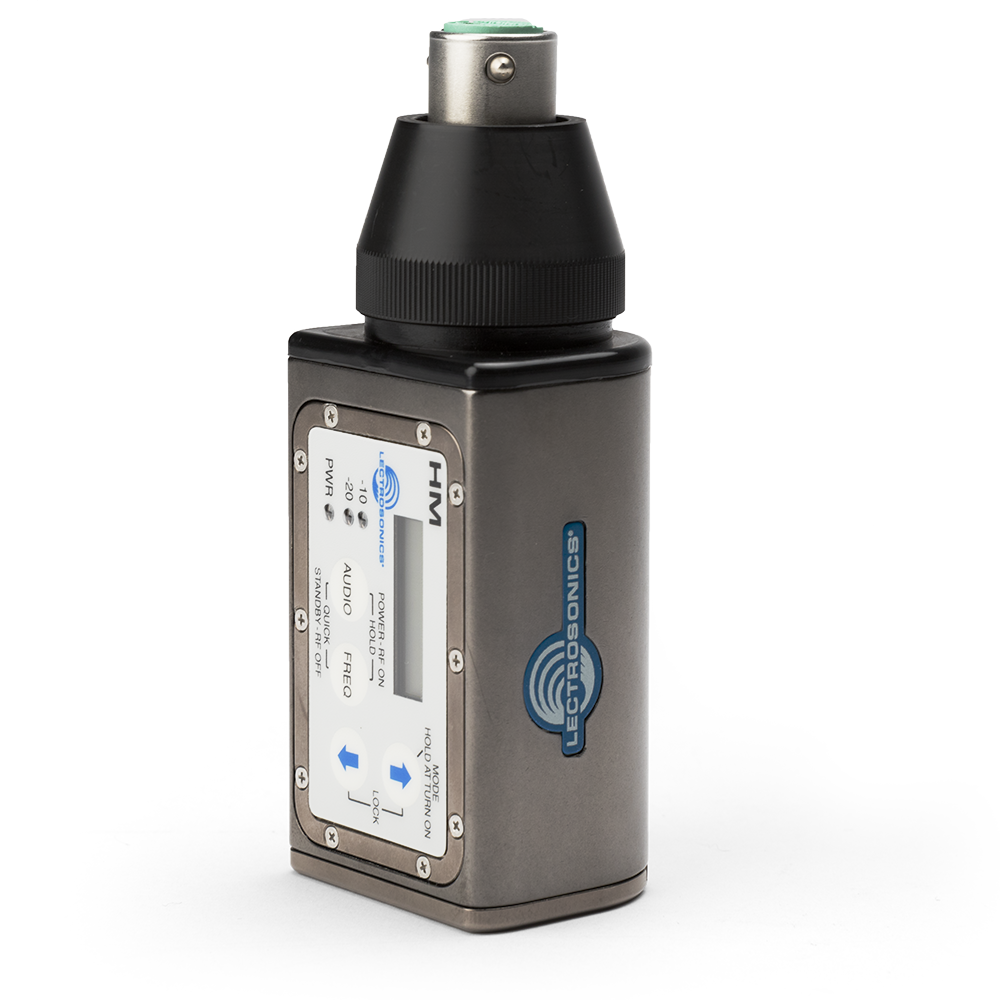

Lectrosonics HM Plug-On Transmitter
Block 26 (665.6 - 691.1MHz).
The Lectrosonics HM plug-on transmitter is often used in wireless boom applications (and to convert any microphone with an XLR jack into a wireless microphone).
It can also be used as an IFB transmitter for use with the IFB R1a receivers if you need a compact setup.
No videos yet.
Wireless
Operating Frequencies
Block 26 (665.6 - 691.1MHz)
Frequency Range
256 frequencies in 100kHz steps.
RF Output Power
100mW nominal.
Transmission Range
Not specified by the manufacturer.
Transmitter
Audio Input Jack
XLR
Gain Control Range
55dB
Compatibility Modes
Digital Hybrid Wireless (400 series) 200 Series 100 Series Mode 3 Mode 6 IFB
Battery Run Time (2x AA)
NiMh (phantom off): 9 hours NiMh (phantom on): 7 hours
Physical
Dimensions
107 x 41 x 35mm.
Weight
250g with batteries.
