Iron Glass MKII Soviet Set (6)
ARRI PL mount.
The Iron Glass MKII Soviet lenses bring the legendary look of vintage Soviet glass into the modern filmmaking era.
Rehoused for consistent and reliable operation on set, these lenses retain the character of classic Soviet optics while enhancing usability.
To add even more character, our Iron Glass MKII set features the oval iris option to provide bokeh reminiscent of anamorphic lenses.
This is an element within the optical stack with a static oval shape, meaning the full effect is available when shooting wide open. When stopping down to around T8, the effect is not visible and bokeh returns to a more traditional round shape.

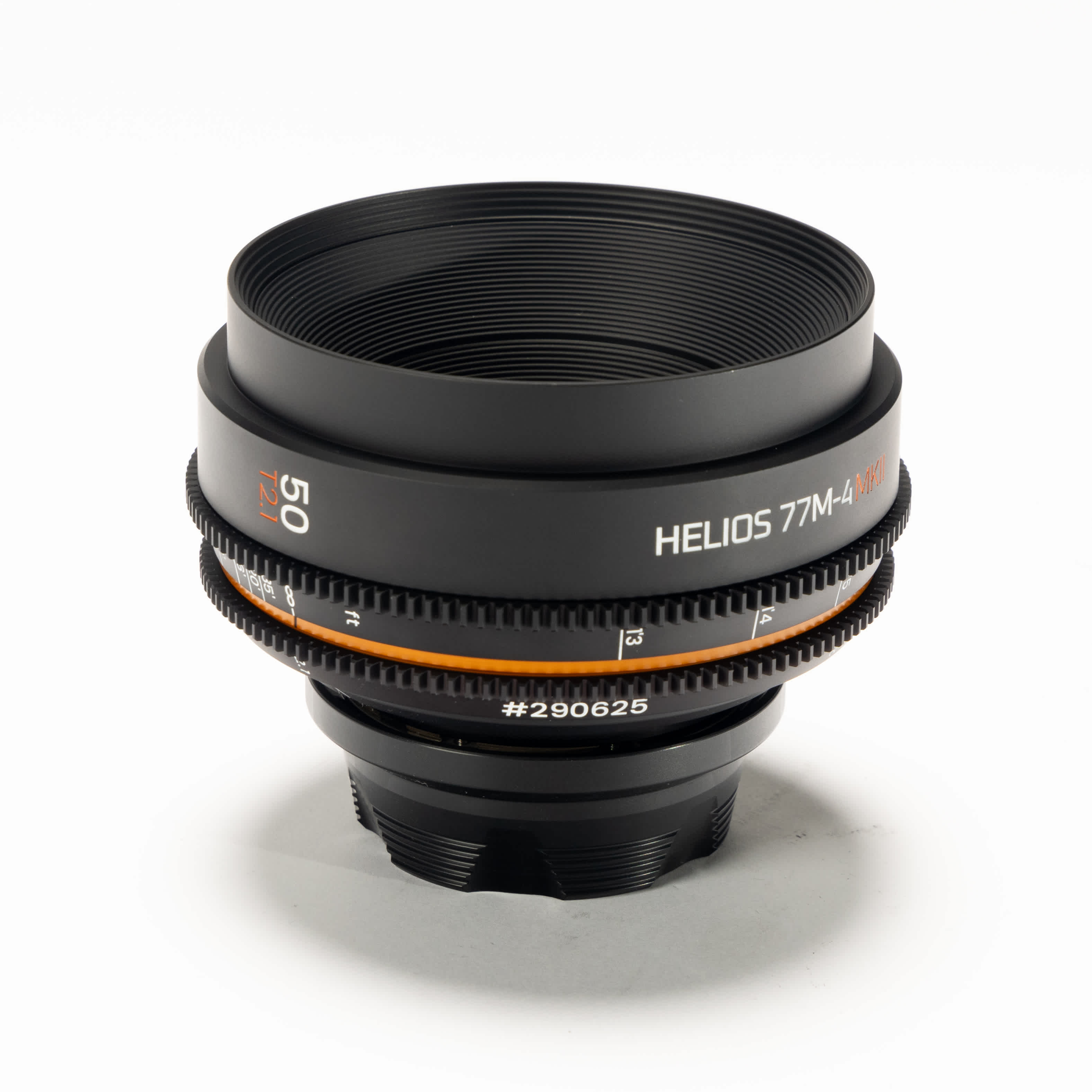

This is currently a six lens set but we are awaiting the arrival of an additional 50mm T2.1 Helios 77M-4 lens to make this a seven lens set (expected later 2025).
CVP Overview
The CVP team runs us through the characteristics of the Iron Glass MKII lenses.
OneHouse - Game Trailer
The OneHouse crew used the Iron Glass MKII Soviets on Alexa Mini LF for this game trailer, created in conjunction with Nike and Posseshot.
Optical
Focal Lengths

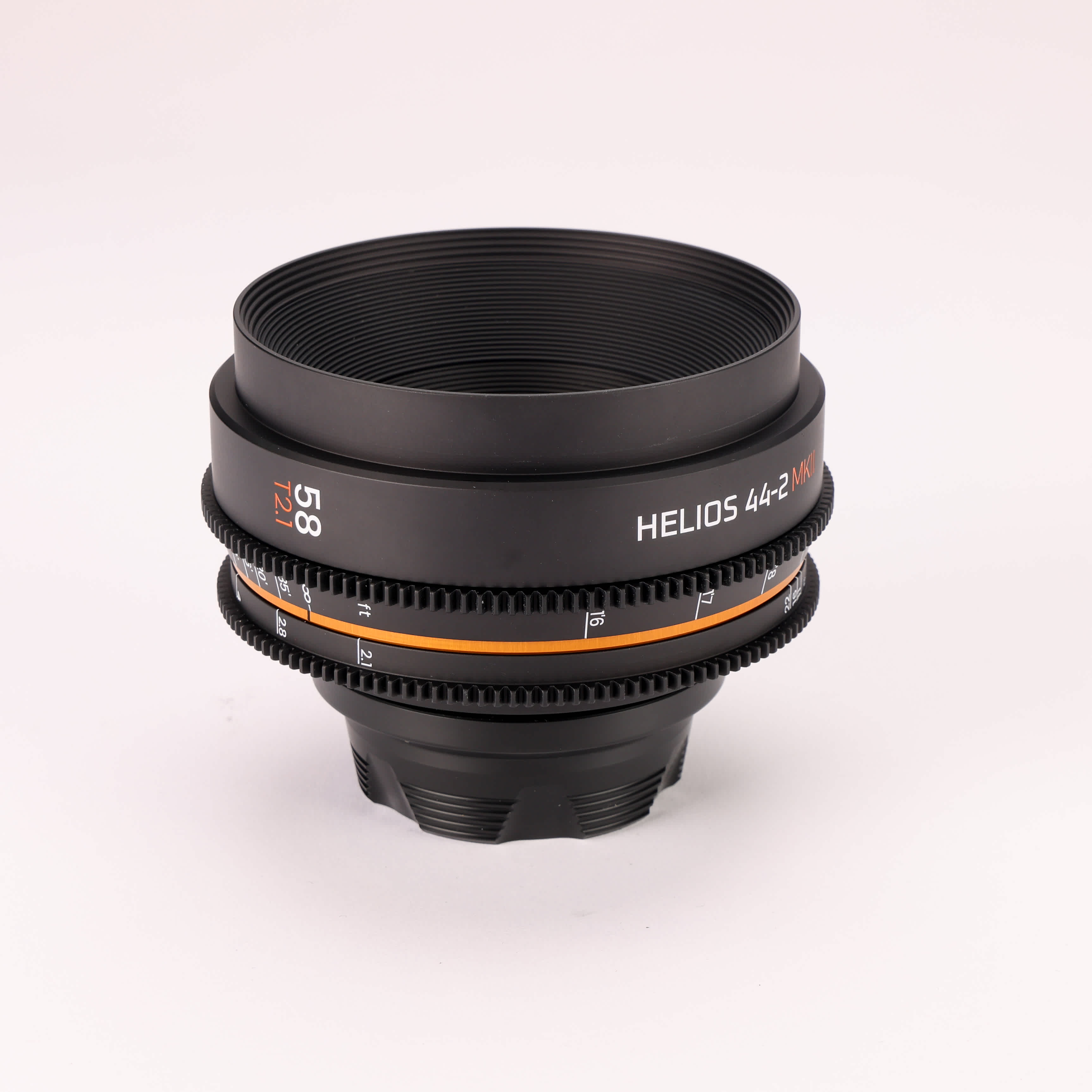

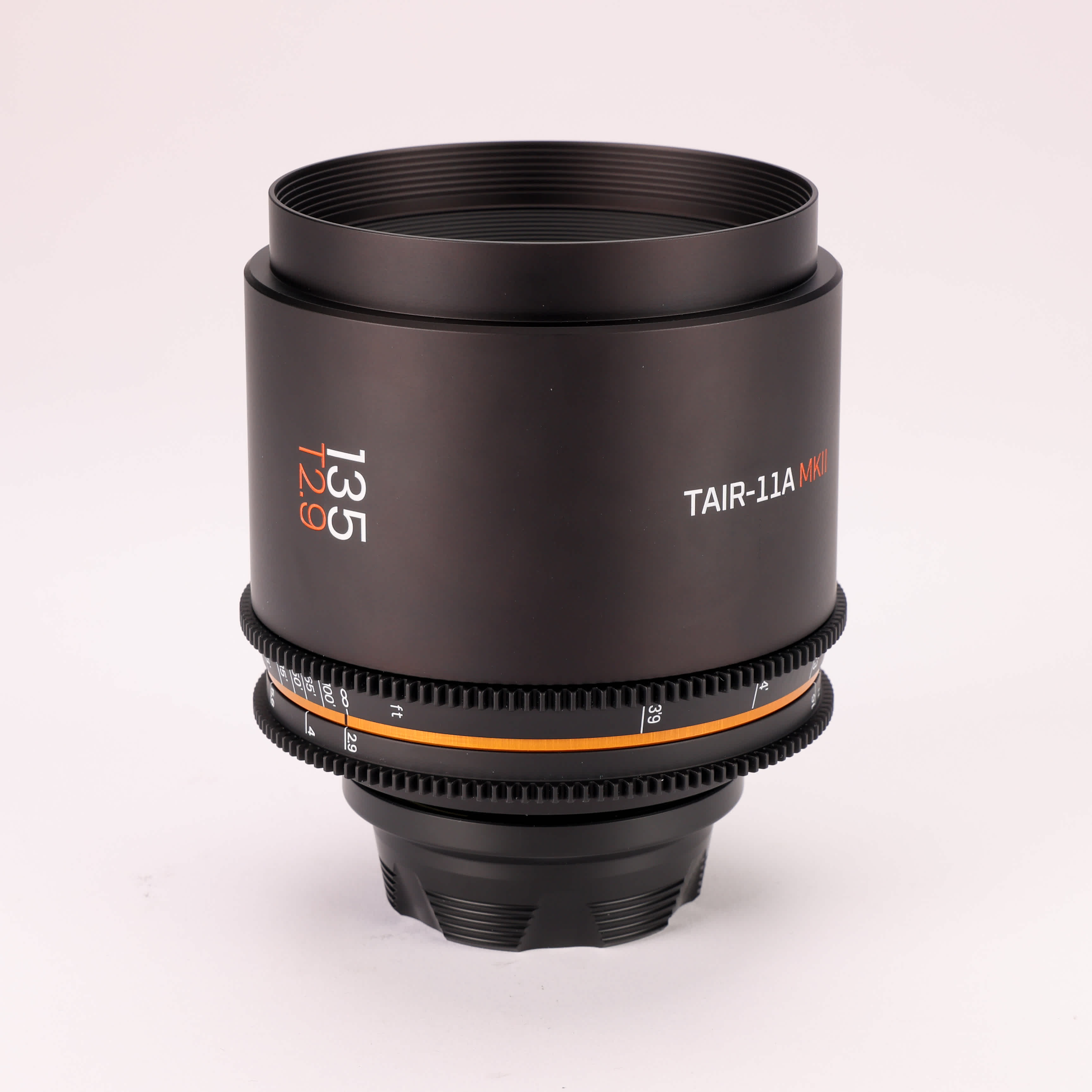

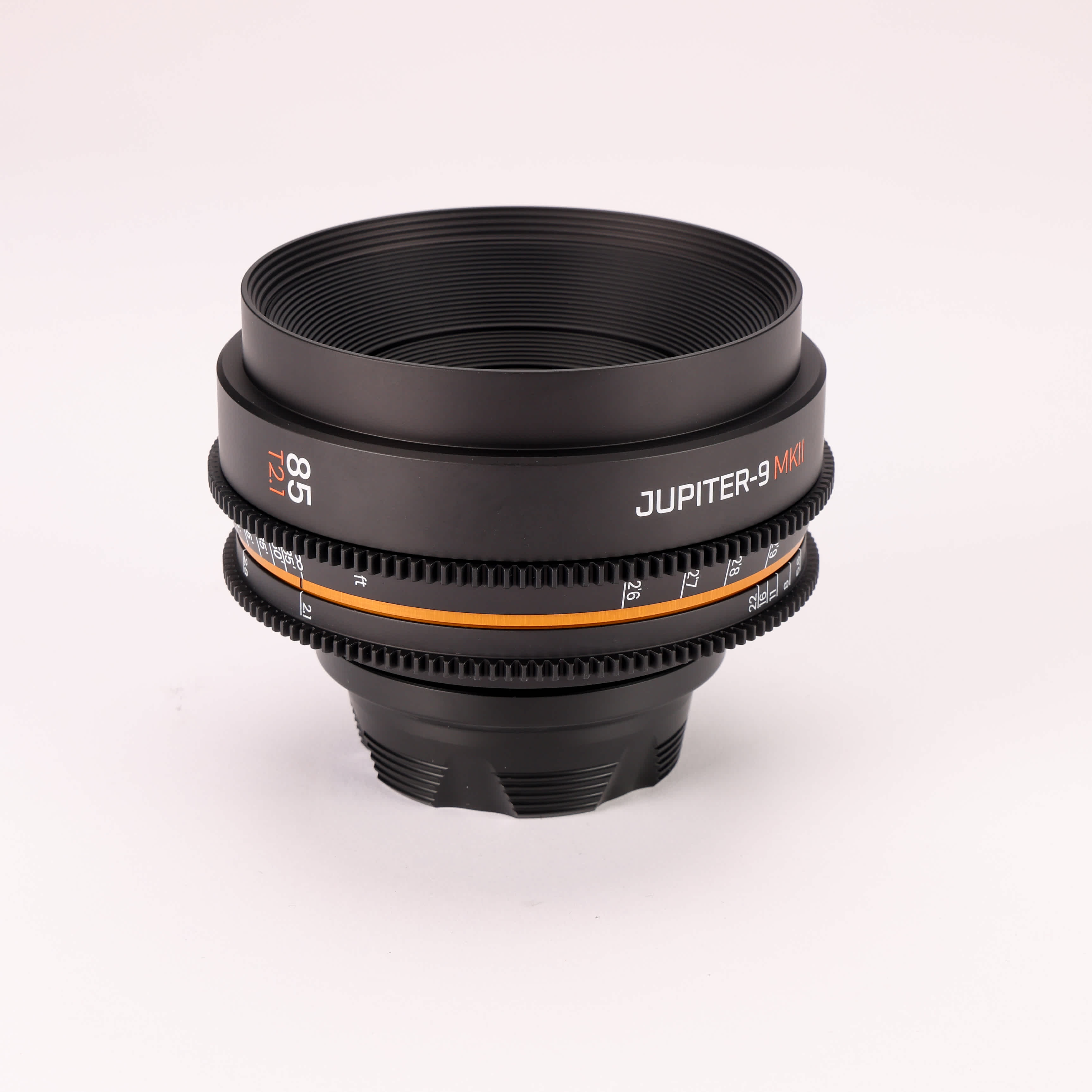

20mm Mir-20M 28mm Mir-10A 37mm Mir-1V 50mm Helios-77M-4 (arriving later 2025) 58mm Helios 44-2 85mm Jupiter-9 135mm Tair-11A
Maximum Aperture
20mm: T3.6 28mm: T3.6 37mm: T2.9 58mm: T2.1 85mm: T2.1 135mm: T2.9
Minimum Aperture
20mm: T22 28mm: T22 37mm: T22 58mm: T22 85mm: T22 135mm: T22
Minimum Focus Distance
20mm: 0.17m / 7" 28mm: 0.20m / 8" 37mm: 0.36m / 1' 3" 58mm: 0.46m / 1' 6" 85mm: 0.75m / 2' 6" 135mm: 1.15m / 3' 9"
Image Circle
20mm: Yet to measure 28mm: Yet to measure 37mm: Yet to measure 58mm: Yet to measure 85mm: Yet to measure 135mm: Yet to measure
Iris Blade Count
20mm: 15 28mm: 15 37mm: 15 58mm: 15 85mm: 15 135mm: 20
Physical
Lens Mount
ARRI PL
Metadata
None
Focus Ring Rotation
300°
Focus / Iris Gear Pitch
0.8 mod
Front Diameter
20mm: 95mm 28mm: 95mm 37mm: 95mm 58mm: 95mm 85mm: 95mm 135mm: 95mm
Dimensions (Ø x L)
20mm: 108mm x 67mm 28mm: 108mm x 80mm 37mm: 108mm x 80mm 58mm: 108mm x 80mm 85mm: 108mm x 77mm 135mm: 108mm x 119mm
Weight
20mm: 0.73kg 28mm: 0.93kg 37mm: 0.77kg 58mm: 0.75kg 85mm: 0.82kg 135mm: 1.40kg
Transport Case
Dimensions: 557mm x 429mm x 216mm Weight (with lenses): 11kg
