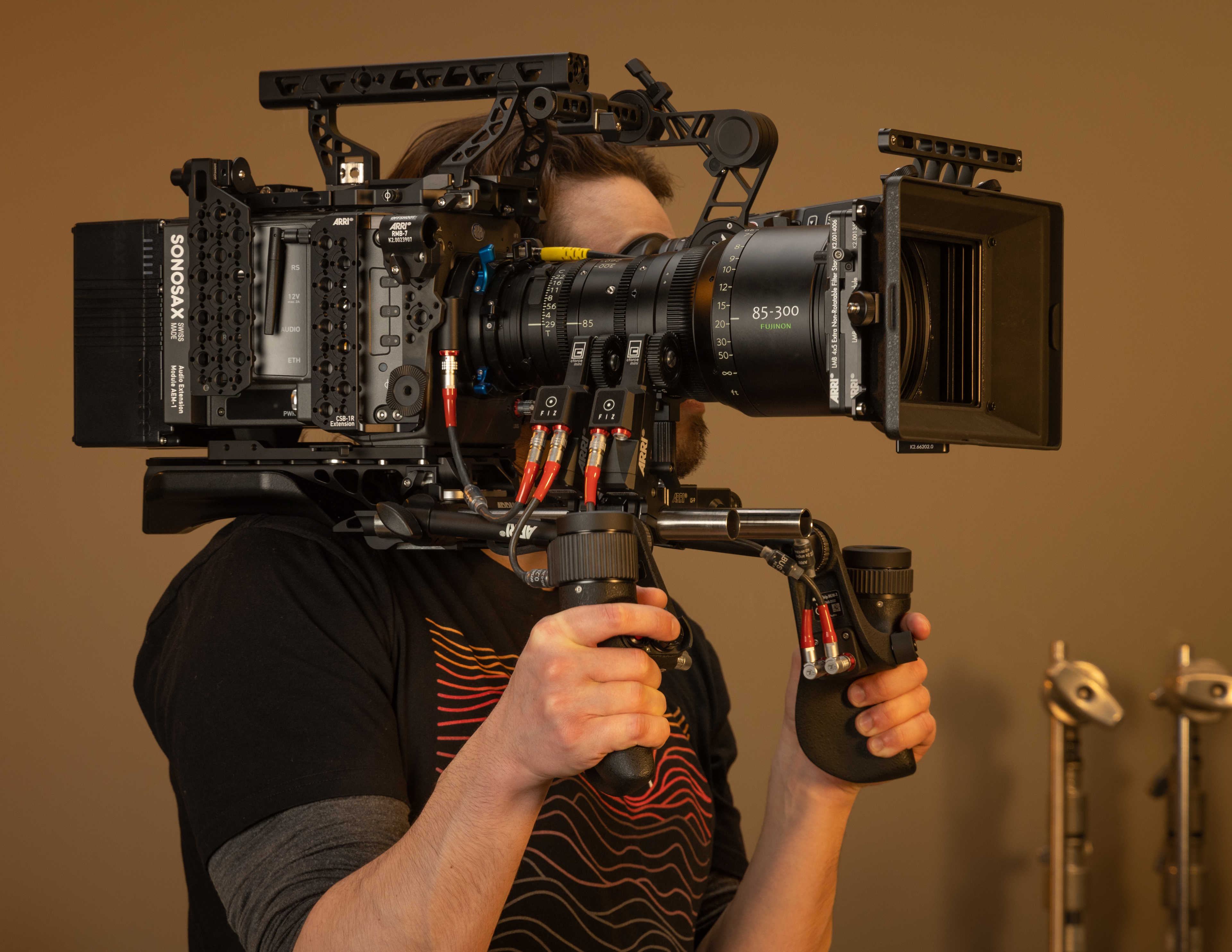

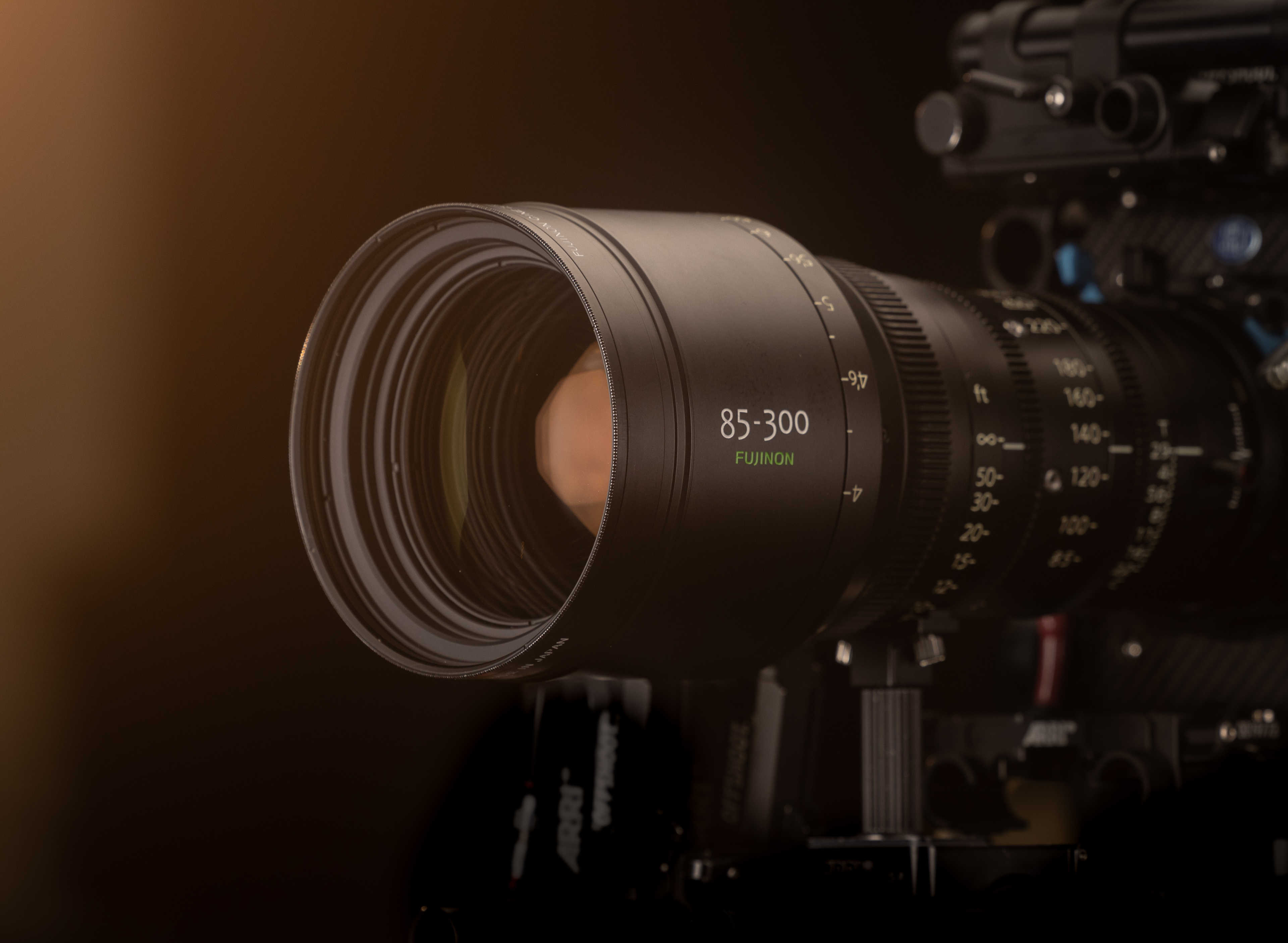

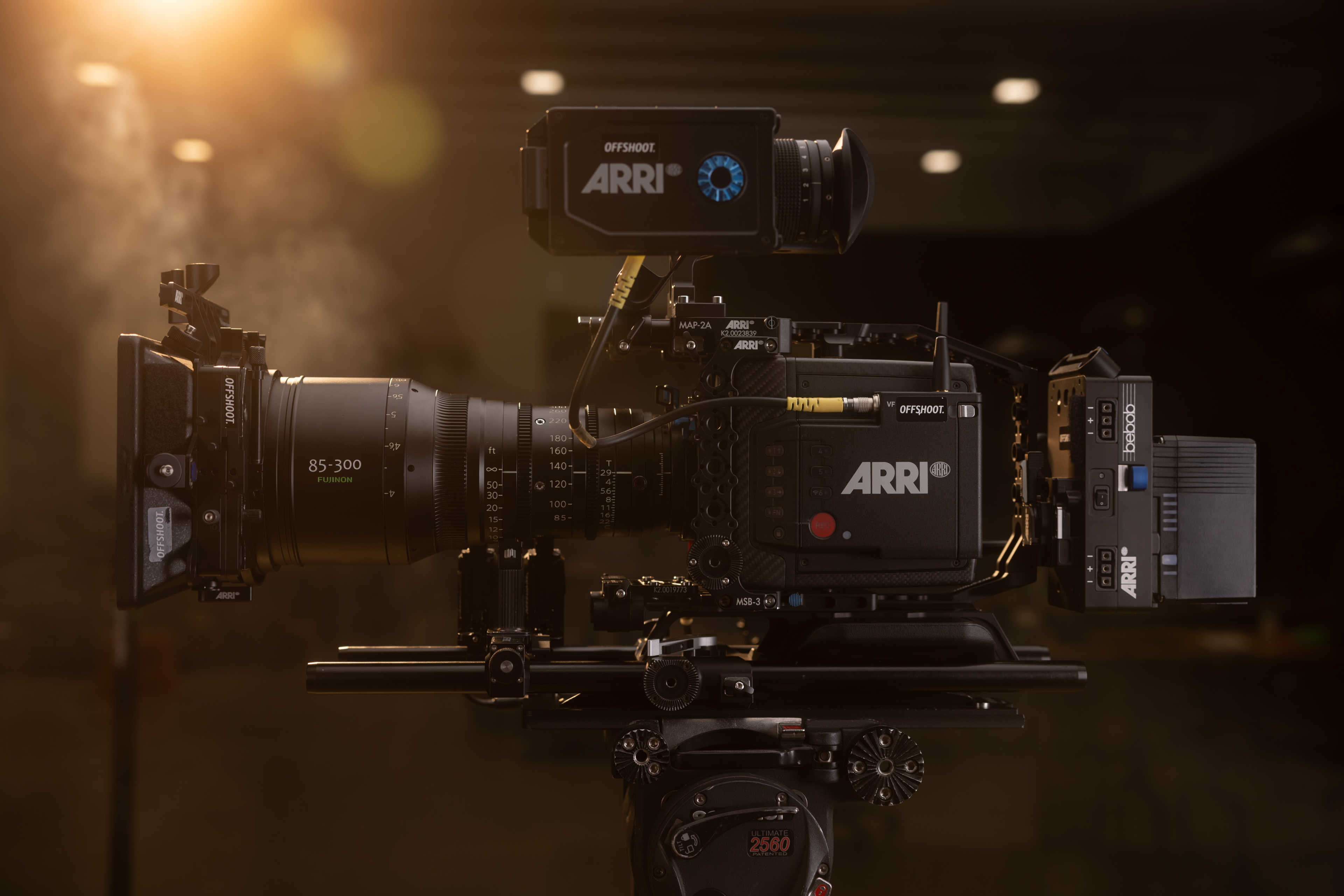

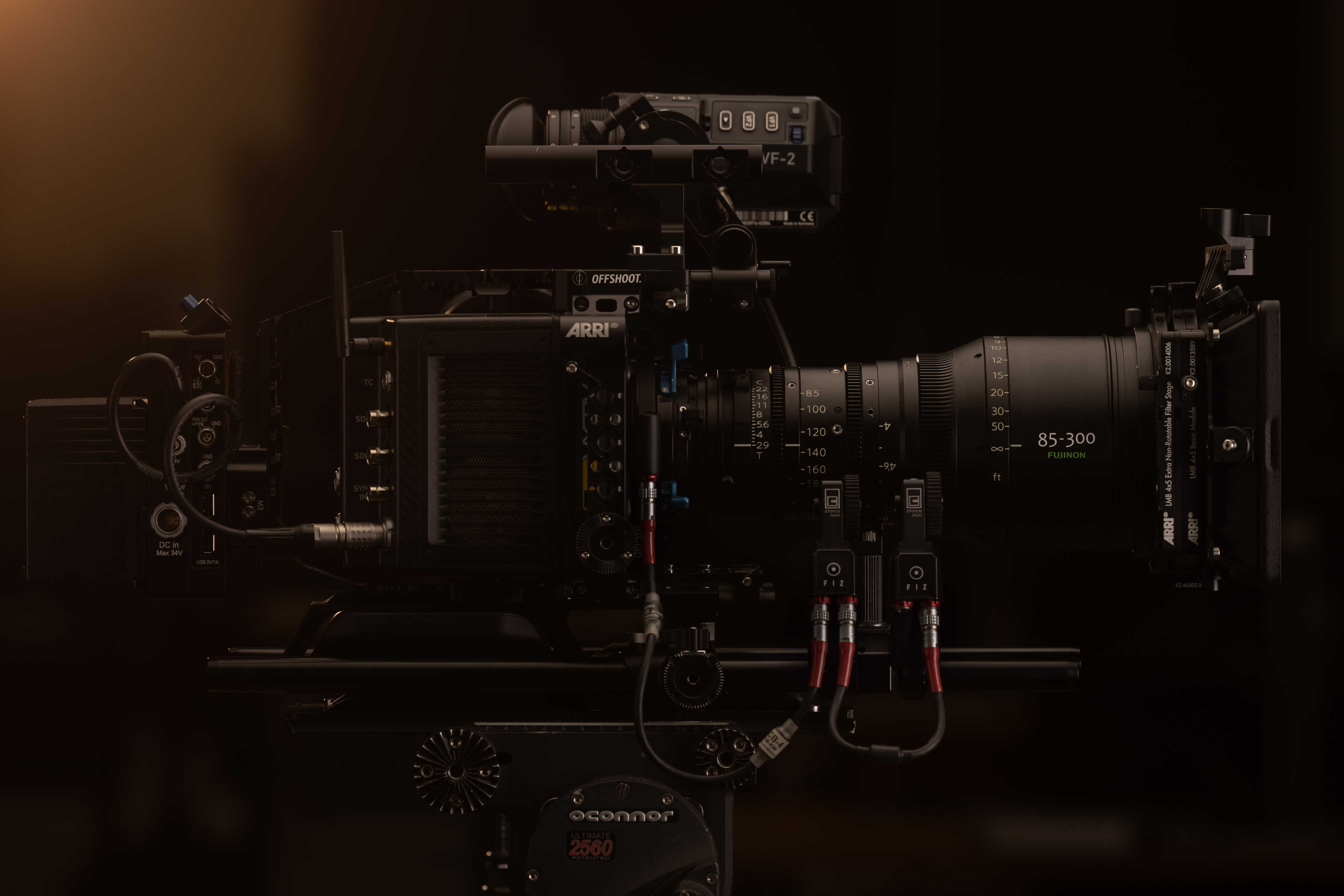

The Fujinon Cabrio 85-300mm (ZK3.5x85) is a compact, versatile telephoto zoom lens weighing only 3kg with the servo unit attached. Use it either as an ENG style zoom or a traditional PL zoom, with a fully detachable servo unit. An impressive 31.5mm image circle covers a wide range of extended super 35mm formats.
The 85-300mm features a constant maximum aperture (T2.9) from 85-220mm and ramps to T4 at 300mm.
Cooke /i and Arri LDS lens data interfaces are supported for on-screen display or post-production uses.
Remove the servo to use traditional follow focus or electronic lens control systems, or for faster and lighter setups, use something like an Arri EMC-1 to use the built-in servo motors with wireless hand units - such as the Arri WCU-4.
No videos yet.
Optical
Focal Length
85mm - 300mm
Zoom Ratio
3.5X
Maximum Aperture
T2.9 from 85~218mm then ramps to T4 at 300mm
Minimum Aperture
T22
Minimum Focus Distance
Standard - 1.2m (4') Macro - 97cm (3'2")
Image Circle
31.5mm
Physical
Lens Mount
Arri PL
Front Diameter
114mm
Metadata
Cooke/i or Arri LDS (when used with the servo unit)
Focus Scale
Imperial
Focus Ring Rotation
200°
Focus / Iris Gear Pitch
0.8 mod
Dimensions (Ø x L)
114mm x 226mm
Weight
Without Servo: 2.3kg With Servo: 2.8kg
Transport Case
Dimensions: 460mm x 310mm x 210mm. Weight (with lens): 6.9kg.
