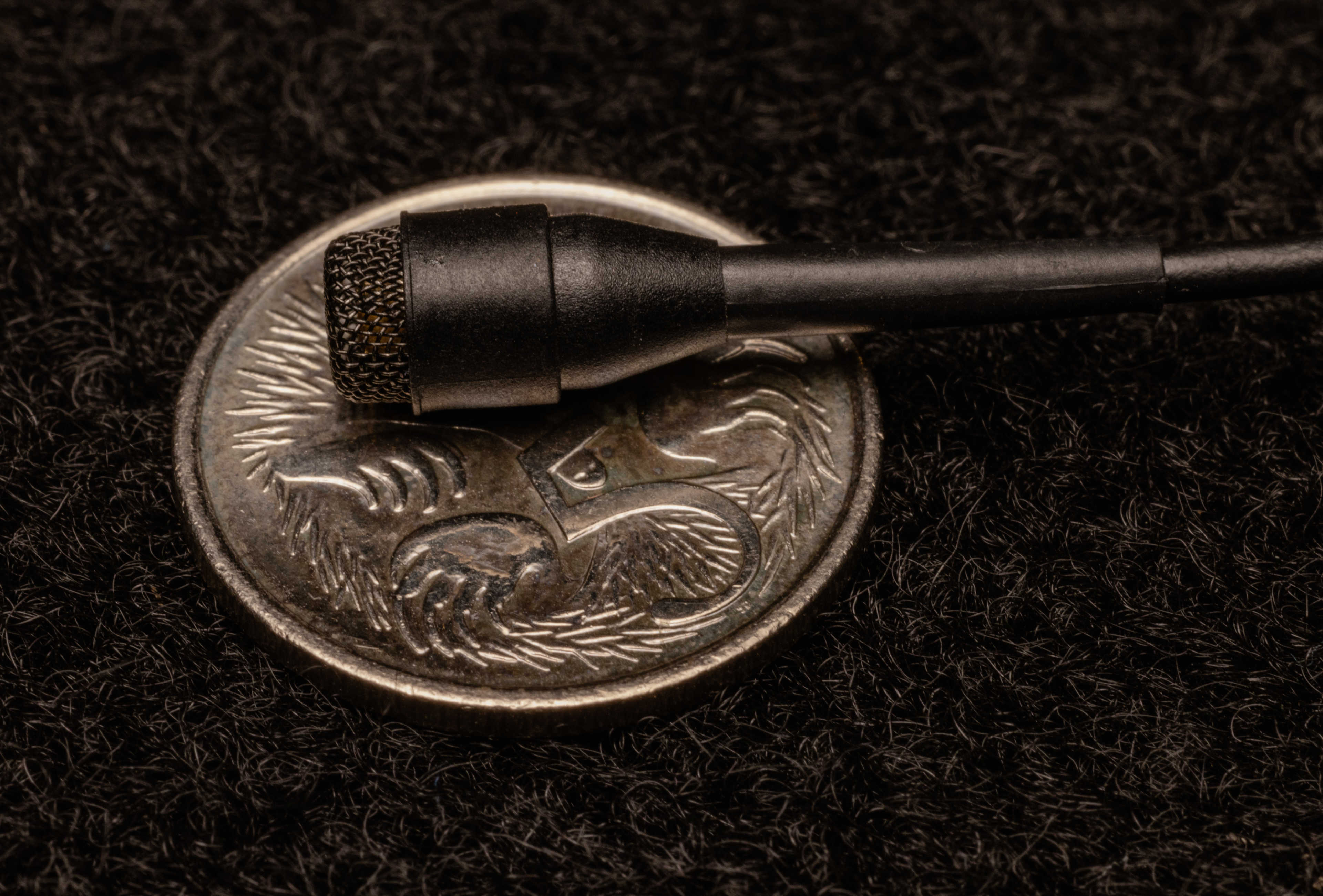

A small, high quality omnidirectional microphone wired with a TA5F connector for use with Lectrosonics wireless transmitters.

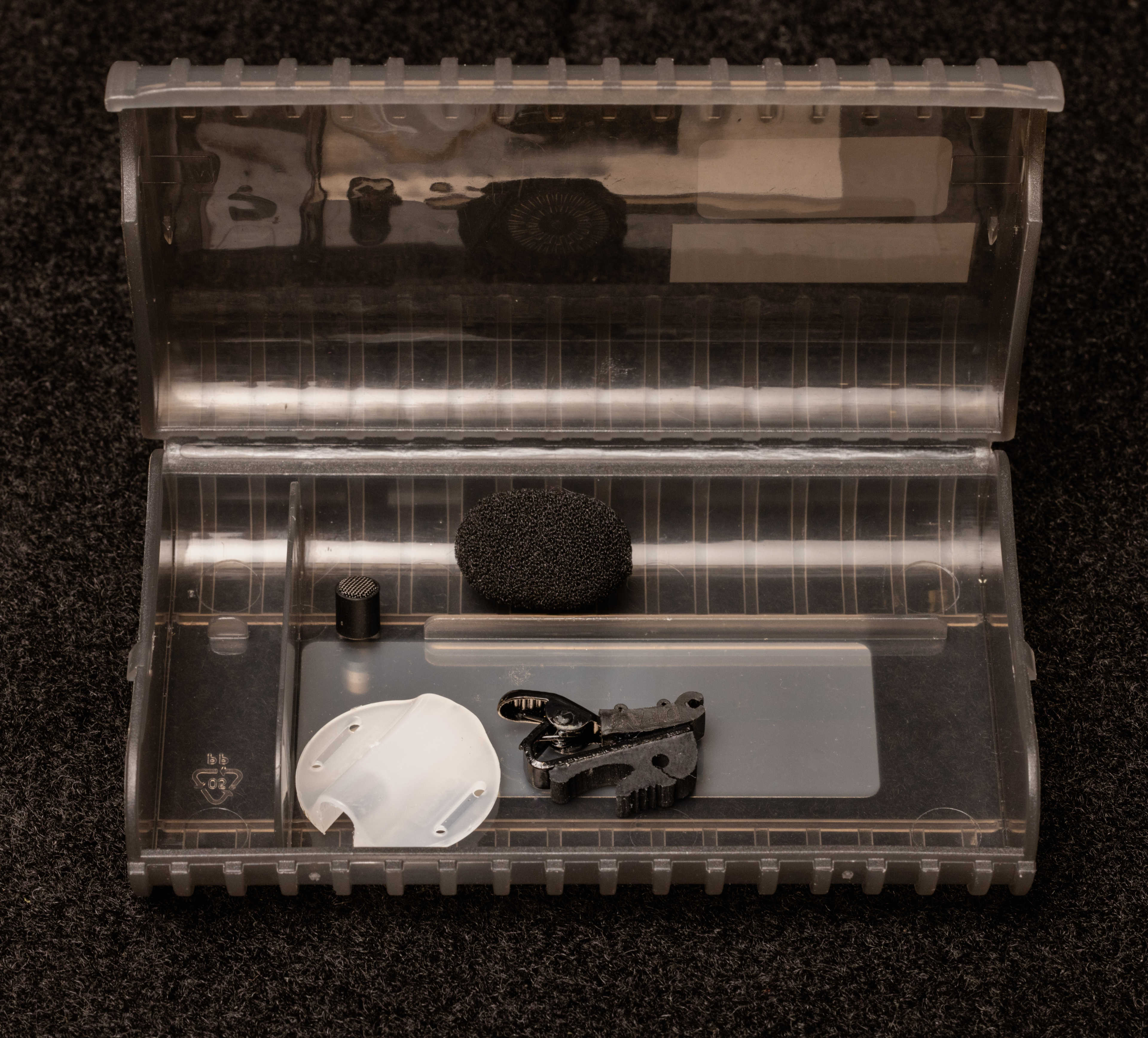

Supplied with a soft-boost and high-boost grid. The soft-boost provides a 3dB boost between 8-20kHz. The high-boost provides a 10dB boost at 12kHz.
The high-boost grid is typically used when the mic is used a lavalier placed under clothing.
No videos yet.
Microphone
Capsule
Condenser
Polar Pattern
Omnidirectional
Acousitc Principle
Pressure gradient
Frequency Range
20Hz - 20kHz
Sensitivity
-34dB 20mV/Pa
Nominal Impedence
30 - 40Ω
Equivalent Noise
23dBA SPL
Maximum SPL
134dB
Power Requirement
5V Phantom power 48V Phantom power
Output Connection
TA5F
Physical
Dimensions (Ø x L)

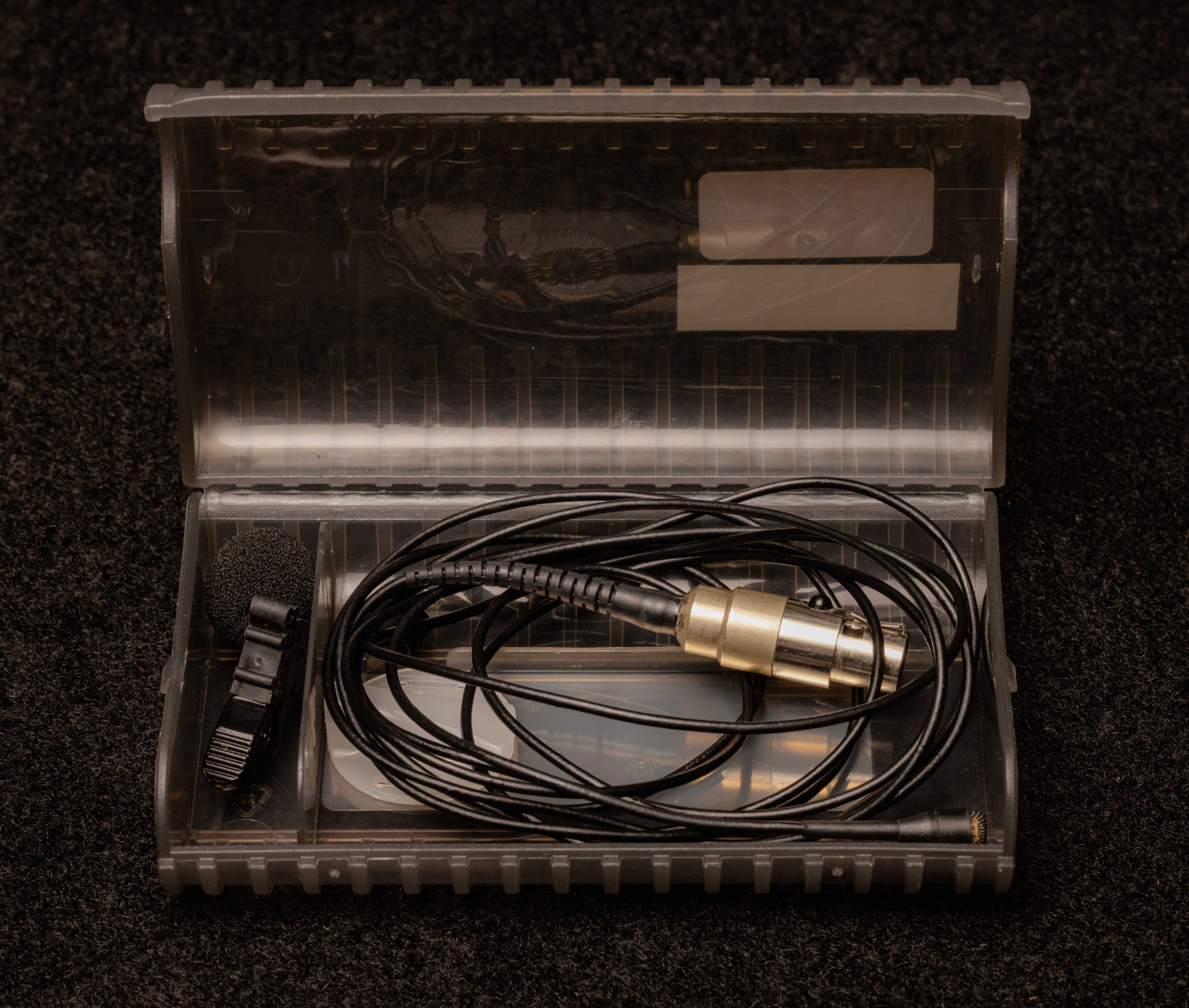

Microphone: 5.5mm x 1800mm. Transport case: 118 x 70 x 25mm.
Weight
Microphone: 19g. Transport case: 52g.
