The Canon XF405 is a compact and easy to use 4K UHD camcorder with an integrated 15X optical zoom lens (25.5-382.5mm equivalent in 35mm terms) and a comparatively large 1-inch sensor. It also records to easy to handle and widely available SD media.
The XF405 camera is ideal for a wide variety of experience levels. In full auto you can simply point the camera, press record and the camera will take care of the settings for you. Or if you want to finesse your footage some more, the manual control options let you achieve your desired look.

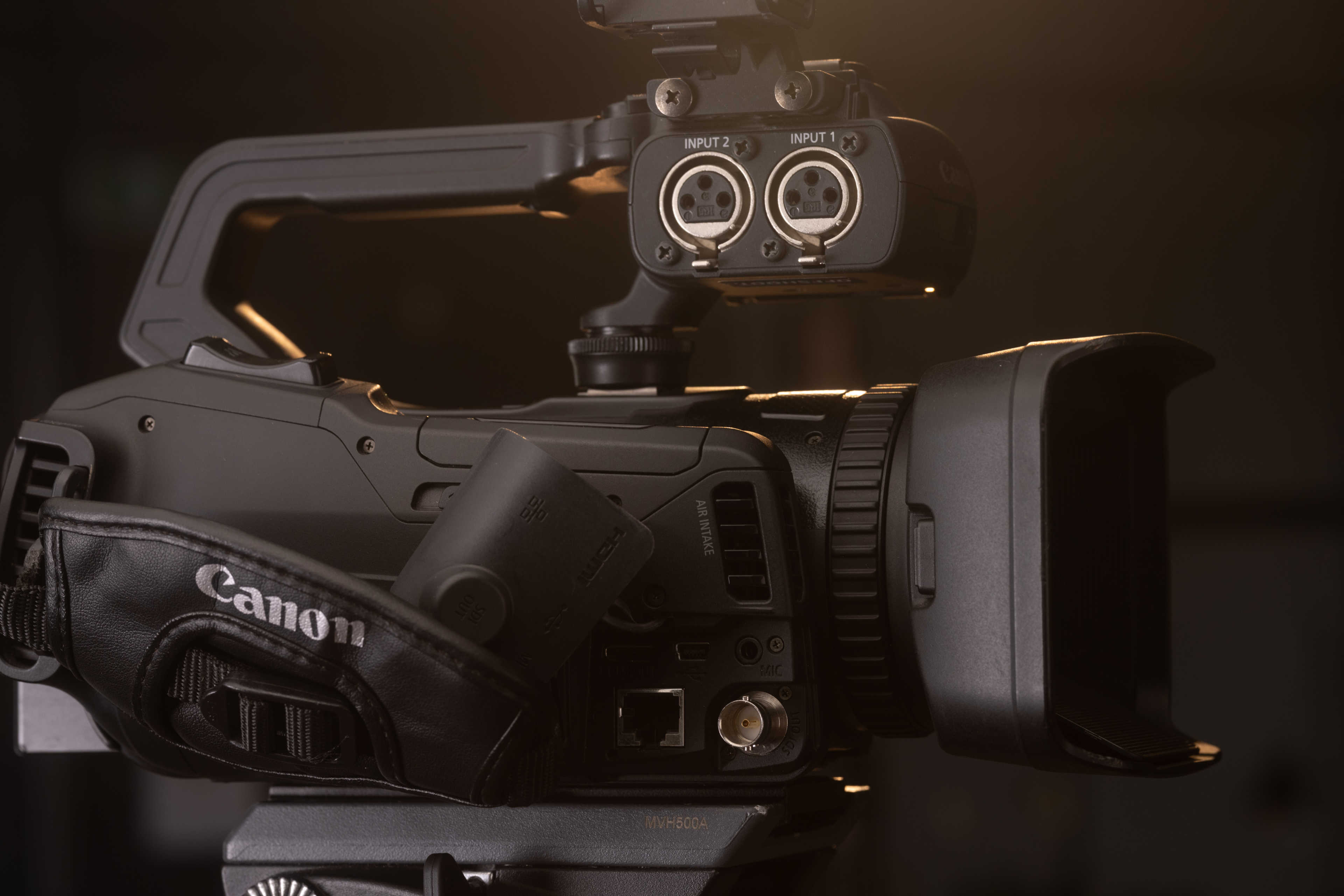

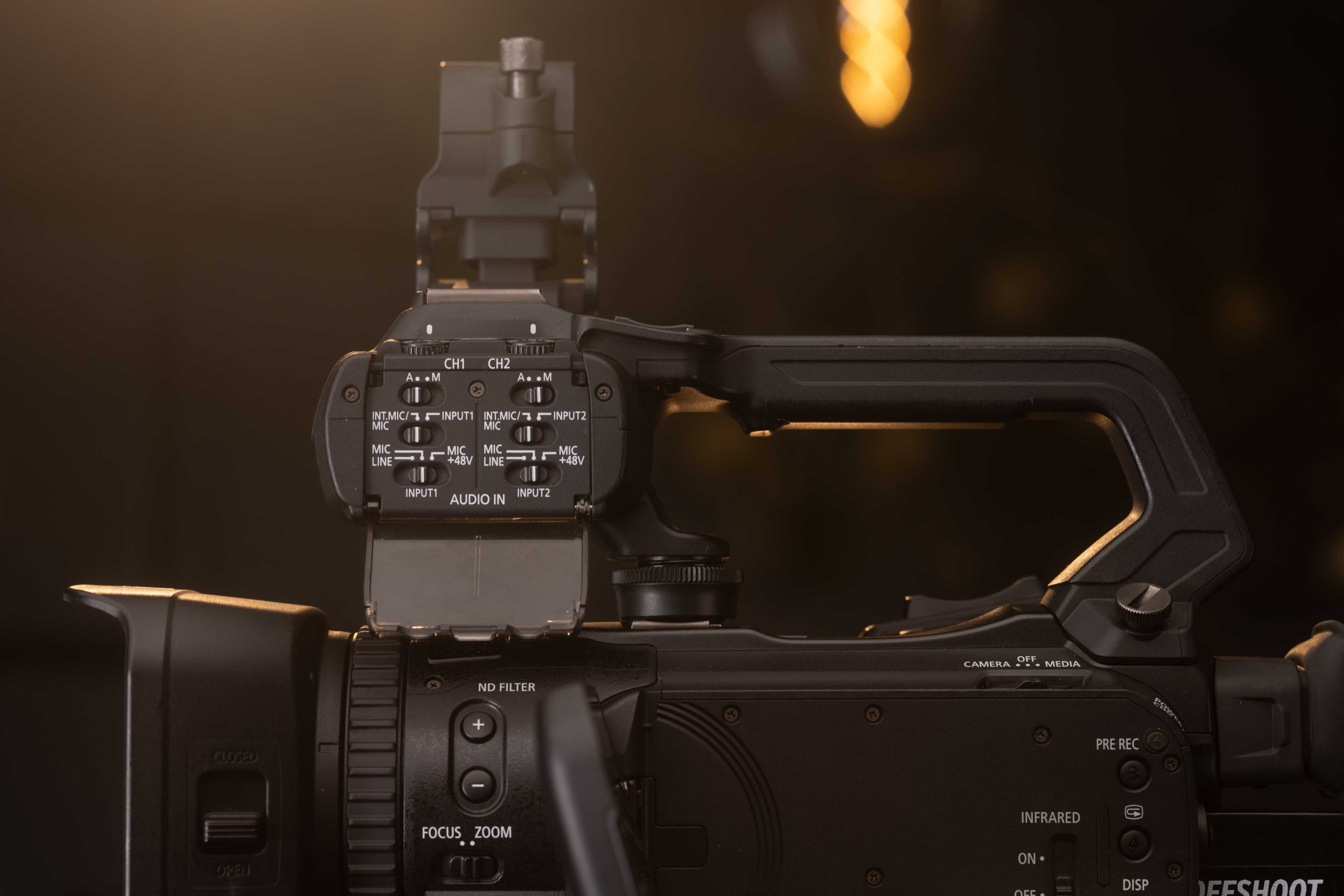

Audio recording is simple with an integrated 2 channel microphone and the ability to use external professional or prosumer microphones via the 3.5mm or two XLR inputs.
The camcorder features multiple focusing modes - from a manual focus ring to full auto with the help of Canon Dual Pixel autofocus. The XF405 also has facial tracking to ensure your subject always stays in focus even when moving around the frame.
The optical image stabilisation is also a huge strength of this camera and works great in conjunction with the autofocus, even at maximum zoom.
Jake from B&H introduces you to the Canon XF405 camcorder.
Learn how to configure the Canon XF405.
Learn about audio recording setup with the Canon XF405 camcorder.
Learn more about the Dual Pixel Autofocus feature of the Canon XF405.
Integrated Lens
Zoom Range
15X optical zoom lens.
Focal Length
8.3–124.5mm (35mm equivalent: 25.5–382.5mm)
Maximum Aperture
f/2.8 to 4.5
Imaging Sensor
Sensor Type
1.0-inch single plate CMOS sensor with Dual Pixel Autofocus
Sensor Size
4268 x 3148 total pixels
Maximum Resolution
3840 x 2160 pixels
Sensor Frame Rates
Up to 120 fps
Photosite Pitch
2.8 μm
Exposure Latitude
Not specified
Shutter
Electronic shutter. 1/24s - 1/2000s.
Media & Recording Formats
Recording Media
SDXC media
Supported Formats
XF-AVC. H.264.
Recording Resolutions
4K UHD - 3840 x 2160. Full HD - 1920 x 1080. HD - 1280 x 720.
Colour Coding
XF-AVC
8-bit YCbCr 4:2:0
H.264
8-bit YCbCr 4:2:2
Colour Spaces
Rec 709
LCD & EVF
LCD Monitor
8.92cm (3.5 inch) 1.56M dot touchscreen
EVF
6.1mm (diagonal) 1.56M dot LCD EVF
Audio
Recording Format
XF-AVC: Linear PCM (24-bit / 48kHz / 4 channels). MP4: Linear PCM (16-bit / 48 kHz / 4 channels).
Input
2x XLR. 3.5mm stereo mini jack. Line level, mic level, +48V phantom power supported.
Output
3,5mm stereo headphone jack. SDI (embedded). HDMI (embedded).
Built-in Mic
Yes - stereo electret condenser mic.
Other I/O
SDI Out
SDI - 3G SDI
HDMI Out
HDMI Type C (mini)
Timecode
None.
Genlock / Sync
None.
Power
DC Input
7.4V via BP-828 battery. 8.4V via DC in.
Battery Options
Canon BP-828.
Consumption
Approx 8W average consumption.
Aux Outputs
None.
Physical
Dimensions
135 x 97 x 214 mm (camcorder only)
Weight
1.67kg (with handle and battery)
