Canon EOS 5DSR Kit
The Canon 5DSR packs a 50.6 megapixel sensor into a familiar DSLR body. This means you get images with resolution rivalling some medium format systems, while still being able to use the huge range of EF mount lenses, an advanced autofocus system, and a familiar workflow.
Full resolution RAW files from the 5DSR are about 60MB in size.
The 5DSR does not use a low pass filter. Low pass filters (LPFs) help reduce aliasing / moire that can appear in some images created by digital imaging sensors. The downside to LPFs is that they reduce resolution (sharpness).
When you don't need the full 50.6MP resolution of the 5DSR, you can choose to shoot in M-RAW (28MP) or S-RAW (12.4MP) resolutions. As with other Canon professional DSLRs, you can also shoot in a variety of RAW+JPEG or JPEG only modes.
The 5DSR also comes with a convenient USB3 and HDMI port protector, which is great for shooting tethered.
Introduction
Canon USA introduces you to the Canon EOS 5DSR (and 5DS).
Jared Polin - Real World Review
Jared Polin takes the Canon EOS 5DSR to the Grand Canyon and shares his thoughts on the camera.
Lens Mount
Mount Options
Canon EF
Imaging Sensor
Sensor Size
35mm full-frame (36 × 24 mm).
Sensor Type
CMOS
Sensor Aspect Ratio
3:2
Megapixel Count
Actual: 53 Effective: 50.6
Image Engine
Dual Digic 6
Image Stabilisation
None
Still Images
Image Formats
JPEG, RAW.
Bit Depth
Up to 14 bit RAW.
Continuous Shooting
High-speed: Max 5/sec Low-Speed: Max 3/sec Silent: Max 3/sec
Interval Recording
Yes (Integrated)
Self Timer
2 or 10-second delay.
Aspect Ratios
3:2 / 3:2 (1.3x crop) / 3:2 (1.6x crop) / 4:3 / 16:9 / 1:1
Image Size (3:2) 35mm Full Frame
L: 8688 x 5792 (50M). M1: 7680 x 5120 (39M). M2: 5760 x 3840 (22M). S1: 4320 x 2880 (12M). S2: 1920 x 1280 (2.5M). S3: 720 x 480 (0.3m).
Image Size (3:2) 1.3x Crop
L: 6768 x 4512 (30.5M). M1: 6016 x 4000 (24.1M). M2: 4512 x 3008 (13.6M). S1: 3376 x 2256 (7.6M). S2: 1920 x 1280 (2.5M). S3: 720 x 480 (0.3M).
Image Size (3:2) 1.6x Crop
L: 5424 x 3616 (19.6M). M1: 4800 x 3200 (15.4M). M2: 3616 x 2408 (8.7M). S1: 2704 x 3200 (4.9M). S2: 1920 x 1280 (2.5M). S3: 720 x 480 (0.3M).
Image Size (4:3) 35mm Full Frame
L: 7712 x 5792 (44.7M). M1: 6816 x 5120 (34.9M). M2: 5120 x 3840 (19.7M). S1: 3840 x 2880 (11.1M). S2: 1712 x 1280 (2.2M). S3: 640 x 480 (0.3M).
Image Size (16:9) 35mm Full Frame
L: 8688 x 4888 (42.5M). M1: 7680 x 4320 (33.2M). M2: 5760 x 3420 (18.7M). S1: 4320 x 2432 (10.5M) S2: 1920 x 1080 (2.1M). S3: 720 x 480 (0.3M).
Image Size (1:1) 35mm Full Frame
L: 5792 x 5792 (33.5M). M1: 5120 x 5120 (26.2M). M2: 3840 x 3840 (14.7M). S1: 2880 x 2880 (8.3M). S2: 1280 x 1280 (1.6M). S3: 480 x 480 (0.2M).
Internal Video Recording (64GB Card)
Video Recording Limit
Up to 29 mins, 59 seconds.
Recording Resolutions
Full HD - 1920 x 1080 (16:9). HD - 1280 x 720 (16:9). SD - 640 x 480 (4:3).
MOV Full HD 8-bit 4:2:0 - All-I
24p / 25p / 30p (90Mb/s) - 88 mins.
MOV Full HD 8-bit 4:2:0 - IPB
24p / 25p / 30p (30Mb/s) - 266 mins.
MOV HD 8-bit 4:2:0 - All-I
50p / 60p (80Mb/s) - 100 mins.
MOV HD 8-bit 4:2:0 - IPB
50p / 60p (27Mb/s) - 296 mins.
SD HD 8-bit 4:2:0 - IPB
25p / 30p (10Mb/s) - 769 mins.
Exposure Control
ISO Range
ISO 100 - 6,400 (50 - 12,800 in extended mode).
Exposure Modes
Aperture priority / Shutter priority / Manual / Program.
Metering Methods
Center-weighted / Spot / Evaulative / Partial.
Exposure Compensation
-3 to +3 EV (1/3, 1/2 EV steps).
Metering Range
0 to 20 EV.
White Balance
AWB (Ambience priority/White priority) / Daylight / Shade / Cloudy / Tungsten light / White Fluorescent light / Flash / Sunset / Twilight / Custom.
Focus
Focus Type
Auto and Manual Focus
Focus Modes
Automatic (A), Full-Time Servo (F), Single Servo (S), Manual Focus (M).
Focus Points
61 points (phase-detection AF).
Subject Tracking
None
Autofocus Sensitivity
-2 to +18 EV.
Media
Supported Media

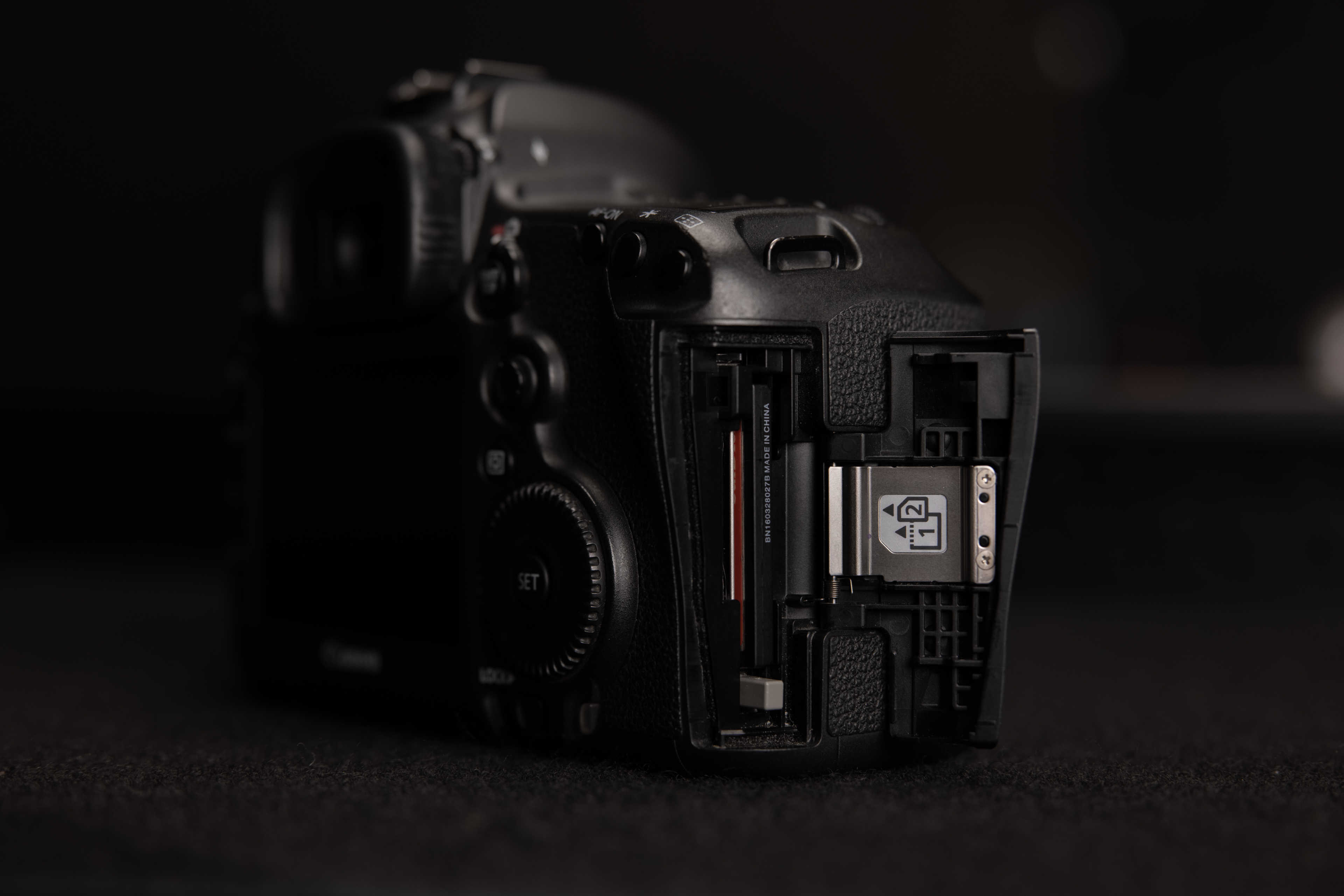

CompactFlash Type I (UDMA 7 compatible) (Incompatible with Type II and Microdrive) and SD / SDHC / SDXC and UHS-I
Media Slots
Slot 1: CompactFlash. Slot 2: SD / SDHC / SDXC.
Viewfinder + Monitor
Viewfinder Type
Pentaprism (optical)
Viewfinder Diopter Adjustment
-3 to +1
Viewfinder Magnification
Approximately 0.71x.

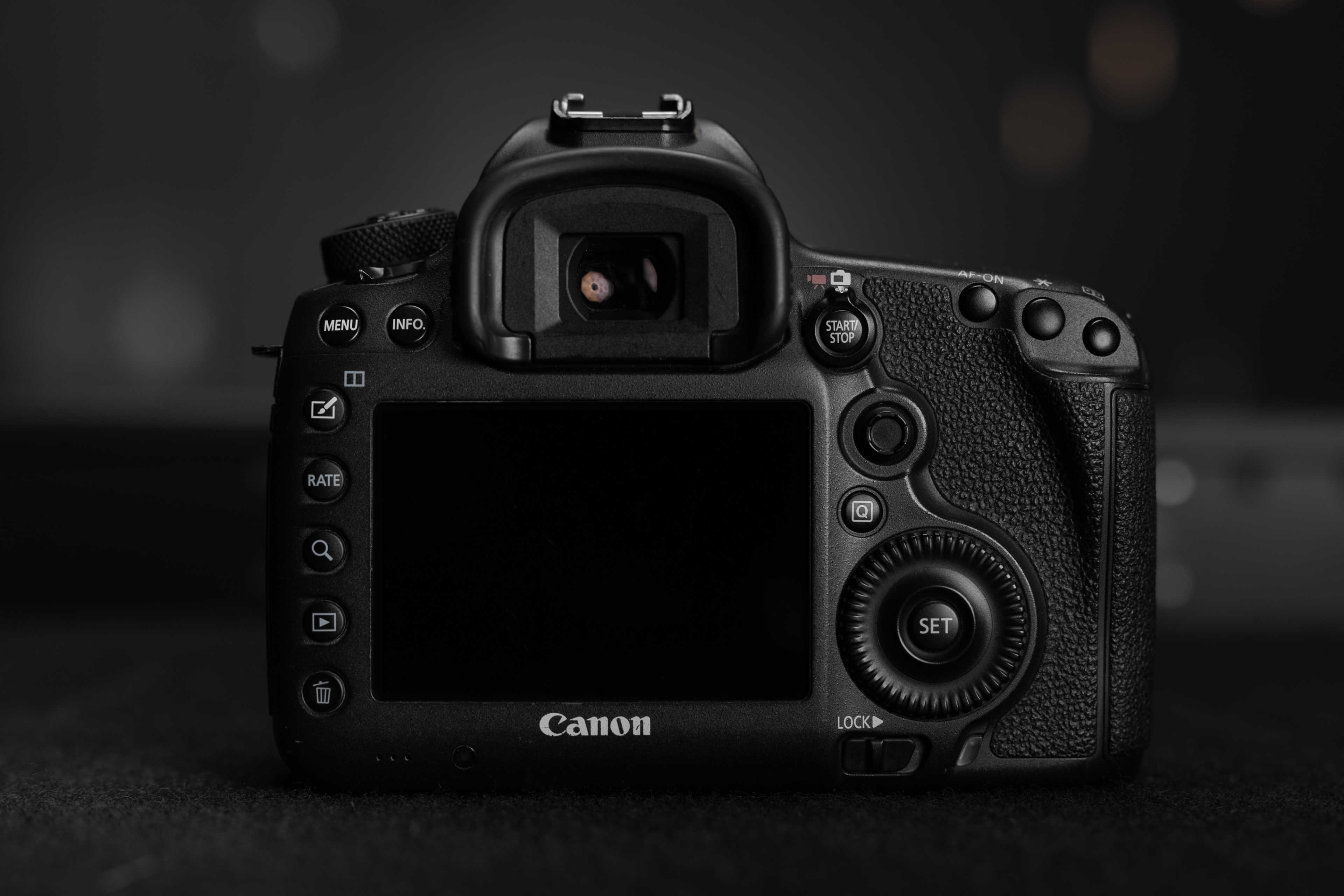

Monitor Type
3.2" 1.04 million dot fixed LCD
Flash
Built In Flash
None
Max Sync Speed
1/250s
Flash Compensation
-3 to +3 EV (1/3, 1/2 EV steps).
External Flash Connection
Hot shoe, PC Sync.
Connectivity
HDMI
HDMI type C (micro).
Audio In
3.5mm mini-jack.
Headphone Output
None
USB
USB micro B
Wireless
None
GPS
No
Physical
Dimensions
152mm x 117mm x 76mm.
Weight
950g with battery and media.
Operating Temperature
0 to 40°C
