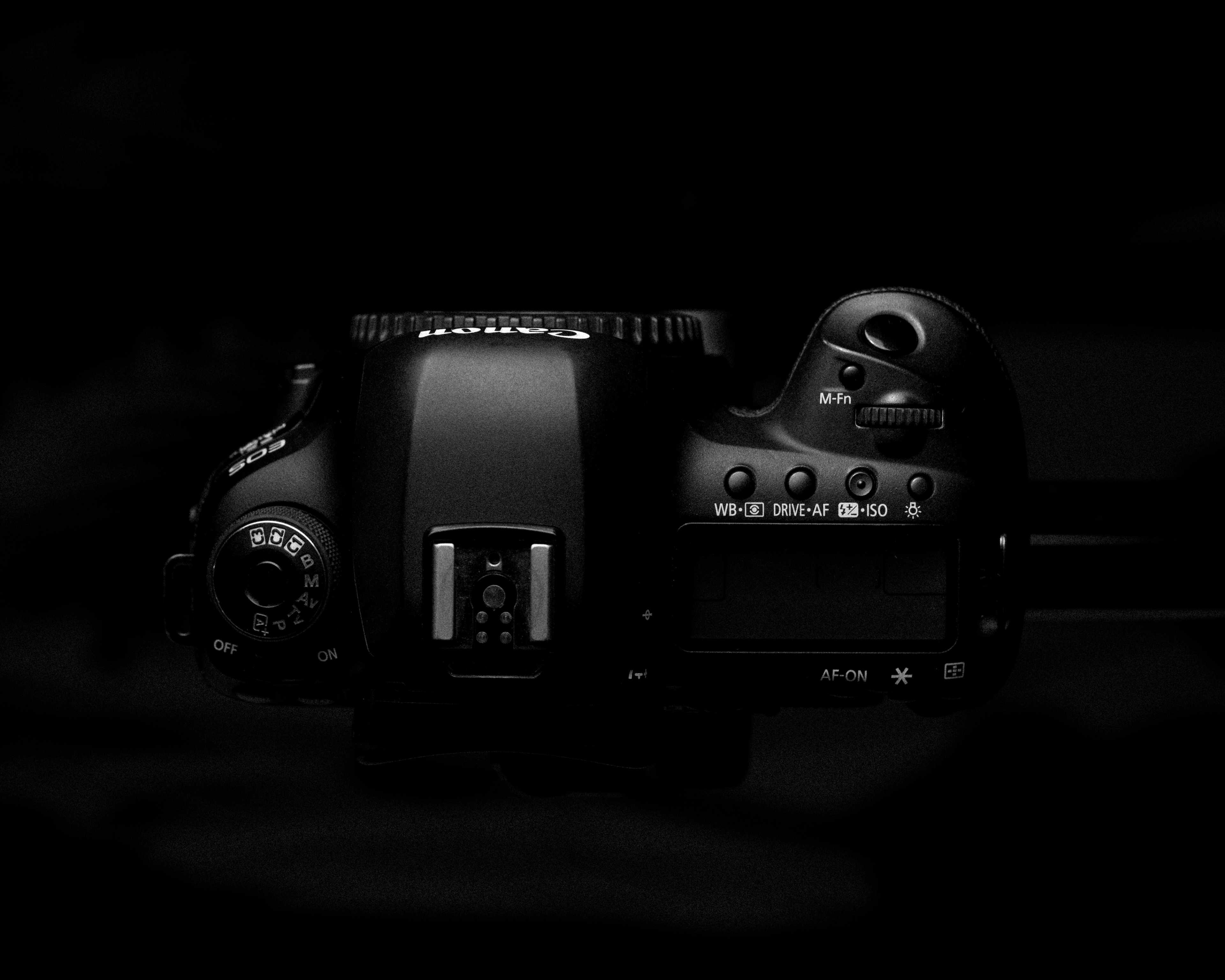

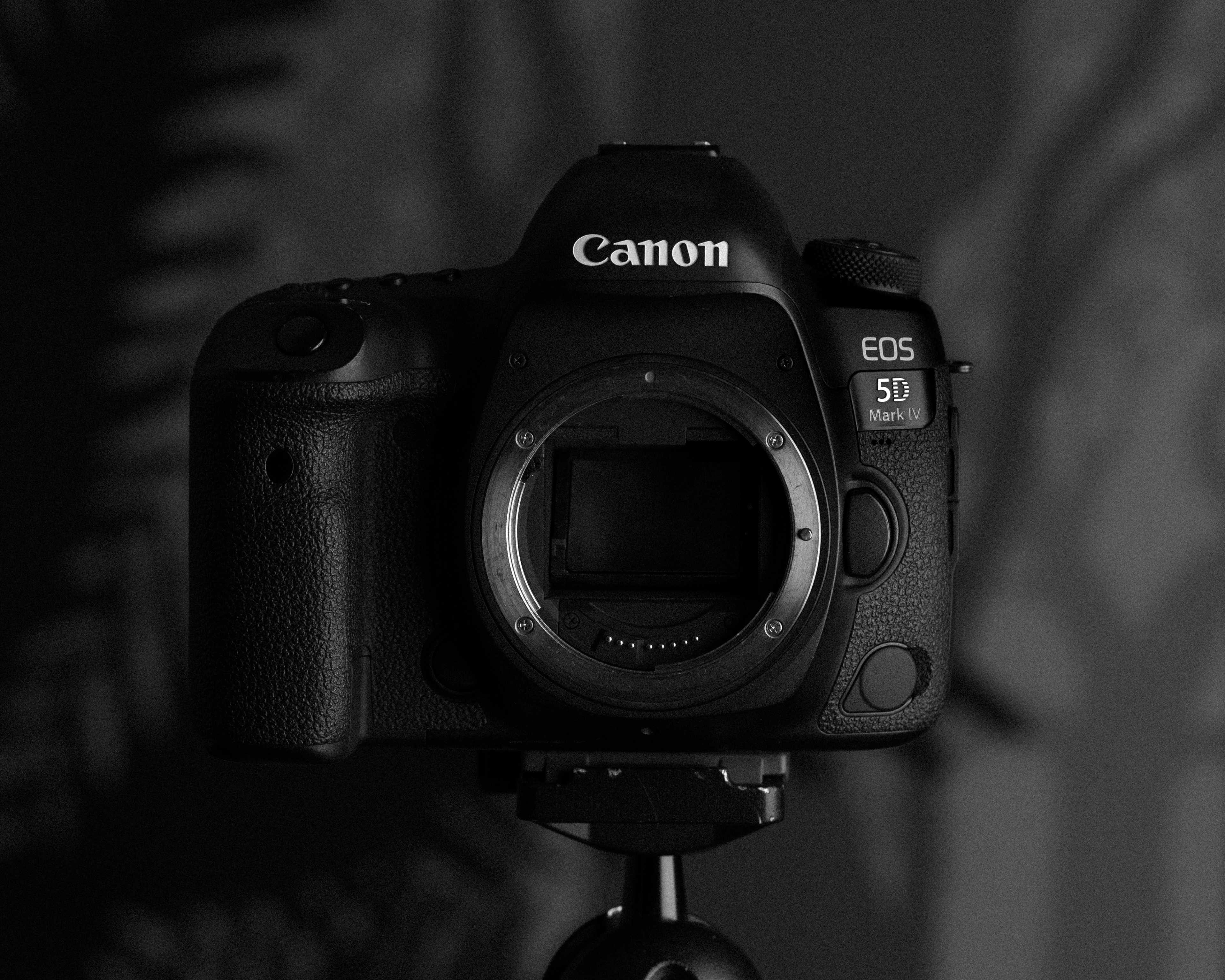

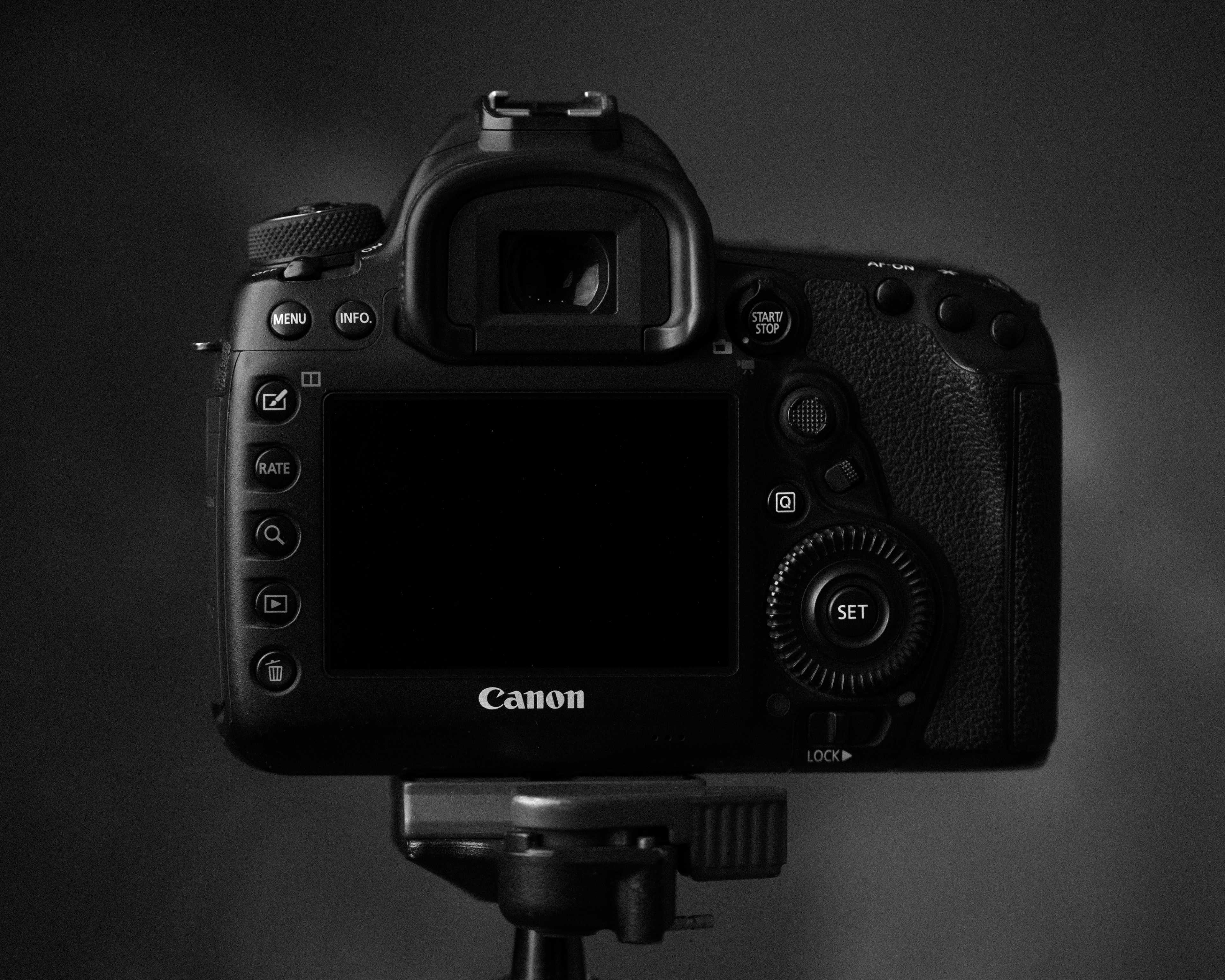

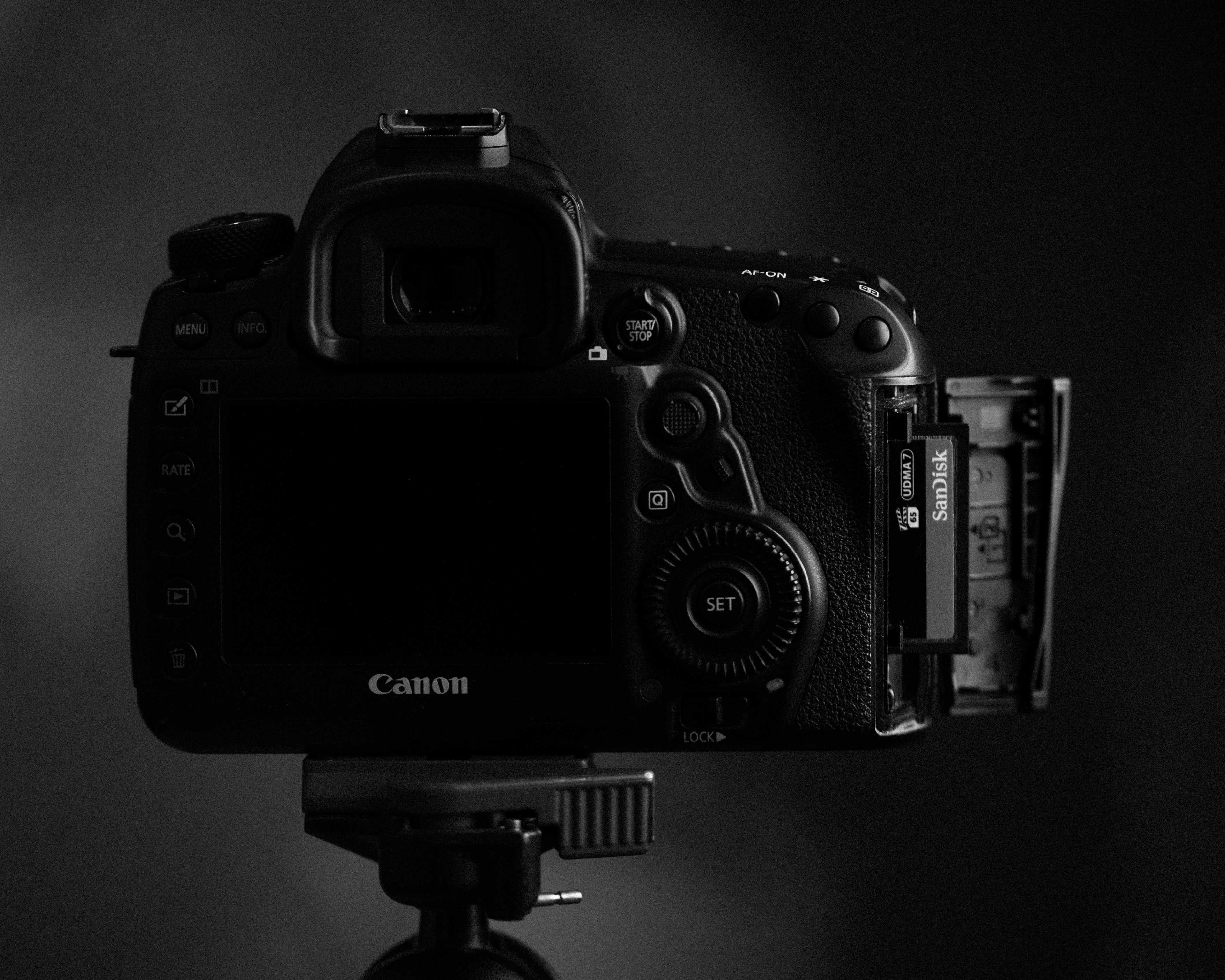

Canon EOS 5D Mark IV Kit
For those who prefer an optical viewfinder for stills photography, the Canon 5D mark IV continues to be popular. A newly designed full frame sensor gives a highly detailed 30.4 megapixel image and 4K video up to 30fps, and 1080p video up to 60fps.
Other features not common on earlier models include Wi-Fi, GPS, NFC, and in-built intervalometer, dual pixel autofocus and a 3.2” touch screen.
Tutorial
Tony Northrup helps you get familiar with the Canon 5D mark IV.
Jared Polin - Real World Review
Jared Polin walks you through some features of the Canon 5D IV while using it on a photoshoot.
5D IV For Video
A quick look at some of the things to consider if you're looking to shoot video with the Canon 5D IV.
Lens Mount
Mount Options
Canon EF.
Imaging Sensor
Sensor Size
35mm full-frame (36 × 24 mm).
Sensor Type
CMOS
Sensor Aspect Ratio
3:2
Megapixel Count
Actual: 31.7 Effective: 30.4
Image Engine
Digic 6+
Image Stabilisation
None
Still Images
Image Formats
JPEG, RAW.
Bit Depth
Up to 14 bit RAW.
Continuous Shooting
Approx. 7fps for unlimited JPEG's or 21 RAW images
Interval Recording
Yes (Integrated)
Self Timer
2 or 10-second delay.
Aspect Ratios
3:2 / 16:9 / 1:1
Image Size (3:2) 35mm Full Frame
L: 6720 x 4480 (30.1M). M1: 4464 x 2976 (13.2M). S1: 3360 x 2240 (7.5M). S2: 1696 x 1280 (2.1M). S3: 640 x 480 (0.3M).
Image Size (4:3) 35mm Full Frame
L: 5952 x 4480 (26.6M). M1: 3968 x 2976 (11.8M). S1: 2976 x 2240 (6.6M). S2: 1920 x 1280 (2.4M). S3: 720 x 480 (0.3M).
Image Size (16:9) 35mm Full Frame
L: 6720 x 3776 (25.3M). M1: 4464 x 2512 (11.2M). S1: 3360 x 1888 (6.3M). S2: 1920 x 1080 (2.0M). S3: 720 x 408 (0.3M).
Image Size (1:1) 35mm Full Frame
L: 4480 x 4480 (20.0M). M1: 2976 x 2976 (8.8M). S1: 2240 x 2240 (5.0M). S2: 1280 x 1280 (1.6M). S3: 480 x 480 (0.2M).
Internal Video Recording (64GB Card)
Video Recording Limit
Up to 29 mins, 59 seconds.
Recording Resolutions
8K DCI - 8192 x 4320 (17:9) 8K UHD - 7680 x 4320 (16:9) 4K DCI - 4096 x 2160 (17:9) 4K UHD - 3840 x x2160 (16:9) Full HD - 1920 x 1080 (16:9)
MOV 4K 8-bit 4:2:2 - Motion JPEG
23.98p / 24p / 25p / 29.97p (500Mb/s) - 16 mins.
MOV Full HD 8-bit 4:2:0 - All-I
23.98p / 24p / 25p / 29.97p (90Mb/s) - 88 mins. 50p / 59.94p (180Mb/s) - 44 mins.
MOV Full HD 8-bit 4:2:0 - IPB
23.98p / 24p / 25p / 29.97p (30Mb/s) - 266 mins. 50p / 59.94p (60Mb/s) - 133 mins.
MOV HD 8-bit 4:2:0 - All-I
100p / 119.9p (160Mb/s) - 50 mins.
MP4 Full HD 8-bit 4:2:0 - IPB
23.98p / 24p / 25p / 29.97p (30Mb/s) - 266 mins. 50p / 59.94p (60Mb/s) - 133 mins.
MP4 Full HD 8-bit 4:2:0 - IPB Light
25p / 29.97p (12Mb/s) - 668 mins.
Exposure Control
ISO Range
ISO 100 - 32,000 (50 - 102,400 in extended mode).
Exposure Modes
Auto / Aperture priority / Shutter priority / Manual / Program / Bulb.
Metering Methods
Center-weighted / Spot / Evaulative / Partial.
Exposure Compensation
-5 to +5 EV (1/3, 1/2 EV steps).
Metering Range
0 to 20 EV.
White Balance
AWB (Ambience priority/White priority) / Daylight / Shade / Cloudy / Tungsten light / White Fluorescent light / Flash / Custom.
Focus
Focus Type
Auto and Manual Focus
Focus Modes
Automatic (A), Full-Time Servo (F), Single Servo (S), Manual Focus (M).
Focus Points
61 points (phase-detection AF).
Subject Tracking
None
Autofocus Sensitivity
-2 to +18 EV.
Media
Supported Media
CompactFlash Type I (UDMA 7 compatible) (Incompatible with Type II and Microdrive) and SD / SDHC / SDXC and UHS-I
Media Slots
Slot 1: CompactFlash. Slot 2: SD / SDHC / SDXC.
Viewfinder + Monitor
Viewfinder Type
Pentaprism (optical)
Viewfinder Diopter Adjustment
-3 to +1
Viewfinder Magnification
Approximately 0.71x.
Monitor Type
3.2" 1.6 million dot fixed touchscreen.
Flash
Built In Flash
None
Max Sync Speed
1/200s
Flash Compensation
-3 to +3 EV (1/3, 1/2 EV steps).
External Flash Connection
Hot shoe, PC terminal.
Connectivity
HDMI
HDMI type C (mini).
Audio In
3.5mm mini-jack.
Headphone Output
3.5mm mini-jack.
USB
USB Micro B.
Wireless
Wi-Fi, Bluetooth
GPS
Yes
Physical
Dimensions
150.7mm x 116.4mm x 75.9mm.
Weight
890g with battery and media.
Operating Temperature
0 to 40°C
