Canon CN-E Set (6)

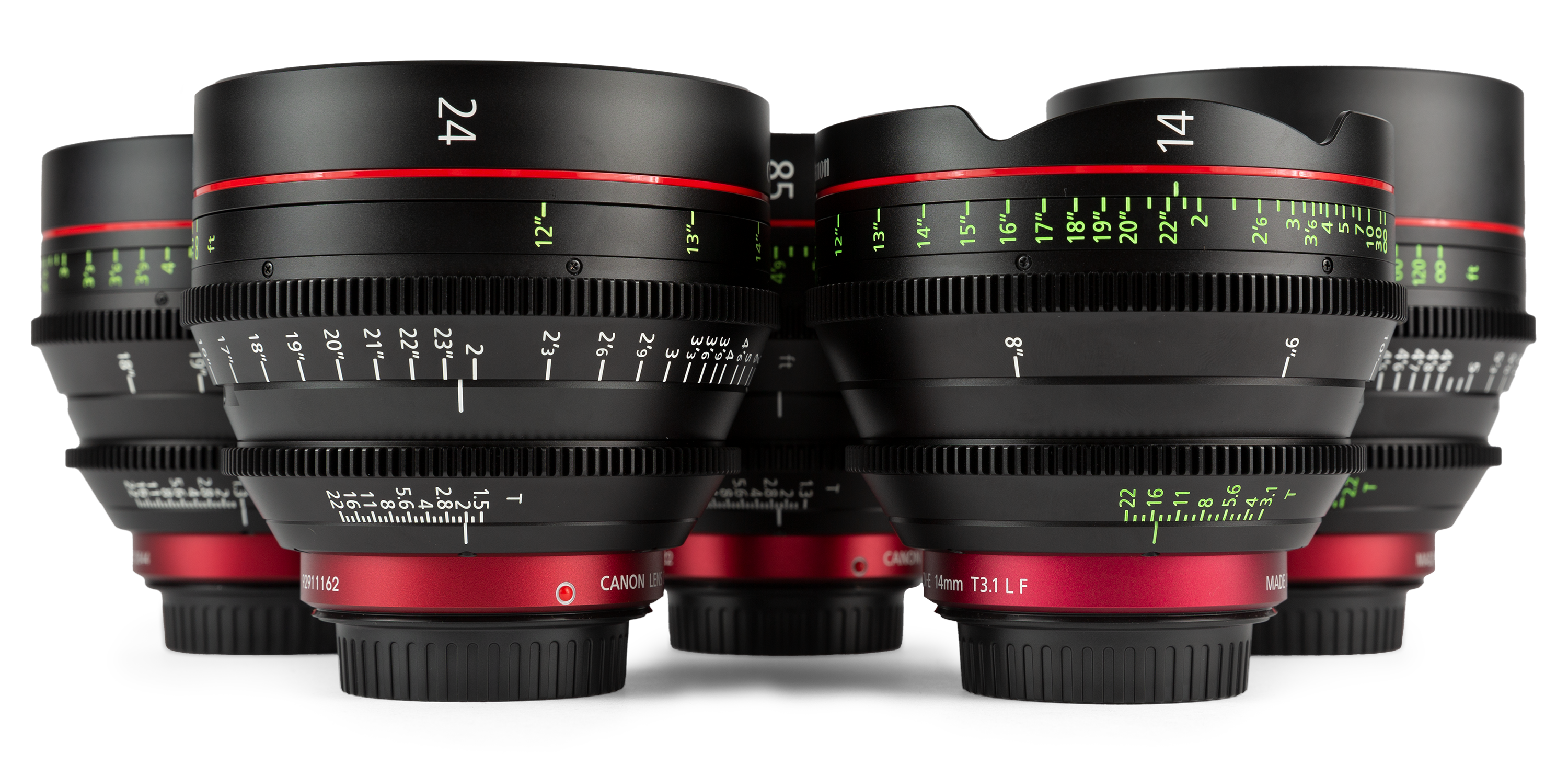

The CN-E cinema primes from Canon cover 35mm full frame sensors and are designed for 4K+ acquisition. The set includes 14mm T3.1, 24mm T1.5, 35mm T1.5, 50mm T1.3, 85mm T1.3 and 135mm T2.2 EF mount lenses.

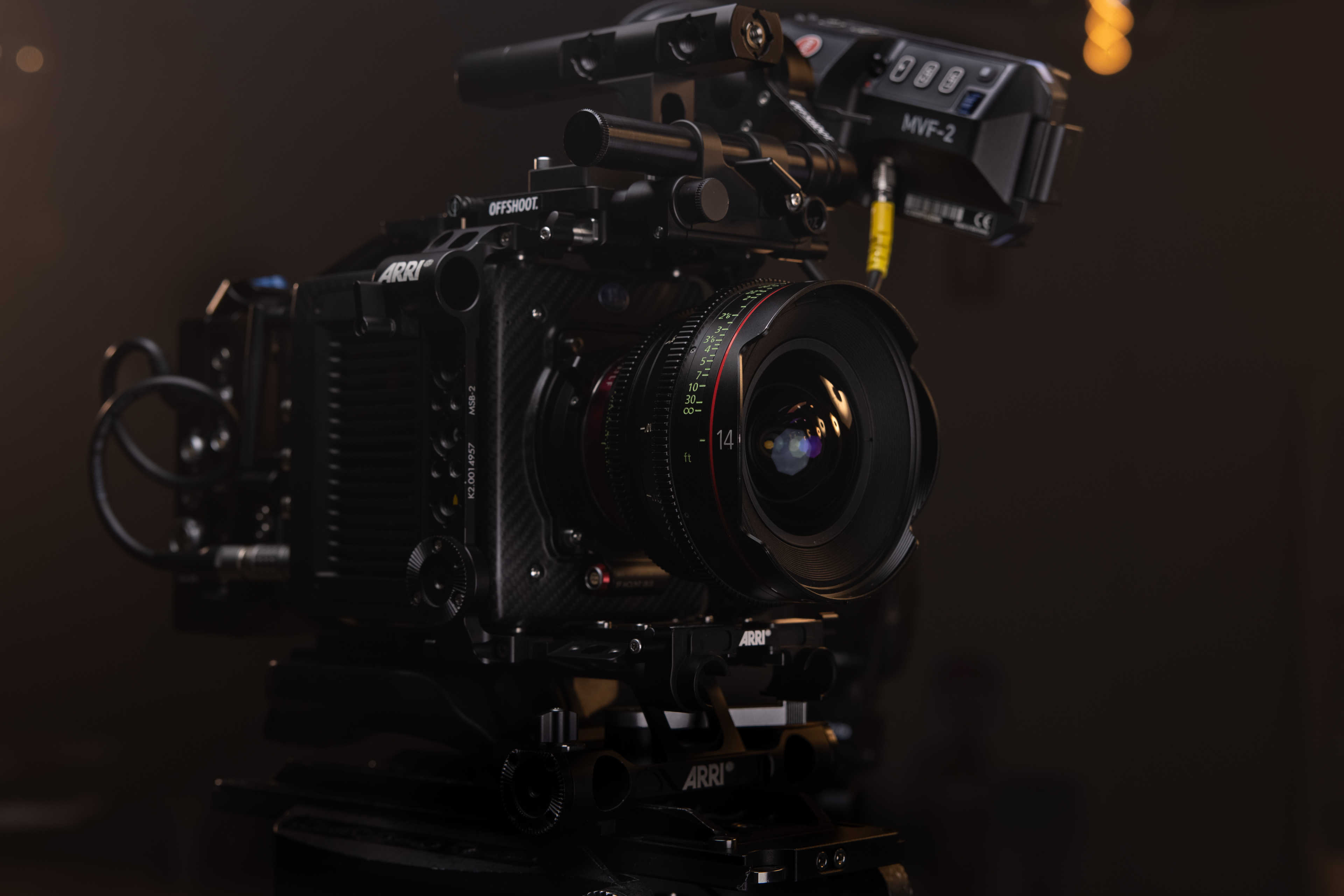

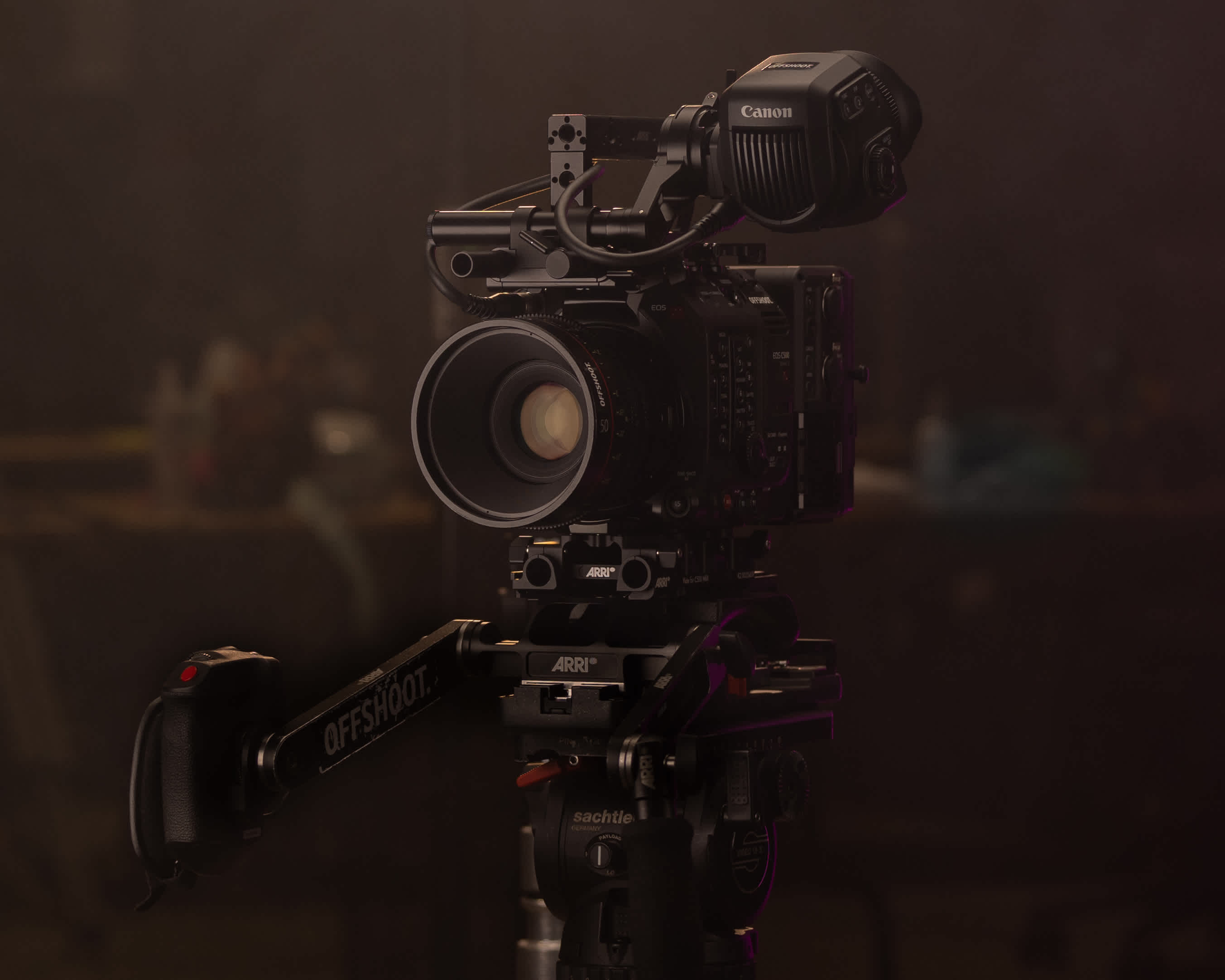

Ideal for use on a wide range of digital cameras, including Canon, Arri, RED, Blackmagic and Sony. These lenses easily cover full frame sensors with their 43mm image circle.
The CN-E set features consistent 114mm front diameters, focus and iris ring placement throughout and the 300° focus throw helps with smooth focus pulls.
Prime Lens Comparison
Quite an interesting look at the dharacteristics of the Canon 24mm CN-E compared to the equivalent Cooke S4, Leica R and Xeen lenses.
Optical
Focal Length
14mm 24mm 35mm 50mm 85mm 135mm
Minimum Focus Distance
14mm: 0.20m (8") 24mm: 0.30m (12") 35mm: 0.30m (12") 50mm: 0.45m (1' 6") 85mm: 0.96m.(3' 2") 135mm: 1.00m (3' 3")
Maximum Aperture
14mm: T3.1 24mm: T1.5 35mm: T1.5 50mm: T1.3 85mm: T1.3 135mm: T2.2
Minimum Aperture
14mm: T22 24mm: T22 35mm: T22 50mm: T22 85mm: T22 135mm: T22
Image Circle
14mm: 43mm 24mm: 43mm 35mm: 43mm 50mm: 43mm 85mm: 43mm 135mm: 43mm
Physical
Lens Mount
Canon EF
Metadata
Canon
Focus / Iris Gear Pitch
0.8 mod
Front Diameter
14mm: 114mm 24mm: 114mm 35mm: 114mm 50mm: 114mm 85mm: 114mm 135mm: 114mm
Focus Ring Rotation
14mm: 300° 24mm: 300° 35mm: 300° 50mm: 300° 85mm: 300° 135mm: 300°
Dimensions (Ø x L)
14mm: 114mm x 94mm 24mm: 114mm x 102mm 35mm: 114mm x 102mm 50mm: 114mm x 102mm 85mm: 114mm x 102mm 135mm: 114mm x 116mm
Weight
14mm: 1.2kg 24mm: 1.2kg 35mm: 1.1kg 50mm: 1.1kg 85mm: 1.3kg 135mm: 1.4kg
Transport Case
Dimensions: 500mm x 350mm x 220mm. Weight (with lenses): 14kg
