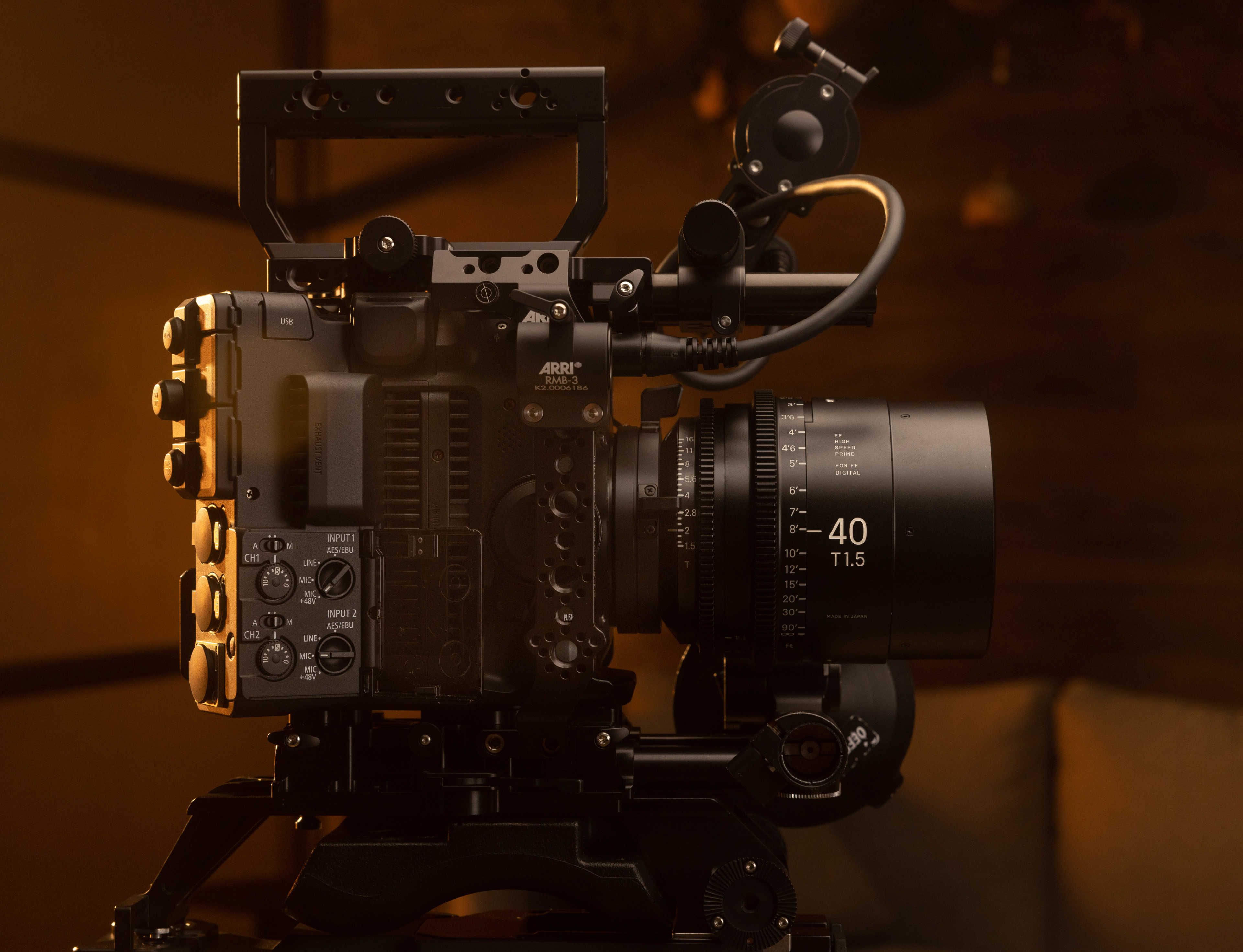

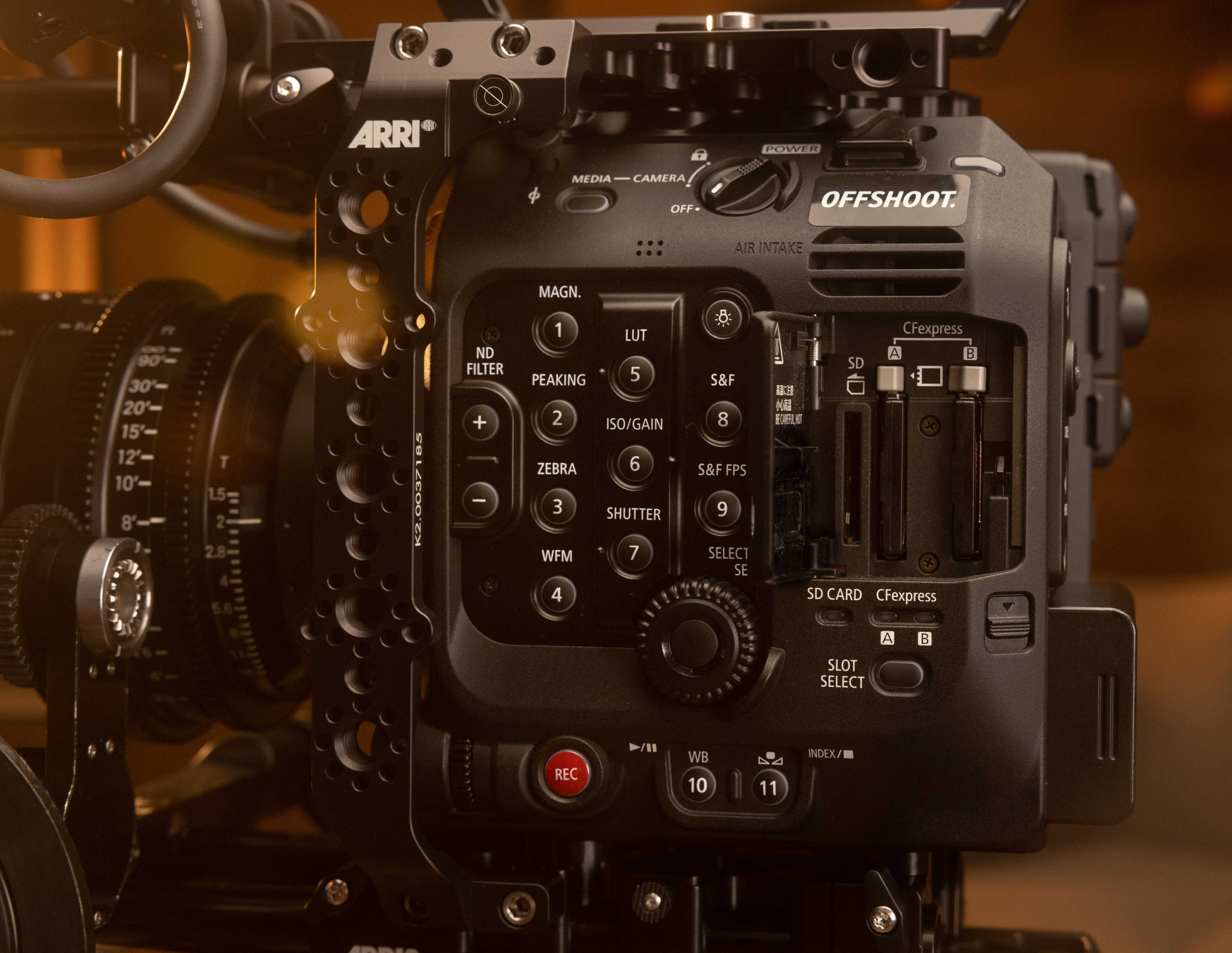

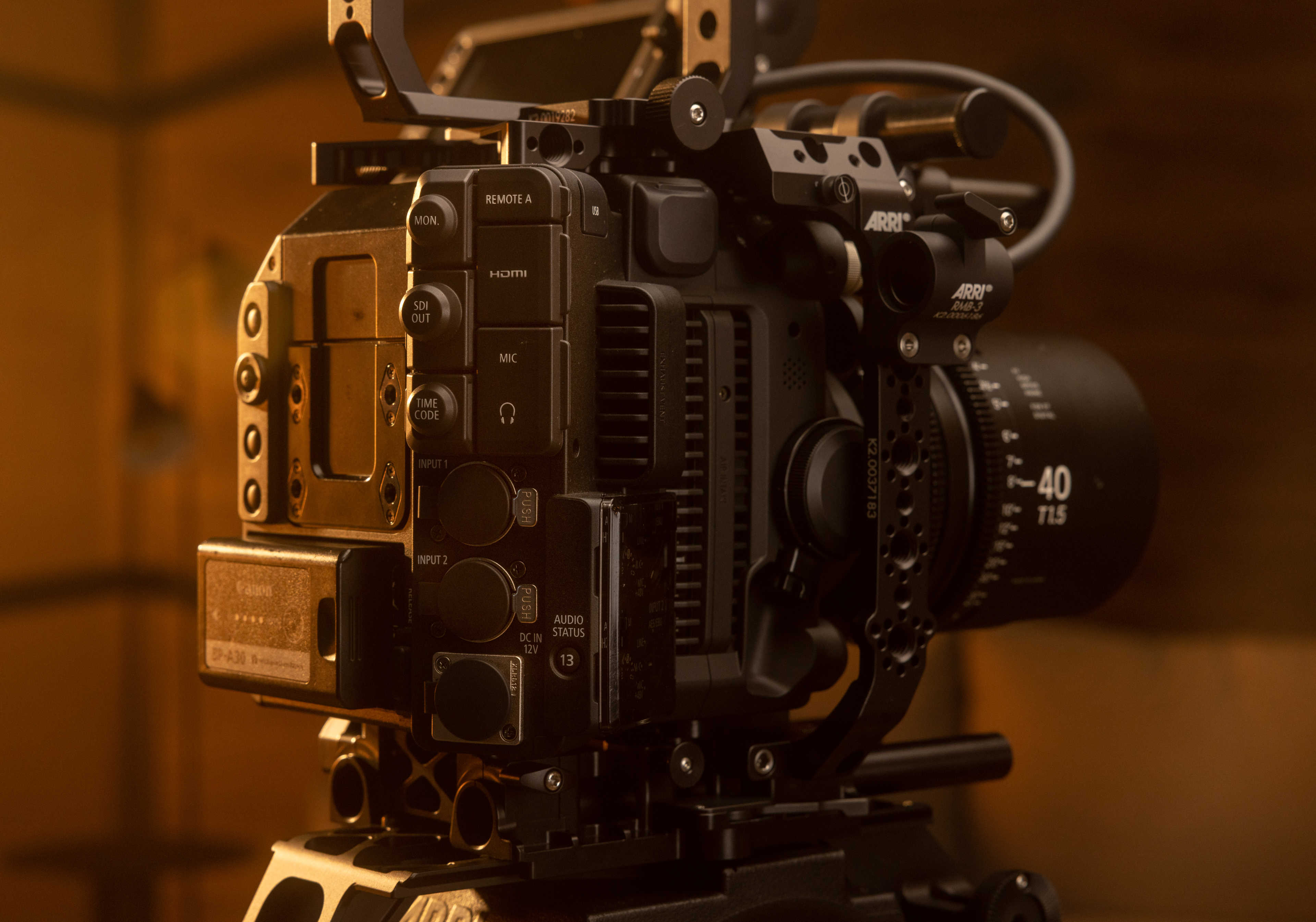

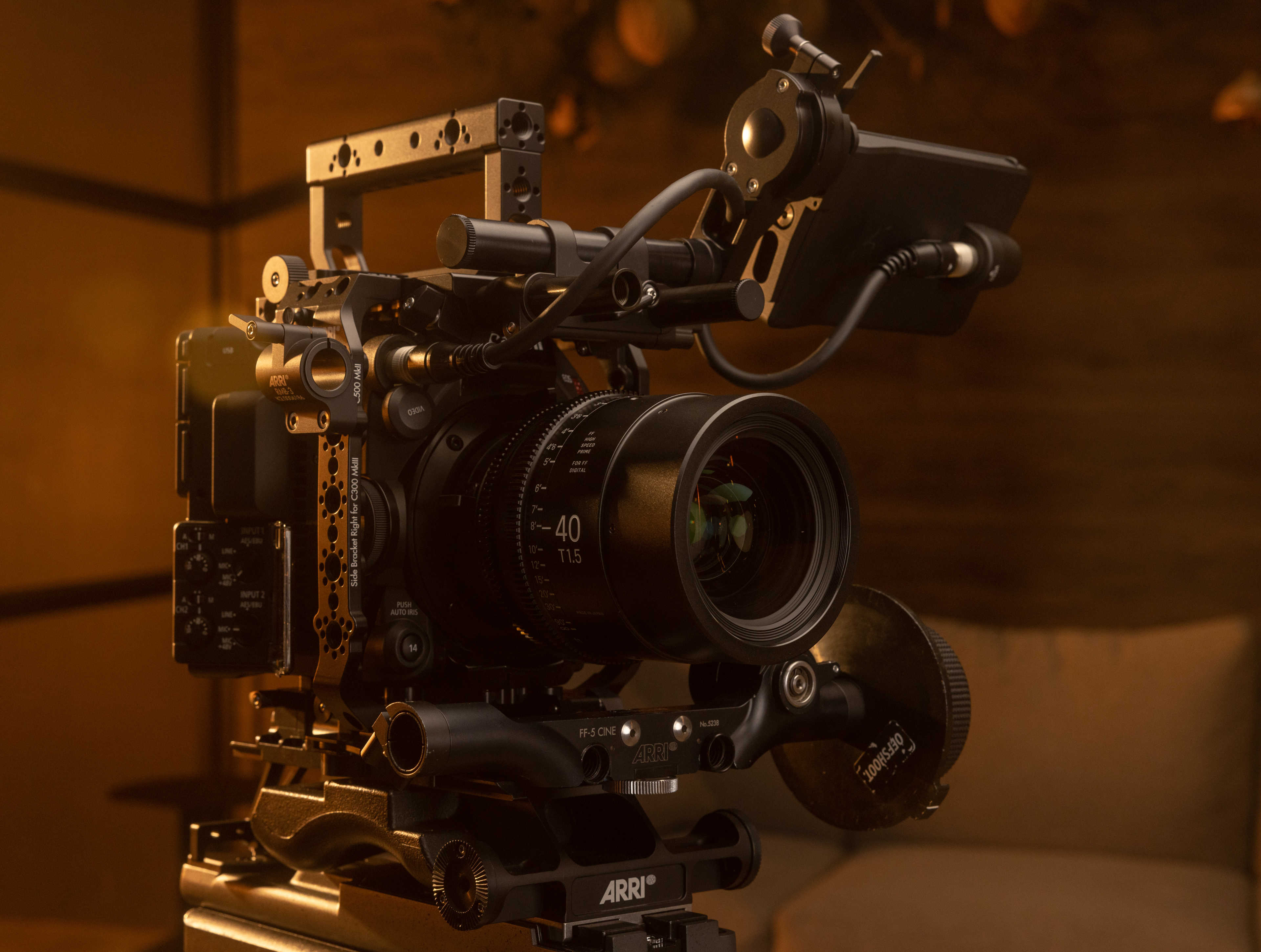

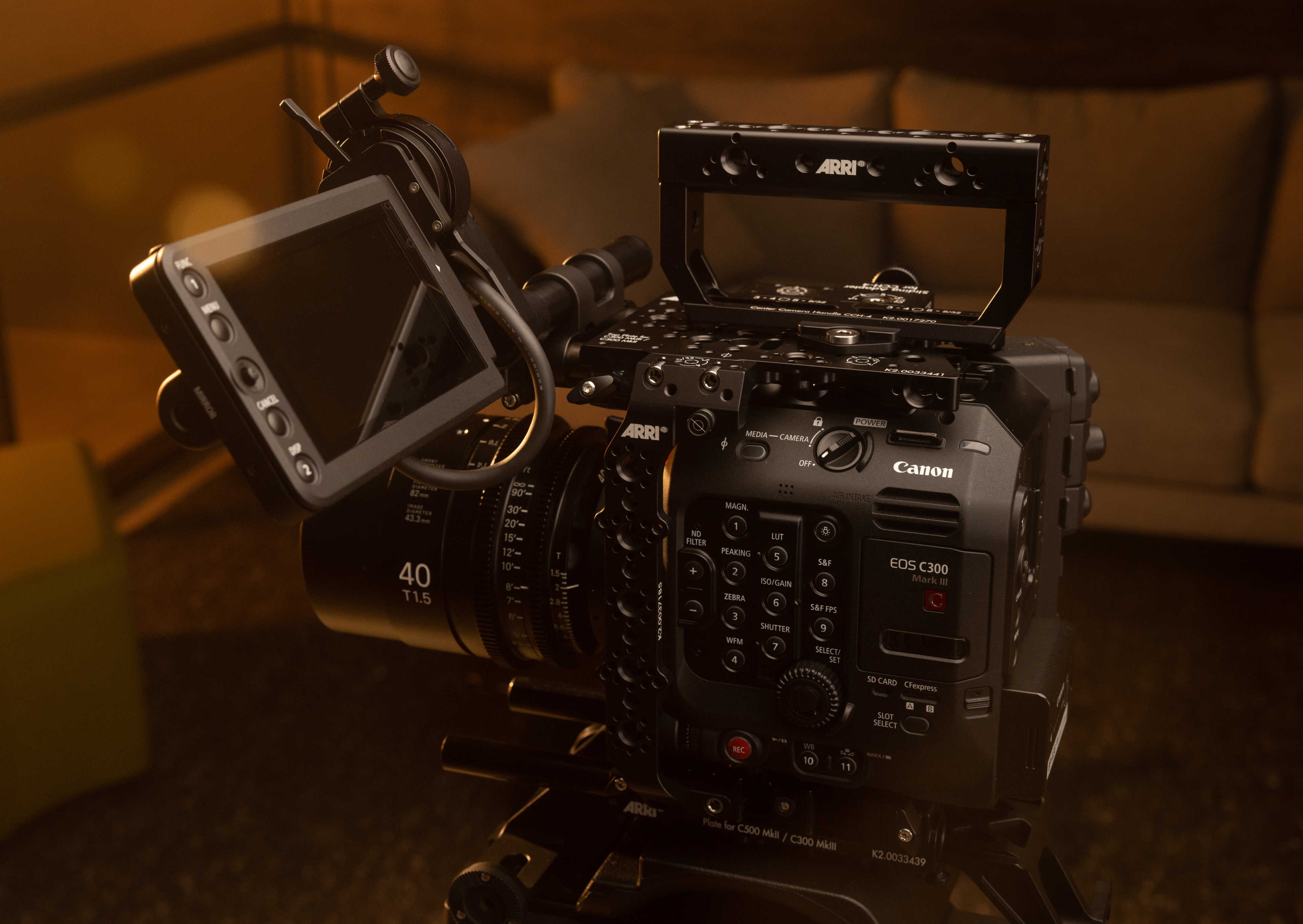

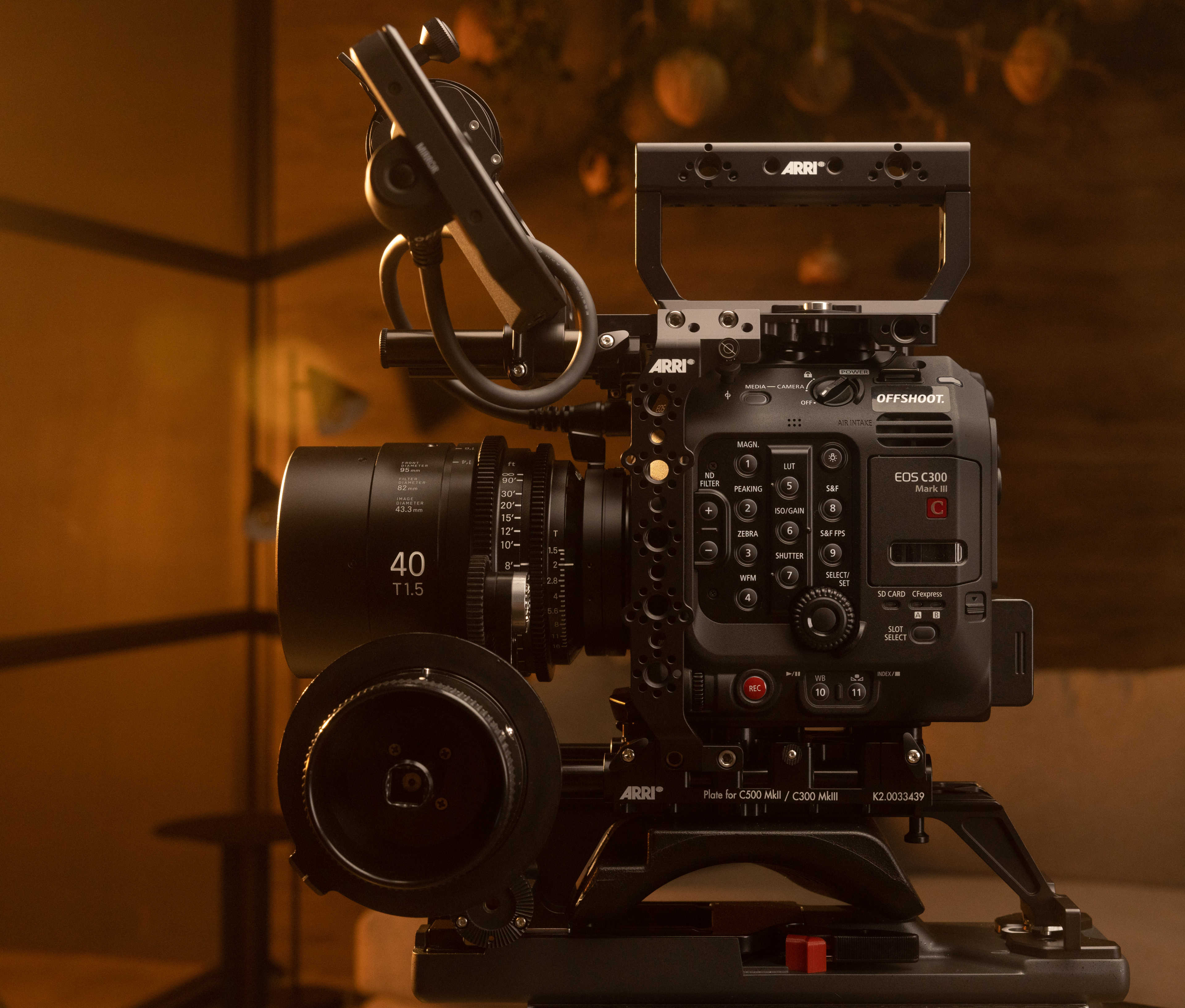

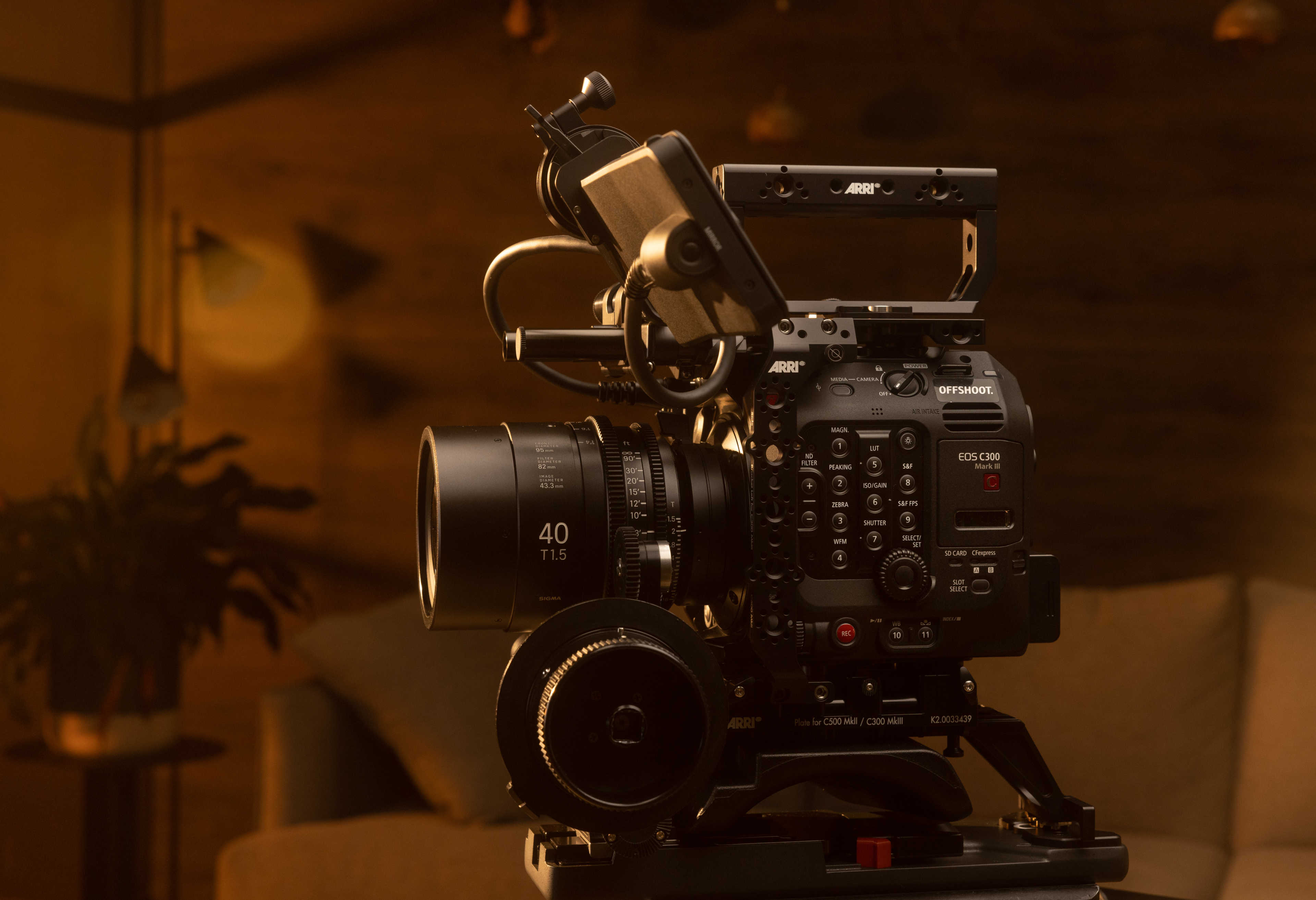

Canon C300 MKIII - Base Kit
Canon has been the go-to for a long time for documentary and long form work because their cameras are small, easy to use and have great codec options. The C300 mkIII dials it all up to 11 with its amazing picture quality and ease of use.
It has all the bells and whistles you would expect from a Canon camera - dual pixel autofocus, 4K recording, dual gain sensor and high frame rate options (up to 120fps) just to name a few.
The line between documentary and cinema has been shrinking away over the last few years and Canon have adapted to this by giving the features you love for fast shooting environments but also giving you cinema level image quality in a small form factor setup.
Canon Australia Intro
Canon Australia asked Dave May to share his thoughts on using the C300 III for commercial projects.
Menu System
A look at the menu options of the Canon C300 III to help you get familiar with them.
Introductory Tutorial
This video from Canon USA provides an introduction to commonly used features of the C300 III to help you familiarise yourself with the camera.
Lens Mount
Mount Options
Arri PL mount Canon EF mount
Flange Focal Depth
PL: 52mm EF: 44mm
Imaging Sensor
Sensor Type
Super 35mm 9.6MP CMOS Sensor with Dual Pixel Autofocus
Sensor Size
26.2 x 13.8mm. ⌀ 29.61mm.
Maximum Resolution
4096 x 2160 pixels.
Sensor Frame Rates
Full Sensor (Super 35): 12 - 120 fps. Super 16 crop: 12 - 180 fps.
Photosite Pitch
6.4 μm
Exposure Latitude
Canon Log 2: 16+ stops (at ISO 800) Canon Log 3: 14 stops (at ISO 800)
Lens Squeeze Factors
1.00x 1.30x 1.80x 2.00x
Shutter
Electronic shutter. 11.25°- 360° (1/12s - 1/2000s).
Media & Recording Formats
Recording Media
CFexpress 2.0 type B
Supported Formats
Canon Cinema RAW Light. XF-AVC.
Colour Coding
XF-AVC
10-bit YCbCr
Canon RAW Light
12-bit. 10-bit.
Colour Spaces
Rec 709 Rec 2020 DCI-P3 Cinema Gamut
Recording Formats - XF-AVC
4K DCI
Clip resolution: 4096 x 2160px. Active photosites: 4096 x 4096px. Image area: 26.2 x 13.8mm. Image circle: ⌀29.61mm. Max FPS: 120.
4K UHD
Clip resolution: 3840 x 2160px. Active photosites: 4096 x 4096px. Image area: 26.2 x 13.8mm. Image circle: ⌀29.61mm. Max FPS: 120.
2K DCI
Clip resolution: 2048 x 1080px. Active photosites: 4096 x 4096px. Image area: 26.2 x 13.8mm. Image circle: ⌀29.61mm. Max FPS: 120.
Full HD
Clip resolution: 1920 x 1080px Active photosites: 4096 x 4096px. Image area: 26.2 x 13.8mm. Image circle: ⌀29.61mm. Max FPS: 120.
2K DCI (Super 16mm Crop)
Clip resolution: 2048 x 1080px. Active photosites: 2048 x 1080px. Image area: 12.3 x 7.4mm. Image circle: ⌀14.54mm. Max FPS: 180.
Full HD (Super 16mm Crop)
Clip resolution: 1920 x 1080px. Active photosites: 1920 x 1080px. Image area: 11.7 x 7.4mm. Image circle: ⌀13.84mm. Max FPS: 180.
Recording Formats - Cinema RAW Light
4K DCI
Clip resolution: 4096 x 2160px. Active photosites: 4096 x 1260px. Image area: 26.2 x 13.8mm. Image circle: ⌀29.61mm. Max FPS: 120.
2K DCI (Super 16mm Crop)
Clip resolution: 2048 x 1080px. Active photosites: 2048 x 1080px. Image area: 12.3 x 7.4mm. Image circle: ⌀14.54mm. Max FPS: 120.
Viewfinder
Type
4.3" touchscreen LCD viewfinder
VF Display Type
LCD
VF Resolution
1.23M pixels
Audio
Recording Format
4 channel linear PCM, 24-bit 48 kHz
Input
2x XLR with phantom power (an additional 2 with the EU-V2). 3.5mm stereo mini jack.
Output
3,5mm stereo headphone jack. SDI (embedded). HDMI (embedded).
Built-in Mics
Yes - one mono mic.
Other I/O
SDI Out
MON - Monitor output. SDI - 12G SDI (4K to 2K/FHD conversion available).
HDMI Out
HDMI Type A (full size).
Timecode
BNC jack.
Genlock
Available with EU-V2 expansion unit - not included in this base kit.
Power
DC Input
11.5V - 20V via 4pin XLR
Battery Options
Canon BP-A30. Canon BP-A60. V-Lock (when used with EU-V2 expansion unit, which is not included in this base kit).
Consumption
28.7W - 31W average consumption.
Aux Outputs
None (available only with the EU-V2).
Physical
Dimensions H x W x L
Body - 148 x 153 x 168mm.
Weight
1.75kg (body only).
