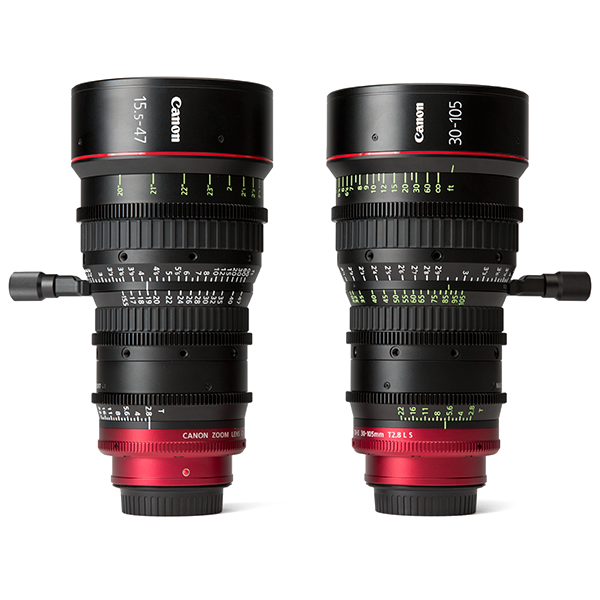

Canon 15.5-47mm + 30-105mm T2.8 Zoom Pair
Available in Arri PL or Canon EF mount.
Get Canon's two lightweight cinema zooms together at a lower cost. Combined, these two lenses cover 15.5mm to 105mm.
Weighing just 2.2kg each, the Canon CN-E lightweight cinema zooms are flexible workhorse lenses and are designed to provide enough resolution for 4K+ digital cinema cameras. Optimised for motion capture, these lenses have 11 blade irises for smooth treatment of out of focus parts of a scene. Both are parfocal lenses - so you can hold focus while zooming.
The CN-E zooms cover Super 35mm sized sensors. They do not cover 35mm full frame sensors
AbelCine Overview
AbelCine introduces you to the Canon CN-E 15.5-47mm and 30-105mm compact zoom lenses.
Optical
Focal Length
15.5mm - 47mm 30mm - 105mm
Zoom Ratio
15.5mm - 47mm: 3X 30mm - 105mm: 3.5X
Maximum Aperture
15.5mm - 47mm: T2.8 (no ramping) 30mm - 105mm: T2.8 (no ramping)
Minimum Aperture
15.5mm - 47mm: T22 30mm - 105mm: T22
Minimum Focus Distance
15.5mm - 47mm: 50cm (19.7") 30mm - 105mm: 60cm (2')
Image Circle
15.5mm - 47mm: 33.5mm - 39mm 30mm - 105mm: 34mm - 38mm
Physical
Lens Mount
Arri PL Canon EF
Front Diameter
15.5mm - 47mm: 114mm 30mm - 105mm: 114mm
Metadata
None
Focus Scale
Imperial
Focus Ring Rotation
300°
Focus / Iris Gear Pitch
0.8 mod
Dimensions (Ø x L)
15.5mm - 47mm: PL: 114mm x 222mm EF: 114mm x 214mm 30mm - 105mm: PL: 114mm x 218mm EF: 114mm x 210mm
Weight
15.5mm - 47mm: 2.2kg 30mm - 105mm: 2.2kg
Transport Case
Dimension: 480mm x 360mm x 180mm. Weight (with lenses): 8.4kg
