Block Battery HC400 / R48-mini Kit

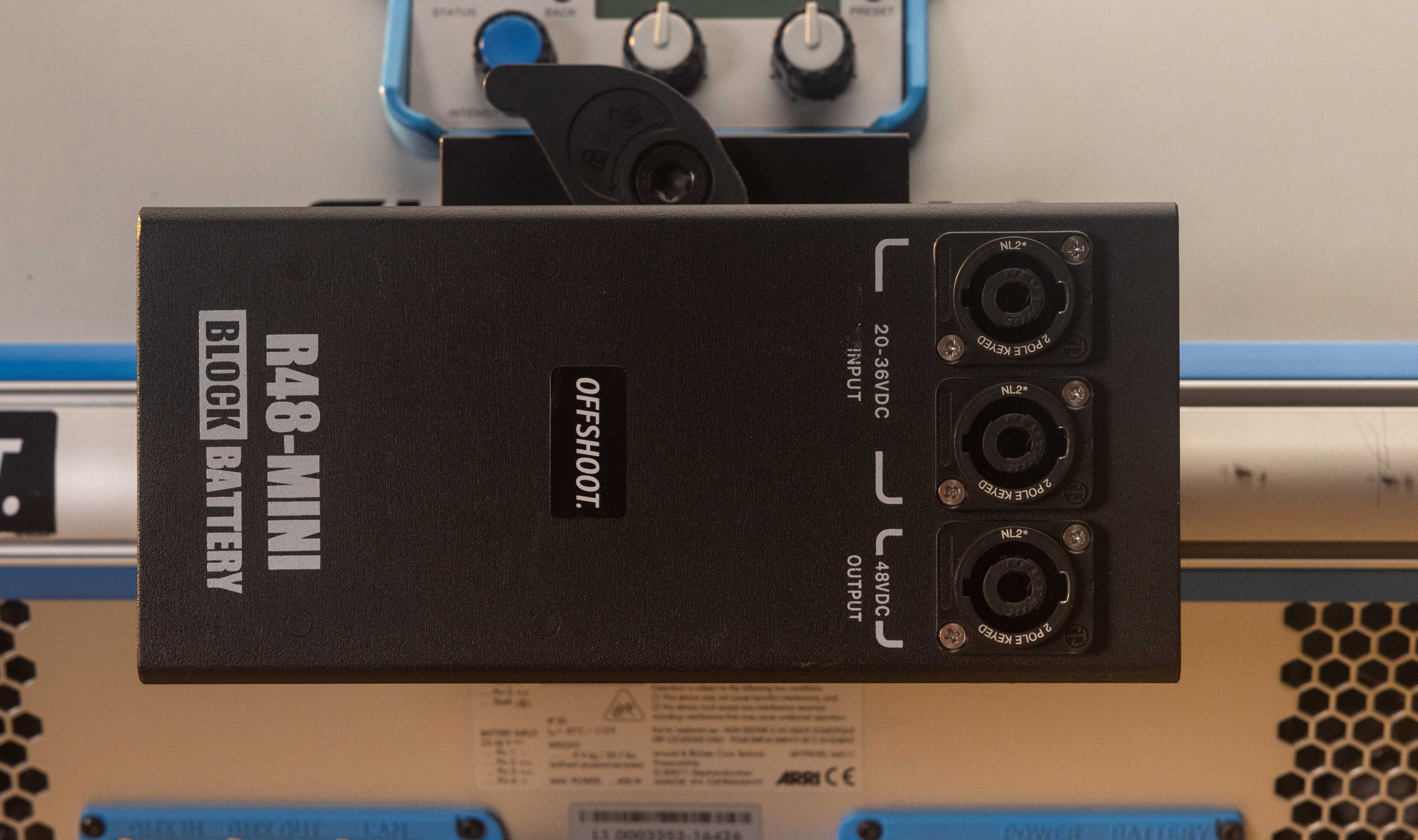

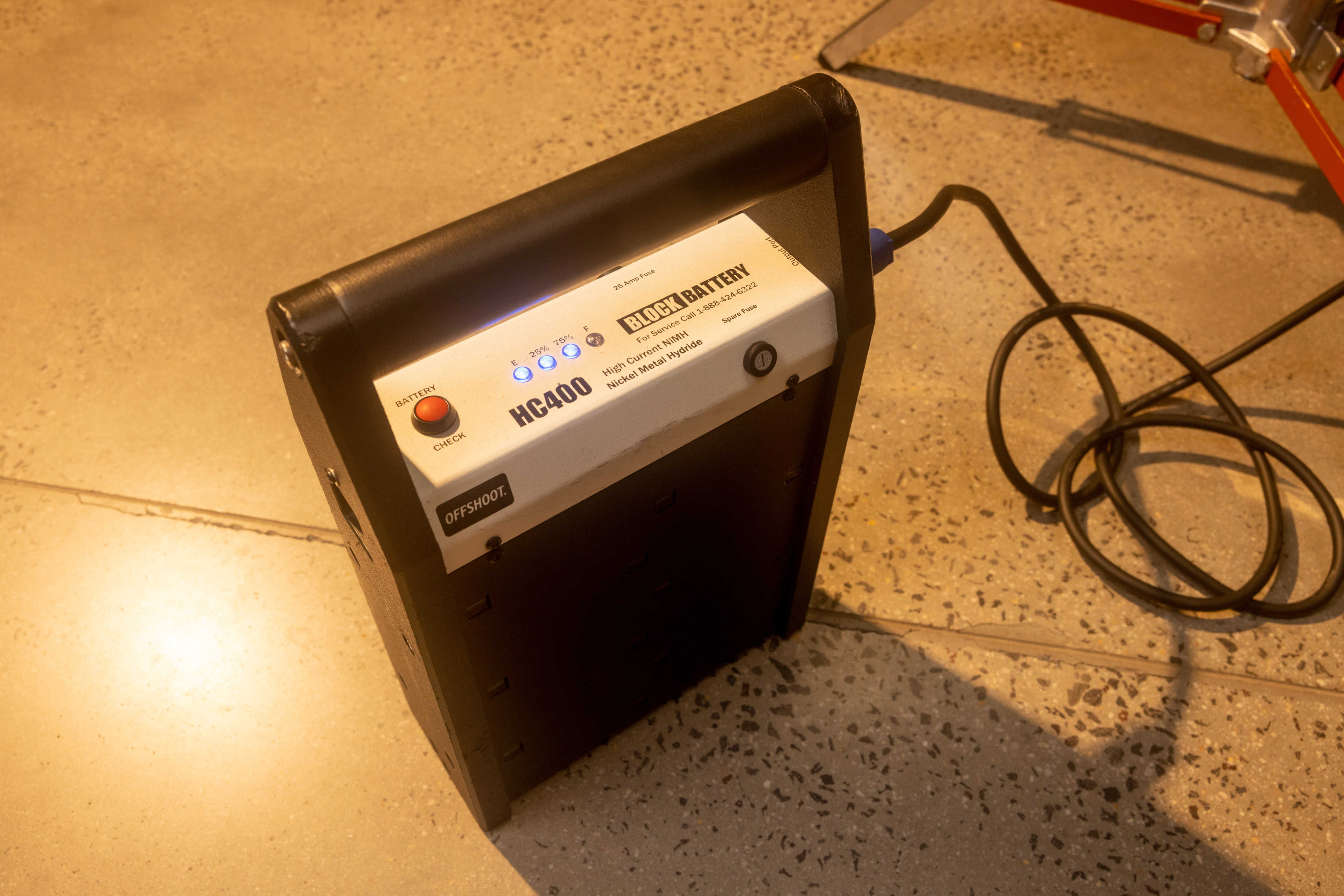

The Block Battery HC400 is a high current block battery with the ability to provide 400 Watt Hours of 28V DC power at current loads as high as 25 amps. Combined with the R48-mini inverter, this kit provides 48V DC output.

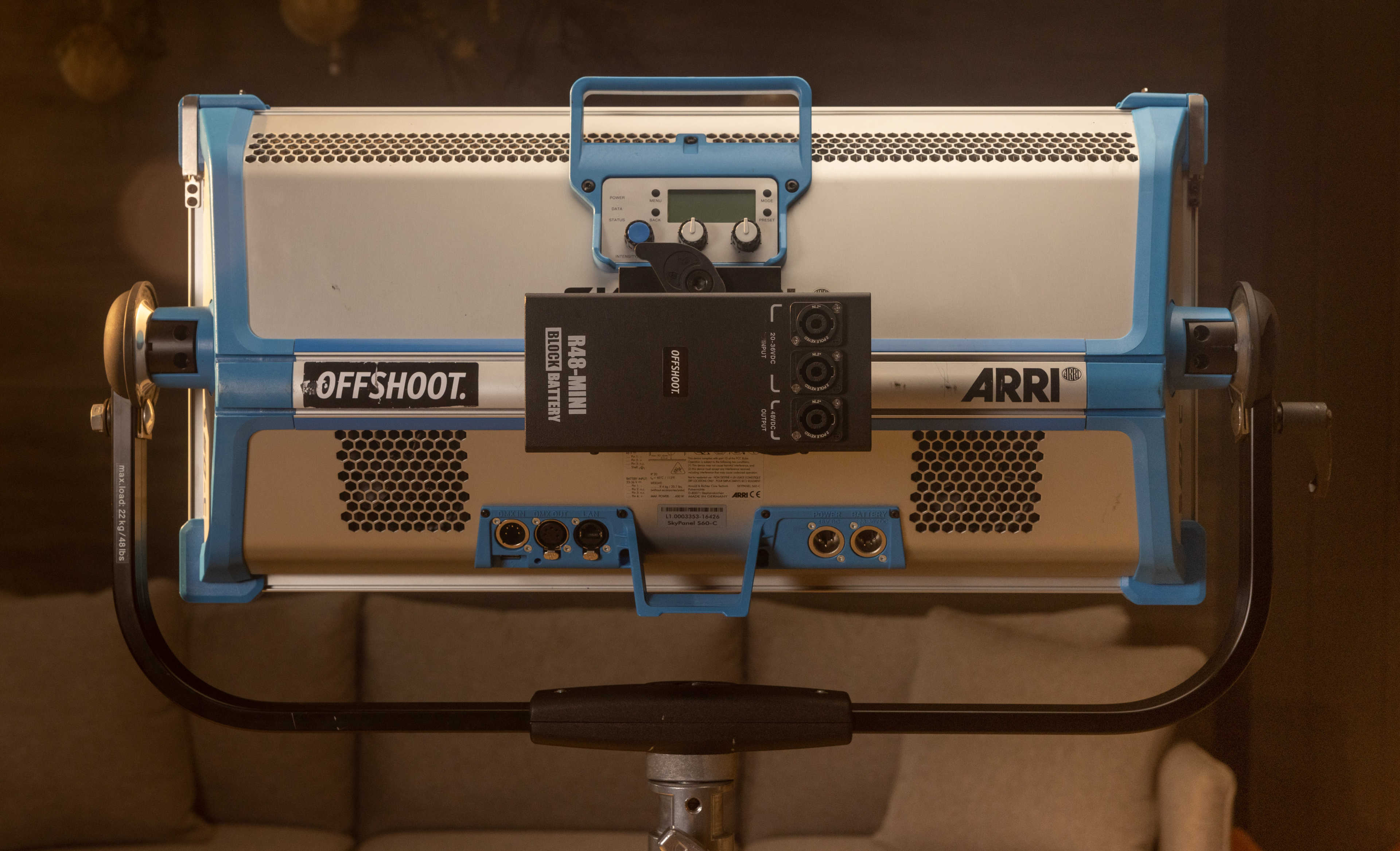

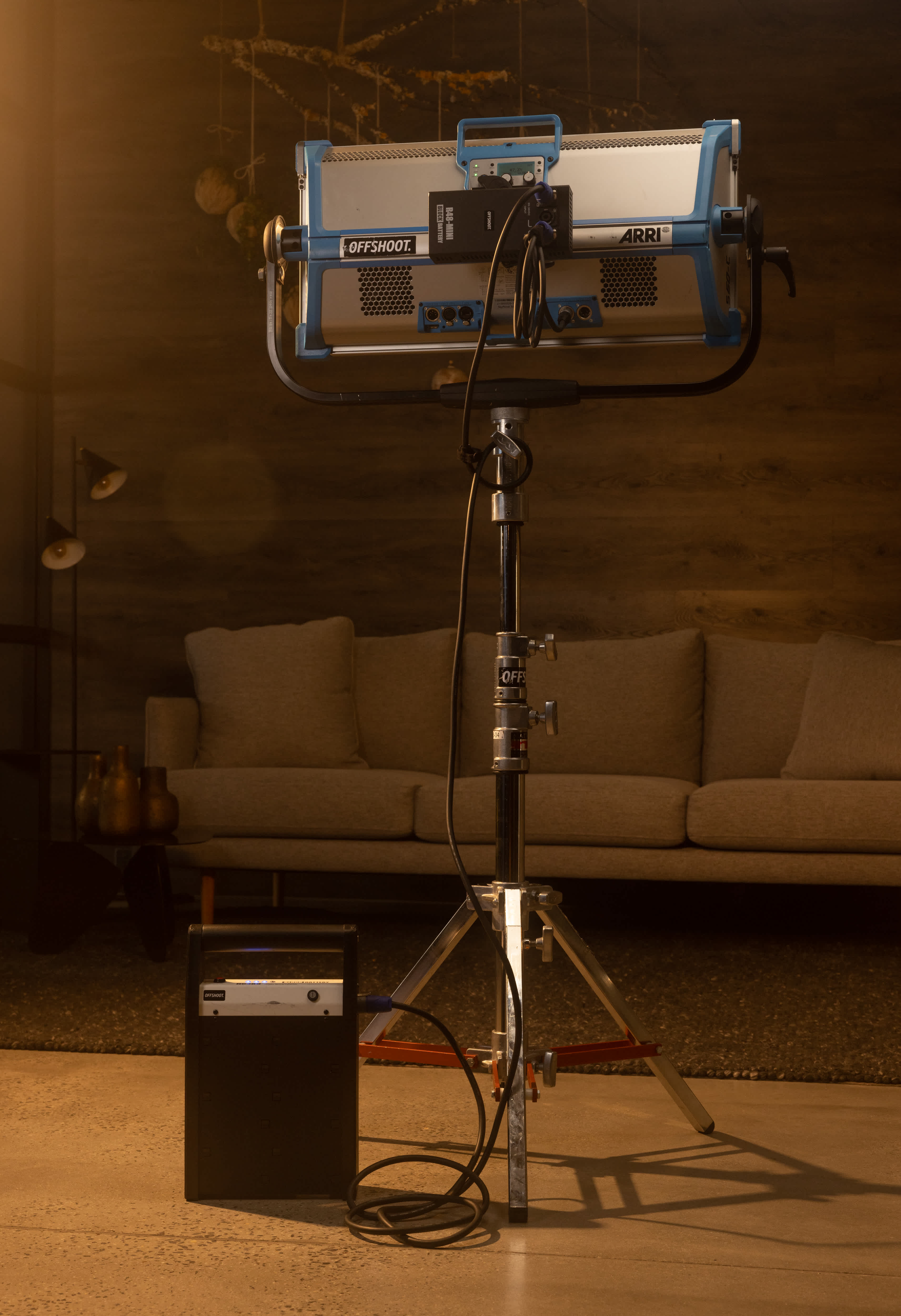

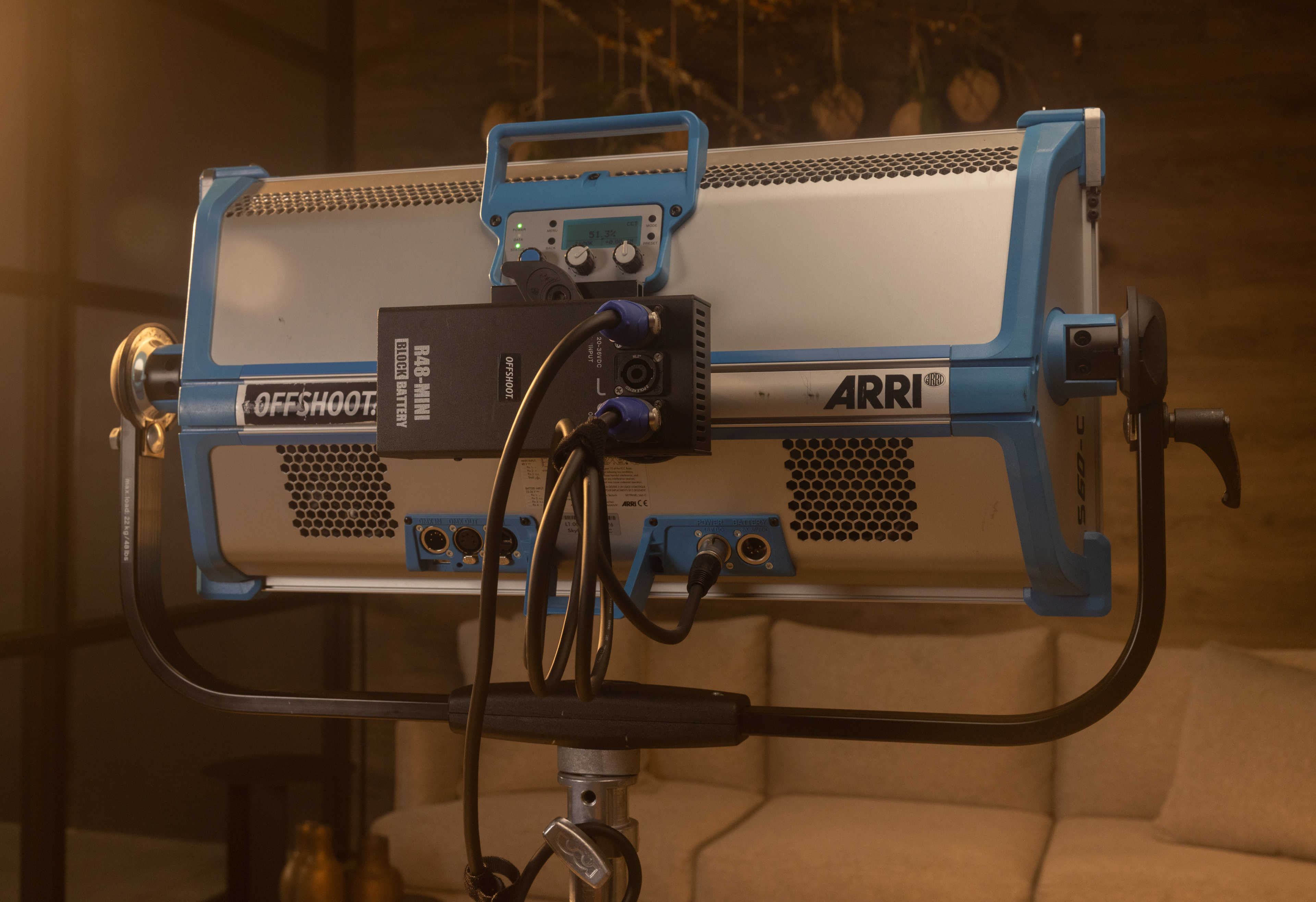

What this means is that it can be used to power an Arri SkyPanel S60-C at full brightness for 45 minutes.
With the standard battery input on the Skypanel S60 you are limited to using it at a maximum of half brightness when powered by battery sources that can't supply 48V.
This kit includes one HC400 block battery but we have additional batteries available. It also includes a Block Battery DFC charger and 3-pin XLR cable, as well as the R48-mini inverter
No videos yet.
Battery
Capacity
400Wh
Output Voltage
28v unregulated
Maximum Load
25A
Connectors
Powercon
Battery Type
NiMH
Inverter
Input Voltage
20 ~ 36 VDC
Output Voltage
48 VDC
Max Power Output
500w
Physical
Dimensions
Battery: 374 x 326 x 95mm. Charger: 255 x 185 x 115mm. Inverter: 203 x 95 x 50mm.
Weight
Battery: 6.8kg. Charger: 2.9kg. Inverter: 900g.
