Blackmagic Design Ursa Mini Pro Kit
Available in PL or Canon EF mount. We will confirm your choice with you if you book online.

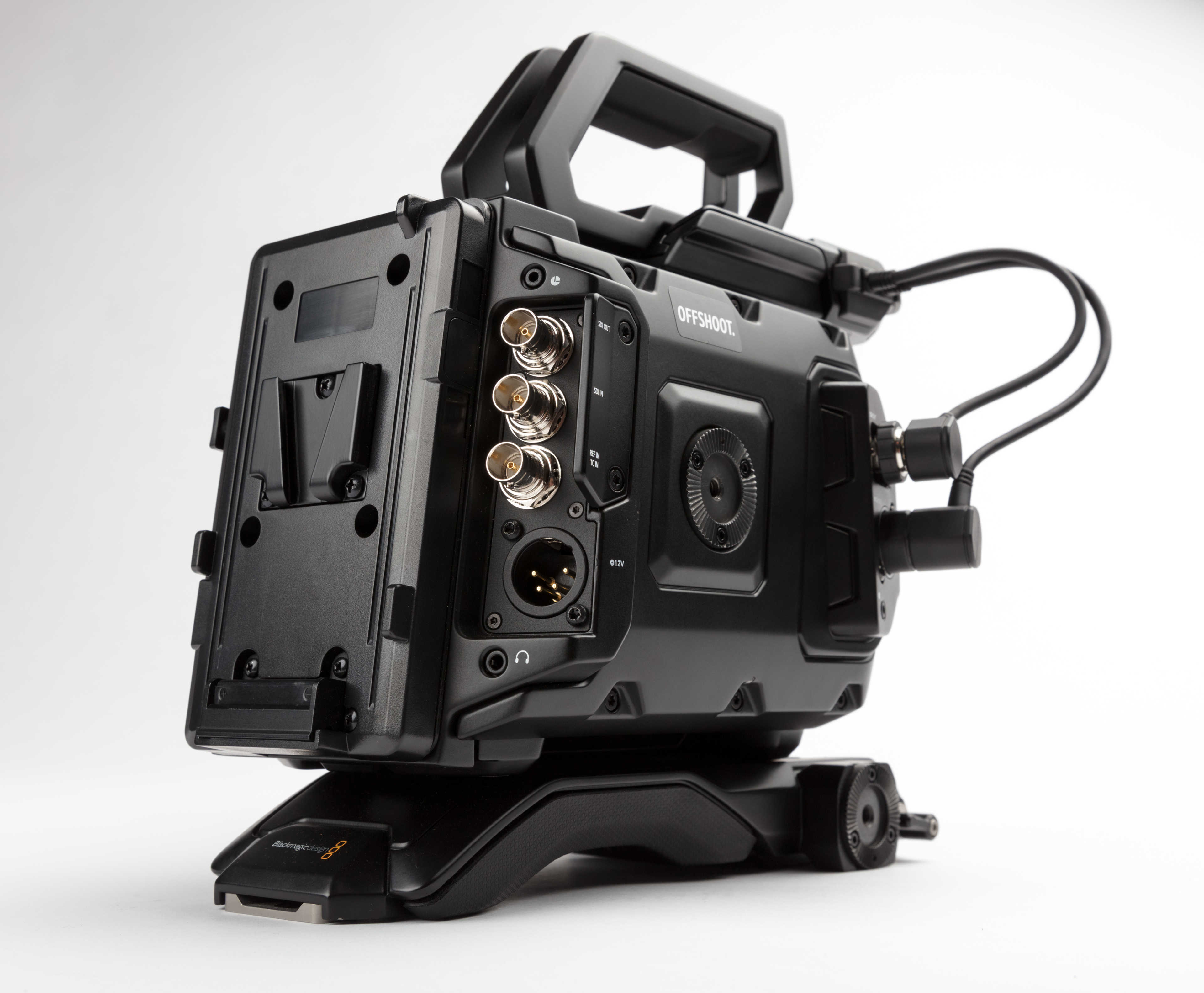

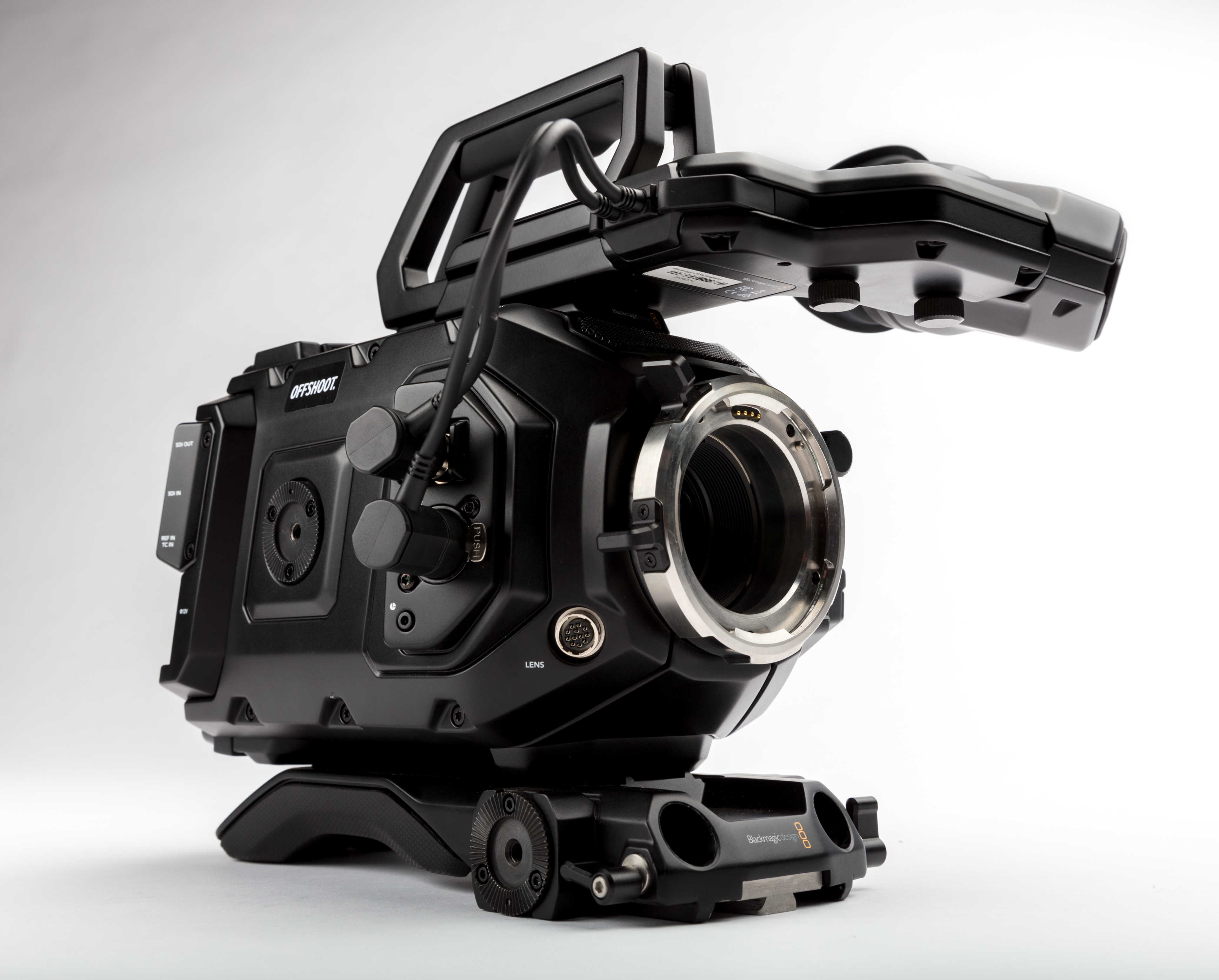

The Ursa Mini Pro from Blackmagic Design is a budget friendly, versatile digital cinema camera. It records in 4.6K, 4K, Ultra HD, 3K anamorphic, 2K and full HD formats - so it covers both current and emerging finishing formats.
This kit includes the EVF, shoulder mount kit, VCT plate and v-mount battery plate. See the full list of included accessories for media etc.
Cine-D Review
Cine-D review the Blackmagic Design Ursa Mini Pro.
Hurlbut Visuals Setup
Find out how Hurlbut Visuals use the Blackmagic Design Ursa Mini Pro.
Lens Mount
Mount Options
Arri PL mount Canon EF mount
Flange Focal Depth
PL: 52mm EF: 44mm
Imaging Sensor
Sensor Type
Super 35mm equivalent 11.9MP CMOS sensor
Sensor Size
25.34 x 14.25mm. ⌀ 29.07mm.
Maximum Resolution
4608 x 2592 pixels
Sensor Frame Rates
Up to 120fps in windowed HD mode in BRAW. Up to 60fps using the full sensor in BRAW.
Photosite Pitch
5.5 μm
Exposure Latitude
Claimed 15 stops but tests at 12.5.
Lens Squeeze Factors
1.00x 1.30x 2.00x
Shutter
Electronic shutter. 11.25°- 360° (1/50s - 1/2000s).
Media & Recording Formats
Recording Media
CFast 2.0 media.
Supported Formats
Blackmagic RAW. Apple ProRes 4444 XQ. Apple ProRes 4444. Apple ProRes 422 HQ. Apple ProRes 422. Apple ProRes 422 LT. Apple ProRes 422 Proxy.
Colour Coding
Apple ProRes
10-bit YCbCr 12-bit YCbCr
Blackmagic RAW
12-bit
Colour Spaces
Rec 709 Rec 2020
Recording Formats - BRAW
4.6K
Clip resolution: 4608 x 2592px. Active photosites: 4608 x 2592px. Image area: 25.34 x 14.25mm. Image circle: ⌀ 29.07mm. Max FPS: 60.
4.6K 2.4:1
Clip resolution: 4608 x 1920px. Active photosites: 4608 x 1920px. Image area: 25.34 x 10.56mm. Image circle: ⌀ 27.45mm. Max FPS: 60.
4K 16:9
Clip resolution: 4096 x 2304px. Active photosites: 4096 x 2304px. Image area: 22.52 x 12.67mm. Image circle: ⌀ 25.84mm. Max FPS: 60.
4K DCI
Clip resolution: 4096 x 2160px. Active photosites: 4096 x 2160px. Image area: 22.52 x 11.88mm. Image circle: ⌀25.46mm. Max FPS: 60.
4K UHD
Clip resolution: 3840 x 2160px. Active photosites: 3840 x 2160px. Image area: 21.12 x 11.88mm. Image circle: ⌀24.23mm. Max FPS: 60.
3K ANA
Clip resolution: 3072 x 2560px. Active photosites: 3072 x 2560px. Image area: 16.89 x 14.07mm. Image circle: ⌀21.98mm. Max FPS: 60.
2K 16:9
Clip resolution: 2048 x 1152px. Active photosites: 2048 x 1152px. Image area: 11.26 x 6.33mm. Image circle: ⌀12.92mm. Max FPS: 120.
2K DCI
Clip resolution: 2048 x 1152px. Active photosites: 2048 x 1152px. Image area: 11.26 x 5.93mm. Image circle: ⌀12.73mm. Max FPS: 120.
Full HD
Clip resolution: 1920 x 1080px Active photosites: 1920 x 1080px Image area: 10.56 x 5.94mm. Image circle: ⌀12.12mm. Max FPS: 120.
Recording Formats - Apple ProRes
4.6K
Clip resolution: 4608 x 2592px. Active photosites: 4608 x 2592px. Image area: 25.34 x 14.25mm. Image circle: ⌀ 29.07mm. Max FPS (ProRes 444): 30. Max FPS (ProRes 422): 50.
4.6K 2.4:1
Clip resolution: 4608 x 1920px. Active photosites: 4608 x 1920px. Image area: 25.34 x 10.56mm. Image circle: ⌀ 27.45mm. Max FPS (ProRes 444): 40. Max FPS (ProRes 422): 50.
4K 16:9
Clip resolution: 4096 x 2304px. Active photosites: 4608 x 2592px. Image area: 25.34 x 14.25mm. Image circle: ⌀ 29.07mm. Max FPS (ProRes 444): 30. Max FPS (ProRes 422): 50.
4K DCI
Clip resolution: 4096 x 2160px. Active photosites: 4608 x 2592px. Image area: 25.34 x 14.25mm. Image circle: ⌀ 29.07mm. Max FPS (ProRes 444): 40. Max FPS (ProRes 422): 50.
4K UHD
Clip resolution: 3840 x 2160px. Active photosites: 4608 x 2592px. Image area: 25.34 x 14.25mm. Image circle: ⌀ 29.07mm. Max FPS (ProRes 444): 40. Max FPS (ProRes 422): 60.
3K ANA
Clip resolution: 3072 x 2560px. Active photosites: 3072 x 2560px. Image area: 16.89 x 14.07mm. Image circle: ⌀21.98mm. Max FPS (ProRes 444): 40. Max FPS (ProRes 422): 60.
2K 16:9
Clip resolution: 2048 x 1152px. Active photosites: 4608 x 2592px. Image area: 25.34 x 14.25mm. Image circle: ⌀ 29.07mm. Max FPS (windowed): 120. Max FPS (full sensor): 60.
2K DCI
Clip resolution: 2048 x 1152px. Active photosites: 4608 x 2592px. Image area: 25.34 x 14.25mm. Image circle: ⌀ 29.07mm. Max FPS (windowed): 120. Max FPS (full sensor): 60.
Full HD
Clip resolution: 1920 x 1080px Active photosites: 4608 x 2592px. Image area: 25.34 x 14.25mm. Image circle: ⌀ 29.07mm. Max FPS (windowed): 120. Max FPS (full sensor): 60.
Viewfinder
Type
6.22M pixel OLED EVF
Resolution
1920x1080
Diopter
Adjustable, -4 to +3
Audio
Recording Format
2 channel linear PCM, 24-bit 48 kHz
Input
2x XLR. Switchable between mic, line and AES. Phantom power support.
Output
3,5mm stereo headphone jack. SDI (embedded).
Built-in Mics
Yes - one stereo mic.
Other I/O
SDI Out
1x MON monitor output. 1x 12G-SDI .
Remote Control
2 x 2.5mm LANC input for recording start/stop, plus iris and focus control using compatible lenses.
Timecode
BNC jack (shared with genlock).
Genlock
BNC jack (shared with timecode).
Power
DC Input
12V via 4-pin XLR
Battery Options
V-mount batteries via integrated battery plate
Aux Outputs
1x 12V via 4-pin XLR
Physical
Dimensions H x W x L
146.8 x 150.4 x 209mm.
Weight
2.3kg (body only).
