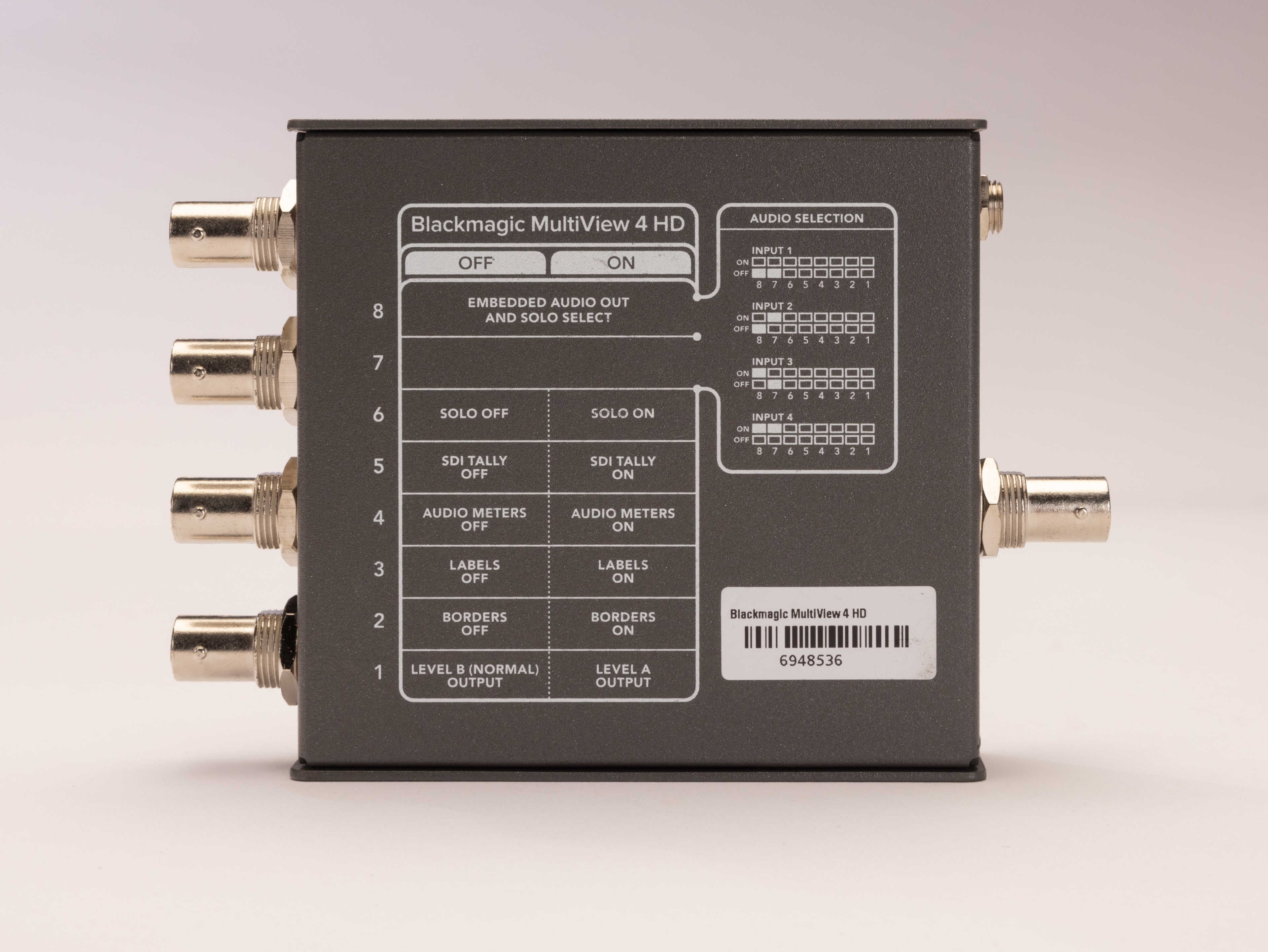

Blackmagic Design MultiView 4 HD
Combine up to four SDI video feeds and generate a single SDI or HDMI output with the MultiView 4 HD from Blackmagic Design.
Overview
A quick overview of the essential aspects of the MultiView 4 HD from Blackmagic Design.
Connections
Video Inputs
4 x 10-bit SD-SDI and HD-SDI
Video Outputs
1 x 10-bit HD-SDI. 1 x HDMI (type A).
Power
Locking barrel connection.
Video Standards
2K Video
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
HD Video
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60
SD Video
525i59.94 NTSC, 625i50 PAL
SDI Video Sampling
4:2:2 and 4:4:4
SDI Colour Space
YUV or RGB for inputs, YUV for outputs
Power
Voltage
6 - 36V DC
Power Connector
Locking barrel connection.
Consumption
5.5W
