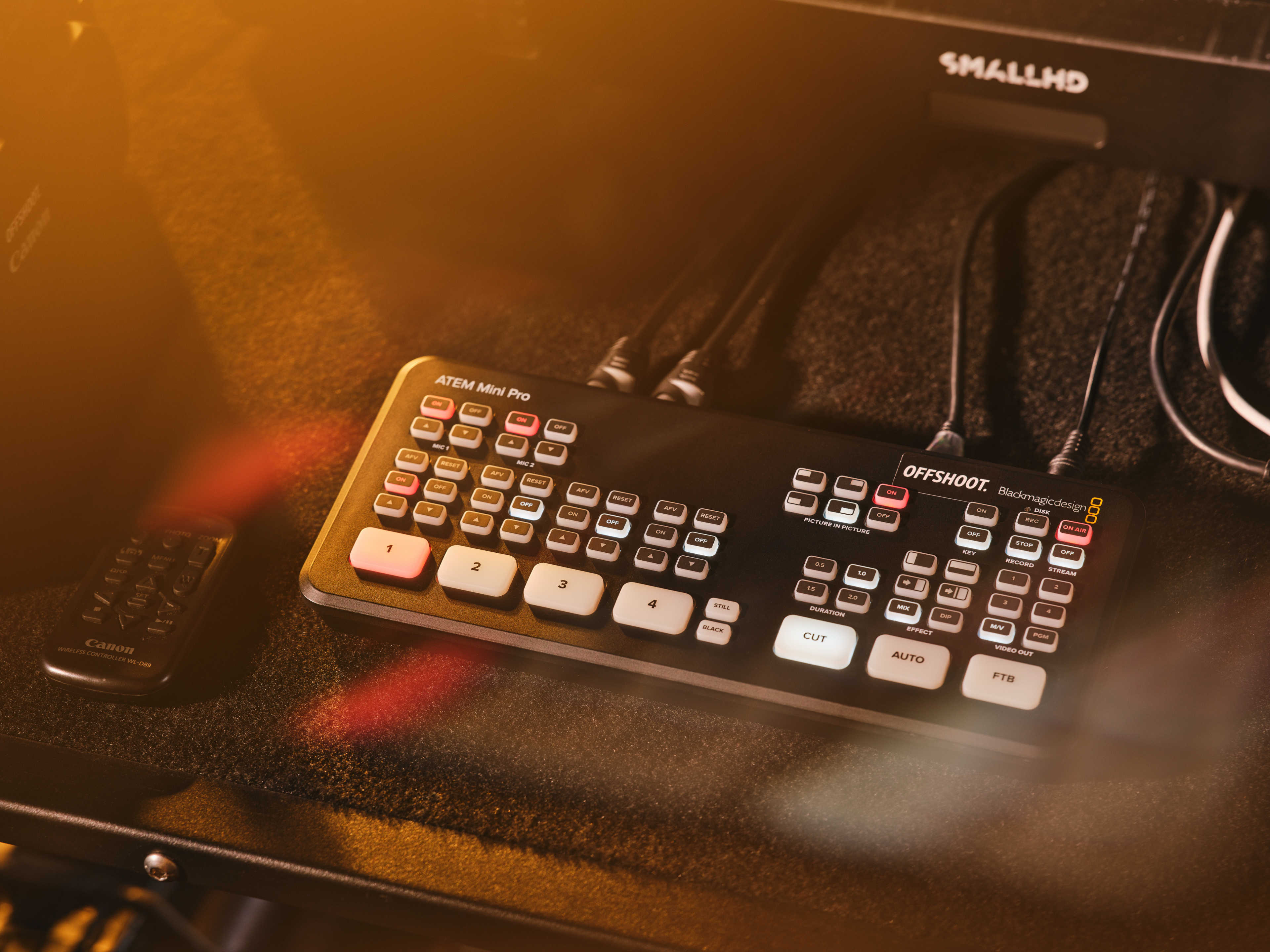

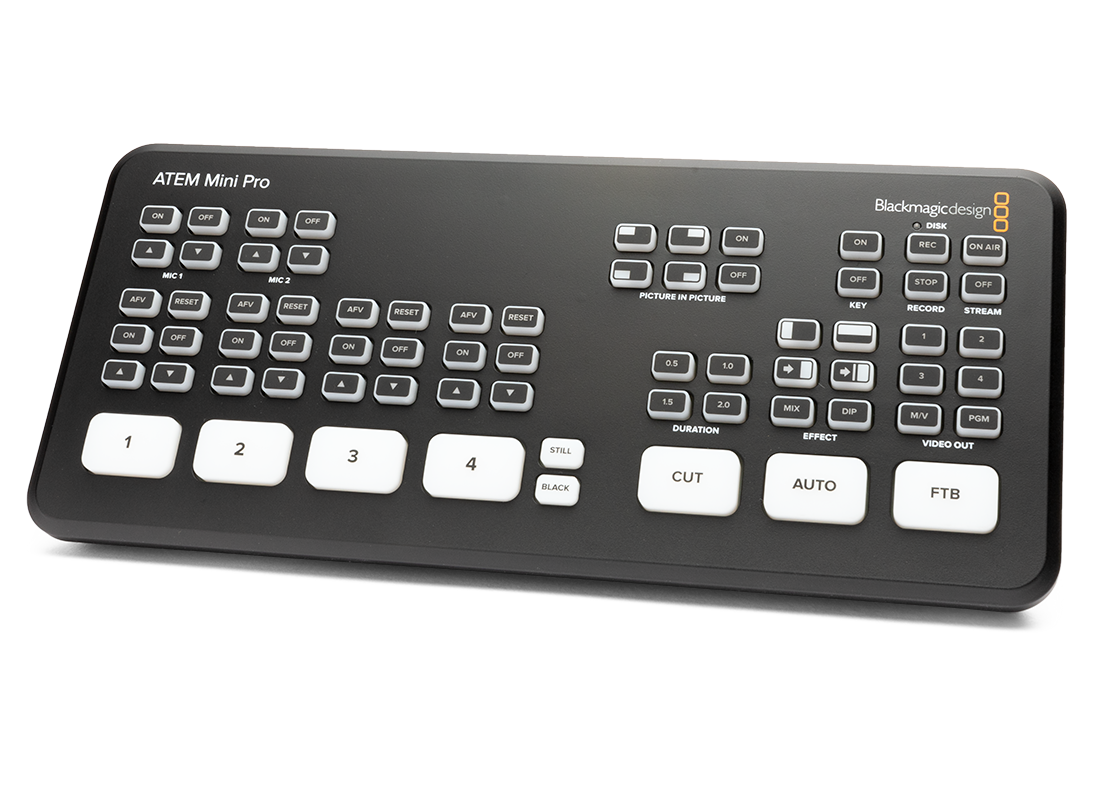

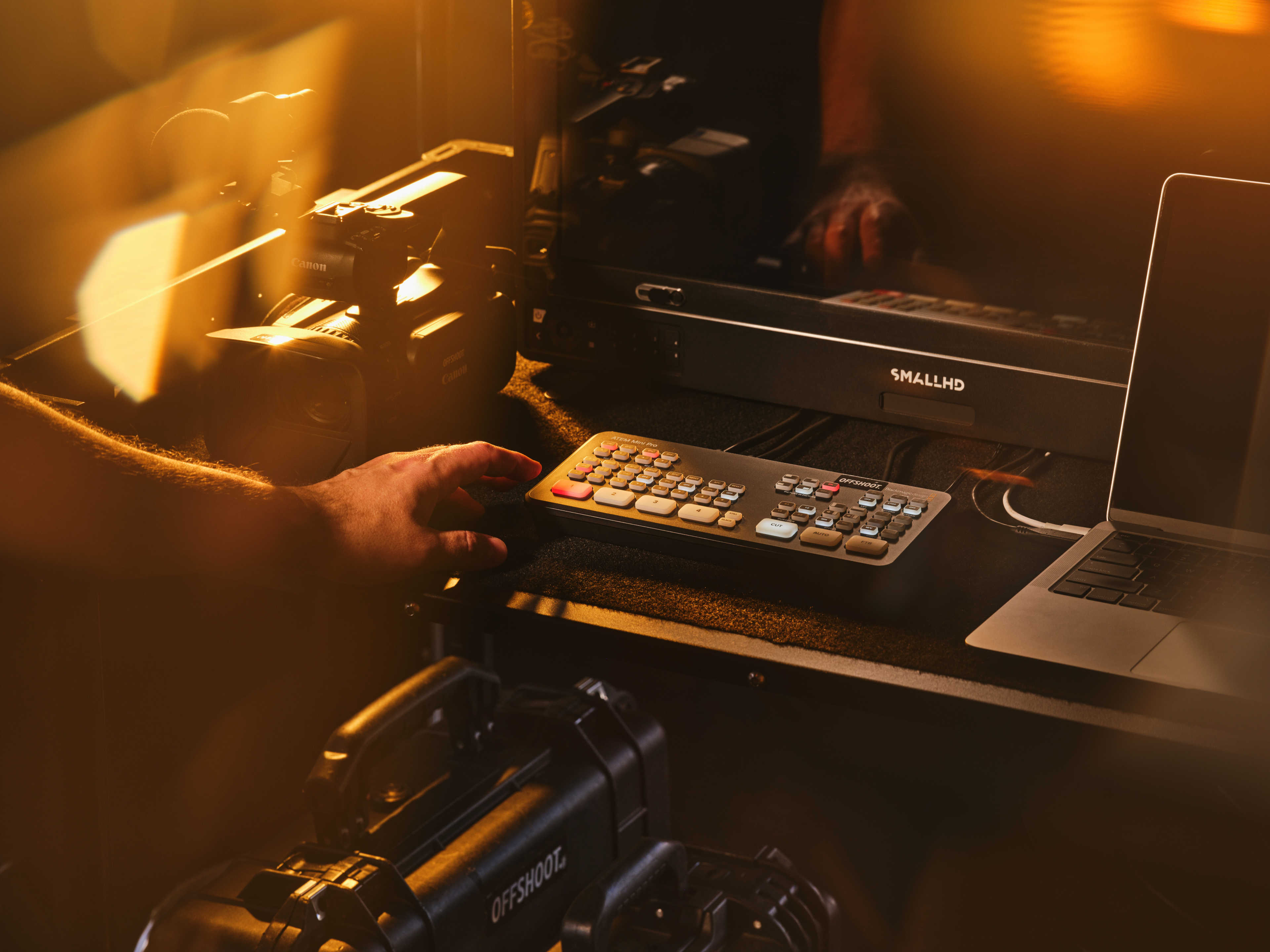

Blackmagic Atem Mini Pro
The Blackmagic Design Atem Mini Pro is a powerful switching and streaming device that is small, versatile and easy to use. It has four HDMI inputs that support a large range of input formats.
The program video output can either be via HDMI or USB as a webcam device on Mac and PC, or to a streaming platform over ethernet using the built in stream encoder (YouTube, Facebook, Twitch etc).
All four inputs support audio input through HDMI. Each channel has a range of audio options to adjust levels and change how the audio behaves when the video is switched. Besides the HDMI audio inputs, there are two 3.5mm inputs for connecting external audio sources directly to the Atem Mini Pro.
The Atem Mini Pro has a range of professional broadcast features - including multiple transition options, picture in picture effects and an integrated chroma keyer. When used with the free companion software you open up even more options - in depth audio adjustments and filtering, a library that can be filled with still images to be used as overlays or cutaways, and camera control options when used with compatible Blackmagic cameras.
When connected to a computer via USB the device operates as a webcam input. This allows you to stream your switched video through your favourite video conferencing platform - Skype, Zoom, Google Hangouts, Facetime etc.
If you are looking to stream your video you can use the integrated streaming encoder to stream directly to YouTube, Twitch or Facebook when you connect the device to the internet via an ethernet cable.
Tutorial + Review
Learn about the features of the ATEM Mini Pro in this video.
Connections
HDMI Video Inputs
4 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio.
HDMI Program Outputs
1x HDMI type A
Total Audio Inputs
2 x 3.5mm stereo mini jack.
Timecode Connection
None
Video Input Re-Sync
On all 4 HDMI inputs.
Frame Rate and Format Converters
On all 4 HDMI inputs.
Ethernet
Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
Computer Interface
1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Standards
HD Video Input Standards
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
HD Video Output Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video Streaming Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards
None
Video Sampling
4:2:2 YUV
Color Precision
10-bit
Color Space
Rec 709
HDMI Input Resolutions from Computers
1280 x 720p 50Hz, 59.94Hz and 60Hz 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz 1920 x 1080i 50, 59.94Hz and 60Hz
Colorspace Conversion
Hardware based real time.
Product Specifics
Upstream Keyers
1
Downstream Keyers
1
Advanced Chroma Keyers
1
Linear/Luma Keyers
2
Transition Keyer
DVE only.
Total Number of Layers
5
Pattern Generators
1
Color Generators
2
DVE with Borders and Drop Shadow
1
Interface
Minimum monitor resolution of 1366 x 768.
Audio
Audio Mixer
6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Analog Input
Unbalanced stereo
Analog Input Delay
Up to 8 frames
Input Impedance
1.8k
Max Input Level
+6dBV
Mic Plug In Power
Available on both 3.5mm mini jack connections.
Streaming
Direct Streaming
ATEM Mini Pro supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.
Recording
Direct Recording
1 x USB-C 3.1 Gen 1 expansion port for external media to direct record a .mp4 H.264 with AAC audio at the ATEM video standard.
Media Format
Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
Multi View Monitoring
Multi View Monitoring
1 x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters.
Multi View Video Standard
HD
Media Player
Media Players
1
Channels
Fill and key for each Media Player.
Media Pool Still Image Capacity
20 with fill and key.
Media Pool Still Image Format
PNG, TGA, BMP, GIF, JPEG and TIFF.
Control
Control Panel
Built in control panel. Software control panel with camera control included. Supports optional hardware panel.
Control Panel Connection
Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro also supports direct USB-C connection. Ethernet or USB-C used for updating the software.
Control Panel Compatibility
Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel.
Power
Input Voltage
12VDC
Power Usage
30W
Physical
Dimension
238 x 104 x 35mm
Weight
550g
