Atomos Sumo 19 Kit
The Atomos Sumo 19 is a feature packed 19-inch monitor, recorder and switcher all in one. Amongst other things, it is ideal for use as a larger (but still portable) director or client monitor - particularly where direct control over take playback is required.
The Sumo 19 features both SDI and HDMI inputs and output, so you can connect it to a variety of source devices for recording or switching.
As with other Atomos monitoring products, the Sumo 19 offers a full range of tools for assessing exposure and focus - such as focus peaking, false color, luma/RGB waveforms, zebras and frame guides.
The display is a 1200 nit, 19" 1920x1200, 120 pixel-per-inch panel. The Sumo 19 also supports AtomHDR for high dynamic range content acquisition.
The Sumo 19 records in ProRes RAW, ProRes, DNxHD and CinemaDNG.
Media is not included as standard but we have 500GB and 1TB drives available for hire.
Sumo 19 Overview
Abel Cine introduces you to the Atomos Sumo 19 monitor / recorder.
Switching Overview
Learn about the switching features of the Atomos Sumo 19 monitor / recorder.
Display
Panel Type
IPS LCD touchscreen
Diagonal Size
19"
Resolution
1920 x 1200
Pixel Density
120 ppi
Aspect Ratio
16:9
Brightness
1200 nits
Contrast
1000:1
Gamut
Rec.709
Colour Depth
10-bit (8+2)
Viewing Angle
178 Degrees
Backlight Type
Edge lit
Input Signal
SDI Input Types
YCC 4:2:2 @ 8/10-bit or 12-bit RAW: 6k - 23.98 / 24 / 25 / 29.97 / 30 4k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 4k UHD - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 2k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 1080p - 4k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 100 / 120 1080i - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 720p - 50 / 59.94 / 60
HDMI Input Types
YCC 4:2:2 @ 8/10-bit or 12-bit RAW: 4k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 4k UHD - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 2k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 1080p - 4k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 100 / 120 1080i - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 720p - 50 / 59.94 / 60
Audio Input Types
24-bit 48kHz via SDI & HDMI in or 3.5mm jack.
Output Signal
SDI Output Types
YCC 4:2:2 @ 8/10-bit or 12-bit RAW: 6k - 23.98 / 24 / 25 / 29.97 / 30 4k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 4k UHD - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 2k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 1080p - 4k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 100 / 120 1080i - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 720p - 50 / 59.94 / 60
HDMI Output Types
YCC 4:2:2 @ 8/10-bit or 12-bit RAW: 4k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 4k UHD - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 2k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 1080p - 4k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 100 / 120 1080i - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 720p - 50 / 59.94 / 60
Audio Output Types
1x 3.5mm 3-pin Stereo Headphone Jack
Recording Codecs
Cinema DNG (SDI Only)
SDI RAW inputs only
Apple ProRes RAW (SDI Only)
ProRes RAW HQ ProRes RAW
Apple ProRes
ProRes 422HQ ProRes 422 ProRes LT
Avid DNxHD
DNxHD 36 DNxHD 145 DNxHD 220 DNxHD 220x
Avid DNxHR
DNxHR HQX DNxHR HQ DNxHR SQ DNxHR LB
Remote Control
HDMI
Auto HDMI Trigger, Supported Protocols - Canon, Sony,Atomos Open Standard.
SDI
SDI trigger camera selectable
Serial 2.5mm Jack
LANC control and calibration via optional USB to serial cable.
I/O
SDI
Quad link 3G SDI with 2 x 12G SDI (backwards compatible), Auto-detection. 1 x 2 x 12G SDI Backwards compatible Auto detection.
HDMI
1x HDMI 2.0 (4k60) input (Type A) 1x HDMI 2.0 (4k60) Output (Type A)
Component
Not Supported
Composite
Not Supported
Audio
1x 3.5mm Headphone Jack 2x XLR input 2x XLR output
Power
Connector
NP-F L series battery plate (dual).
Voltage
6.2 - 16.8V (Battery)
Power Consumption
10-33 watts
AC Power Supply
Included
Overload Protection
Yes
Power Output
None
Software
Pixel Zoom
1x & 2x Zoom with smooth pan via joystick
Frame Guides
Yes: Preset Aspect Ratios & Customizable
DSLR Scale
No
Custom Scale
No
Anamorphic De-Squeeze
Yes: 1.25x, 1.33x, 1.5x, 1.8x, 2.0x
Image Rotate
No
Image Flip
Yes - Vertical only
Cross Conversion
No
Focus Assist
Yes - User Adjustable Color Style and Intensity
Peaking
Yes - User Adjustable Intensity
False Color
Yes - Rainbow Style
Zebra
Yes - User Configurable
Waveform
Yes - 3 size / position
Vectorscope
Yes - 2 size / position
RGB Parade
Yes - 3 size / position
Histogram
Yes - Luma & RGB Style
Image Capture
Yes
Custom LUTS
Yes - .Cube format
LUT Downstream
Yes - Loop out
LUT Import
Via SSD
Audio Meters
Yes
Physical
Dimension

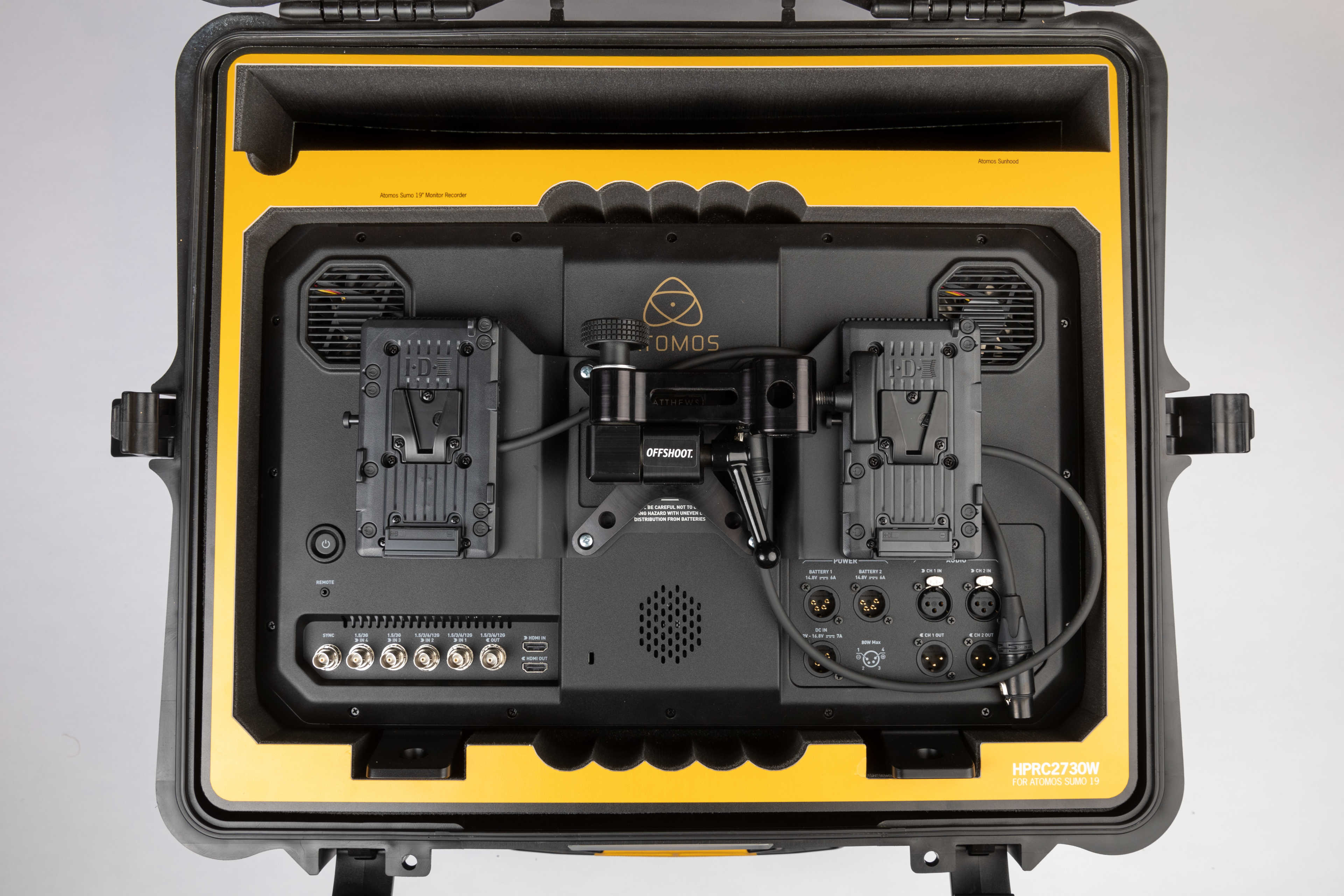

Monitor: 504 x 330 x 180mm. Transport case: 600 x 520 x 350mm.
Weight
Monitor: 5.45g. Transport case: 19kg.
