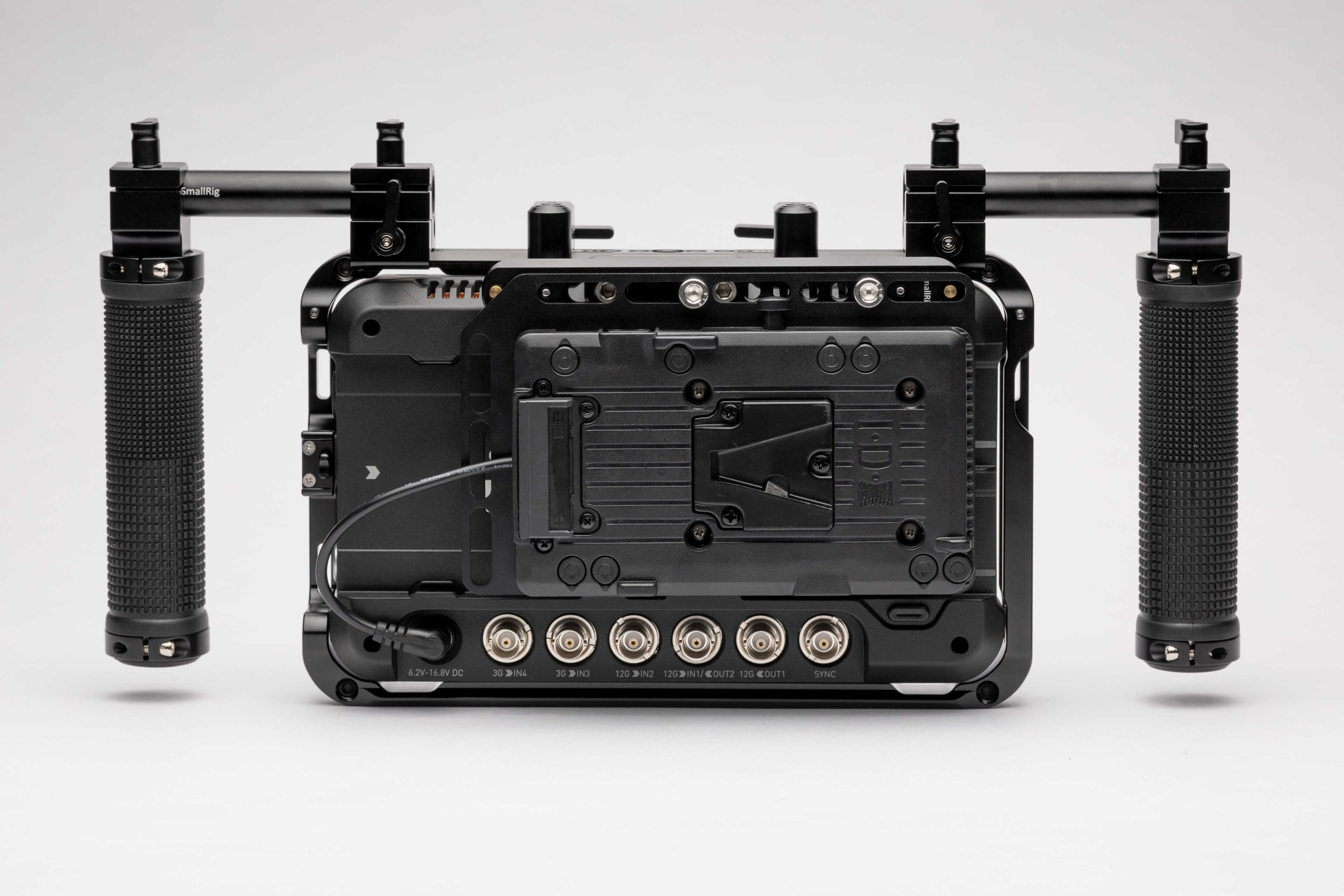

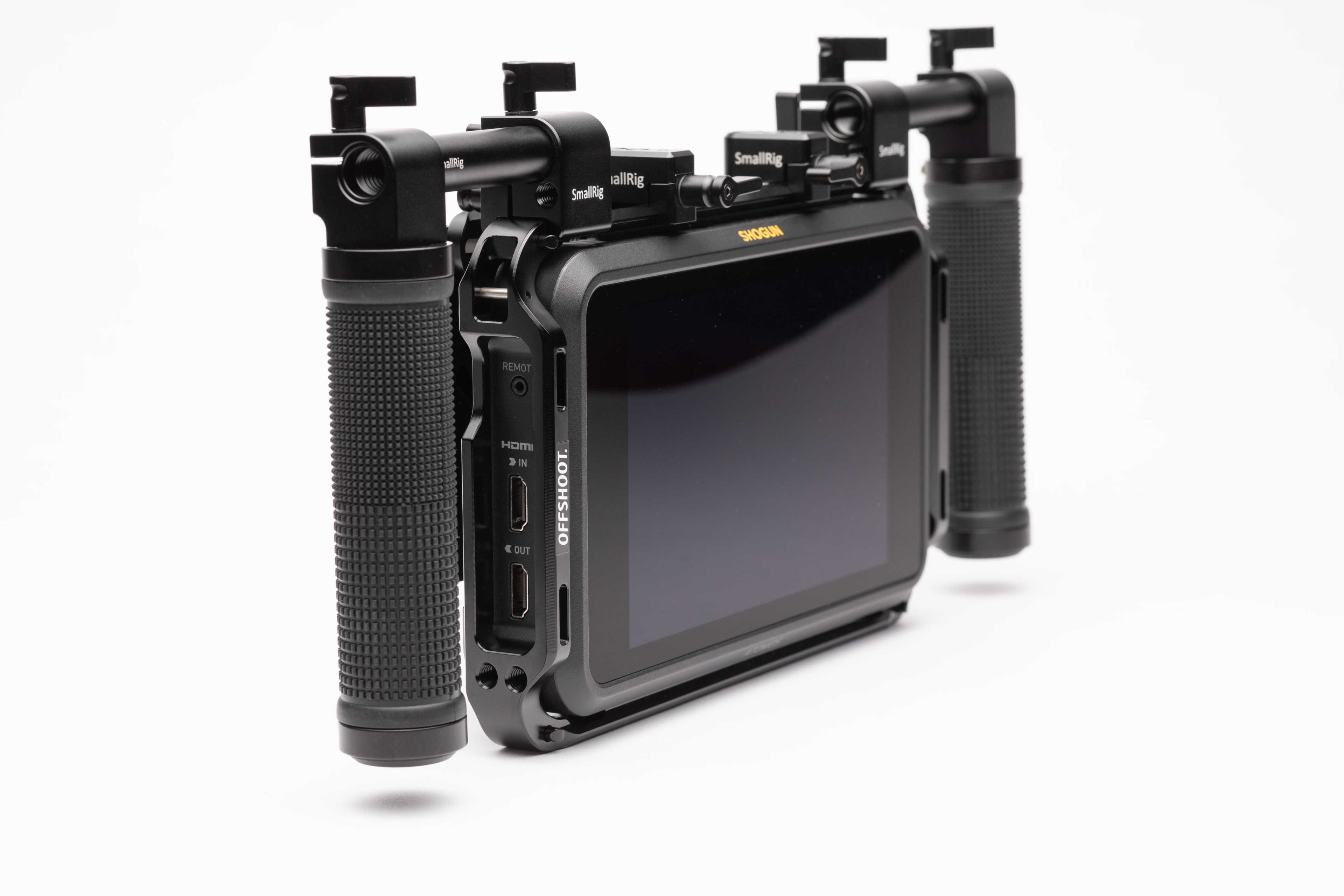

Atomos Shogun 7 Handheld Kit
This Atomos Shogun 7 + SmallRig handheld kit is ideal as a portable monitoring and/or recording setup. Wireless receivers and other accessories can be easily attached via the 3/8"-16 and 1/4"-20 mounting holes. The included sunhood helps with viewing in challenging lighting conditions.
See the Atomos Shogun 7 page for more details about the capabilities of the monitor/recorder.
Media is not included but is available for hire.
Shogun 7 Introduction
An introduction to the Atomos Shogun 7.
Async Switching
A look at the asynchronous switching feature of the Shogun 7.
Display
Panel Type
IPS LCD touchscreen
Diagonal Size
7.2"
Resolution
1920 x 1200
Pixel Density
327 ppi
Aspect Ratio
16:9
Brightness
1500 / 3000 Peak HDR brightness
Contrast
1000:1
Gamut
DCI-P3 (D65)
Colour Depth
10-bit (8+2)
Viewing Angle
178 Degrees
Backlight Type
Dynamic zoned backlight, Dynamic Full Array Local Dimming (FALD) 360 Zones
Input Signal
SDI Inpt Types
YCC 4:2:2 @ 8/10-bit or 12-bit RAW: 6k - 23.98 / 24 / 25 / 29.97 / 30 4k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 4k UHD - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 2k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / FX9 RAW up to 180 1080p - 4k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 100 / 120 1080i - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 720p - 50 / 59.94 / 60
HDMI Input Types
YCC 4:2:2 @ 8/10-bit or 12-bit RAW: 4k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 4k UHD - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 2k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / FX9 RAW up to 180 1080p - 4k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 100 / 120 1080i - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 720p - 50 / 59.94 / 60
Audio Input Types
24-bit 48kHz via SDI & HDMI in or 3.5mm jack.
Output Signal
SDI Output Types
YCC 4:2:2 @ 8/10-bit or 12-bit RAW: 6k - 23.98 / 24 / 25 / 29.97 / 30 4k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 4k UHD - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 2k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 1080p - 4k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 100 / 120 1080i - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 720p - 50 / 59.94 / 60
HDMI Output Types
YCC 4:2:2 @ 8/10-bit or 12-bit RAW: 4k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 4k UHD - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 2k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 1080p - 4k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 100 / 120 1080i - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 720p - 50 / 59.94 / 60
Audio Output Types
1x 3.5mm 3-pin Stereo Headphone Jack
Recording Codecs
Cinema DNG
SDI RAW inputs only
Apple ProRes RAW
ProRes RAW HQ ProRes RAW
Apple ProRes
ProRes 422HQ ProRes 422 ProRes LT
Avid DNxHD
DNxHD 36 DNxHD 145 DNxHD 220 DNxHD 220x
Avid DNxHR
DNxHR HQX DNxHR HQ DNxHR SQ DNxHR LB
Remote Control
HDMI
Auto HDMI Trigger, Supported Protocols - Canon, Sony,Atomos Open Standard.
SDI
SDI trigger camera selectable
Serial 2.5mm Jack
LANC control and calibration via optional USB to serial cable.
I/O
SDI
Quad link 3G SDI with 2 x 12G SDI (backwards compatible), Auto-detection. 1 x 2 x 12G SDI Backwards compatible Auto detection.
HDMI
1x HDMI 2.0 (4k60) input (Type A) 1x HDMI 2.0 (4k60) Output (Type A)
Component
Not Supported
Composite
Not Supported
Audio
1x 3.5mm Headphone Jack 2x XLR via optional breakout cable
Power
Connector
NP-F L series battery plate (dual).
Voltage
6.2 - 16.8V (Battery)
Power Consumption
10-33 watts
AC Power Supply
Included
Overload Protection
Yes
Power Output
None
Software
Pixel Zoom
1x & 2x Zoom with smooth pan via joystick
Frame Guides
Yes: Preset Aspect Ratios & Customizable
DSLR Scale
No
Custom Scale
No
Anamorphic De-Squeeze
Yes: 1.25x, 1.33x, 1.5x, 1.8x, 2.0x
Image Rotate
No
Image Flip
Yes - Vertical only
Cross Conversion
No
Focus Assist
Yes - User Adjustable Color Style and Intensity
Peaking
Yes - User Adjustable Intensity
False Color
Yes - Rainbow Style
Zebra
Yes - User Configurable
Waveform
Yes - 3 size / position
Vectorscope
Yes - 2 size / position
RGB Parade
Yes - 3 size / position
Histogram
Yes - Luma & RGB Style
Image Capture
Yes
Custom LUTS
Yes - .Cube format
LUT Downstream
Yes - Loop out
LUT Import
Via SSD
Audio Meters
Yes
Physical
Dimension
Monitor: 214 x 127 x 45mm.
Weight
Monitor: 709g.
