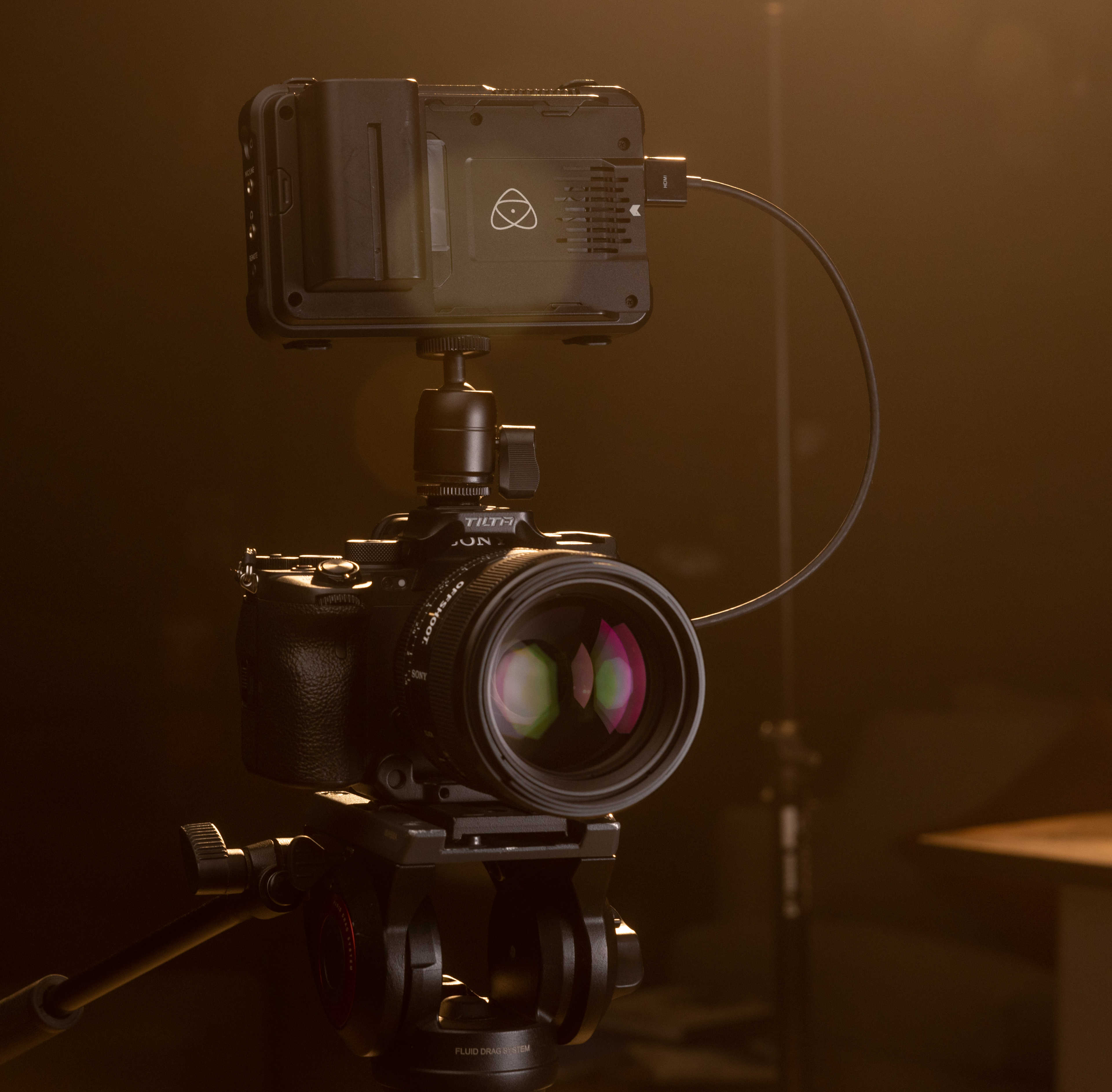

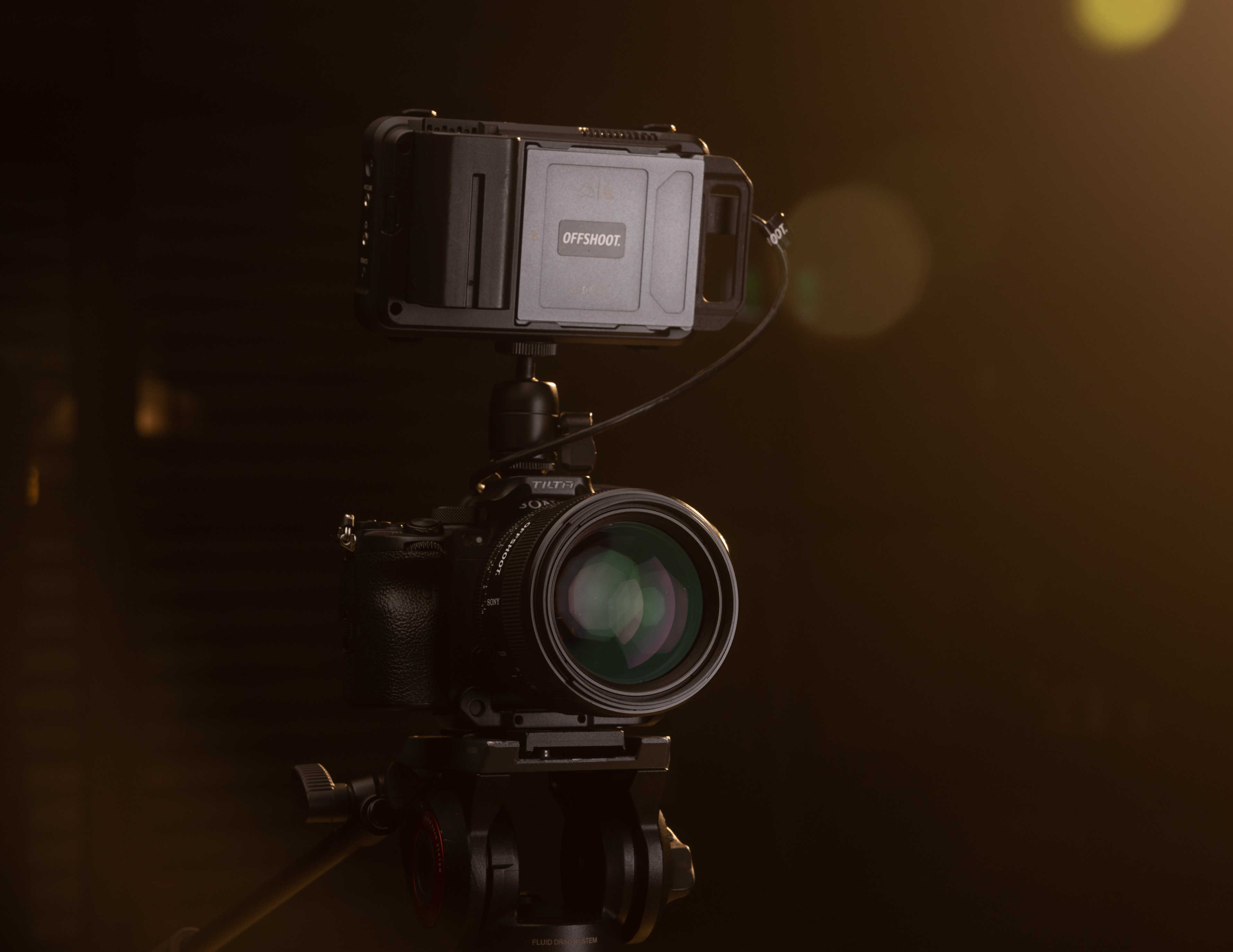

Atomos Ninja V Kit
The Atomos Ninja V is an ideal companion for mirrorless and DSLR cameras where you want to squeeze the maximum quality out of the camera. Record directly to convenient 10-bit ProRes or up to 12-bit Avid DNxHR encoded files.

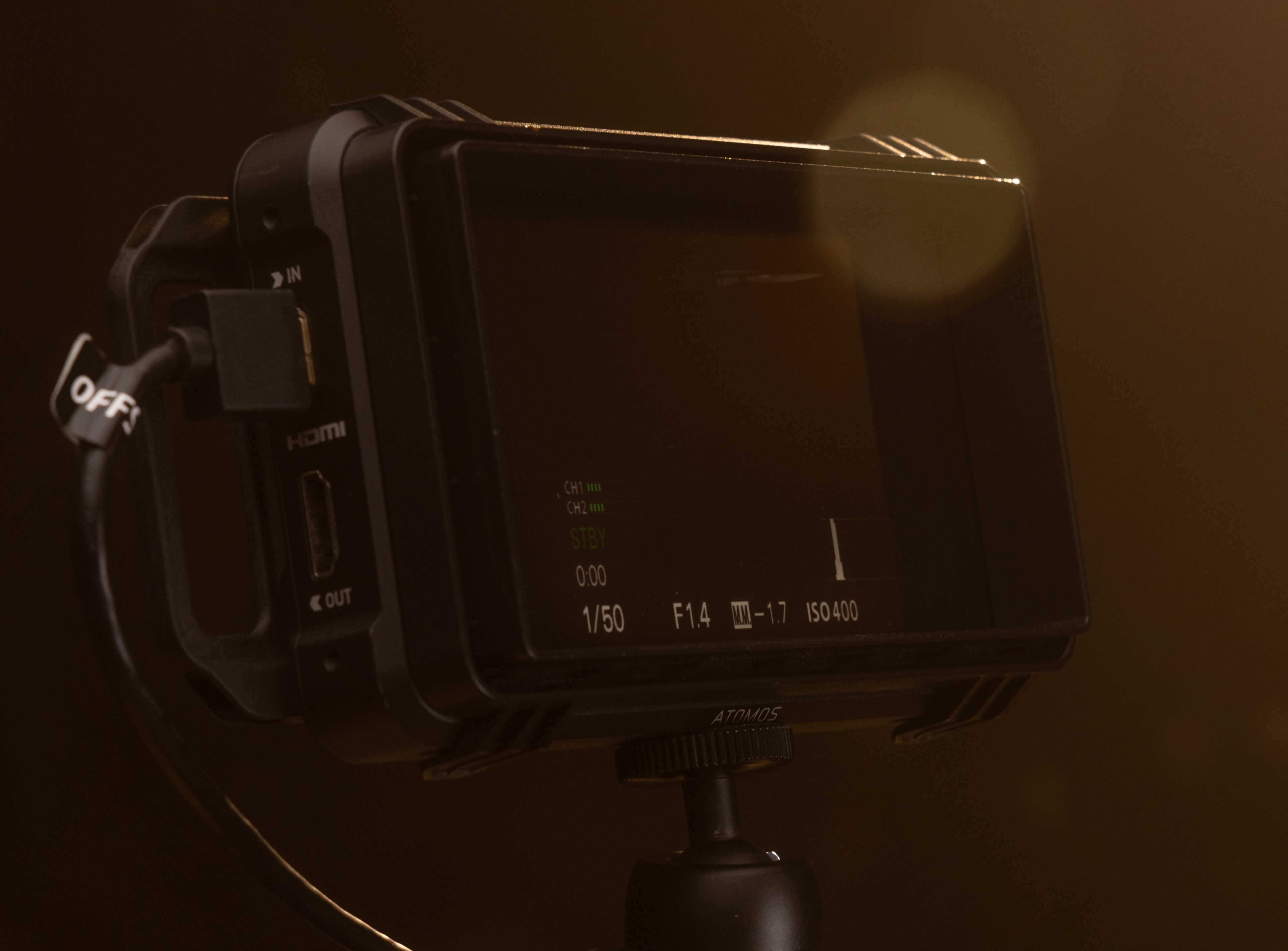

The bright 5" 1000 nit HDR display is easier to view in exterior situations, and the included sunhood helps with viewing in particularly challenging lighting conditions.

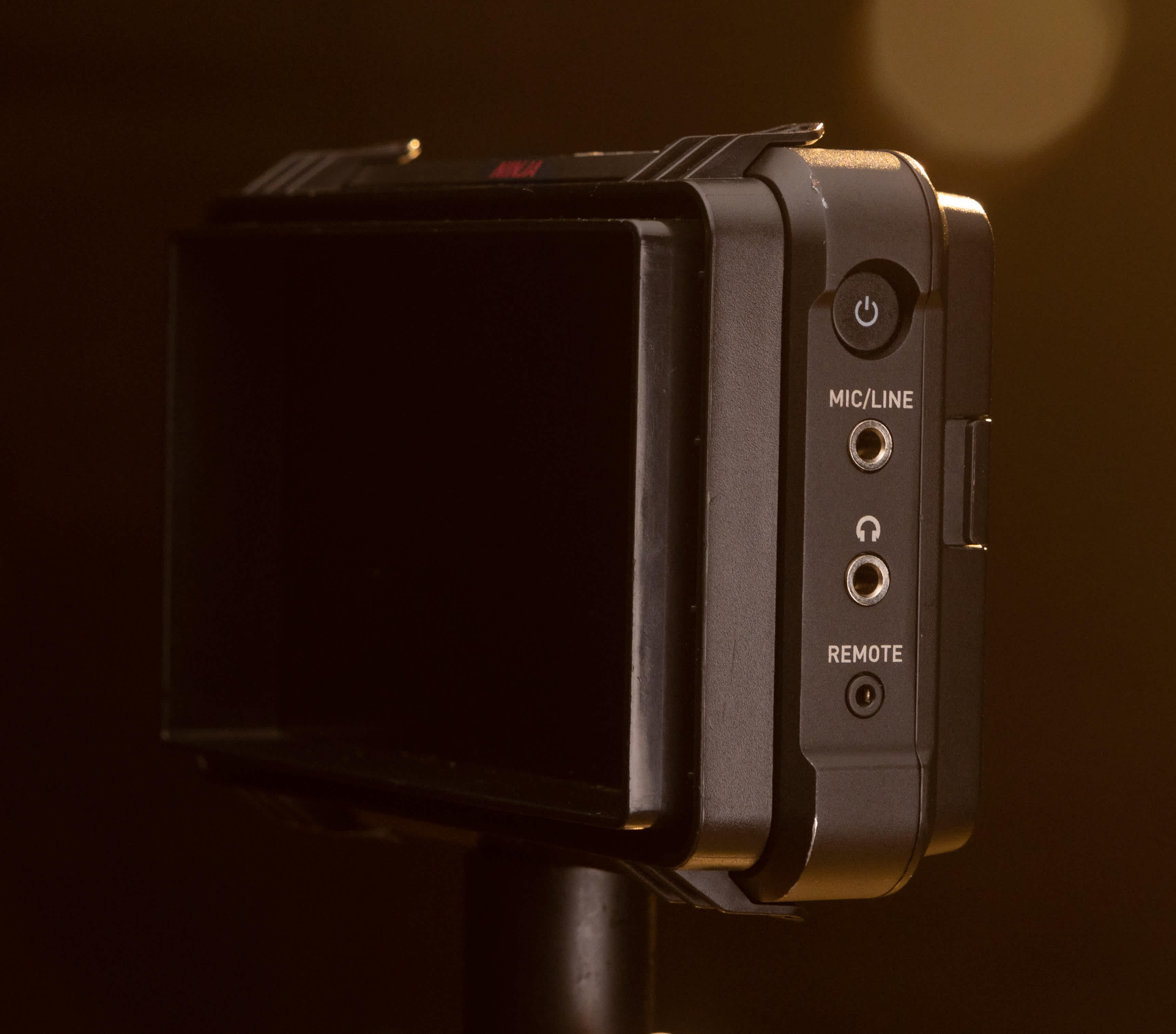

When it matters, keep a close eye on audio levels with the onscreen meters and choose the audio sources to sync to recorded vision - the audio coming in over HDMI and/or analogue channels via the 3.5mm stereo input.
Media is not included as standard but we have 500GB and 1TB drives available for hire.
Ninja V Overview
An overview of the Ninja V monnitor/recorder.
4:2:0 vs 4:2:2
A comparison of internal vs external recording using the Ninja V and Sony A7III.
Display
Panel Type
IPS LCD touchscreen
Diagonal Size
5.2"
Resolution
1920 x 1080
Pixel Density
423 ppi
Aspect Ratio
16:9
Brightness
1000 nits
Contrast
1000:1
Gamut
Rec.709
Colour Depth
10-bit (8+2)
Viewing Angle
178 Degrees
Backlight Type
Edge-lit (adjustable)
Input Signal
HDMI Input Types
YCC 4:2:2 @ 8/10-bit or 12-bit RAW: 6k - 23.98 / 24 / 25 / 29.97 / 30 5k - 23.98 / 24 / 25 / 29.97 4k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 4k UHD - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 1080p - 4k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 100 / 120 1080i - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 720p - 50 / 59.94 / 60
Audio Input Types
24-bit 48kHz via HDMI in or 3.5mm jack.
Output Signal
HDMI Output Types
YCC 4:2:2 @ 8/10-bit or 12-bit RAW: 6k - 23.98 / 24 / 25 / 29.97 / 30 5k - 23.98 / 24 / 25 / 29.97 4k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 4k UHD - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 1080p - 4k DCI - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 100 / 120 1080i - 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 720p - 50 / 59.94 / 60
Audio Output Types
1x 3.5mm 3-pin Stereo Headphone Jack
Recording Codecs
Apple ProRes RAW
ProRes RAW HQ ProRes RAW
Apple ProRes
ProRes 422HQ ProRes 422 ProRes LT
Avid DNxHD
DNxHD 36 DNxHD 145 DNxHD 220 DNxHD 220x
Avid DNxHR
DNxHR HQX DNxHR HQ DNxHR SQ DNxHR LB
H.265
8/10-bit 4:2:2 and 4:2:0: HQ MQ LQ
Remote Control
HDMI
Auto HDMI Trigger, Supported Protocols - Canon, Sony,Atomos Open Standard.
Serial 2.5mm Jack
LANC control and calibration via optional USB to serial cable.

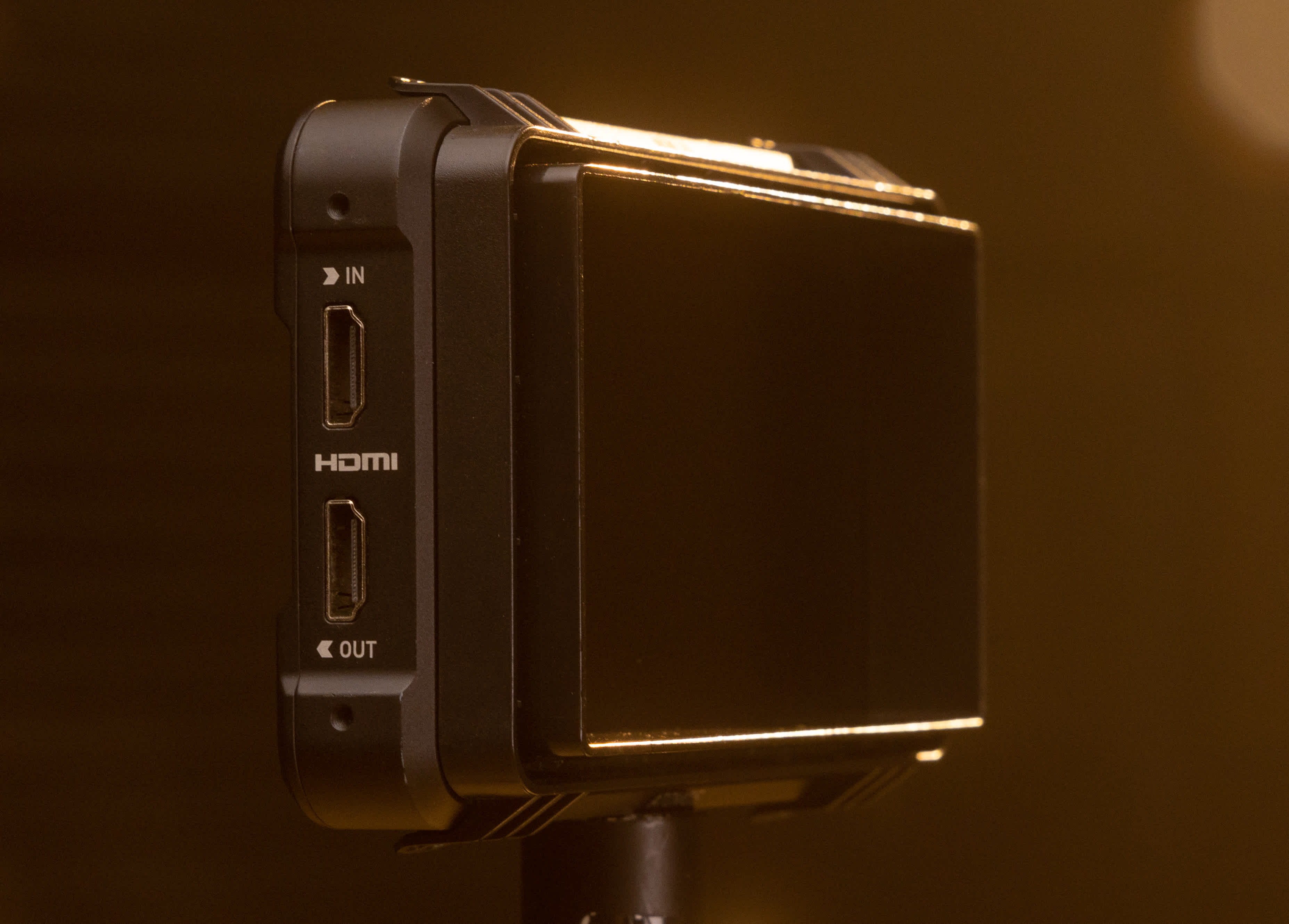

I/O
HDMI
1x HDMI 2.0 (4k60) input (Type A) 1x HDMI 2.0 (4k60) Output (Type A)
Component
Not Supported
Composite
Not Supported
Audio
1x 3.5mm Headphone Jack

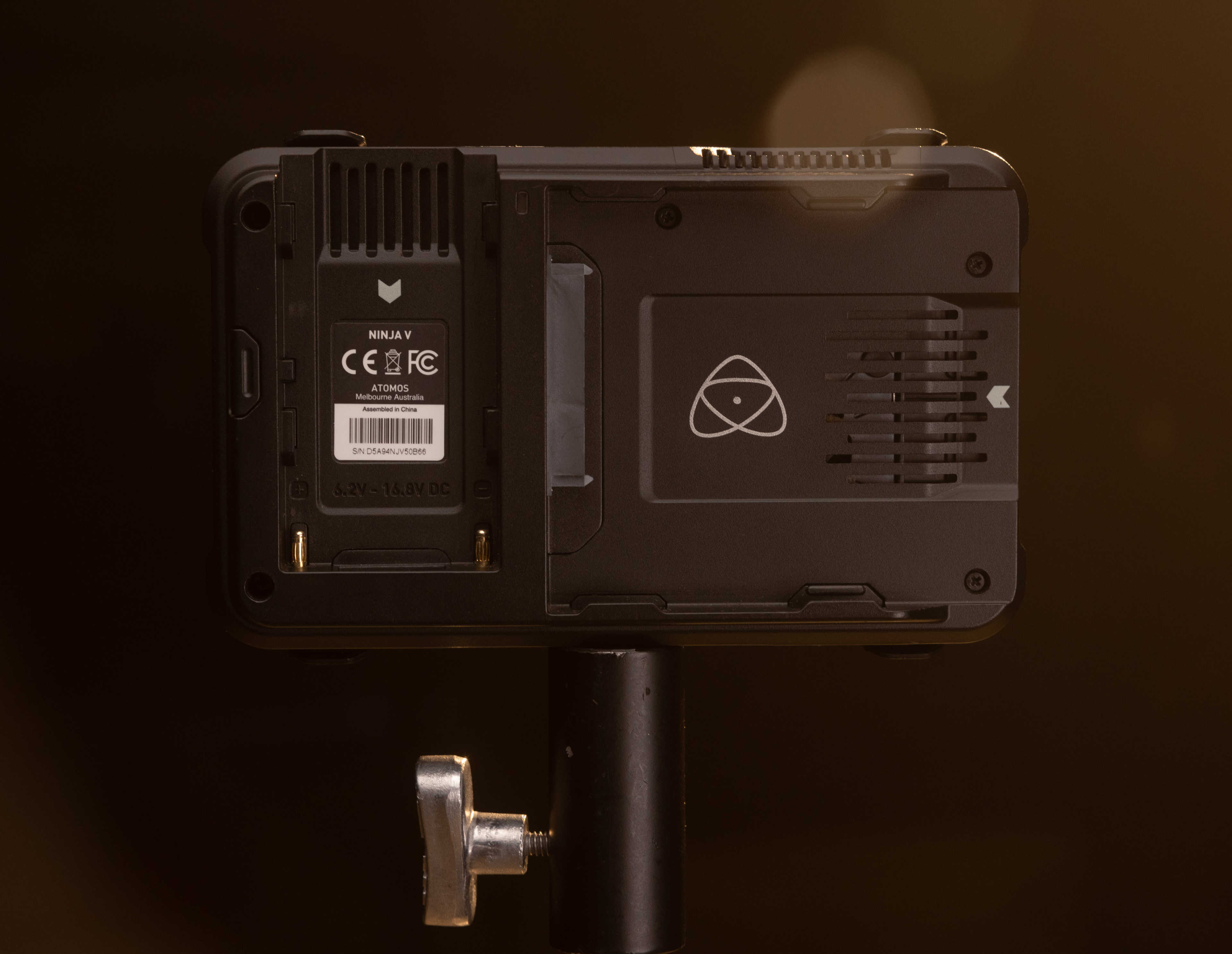

Power
Connector
NP-F L series battery plate.
Voltage
5.8 - 7.2V (Battery)
Power Consumption
10-22 watts
AC Power Supply
Included
Overload Protection
Yes
Power Output
None
Software
Pixel Zoom
1x & 2x Zoom with smooth pan via joystick
Frame Guides
Yes: Preset Aspect Ratios & Customizable
DSLR Scale
No
Custom Scale
No
Anamorphic De-Squeeze
Yes: 1.25x, 1.33x, 1.5x, 1.8x, 2.0x
Image Rotate
No
Image Flip
Yes - Vertical only
Cross Conversion
No
Focus Assist
Yes - User Adjustable Color Style and Intensity
Peaking
Yes - User Adjustable Intensity
False Color
Yes - Rainbow Style
Zebra
Yes - User Configurable
Waveform
Yes - 3 size / position
Vectorscope
Yes - 2 size / position
RGB Parade
Yes - 3 size / position
Histogram
Yes - Luma & RGB Style
Image Capture
Yes
Custom LUTS
Yes - .Cube format
LUT Downstream
Yes - Loop out
LUT Import
Via SSD
Audio Meters
Yes
Physical
Dimension

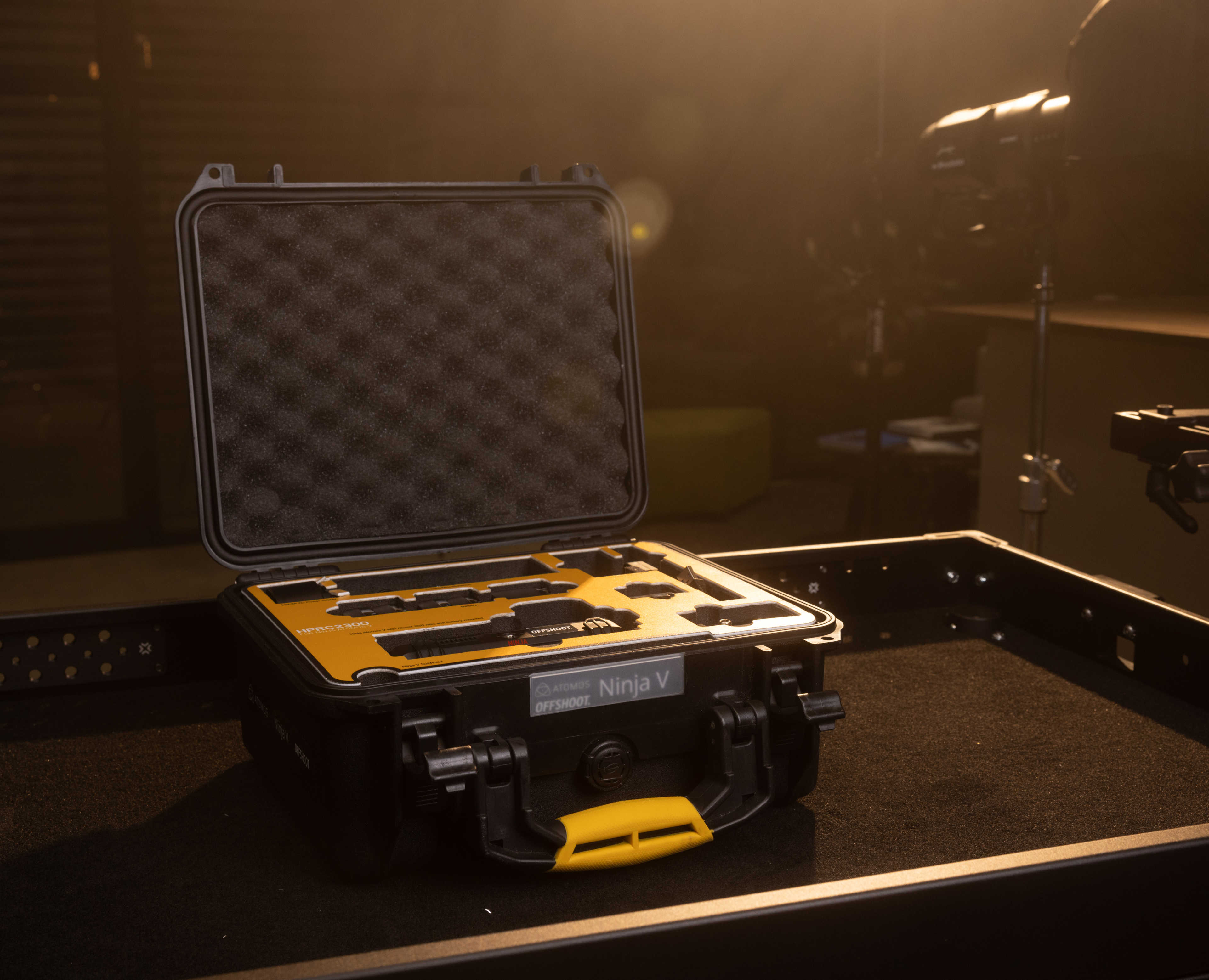

Monitor: 151 x 91.5 x 31mm. Transport case: TBD.
Weight
Monitor: 360g. Transport case: TBD.
