Atlas Orion 2X Anamorphic Full Set (6)
32mm, 40mm, 50mm, 65mm, 80mm and 100mm PL mount. Large format extender also available.
Atlas Orion anamorphic lenses offer you the classic sense of depth, ovoid bokeh, breathing and flare characteristics associated with front anamorphic group lenses - at a less intimidating price point.
All lenses in the set have consistent front diameter sizing (114mm) and focus and iris ring placement.
We also do these lenses in two kits of three - Atlas Orion 2X Anamorphic A Set (40mm, 65mm and 100mm) and Atlas Orion 2X Anamorphic B Set (32mm, 50mm and 80mm).
Kenworth - Legacy
DP Wilson Huang lensed this Gold ACS award winning Kenworth promotion with Atlas Orion lenses.
Sire - Temporary
Cameron Mitchell (DP) and the OneHouse team lensed this Sire music video with the Atlas Orion set.
2022 Showreel
The 2022 Atlas Lens Co showreel.
2021 Showreel
The 2021 Atlas Orion showreel from Atlas Lens Co.
2020 Showreel
2020 Atlas Orion lens showreel. A great showcase of projects on which the Orion lenses have been used.
Full Set Overview
A look at the characteristics of the six lenses in the full set of Atlas Orion 2X Anamorphics.
ARRI LF Sensor Coverage

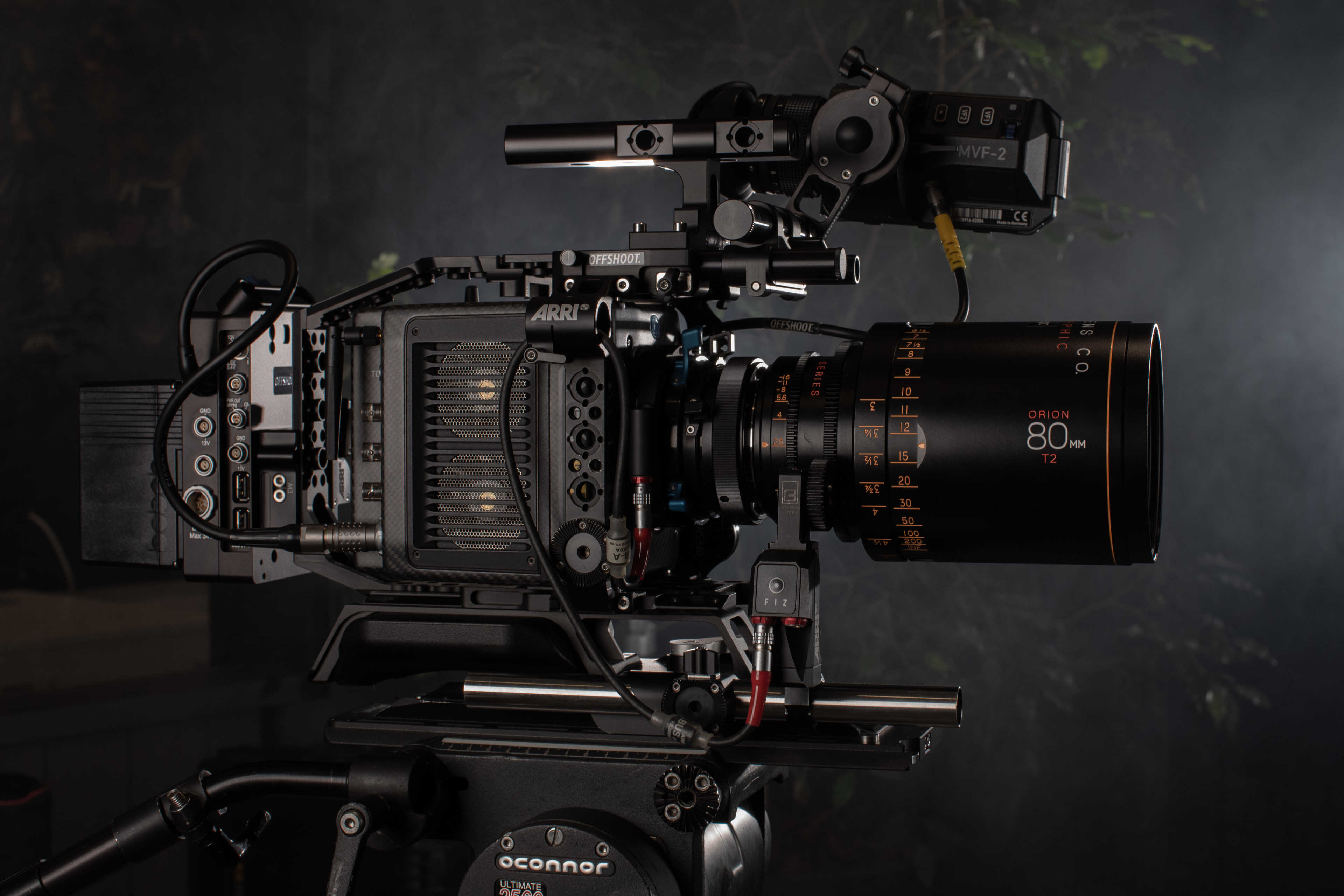

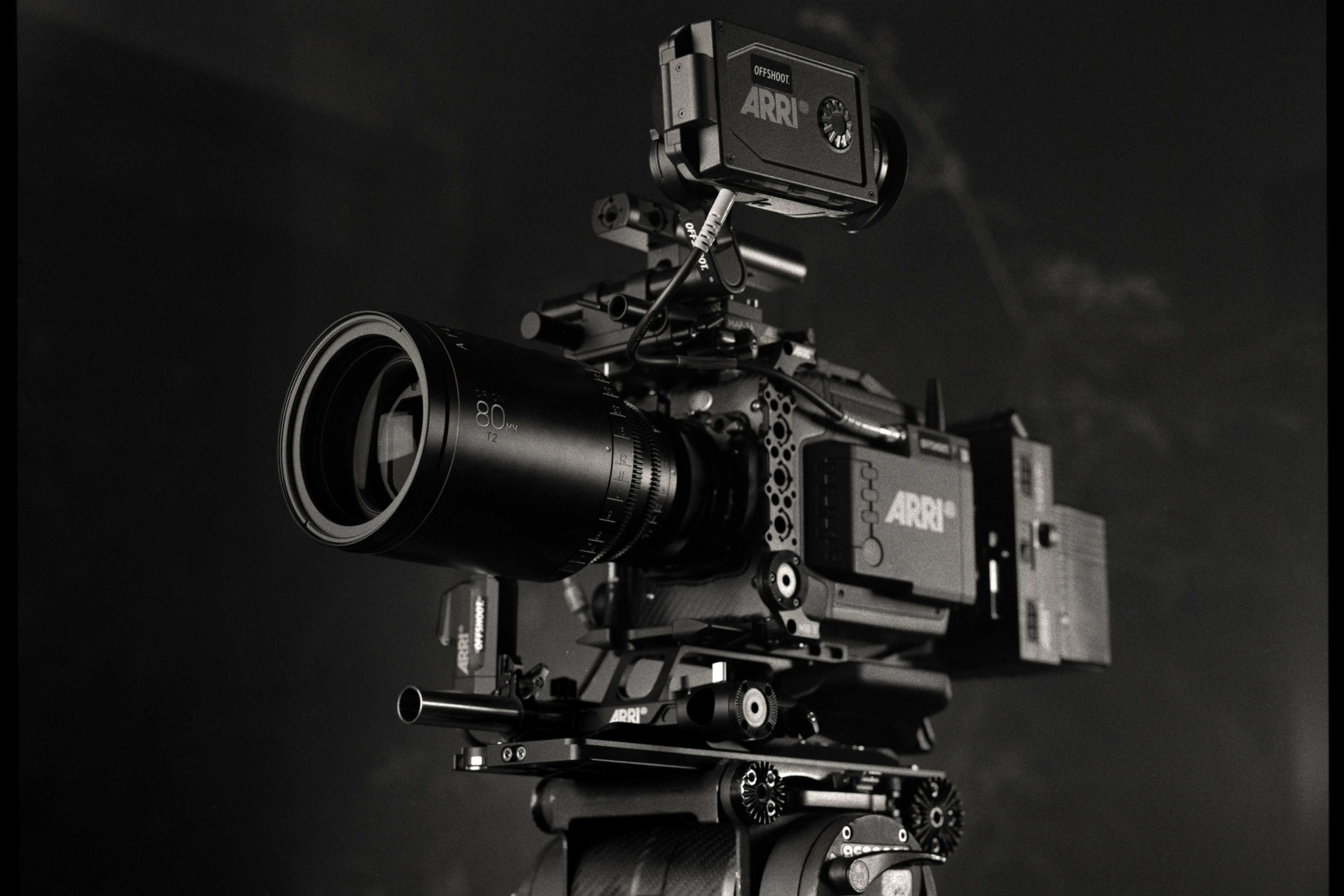

Atlas Lens Co demonstrate the coverage of the Atlas Anamorphic lenses on an Alexa Mini LF with and without the large format extender. The different sensor formats are also demonstrated.
Optical
Squeeze Factor
2X
Focal Length
32mm 40mm 50mm 65mm 80mm 100mm
Minimum Focus Distance
32mm: 0.53m (21”) 40mm: 0.61m (24") 50mm: 0.76m (2’ 6”) 65mm: 0.84m (2' 9") 80mm: 0.91m (3’) 100mm: 1.07m (3' 6")
Maximum Aperture
32mm: T2.0 40mm: T2.0 50mm: T2.0 65mm: T2.0 80mm: T2.0 100mm:T2.0
Minimum Aperture
32mm: T16 40mm: T16 50mm: T16 65mm: T16 80mm: T16 100mm: T16
Image Circle
32mm: 31mm 40mm: 31mm 50mm: 31mm 65mm: 31mm 80mm: 31mm 100mm: 31mm
Physical
Lens Mount
ARRI PL
Metadata
None
Front Diameter
32mm: 114mm 40mm: 114mm 50mm: 114mm 65mm: 114mm 80mm: 114mm 100mm: 114mm
Focus Ring Rotation
32mm: 270° 40mm: 270° 50mm: 270° 65mm: 270° 80mm: 270° 100mm: 270°
Focus / Iris Gear Pitch
0.8 mod
Dimensions (Ø x L)
32mm: 114mm x 170mm 40mm: 114mm x 189mm 50mm: 114mm x 178mm 65mm: 114mm x 184mm 80mm: 114mm x 215mm 100mm: 114mm x 254mm
Weight
32mm: 2.1kg 40mm: 2.2kg 50mm: 2.3kg 65mm: 2.2kg 80mm: 2.7kg 100mm: 3.0kg
Transport Case
Case 1 Dimensions: 580mm x 410mm x 230mm. Weight (with lenses): 16kg Case 2 Dimensions: 580mm x 410mm x 230mm. Weight (with lenses): 16.5kg
