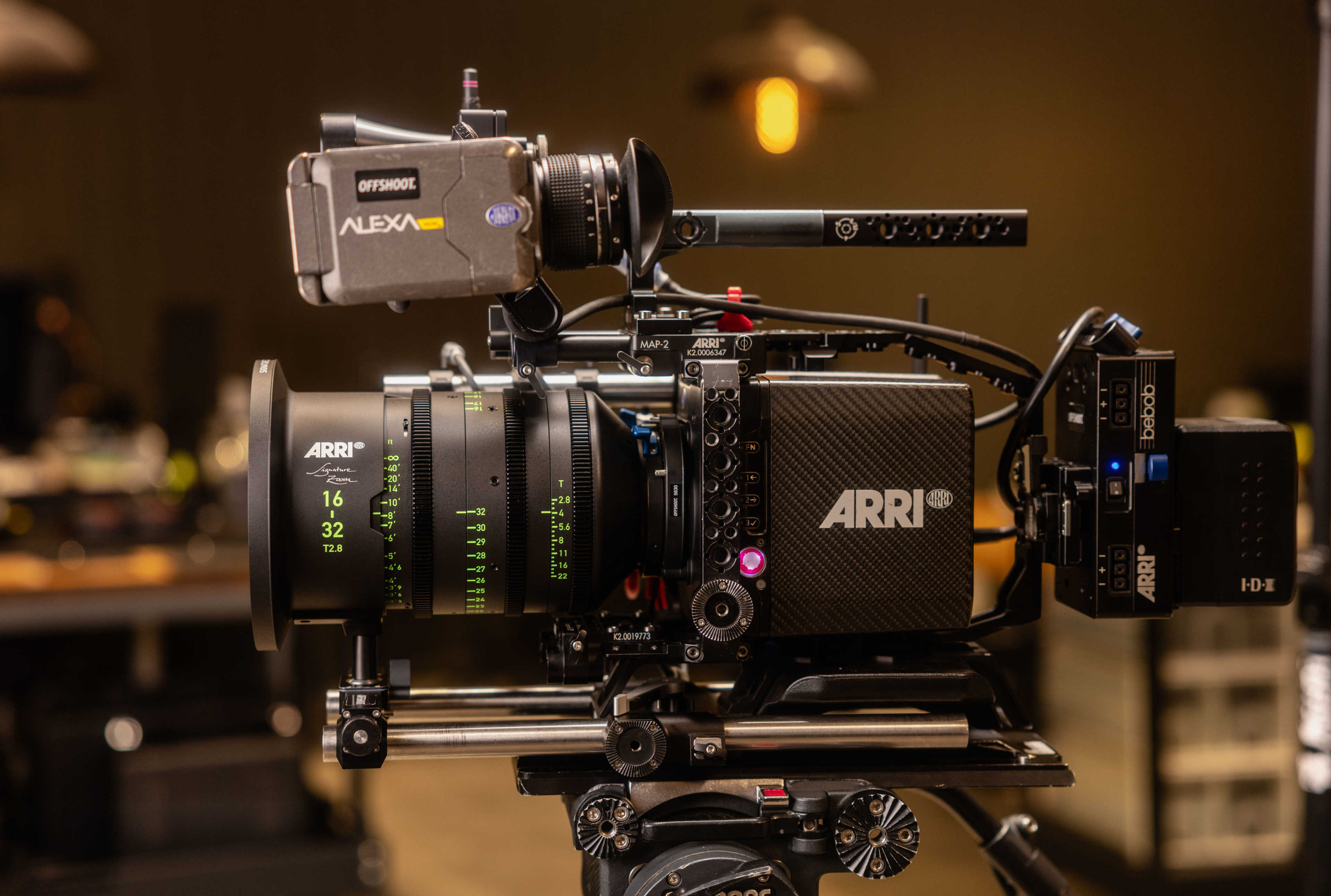

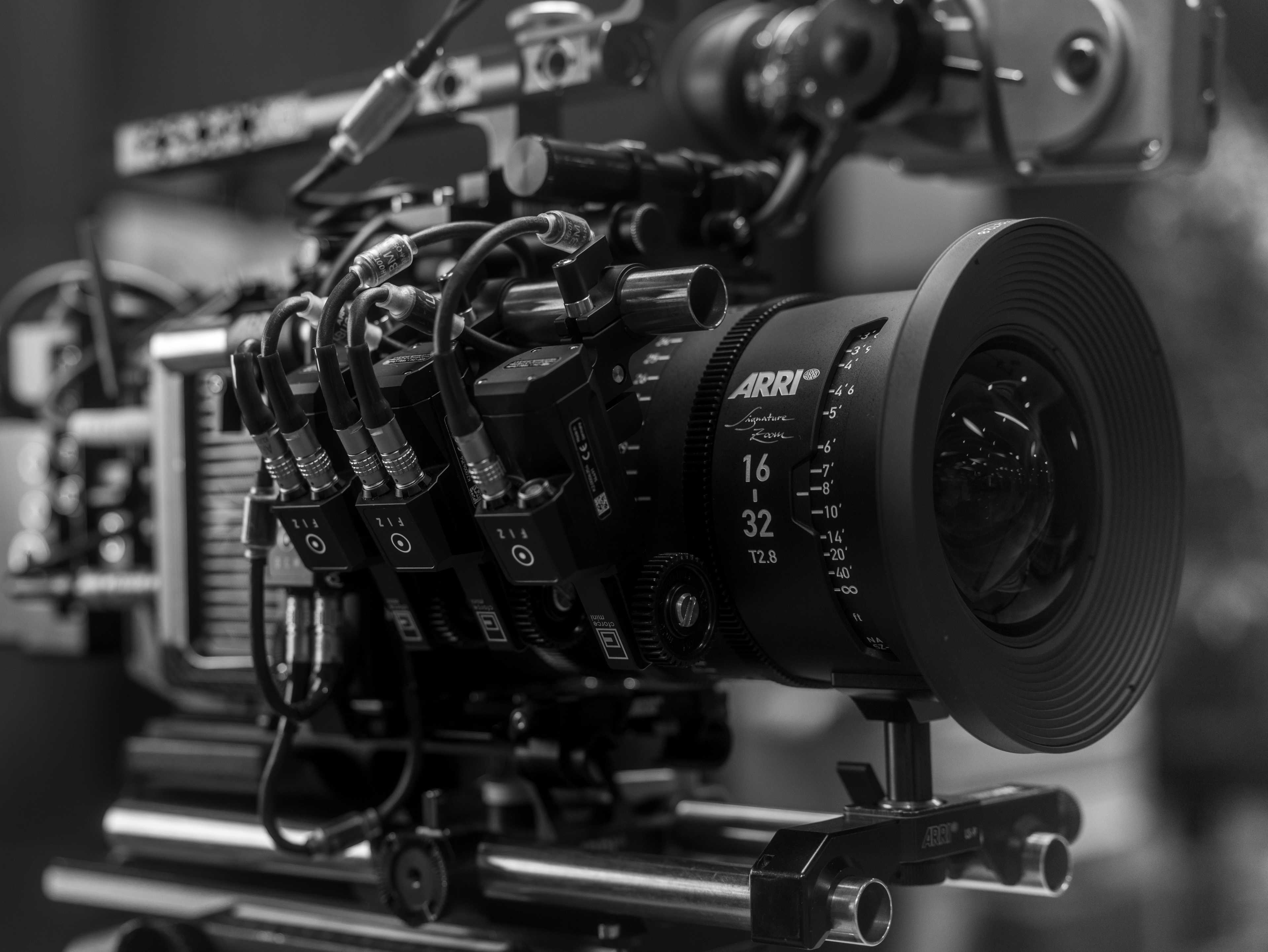

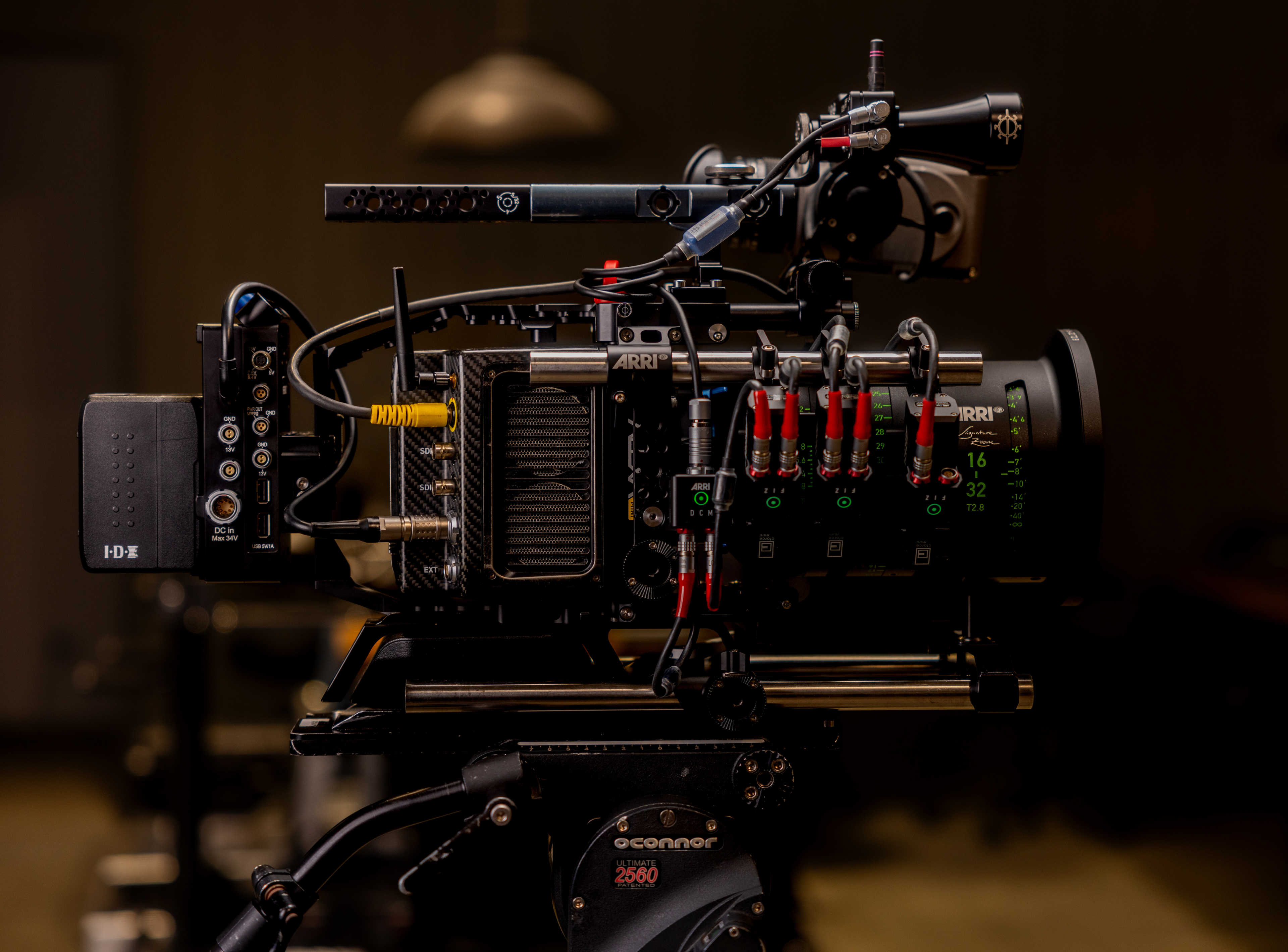

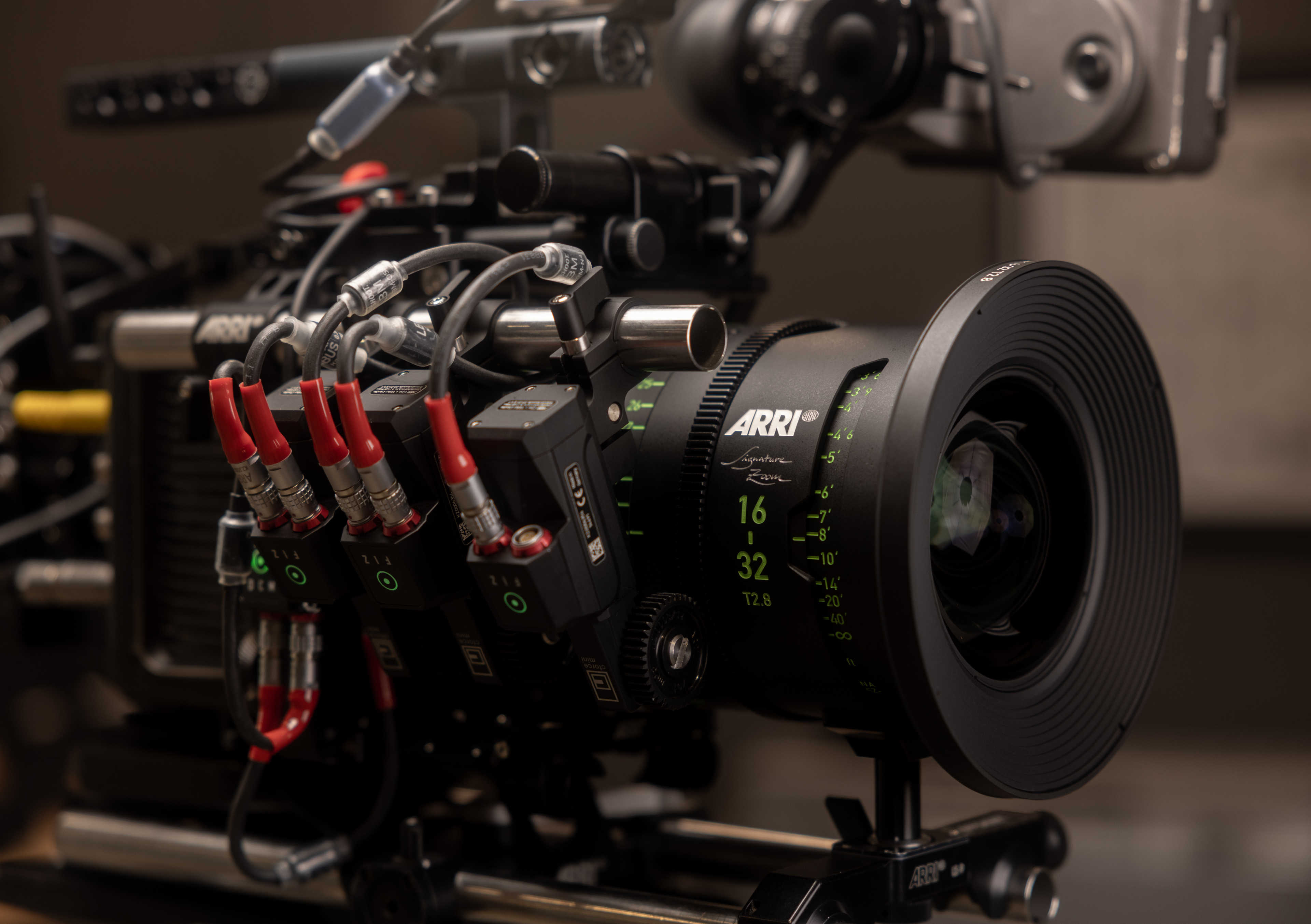

ARRI Signature Zoom 16-32mm T2.8
The 16-32mm T2.8 ARRI Signature Zoom is a premium wide angle, full frame zoom lens with the beautiful image offered by the Signature lens range, as well as having minimal distortion and excellent control of breathing.
Designed to create an image that looks more like a prime lens than any zoom lens that has come before them, the ARRI Signature Zoom family offers you both a coveted image and the efficiency of shooting with a zoom lens.
Baptism Of Style
Sean Kirkwood (DP) and Carl Moleta (Director) used the 16-32mm and 24-75mm Signature Zooms for this fashion piece titled Baptism Of Style. Click through to YouTube for full credits.
Across Windows
This short film out of India has some wonderful images demonstrating the combination of Alexa Mini LF and Signature Zoom lenses.
They Cloned Tyrone
ARRI Signature prime and zoom lenses were used for the feature film They Cloned Tyrone.
Paris Test
Tour parts of Paris with the 16-32mm Signature Zoom lens - featuring some good examples of the low distortion at 16mm.
Dancing With Signature Zooms
A demonstration of the Signature Zooms with strong theatrical lighting.
Rome
This demo has a good range of shots using available light, with both the 16-32mm and 65-300mm zooms.
Budapest Test
...also take a tour of Budapest with scenes captured with the 16-32 Signature Zoom.
Lufthansa Campaign
An example of the 16-32mm and 24-75mm Signature Zooms on a campaign where a lot of available light was used.
Optical
Focal Length
16mm - 32mm
Zoom Ratio
2X
Maximum Aperture
T2.8 (no ramping)
Minimum Aperture
T22
Minimum Focus Distance (from lens front)
0.194m (7.64")
Image Circle
>46mm
Physical
Lens Mount
ARRI LPL
Front Diameter
156mm
Metadata
ARRI LDS-2 and Cooke/i
Focus Scale
Imperial
Focus / Iris Gear Pitch
0.8 mod
Dimensions (Ø x L)
157mm x 212mm
Weight
Lens only: 3.2kg
Transport Case
Dimensions: TBA Weight (with lens): TBA
