Designed for the Atomos range of monitor/recorders, the Angelbird AtomX SSDMINI
is a high performance SSD with a sustained write speed of 500MB/s and a sustained
read speed of 540MB/s.

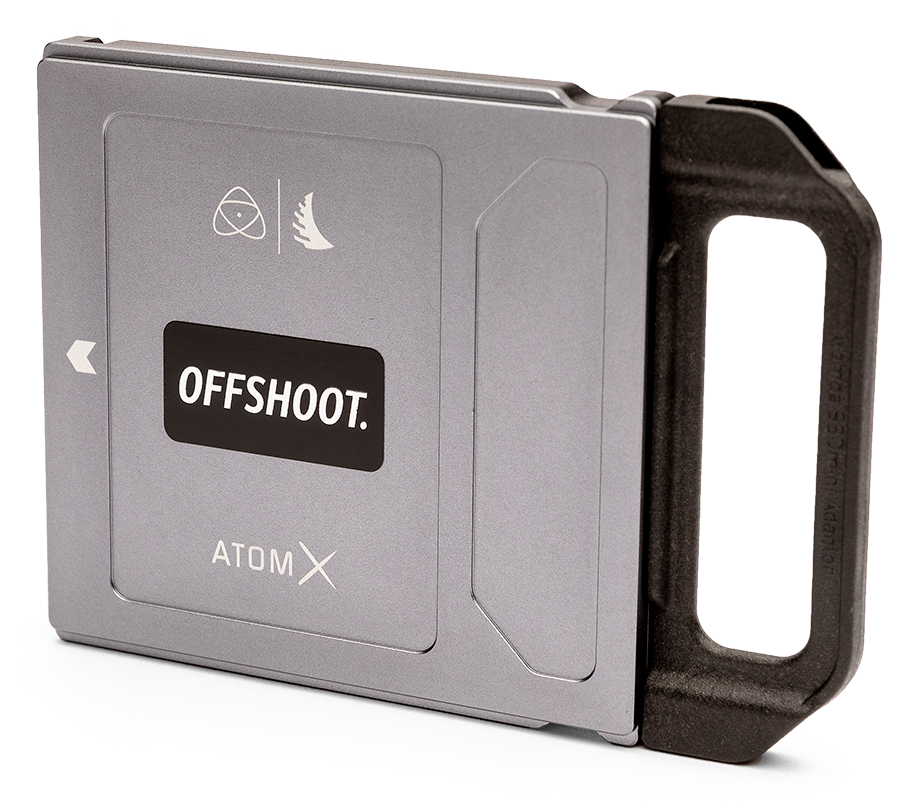

Works with the Ninja, Shogun and Sumo range of Atomos products. Includes SSD handle
for use with Sumo 19 and Sumo 19M.
Angelbird AtomX SSDMINI media is designed for use in the field and is impervious
to airport x-ray scanners.
PerformanceSequential Read Speed560 MB/sSustained Read Speed540 MB/sSequential Write Speed520 MB/sSustained Write Speed500 MB/sAccess Time (Read)65 µsAccess Time (Write)40 µsPhysical PropertiesDimensions80.0 x 75.5 x 9.3 mmWeight90gReliabilityMTBF2.4 million hoursData Retention10 years at 25°Data ReliabilityBuilt-in EDC | ECC functionEnduranceUp to 1,500 TBWTechnicalInterface
SATA 6 Gb/s, 3 Gb/s and 1.5 Gb/s supported.
SATA 3.0 compliant.
Features
Temperature sensor.
Overload protection.
TRIM, ECC, EMS protection, built-in cache, SMART, NCQ.
EnvironmentalOperating Temperature-20 °C to 70 °COperating Humidity
5 % to 95 % non-condensing
Storage Temperature–40 °C to 85 °C
