Teradek ACE 800 1:1 Kit
The Teradek ACE 800 has the same solid video performance that modern generation Teradek units are known for, with a maximum optimal transmission distance of up to 240m in ideal conditions.

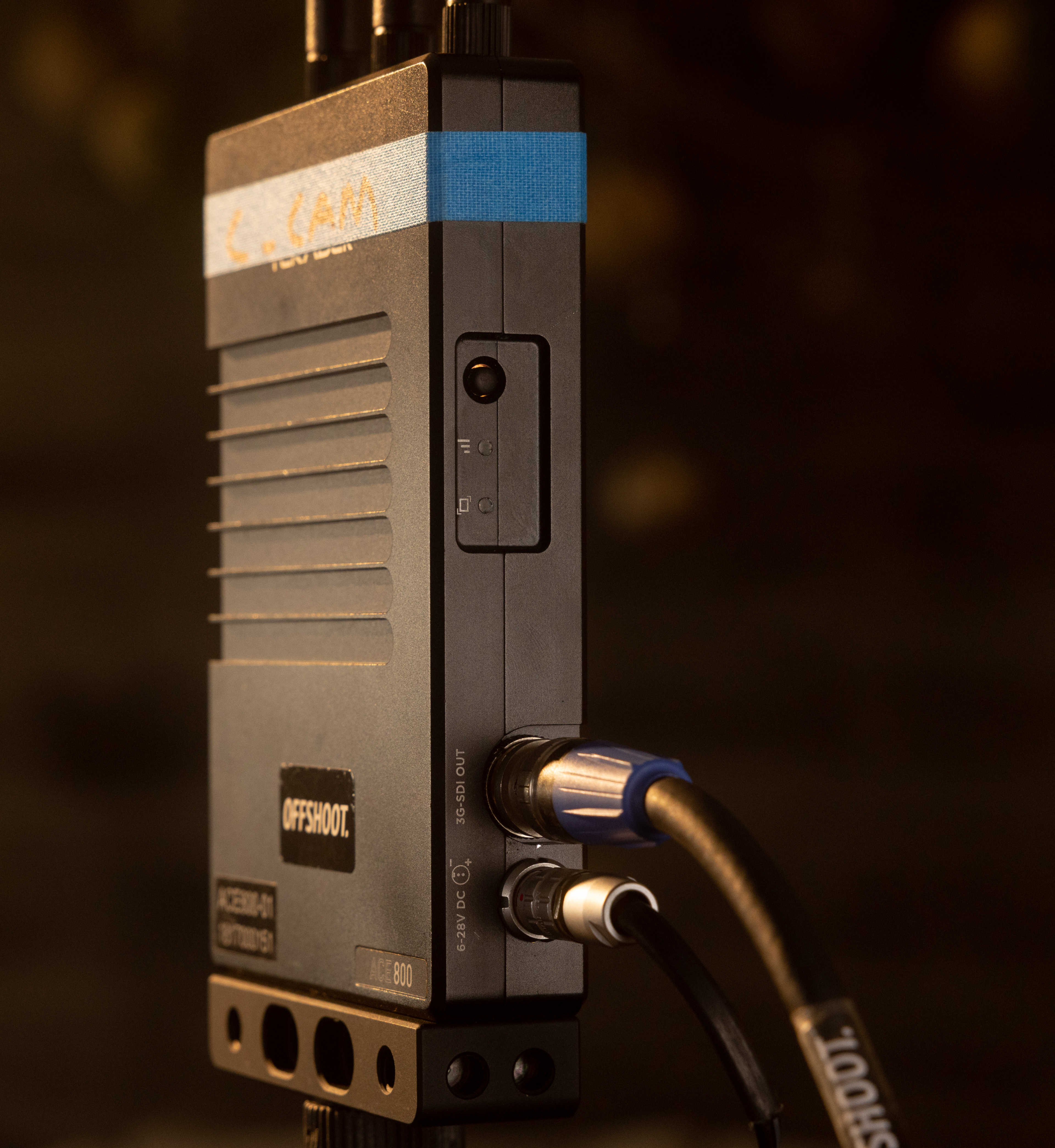

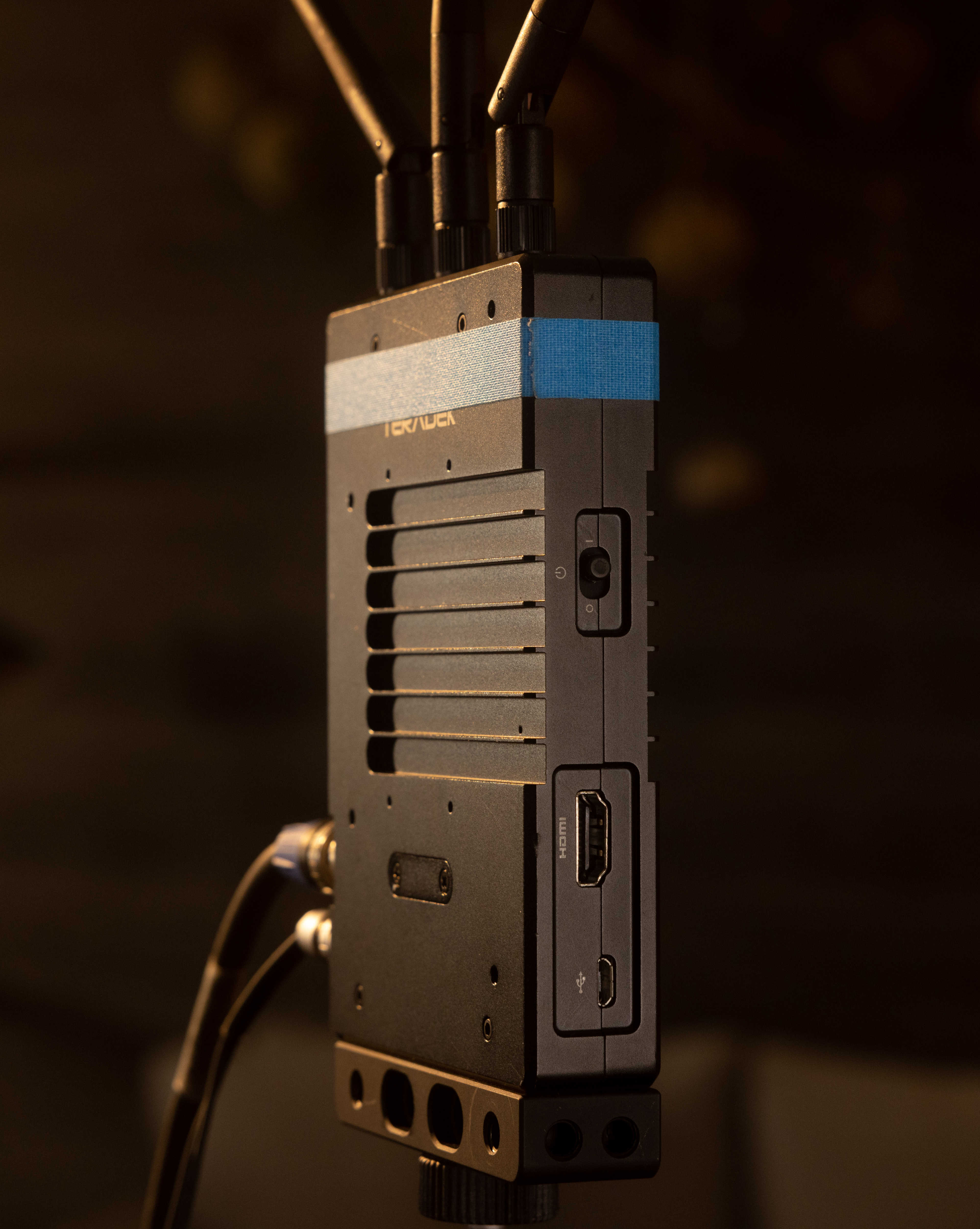

The transmitter has an SDI input as well as an SDI loop output for easily looping out to an on board monitor. The receiver has an SDI output as well as a full size HDMI output for added versatility.
The transmitter and receiver both have a large 6-36VDC input range via the 2pin LEMO connector. Our kit is supplied with 2x D-Tap cables and an AC cable but other power options are available - please get in touch if you have a specific requirement.
Wireless performance is very dependent on environmental conditions at your shooting location. Spectrum congestion can severely reduce range or even cause the units to not work at all. Testing and/or a backup plan is strongly recommended.
No videos yet.
Wireless
Range
Up to 240m line of sight. The operating environment can significantly impact range.
Delay
Less than 1ms (0.001s).
Operating Frequencies
5.19 to 5.23 GHz (DFS) 5.75 to 5.79 GHz (DFS)
RF Power
TX: 19 dBm RX: 17 dBm
Encryption
128-Bit AES
Maximum Receiver Count
4 (only compatible with ACE 800)
Format Support
Supported Video Formats
1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 1080PsF at 23.98, 24, 25, 29.97, 30 fps 1080i at 50, 59.94, 60 fps 720p at 50, 59.94, 60 fps 576i at 50 fps 480i at 59.94 fps
Colour Sampling
SDI: 10-bit 4:2:2 YCbCr HDMI: 8-bit 4:4:4 RGB
Audio
2-Channel 24-Bit 48kHz PCM
Format Conversion
No
SDI Ancillary Data Support
None
I/O
Input
6-36 VDC via 2-Pin LEMO Battery options available on request
Power Consumption
TX: 7.5W RX: 8.5W
Physical
Mounting
TX: 3x ¼”-20 female RX: 1x ¼”-20 female
Dimensions
TX: 106.71 x 63.68 x 20.54mm. RX: 132.13 x 92.16 x 23.95mm. Transport case: 271 x 248 x 123mm
Weight
TX: 226g RX: 376g Transport case: 2.4kg
