Canon EOS R Kit
Canon’s first full frame mirrorless camera is capable of shooting Canon Log in both 4K UHD (3840x2160) and full HD (1920x1080) internally. The new Canon RF lens mount is built around the 30.3MP full frame sensor (36x24mm), which can shoot up to 30fps in 4K and up to 60fps in full HD.
An RF to EF adapter is included with each camera for using the wide range of EF and EF-S mount lenses available for Canon DSLR cameras.
User Guide
An overview of how to use the Canon EOS R mirrorless camera.
Video Settings
A look at settings related to shooting video on the Canon EOS R.
EOS R & Canon Log
Find out more about recording video in Canon Log on the EOS R.
Lens Mount
Mount Options
Canon RF. Canon EF (with the use of the supplied adapter). Arri PL (with the use of an adapter)
Imaging Sensor
Sensor Size
35mm full-frame (36 × 24 mm).
Sensor Type
CMOS
Sensor Aspect Ratio
3:2
Megapixel Count
Actual: 31.7 Effective: 30.3
Image Engine
Digic 8
Image Stabilisation
Digital (video only)
Still Images
Image Formats
JPEG, RAW, HEIF.
Bit Depth
Up to 14 bit RAW.
Continuous Shooting
Mechanical shutter: up to 12fps at 45MP for up to 180 frames (RAW) / 350 frames (JPEG). Electronic shutter: up to 20fps at 45MP for up to 83 frames (RAW) / 170 frames (JPEG).
Interval Recording
Yes (Integrated)
Self Timer
2 or 10-second delay.
Aspect Ratios
3:2 / 3:2(1.6x crop) / 16:9 / 1:1
Image Size (3:2) 35mm Full Frame
L: 6270 x 4480 (30M). M: 4464 x 2976 (13M). S1: 3360 x 2240 (7.5M). S2: 2400 x 1600 (3.8M).
Image Size (3:2) 1.6x Crop
L: 4176 x 2784 (12M). S2: 2400x1600 (3.8M).
Image Size (4:3) 35mm Full Frame
L: 5952 x 4480 (27M). M: 3968 x 2976 (12M). S1: 2976 x 2240 (6.7M). S2: 2112 x 1600 (3.4M).
Image Size (16:9) 35mm Full Frame
L: 6720 x 3776 (25M). M: 4464 x 2512 (11M). S1: 3360 x 1888 (6.3M). S2: 2400 x 1344 (3.2).
Image Size (1:1) 35mm Full Frame
L: 4480 x 4480 (20M). M: 2976 x 2976 (8.9M). S1: 2240 x 2240 (5.0M). S2: 1600 x 1600 (2.6M).
Internal Video Recording (64GB Card)
Video Recording Limit
Up to 29 mins, 59 seconds.
Recording Resolutions
4K UHD - 3840 x x2160 (16:9). Full HD - 1920 x 1080 (16:9). HD - 1280 x 720 (16:9).
MP4 4K 8-Bit 4:2:0 - ALL-I
23.97p / 24p / 25p / 29.97p (480Mb/s) - 16 mins.
MP4 4K 8-Bit 4:2:0 - IPB
23.97p / 24p / 25p / 29.97p (120Mb/s) - 66 mins.
MP4 Full HD 8-Bit 4:2:0 - ALL-I
23.97p / 24p / 25p / 29.97p (90Mb/s) - 88 mins. 50p / 59.94p (180Mb/s) - 44 mins.
MP4 Full HD 8-Bit 4:2:0 - IPB
23.97p / 24p / 25p / 29.97p (30Mb/s) - 266 mins. 50p / 59.94p (60Mb/s) - 133 mins.
MP4 Full HD 8-Bit 4:2:0 - IPB Light
25p / 29.97p (12Mb/s) - 666 mins.
MP4 HD 8-Bit 4:2:0 - ALL-I
50p / 59.94p (80Mb/s) - 100 mins. 100p / 119.9p (160 Mb/s) - .50 mins
MP4 HD 8-Bit 4:2:0 - IPB
25p / 29.97p (13Mb/s) - 615 mins. 50p / 59.94p (26Mb/s) - 307 mins.
External Video Recording
10-bit/8-bit RAW
4096 x 2160 - 59.94p / 50p / 29.97p / 25p / 24p / 23.98p. 3840 x 2160 - 59.94p / 50p / 29.97p / 25p / 24p / 23.98p. 1920 x 1080 - 59.94p / 59.94i / 50.00p / 50.00i / 480p / 59.94p / 576p / 50p.
Exposure Control
ISO Range
ISO 100 - 51,200 (102,400 in extended mode).
Exposure Modes
Aperture priority / Shutter priority / Manual / Program.
Metering Methods
Center-weighted / Spot / Evaulative / Partial.
Exposure Compensation
-3 to +3 EV (1/3, 1/2 EV steps).
Metering Range
-3 to 20 EV.
White Balance
Auto / Cloudy / Color Temperature / Custom / Daylight / Flash / Fluorescent (White) / Shade / Tungsten.
Focus
Focus Type
Dual Pixel CMOS II.
Focus Modes
Continuous Servo (C), Single Servo (S), Manual Focus.
Focus Points
1,053 points (phase-detection AF).
Subject Tracking
People / Animals / No Priority.
Autofocus Sensitivity
-6 to +20 EV.
Media
Supported Media
CFexpress Type B memory card (slot 1) and SD memory card, SDHC memory card (UHS-I/II-compliant), SDXC memory card (UHS-I/II-compliant) (slot 2).
Media Slots
Slot 1: CFexpress Type B card. Slot 2: SD / SDHC / SDXC memory card.
EVF + Monitor
EVF Type
5.76 million dot OLED with 100% coverage.
EVF Diopter Adjustment
-4 to +2
EVF Magnification
Approximately 0.76x.
Monitor Type
3.2" 2.1 million dot tilting, touchscreen.
Flash
Built In Flash
None
Max Sync Speed
1/250s
Flash Compensation
-3 to +3 EV (1/3, 1/2 EV steps).
External Flash Connection
Hot shoe.

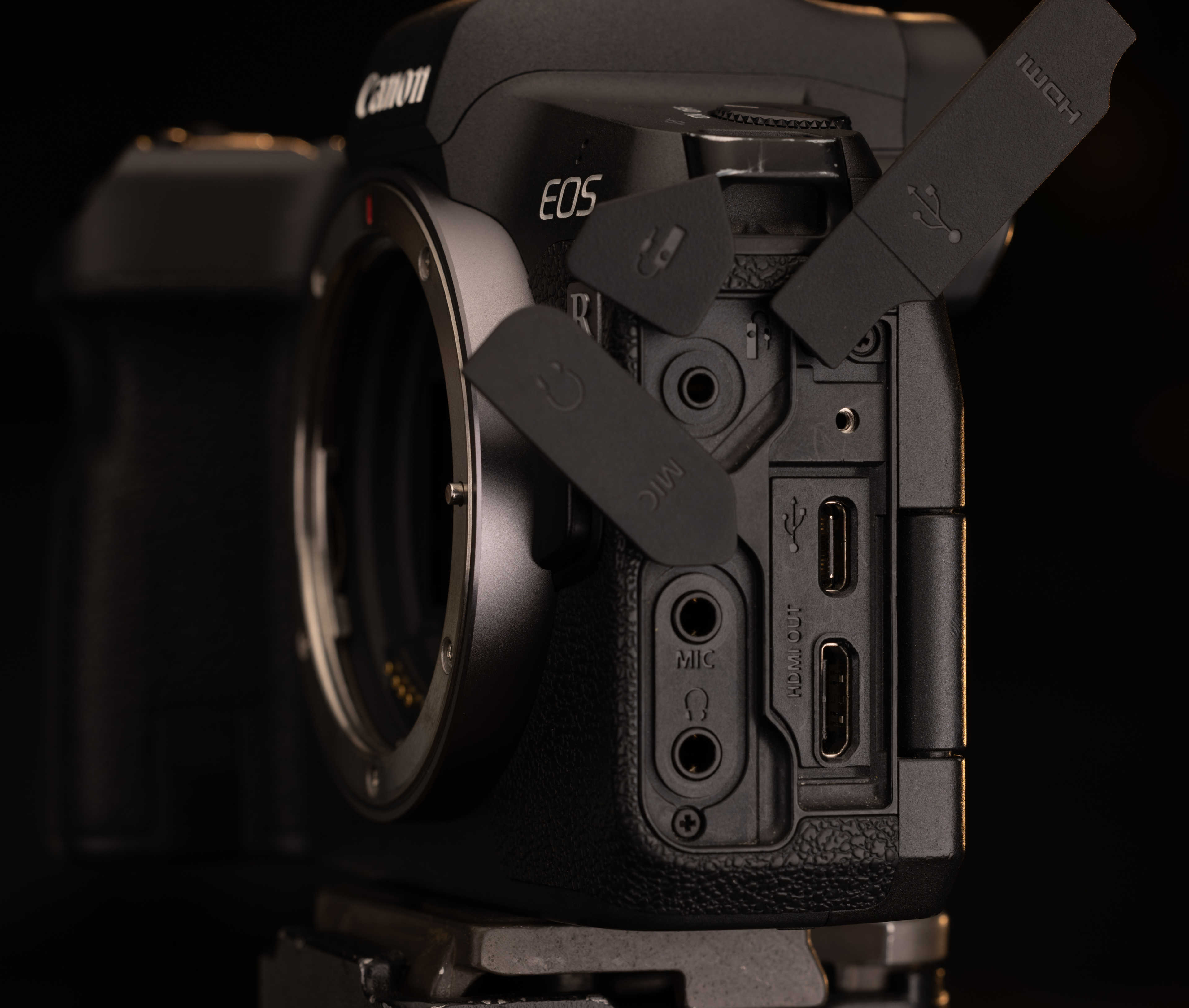

Connectivity
HDMI
HDMI type D (micro).
Audio In
3.5mm mini-jack.
Headphone Output
3.5mm mini-jack.
USB
USB Type C.
Wireless
Wi-Fi, Bluetooth
GPS
No
Physical
Dimensions
138mm x 97.5mm x 88mm.
Weight
738g with battery and media.
Operating Temperature
0 to 40°C
